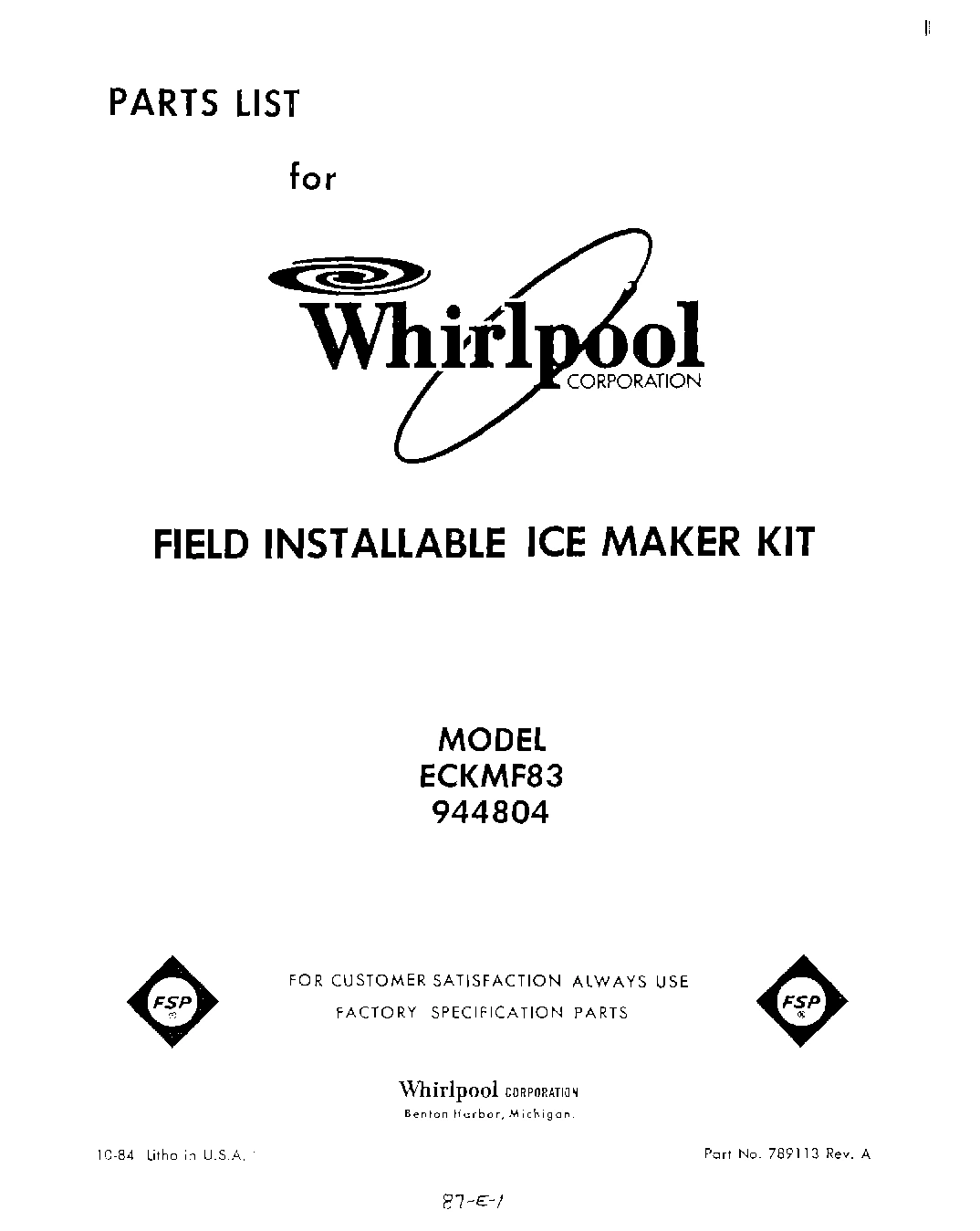

  • Whirlpool ECKMF83

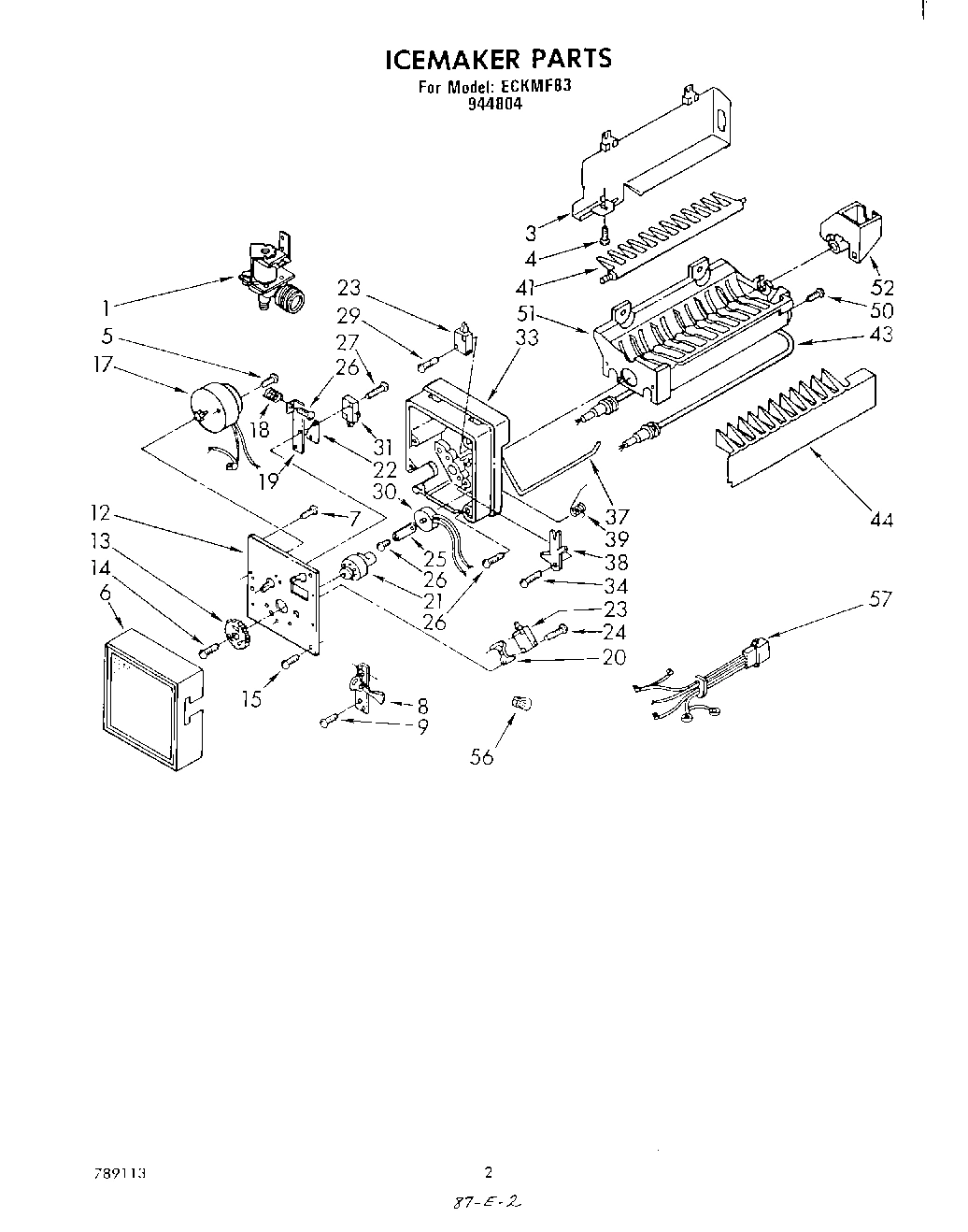

Model Whirlpool ECKMF83 ICEMAKER – Common Parts & Diagrams

xTube Clamp
xTube Clamp WPL 510716 Contact Us For Availability
View on Model
xNut, Inlet Valve
xNut, Inlet Valve WPL 537588 Contact Us For Availability
View on Model
Accessory Bag, Inside
Accessory Bag, Inside WPL 847855 Contact Us For Availability
View on Model
Accessory Bag, Outside
Accessory Bag, Outside WPL 847857 Contact Us For Availability
View on Model
xWater, Inlet Tube
xWater, Inlet Tube WPL 939027 Contact Us For Availability
View on Model
xTube Assembly, Inlet Valve
xTube Assembly, Inlet Valve WPL 944800 Contact Us For Availability
View on Model
Instruction Booklet
Instruction Booklet WPL 944808 Contact Us For Availability
View on Model
3
Heat Shield
Heat Shield WPL 627751 Contact Us For Availability
View on Model
6
Cover
Cover WPL 627651 Contact Us For Availability
View on Model
7
Screw, Ground
Screw, Ground WPL 488542 Contact Us For Availability
View on Model
8
Lever & Plate Assembly
Lever & Plate Assembly WPL 627248 Contact Us For Availability
View on Model
9
Screw, 4-40 x 1/4
Screw, 4-40 x 1/4 WPL 488622 Contact Us For Availability
View on Model
12
Plate, Mounting
Plate, Mounting WPL 627740 Contact Us For Availability
View on Model
13
Gear
Gear WPL 625914 Contact Us For Availability
View on Model
14
Screw
Screw WPL 488957 Contact Us For Availability
View on Model
17
Motor
Motor WPL 625846 Contact Us For Availability
View on Model
18
Spring
Spring WPL 627163 Contact Us For Availability
View on Model
19
Plate, Valve Switch
Plate, Valve Switch WPL 627024 Contact Us For Availability
View on Model
20
Spacer, Holding Switch
Spacer, Holding Switch WPL 625834 Contact Us For Availability
View on Model
21
Cam
Cam WPL 625913 Contact Us For Availability
View on Model
22
Insulator
Insulator WPL 627860 Contact Us For Availability
View on Model
23
Switch, S.P.D.T.
Switch, S.P.D.T. WPL 625851 Contact Us For Availability
View on Model
24
Screw, 4-40 x 1
Screw, 4-40 x 1 WPL 488361 Contact Us For Availability
View on Model
25
Clamp (Alternate)
Clamp (Alternate) WPL 625829 Contact Us For Availability
View on Model
26
Screw, 8-32 x 1
Screw, 8-32 x 1 WPL 488372 Contact Us For Availability
View on Model
27
Screw, 4-40 x 3/4
Screw, 4-40 x 3/4 WPL 488362 Contact Us For Availability
View on Model
29
Screw, 4-24 x 3/4
Screw, 4-24 x 3/4 WPL 488360 Contact Us For Availability
View on Model
30
Thermostat
Thermostat WPL 625844 Contact Us For Availability
View on Model
31
Switch, S.P.S.T.
Switch, S.P.S.T. WPL 625947 Contact Us For Availability
View on Model
33
Support
Support WPL 625827 Contact Us For Availability
View on Model
34
Screw, Shoulder
Screw, Shoulder WPL 627199 Contact Us For Availability
View on Model
37
Arm, Shut-Off
Arm, Shut-Off WPL 627003 Contact Us For Availability
View on Model
38
Arm, Lever
Arm, Lever WPL 625830 Contact Us For Availability
View on Model
39
Spring, Shut-Off Arm
Spring, Shut-Off Arm WPL 625832 Contact Us For Availability
View on Model
41
Ejector
Ejector WPL 627375 Contact Us For Availability
View on Model
43
Heater, Mold
Heater, Mold WPL 625843 Contact Us For Availability
View on Model
44
Stripper, Ice
Stripper, Ice WPL 625840 Contact Us For Availability
View on Model
50
Screw, 8-16 x 3/8
Screw, 8-16 x 3/8 WPL 488896 Contact Us For Availability
View on Model
51
Mold & Heater Assembly (Includes Illus. 43)
Mold & Heater Assembly (Includes Illus. 43) WPL 625856 Contact Us For Availability
View on Model
52
Bearing & Inlet
Bearing & Inlet WPL 544304 Contact Us For Availability
View on Model
56
Connector Wire
Connector Wire WPL 227991 Contact Us For Availability
View on Model
57
Harness, Wiring
Harness, Wiring WPL 627750 Contact Us For Availability
View on Model
57
Trim, Ice Cube Pan
Trim, Ice Cube Pan WPL 837142 Contact Us For Availability
View on Model
