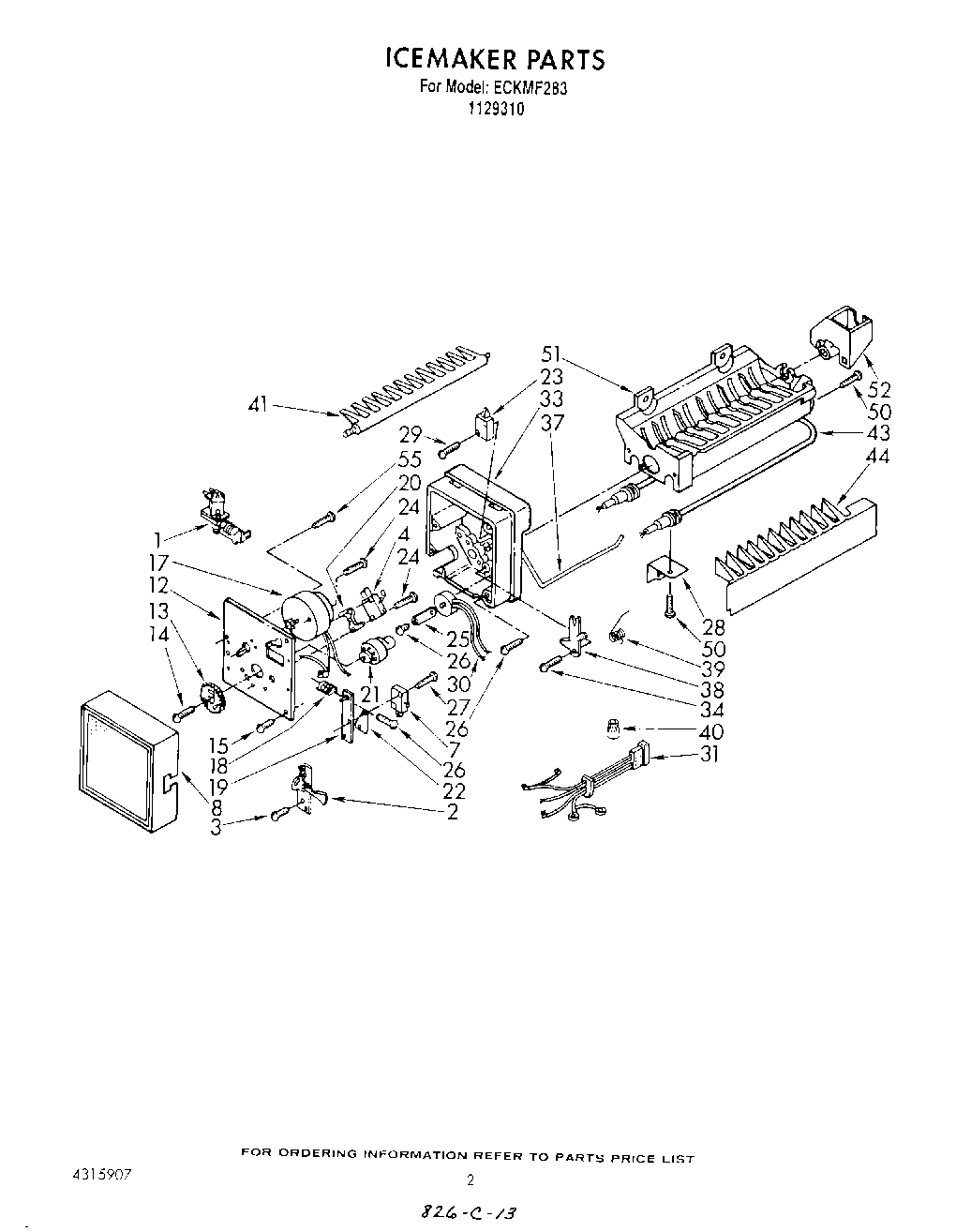

Model Whirlpool ECKMF283 ICEMAKER – Common Parts & Diagrams

xTube Clamp
xTube Clamp WPL 510716 Contact Us For Availability
View on Model
xNut, Inlet Valve
xNut, Inlet Valve WPL 537588 Contact Us For Availability
View on Model
Support Clip (2)
Support Clip (2) WPL 538533 Contact Us For Availability
View on Model
xTube Assembly, Inlet Valve
xTube Assembly, Inlet Valve WPL 627854 Contact Us For Availability
View on Model
xxAccessory Bag, Inside Parts
xxAccessory Bag, Inside Parts WPL 847635 Contact Us For Availability
View on Model
xClamp
xClamp WPL 939009 Contact Us For Availability
View on Model
xxWater Inlet Tube
xxWater Inlet Tube WPL 939027 Contact Us For Availability
View on Model
xGrommet,
xGrommet, WPL 939033 Contact Us For Availability
View on Model
WPL LIT1108155
WPL LIT1108155 WPL LIT1108155 Contact Us For Availability
View on Model
WPL LIT4315907
WPL LIT4315907 WPL LIT4315907 Contact Us For Availability
View on Model
2
Lever & Plate Assembly
Lever & Plate Assembly WPL 627248 Contact Us For Availability
View on Model
3
Screw, 4-40 x 1/4
Screw, 4-40 x 1/4 WPL 488622 Contact Us For Availability
View on Model
4
Switch, S.P.D.T.
Switch, S.P.D.T. WPL 627848 Contact Us For Availability
View on Model
7
Switch, S.P.S.T.
Switch, S.P.S.T. WPL 625947 Contact Us For Availability
View on Model
8
Cover
Cover WPL 627651 Contact Us For Availability
View on Model
12
Plate, Mounting
Plate, Mounting WPL 627740 Contact Us For Availability
View on Model
13
Gear
Gear WPL 628210 Contact Us For Availability
View on Model
14
Screw
Screw WPL 488957 Contact Us For Availability
View on Model
17
Motor
Motor WPL 625846 Contact Us For Availability
View on Model
18
Spring
Spring WPL 627163 Contact Us For Availability
View on Model
19
Plate, Valve Switch
Plate, Valve Switch WPL 627024 Contact Us For Availability
View on Model
20
Spacer, Holding Switch
Spacer, Holding Switch WPL 625834 Contact Us For Availability
View on Model
21
Cam
Cam WPL 625913 Contact Us For Availability
View on Model
22
Insulator
Insulator WPL 627680 Contact Us For Availability
View on Model
23
Switch, S.P.D.T.
Switch, S.P.D.T. WPL 625851 Contact Us For Availability
View on Model
24
Screw, 4-40 x 1 (Use W/625846 Motor)
Screw, 4-40 x 1 (Use W/625846 Motor) WPL 488361 Contact Us For Availability
View on Model
25
Clamp
Clamp WPL 625829 Contact Us For Availability
View on Model
26
Screw, 8-32 x 1
Screw, 8-32 x 1 WPL 488372 Contact Us For Availability
View on Model
27
Screw, 4-40 X 3/4 (2)
Screw, 4-40 X 3/4 (2) WPL 488362 Contact Us For Availability
View on Model
29
Screw, 4-24 x 3/4 (2)
Screw, 4-24 x 3/4 (2) WPL 488360 Contact Us For Availability
View on Model
30
Thermostat
Thermostat WPL 625844 Contact Us For Availability
View on Model
31
Harness Wiring
Harness Wiring WPL 627695 Contact Us For Availability
View on Model
33
Support
Support WPL 625827 Contact Us For Availability
View on Model
34
Screw, Shoulder
Screw, Shoulder WPL 627199 Contact Us For Availability
View on Model
37
Arm, Shut-Off
Arm, Shut-Off WPL 627003 Contact Us For Availability
View on Model
38
Lever, Arm
Lever, Arm WPL 625830 Contact Us For Availability
View on Model
39
Spring, Shut-Off Arm
Spring, Shut-Off Arm WPL 625832 Contact Us For Availability
View on Model
40
Connector Wire
Connector Wire WPL 227991 Contact Us For Availability
View on Model
41
Ejector
Ejector WPL 627375 Contact Us For Availability
View on Model
43
Heater, Mold
Heater, Mold WPL 625843 Contact Us For Availability
View on Model
44
Stripper, Ice
Stripper, Ice WPL 625840 Contact Us For Availability
View on Model
51
Mold & Heater Assembly (Includes Illus. 43)
Mold & Heater Assembly (Includes Illus. 43) WPL 625856 Contact Us For Availability
View on Model
52
Beraing & Inlet
Beraing & Inlet WPL 544304 Contact Us For Availability
View on Model
55
Screw, Ground
Screw, Ground WPL 488542 Contact Us For Availability
View on Model
55
Trim, Pan
Trim, Pan WPL 837142 Contact Us For Availability
View on Model
55
Heat Shield
Heat Shield WPL 939025 Contact Us For Availability
View on Model
55
Wiring Assembly, Icemaker
Wiring Assembly, Icemaker WPL 939029 Contact Us For Availability
View on Model
