Model Electrolux ECFI3068ASA RANGE/OVEN, INDUCTION, FREESTANDING, 30 INCH – Common Parts & Diagrams

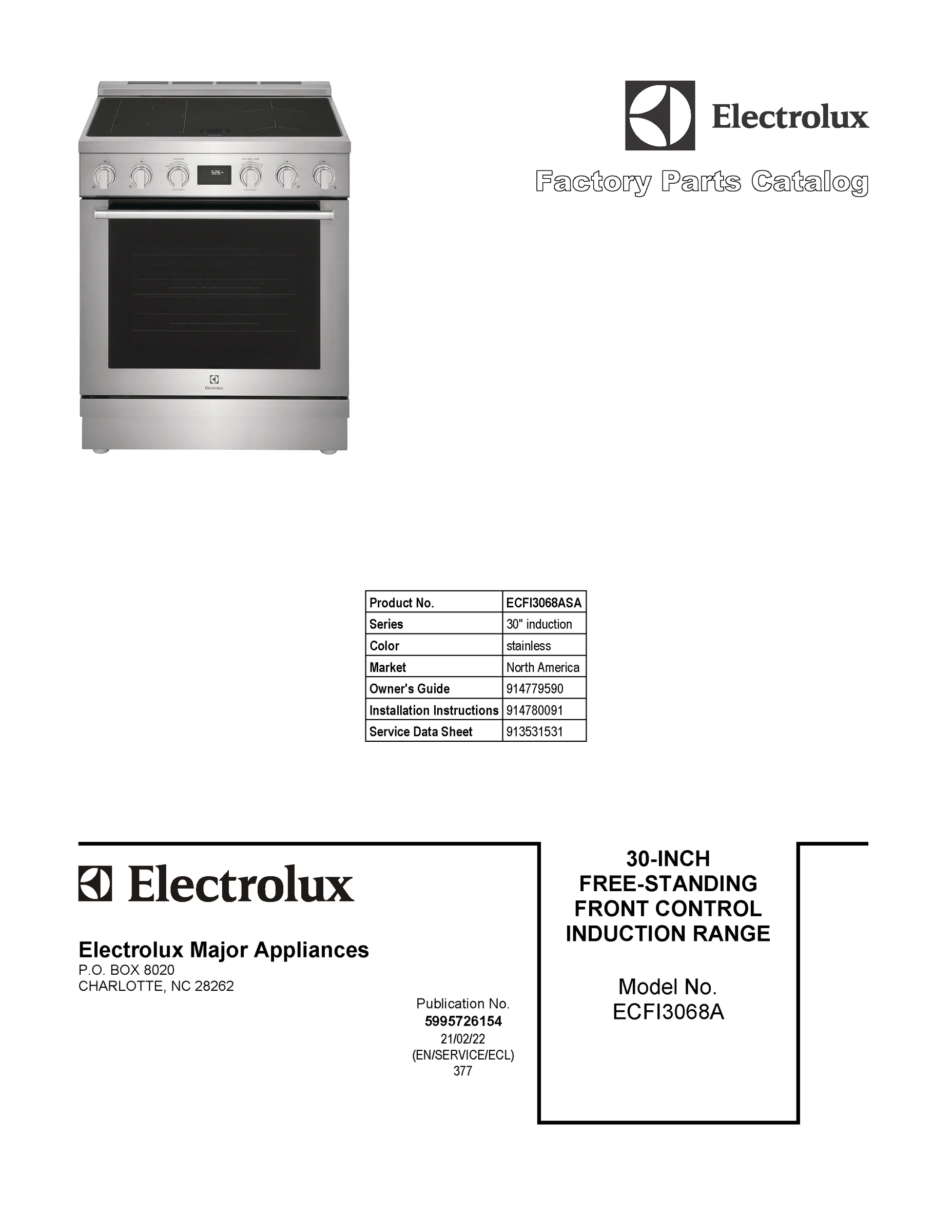

01 - COVER SHEET

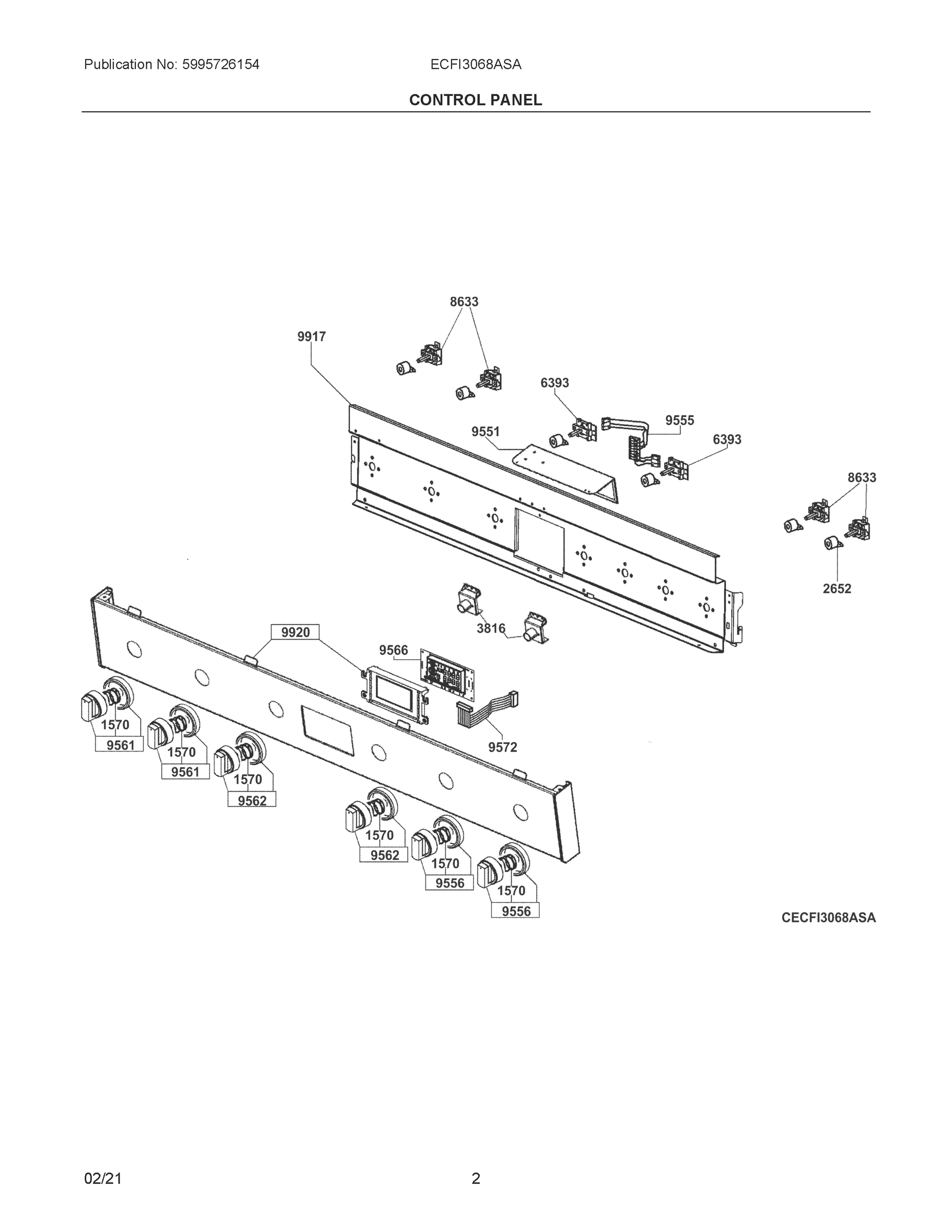

02 - CONTROL PANEL

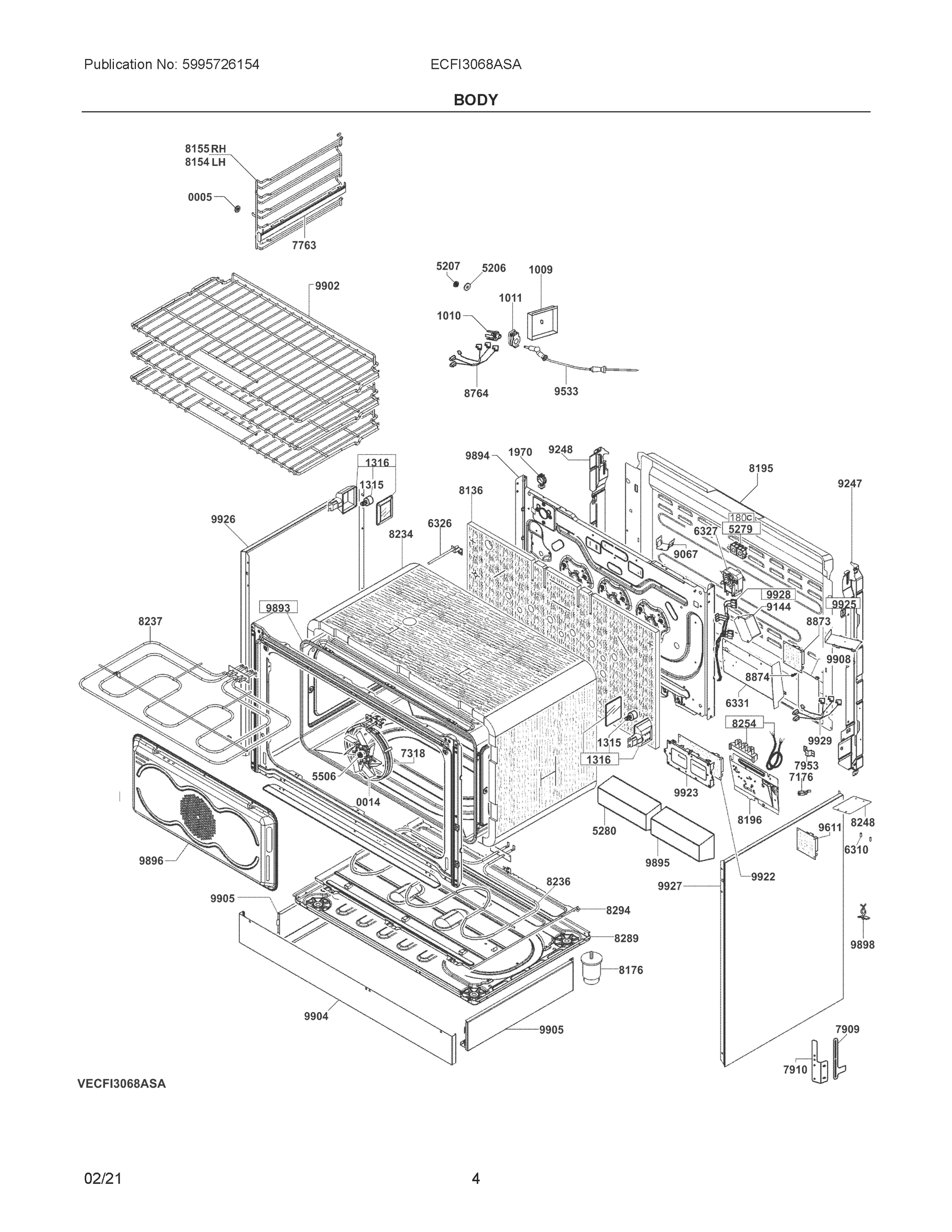

03 - BODY

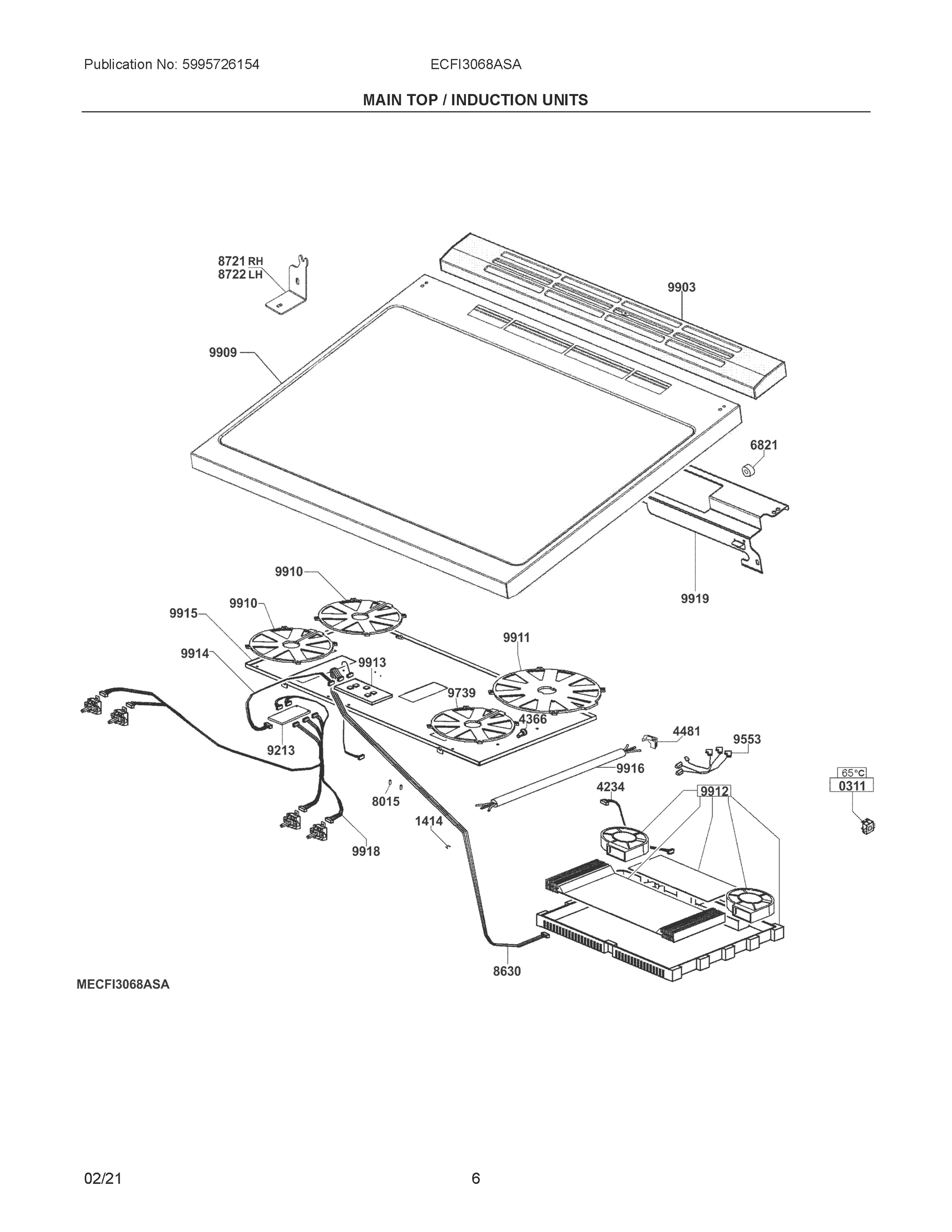

04 - MAIN TOP / INDUCTION UNITS

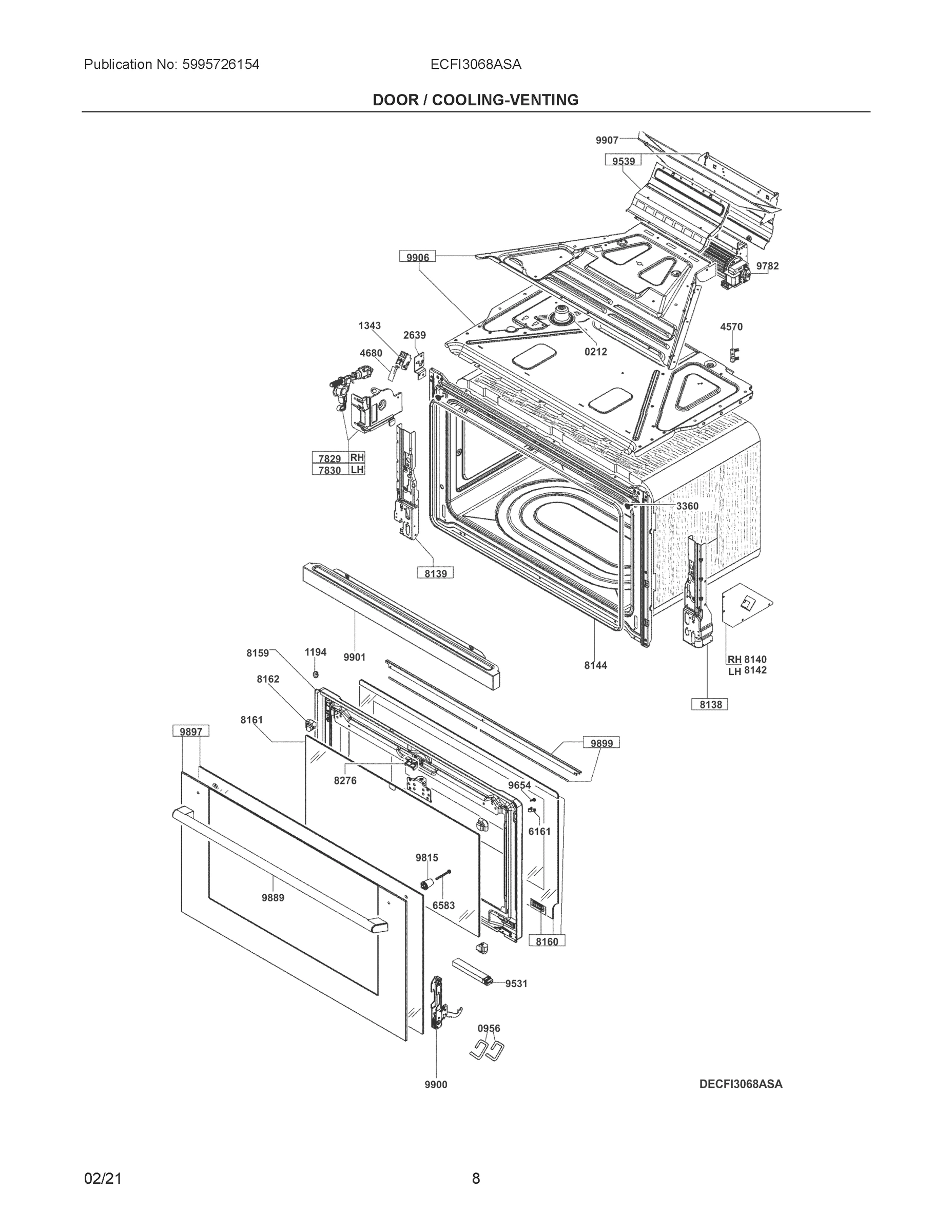

05 - DOOR / COOLING-VENTING

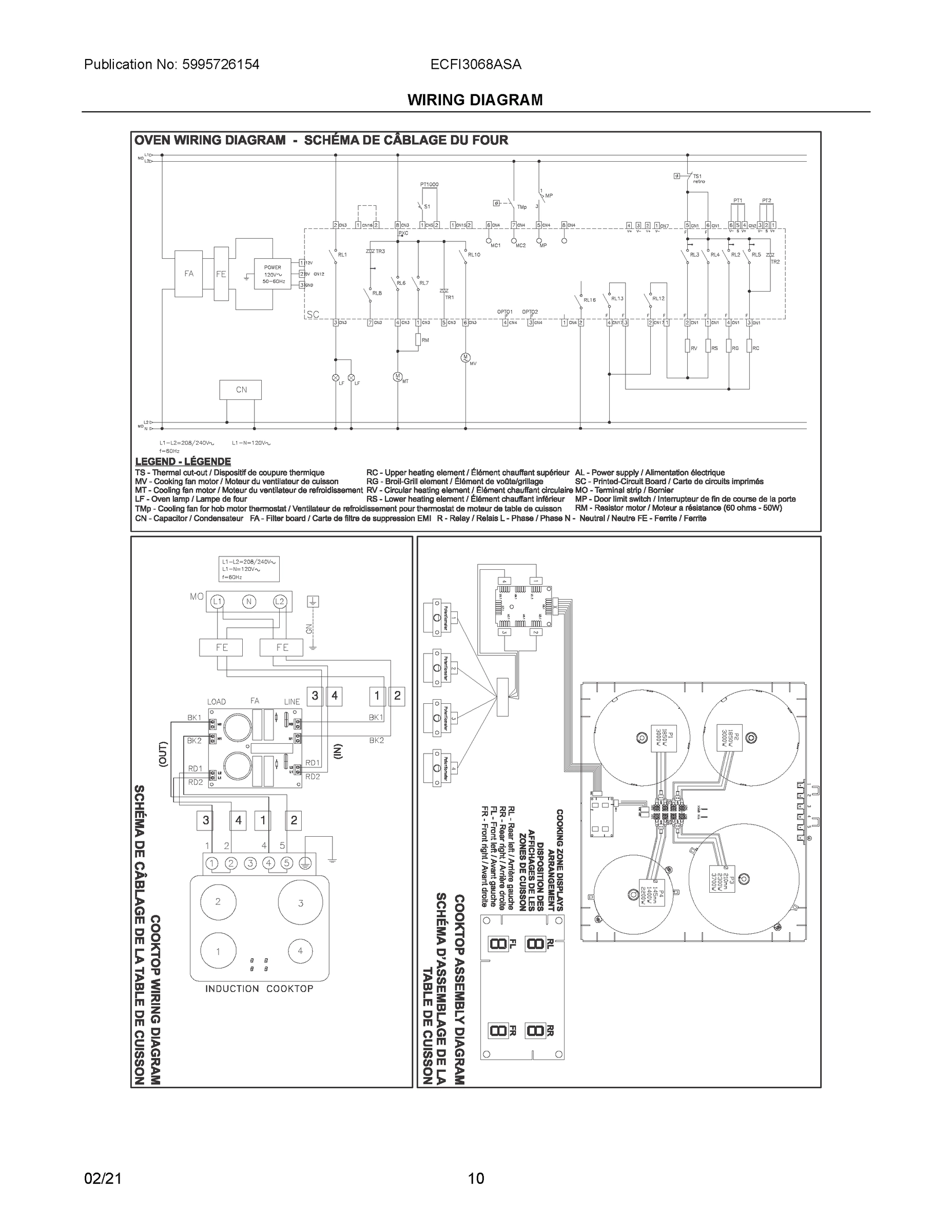

06 - WIRING DIAGRAM

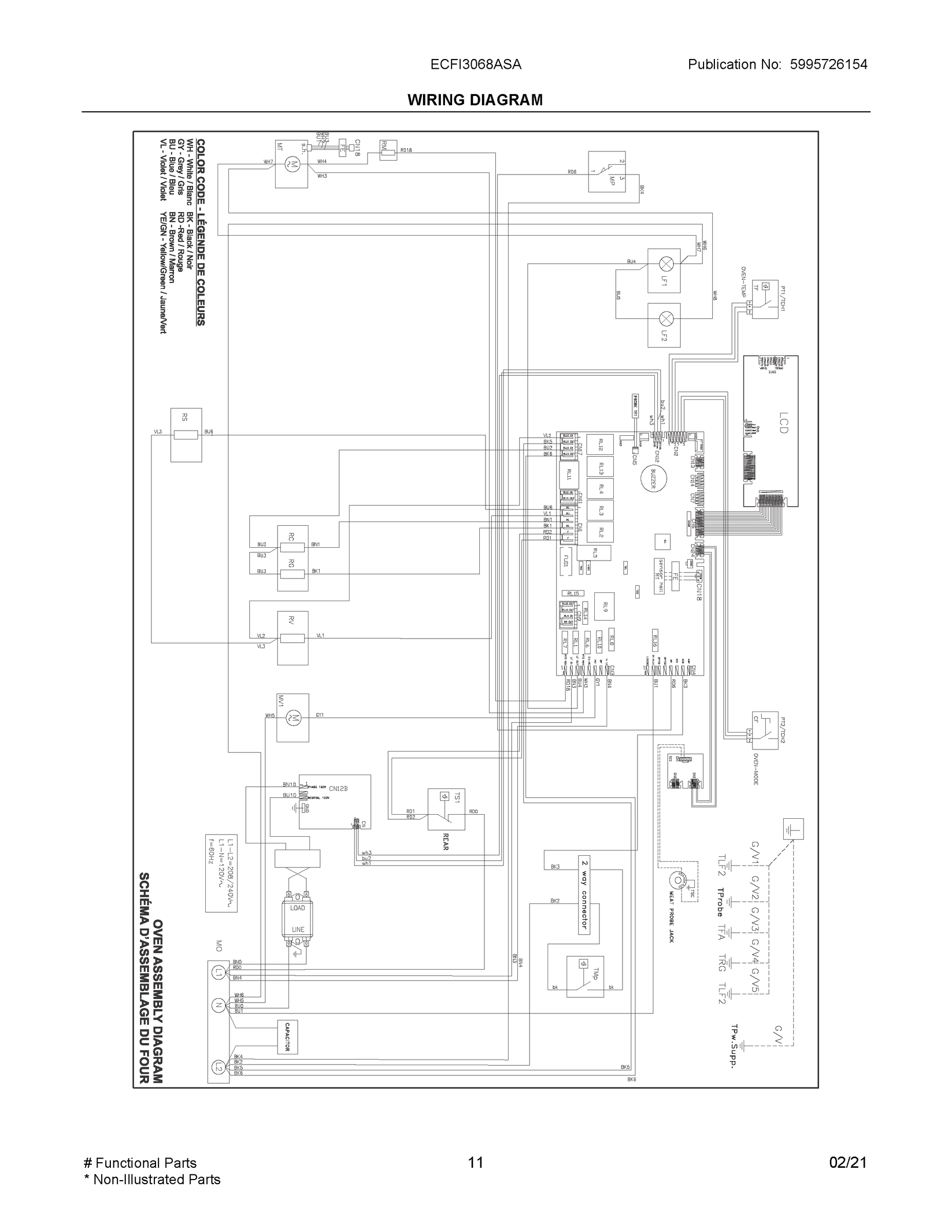

07 - WIRING DIAGRAM
Common parts from model Electrolux ECFI3068ASA RANGE/OVEN, INDUCTION, FREESTANDING, 30 INCH
5
BUSHING, RACK SUPPORT, (4) WCI 5304527453 Contact Us For Availability
212
CHIMNEY, OVEN CATALYST WCI 5304527455 Contact Us For Availability
1009
SHIELD, PROBE, PROTECTION BOX WCI 5304527480 Contact Us For Availability
1194
WASHER, DOOR, (2) WCI 5304527442 Contact Us For Availability
1315
BULB, OVEN LAMP, HALOGEN, 40W, 120V, (2) WCI 5304527465 Contact Us For Availability
1316
LAMP ASSEMBLY, HALOGEN, OVEN, 40W, 120V, (2), WCI 5304527466 Contact Us For Availability
1414
LINK, JUNCTION BOX WCI 5304527775 Contact Us For Availability
1970
CLAMP, CABLE, (6) WCI 5304527468 Contact Us For Availability
2639
BRACKET, MICROSWITCH, DOOR WCI 5304527469 Contact Us For Availability
2652
RING, KNOB, (4) WCI 5304527779 Contact Us For Availability
4366
SPACER, (7) WCI 5304527776 Contact Us For Availability
4481
CLAMP, CABLE WCI 5304527773 Contact Us For Availability
5206
WASHER WCI 5304527489 Contact Us For Availability
5207
NUT WCI 5304527490 Contact Us For Availability
5280
COUNTERWEIGHT, (2) WCI 5304527475 Contact Us For Availability
6161
SPRING, PIVOT FIXING, DOOR, (4) WCI 5304527446 Contact Us For Availability
6310
SPACER, (4) WCI 5304527491 Contact Us For Availability
6583
SCREW, TSC ZINC, M5 X 45, (2), DOOR HANDLE WCI 5304527452 Contact Us For Availability
6821
SPACER, FRAME, REAR, (2) WCI 5304527440 Contact Us For Availability
7176
CLAMP, HOSE, RTE12000 WCI 5304527437 Contact Us For Availability
7318
ELEMENT, CONVECTION, 2700W WCI 5304527496 Contact Us For Availability
7829
SHOCK ABSORBER, ASSEMBLY, DOOR-RH, W/BRACKET WCI 5304527499 Contact Us For Availability
7953
BRACKET, ATTACHMENT WCI 5304527503 Contact Us For Availability
8015
SPACER, ELECTRONIC UNIT, (3) WCI 5304527772 Contact Us For Availability
8136
INSULATION, OVEN, BACK WCI 5304527506 Contact Us For Availability
8138
BRACKET, COLUMN, RH FRONT WCI 5304527507 Contact Us For Availability
8139
BRACKET, COLUMN, LH FRONT WCI 5304527508 Contact Us For Availability
8140
REINFORCEMENT, COLUMN, RH WCI 5304527509 Contact Us For Availability
8142
REINFORCEMENT, COLUMN, LH WCI 5304527510 Contact Us For Availability
8144
GASKET, OVEN DOOR WCI 5304527511 Contact Us For Availability
8154
LADDER SUPPORT, OVEN RACK, LH WCI 5304527512 Contact Us For Availability
8155
LADDER SUPPORT, OVEN RACK, RH WCI 5304527513 Contact Us For Availability
8195
PANEL, MAIN BACK WCI 5304527519 Contact Us For Availability
8234
INSULATION, OVEN WRAPPER WCI 5304527521 Contact Us For Availability
8237
ELEMENT, BROIL, UPPER, 3300W WCI 5304527523 Contact Us For Availability
8248
SHIELD, FEEDER BOARD WCI 5304527524 Contact Us For Availability
8276
CATCH, DOOR LATCH, INNER WCI 5304527464 Contact Us For Availability
8289
BASE, OVEN BOTTOM WCI 5304527526 Contact Us For Availability
8294
BURNER BOX, SUPPORT, HIDDEN BAKE WCI 5304527527 Contact Us For Availability
8721
BRACKET, RH WCI 5304527528 Contact Us For Availability
8722
BRACKET, LH WCI 5304527529 Contact Us For Availability
8874
SPACER, PC BOARD, (5) WCI 5304527533 Contact Us For Availability
9067
BRACKET, FILTER WCI 5304527782 Contact Us For Availability
9144
WCI 5304527783 WCI 5304527783 Contact Us For Availability
9247
WCI 5304527457 WCI 5304527457 Contact Us For Availability
9248
WCI 5304527458 WCI 5304527458 Contact Us For Availability
9531
REINFORCEMENT, DOOR, (2) WCI 5304527534 Contact Us For Availability
9539
SUPPORT, ASSEMBLY WCI 5304527784 Contact Us For Availability
9551
SHIELD, POTENTIOMETERS, OVEN CONTROL WCI 5304527785 Contact Us For Availability
9556
KNOB ASSEMBLY, INDUCTION UNIT, W/SPRING-SKIRT WCI 5304527787 Contact Us For Availability
9561
KNOB ASSEMBLY, INDUCTION UNIT, W/SPRING-SKIRT WCI 5304527788 Contact Us For Availability
9739
ELEMENT, INDUCTION, 5 7/10", 1400/2200 WATTS WCI 5304527774 Contact Us For Availability
9815
SPACER, DOOR HANDLE, INNER, (2) WCI 5304527554 Contact Us For Availability
9889
HANDLE, OVEN DOOR, STAINLESS WCI 5304527559 Contact Us For Availability
9893
WCI 5304527555 WCI 5304527555 Contact Us For Availability
9894
WCI 5304527556 WCI 5304527556 Contact Us For Availability
9895
WCI 5304527789 WCI 5304527789 Contact Us For Availability
9896
WCI 5304527557 WCI 5304527557 Contact Us For Availability
9898
WCI 5304527444 WCI 5304527444 Contact Us For Availability
9900
HINGE, OVEN DOOR, (2) WCI 5304527561 Contact Us For Availability
9905
WCI 5304527565 WCI 5304527565 Contact Us For Availability
9906
AIR DUCT, ASSEMBLY, COOLING FAN WCI 5304527566 Contact Us For Availability
9907
EXTENSION, AIR DUCT WCI 5304527567 Contact Us For Availability
9908
WCI 5304527568 WCI 5304527568 Contact Us For Availability
9909
SMOOTH TOP, ASSEMBLY, GLASS/STEEL, BLACK/STAI WCI 5304527791 Contact Us For Availability
9911
ELEMENT, INDUCTION, 8 3/10", 2300/3700 WATTS, WCI 5304527793 Contact Us For Availability
9915
CARRIER PANEL, INDUCTION UNITS WCI 5304527797 Contact Us For Availability
9916
HARNESS, WIRING WCI 5304527798 Contact Us For Availability
9917
PANEL, CONTROL SUPPORT WCI 5304527799 Contact Us For Availability
9919
SUPPORT, COOK TOP, REAR WCI 5304527569 Contact Us For Availability
9923
WCI 5304527571 WCI 5304527571 Contact Us For Availability
9925
WCI 5304527572 WCI 5304527572 Contact Us For Availability
9926
WCI 5304527573 WCI 5304527573 Contact Us For Availability
9928
WCI 5304527802 WCI 5304527802 Contact Us For Availability
× ![]()
