Model Electrolux ECFG3068ASA RANGE/OVEN, GAS, FREESTANDING, 30 INCH – Common Parts & Diagrams

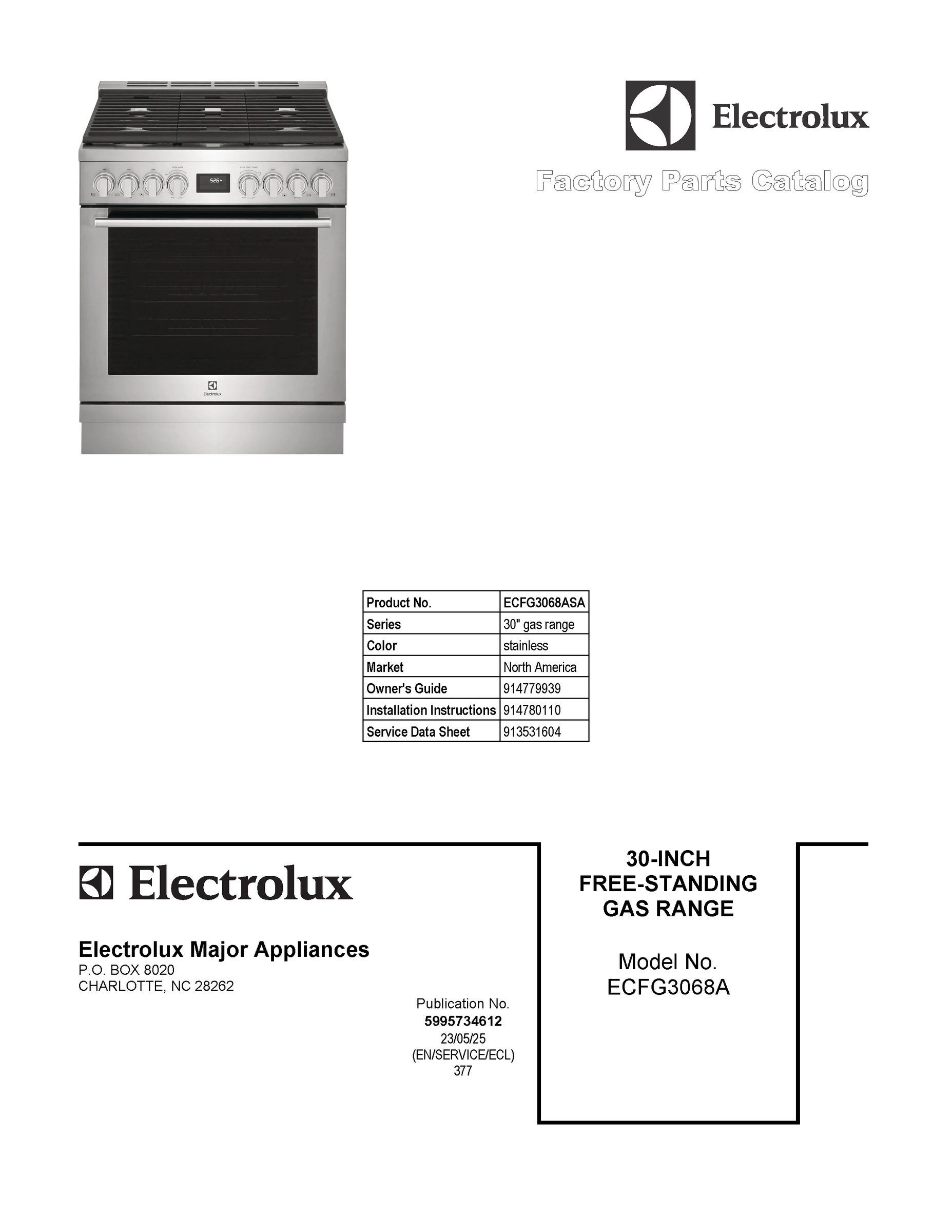

01 - COVER SHEET

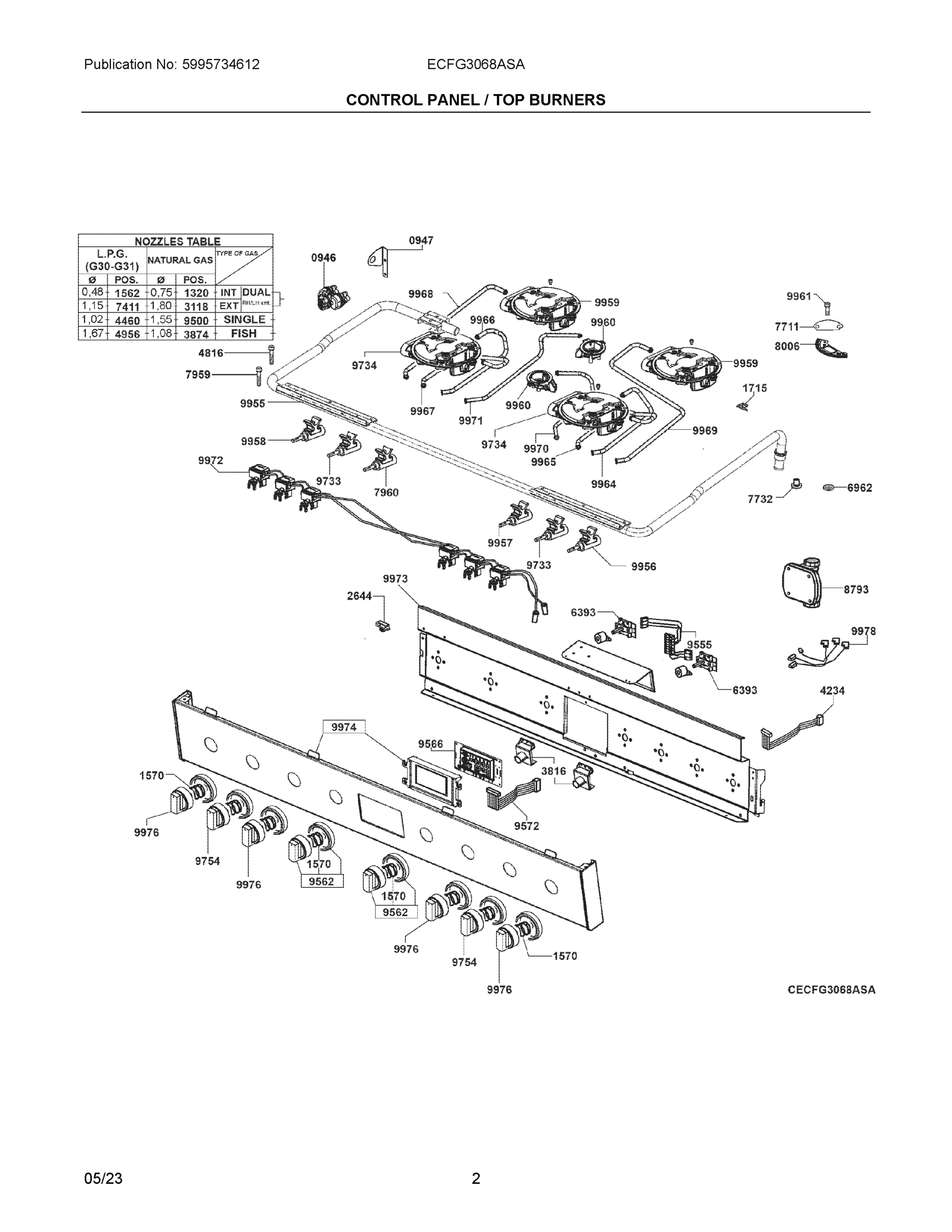

02 - CONTROL PANEL / TOP BURNERS

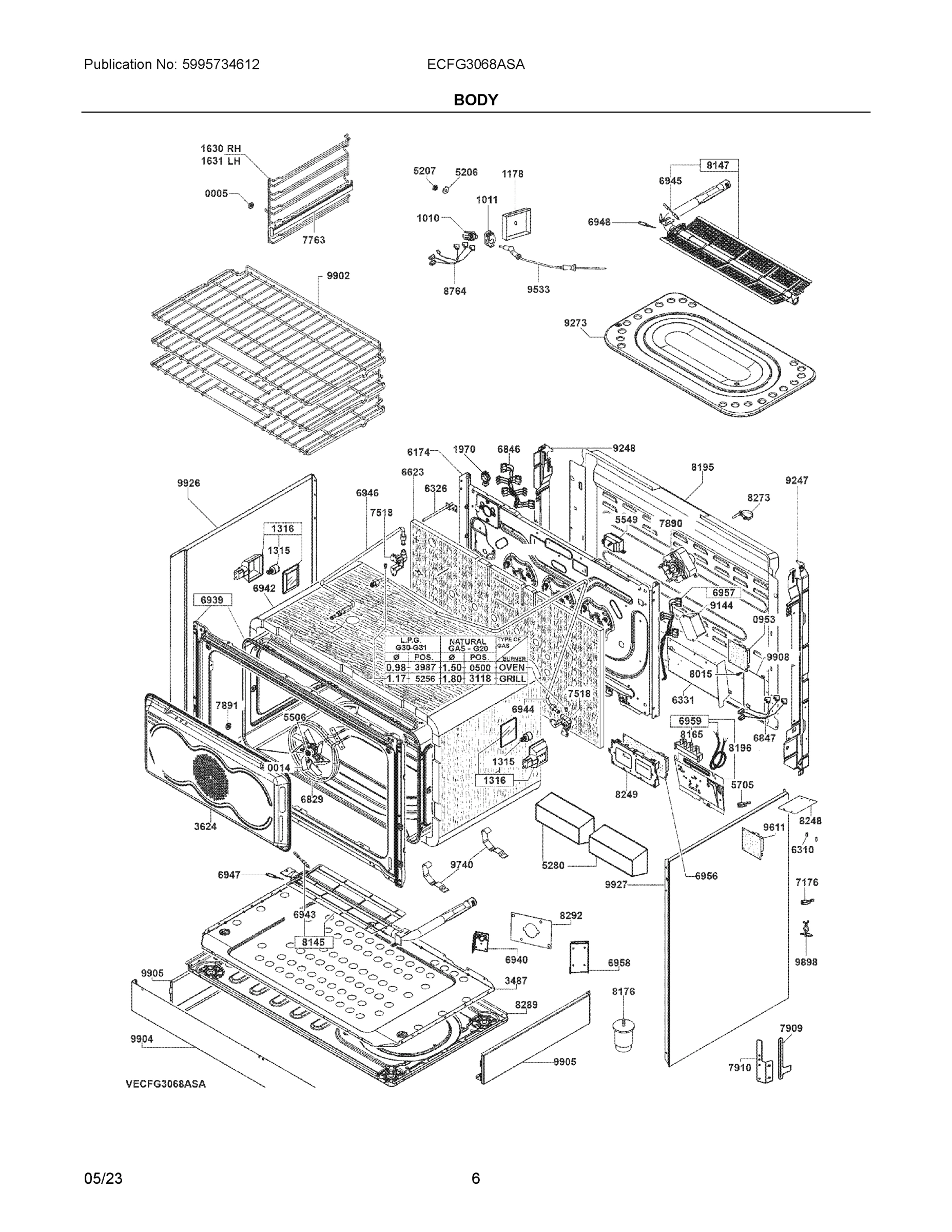

03 - BODY

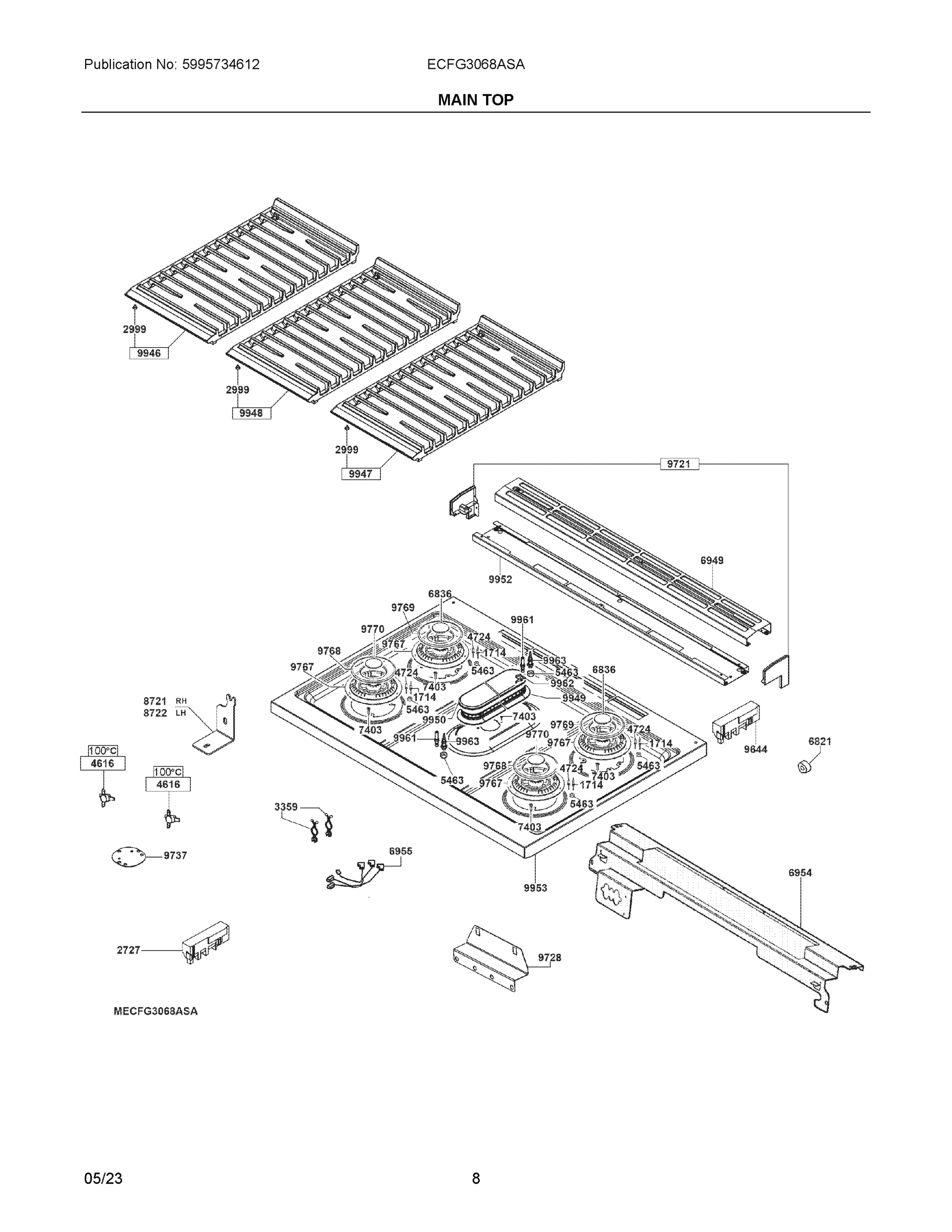

04 - MAIN TOP

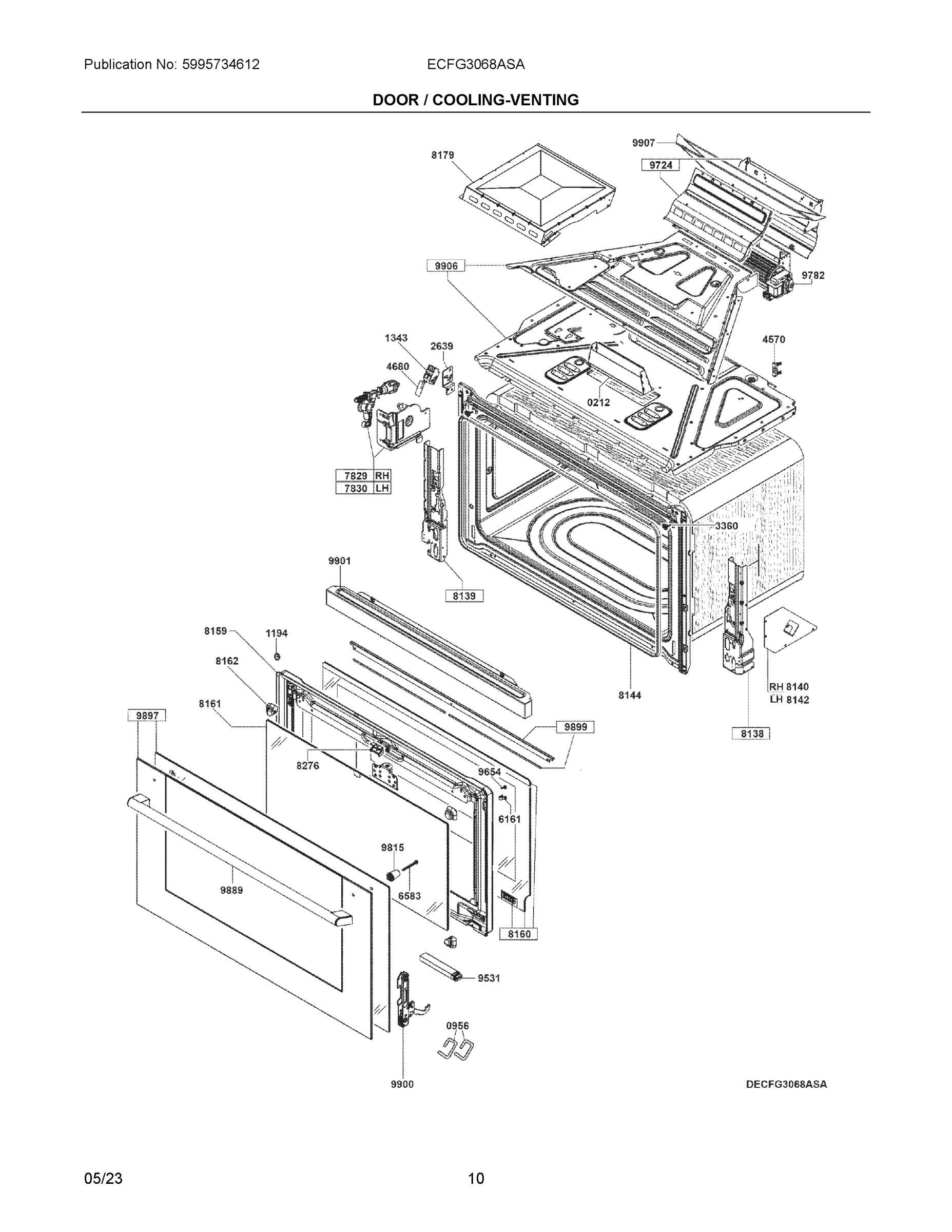

05 - DOOR / COOLING-VENTING

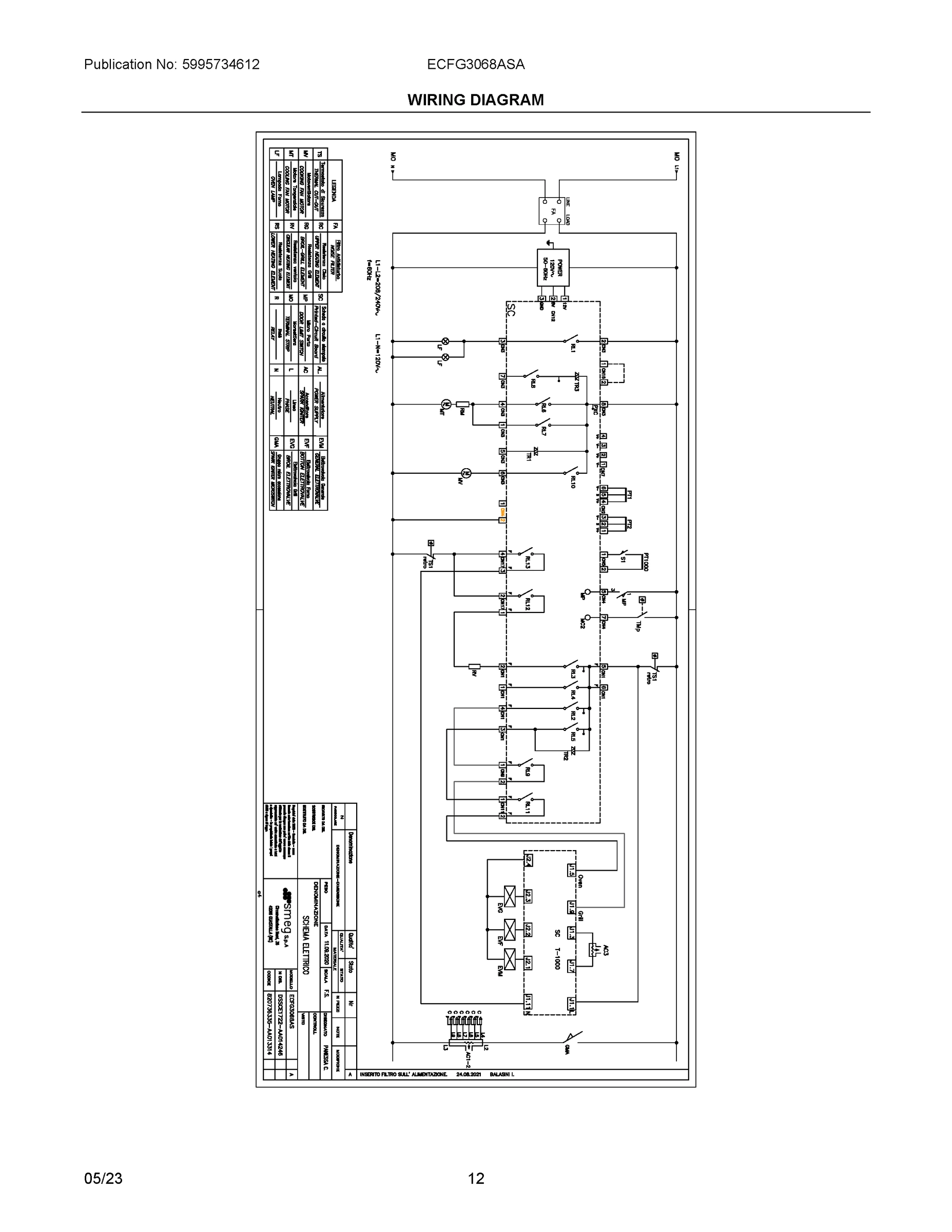

06 - WIRING DIAGRAM

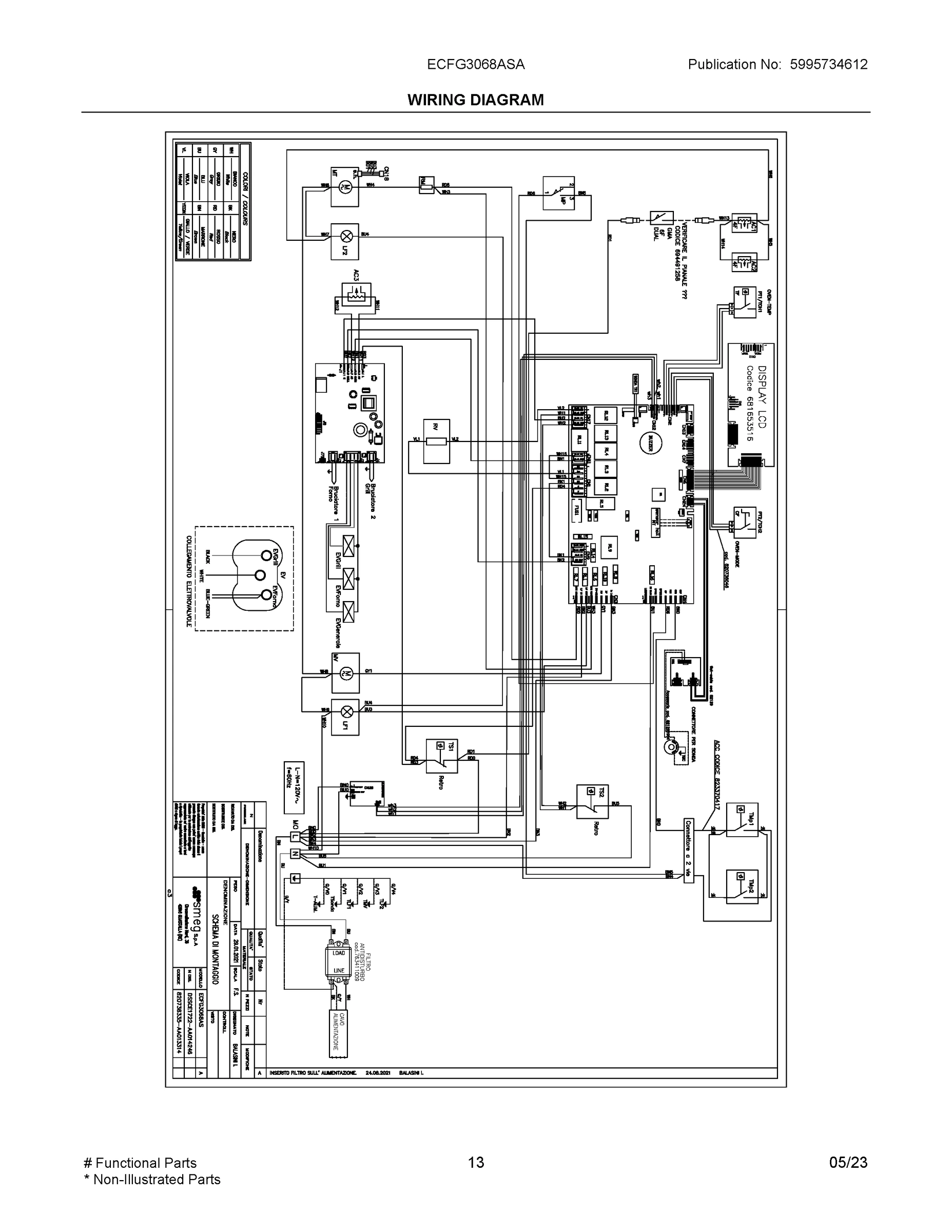

07 - WIRING DIAGRAM
Common parts from model Electrolux ECFG3068ASA RANGE/OVEN, GAS, FREESTANDING, 30 INCH
5
BUSHING, RACK SUPPORT WCI 5304527453 Contact Us For Availability
212
CHIMNEY, OVEN VENT WCI 5304532686 Contact Us For Availability
500
NOZZLE, NATURAL GAS, D. 1.50, OVEN BAKE WCI 5304532676 Contact Us For Availability
946
VALVE, SOLENOID, 2 WAY WCI 5304532683 Contact Us For Availability
947
BRACKET, VALVE SUPPORT WCI 5304532684 Contact Us For Availability
1194
WASHER, DOOR WCI 5304527442 Contact Us For Availability
1315
BULB, OVEN LAMP, HALOGEN, 40W, 120V, (2) WCI 5304527465 Contact Us For Availability
1316
LAMP ASSEMBLY, HALOGEN, OVEN, 40W, 120V, (2), WCI 5304527466 Contact Us For Availability
1570
SPRING, KNOB, BURNER WCI 5304532675 Contact Us For Availability
1630
TRACK, OVEN RACK, RH WCI 5304532693 Contact Us For Availability
1631
TRACK, OVEN RACK, LH WCI 5304532694 Contact Us For Availability
1715
SPRING CLIP, BURNER WCI 5304527485 Contact Us For Availability
1970
CLAMP, CABLE, (6) WCI 5304527468 Contact Us For Availability
2639
BRACKET, MICROSWITCH, DOOR WCI 5304527469 Contact Us For Availability
2644
CLAMP, CABLE, (2) WCI 5304527708 Contact Us For Availability
3118
ORIFICE, NATURAL GAS, D.1, 80-18K BTU, EXTERN WCI 5304527435 Contact Us For Availability
3359
CLIP, WIRING, SPARK IGNITOR WCI 5304527470 Contact Us For Availability
3487
BURNER BOX, BAKE, BAKE WCI 5304532695 Contact Us For Availability
3624
COVER, COVECTION FAN WCI 5304532696 Contact Us For Availability
3874
ORIFICE, NATURAL GAS, D.1, 08-10K BTU, (2), S WCI 5304527450 Contact Us For Availability
3987
NOZZLE, LP GAS, D. .098, OVEN BAKE WCI 5304532674 Contact Us For Availability
4460
ORIFICE, LP GAS, D.1, 02-12K BTU, (2), SINGLE WCI 5304527451 Contact Us For Availability
4616
THERMOSTAT, SAFETY, 100 DEG C WCI 5304532672 Contact Us For Availability
4724
IGNITOR, SPARK, TOP BURNER WCI 5304531588 Contact Us For Availability
4816
SCREW, VALVE MTG. WCI 5304532677 Contact Us For Availability
4956
ORIFICE, LP GAS, D.0, 67-10K BTU, (2), SINGLE WCI 5304527441 Contact Us For Availability
5206
WASHER WCI 5304527489 Contact Us For Availability
5207
NUT WCI 5304527490 Contact Us For Availability
5256
ORIFICE, LP GAS, 1.17, OVEN BURNER WCI 5304532679 Contact Us For Availability
5280
COUNTERWEIGHT, (2) WCI 5304527475 Contact Us For Availability
5463
NUT, THERMOCOUPLE, TOP BURNER WCI 5304527445 Contact Us For Availability
5705
CLAMP, WIRING WCI 5304532678 Contact Us For Availability
6161
SPRING, PIVOT FIXING, DOOR WCI 5304527446 Contact Us For Availability
6174
PANEL, BACK, MAIN WCI 5304532697 Contact Us For Availability
6310
SPACER, (4) WCI 5304527491 Contact Us For Availability
6583
SCREW, TSC ZINC, M5 X 45, (2), DOOR HANDLE WCI 5304527452 Contact Us For Availability
6623
INSULATION, OVEN BACK WCI 5304532698 Contact Us For Availability
6821
SPACER, FRAME, REAR, (2) WCI 5304527440 Contact Us For Availability
6829
ELEMENT, CONVECTION WCI 5304532700 Contact Us For Availability
6846
HARNESS, WIRING, LH SIDE WCI 5304532701 Contact Us For Availability
6847
HARNESS, WIRING WCI 5304532702 Contact Us For Availability
6939
LINER, OVEN CAVITY WCI 5304532703 Contact Us For Availability
6940
GUIDE, OVEN BURNER WCI 5304532704 Contact Us For Availability
6940A
COVER, PROTECTION WCI 5304532705 Contact Us For Availability
6942
INSULATION, OVEN WRAPPER WCI 5304532706 Contact Us For Availability
6943
IGNITOR, OVEN BURNER WCI 5304532707 Contact Us For Availability
6944
TUBE, SUPPLY, OVEN BURNER WCI 5304532708 Contact Us For Availability
6945
IGNITOR, GRILL BURNER WCI 5304532709 Contact Us For Availability
6946
TUBE, SUPPLY, GRILL BURNER WCI 5304532710 Contact Us For Availability
6947
THERMOCOUPLE, OVEN BURNER WCI 5304532711 Contact Us For Availability
6948
THERMOCOUPLE, GRILL B WCI 5304532712 Contact Us For Availability
6949
TRIM, VENT COVER, REAR WCI 5304532713 Contact Us For Availability
6954
SUPPORT, COOKTOP, REAR WCI 5304532718 Contact Us For Availability
6955
HARNESS, CABLE, THERMOSTAT WCI 5304532719 Contact Us For Availability
6957
WCI 5304532721 WCI 5304532721 Contact Us For Availability
6958
WCI 5304532722 WCI 5304532722 Contact Us For Availability
6959
WCI 5304532723 WCI 5304532723 Contact Us For Availability
7176
WCI 5304527437 WCI 5304527437 Contact Us For Availability
7403
SCREW, BURNER, M4 X 8 WCI 5304527460 Contact Us For Availability
7518
WCI 5304532673 WCI 5304532673 Contact Us For Availability
7711
PLATE, BURNER WCI 5304527497 Contact Us For Availability
7732
CAP, GAS PIPE WCI 5304527461 Contact Us For Availability
7829
SHOCK ABSORBER, ASSEMBLY, DOOR-RH, W/BRACKET WCI 5304527499 Contact Us For Availability
7890
WCI 5304527722 WCI 5304527722 Contact Us For Availability
7891
WCI 5304531574 WCI 5304531574 Contact Us For Availability
8015
WCI 5304527772 WCI 5304527772 Contact Us For Availability
8138
BRACKET, COLUMN, RH FRONT WCI 5304527507 Contact Us For Availability
8139
BRACKET, COLUMN, LH FRONT WCI 5304527508 Contact Us For Availability
8140
REINFORCEMENT, COLUMN, RH WCI 5304527509 Contact Us For Availability
8142
REINFORCEMENT, COLUMN, LH WCI 5304527510 Contact Us For Availability
8144
GASKET, OVEN DOOR WCI 5304527511 Contact Us For Availability
8145
WCI 5304532687 WCI 5304532687 Contact Us For Availability
8147
WCI 5304532688 WCI 5304532688 Contact Us For Availability
8179
DUCT, COOLING FAN, UPPER WCI 5304532689 Contact Us For Availability
8195
WCI 5304527519 WCI 5304527519 Contact Us For Availability
8248
WCI 5304527524 WCI 5304527524 Contact Us For Availability
8249
WCI 5304532690 WCI 5304532690 Contact Us For Availability
8273
WCI 5304527697 WCI 5304527697 Contact Us For Availability
8276
CATCH, DOOR LATCH, INNER WCI 5304527464 Contact Us For Availability
8289
WCI 5304527526 WCI 5304527526 Contact Us For Availability
8292
WCI 5304532691 WCI 5304532691 Contact Us For Availability
8721
BRACKET, RH WCI 5304527528 Contact Us For Availability
8722
BRACKET, LH WCI 5304527529 Contact Us For Availability
9144
WCI 5304527783 WCI 5304527783 Contact Us For Availability
9247
WCI 5304527457 WCI 5304527457 Contact Us For Availability
9248
WCI 5304527458 WCI 5304527458 Contact Us For Availability
9273
WCI 5304532692 WCI 5304532692 Contact Us For Availability
9500
ORIFICE, NATURAL GAS, D.1, 55-12K BTU, (2), S WCI 5304527439 Contact Us For Availability
9531
REINFORCEMENT, DOOR, (2) WCI 5304527534 Contact Us For Availability
9724
SUPPORT, ASSEMBLY, COOLING MOTOR WCI 5304527542 Contact Us For Availability
9728
BRACKET, SUPPORT, (2) WCI 5304527543 Contact Us For Availability
9737
PLATE, COOK TOP, (2) WCI 5304527547 Contact Us For Availability
9740
WCI 5304532681 WCI 5304532681 Contact Us For Availability
9754
WCI 5304527549 WCI 5304527549 Contact Us For Availability
9815
SPACER, DOOR HANDLE, INNER, (2) WCI 5304527554 Contact Us For Availability
9889
HANDLE, OVEN DOOR, STAINLESS WCI 5304527559 Contact Us For Availability
9898
WCI 5304527444 WCI 5304527444 Contact Us For Availability
9900
HINGE, OVEN DOOR, (2) WCI 5304527561 Contact Us For Availability
9905
WCI 5304527565 WCI 5304527565 Contact Us For Availability
9906
HOUSING, AIR DUCT WCI 5304532714 Contact Us For Availability
9907
EXTENSION, AIR DUCT WCI 5304527567 Contact Us For Availability
9908
WCI 5304527568 WCI 5304527568 Contact Us For Availability
9926
WCI 5304527573 WCI 5304527573 Contact Us For Availability
9948
GRATE, TOP BURNER, BLACK, CENTER, W/BUMPERS WCI 5304527577 Contact Us For Availability
9949
BURNER, SUPPORT, CENTER, (2), FLAME SPREADER WCI 5304527578 Contact Us For Availability
9952
BRACKET, REAR TRIM WCI 5304527581 Contact Us For Availability
9955
WCI 5304532715 WCI 5304532715 Contact Us For Availability
9959
WCI 5304527587 WCI 5304527587 Contact Us For Availability
9960
WCI 5304527588 WCI 5304527588 Contact Us For Availability
9961
WCI 5304527449 WCI 5304527449 Contact Us For Availability
9961
IGNITOR, SPARK, CENTER, (2) WCI 5304527589 Contact Us For Availability
9962
CLIP, SPRING, (5) WCI 5304527590 Contact Us For Availability
9964
WCI 5304527592 WCI 5304527592 Contact Us For Availability
9965
WCI 5304527593 WCI 5304527593 Contact Us For Availability
9966
WCI 5304527594 WCI 5304527594 Contact Us For Availability
9967
WCI 5304527595 WCI 5304527595 Contact Us For Availability
9968
WCI 5304532716 WCI 5304532716 Contact Us For Availability
9969
WCI 5304527597 WCI 5304527597 Contact Us For Availability
9970
WCI 5304527598 WCI 5304527598 Contact Us For Availability
9971
WCI 5304527599 WCI 5304527599 Contact Us For Availability
9973
WCI 5304532717 WCI 5304532717 Contact Us For Availability
× ![]()
