Model Electrolux ECFD3668AS RANGE/OVEN, DUAL FUEL, FREESTANDING, 36 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - CONTROL PANEL / TOP BURNER GAS CONFIGURATION

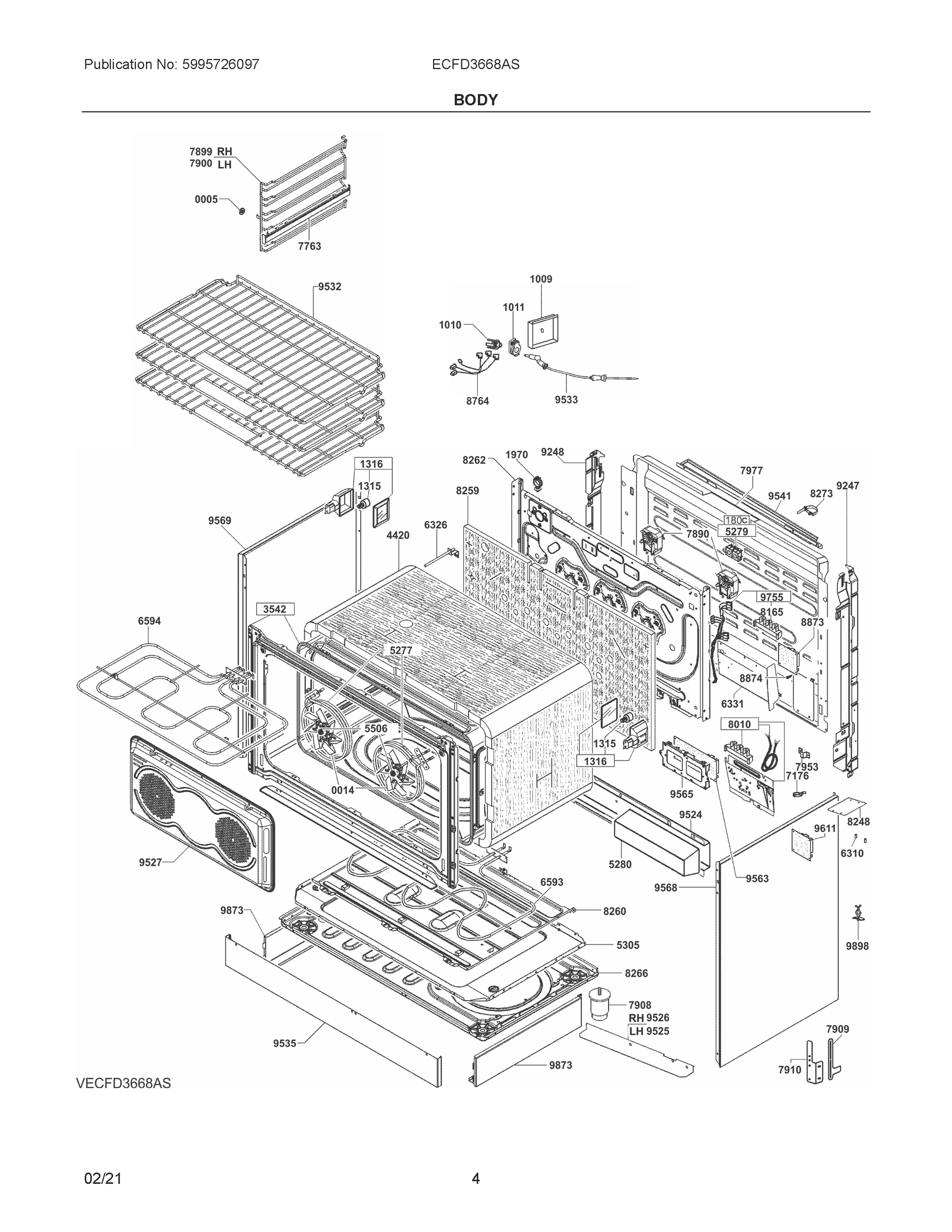

03 - BODY

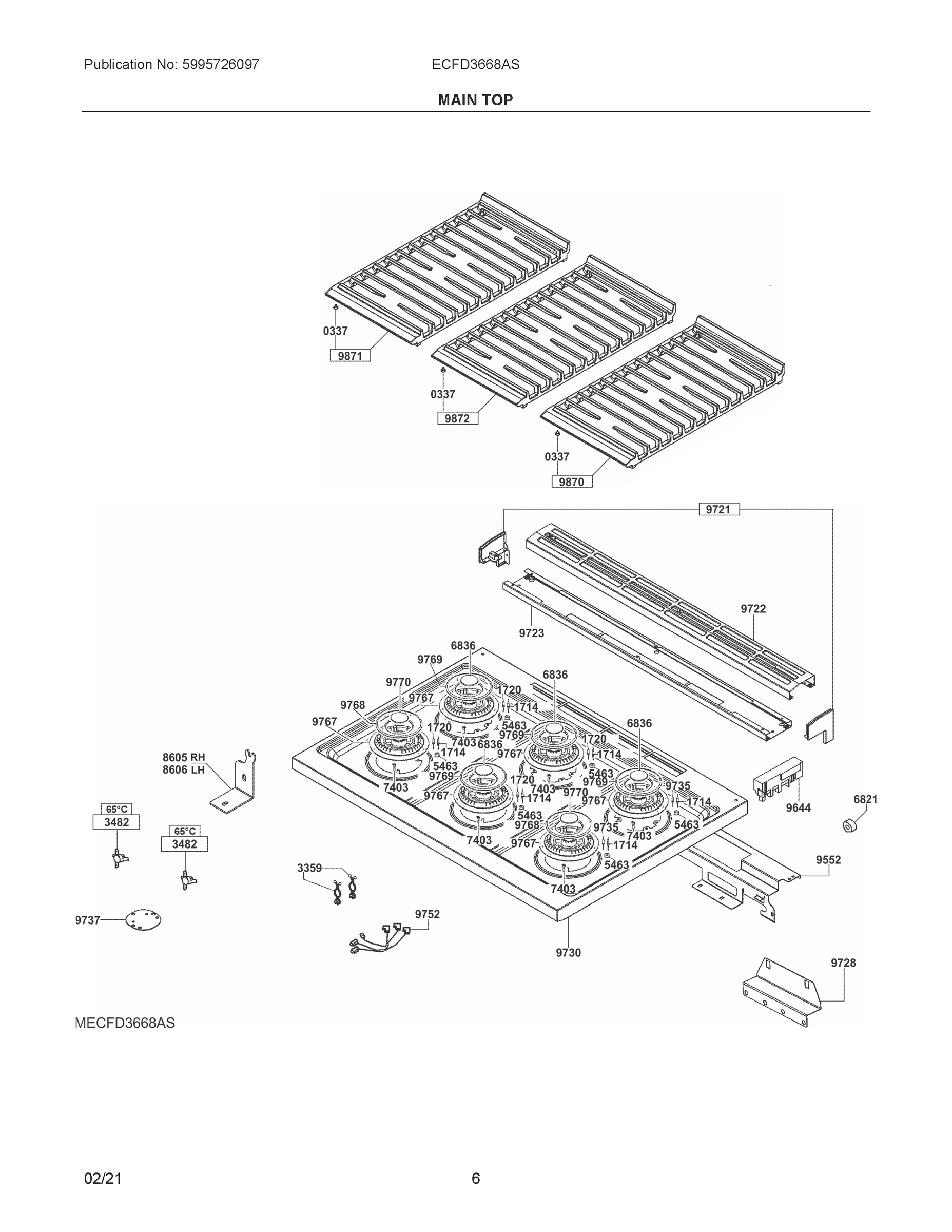

04 - MAIN TOP

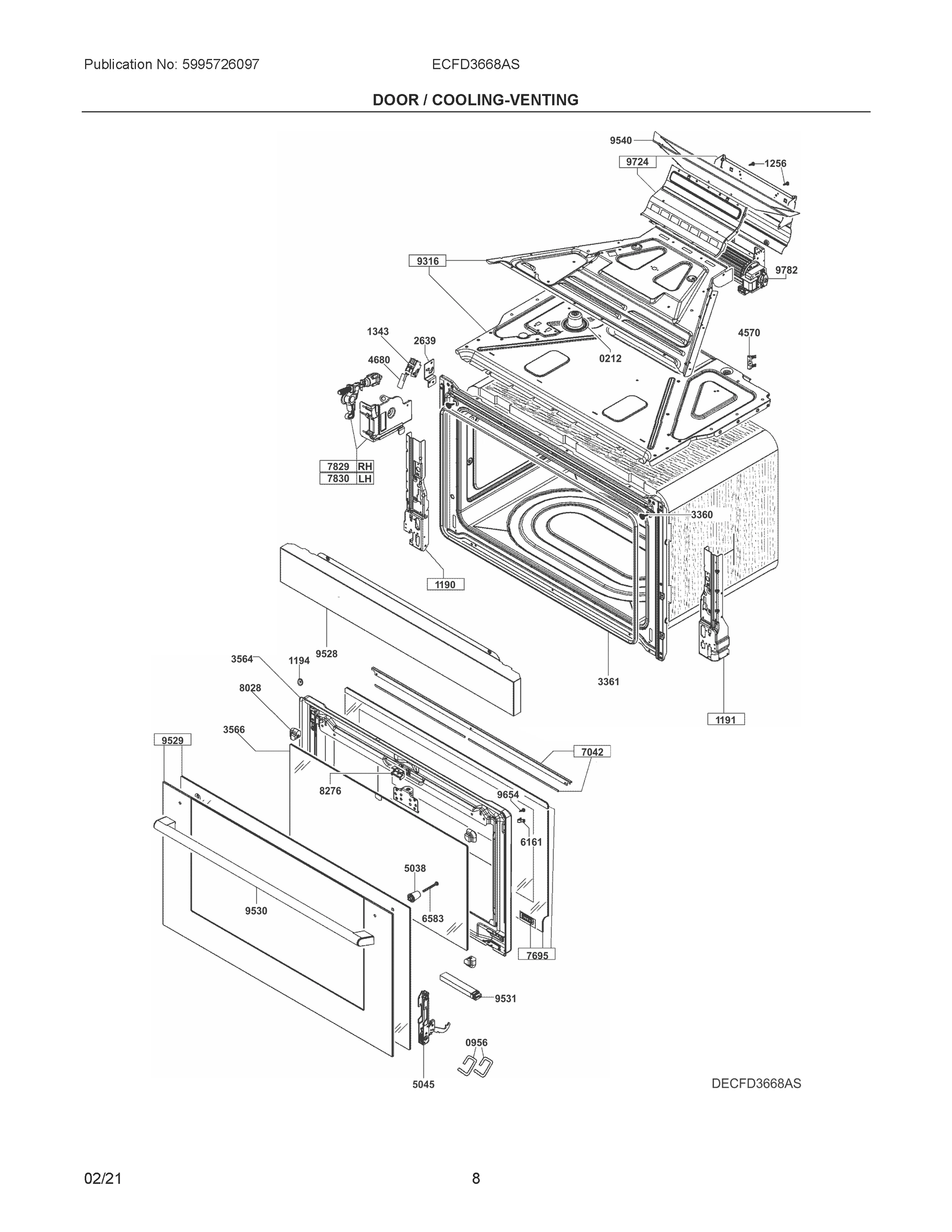

05 - DOOR / COOLING-VENTING

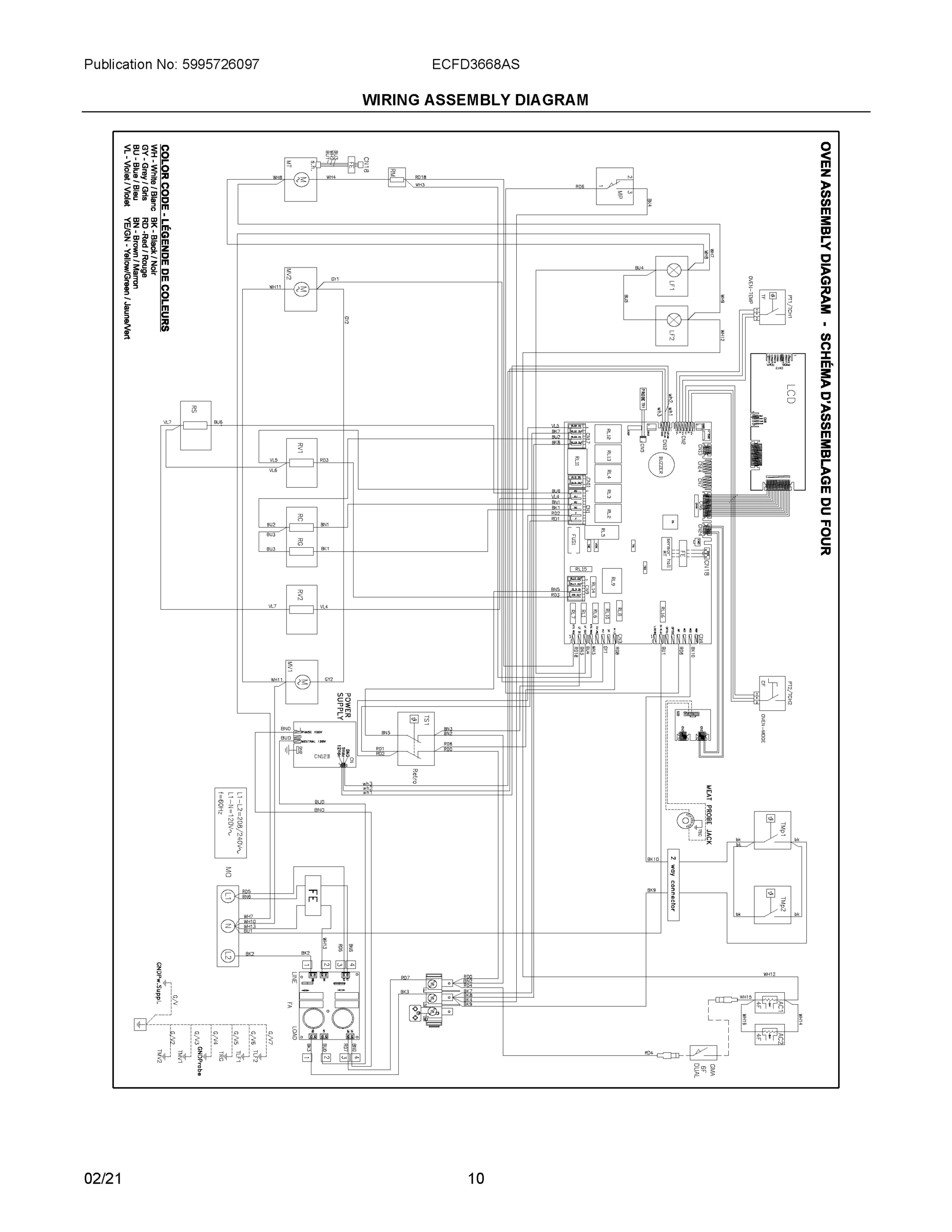

06 - WIRING ASSEMBLY DIAGRAM

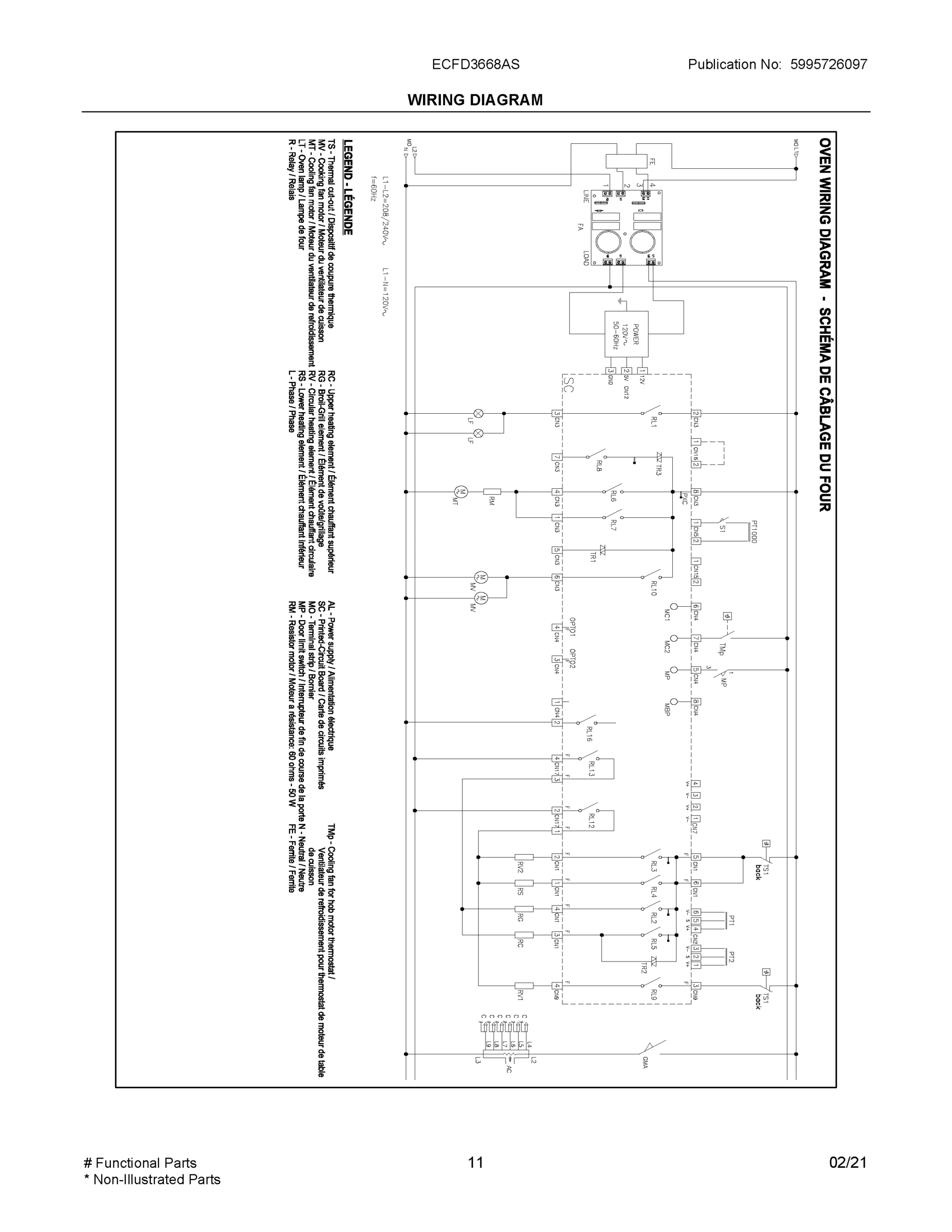

07 - WIRING DIAGRAM
Common parts from model Electrolux ECFD3668AS RANGE/OVEN, DUAL FUEL, FREESTANDING, 36 INCH
5
BUSHING, RACK SUPPORT, (2) WCI 5304527453 Contact Us For Availability
212
CHIMNEY, OVEN CATALYST WCI 5304527455 Contact Us For Availability
1009
SHIELD, PROBE, PROTECTION BOX WCI 5304527480 Contact Us For Availability
1190
BRACKET, COLUMN, LH FRONT WCI 5304527705 Contact Us For Availability
1191
BRACKET, COLUMN, RH FRONT WCI 5304527706 Contact Us For Availability
1194
WASHER, DOOR, (4) WCI 5304527442 Contact Us For Availability
1256
BUMPER, RUBBER, REAR, (2), AIR DUCT WCI 5304527707 Contact Us For Availability
1315
BULB, OVEN LAMP, HALOGEN, 40W, 120V, (2) WCI 5304527465 Contact Us For Availability
1316
LAMP ASSEMBLY, HALOGEN, OVEN, 40W, 120V, (2), WCI 5304527466 Contact Us For Availability
1715
SPRING CLIP, BURNER, (6) WCI 5304527485 Contact Us For Availability
1970
CLAMP, CABLE, (6) WCI 5304527468 Contact Us For Availability
2639
BRACKET, MICROSWITCH, DOOR WCI 5304527469 Contact Us For Availability
2644
CLAMP, CABLE, (2) WCI 5304527708 Contact Us For Availability
3118
ORIFICE, NATURAL GAS, D.1, 80-18K BTU, EXTERN WCI 5304527435 Contact Us For Availability
3359
CLIP, WIRING, SPARK IGNITOR, (6) WCI 5304527470 Contact Us For Availability
3542
LINER, OVEN CAVITY WCI 5304527716 Contact Us For Availability
3564
FRAME, INNER DOOR WCI 5304527717 Contact Us For Availability
4420
INSULATION, OVEN WRAPPER WCI 5304527719 Contact Us For Availability
5038
SPACER, DOOR HANDLE, INNER, (2) WCI 5304527554 Contact Us For Availability
5045
HINGE, OVEN DOOR, (2) WCI 5304527711 Contact Us For Availability
5277
ELEMENT, CONVECTION, 3380W, (2) WCI 5304527712 Contact Us For Availability
5280
COUNTERWEIGHT, (2) WCI 5304527475 Contact Us For Availability
5305
SHIELD, HIDDEN BAKE, LOWER WCI 5304527720 Contact Us For Availability
5463
NUT, THERMOCOUPLE, (6), TOP BURNER WCI 5304527445 Contact Us For Availability
6161
SPRING, PIVOT FIXING, DOOR, (2) WCI 5304527446 Contact Us For Availability
6310
SPACER, (4) WCI 5304527491 Contact Us For Availability
6583
SCREW, TSC ZINC, M5 X 45, (2), DOOR HANDLE WCI 5304527452 Contact Us For Availability
6593
ELEMENT, HIDDEN BAKE, 3300W, LOWER WCI 5304527698 Contact Us For Availability
6594
ELEMENT, BROIL, UPPER, 3300W WCI 5304527699 Contact Us For Availability
6821
SPACER, FRAME, REAR, (2) WCI 5304527440 Contact Us For Availability
6884
ORIFICE, NATURAL GAS, D.1, 35-12K BTU, EXTERN WCI 5304527695 Contact Us For Availability
7042
TRIM ASSEMBLY, DOOR, UPPER WCI 5304527713 Contact Us For Availability
7176
CLAMP, HOSE, RTE12000 WCI 5304527437 Contact Us For Availability
7403
SCREW, BURNER, M4 X 8, (24) WCI 5304527460 Contact Us For Availability
7711
PLATE, BURNER, (6) WCI 5304527497 Contact Us For Availability
7732
CAP, GAS PIPE WCI 5304527461 Contact Us For Availability
7829
SHOCK ABSORBER, ASSEMBLY, DOOR-RH, W/BRACKET WCI 5304527499 Contact Us For Availability
7890
MOTOR, CONVECTION FAN, (2) WCI 5304527722 Contact Us For Availability
7899
LADDER SUPPORT, OVEN RACK, RH WCI 5304527723 Contact Us For Availability
7900
LADDER SUPPORT, OVEN RACK, LH WCI 5304527724 Contact Us For Availability
7953
BRACKET, ATTACHMENT WCI 5304527503 Contact Us For Availability
7977
PANEL, MAIN BACK WCI 5304527726 Contact Us For Availability
8010
FEEDER CABLE, ASSEMBLY, W/WIRING-PANEL WCI 5304527727 Contact Us For Availability
8028
GROMMET, STOPPER, MIDDLE GLASS, (4) WCI 5304527714 Contact Us For Availability
8248
SHIELD, FEEDER BOARD WCI 5304527524 Contact Us For Availability
8259
INSULATION, OVEN BACK WCI 5304527700 Contact Us For Availability
8260
BURNER BOX, SUPPORT, HIDDEN BAKE WCI 5304527701 Contact Us For Availability
8262
PANEL, OVEN BACK, SUPPORT WCI 5304527702 Contact Us For Availability
8273
WCI 5304527697 WCI 5304527697 Contact Us For Availability
8276
CATCH, DOOR LATCH, INNER WCI 5304527464 Contact Us For Availability
8605
BRACKET, RH WCI 5304527728 Contact Us For Availability
8874
WCI 5304527533 WCI 5304527533 Contact Us For Availability
9247
WCI 5304527457 WCI 5304527457 Contact Us For Availability
9248
WCI 5304527458 WCI 5304527458 Contact Us For Availability
9316
AIR DUCT, ASSEMBLY, COOLING FAN WCI 5304527704 Contact Us For Availability
9525
WCI 5304527731 WCI 5304527731 Contact Us For Availability
9526
WCI 5304527732 WCI 5304527732 Contact Us For Availability
9527
WCI 5304527733 WCI 5304527733 Contact Us For Availability
9530
HANDLE, OVEN DOOR, STAINLESS WCI 5304527736 Contact Us For Availability
9531
REINFORCEMENT, DOOR, (2) WCI 5304527534 Contact Us For Availability
9540
EXTENSION, AIR DUCT WCI 5304527739 Contact Us For Availability
9541
WCI 5304527740 WCI 5304527740 Contact Us For Availability
9552
SUPPORT, COOK TOP, REAR WCI 5304527741 Contact Us For Availability
9565
WCI 5304527743 WCI 5304527743 Contact Us For Availability
9724
SUPPORT, ASSEMBLY, COOLING MOTOR WCI 5304527542 Contact Us For Availability
9728
BRACKET, SUPPORT, (2) WCI 5304527543 Contact Us For Availability
9737
PLATE, COOK TOP, (2) WCI 5304527547 Contact Us For Availability
9738
WCI 5304527752 WCI 5304527752 Contact Us For Availability
9739
WCI 5304527753 WCI 5304527753 Contact Us For Availability
9741
WCI 5304527754 WCI 5304527754 Contact Us For Availability
9742
WCI 5304527755 WCI 5304527755 Contact Us For Availability
9743
WCI 5304527756 WCI 5304527756 Contact Us For Availability
9744
WCI 5304527757 WCI 5304527757 Contact Us For Availability
9745
WCI 5304527758 WCI 5304527758 Contact Us For Availability
9746
WCI 5304527759 WCI 5304527759 Contact Us For Availability
9747
WCI 5304527760 WCI 5304527760 Contact Us For Availability
9748
WCI 5304527761 WCI 5304527761 Contact Us For Availability
9749
WCI 5304527762 WCI 5304527762 Contact Us For Availability
9750
WCI 5304527763 WCI 5304527763 Contact Us For Availability
9751
WCI 5304527764 WCI 5304527764 Contact Us For Availability
9754
WCI 5304527549 WCI 5304527549 Contact Us For Availability
9755
WCI 5304527766 WCI 5304527766 Contact Us For Availability
9756
WCI 5304527767 WCI 5304527767 Contact Us For Availability
9898
WCI 5304527444 WCI 5304527444 Contact Us For Availability
9961
WCI 5304527449 WCI 5304527449 Contact Us For Availability
NI
GASKET, OVEN, (3), SOFT CLOSE WCI 5304527710 Contact Us For Availability
× ![]()
