Model Electrolux ECFD3068ASA RANGE/OVEN, DUAL FUEL, FREESTANDING, 30 INCH – Common Parts & Diagrams

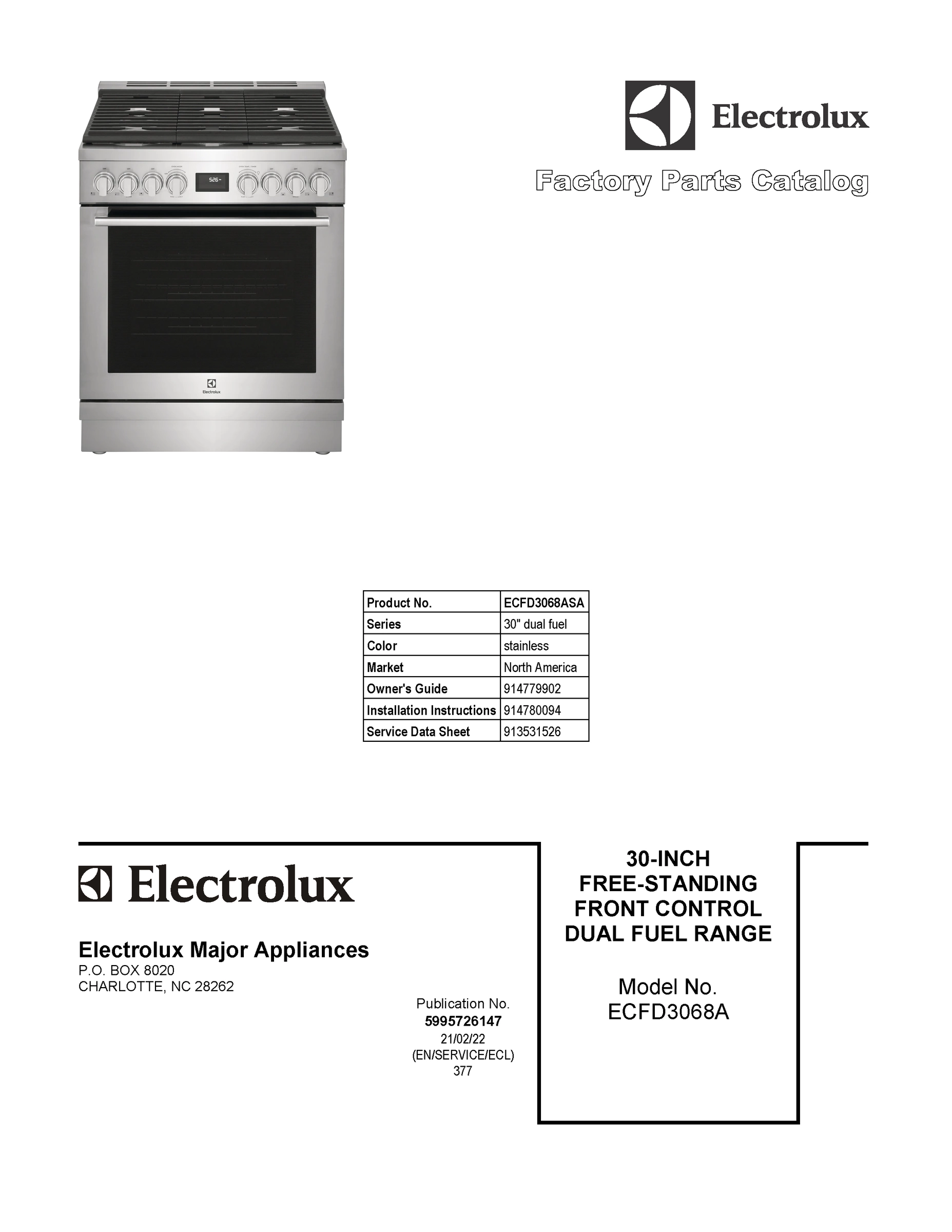

01 - COVER SHEET

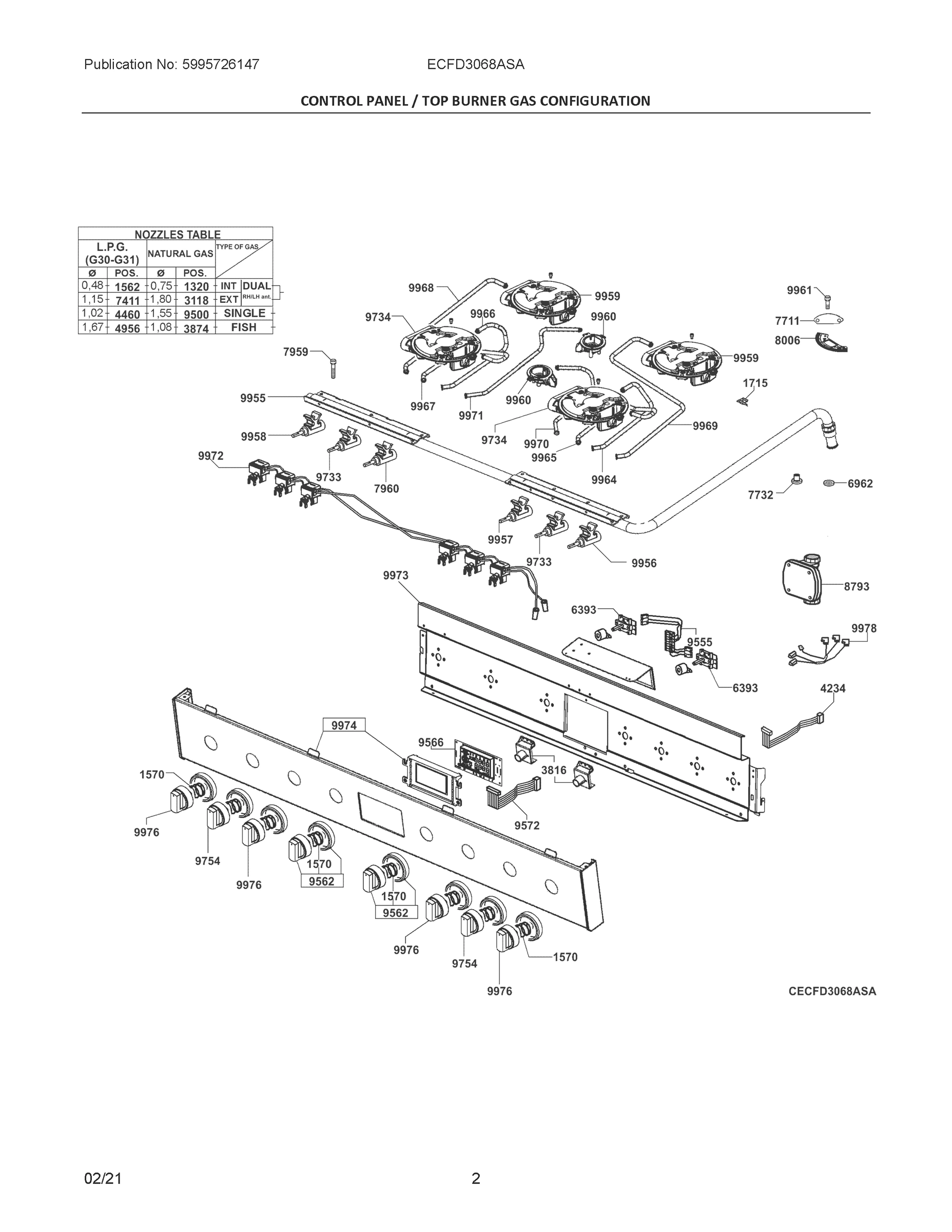

02 - CONTROL PANEL / TOP BURNER GAS CONFIGURATION
03 - BODY
04 - MAIN TOP
05 - DOOR / COOLING-VENTING
06 - WIRING ASSEMBLY DIAGRAM
07 - WIRING DIAGRAM
Common parts from model Electrolux ECFD3068ASA RANGE/OVEN, DUAL FUEL, FREESTANDING, 30 INCH
5
BUSHING, RACK SUPPORT, (4) WCI 5304527453 Contact Us For Availability
212
CHIMNEY, OVEN CATALYST WCI 5304527455 Contact Us For Availability
1009
SHIELD, PROBE, PROTECTION BOX WCI 5304527480 Contact Us For Availability
1194
WASHER, DOOR, (2) WCI 5304527442 Contact Us For Availability
1315
BULB, OVEN LAMP, HALOGEN, 40W, 120V, (2) WCI 5304527465 Contact Us For Availability
1316
LAMP ASSEMBLY, HALOGEN, OVEN, 40W, 120V, (2), WCI 5304527466 Contact Us For Availability
1715
SPRING CLIP, BURNER, (4) WCI 5304527485 Contact Us For Availability
1970
CLAMP, CABLE, (6) WCI 5304527468 Contact Us For Availability
2639
BRACKET, MICROSWITCH, DOOR WCI 5304527469 Contact Us For Availability
3118
ORIFICE, NATURAL GAS, D.1, 80-18K BTU, EXTERN WCI 5304527435 Contact Us For Availability
3359
CLIP, WIRING, SPARK IGNITOR, (5) WCI 5304527470 Contact Us For Availability
3874
ORIFICE, NATURAL GAS, D.1, 08-10K BTU, (2), S WCI 5304527450 Contact Us For Availability
4460
ORIFICE, LP GAS, D.1, 02-12K BTU, (2), SINGLE WCI 5304527451 Contact Us For Availability
4956
ORIFICE, LP GAS, D.0, 67-10K BTU, (2), SINGLE WCI 5304527441 Contact Us For Availability
5206
WASHER WCI 5304527489 Contact Us For Availability
5207
NUT WCI 5304527490 Contact Us For Availability
5280
COUNTERWEIGHT, (2) WCI 5304527475 Contact Us For Availability
5463
NUT, THERMOCOUPLE, TOP BURNER, (4) WCI 5304527445 Contact Us For Availability
6161
SPRING, PIVOT FIXING, DOOR, (4) WCI 5304527446 Contact Us For Availability
6310
SPACER, (4) WCI 5304527491 Contact Us For Availability
6583
SCREW, TSC ZINC, M5 X 45, (2), DOOR HANDLE WCI 5304527452 Contact Us For Availability
6821
SPACER, FRAME, REAR, (2) WCI 5304527440 Contact Us For Availability
7176
CLAMP, HOSE, RTE12000 WCI 5304527437 Contact Us For Availability
7318
ELEMENT, CONVECTION, 2700W WCI 5304527496 Contact Us For Availability
7403
SCREW, BURNER, M4 X 8, (16) WCI 5304527460 Contact Us For Availability
7711
PLATE, BURNER, (4) WCI 5304527497 Contact Us For Availability
7732
CAP, GAS PIPE WCI 5304527461 Contact Us For Availability
7829
SHOCK ABSORBER, ASSEMBLY, DOOR-RH, W/BRACKET WCI 5304527499 Contact Us For Availability
7953
BRACKET, ATTACHMENT WCI 5304527503 Contact Us For Availability
8136
INSULATION, OVEN, BACK WCI 5304527506 Contact Us For Availability
8138
BRACKET, COLUMN, RH FRONT WCI 5304527507 Contact Us For Availability
8139
BRACKET, COLUMN, LH FRONT WCI 5304527508 Contact Us For Availability
8140
REINFORCEMENT, COLUMN, RH WCI 5304527509 Contact Us For Availability
8142
REINFORCEMENT, COLUMN, LH WCI 5304527510 Contact Us For Availability
8144
GASKET, OVEN DOOR WCI 5304527511 Contact Us For Availability
8154
LADDER SUPPORT, OVEN RACK, LH WCI 5304527512 Contact Us For Availability
8155
LADDER SUPPORT, OVEN RACK, RH WCI 5304527513 Contact Us For Availability
8195
PANEL, MAIN BACK WCI 5304527519 Contact Us For Availability
8234
INSULATION, OVEN WRAPPER WCI 5304527521 Contact Us For Availability
8237
ELEMENT, BROIL, UPPER, 3300W WCI 5304527523 Contact Us For Availability
8248
SHIELD, FEEDER BOARD WCI 5304527524 Contact Us For Availability
8276
CATCH, DOOR LATCH, INNER WCI 5304527464 Contact Us For Availability
8289
BASE, OVEN BOTTOM WCI 5304527526 Contact Us For Availability
8294
BURNER BOX, SUPPORT, HIDDEN BAKE WCI 5304527527 Contact Us For Availability
8721
BRACKET, RH WCI 5304527528 Contact Us For Availability
8722
BRACKET, LH WCI 5304527529 Contact Us For Availability
8874
SPACER, PC WCI 5304527533 Contact Us For Availability
9247
WCI 5304527457 WCI 5304527457 Contact Us For Availability
9248
WCI 5304527458 WCI 5304527458 Contact Us For Availability
9500
ORIFICE, NATURAL GAS, D.1, 55-12K BTU, (2), S WCI 5304527439 Contact Us For Availability
9531
REINFORCEMENT, DOOR, (2) WCI 5304527534 Contact Us For Availability
9724
SUPPORT, ASSEMBLY, COOLING MOTOR WCI 5304527542 Contact Us For Availability
9728
BRACKET, SUPPORT, (2) WCI 5304527543 Contact Us For Availability
9737
PLATE, COOK TOP, (2) WCI 5304527547 Contact Us For Availability
9754
WCI 5304527549 WCI 5304527549 Contact Us For Availability
9815
SPACER, DOOR HANDLE, INNER, (2) WCI 5304527554 Contact Us For Availability
9889
HANDLE, OVEN DOOR, STAINLESS WCI 5304527559 Contact Us For Availability
9893
WCI 5304527555 WCI 5304527555 Contact Us For Availability
9894
WCI 5304527556 WCI 5304527556 Contact Us For Availability
9896
WCI 5304527557 WCI 5304527557 Contact Us For Availability
9898
WCI 5304527444 WCI 5304527444 Contact Us For Availability
9900
HINGE, OVEN DOOR, (2) WCI 5304527561 Contact Us For Availability
9905
WCI 5304527565 WCI 5304527565 Contact Us For Availability
9906
AIR DUCT, ASSEMBLY, COOLING FAN WCI 5304527566 Contact Us For Availability
9907
EXTENSION, AIR DUCT WCI 5304527567 Contact Us For Availability
9908
WCI 5304527568 WCI 5304527568 Contact Us For Availability
9916
IGNITOR, SPARK, CENTER, (2) WCI 5304527589 Contact Us For Availability
9919
SUPPORT, COOK TOP, REAR WCI 5304527569 Contact Us For Availability
9923
WCI 5304527571 WCI 5304527571 Contact Us For Availability
9925
WCI 5304527572 WCI 5304527572 Contact Us For Availability
9926
WCI 5304527573 WCI 5304527573 Contact Us For Availability
9948
GRATE, TOP BURNER, BLACK, CENTER, W/BUMPERS WCI 5304527577 Contact Us For Availability
9949
BURNER, SUPPORT, CENTER, (2), FLAME SPREADER WCI 5304527578 Contact Us For Availability
9951
TRIM, COOK TOP, STAINLESS, REAR WCI 5304527580 Contact Us For Availability
9952
BRACKET, REAR TRIM WCI 5304527581 Contact Us For Availability
9959
WCI 5304527587 WCI 5304527587 Contact Us For Availability
9960
WCI 5304527588 WCI 5304527588 Contact Us For Availability
9961
WCI 5304527449 WCI 5304527449 Contact Us For Availability
9962
CLIP, SPRING, (5) WCI 5304527590 Contact Us For Availability
9964
WCI 5304527592 WCI 5304527592 Contact Us For Availability
9965
WCI 5304527593 WCI 5304527593 Contact Us For Availability
9966
WCI 5304527594 WCI 5304527594 Contact Us For Availability
9967
WCI 5304527595 WCI 5304527595 Contact Us For Availability
9968
WCI 5304527596 WCI 5304527596 Contact Us For Availability
9969
WCI 5304527597 WCI 5304527597 Contact Us For Availability
9970
WCI 5304527598 WCI 5304527598 Contact Us For Availability
9971
WCI 5304527599 WCI 5304527599 Contact Us For Availability
× ![]()
