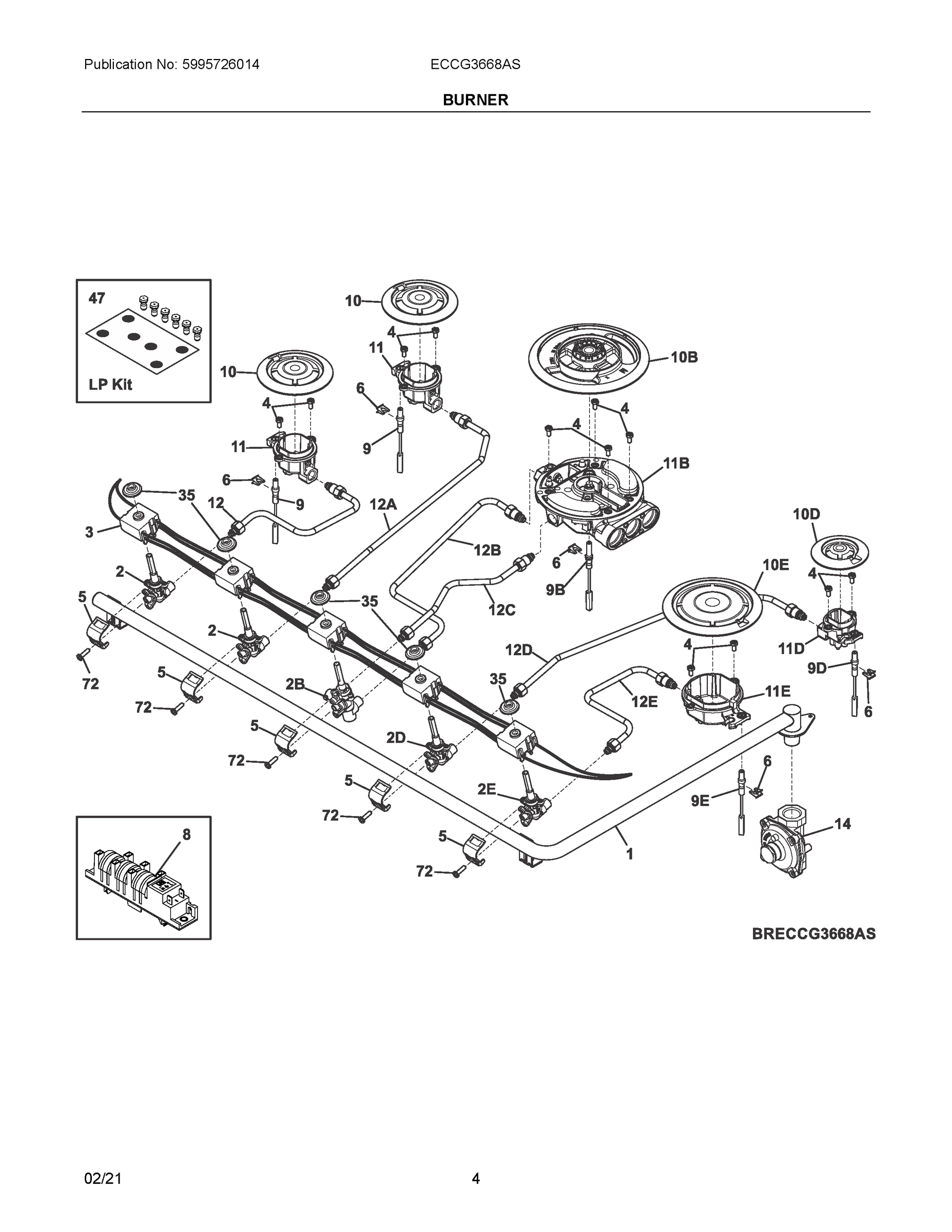

Model Electrolux ECCG3668AS COOKTOP, GAS, 36 INCH – Common Parts & Diagrams

1
MANIFOLD, GAS
MANIFOLD, GAS WCI 5304527686 Contact Us For Availability
View on Model
2
VALVE, SADDLE, 1125/1250 BTU, BLUE STEM
VALVE, SADDLE, 1125/1250 BTU, BLUE STEM WCI 5304527639 Contact Us For Availability
View on Model
2B
VALVE, SADDLE, 1500/2000 BTU, YELLOW STEM, DU
VALVE, SADDLE, 1500/2000 BTU, YELLOW STEM, DU WCI 5304508435 Contact Us For Availability
View on Model
2D
VALVE, SADDLE, 670/750 BTU, ORANGE STEM
VALVE, SADDLE, 670/750 BTU, ORANGE STEM WCI 5304508471 Contact Us For Availability
View on Model
2E
VALVE, SADDLE, 1350/1500 BTU, PINK STEM
VALVE, SADDLE, 1350/1500 BTU, PINK STEM WCI 5304508472 Contact Us For Availability
View on Model
3
HARNESS ASSEMBLY, BACKLIT KNOBS, W/IGNITR SWT
HARNESS ASSEMBLY, BACKLIT KNOBS, W/IGNITR SWT WCI 5304527690 Contact Us For Availability
View on Model
4
SCREW, HEX HEAD, M4
SCREW, HEX HEAD, M4 WCI 5304527676 Contact Us For Availability
View on Model
5
BRACKET, VALVE FIXING
BRACKET, VALVE FIXING WCI 357733402 Contact Us For Availability
View on Model
9
IGNITOR, SPARK, LH FRONT/REAR
IGNITOR, SPARK, LH FRONT/REAR WCI 5304527645 Contact Us For Availability
View on Model
9B
IGNITOR, SPARK, CENTER
IGNITOR, SPARK, CENTER WCI 5304527647 Contact Us For Availability
View on Model
9D
IGNITOR, SPARK, RH REAR
IGNITOR, SPARK, RH REAR WCI 5304527644 Contact Us For Availability
View on Model
9E
IGNITOR, SPARK, RH FRONT
IGNITOR, SPARK, RH FRONT WCI 5304527646 Contact Us For Availability
View on Model
10
CROWN, BURNER, 9.5K
CROWN, BURNER, 9.5K WCI 5304527673 Contact Us For Availability
View on Model
10B
CROWN, BURNER, 20K, DUAL BURNER
CROWN, BURNER, 20K, DUAL BURNER WCI 5304527675 Contact Us For Availability
View on Model
10D
CROWN, BURNER, 5K
CROWN, BURNER, 5K WCI 5304527672 Contact Us For Availability
View on Model
10E
CROWN, BURNER, 12K
CROWN, BURNER, 12K WCI 5304527674 Contact Us For Availability
View on Model
11
HOLDER ASSEMBLY, IGNITOR/ORIFICE, 9.5K BTU, W
HOLDER ASSEMBLY, IGNITOR/ORIFICE, 9.5K BTU, W WCI 5304527642 Contact Us For Availability
View on Model
11B
HOLDER ASSEMBLY, IGNITOR/ORIFICE, 20K BTU, W/
HOLDER ASSEMBLY, IGNITOR/ORIFICE, 20K BTU, W/ WCI 5304527640 Contact Us For Availability
View on Model
11D
HOLDER ASSEMBLY, IGNITOR/ORIFICE, 5K BTU
HOLDER ASSEMBLY, IGNITOR/ORIFICE, 5K BTU WCI 5304527641 Contact Us For Availability
View on Model
11E
HOLDER ASSEMBLY, IGNITOR/ORIFICE, 12K BTU, W/
HOLDER ASSEMBLY, IGNITOR/ORIFICE, 12K BTU, W/ WCI 5304527643 Contact Us For Availability
View on Model
12
TUBE, BURNER, LH FRONT
TUBE, BURNER, LH FRONT WCI 5304527650 Contact Us For Availability
View on Model
12A
TUBE, BURNER, LH REAR
TUBE, BURNER, LH REAR WCI 5304527688 Contact Us For Availability
View on Model
12B
TUBE, BURNER, CENTER LEFT
TUBE, BURNER, CENTER LEFT WCI 5304527653 Contact Us For Availability
View on Model
12C
TUBE, BURNER, CENTER FRONT
TUBE, BURNER, CENTER FRONT WCI 5304527652 Contact Us For Availability
View on Model
12D
TUBE, BURNER, RH REAR
TUBE, BURNER, RH REAR WCI 5304527687 Contact Us For Availability
View on Model
12E
TUBE, BURNER, RH FRONT
TUBE, BURNER, RH FRONT WCI 5304527648 Contact Us For Availability
View on Model
14
REGULATOR, PRESSURE
REGULATOR, PRESSURE WCI 5304519943 Contact Us For Availability
View on Model
20
GRATE, BURNER, BLACK, RH
GRATE, BURNER, BLACK, RH WCI 5304527693 Contact Us For Availability
View on Model
20A
GRATE, BURNER, BLACK, CENTER
GRATE, BURNER, BLACK, CENTER WCI 5304527694 Contact Us For Availability
View on Model
20B
GRATE, BURNER, BLACK, LH
GRATE, BURNER, BLACK, LH WCI 5304527692 Contact Us For Availability
View on Model
22
CAP, BURNER, 9.5K, BLACK
CAP, BURNER, 9.5K, BLACK WCI 5304527669 Contact Us For Availability
View on Model
22B
CAP, BURNER, 20K, BRASS, OUTER
CAP, BURNER, 20K, BRASS, OUTER WCI 5304527671 Contact Us For Availability
View on Model
22C
CAP, BURNER, 20K, BRASS, INNER
CAP, BURNER, 20K, BRASS, INNER WCI 5304527670 Contact Us For Availability
View on Model
22D
CAP, BURNER, 5K, BLACK
CAP, BURNER, 5K, BLACK WCI 5304527667 Contact Us For Availability
View on Model
22E
CAP, BURNER, 12K, BLACK
CAP, BURNER, 12K, BLACK WCI 5304527668 Contact Us For Availability
View on Model
35
KNOB, BACKLIT, STAINLESS
KNOB, BACKLIT, STAINLESS WCI 5304527679 Contact Us For Availability
View on Model
35
GASKET, BACKLIT KNOB
GASKET, BACKLIT KNOB WCI 5304527661 Contact Us For Availability
View on Model
36
BEZEL, BACKLIT KNOB
BEZEL, BACKLIT KNOB WCI 5304527677 Contact Us For Availability
View on Model
39
POWER CORD, ELECTRICAL, SUPPLY
POWER CORD, ELECTRICAL, SUPPLY WCI 305574902 Contact Us For Availability
View on Model
46
BOX, BURNER
BOX, BURNER WCI 5304527685 Contact Us For Availability
View on Model
47
LP GAS, CONVERSION KIT
LP GAS, CONVERSION KIT WCI 5304527680 Contact Us For Availability
View on Model
72
SCREW, SADDLE VALVE, M4
SCREW, SADDLE VALVE, M4 WCI 5304508436 Contact Us For Availability
View on Model
77
SPACER, POWER BOARD
SPACER, POWER BOARD WCI 316247900 Contact Us For Availability
View on Model
77A
SPACER
SPACER WCI 316114100 Contact Us For Availability
View on Model
97
PC BOARD, SMPS, BACKLIT KNOBS
PC BOARD, SMPS, BACKLIT KNOBS WCI 5304527657 Contact Us For Availability
View on Model
98
SCREW, M4
SCREW, M4 WCI 305309608 Contact Us For Availability
View on Model
132
BUSHING, STRAIN RELIEF
BUSHING, STRAIN RELIEF WCI 5304513507 Contact Us For Availability
View on Model
137
SCREW, LOCK BRACKET, (2)
SCREW, LOCK BRACKET, (2) WCI 305452400 Contact Us For Availability
View on Model
NI
SCREW, 6-32 X 1/4", BACK
SCREW, 6-32 X 1/4", BACK WCI 305338604 Contact Us For Availability
View on Model
NI
CLEANER, STAINLESS STEEL
CLEANER, STAINLESS STEEL WCI 318163602 Contact Us For Availability
View on Model
NIA
SCREW, GROUND
SCREW, GROUND WCI 305452800 Contact Us For Availability
View on Model
NIA
TAPE, SIDE PLATE, RH
TAPE, SIDE PLATE, RH WCI 5304527663 Contact Us For Availability
View on Model
NIA
TAPE, KNOB BEZEL
TAPE, KNOB BEZEL WCI 5304527678 Contact Us For Availability
View on Model
NIA
CAP, REGULATOR, RED
CAP, REGULATOR, RED WCI 5304519944 Contact Us For Availability
View on Model
NIAA
TAPE, SIDE PLATE, LH
TAPE, SIDE PLATE, LH WCI 5304527664 Contact Us For Availability
View on Model
NIB
WIRE, GROUNDING
WIRE, GROUNDING WCI 5304516456 Contact Us For Availability
View on Model
