Model Whirlpool EB22RKXXW00 BOTTOM MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 1117510 WPL 1117510 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

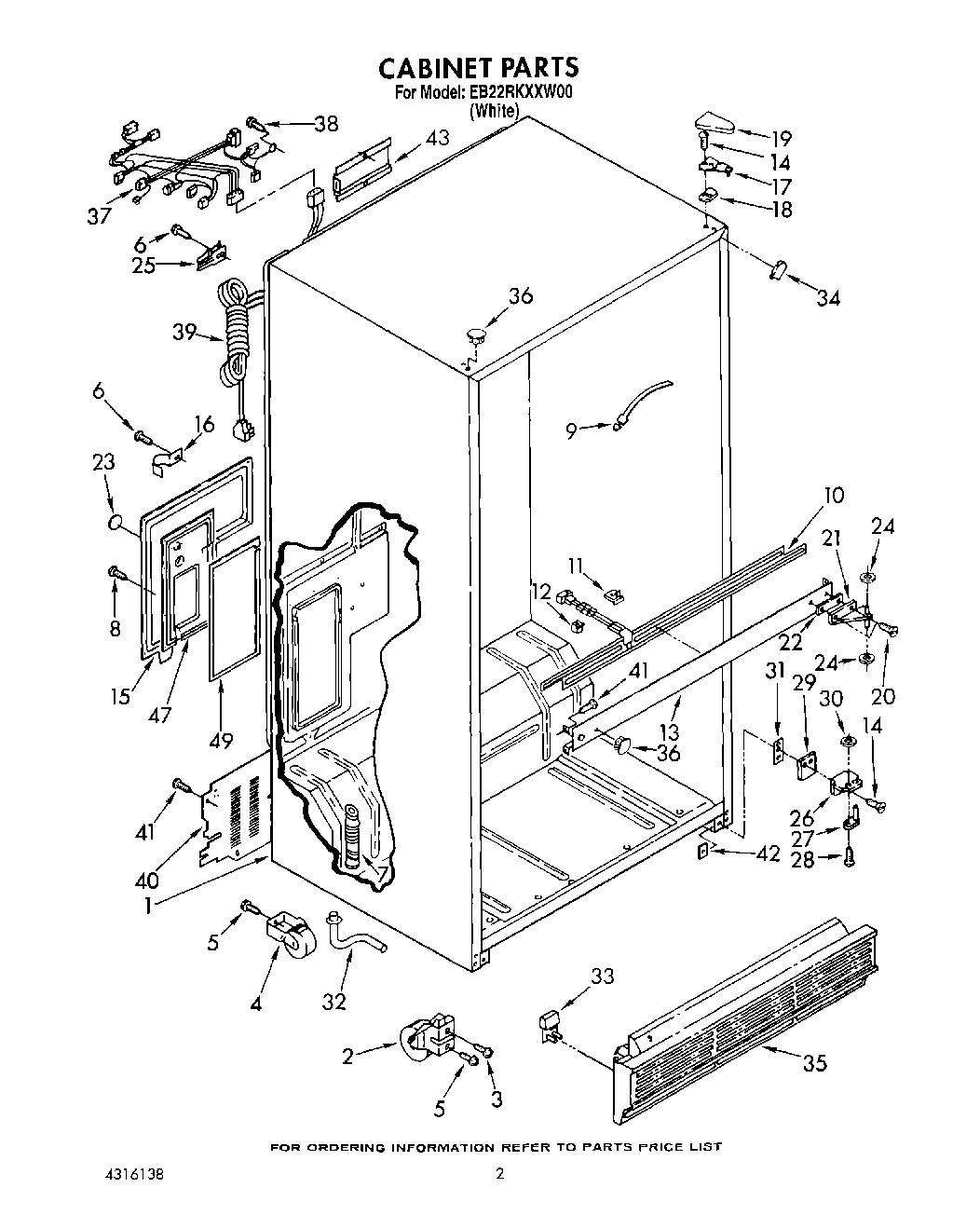

Cabinet (Not A Serviceable Part) WPL ARI25337A7 Contact Us For Availability

1

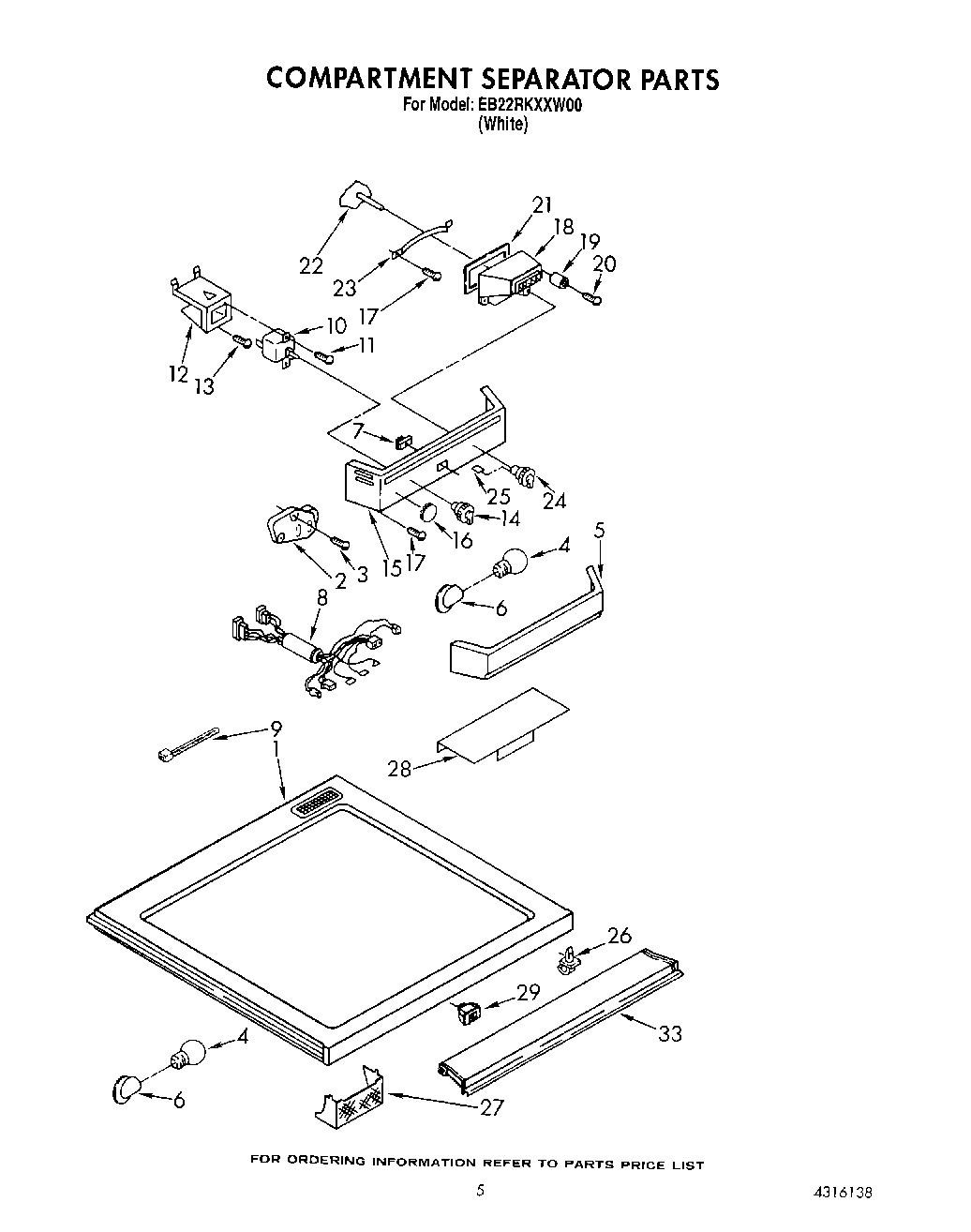

Compartment Separator Assembly (Includes Cent WPL 1126098 Contact Us For Availability

1

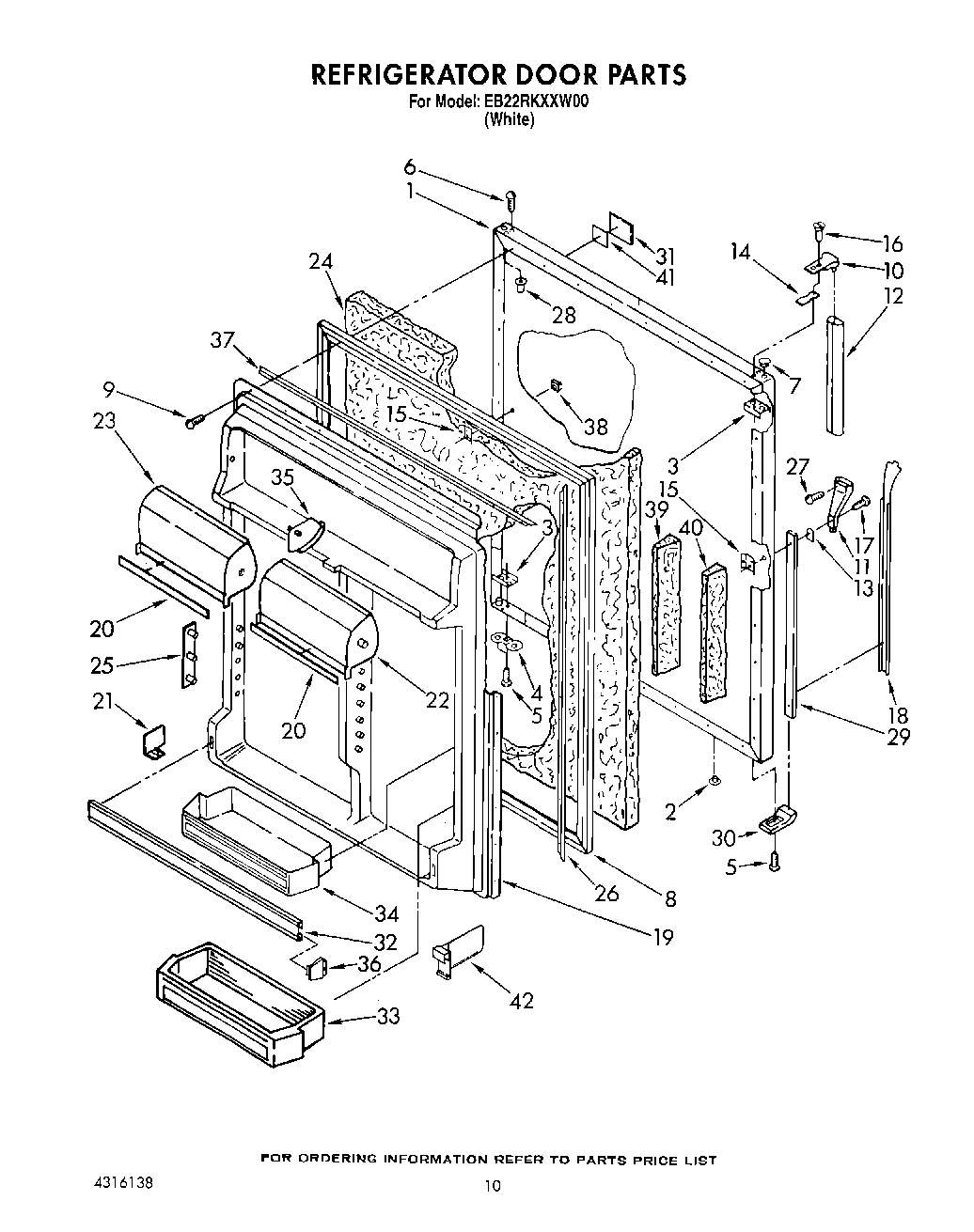

Panel, Refrigerator Door (Also Order Item 24) WPL 1110304 Contact Us For Availability

1

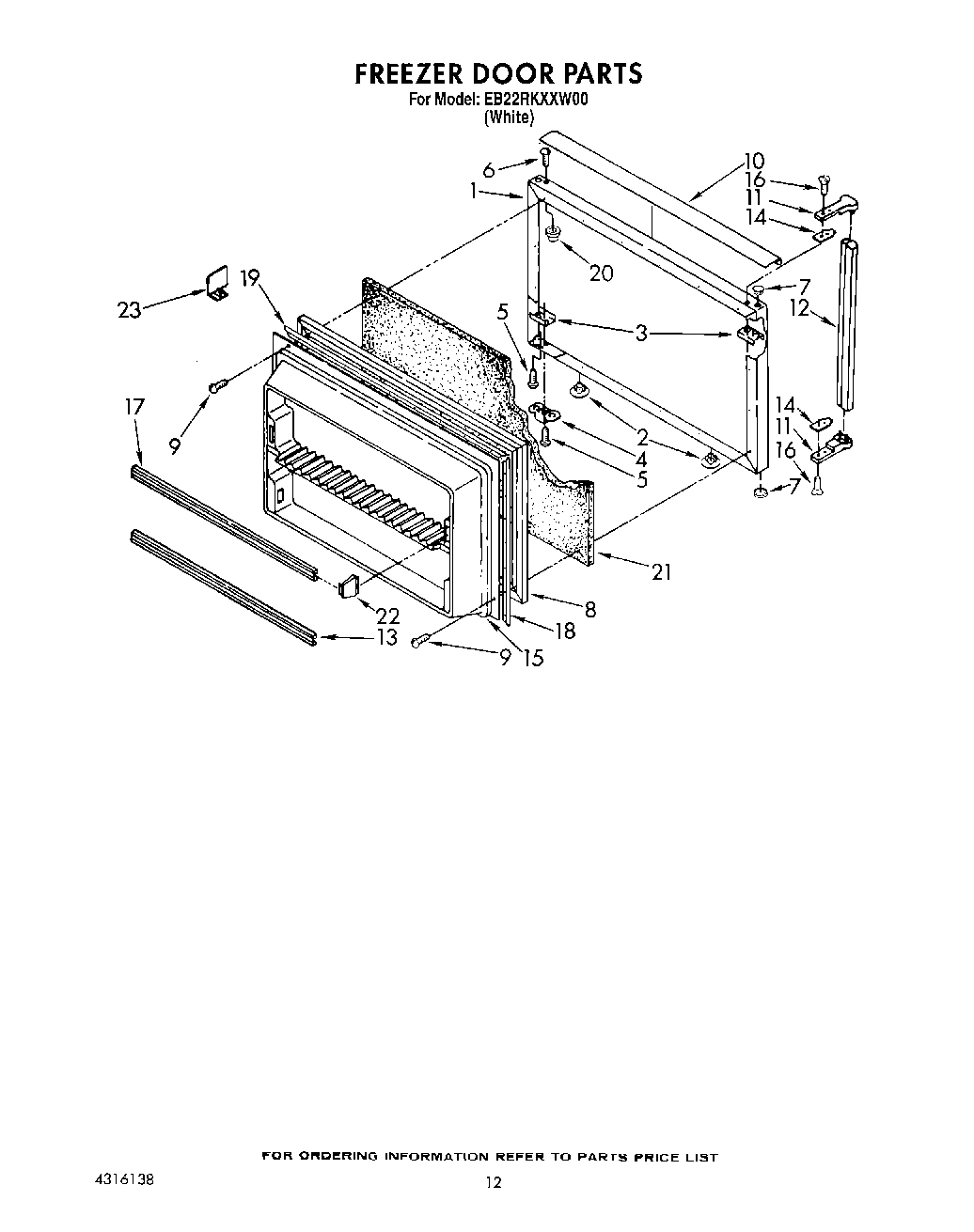

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1123159 Contact Us For Availability

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Roller, Front WPL 2152011 Contact Us For Availability

2

Defrost Timer WPL 2149098 Contact Us For Availability

2

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

3

Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability

3

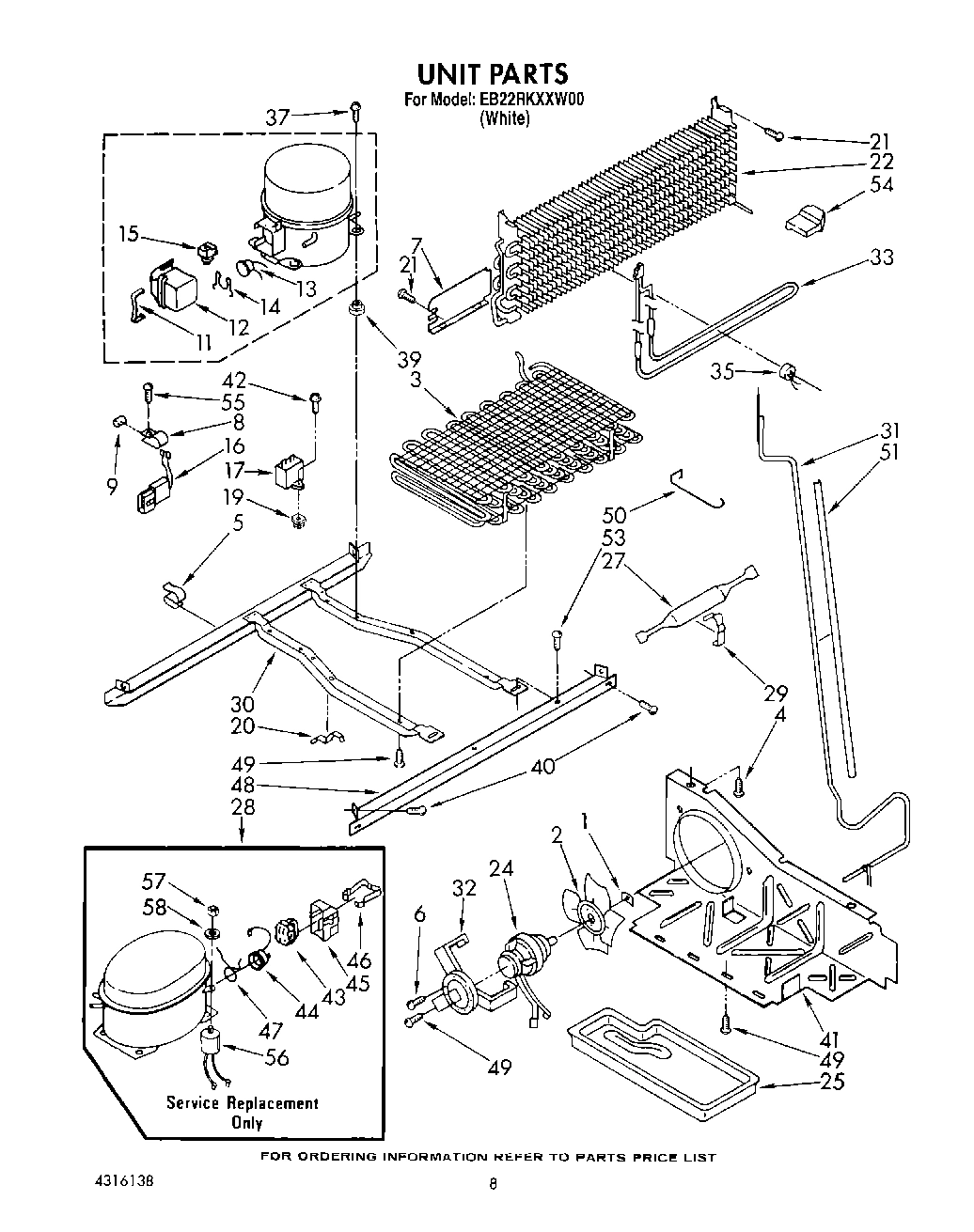

Condenser Assembly WPL 1105640 Contact Us For Availability

4

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Stud-Hook WPL 2155555 Contact Us For Availability

4

Screw WPL 489050 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Bracket, Door Stop WPL 944036 Contact Us For Availability

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Screw, 1/4-28 x 1/2 (6) WPL 488454 Contact Us For Availability

5

Light Lens WPL 983910 Contact Us For Availability

5

Clip, Wire (2) WPL 548745 Contact Us For Availability

6

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

7

Fitting, Drain WPL 942768 Contact Us For Availability

7

Air Baffle, Evaporator WPL 1115006 Contact Us For Availability

8

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

8

Wiring Assembly, Control Box WPL 2147064 Contact Us For Availability

8

Tube Clamp WPL 510716 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1125925 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1125924 Contact Us For Availability

9

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

9

Strap, Mtg. WPL 1123230 Contact Us For Availability

9

Cable Tie WPL 1102000 Contact Us For Availability

9

Dampener WPL 510769 Contact Us For Availability

10

WP819470 Whirlpool Refrigerator Thermostat In Stock WPL WP819470 $62.70

10

Heater, Mullion WPL 1105433 Contact Us For Availability

10

Trim, Door WPL 1106148 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Handle End, Side WPL 1109189 Contact Us For Availability

Clip, Mullion (4) WPL 2149060 Contact Us For Availability

Spring, Relay Case WPL 943322 Contact Us For Availability

End Cap (2) WPL 944157 Contact Us For Availability

Blade, Fan WPL 992920 Contact Us For Availability

Handle, Center WPL 2148669 Contact Us For Availability

Spacer (3) WPL 1115105 Contact Us For Availability

Bracket, Thermostat WPL 848446 Contact Us For Availability

Case, Relay WPL 1105055 Contact Us For Availability

Handle, Center WPL 2148665 Contact Us For Availability

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Center Rail (White) WPL 1127242 Contact Us For Availability

Overload WPL 2147065 Contact Us For Availability

Shim, Handle End (Side) WPL 935075 Contact Us For Availability

Trim, Door Shelf WPL 2148551 Contact Us For Availability

Spacer, Handle Door (2) WPL 943188 Contact Us For Availability

Screw WPL 489327 Contact Us For Availability

Control Knob WPL 2148657 Contact Us For Availability

Overload Spring WPL 943320 Contact Us For Availability

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Cover, Flush WPL 2155548 Contact Us For Availability

Control Panel Assembly (Includes Item 16) WPL 2148653 Contact Us For Availability

Relay (Order Overload To Obtain Relay Key No. WPL ARI25339A2 Contact Us For Availability

Interior Door Panel WPL 1127255 Contact Us For Availability

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Tube Clamp (3) WPL 1105607 Contact Us For Availability

Hole Plug WPL 2148655 Contact Us For Availability

Housing Plug WPL 1118850 Contact Us For Availability

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Hinge, Top WPL 1123514 Contact Us For Availability

Screw, 8 x 1/2 WPL 487022 Contact Us For Availability

Trim, Door Shelf WPL 2148555 Contact Us For Availability

Shim, Hinge Top WPL 1123515 Contact Us For Availability

Diffuser Assembly, Air WPL 986021 Contact Us For Availability

Insert, Handle WPL 2148666 Contact Us For Availability

Gasket Retainer, Side (2) WPL 986015 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

Screw Grommet WPL 509812 Contact Us For Availability

Interior Door Panel WPL 1127254 Contact Us For Availability

Gasket Retainer, Top & Bottom WPL 836118 Contact Us For Availability

Screw WPL 489179 Contact Us For Availability

Screw, 8 x 1-1/4 (2) WPL 488357 Contact Us For Availability

Clip, Unit Cover (2) WPL 548744 Contact Us For Availability

Trim, Door Compartment WPL 1122750 Contact Us For Availability

Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Crisper Gasket, Front (2) WPL 1116512 Contact Us For Availability

Hinge, Center WPL 2151685 Contact Us For Availability

Gasket WPL 1127488 Contact Us For Availability

Divider, Door Shelf WPL 2152335 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

Reflector, Shelf WPL 1120818 Contact Us For Availability

Shim, Hinge Center WPL 2151688 Contact Us For Availability

Shim, Center (Repair) WPL 836195 Contact Us For Availability

Damper, Air WPL 984658 Contact Us For Availability

Evaporator WPL 1114714 Contact Us For Availability

Compartment Door, Right Side WPL 2148807 Contact Us For Availability

Reflector, Shelf WPL 1106768 Contact Us For Availability

Hole Seal WPL 1129056 Contact Us For Availability

Retainer, Air Damper WPL 836493 Contact Us For Availability

Compartment Door, Left Side WPL 2148809 Contact Us For Availability

Divider, Door Shelf (2) WPL 1123293 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Glass, Full Shelf WPL 1124555 Contact Us For Availability

Knob, Air Diffuser (Includes Item 25) WPL 2148656 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

Trim, Shelf WPL 2148528 Contact Us For Availability

Knob, Retainer WPL 837444 Contact Us For Availability

Tray, Evaporator WPL 1105524 Contact Us For Availability

Pin Plate (8) WPL 1116986 Contact Us For Availability

26

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $24.25

26

Hinge Butt, Bottom WPL 836159 Contact Us For Availability

26

Gasket Retainer, Side (2) WPL 986008 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Slide, Crisper WPL 2148524 Contact Us For Availability

Lens-Light WPL 983359 Contact Us For Availability

Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

Shelf, Full Cantilever WPL 1116350 Contact Us For Availability

Shield, Light WPL 2149068 Contact Us For Availability

Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482982 Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

Shim, Bottom WPL 836196 Contact Us For Availability

Clamp, Dryer WPL 1127590 Contact Us For Availability

Retainer, Insert WPL 935873 Contact Us For Availability

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $95.80

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Crisper Pan, Front WPL 2148816 Contact Us For Availability

Endcap, Insert Retainer WPL 1105804 Contact Us For Availability

Crisper Gasket, Rear (2) WPL 1105653 Contact Us For Availability

Spacer WPL 1129868 Contact Us For Availability

Exchanger, Heat WPL 1114723 Contact Us For Availability

Nameplate WPL 2148544 Contact Us For Availability

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Extension, Drain Tube WPL 1127377 Contact Us For Availability

Fan, Motor Bracket WPL 548695 Contact Us For Availability

Trim, Door Shelf WPL 2148616 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Ice Tray Rack WPL 2147011 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Corner Filler, Grille WPL 1125665 Contact Us For Availability

Separator, Compartment (Top-Front) WPL 1121213 Contact Us For Availability

Heater, Defrost WPL 2149065 Contact Us For Availability

Bin, Door Shelf (2) WPL 2148549 Contact Us For Availability

34

Filler, Wrap Corner (2) (White) WPL 1110708 Contact Us For Availability

34

Bin, Door Shelf (Deep) (2) WPL 2148550 Contact Us For Availability

35

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $3.70

35

WP2182381 Whirlpool Refrigerator Bimetallic D In Stock WPL WP2182381 $37.79

35

Grille WPL 1125663 Contact Us For Availability

36

Hole Plug (5) (White) WPL 1129062 Contact Us For Availability

37

Cabinet Wiring Assembly WPL 2149887 Contact Us For Availability

38

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

38

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

Cord, Service WPL 937360 Contact Us For Availability

39

Door Dike, Center WPL 1122711 Contact Us For Availability

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

Cover, Unit WPL 1105617 Contact Us For Availability

40

Door Dike, Side (2) WPL 1122709 Contact Us For Availability

41

Baffle, Air WPL 1105530 Contact Us For Availability

41

Tape Strip WPL 991259 Contact Us For Availability

42

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

42

Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability

43

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $50.51

43

Cover, Wiring WPL 2149121 Contact Us For Availability

44

Overload WPL 483054 Contact Us For Availability

45

Cover, Terminal WPL 1105015 Contact Us For Availability

46

Strap WPL 938384 Contact Us For Availability

47

Plug Cover WPL 2155537 Contact Us For Availability

47

Overload Spring WPL 1114190 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

Sealing Gasket WPL 1121118 Contact Us For Availability

49

Screw WPL 488624 Contact Us For Availability

50

Guard, Fan WPL 1105614 Contact Us For Availability

51

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Support (2) WPL 1115128 Contact Us For Availability

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

56

Capacitor WPL 482996 Contact Us For Availability

57

Nut WPL 489142 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Washer WPL 489143 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

NI

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90
