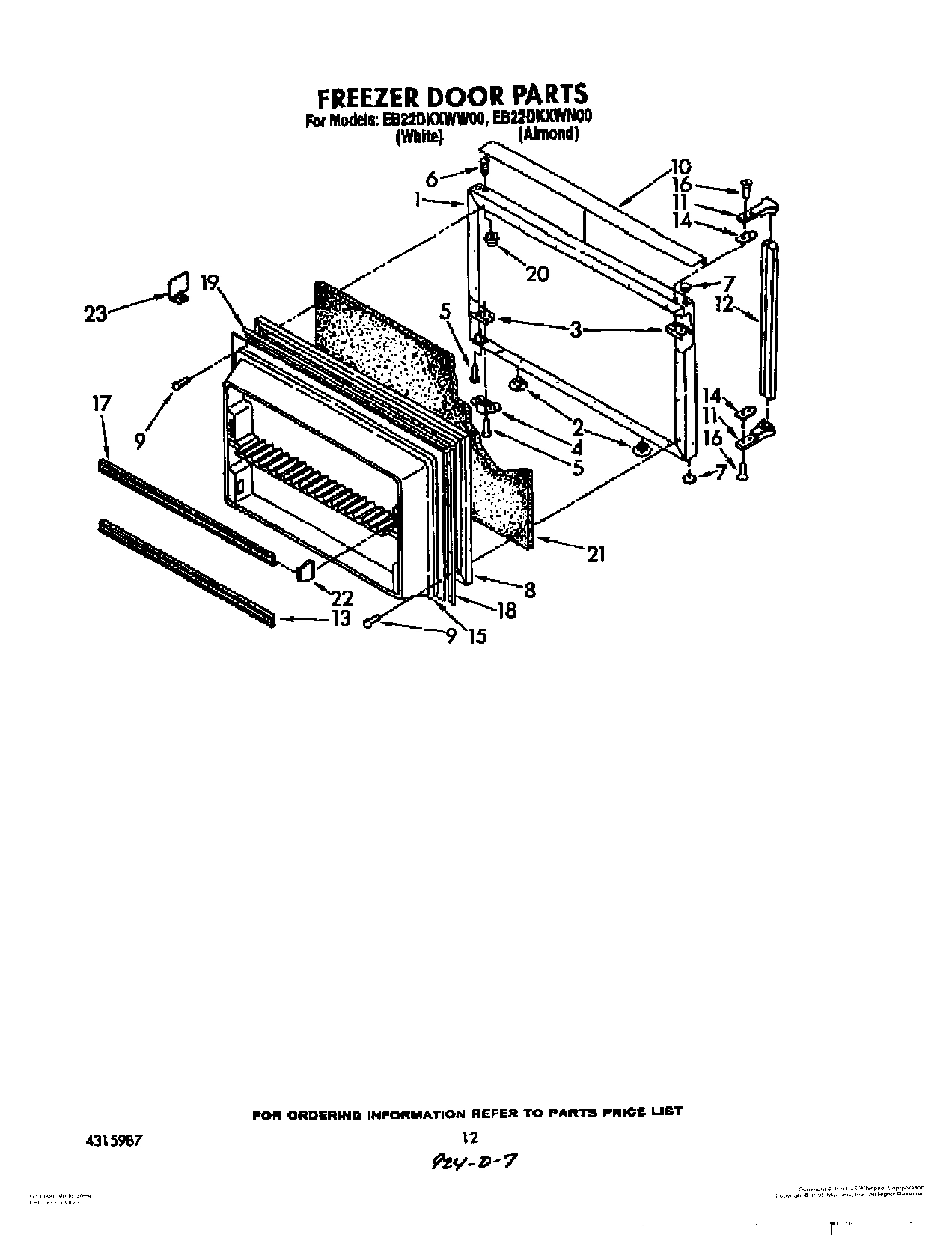

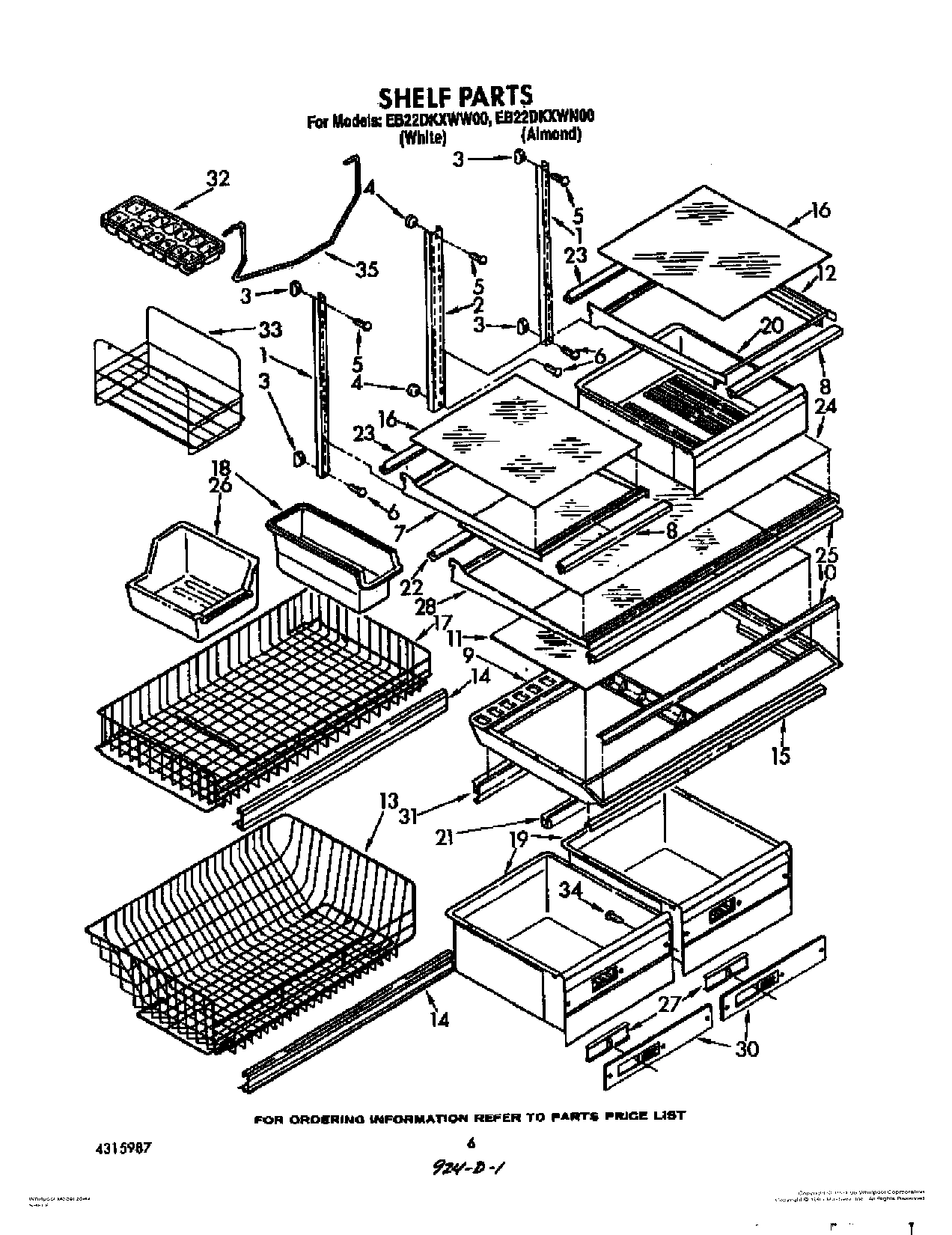

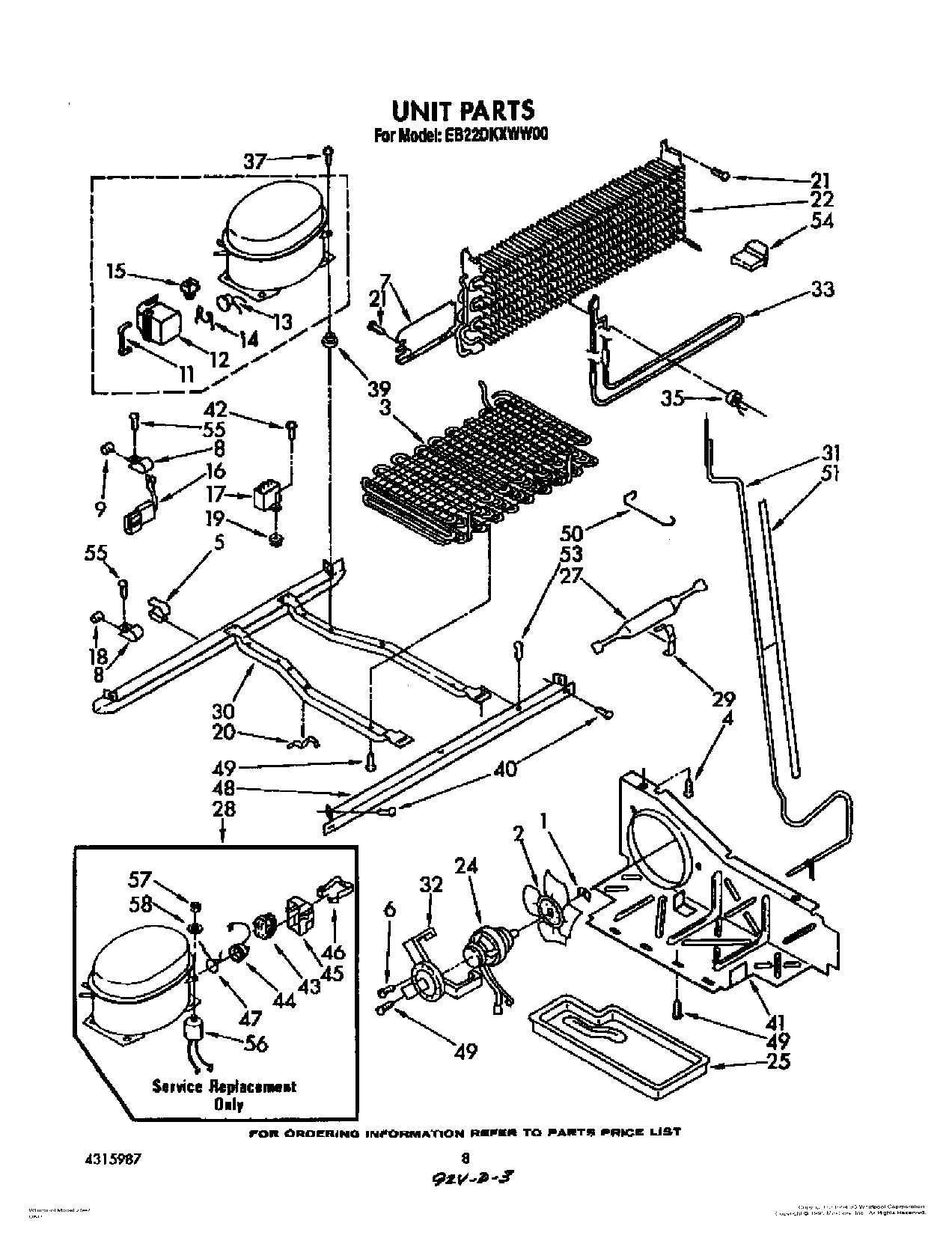

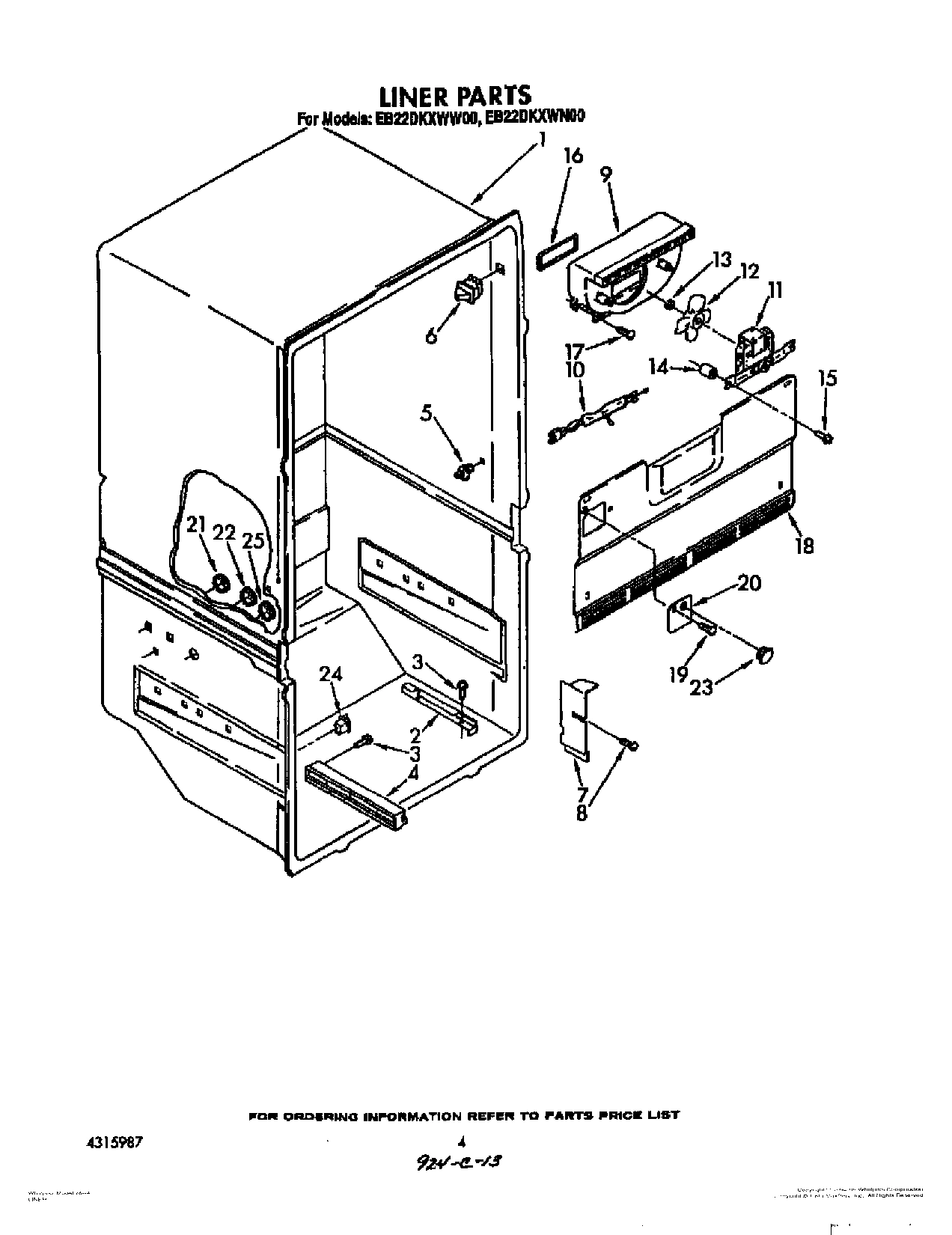

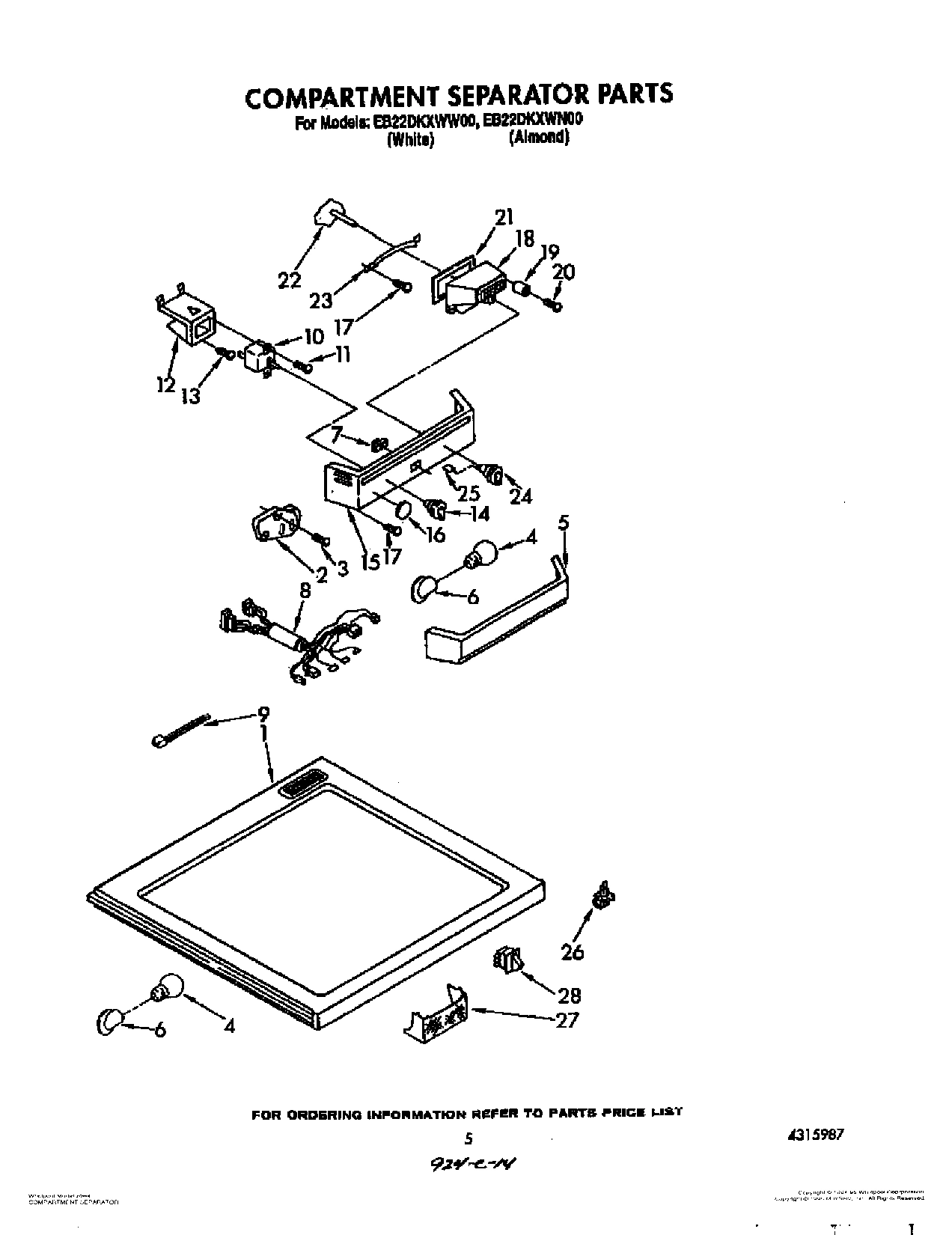

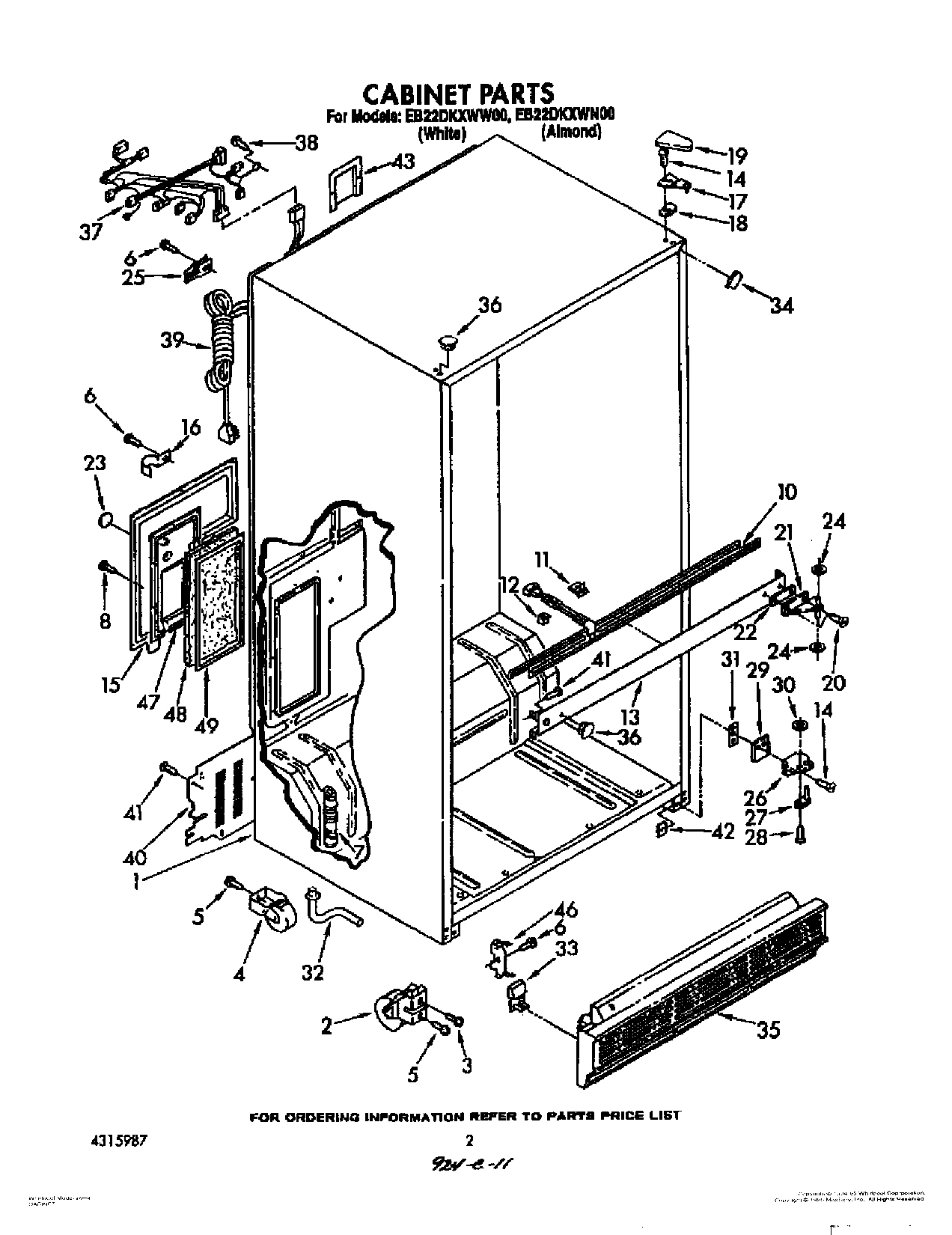

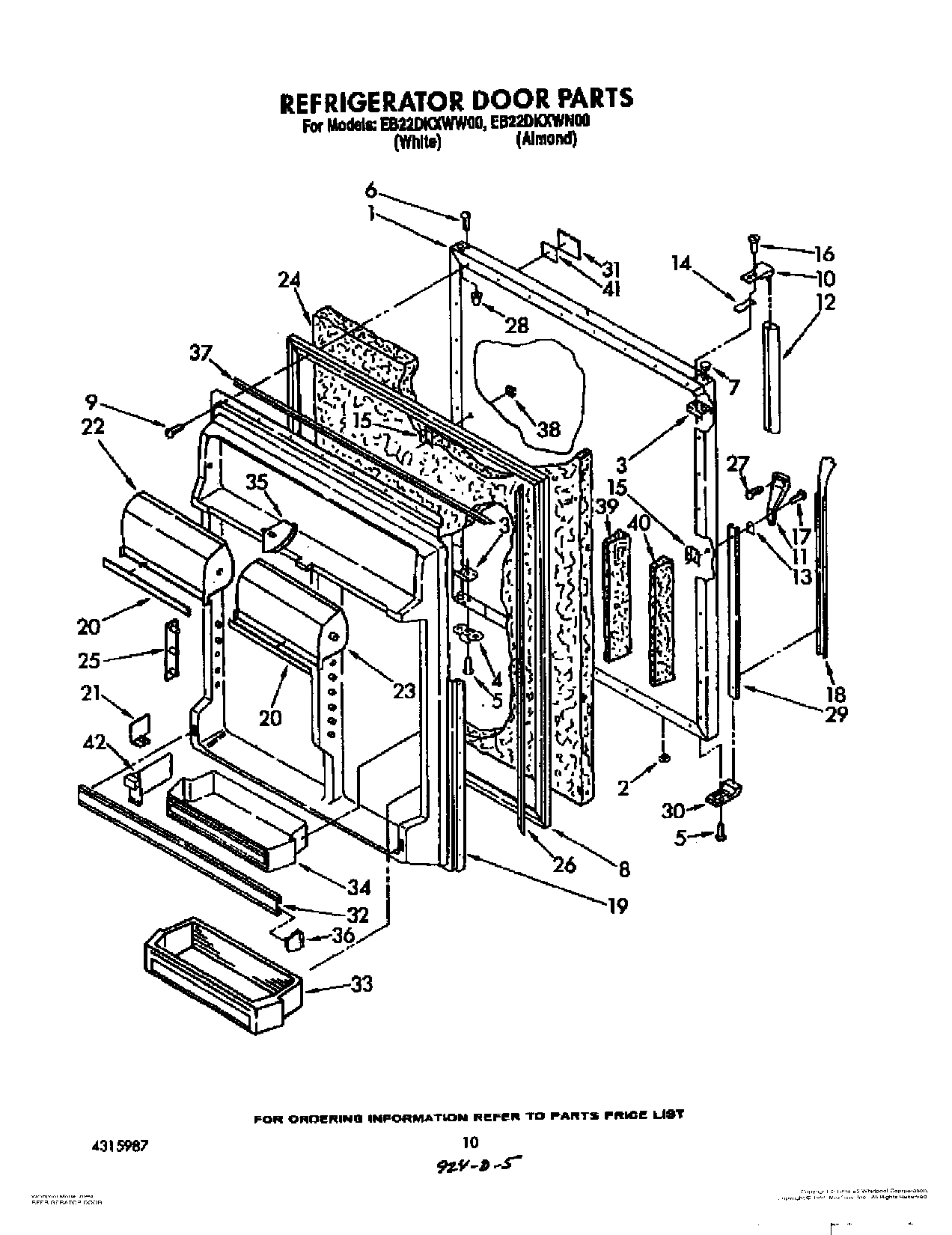

Model Whirlpool EB22DKXWN00 BOTTOM MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL LIT1127423 WPL LIT1127423 Contact Us For Availability

WPL LIT2148869 WPL LIT2148869 Contact Us For Availability

WPL LIT2149156 WPL LIT2149156 Contact Us For Availability

WPL LIT4315987 WPL LIT4315987 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Compartment (White) WPL 1126098 Contact Us For Availability

1

Compartment (Almond Separator Assembly (Inclu WPL 2149168 Contact Us For Availability

1

Shelf, Ladder (2) WPL 1127413 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI145074A Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1123159 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1123162 Contact Us For Availability

2

Defrost Timer WPL 2149098 Contact Us For Availability

2

Fan, Blade WPL 989524 Contact Us For Availability

2

Shelf, Ladder Center WPL 1127414 Contact Us For Availability

2

Slide, Basket (Right Side) WPL 986382 Contact Us For Availability

2

Slide, Basket (Left Side) WPL 986383 Contact Us For Availability

2

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

3

Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability

3

Condenser Assembly WPL 1105640 Contact Us For Availability

4

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

4

Roller, Rear (2) WPL 2147324 Contact Us For Availability

4

Screw WPL 489050 Contact Us For Availability

4

Screw, Support Center (2) WPL 520959 Contact Us For Availability

4

Shelf Track, (Left Side) WPL 2149174 Contact Us For Availability

4

Shelf Track, (Right Side) WPL 2149175 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

5

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Light Lens WPL 983910 Contact Us For Availability

5

Clip, Wire (2) WPL 548745 Contact Us For Availability

6

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

7

Fitting, Drain WPL 942768 Contact Us For Availability

7

Air Baffle, Evaporator WPL 1115006 Contact Us For Availability

7

Shelf, Cantilever WPL 1110739 Contact Us For Availability

7

Electrical Shield Extension WPL 1127396 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

8

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

8

Wiring Assembly, Control Box WPL 2147064 Contact Us For Availability

8

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

8

Tube Clamp WPL 510716 Contact Us For Availability

8

Trim, Shelf WPL 1110741 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1127256 Contact Us For Availability

9

WP2151749 Whirlpool Refrigerator Cover Backorder WPL WP2151749 $124.51

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

9

Cable Tie WPL 1102000 Contact Us For Availability

9

Dampener WPL 510769 Contact Us For Availability

9

Scroll, Fan WPL 2149169 Contact Us For Availability

WP819470 Whirlpool Refrigerator Thermostat Backorder WPL WP819470 $62.70

Heater, Mullion WPL 1105433 Contact Us For Availability

Trim, Crisper Cover WPL 1105649 Contact Us For Availability

Wiring Assembly, Fan Motor WPL 1127434 Contact Us For Availability

Trim, Door WPL 1106148 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Handle End, Side WPL 1109189 Contact Us For Availability

Clip, Mullion (4) WPL 2149060 Contact Us For Availability

Spring, Relay Case WPL 943322 Contact Us For Availability

Glass, Crisper Cover WPL 1124553 Contact Us For Availability

Fan Motor WPL 1127401 Contact Us For Availability

End Cap (2) WPL 944157 Contact Us For Availability

Blade, Fan WPL 992920 Contact Us For Availability

Spacer (3) WPL 1115105 Contact Us For Availability

Bracket, Thermostat WPL 848446 Contact Us For Availability

Case, Relay WPL 1105055 Contact Us For Availability

Pan Shelf, Cantilever WPL 1110756 Contact Us For Availability

Handle, Center WPL 2148704 Contact Us For Availability

Center Rail (White) WPL 1127242 Contact Us For Availability

Center Rail (Almond) WPL 1127245 Contact Us For Availability

Overload WPL 2147065 Contact Us For Availability

Freezer Basket, (Lower) WPL 1127250 Contact Us For Availability

Ring, Compression WPL 992953 Contact Us For Availability

Trim, Door Shelf WPL 1114376 Contact Us For Availability

Spacer, Handle Door (2) WPL 943188 Contact Us For Availability

Screw WPL 489327 Contact Us For Availability

Control Knob WPL 1127260 Contact Us For Availability

Overload Spring WPL 943320 Contact Us For Availability

Trim, Basket WPL 1127251 Contact Us For Availability

Grommet (2) WPL 1114354 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Cover, Flush WPL 2149157 Contact Us For Availability

Control Panel Assembly (Includes Item 16) WPL 1127261 Contact Us For Availability

Relay WPL 1101014 Contact Us For Availability

Screw (2) WPL 489168 Contact Us For Availability

Interior Door Panel WPL 1127255 Contact Us For Availability

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Tube Clamp (3) WPL 1105607 Contact Us For Availability

Housing Plug WPL 1118850 Contact Us For Availability

Glass, Shelf WPL 1124554 Contact Us For Availability

Gasket, Fan Scroll WPL 1127406 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Hinge, Top WPL 1123514 Contact Us For Availability

Freezer Basket, (Upper) WPL 2149146 Contact Us For Availability

Trim, Door Shelf WPL 1124227 Contact Us For Availability

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

Shim, Hinge Top WPL 1123515 Contact Us For Availability

Diffuser Assembly, Air WPL 986021 Contact Us For Availability

Cover, Evaporator WPL 1115004 Contact Us For Availability

Gasket Retainer, Side (2) WPL 986015 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Screw Grommet WPL 509812 Contact Us For Availability

Pan, Crisper WPL 1121124 Contact Us For Availability

Gasket Retainer, Top & Bottom WPL 836118 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

Screw WPL 489179 Contact Us For Availability

Screw, 8 x 1-1/4 (2) WPL 488357 Contact Us For Availability

Clip, Unit Cover (2) WPL 548744 Contact Us For Availability

Pan, Meat WPL 1124218 Contact Us For Availability

Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability

Kit, Foam Slab WPL 876029 Contact Us For Availability

Hinge, Center WPL 836153 Contact Us For Availability

Gasket WPL 1127488 Contact Us For Availability

Crisper Gasket, Front (2) WPL 1116512 Contact Us For Availability

Hole Plug (2) WPL 944795 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

Shim, Hinge Center WPL 836194 Contact Us For Availability

Shim, Center (Repair) WPL 836195 Contact Us For Availability

Damper, Air WPL 984658 Contact Us For Availability

Evaporator WPL 1114714 Contact Us For Availability

Reflector, Shelf WPL 1114435 Contact Us For Availability

Hole Seal WPL 1129056 Contact Us For Availability

Retainer, Air Damper WPL 836493 Contact Us For Availability

Reflector, Shelf WPL 1110743 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

Divider, Door Shelf (2) WPL 1114380 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Knob, Air Diffuser (Includes Item 25) WPL 1127263 Contact Us For Availability

Glass, Full Shelf WPL 1124555 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

Knob, Retainer WPL 837444 Contact Us For Availability

Tray, Evaporator WPL 1105524 Contact Us For Availability

Trim, Shelf WPL 1119562 Contact Us For Availability

Hole Seal WPL 1120224 Contact Us For Availability

26

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $24.25

26

Hinge Butt, Bottom WPL 1115908 Contact Us For Availability

26

Stud-Hook WPL 2149127 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Lens-Light WPL 983359 Contact Us For Availability

Slide, Crisper WPL 1116718 Contact Us For Availability

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

28

Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482982 Contact Us For Availability

28

Shelf, Full Cantilever WPL 1116350 Contact Us For Availability

29

Shim, Bottom WPL 836196 Contact Us For Availability

29

Clamp, Dryer WPL 1127590 Contact Us For Availability

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $95.80

30

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

30

Crisper Pan, Front WPL 1114776 Contact Us For Availability

31

Spacer WPL 1129868 Contact Us For Availability

31

Exchanger, Heat WPL 1114723 Contact Us For Availability

31

Crisper Gasket, Rear (2) WPL 1105653 Contact Us For Availability

32

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

32

Extension, Drain Tube WPL 1127377 Contact Us For Availability

32

Fan, Motor Bracket WPL 548695 Contact Us For Availability

33

Corner Filler, Grille WPL 1118078 Contact Us For Availability

33

Heater, Defrost WPL 2149065 Contact Us For Availability

33

Ice Tray Rack WPL 2147011 Contact Us For Availability

34

Filler, Wrap Corner (2) (White) WPL 1110708 Contact Us For Availability

34

Filler, Wrap Corner (2) (Almond) WPL 1110709 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $3.70

WP2182381 Whirlpool Refrigerator Bimetallic D In Stock WPL WP2182381 $37.79

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Grille WPL 1129001 Contact Us For Availability

Arm, Icemaker Must Be Ordered When Ordering F WPL 2149150 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORAT WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

36

Hole Plug (5) (White) WPL 1129062 Contact Us For Availability

36

Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability

37

Cabinet Wiring Assembly WPL 2149887 Contact Us For Availability

38

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

Cord, Service WPL 937360 Contact Us For Availability

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

Cover, Unit WPL 2147329 Contact Us For Availability

41

Baffle, Air WPL 1105530 Contact Us For Availability

42

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

42

Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability

43

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $50.51

43

Cover, Wiring WPL 2149121 Contact Us For Availability

44

Overload WPL 483054 Contact Us For Availability

45

Cover, Terminal WPL 1105015 Contact Us For Availability

46

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

46

Strap WPL 938384 Contact Us For Availability

47

Plug Cover WPL 1115013 Contact Us For Availability

47

Overload Spring WPL 1114190 Contact Us For Availability

48

Insulation WPL 1115131 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

Sealing Gasket WPL 1121118 Contact Us For Availability

49

Screw WPL 488624 Contact Us For Availability

50

Guard, Fan WPL 1105614 Contact Us For Availability

51

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Support (2) WPL 1115128 Contact Us For Availability

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

56

Capacitor WPL 482996 Contact Us For Availability

57

Nut WPL 489142 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Washer WPL 489143 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

NI

WPL 489226 WPL 489226 Contact Us For Availability
