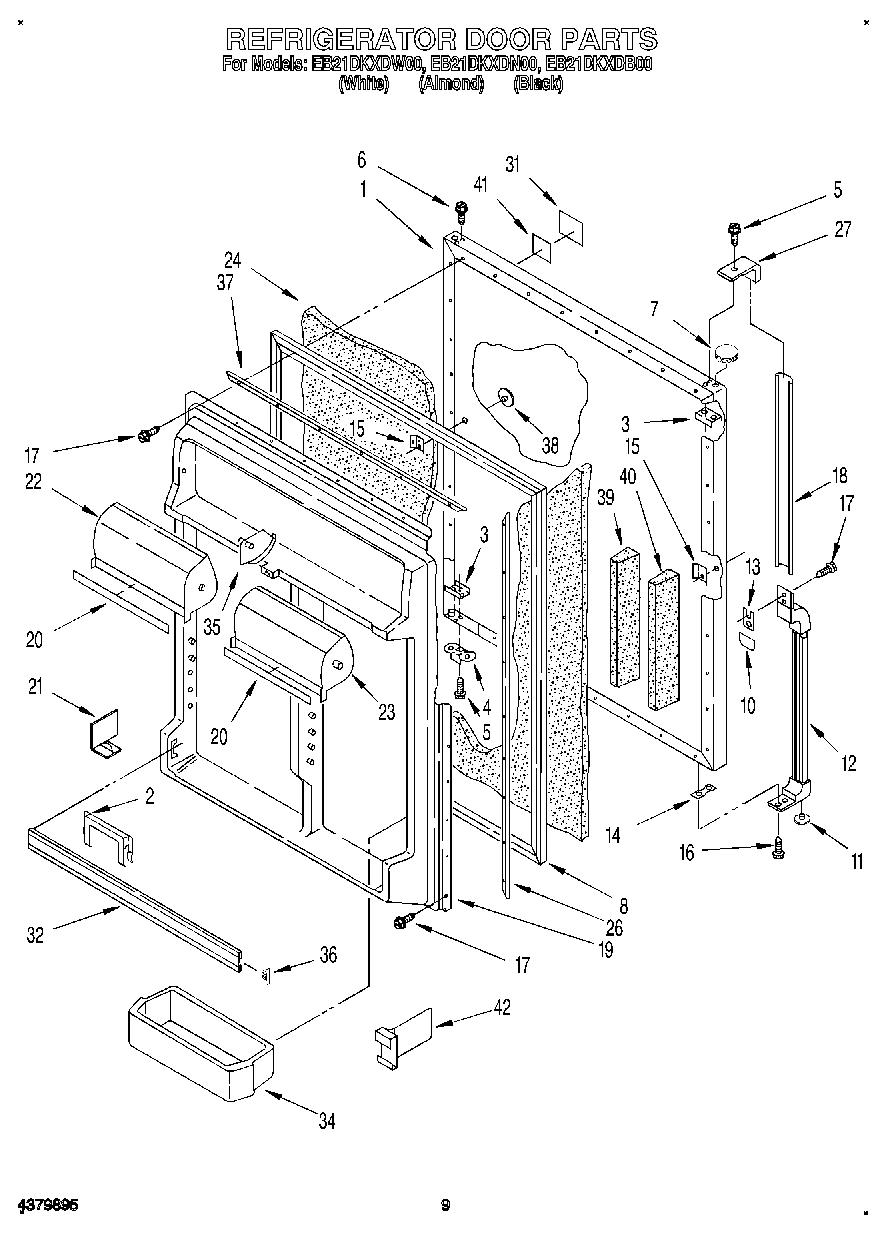

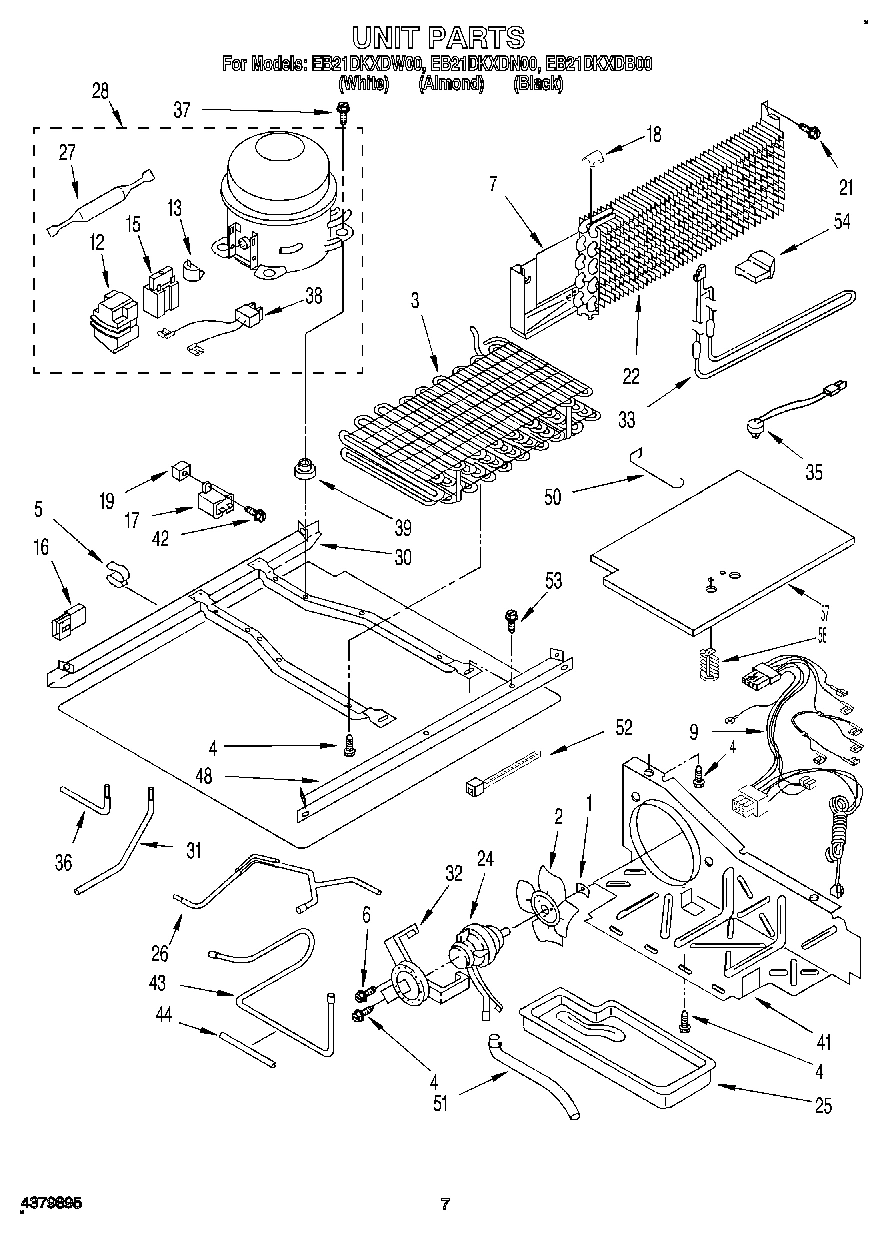

Model Whirlpool EB21DKXDN00 BOTTOM MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2176895 WPL LIT2176895 Contact Us For Availability

WPL LIT2182513 WPL LIT2182513 Contact Us For Availability

WPL LIT2182538 WPL LIT2182538 Contact Us For Availability

WPL LIT677969 WPL LIT677969 Contact Us For Availability

WPL LIT677971 WPL LIT677971 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Freezer Door Panel (Also Order Item 21) (Whit WPL 2174870 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 2174872 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Bla WPL 2174873 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI25301A5 Contact Us For Availability

1

Shelf, Ladder (2) WPL 1127413 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI25300A3 Contact Us For Availability

1

Compartment Separator Assembly (Includes Cent WPL 2152764 Contact Us For Availability

2

WP2183400 Whirlpool Defrost Timer In Stock WPL WP2183400 $46.85

2

Screw Anchor WPL 2157332 Contact Us For Availability

2

Slide, Basket (Right Side) WPL 986382 Contact Us For Availability

2

Slide, Basket (Left Side) WPL 986383 Contact Us For Availability

2

Shelf, Ladder Center WPL 1127414 Contact Us For Availability

2

Roller, Front WPL 2174748 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

3

Screw WPL 489386 Contact Us For Availability

4

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Bracket, Door Stop WPL 944036 Contact Us For Availability

4

Shelf Track, (Left Side) WPL 2149174 Contact Us For Availability

4

Shelf Track, (Right Side) WPL 2149175 Contact Us For Availability

4

Cover WPL 2169935 Contact Us For Availability

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Screw, WPL 489345 Contact Us For Availability

5

Light Lens WPL 983910 Contact Us For Availability

6

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

6

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

7

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

7

Drain Pan & Heat Shield Assy. WPL 2152771 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Frame Assembly, Cantilever (3) WPL 2174036 Contact Us For Availability

8

Door Gasket (Mist Beige) WPL 2160436 Contact Us For Availability

8

Door Gasket (Black) WPL 2160440 Contact Us For Availability

8

Insert, Scroll WPL 2160525 Contact Us For Availability

8

Shelf, Slide WPL 2174224 Contact Us For Availability

8

Wiring Assembly, Control Box WPL 2152787 Contact Us For Availability

9

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

9

Wire Assy WPL 2176857 Contact Us For Availability

9

Scroll, Fan WPL 2152779 Contact Us For Availability

9

Crisper Cover WPL 2174134 Contact Us For Availability

9

Shim WPL 2157269 Contact Us For Availability

WP4317800 Whirlpool Refrigerator Thermostat In Stock WPL WP4317800 $113.21

Shim WPL 2183024 Contact Us For Availability

Wiring Assembly, Fan Motor WPL 1127434 Contact Us For Availability

Hook, Shelf WPL 2169608 Contact Us For Availability

Heater, Mullion WPL 2157307 Contact Us For Availability

Divider, Shelf WPL 1123293 Contact Us For Availability

Fan Motor WPL 2160412 Contact Us For Availability

Glass, Crisper Cover WPL 2174143 Contact Us For Availability

Clip, Center Rail (4) WPL 2149060 Contact Us For Availability

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

Handle (White) WPL 2179593 Contact Us For Availability

Handle (Almond) WPL 2179594 Contact Us For Availability

Handle (Black) WPL 2179595 Contact Us For Availability

Fan Blade WPL 2169141 Contact Us For Availability

Shelf, Meat Pan WPL 2174043 Contact Us For Availability

Spacer (3) WPL 1115105 Contact Us For Availability

Bracket, Thermostat WPL 2152896 Contact Us For Availability

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $68.76

Trim, Door Shelf WPL 2171395 Contact Us For Availability

Gasket, Fan Scroll WPL 2160533 Contact Us For Availability

Freezer Basket, (Lower) WPL 2152799 Contact Us For Availability

Center Rail WPL 2172707 Contact Us For Availability

Screw, 8-32 x 3/8 WPL 488974 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

Grommet (2) WPL 531933 Contact Us For Availability

Trim, Basket (Lower) WPL 2179512 Contact Us For Availability

Hole Plug (Almond) WPL 2151653 Contact Us For Availability

Control Knob WPL 2148656 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

Relay (See Overload) WPL ARI25302A1 Contact Us For Availability

Interior Door Panel WPL 2152814 Contact Us For Availability

Screw WPL 489168 Contact Us For Availability

Insert, Air Baffle WPL 2176796 Contact Us For Availability

Control Panel WPL 2148654 Contact Us For Availability

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Housing Plug WPL 1118850 Contact Us For Availability

Glass, Shelf WPL 2174035 Contact Us For Availability

Hole Plug WPL 2148655 Contact Us For Availability

WP2189412 Whirlpool Refrigerator Door Hinge Backorder WPL WP2189412 $37.95

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Running Capacitor WPL 2169137 Contact Us For Availability

Trim, Door WPL 2171394 Contact Us For Availability

Freezer Basket, (Upper) WPL 2179448 Contact Us For Availability

9791833 Whirlpool Refrigerator Clip Backorder WPL 9791833 $4.37

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

Gasket Retainer, Side (2) WPL 986015 Contact Us For Availability

Cover, Evaporator WPL 2152796 Contact Us For Availability

Deck Rail Cover WPL 2172708 Contact Us For Availability

Air Diffuser Assembly WPL 2160470 Contact Us For Availability

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Screw Grommet WPL 509812 Contact Us For Availability

Gasket Retainer, Top & Bottom WPL 1122552 Contact Us For Availability

Pan, Crisper (Includes Items 29, 30 & 31) WPL 2174091 Contact Us For Availability

Hinge Cover (Almond) WPL 2160404 Contact Us For Availability

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Hole Cover, Evaporator WPL 2152827 Contact Us For Availability

Pan, Meat (Includes Item 32) WPL 2179407 Contact Us For Availability

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

Crisper Gasket, Front WPL 2179392 Contact Us For Availability

Hinge, Center WPL 2151453 Contact Us For Availability

Gasket WPL 2160428 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

Evaporator WPL 2152776 Contact Us For Availability

Rack, Ice Tray WPL 2152823 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

Damper, Air WPL 984658 Contact Us For Availability

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

Hole Plug WPL 1103725 Contact Us For Availability

Trim, Ice Bucket WPL 2176360 Contact Us For Availability

Retainer, Air Damper WPL 836493 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WP489200 Whirlpool Refrigerator Washer Backorder WPL WP489200 $4.61

Screw WPL 489419 Contact Us For Availability

Knob, Air Diffuser (Includes Item 25) WPL 2148657 Contact Us For Availability

25

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

25

Tray, Evaporator WPL 2154114 Contact Us For Availability

25

Knob, Retainer WPL 837444 Contact Us For Availability

2254352A Whirlpool Refrigerator Ice Container In Stock WPL 2254352A $14.91

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

Stud WPL 2155555 Contact Us For Availability

Tube, Discharge WPL 2162475 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

Slide, Track WPL 2169793 Contact Us For Availability

27

Light Lens WPL 983359 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $341.23

Trim, Basket (Upper) WPL 2179513 Contact Us For Availability

Insert, Air Return WPL 987019 Contact Us For Availability

29

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $27.12

29

Gasket, Comp. Sep. WPL 1116698 Contact Us For Availability

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $95.80

30

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

30

Lens-Light WPL 2149068 Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability

Spacer WPL 2172744 Contact Us For Availability

32

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

32

Fan, Motor Bracket WPL 548695 Contact Us For Availability

32

Separator Top-Front WPL 1121213 Contact Us For Availability

Heater, Defrost WPL 2162083 Contact Us For Availability

Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability

Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability

Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability

Air Deflector WPL 2160531 Contact Us For Availability

Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability

Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability

Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability

Separator, Top-Rear WPL 2152789 Contact Us For Availability

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $3.70

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

Grille (White) WPL 1125663 Contact Us For Availability

Grille (Almond) WPL 1125667 Contact Us For Availability

Grille (Black) WPL 1129001 Contact Us For Availability

Gasket, Damper WPL 2160454 Contact Us For Availability

36

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

36

Plug, Trim (2) WPL 2159300 Contact Us For Availability

36

Hole Plug (White) WPL 1129062 Contact Us For Availability

37

WP2177817 Whirlpool Refrigerator Egg Containe Backorder WPL WP2177817 $7.39

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Door Reversal Instructions WPL 2180410 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

41

Air Baffle WPL 2162457 Contact Us For Availability

43

Tube, Suction WPL 2162472 Contact Us For Availability

44

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

48

Cover And Air Scoop Assembly WPL 2160534 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $24.10

51

Extension, Drain Tube WPL 2152822 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Support WPL 1115128 Contact Us For Availability

57

Cover-Unit Btm. WPL 2160505 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

61

Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94
