Model Whirlpool EB19MKXSW01 BOTTOM MOUNT REFRIGERATOR – Common Parts & Diagrams
03 - CABINET
05 - INTERIOR

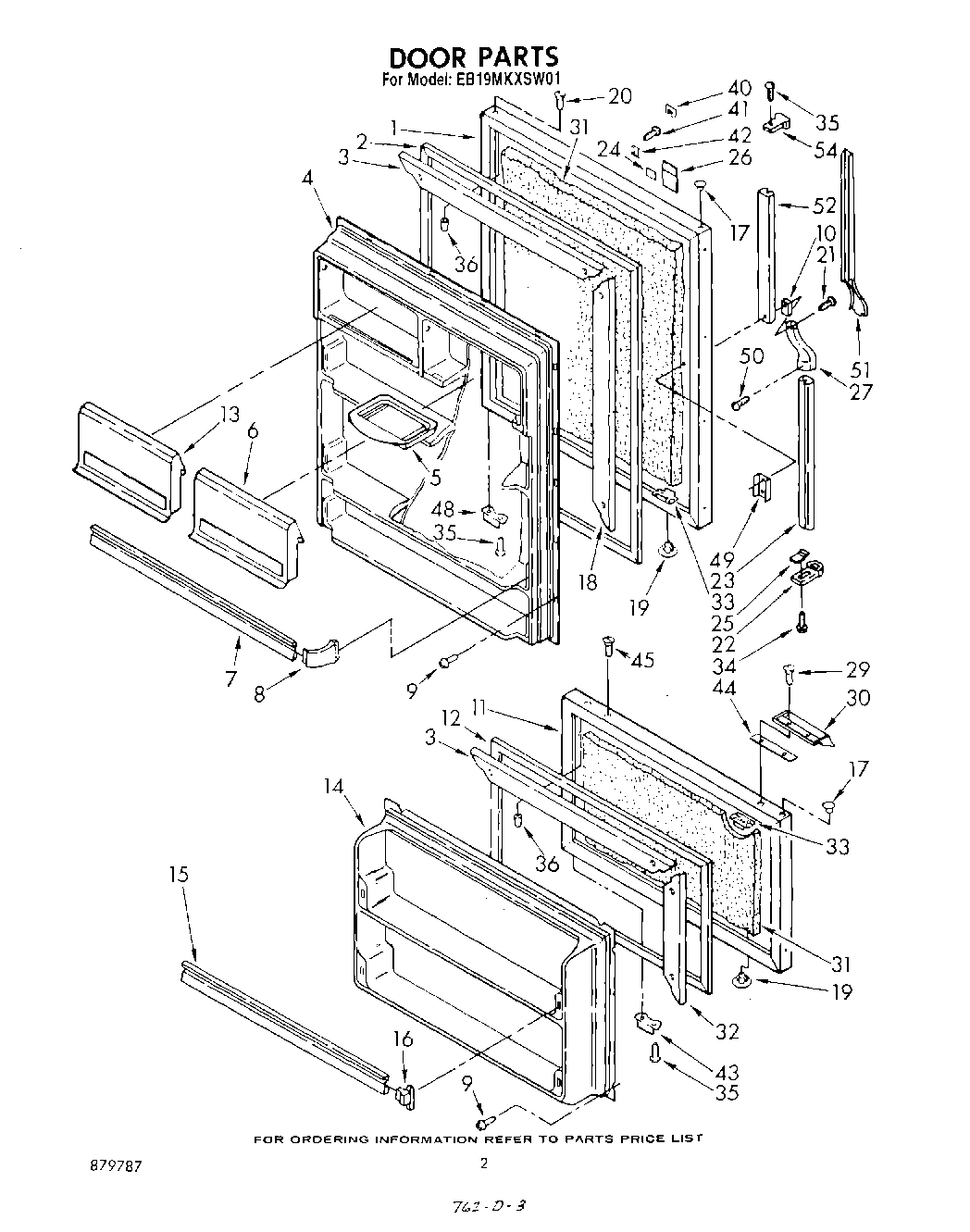

02 - DOOR

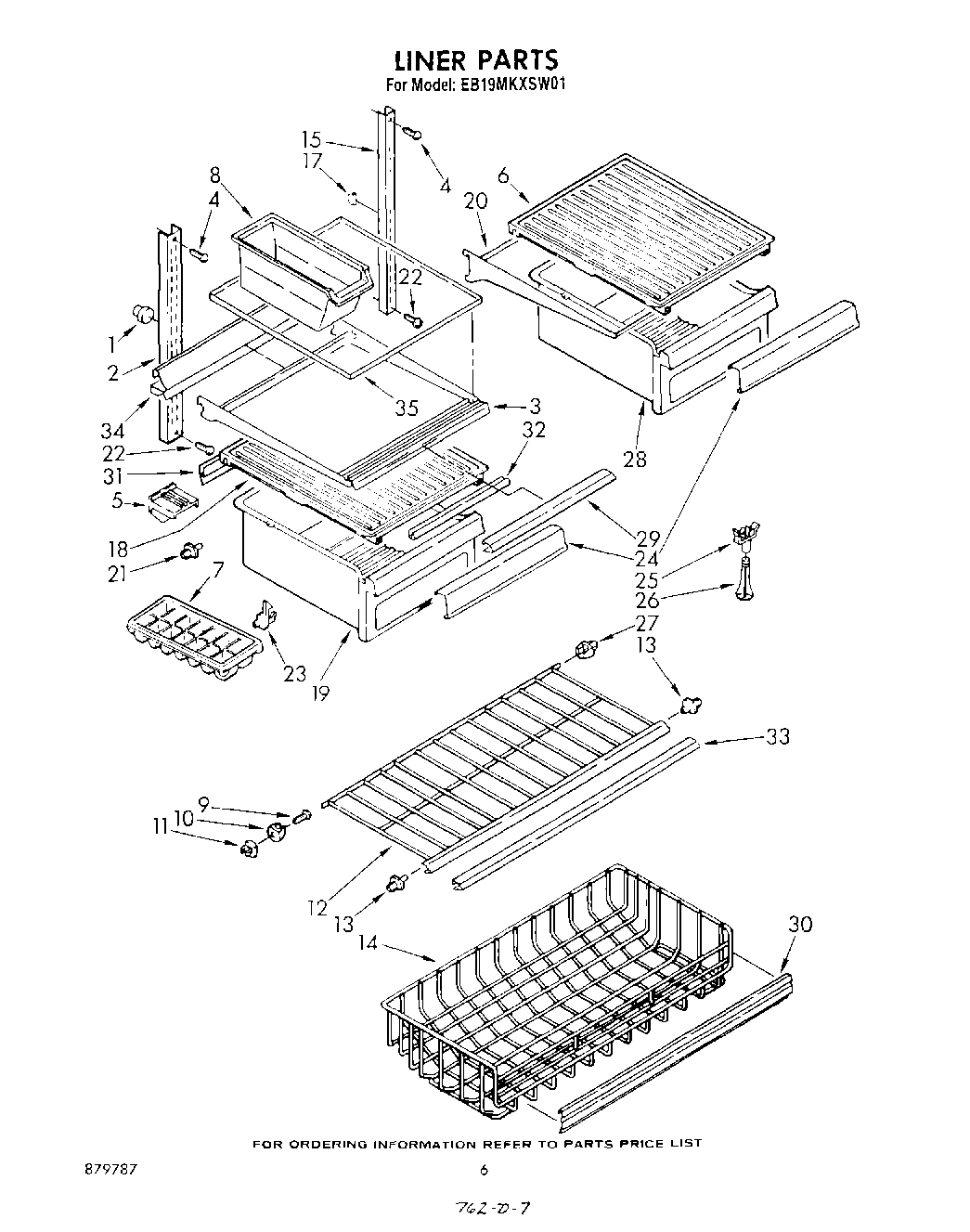

04 - LINER , LIT/OPTIONAL

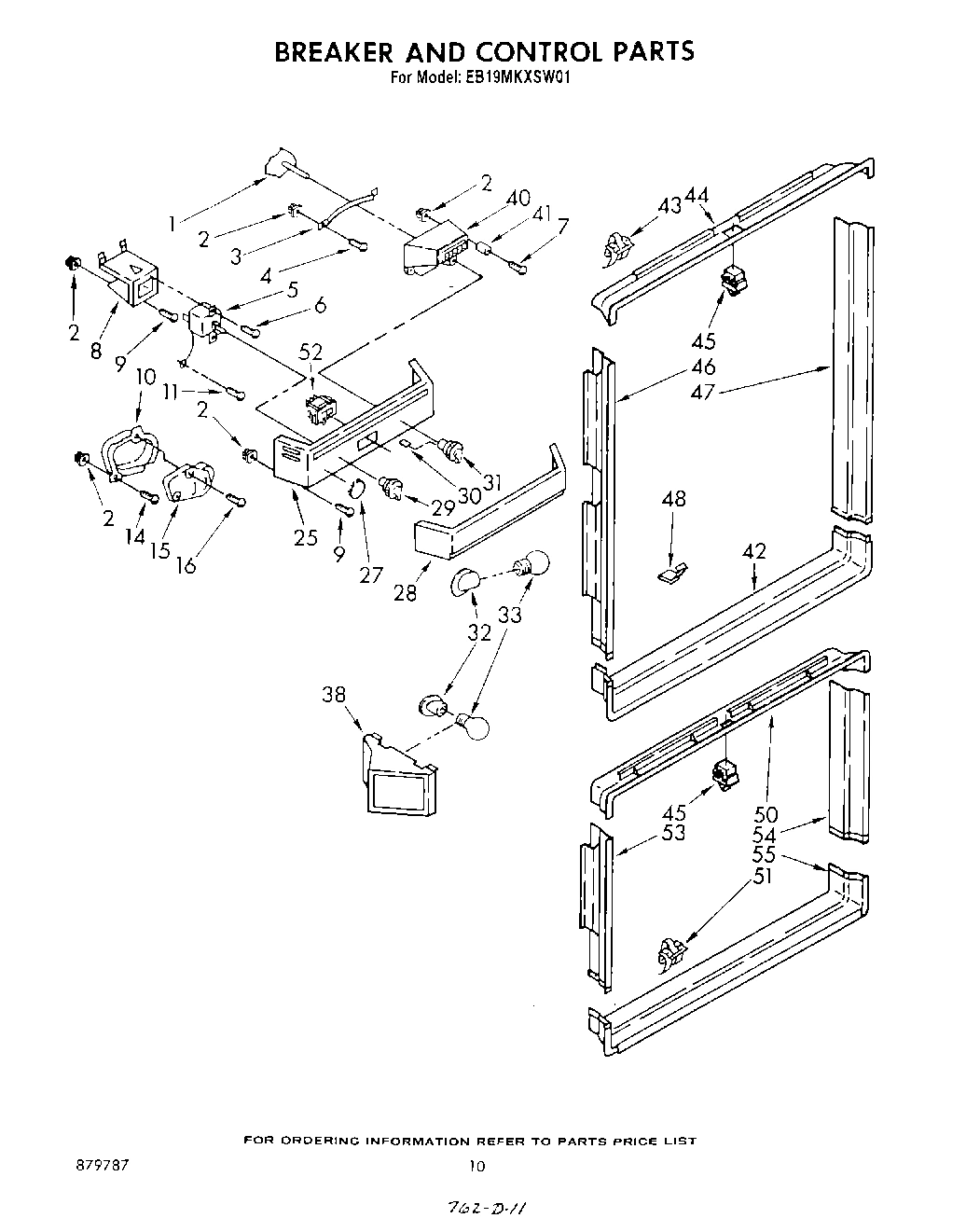

06 - BREAKER AND CONTROL

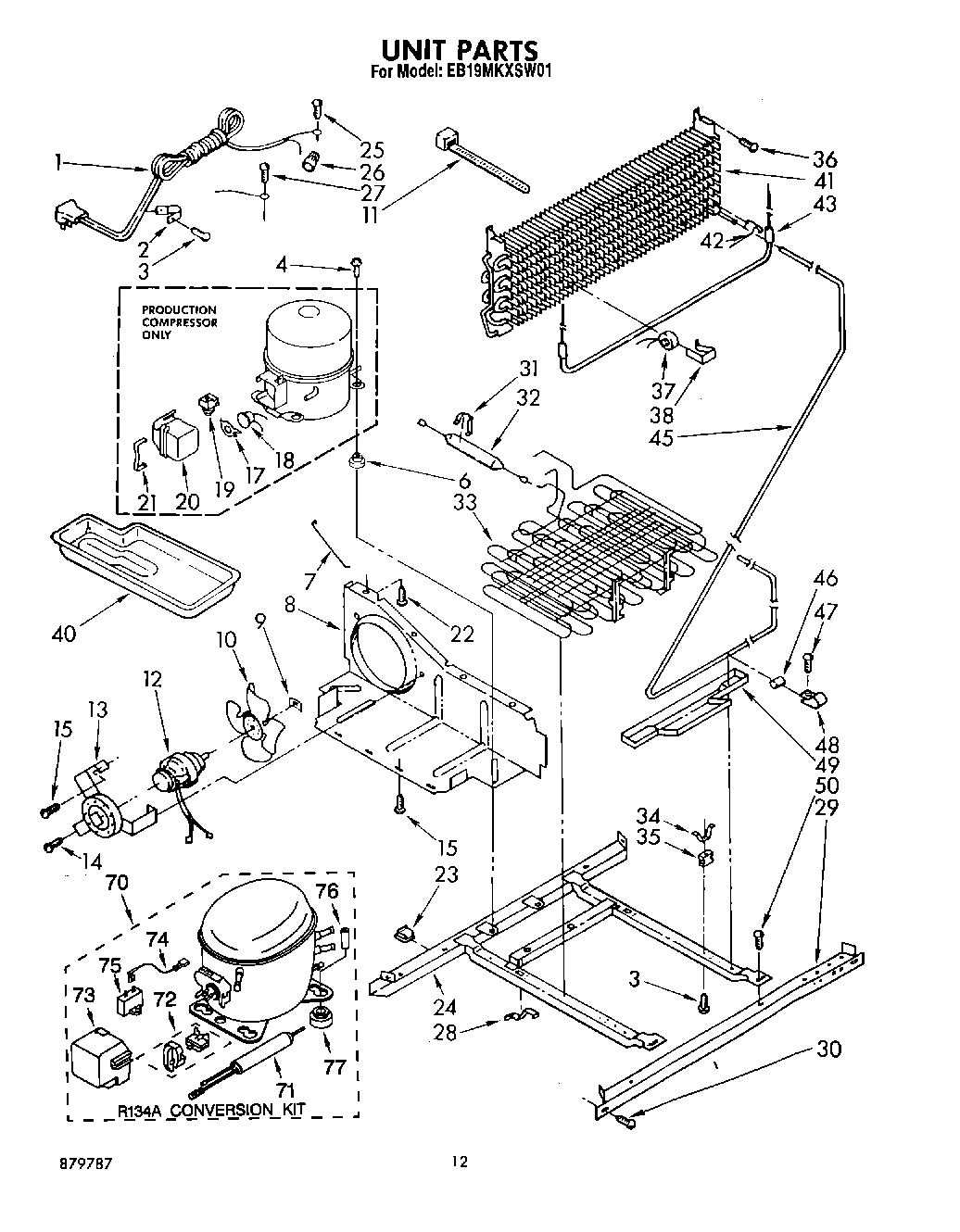

07 - UNIT
Common parts from model Whirlpool EB19MKXSW01 BOTTOM MOUNT REFRIGERATOR
WPL LIT1111942 WPL LIT1111942 Contact Us For Availability
WPL LIT1114071 WPL LIT1114071 Contact Us For Availability
WPL LIT879787 WPL LIT879787 Contact Us For Availability
WPL LIT946603 WPL LIT946603 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI145032A Contact Us For Availability
1
Door, Refrigerator (Also Order Item 31) (Whit WPL 1110304 Contact Us For Availability
1
Door, Refrigerator (Also Order Item 31) (Gold WPL 1110305 Contact Us For Availability
1
Door, Refrigerator (Also Order Item 31) (Almo WPL 1110306 Contact Us For Availability
1
Door, Refrigerator (Also Order Item 31) (Toas WPL 1110307 Contact Us For Availability
1
Door, Refrigerator (Also Order Item 31) (Plat WPL 1110308 Contact Us For Availability
1
Support, Center Ladder (2) WPL 520959 Contact Us For Availability
1
Damper, Air WPL 984658 Contact Us For Availability
1
Cord, Service WPL 850626 Contact Us For Availability
2
Separator, Compartment WPL 986026 Contact Us For Availability
2
Grommet WPL 842339 Contact Us For Availability
2
Gasket, Refrigerator Door WPL 986009 Contact Us For Availability
2
Ladder (Center) WPL 936230 Contact Us For Availability
3
Plug, Hole (4) WPL 519890 Contact Us For Availability
3
Retainer, Gasket Top & Bottom WPL 836118 Contact Us For Availability
3
Shelf, Cantilever (3) WPL 1109029 Contact Us For Availability
3
Retainer, Air Damper WPL 836493 Contact Us For Availability
4
Wiring, Liner (Defrost Timer) WPL 481782 Contact Us For Availability
4
Panel, Interior Door WPL 482559 Contact Us For Availability
5
Stud, Crisper Support (Rear) WPL 836412 Contact Us For Availability
6
Door, Butter WPL 1108977 Contact Us For Availability
6
Pan, Cover WPL 1106070 Contact Us For Availability
7
Plug, Hole (2) WPL 659598 Contact Us For Availability
7
Trim, Door Shelf (3) WPL 1108975 Contact Us For Availability
7
Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability
7
Guard, Fan WPL 850156 Contact Us For Availability
8
Cap, Receptacle WPL 850738 Contact Us For Availability
8
Bracket, Thermostat Mounting WPL 848446 Contact Us For Availability
8
Baffle, Air WPL 850764 Contact Us For Availability
9
Wiring, Liner (Ice Maker) WPL 481658 Contact Us For Availability
10
Shim, Center End Cap WPL 935075 Contact Us For Availability
10
Stud, Saddle (L.S.) WPL 1100113 Contact Us For Availability
10
Container, Defrost Timer WPL 983079 Contact Us For Availability
10
Fan WPL 989524 Contact Us For Availability
11
Grommet, Screw WPL 538449 Contact Us For Availability
11
Door, Freezer (Also Order Item 31) (White) WPL 1110312 Contact Us For Availability
11
Door, Freezer (Also Order Item 31) (Golden Ha WPL 1110313 Contact Us For Availability
11
Door, Freezer (Also Order Item 31) (Almond) WPL 1110314 Contact Us For Availability
11
Door, Freezer (Also Order Item 31) (Toast) WPL 1110315 Contact Us For Availability
11
Door, Freezer (Also Order Item 31) (Platinum) WPL 1110316 Contact Us For Availability
11
Strap WPL 851095 Contact Us For Availability
12
Blade, Fan WPL 992920 Contact Us For Availability
12
Gasket, Freezer Door WPL 986016 Contact Us For Availability
12
Shelf, Freezer WPL 986809 Contact Us For Availability
13
Door, Utility WPL 1108978 Contact Us For Availability
13
Stud, Shelf (2) WPL 529758 Contact Us For Availability
13
Bracket, Motor WPL 548695 Contact Us For Availability
14
Grommet, Fan Mounting (3) WPL 548268 Contact Us For Availability
14
Panel, Interior Door WPL 1101494 Contact Us For Availability
14
Basket, Freezer WPL 985382 Contact Us For Availability
15
Bracket, Fan Mounting (Double) WPL 548263 Contact Us For Availability
15
Trim, Door Shelf (2) WPL 1109059 Contact Us For Availability
15
Ladder, Shelf (Side) (2) WPL 934267 Contact Us For Availability
15
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
15
Timer, Defrost WPL 943428 Contact Us For Availability
16
Gasket, Sealing WPL 991280 Contact Us For Availability
16
Screw, 8 x 1-3/8 (2) WPL 488678 Contact Us For Availability
17
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
17
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
17
Plug, Hole (Almond) WPL 989196 Contact Us For Availability
17
Overload Spring WPL 943494 Contact Us For Availability
18
Bracket, Fan Mounting (Single) WPL 548264 Contact Us For Availability
18
Retainer Gasket, Side (2) WPL 986008 Contact Us For Availability
18
Pan Slide & Cover WPL 1106069 Contact Us For Availability
18
Overload WPL 943492 Contact Us For Availability
19
Hole Plug (2) (Toast) WPL 1100196 Contact Us For Availability
19
Hole Plug (2) (Platinum) WPL 1100197 Contact Us For Availability
19
Plug, Hole (2) (Almond) WPL 989197 Contact Us For Availability
19
Plu WPL 989879 Contact Us For Availability
19
Pan Crisper, Plastic (2) WPL 1111934 Contact Us For Availability
19
Relay WPL 945431 Contact Us For Availability
20
Gasket, Sealing WPL 986018 Contact Us For Availability
20
Pan Shelf, Cantilever WPL 936285 Contact Us For Availability
20
Case, Relay WPL 943496 Contact Us For Availability
21
Stud, Shelf (2) WPL 536475 Contact Us For Availability
21
Scroll, Fan WPL 1114214 Contact Us For Availability
21
Spring, Case WPL 943497 Contact Us For Availability
22
WPL 944157 WPL 944157 Contact Us For Availability
22
Screw, 8-32 x 1-1/4 WPL 488960 Contact Us For Availability
22
Screw (Repair) WPL 488980 Contact Us For Availability
22
Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability
23
Stud, Shelf (2) WPL 836423 Contact Us For Availability
23
WPL 1109048 WPL 1109048 Contact Us For Availability
23
WPL 1109057 WPL 1109057 Contact Us For Availability
23
Clip, Wire (2) WPL 548745 Contact Us For Availability
24
Stud, Support (2) WPL 839213 Contact Us For Availability
24
WPL 991259 WPL 991259 Contact Us For Availability
24
Overlay, Pan WPL 986316 Contact Us For Availability
24
Frame WPL 945457 Contact Us For Availability
25
Support, Crisper Cover WPL 848562 No Longer Available
25
WPL 943188 WPL 943188 Contact Us For Availability
25
Speed Clip, Light Lens (3) WPL 533998 Contact Us For Availability
25
Panel, Control WPL 1111938 Contact Us For Availability
25
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
26
Post, Cover WPL 836410 Contact Us For Availability
26
Grommet WPL 944454 Contact Us For Availability
26
WPL 945116 WPL 945116 Contact Us For Availability
26
Wire Connector WPL 227991 Contact Us For Availability
27
WPL 1109189 WPL 1109189 Contact Us For Availability
27
Support, Evaporator (2) WPL 842436 Contact Us For Availability
27
Plug, Hole WPL 534927 Contact Us For Availability
27
Stud, Saddle (R.S.) WPL 1100114 Contact Us For Availability
28
Pan Meat, Plastic WPL 1111936 Contact Us For Availability
28
Shield, Light WPL 983910 Contact Us For Availability
28
Clip (2) WPL 548744 Contact Us For Availability
29
WPL 488933 WPL 488933 Contact Us For Availability
29
WPL 488934 WPL 488934 Contact Us For Availability
29
Trim, Shelf Front WPL 935223 Contact Us For Availability
29
Knob, Thermostat WPL 836482 Contact Us For Availability
29
Rail, Front WPL 548662 Contact Us For Availability
30
WPL 657077 WPL 657077 Contact Us For Availability
30
Trim, Freezer Basket WPL 991320 Contact Us For Availability
30
Knob, Retainer WPL 837444 Contact Us For Availability
31
Slide, Basket (R.S) WPL 986382 Contact Us For Availability
31
Slide, Basket (Left Side) WPL 986383 Contact Us For Availability
31
Crisper Gasket, Rear (2) WPL 942027 Contact Us For Availability
31
Knob, Air Diffuser (Includes Illus. 30) WPL 837445 Contact Us For Availability
31
Clamp WPL 548508 Contact Us For Availability
32
WPL 986015 WPL 986015 Contact Us For Availability
32
Crisper Gasket, Front (2) WPL 942028 Contact Us For Availability
33
Cap Nut WPL 1105243 Contact Us For Availability
33
Trim, Shelf Front WPL 985070 Contact Us For Availability
33
Condenser & Precooler WPL 943480 Contact Us For Availability
34
WPL 488923 WPL 488923 Contact Us For Availability
34
Reflector, Shelf WPL 991328 Contact Us For Availability
34
Clamp (4) WPL 548738 Contact Us For Availability
35
WPL 876029 WPL 876029 Contact Us For Availability
35
WPL 479502 WPL 479502 Contact Us For Availability
35
WPL 799344 WPL 799344 Contact Us For Availability
35
WPL 488930 WPL 488930 Contact Us For Availability
35
Glass Shelf WPL 1109030 Contact Us For Availability
35
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
35
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
35
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
35
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
35
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
35
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
35
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
35
WPL 542639 WPL 542639 Contact Us For Availability
35
WPL 72112 WPL 72112 Contact Us For Availability
35
WPL 799340 WPL 799340 Contact Us For Availability
35
WPL 799832 WPL 799832 Contact Us For Availability
35
WPL 799833 WPL 799833 Contact Us For Availability
35
WPL 978883 WPL 978883 Contact Us For Availability
35
Grommet (4) WPL 943447 Contact Us For Availability
36
Fitting, Drain Pan WPL 986661 Contact Us For Availability
36
WPL 509929 WPL 509929 Contact Us For Availability
38
Shield, Light (Freezer Compartment) WPL 848158 Contact Us For Availability
38
Clamp WPL 513584 Contact Us For Availability
39
WPL 836067 WPL 836067 Contact Us For Availability
39
WPL 989909 WPL 989909 Contact Us For Availability
39
WPL 989911 WPL 989911 Contact Us For Availability
40
Tray, Evaporating WPL 842041 Contact Us For Availability
40
WPL 836155 WPL 836155 Contact Us For Availability
40
Gasket, Side (2) WPL 982907 Contact Us For Availability
40
WPL 1111705 WPL 1111705 Contact Us For Availability
40
Diffuser Assembly, Air WPL 986021 Contact Us For Availability
41
Gasket, Rear WPL 991925 Contact Us For Availability
41
Evaporator WPL 945542 Contact Us For Availability
42
WPL 836153 WPL 836153 Contact Us For Availability
42
WPL 1107329 WPL 1107329 Contact Us For Availability
42
Breaker, Mullion Top WPL 985999 Contact Us For Availability
42
Clip, Heater (2) WPL 989306 Contact Us For Availability
43
WPL 989068 WPL 989068 Contact Us For Availability
43
WPL 944036 WPL 944036 Contact Us For Availability
43
Clip, Breaker Retainer (2) WPL 848478 Contact Us For Availability
43
Heater, Defrost WPL 851765 Contact Us For Availability
44
Track, Compartment WPL 986024 Contact Us For Availability
44
WPL 989711 WPL 989711 Contact Us For Availability
44
Breaker, Refrigerator Trim (Top) WPL 940919 Contact Us For Availability
45
Baffle, Air Evaporator WPL 851763 Contact Us For Availability
45
WPL 488935 WPL 488935 Contact Us For Availability
45
Exchanger, Heat WPL 945545 Contact Us For Availability
46
Breaker, Refrigerator Trim (L.S.) WPL 986001 Contact Us For Availability
46
Dampener (2) WPL 510769 Contact Us For Availability
47
WPL 836159 WPL 836159 Contact Us For Availability
47
Cover, Tube WPL 981085 Contact Us For Availability
47
Breaker, Refrigerator Trim (R.S.) WPL 986000 Contact Us For Availability
48
Cover, Tub Entry WPL 839826 Contact Us For Availability
48
WPL 944035 WPL 944035 Contact Us For Availability
48
Breaker, Trim Clip WPL 534365 Contact Us For Availability
48
Clamp (2) WPL 510716 Contact Us For Availability
49
WPL 654366 WPL 654366 Contact Us For Availability
49
Air Baffle WPL 1114216 Contact Us For Availability
49
Pan, Drip WPL 945572 Contact Us For Availability
50
WPL 488714 WPL 488714 Contact Us For Availability
50
Cover, Evaporator WPL 1114212 Contact Us For Availability
50
WPL 489022 WPL 489022 Contact Us For Availability
50
Breaker, Mullion Bottom WPL 841643 Contact Us For Availability
50
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
51
WPL 836196 WPL 836196 Contact Us For Availability
51
Plug, Hole WPL 659776 Contact Us For Availability
51
WPL 1111940 WPL 1111940 Contact Us For Availability
51
WPL 1111943 WPL 1111943 Contact Us For Availability
51
Breaker, Trim Clip, Line WPL 836090 Contact Us For Availability
52
WPL 935873 WPL 935873 Contact Us For Availability
53
Gasket, Drain Pan WPL 986660 Contact Us For Availability
53
Breaker, Freezer Trim (L.S.) WPL 985998 Contact Us For Availability
54
Pan, Drain (Also Includes Illus. 36) WPL 986659 Contact Us For Availability
54
WPL 1105804 WPL 1105804 Contact Us For Availability
54
Breaker, Freezer Trim (R.S.) WPL 985997 Contact Us For Availability
55
Insert, Air Return WPL 987019 Contact Us For Availability
55
Breaker, Freezer Trim (Bottom) WPL 839829 Contact Us For Availability
56
Gasket WPL 991223 Contact Us For Availability
57
Grid, Insert WPL 987018 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
