Model Whirlpool EB19MKXLWR0 BOTTOM MOUNT REFRIGERATOR – Common Parts & Diagrams
06 - INTERIOR
08 - UNIT

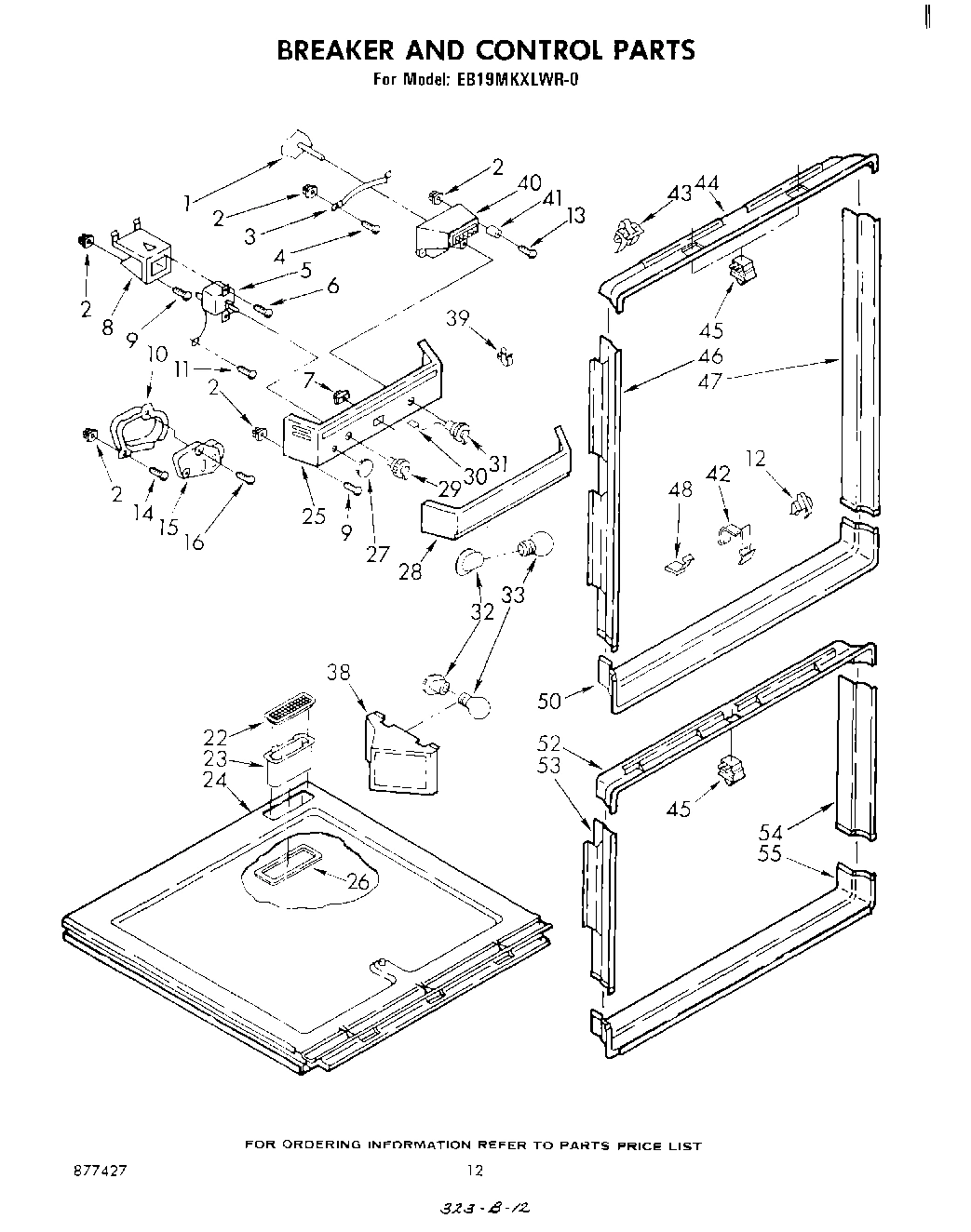

07 - BREAKER AND CONTROL

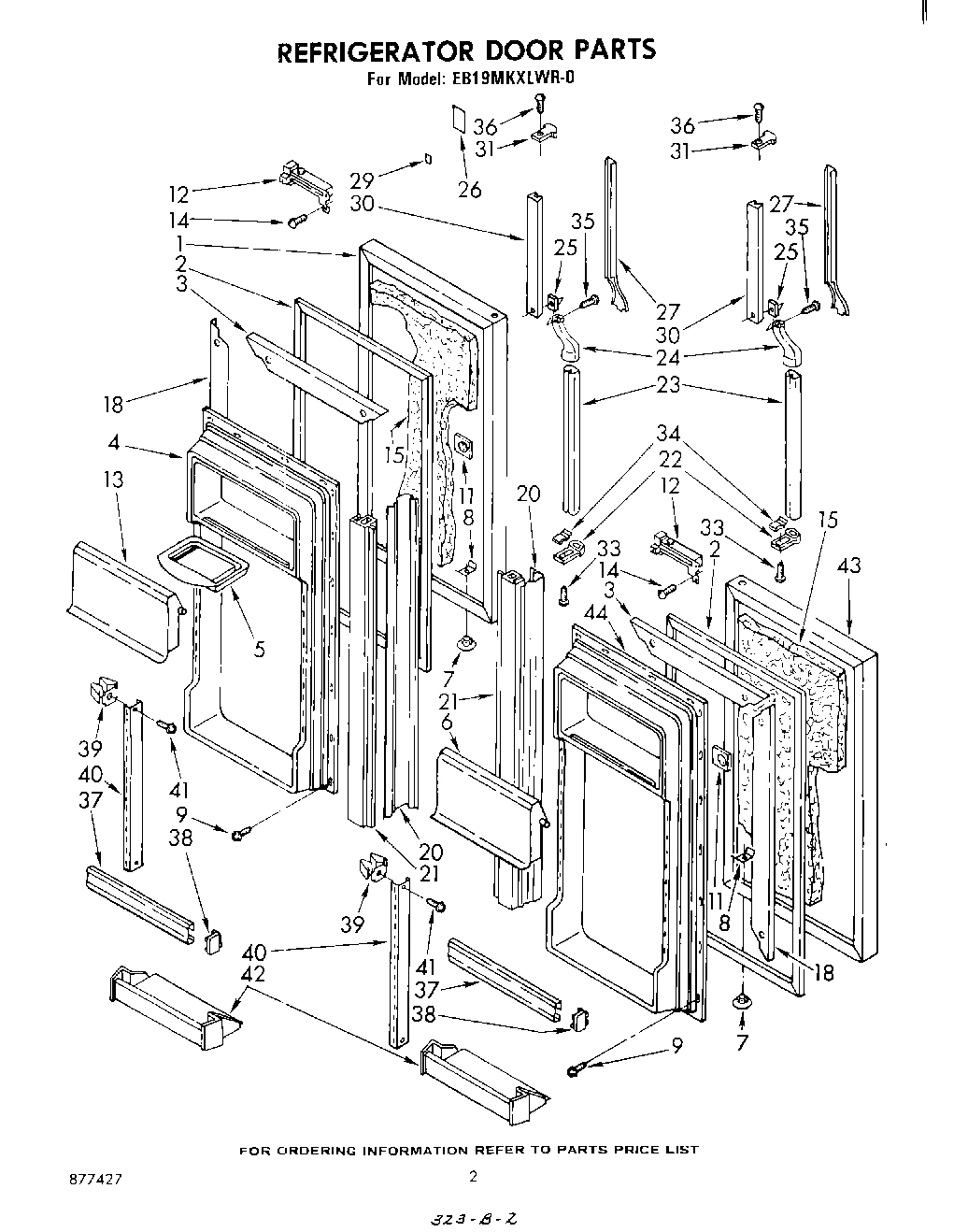

02 - REFRIGERATOR

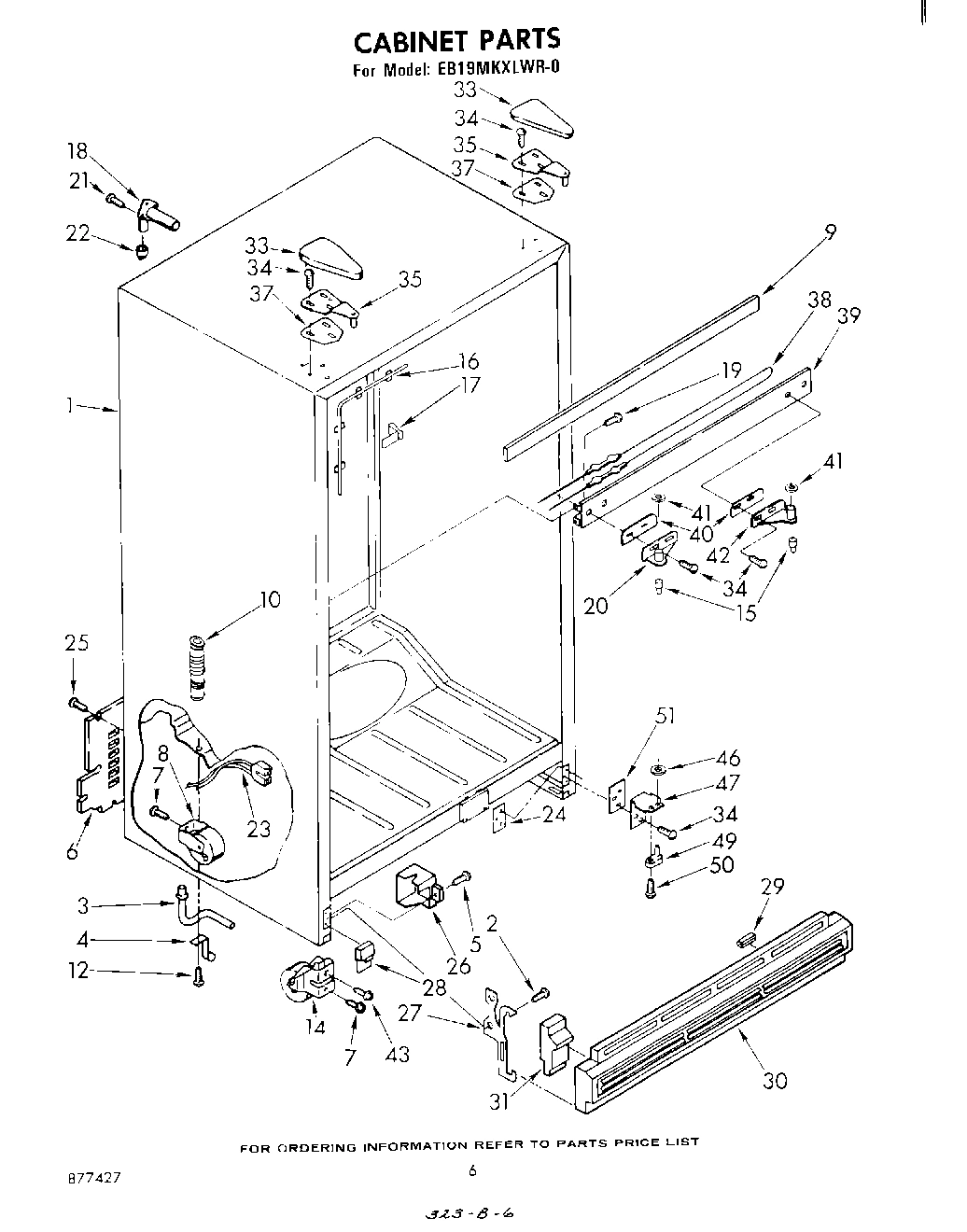

04 - CABINET

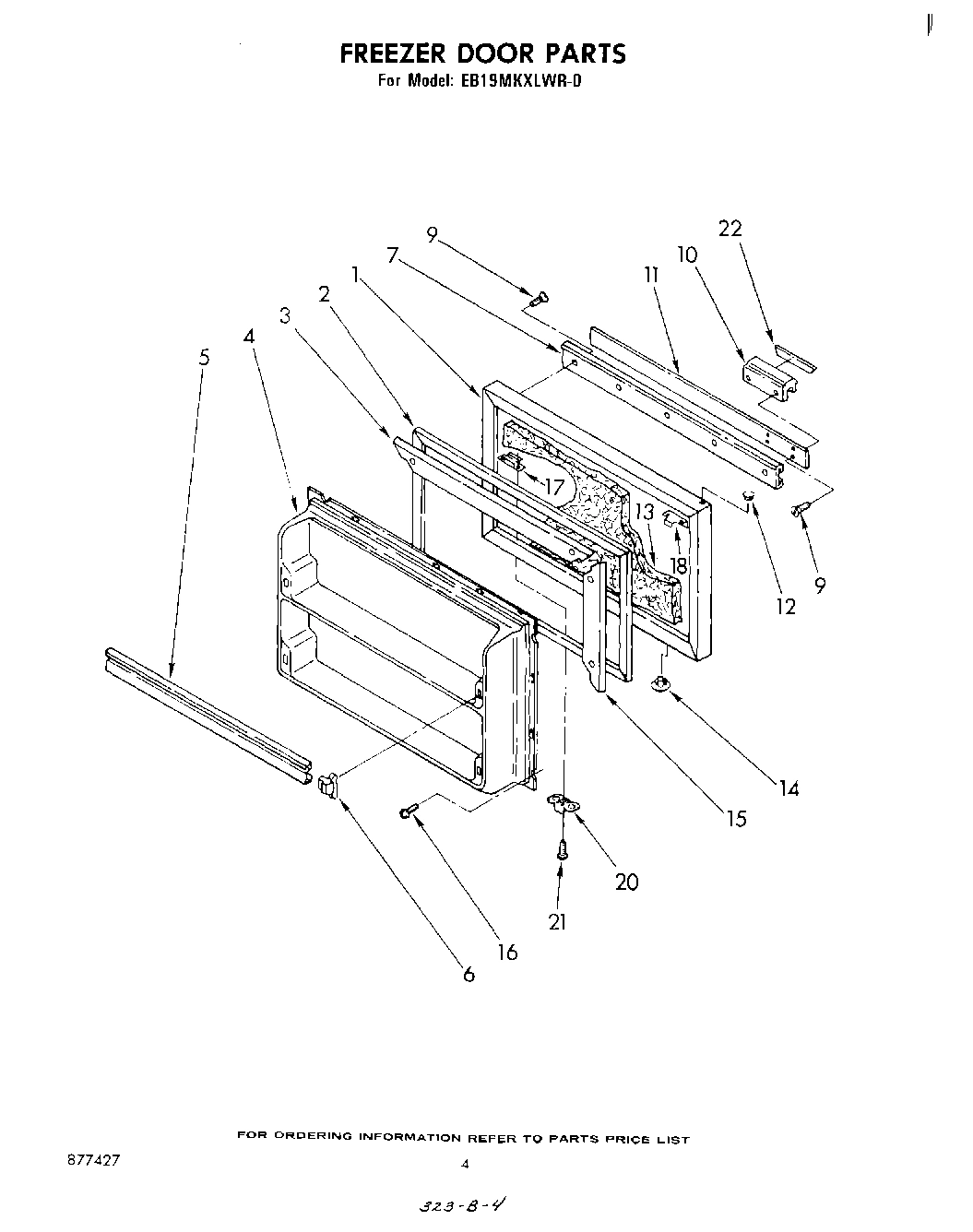

03 - FREEZER DOOR , LIT/OPTIONAL

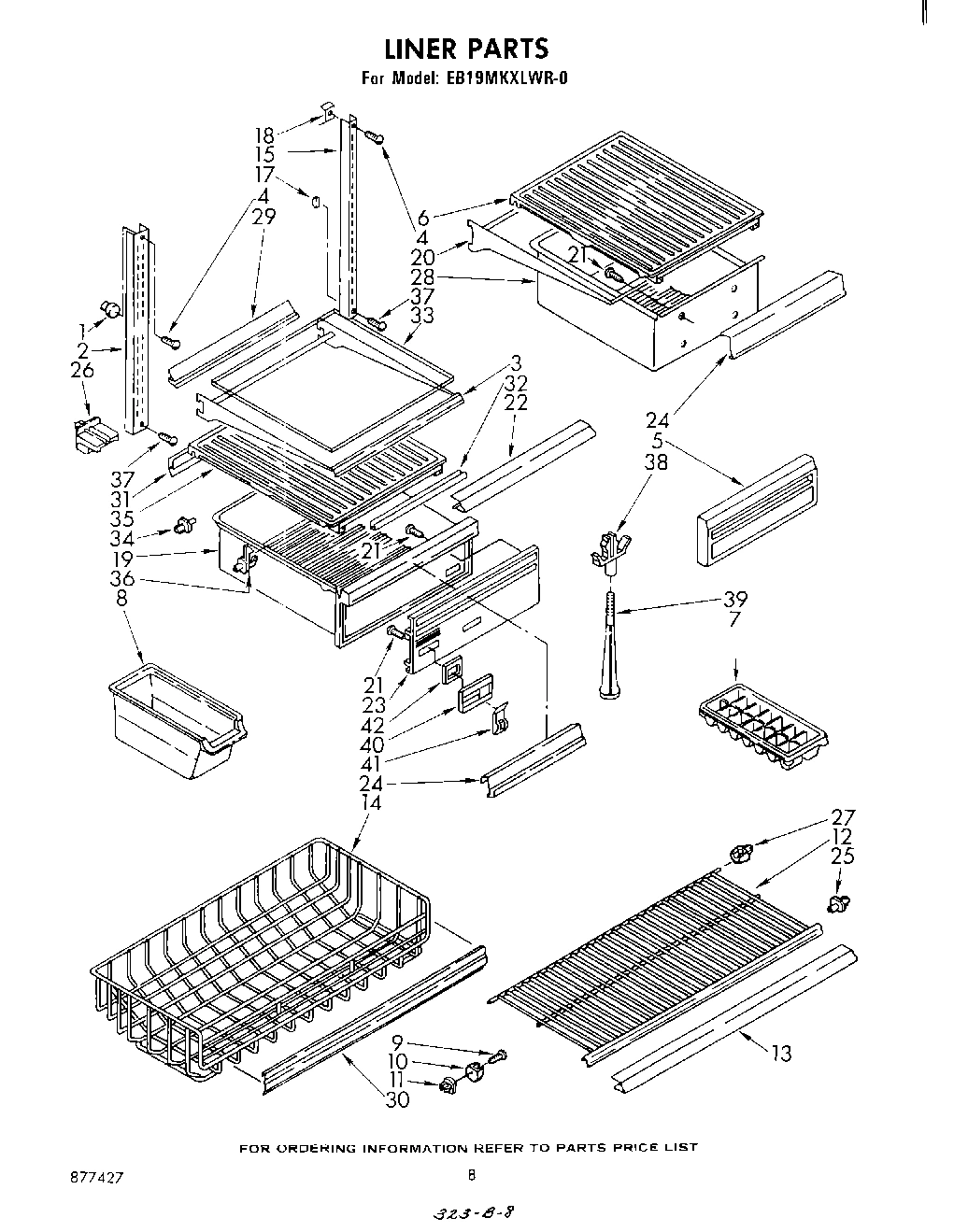

05 - LINER
Common parts from model Whirlpool EB19MKXLWR0 BOTTOM MOUNT REFRIGERATOR
1
Cord, Service WPL 850626 Contact Us For Availability
1
Damper, Air WPL 984658 Contact Us For Availability
1
Door, Refrigerator (R.H.) (Also Order Item 15 WPL 944395 Contact Us For Availability
1
Door, Refrigerator (R.H.) (Also Order Item 15 WPL 944396 Contact Us For Availability
1
Door, Refrigerator (R.H.) (Also Order Item 15 WPL 944397 Contact Us For Availability
1
Door, Refrigerator (R.H.) (Also Order Item 15 WPL 944398 Contact Us For Availability
1
Door, Refrigerator (R.H.) (Also Order Item 15 WPL 944399 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI25292A3 Contact Us For Availability
1
Door, Freezer (Also Order Item 13) (White) WPL 945007 Contact Us For Availability
1
Door, Freezer (Also Order Item 13) (Coffee) WPL 945008 Contact Us For Availability
1
Door, Freezer (Also Order Item 13) (Golden Ha WPL 945009 Contact Us For Availability
1
Door, Freezer (Also Order Item 13) (New Avoca WPL 945010 Contact Us For Availability
1
Door, Freezer (Also Order Item 13) (Almond) WPL 945011 Contact Us For Availability
1
Support, Center Ladder (2) WPL 520959 Contact Us For Availability
2
Grommet WPL 842339 Contact Us For Availability
2
Gasket, Refrigerator Door (2) WPL 945092 Contact Us For Availability
2
Gasket, Freezer Door WPL 945061 Contact Us For Availability
2
Ladder (Center) WPL 936230 Contact Us For Availability
3
Retainer, Air Damper WPL 836493 Contact Us For Availability
3
Retainer Gasket, Top & Bottom (2) WPL 992580 Contact Us For Availability
3
Extension, Drain Fitting WPL 841646 Contact Us For Availability
3
Retainer, Gasket Top & Bottom WPL 836118 Contact Us For Availability
3
Shelf, Cantilever (3) WPL 936795 Contact Us For Availability
4
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
4
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
4
Screw, 8 x 1-1/4 (3) WPL 488357 Contact Us For Availability
4
Interior Door Panel (R.H.) WPL 945090 Contact Us For Availability
4
Clip, Drain Extension WPL 841648 Contact Us For Availability
4
Panel, Interior Door WPL 945066 Contact Us For Availability
5
Compressor Kit (Includes Illus. 17, 18, 19, 2 WPL 876638 Contact Us For Availability
5
Trim, Door Shelf (2) WPL 991317 Contact Us For Availability
5
Front Cover, Meat Pan WPL 935221 Contact Us For Availability
6
Grommet (4) WPL 547283 Contact Us For Availability
6
Door, Utility WPL 992597 Contact Us For Availability
6
Cover, Unit Compartment WPL 850459 Contact Us For Availability
6
Cover, Meat Pan WPL 935827 Contact Us For Availability
7
Guard, Fan WPL 850156 Contact Us For Availability
7
Screw, 1/4-28 x 1/2 (4) WPL 488454 Contact Us For Availability
7
Plug, Hole (2) (Almond) WPL 989197 Contact Us For Availability
7
Plug, Hole (2) (Coffee) WPL 989878 Contact Us For Availability
7
Plug, Hole (2) (Golden Harvest) WPL 989879 Contact Us For Availability
7
Plug, Hole (2) (New Avocado) WPL 989880 Contact Us For Availability
7
Trim, Handle Door WPL 936666 Contact Us For Availability
8
Baffle, Air WPL 850764 Contact Us For Availability
8
Bracket, Thermostat Mounting WPL 848446 Contact Us For Availability
8
Plate, Tap WPL 945012 Contact Us For Availability
9
Seal, Strip Center Rail WPL 987506 Contact Us For Availability
9
Screw, 10-16 x 3/4 WPL 489003 Contact Us For Availability
10
Blade, Fan WPL 989524 Contact Us For Availability
10
Container, Defrost Timer WPL 983079 Contact Us For Availability
10
Drain Fitting Liner WPL 839861 Contact Us For Availability
10
Handle, Door WPL 936664 Contact Us For Availability
10
Stud, Saddle (L.S.) WPL 991512 Contact Us For Availability
11
Spacer Condenser (4) WPL 987210 Contact Us For Availability
11
Screw Anchor WPL 941242 Contact Us For Availability
11
Insert, Trim Handle WPL 936667 Contact Us For Availability
11
Grommet, Screw WPL 538449 Contact Us For Availability
12
Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability
12
Clip, Breaker Liner (3) WPL 848478 Contact Us For Availability
12
Door Closer (2) WPL 991877 Contact Us For Availability
12
Plug, Hole (Almond) WPL 989196 Contact Us For Availability
12
Plug, Hole (Coffee) WPL 989892 Contact Us For Availability
12
Plug, Hole (New Avocado) WPL 989894 Contact Us For Availability
12
Shelf, Freezer WPL 986809 Contact Us For Availability
13
Bracket, Fan Motor WPL 548695 Contact Us For Availability
13
Door, Butter WPL 992596 Contact Us For Availability
13
Trim, Shelf Front WPL 985070 Contact Us For Availability
14
Screw, 8-36 x 3/8 (3) WPL 488868 Contact Us For Availability
14
Plug, Hole (2) WPL 534927 Contact Us For Availability
14
Roller, Front (2) WPL 981127 Contact Us For Availability
14
Basket, Freezer WPL 985382 Contact Us For Availability
15
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
15
Timer, Defrost WPL 851161 Contact Us For Availability
15
Pin, Hinge WPL 992547 Contact Us For Availability
15
Retainer, Gasket (Side) (2) WPL 986015 Contact Us For Availability
15
Ladder, Shelf (Side) (2) WPL 934267 Contact Us For Availability
16
Screw, 8 x 1-3/8 (2) WPL 488678 Contact Us For Availability
16
Heater, Stile WPL 936075 Contact Us For Availability
17
Bumper WPL 547272 Contact Us For Availability
17
Clip, Heater (2) WPL 935663 Contact Us For Availability
18
Protector, Overload WPL 549041 Contact Us For Availability
18
Retainer, Gasket (Side) WPL 986008 Contact Us For Availability
18
Tap Plate, Handle WPL 936668 Contact Us For Availability
18
Anchor (3) WPL 983604 Contact Us For Availability
19
Relay, Starting (Alternate) WPL 989661 Contact Us For Availability
19
Relay, Starting WPL 989662 Contact Us For Availability
19
Screw (Repair) (4) WPL 487470 Contact Us For Availability
19
Pan Crisper (2) WPL 944037 Contact Us For Availability
20
Case, Relay WPL 549945 Contact Us For Availability
20
Retainer, Gasket Mullion (2) WPL 992581 Contact Us For Availability
20
Hinge, Center (L.H.) WPL 992542 Contact Us For Availability
20
Bracket, Door Stop WPL 944036 Contact Us For Availability
20
Shelf, Cantilever (Meat Pan) WPL 936770 Contact Us For Availability
21
Spring, Relay Case WPL 531318 Contact Us For Availability
21
Door Gasket, Mullion (2) WPL 945093 Contact Us For Availability
21
Screw (Repair) WPL 488930 Contact Us For Availability
21
Screw (Repair) WPL 488132 Contact Us For Availability
22
WPL 479502 WPL 479502 Contact Us For Availability
22
WPL 799344 WPL 799344 Contact Us For Availability
22
Grid, Insert WPL 987018 Contact Us For Availability
22
Cap, Handle WPL 944157 Contact Us For Availability
22
Enamel, Coffee (13 Oz. Spray Can) WPL 261886 Contact Us For Availability
22
Enamel, Coffee (1 Qt. Uncut) WPL 261887 Contact Us For Availability
22
Enamel, New Avocado (13 Oz. Spray Can) WPL 261888 Contact Us For Availability
22
Enamel, New Avocado (1 Qt. Uncut) WPL 261889 Contact Us For Availability
22
Enamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
22
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
22
WPL 350941 WPL 350941 Contact Us For Availability
22
WPL 542639 WPL 542639 Contact Us For Availability
22
WPL 72108 WPL 72108 Contact Us For Availability
22
WPL 799340 WPL 799340 Contact Us For Availability
22
WPL 799351 WPL 799351 Contact Us For Availability
22
WPL 799832 WPL 799832 Contact Us For Availability
22
WPL 799833 WPL 799833 Contact Us For Availability
22
WPL 877427 WPL 877427 Contact Us For Availability
22
WPL 936665 WPL 936665 Contact Us For Availability
22
WPL 944023 WPL 944023 Contact Us For Availability
22
WPL 944024 WPL 944024 Contact Us For Availability
22
WPL 945105 WPL 945105 Contact Us For Availability
22
WPL 945406 WPL 945406 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
22
Trim, Shelf Front WPL 935223 Contact Us For Availability
23
Clip, Wire (2) WPL 548745 Contact Us For Availability
23
Insert, Air Return WPL 987019 Contact Us For Availability
23
Handle, Center (New Avocado) WPL 935089 Contact Us For Availability
23
Handle, Center (Golden Harvest) WPL 935090 Contact Us For Availability
23
Handle, Center (White & Coffee) WPL 945098 Contact Us For Availability
23
Handle, Center (Almond Model) WPL 945099 Contact Us For Availability
23
Wire Assembly (Water Valve) WPL 548734 Contact Us For Availability
23
Front Cover, Crisper WPL 942249 Contact Us For Availability
24
Frame, Unit Mounting WPL 548654 Contact Us For Availability
24
Separator, Compartment WPL 986026 Contact Us For Availability
24
Cap, Handle (Center) WPL 935103 Contact Us For Availability
24
Tap Plate, Hinge WPL 836162 Contact Us For Availability
24
Overlay, Pan WPL 984749 Contact Us For Availability
25
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
25
Panel, Control WPL 942214 Contact Us For Availability
25
Shim, Handle WPL 935075 Contact Us For Availability
25
Stud, Shelf (2) WPL 529758 Contact Us For Availability
26
Wire Connector WPL 227991 Contact Us For Availability
26
Gasket WPL 991223 Contact Us For Availability
26
Insert, Nameplate WPL 945108 Contact Us For Availability
26
Box, Junction WPL 549947 Contact Us For Availability
26
Stud, Crisper Support (Rear) WPL 836412 Contact Us For Availability
27
Insert, Handle WPL 941994 Contact Us For Availability
27
Support, Grille (2) WPL 844614 Contact Us For Availability
27
Stud, Saddle (R.S.) WPL 991510 Contact Us For Availability
28
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
28
Shield, Light WPL 983910 Contact Us For Availability
28
Filler, Corner (White) WPL 838535 Contact Us For Availability
28
Filler, Corner (Coffee) WPL 989928 Contact Us For Availability
28
Filler, Corner (Golden Harvest) WPL 989929 Contact Us For Availability
28
Filler, Corner (New Avocado) WPL 989930 Contact Us For Availability
28
Filler, Corner (Almond) WPL 989931 Contact Us For Availability
28
Pan, Meat WPL 849020 Contact Us For Availability
29
Rail, Unit Mounting WPL 548662 Contact Us For Availability
29
Knob, Thermostat WPL 836482 Contact Us For Availability
29
Tape WPL 991259 Contact Us For Availability
29
Bumper, Grille (2) WPL 546131 Contact Us For Availability
29
Reflector, Cantilever Shelf WPL 991328 Contact Us For Availability
30
Knob, Retainer WPL 837444 Contact Us For Availability
30
Retainer, Insert WPL 941993 Contact Us For Availability
30
Grille (White) WPL 841670 Contact Us For Availability
30
Grille (Coffee) WPL 989941 Contact Us For Availability
30
Grille (New Avocado) WPL 989943 Contact Us For Availability
30
Grille (Golden Harvest) WPL 989945 Contact Us For Availability
30
Grille (Almond) WPL 989947 Contact Us For Availability
30
Trim, Freezer Basket WPL 991320 Contact Us For Availability
31
Clamp, Drier WPL 548508 Contact Us For Availability
31
Knob, Air Diffuser (Includes Illus. 30) WPL 837445 Contact Us For Availability
31
End Cap, Insert WPL 941259 Contact Us For Availability
31
Insert, Air Baffle Grille WPL 836372 Contact Us For Availability
31
Crisper Gasket, Rear WPL 943298 Contact Us For Availability
32
Crisper Gasket, Front WPL 942028 Contact Us For Availability
33
Condenser & Precooler Assembly WPL 481846 Contact Us For Availability
33
WPL 488923 WPL 488923 Contact Us For Availability
33
Cover, Hinge (2) (Coffee) WPL 989895 Contact Us For Availability
33
Cover, Hinge (2) (Golden Harvest) WPL 989896 Contact Us For Availability
33
Cover, Hinge (2) (New Avocado) WPL 989897 Contact Us For Availability
33
Glass, Cantilever Shelf WPL 944355 Contact Us For Availability
34
WPL 943188 WPL 943188 Contact Us For Availability
34
Stud, Shelf (2) WPL 536475 Contact Us For Availability
34
Clamp, Mounting (4) WPL 548738 Contact Us For Availability
34
Screw, 12-14 x 3/4 (Repair) WPL 488949 Contact Us For Availability
35
Grommet, Mounting (4) WPL 548737 Contact Us For Availability
35
Hinge, Top (2) WPL 842035 Contact Us For Availability
35
Cover, Crisper Pan (2) WPL 935121 Contact Us For Availability
36
Stud, Shelf (2) WPL 836423 Contact Us For Availability
36
Baffle, Air Evaporator WPL 851763 Contact Us For Availability
36
WPL 489075 WPL 489075 Contact Us For Availability
37
WPL 992602 WPL 992602 Contact Us For Availability
37
Shim, Top Hinge (.030) WPL 836151 Contact Us For Availability
37
Screw, 8-32 x 1-1/4 (3) WPL 488960 Contact Us For Availability
37
Screw (Repair) WPL 488980 Contact Us For Availability
38
Support, Cover WPL 848562 No Longer Available
38
Clamp WPL 513584 Contact Us For Availability
38
Shield, Light (Freezer Compartment) WPL 848158 Contact Us For Availability
38
WPL 943138 WPL 943138 Contact Us For Availability
38
Heater, Mullion WPL 989256 Contact Us For Availability
39
Post, Support Cover WPL 836410 Contact Us For Availability
39
Support, Heater WPL 851358 Contact Us For Availability
39
Fastener, Wire WPL 851039 Contact Us For Availability
39
WPL 537095 WPL 537095 Contact Us For Availability
39
Center R WPL 836067 Contact Us For Availability
39
WPL 989908 WPL 989908 Contact Us For Availability
39
WPL 989909 WPL 989909 Contact Us For Availability
39
WPL 989910 WPL 989910 Contact Us For Availability
39
WPL 989911 WPL 989911 Contact Us For Availability
40
Tray, Evaporating WPL 842041 Contact Us For Availability
40
Diffuser Assembly, Air WPL 986021 Contact Us For Availability
40
WPL 839430 WPL 839430 Contact Us For Availability
40
WPL 836155 WPL 836155 Contact Us For Availability
40
Housing, Humidity Control WPL 942234 Contact Us For Availability
41
Evaporator WPL 851752 Contact Us For Availability
41
Slide Control WPL 942235 Contact Us For Availability
42
Clip, Heater (2) WPL 989306 Contact Us For Availability
42
Breaker Clip Wrap WPL 939139 Contact Us For Availability
42
WPL 945091 WPL 945091 Contact Us For Availability
42
WPL 992544 WPL 992544 Contact Us For Availability
42
Seal, Control WPL 942236 Contact Us For Availability
43
Heater, Defrost WPL 851765 Contact Us For Availability
43
Clip, Breaker Retainer (2) WPL 836090 Contact Us For Availability
43
WPL 945001 WPL 945001 Contact Us For Availability
43
WPL 945002 WPL 945002 Contact Us For Availability
43
WPL 945003 WPL 945003 Contact Us For Availability
43
WPL 945004 WPL 945004 Contact Us For Availability
43
WPL 945005 WPL 945005 Contact Us For Availability
43
WPL 488681 WPL 488681 Contact Us For Availability
44
Breaker, Refrigerator Trim (Top) WPL 940920 Contact Us For Availability
44
WPL 945102 WPL 945102 Contact Us For Availability
45
Exchanger, Heat WPL 943351 Contact Us For Availability
46
Dampener (2) WPL 510769 Contact Us For Availability
46
Refrigerator Trim (L.S.) WPL 986001 Contact Us For Availability
47
Breaker, Refrigerator Trim (R.S.) WPL 986000 Contact Us For Availability
47
WPL 836159 WPL 836159 Contact Us For Availability
48
Clamp, Tube (2) WPL 510716 Contact Us For Availability
48
Clip, Breaker Mullion (8) WPL 534365 Contact Us For Availability
49
WPL 654366 WPL 654366 Contact Us For Availability
49
Pan, Drip WPL 989269 Contact Us For Availability
50
WPL 978029 WPL 978029 Contact Us For Availability
50
WPL 488714 WPL 488714 Contact Us For Availability
50
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
50
Breaker, Mullion Trim (Refrigerator) WPL 992534 Contact Us For Availability
51
WPL 836196 WPL 836196 Contact Us For Availability
52
Breaker, Mullion Trim (Freezer) WPL 841643 Contact Us For Availability
53
Breaker, Freezer Trim (L.S.) WPL 985998 Contact Us For Availability
54
Breaker, Freezer Trim (R.S.) WPL 985997 Contact Us For Availability
55
Breaker, Freezer Trim (Bottom) WPL 839829 Contact Us For Availability
× ![]()
