Model Whirlpool EB19MK1LWR0 BOTTOM MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

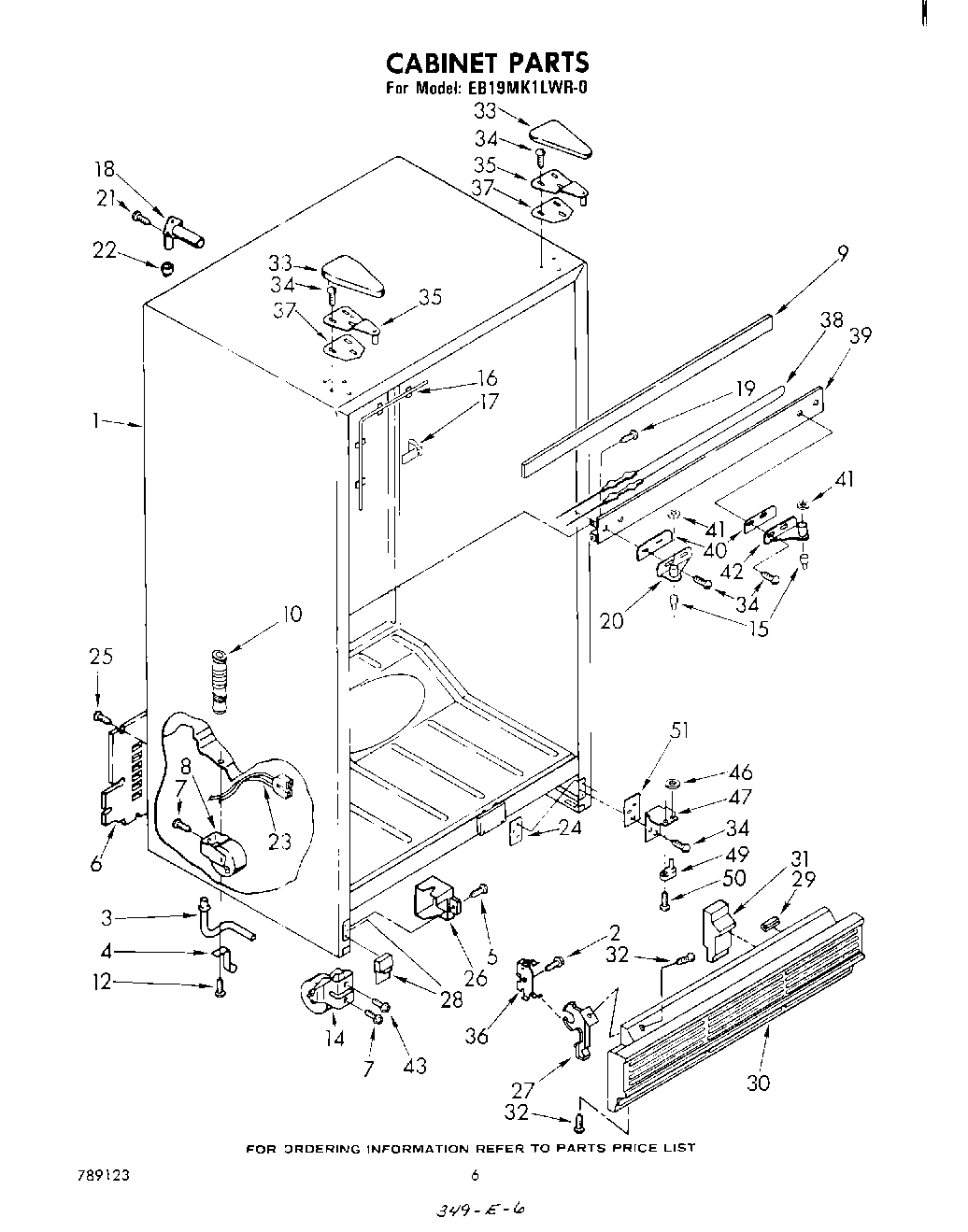

1

Damper, Air WPL 984658 Contact Us For Availability

1

Cord, Service WPL 850626 Contact Us For Availability

1

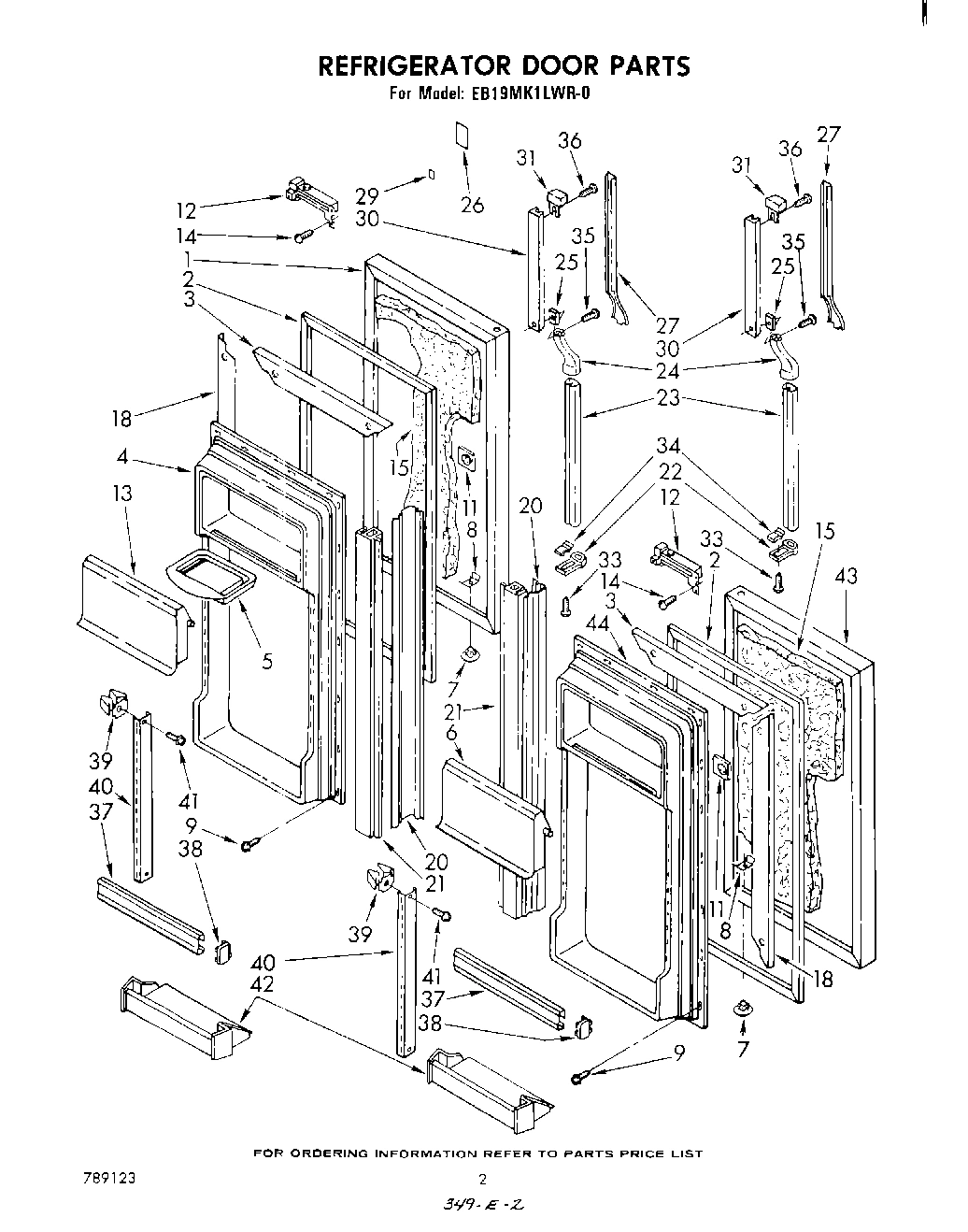

Door, Refrigerator (R.H.) (Also Order Item 15 WPL 1101495 Contact Us For Availability

1

Door, Refrigerator (R.H.) (Also Order Item 15 WPL 1101496 Contact Us For Availability

1

Door, Refrigerator (R.H.) (Also Order Item 15 WPL 944395 Contact Us For Availability

1

Door, Refrigerator (R.H.) (Also Order Item 15 WPL 944396 Contact Us For Availability

1

Door, Refrigerator (R.H.) (Also Order Item 15 WPL 944397 Contact Us For Availability

1

Door, Refrigerator (R.H.) (Also Order Item 15 WPL 944398 Contact Us For Availability

1

Door, Refrigerator (R.H.) (Also Order Item 15 WPL 944399 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI25290A2 Contact Us For Availability

1

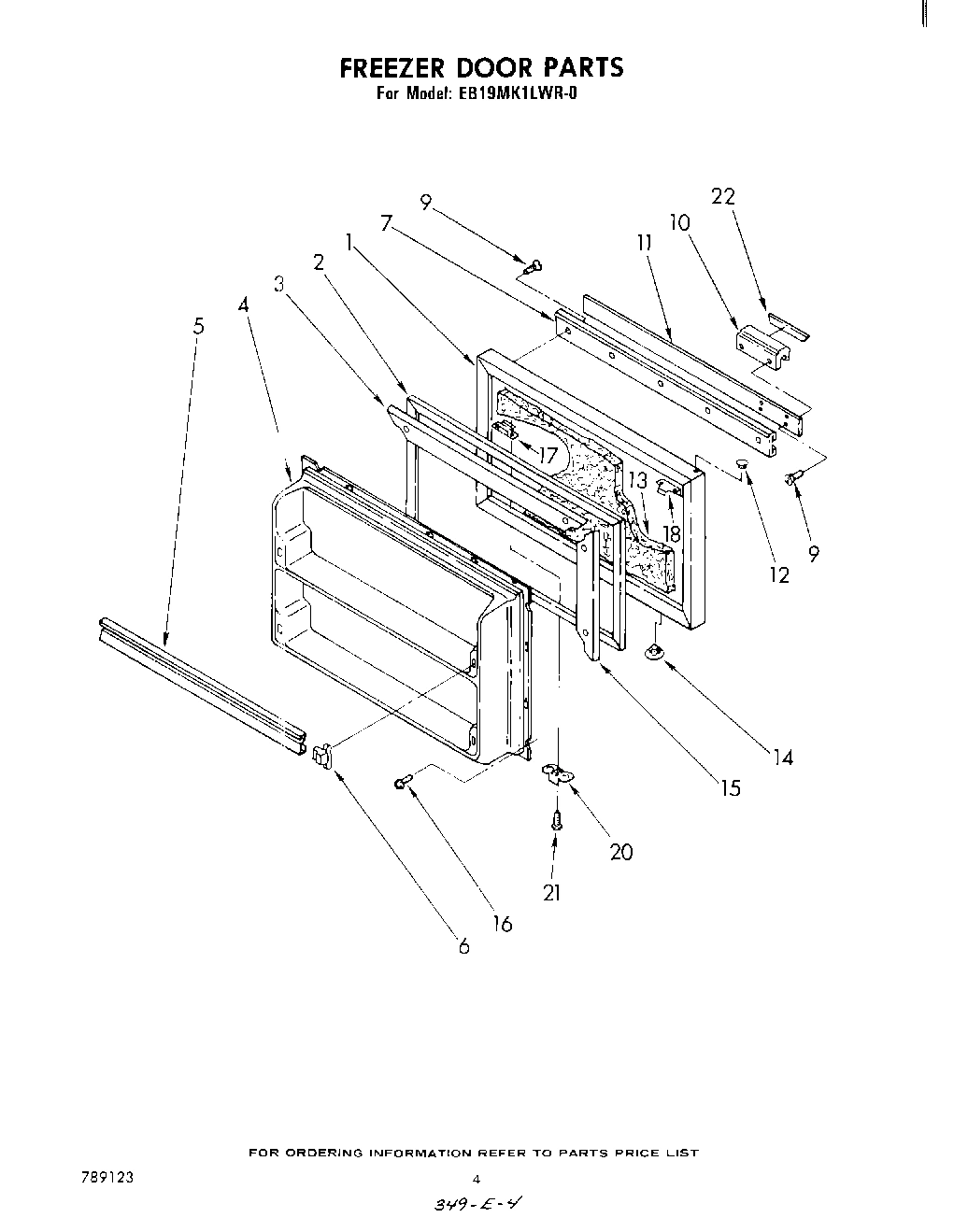

Door, Freezer (Also Order Item 13) (Toast) WPL 1101499 Contact Us For Availability

1

Door, Freezer (Also Order Item 13) (Platinum) WPL 1101500 Contact Us For Availability

1

Door, Freezer (Also Order Item 13) (White) WPL 945007 Contact Us For Availability

1

Door, Freezer (Also Order Item 13) (Coffee) WPL 945008 Contact Us For Availability

1

Door, Freezer (Also Order Item 13) (Golden Ha WPL 945009 Contact Us For Availability

1

Door, Freezer (Also Order Item 13) (New Avoca WPL 945010 Contact Us For Availability

1

Door, Freezer (Also Order Item 13) (Almond) WPL 945011 Contact Us For Availability

2

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

2

Grommet WPL 842339 Contact Us For Availability

2

Gasket, Refrigerator Door (2) WPL 945092 Contact Us For Availability

2

Gasket, Refrigerator Door (2) (For Platinum M WPL 992582 Contact Us For Availability

2

Gasket, Freezer Door WPL 945061 Contact Us For Availability

2

Gasket, Freezer Door (For Platinum Model Only WPL 986016 Contact Us For Availability

3

Retainer, Air Damper WPL 836493 Contact Us For Availability

3

Retainer Gasket, Top & Bottom (2) WPL 992580 Contact Us For Availability

3

Extension, Drain Fitting WPL 841646 Contact Us For Availability

3

Retainer, Gasket Top & Bottom WPL 836118 Contact Us For Availability

4

Interior Door Panel (R.H.) (For Platinum Mode WPL 1101508 Contact Us For Availability

4

Interior Door Panel (R.H.) WPL 945090 Contact Us For Availability

4

Clip, Drain Extension WPL 841648 Contact Us For Availability

4

Panel, Interior Door (For Platinum Model Only WPL 1101494 Contact Us For Availability

4

Panel, Interior Door WPL 945066 Contact Us For Availability

5

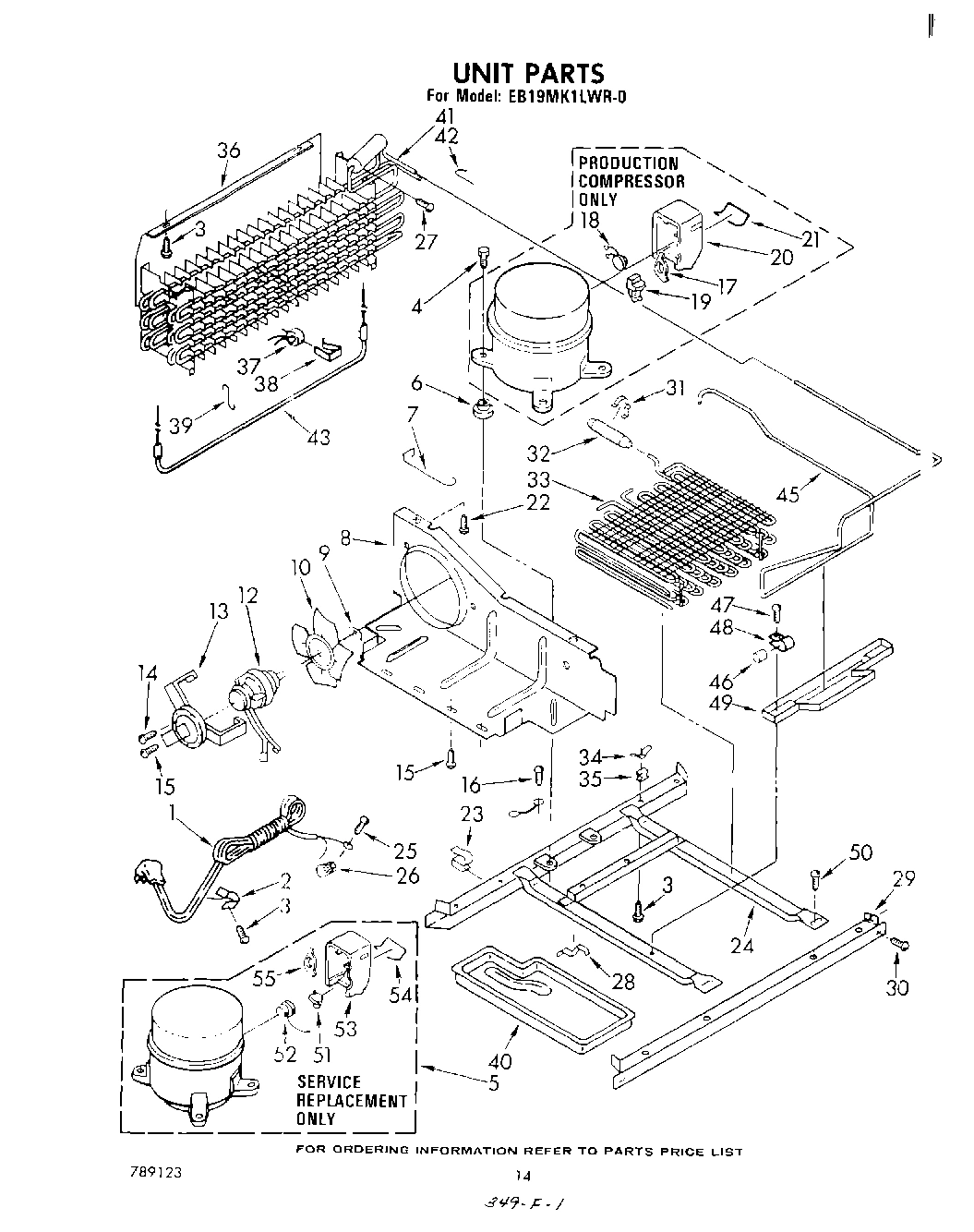

W10439652 Whirlpool Refrigerator Compressor Backorder WPL W10439652 $276.71

5

WP4317800 Whirlpool Refrigerator Thermostat Backorder WPL WP4317800 $113.21

5

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

5

Trim, Door Shelf (2) WPL 991317 Contact Us For Availability

6

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

6

WP839904 Whirlpool Refrigerator Endcap Trim Backorder WPL WP839904 $3.70

6

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

6

Door, Utility WPL 992597 Contact Us For Availability

6

Cover, Unit Compartment WPL 850459 Contact Us For Availability

7

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

7

Plug, Hole (2) WPL 659598 Contact Us For Availability

7

Guard, Fan WPL 850156 Contact Us For Availability

7

Screw, 1/4-28 x 1/2 (4) WPL 488454 Contact Us For Availability

7

Trim, Handle Door WPL 936666 Contact Us For Availability

8

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

8

Cap, Receptacle WPL 850738 Contact Us For Availability

8

Bracket, Thermostat Mounting WPL 848446 Contact Us For Availability

8

Baffle, Air WPL 850764 Contact Us For Availability

8

Plate, Tap WPL 945012 Contact Us For Availability

9

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

9

Wiring, Liner (Ice Maker) WPL 481658 Contact Us For Availability

9

Seal, Strip Center Rail WPL 987506 Contact Us For Availability

9

Screw, 10-16 x 3/4 WPL 489003 Contact Us For Availability

Container, Defrost Timer WPL 983079 Contact Us For Availability

Blade, Fan WPL 989524 Contact Us For Availability

Drain Fitting Liner WPL 839861 Contact Us For Availability

Handle, Door WPL 936664 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Screw Anchor WPL 941242 Contact Us For Availability

Insert, Trim Handle WPL 936667 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

Blade, Fan WPL 839859 Contact Us For Availability

Clip, Breaker Liner (3) WPL 848478 Contact Us For Availability

Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability

Door Closer (2) WPL 991877 Contact Us For Availability

Hole Plug (Toast) WPL 1100188 Contact Us For Availability

Hole Plug (Platinum) WPL 1100189 Contact Us For Availability

Plug, Hole (Almond) WPL 989196 Contact Us For Availability

Plug, Hole (Coffee) WPL 989892 Contact Us For Availability

Plug, Hole (New Avocado) WPL 989894 Contact Us For Availability

482469 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482469 $84.04

Screw, 8 x 1-1/4 (2) WPL 488357 Contact Us For Availability

Bracket, Fan Motor WPL 548695 Contact Us For Availability

Door, Butter WPL 992596 Contact Us For Availability

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Grommet, Fan Mounting (3) WPL 548268 Contact Us For Availability

Plug, Hole (2) WPL 534927 Contact Us For Availability

Screw, 8-36 x 3/8 (3) WPL 488868 Contact Us For Availability

Roller, Front (2) WPL 981127 Contact Us For Availability

Bracket, Fan Mounting WPL 548263 Contact Us For Availability

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

Timer, Defrost WPL 943428 Contact Us For Availability

Pin, Hinge WPL 992547 Contact Us For Availability

Retainer, Gasket (Side) (2) WPL 986015 Contact Us For Availability

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Screw, 8 x 1-3/8 (2) WPL 488678 Contact Us For Availability

Heater, Stile WPL 936075 Contact Us For Availability

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

Overload Spring WPL 943494 Contact Us For Availability

Clip, Heater (2) WPL 935663 Contact Us For Availability

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

Bracket, Fan Mounting (Single) WPL 548264 Contact Us For Availability

Protector, Overload WPL 943492 Contact Us For Availability

Retainer, Gasket (Side) WPL 986008 Contact Us For Availability

Tap Plate, Handle WPL 936668 Contact Us For Availability

19

Relay, Starting WPL 945431 Contact Us For Availability

19

Screw (Repair) (4) WPL 487470 Contact Us For Availability

Gasket, Sealing WPL 986018 Contact Us For Availability

Case, Relay WPL 943496 Contact Us For Availability

Retainer, Gasket Mullion (2) WPL 992581 Contact Us For Availability

Hinge, Center (L.H.) WPL 992542 Contact Us For Availability

Bracket, Door Stop WPL 944036 Contact Us For Availability

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

Scroll Fan WPL 986017 Contact Us For Availability

Spring, Relay Case WPL 943497 Contact Us For Availability

Door Gasket, Mullion (For Platinum Model Only WPL 1101510 Contact Us For Availability

Door Gasket, Mullion (2) WPL 946947 Contact Us For Availability

Screw (Repair) WPL 488930 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

WPL 479502 WPL 479502 Contact Us For Availability

Grommet, Screw (2) WPL 538449 Contact Us For Availability

Grid, Insert WPL 987018 Contact Us For Availability

Cap, Handle WPL 944157 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 789123 WPL 789123 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 936665 WPL 936665 Contact Us For Availability

WPL 944023 WPL 944023 Contact Us For Availability

WPL 945560 WPL 945560 Contact Us For Availability

WPL 945949 WPL 945949 Contact Us For Availability

WPL 945950 WPL 945950 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Insert, Air Return WPL 987019 Contact Us For Availability

Clip, Wire (2) WPL 548745 Contact Us For Availability

Handle, Center (Toast) WPL 1101503 Contact Us For Availability

Handle, Center (Platinum) WPL 1101504 Contact Us For Availability

Handle, Center (New Avocad WPL 935089 Contact Us For Availability

WPL 935090 WPL 935090 Contact Us For Availability

WPL 945098 WPL 945098 Contact Us For Availability

WPL 945099 WPL 945099 Contact Us For Availability

Wire Assembly (Water Valve) WPL 548734 Contact Us For Availability

Stud, Support (2) WPL 839213 Contact Us For Availability

Separator, Compartment WPL 986026 Contact Us For Availability

Frame, Unit Mounting WPL 945457 Contact Us For Availability

WPL 935103 WPL 935103 Contact Us For Availability

Tap Plate, Hinge WPL 836162 Contact Us For Availability

Speed Clip, Light Lens (3) WPL 533998 Contact Us For Availability

Panel, Control WPL 942214 Contact Us For Availability

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

WPL 935075 WPL 935075 Contact Us For Availability

Grommet, Screw (2) WPL 514357 Contact Us For Availability

Gasket WPL 991223 Contact Us For Availability

Wire Connector WPL 227991 Contact Us For Availability

WPL 945116 WPL 945116 Contact Us For Availability

Box, Junction WPL 549947 Contact Us For Availability

27

WP944224 Whirlpool Refrigerator Support In Stock WPL WP944224 $3.70

27

Support, Evaporator (2) WPL 842436 Contact Us For Availability

27

WPL 941994 WPL 941994 Contact Us For Availability

Shield, Light WPL 983910 Contact Us For Availability

Clip, Unit Cover (2) WPL 548744 Contact Us For Availability

Filler, Grille (Toast) WPL 1100182 Contact Us For Availability

Filler, Grille (Platinum) WPL 1100183 Contact Us For Availability

Filler, Corner (White) WPL 838535 Contact Us For Availability

Filler, Corner (Coffee) WPL 989928 Contact Us For Availability

Filler, Corner (Golden Harvest) WPL 989929 Contact Us For Availability

Filler, Corner (New Avocado) WPL 989930 Contact Us For Availability

Filler, Corner (Almond) WPL 989931 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

Knob, Thermostat WPL 836482 Contact Us For Availability

Rail, Unit Mounting WPL 548662 Contact Us For Availability

WPL 991259 WPL 991259 Contact Us For Availability

Bumper, Grille (2) WPL 546131 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

Knob, Retainer WPL 837444 Contact Us For Availability

WPL 941993 WPL 941993 Contact Us For Availability

Exterior, Grille (Toast) WPL 1100307 Contact Us For Availability

Exterior, Grille (Platinum) WPL 1100308 Contact Us For Availability

Grille (White) WPL 944233 Contact Us For Availability

Grille (Coffee) WPL 944234 Contact Us For Availability

Grille (Golden Harvest) WPL 944235 Contact Us For Availability

Grille (New Avocado) WPL 944236 Contact Us For Availability

Grille (Almond) WPL 944237 Contact Us For Availability

Slide, Basket (R.S) WPL 986382 Contact Us For Availability

Slide, Basket (Left Side) WPL 986383 Contact Us For Availability

Knob, Air Diffuser (Includes Illus. 30) WPL 837445 Contact Us For Availability

Clamp, Drier WPL 548508 Contact Us For Availability

WPL 941259 WPL 941259 Contact Us For Availability

Insert, Air Baffle Grille WPL 836372 Contact Us For Availability

32

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

32

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

32

Screw, 8-22 x 5/16 WPL 489085 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Condenser & Precooler Assembly WPL 943480 Contact Us For Availability

WPL 488923 WPL 488923 Contact Us For Availability

Hinge Cover (Toast) WPL 1100172 Contact Us For Availability

Cover, Hinge (2) (Coffee) WPL 989895 Contact Us For Availability

Cover, WPL 989896 Contact Us For Availability

WPL 989897 WPL 989897 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

WPL 943188 WPL 943188 Contact Us For Availability

Stud, Shelf (2) WPL 536475 Contact Us For Availability

Clamp, Mounting (4) WPL 548738 Contact Us For Availability

WPL 488949 WPL 488949 Contact Us For Availability

35

Grommet, Mounting (4) WPL 943447 Contact Us For Availability

35

WPL 842035 WPL 842035 Contact Us For Availability

Stud, Shelf (2) WPL 836423 Contact Us For Availability

Fitting, Drain Pan WPL 986661 Contact Us For Availability

Baffle, Air Evaporator WPL 851763 Contact Us For Availability

WPL 489075 WPL 489075 Contact Us For Availability

WPL 989068 WPL 989068 Contact Us For Availability

37

WP4387489 Whirlpool Refrigerator Bi-Metal Def Backorder WPL WP4387489 $32.15

37

WPL 992602 WPL 992602 Contact Us For Availability

37

WPL 836151 WPL 836151 Contact Us For Availability

Support, Cover WPL 848562 Contact Us For Availability

Shield, Light (Freezer Compartment) WPL 848158 Contact Us For Availability

Clamp WPL 513584 Contact Us For Availability

WPL 943138 WPL 943138 Contact Us For Availability

WPL 988709 WPL 988709 Contact Us For Availability

WPL 989256 WPL 989256 Contact Us For Availability

Post, Support Cover WPL 836410 Contact Us For Availability

Fastener, Wire WPL 851039 Contact Us For Availability

Support, Heater WPL 851358 Contact Us For Availability

WPL 537095 WPL 537095 Contact Us For Availability

WPL 1100303 WPL 1100303 Contact Us For Availability

WPL 1100304 WPL 1100304 Contact Us For Availability

WPL 836067 WPL 836067 Contact Us For Availability

WPL 989908 WPL 989908 Contact Us For Availability

WPL 989909 WPL 989909 Contact Us For Availability

WPL 989910 WPL 989910 Contact Us For Availability

WPL 989911 WPL 989911 Contact Us For Availability

Tray, Evaporating WPL 842041 Contact Us For Availability

Gasket, Sealing WPL 991925 Contact Us For Availability

Diffuser Assembly, Air WPL 986021 Contact Us For Availability

WPL 839430 WPL 839430 Contact Us For Availability

WPL 836155 WPL 836155 Contact Us For Availability

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Gasket, Sealing WPL 991280 Contact Us For Availability

Evaporator WPL 945542 Contact Us For Availability

Track, Compartment Separator WPL 986024 Contact Us For Availability

Breaker Clip Wrap WPL 939139 Contact Us For Availability

Clip, Heater (2) WPL 989306 Contact Us For Availability

WPL 1101509 WPL 1101509 Contact Us For Availability

WPL 945091 WPL 945091 Contact Us For Availability

WPL 992544 WPL 992544 Contact Us For Availability

Gasket, Sealing (2) WPL 982907 Contact Us For Availability

Clip, Breaker Retainer WPL 836090 Contact Us For Availability

Heater, Defrost WPL 851765 Contact Us For Availability

WPL 1101497 WPL 1101497 Contact Us For Availability

WPL 1101498 WPL 1101498 Contact Us For Availability

WPL 945001 WPL 945001 Contact Us For Availability

WPL 945002 WPL 945002 Contact Us For Availability

WPL 945003 WPL 945003 Contact Us For Availability

WPL 945004 WPL 945004 Contact Us For Availability

WPL 945005 WPL 945005 Contact Us For Availability

WPL 488681 WPL 488681 Contact Us For Availability

44

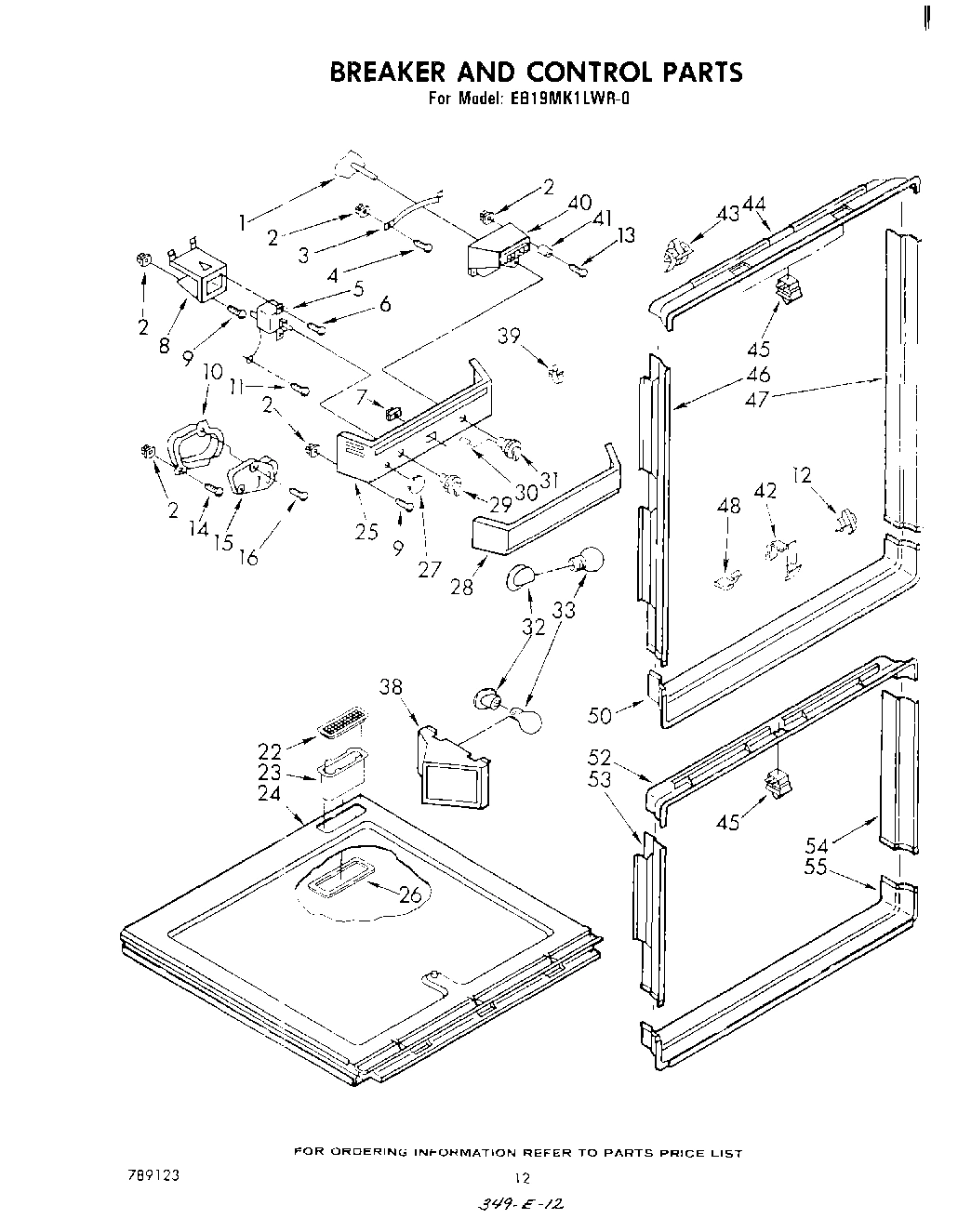

Breaker, Refrigerator Trim (Top) WPL 940920 Contact Us For Availability

44

WPL 1101512 WPL 1101512 Contact Us For Availability

44

WPL 945102 WPL 945102 Contact Us For Availability

45

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

45

Exchanger, Heat WPL 945545 Contact Us For Availability

46

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

46

Refrigerator Trim (L.S.) WPL 986001 Contact Us For Availability

46

Dampener (2) WPL 510769 Contact Us For Availability

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Cover, Tube WPL 981085 Contact Us For Availability

Breaker, Refrigerator Trim (R.S.) WPL 986000 Contact Us For Availability

WPL 836159 WPL 836159 Contact Us For Availability

48

Cover, Tub Entry WPL 839826 Contact Us For Availability

48

Clip, Breaker Mullion (8) WPL 534365 Contact Us For Availability

48

Clamp, Tube (2) WPL 510716 Contact Us For Availability

49

WPL 654366 WPL 654366 Contact Us For Availability

49

Pan, Drip WPL 945572 Contact Us For Availability

50

WPL 488714 WPL 488714 Contact Us For Availability

50

Cover, Evaporator WPL 946122 Contact Us For Availability

50

Breaker, Mullion Trim (Refrigerator) WPL 992534 Contact Us For Availability

51

Plug, Hole WPL 659776 Contact Us For Availability

51

Relay WPL 549500 Contact Us For Availability

51

WPL 836196 WPL 836196 Contact Us For Availability

52

Breaker, Mullion Trim (Freezer) WPL 841643 Contact Us For Availability

52

Overload WPL 936073 Contact Us For Availability

53

Gasket, Drain Pan WPL 986660 Contact Us For Availability

53

Breaker, Freezer Trim (L.S.) WPL 985998 Contact Us For Availability

53

cover WPL 549336 Contact Us For Availability

54

Pan, Drain WPL 986659 Contact Us For Availability

54

Breaker, Freezer Trim (R.S.) WPL 985997 Contact Us For Availability

54

Strap WPL 549342 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPL 978029 WPL 978029 Contact Us For Availability

Breaker, Freezer Trim (Bottom) WPL 839829 Contact Us For Availability

Overload Spring WPL 549086 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability
