Model Electrolux E36GC76PPS0 COOKTOP, GAS – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP

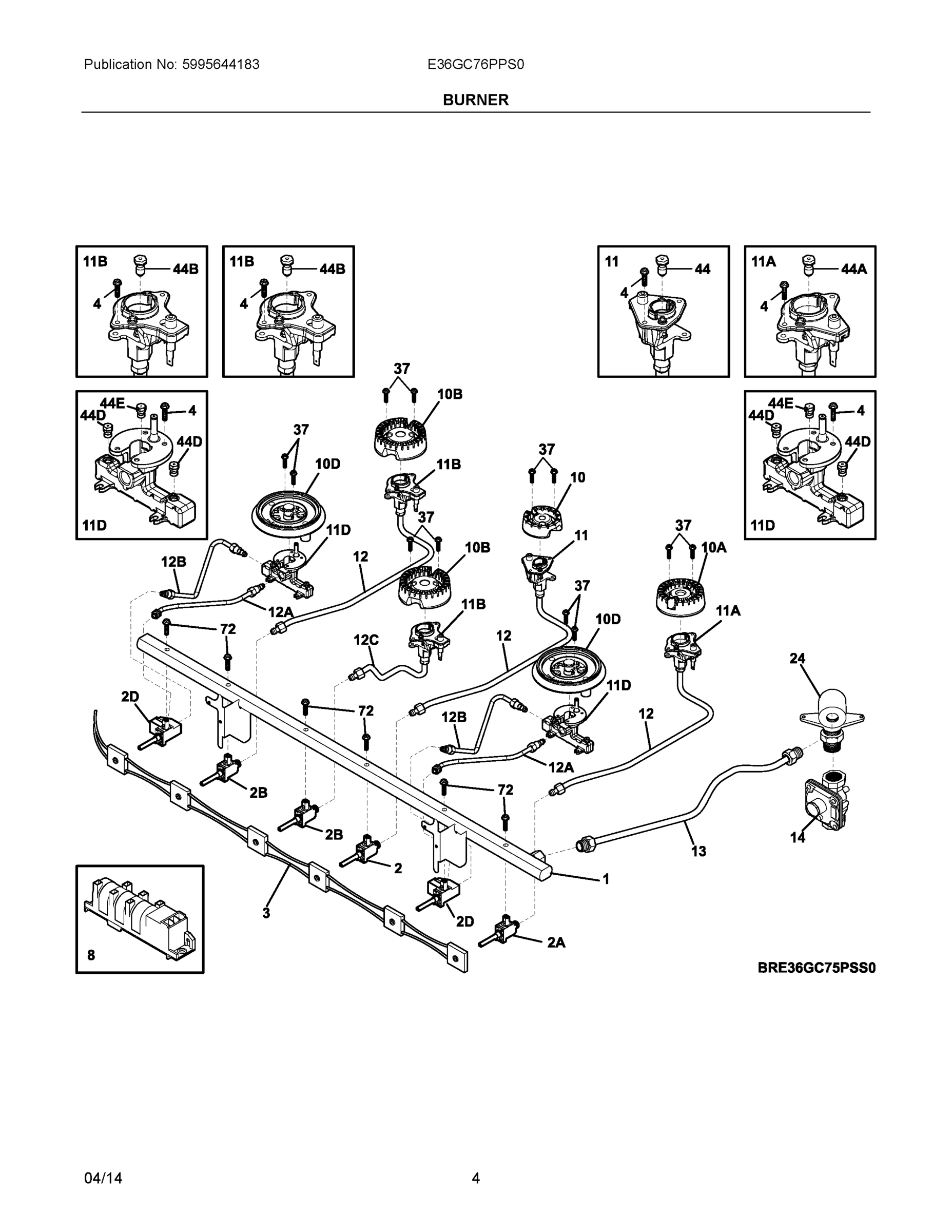

03 - BURNER

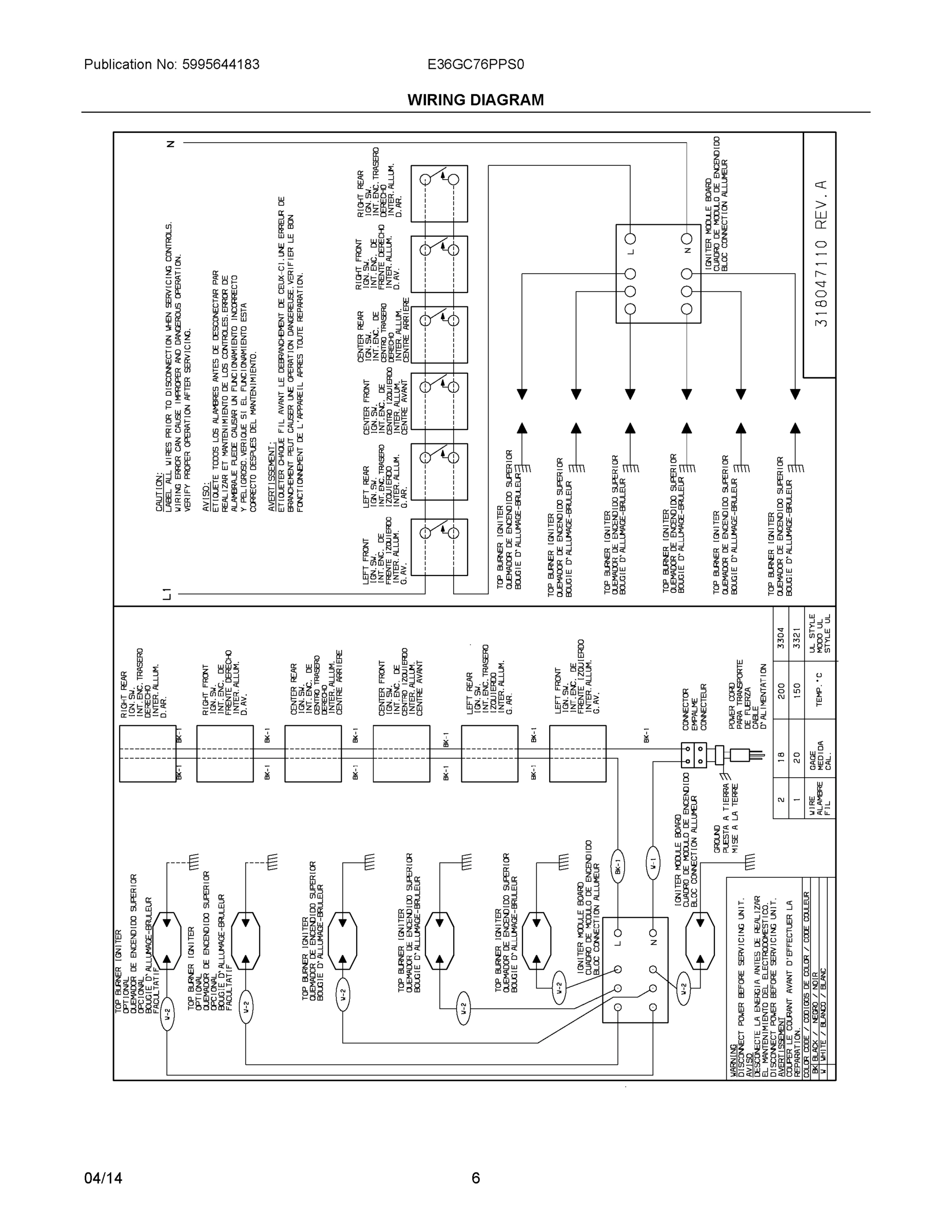

04 - WIRING DIAGRAM
Common parts from model Electrolux E36GC76PPS0 COOKTOP, GAS
1
WCI 318234314 WCI 318234314 Contact Us For Availability
2
VALVE, TOP BURNER WCI 316536002 Contact Us For Availability
2A
VALVE, TOP BURNER WCI 316536006 Contact Us For Availability
2B
WCI 316536008 WCI 316536008 Contact Us For Availability
2D
WCI 316272302 WCI 316272302 Contact Us For Availability
3
WCI 305595105 WCI 305595105 Contact Us For Availability
4
SCREW, ASSY MTG, (8), IGNITOR/ORIFICE WCI 316240600 Contact Us For Availability
10
BURNER, SEALED, 5K WCI 316438200 Contact Us For Availability
10A
BURNER, SEALED, 9.5K WCI 316558300 Contact Us For Availability
10B
BURNER, SEALED, 14K WCI 316438600 Contact Us For Availability
11
IGNITOR/ORIFICE ASSY., TOP BURNER, 5K, W/HOLD WCI 316540800 Contact Us For Availability
11A
IGNITOR/ORIFICE ASSY., TOP BURNER, 9.5K, W/HO WCI 316540700 Contact Us For Availability
11B
IGNITOR/ORIFICE ASSY., TOP BURNER, 14K WCI 316543204 Contact Us For Availability
11DA
WCI 316440105 WCI 316440105 Contact Us For Availability
12
LABEL, NAMEPLATE, ELUX/ICON WCI 241603101 Contact Us For Availability
14
REGULATOR, PRESSURE WCI 318122705 Contact Us For Availability
16
MAIN TOP ASSY, FRAME/GLASS, STAINLESS/BLACK WCI 318185238 Contact Us For Availability
20
WCI 809103801 WCI 809103801 Contact Us For Availability
21A
WCI 305596406 WCI 305596406 Contact Us For Availability
22A
WCI 139029202 WCI 139029202 Contact Us For Availability
31
SEAL, 5K/9.5K BURNER WCI 316242002 Contact Us For Availability
31A
SEAL, 17K TWIN BURNER, (2) WCI 316515203 Contact Us For Availability
31B
SEAL, 12K/14K BURNER WCI 316242000 Contact Us For Availability
31C
SEAL, 9.5K/12K BURNER WCI 316242001 Contact Us For Availability
33
WCI 318242275 WCI 318242275 Contact Us For Availability
34
WCI 318251600 WCI 318251600 Contact Us For Availability
35
SKIRT, (4) WCI 318251911 Contact Us For Availability
39
WCI 305574902 WCI 305574902 Contact Us For Availability
44
ORIFICE, BURNER, 5K WCI 316527504 Contact Us For Availability
44A
ORIFICE, BURNER, 9.5K WCI 316527500 Contact Us For Availability
44B
ORIFICE, BURNER, 14K WCI 316527511 Contact Us For Availability
44D
ORIFICE, BURNER, 12K WCI 316527502 Contact Us For Availability
44E
WCI 316527520 WCI 316527520 Contact Us For Availability
49
PANEL, INTERIOR SIDE, RH WCI 318241904 Contact Us For Availability
72
SCREW, VALVE MTG., 1/4 - 20 WCI 316215600 Contact Us For Availability
165
SUPPORT, WOK WCI 318254300 Contact Us For Availability
166
WCI 318254202 WCI 318254202 Contact Us For Availability
NI
PAD, CLEANING WCI 316459400 Contact Us For Availability
NI
SCREW, 8-18 X 0.500 WCI 5303211311 Contact Us For Availability
NI
SCREW, PHIL, 4.2 X 6.5, (20) WCI 305309701 Contact Us For Availability
NIB
WCI 305376102 WCI 305376102 Contact Us For Availability
NID
SLEEVE, INSULATOR WCI 316566901 Contact Us For Availability
× ![]()
