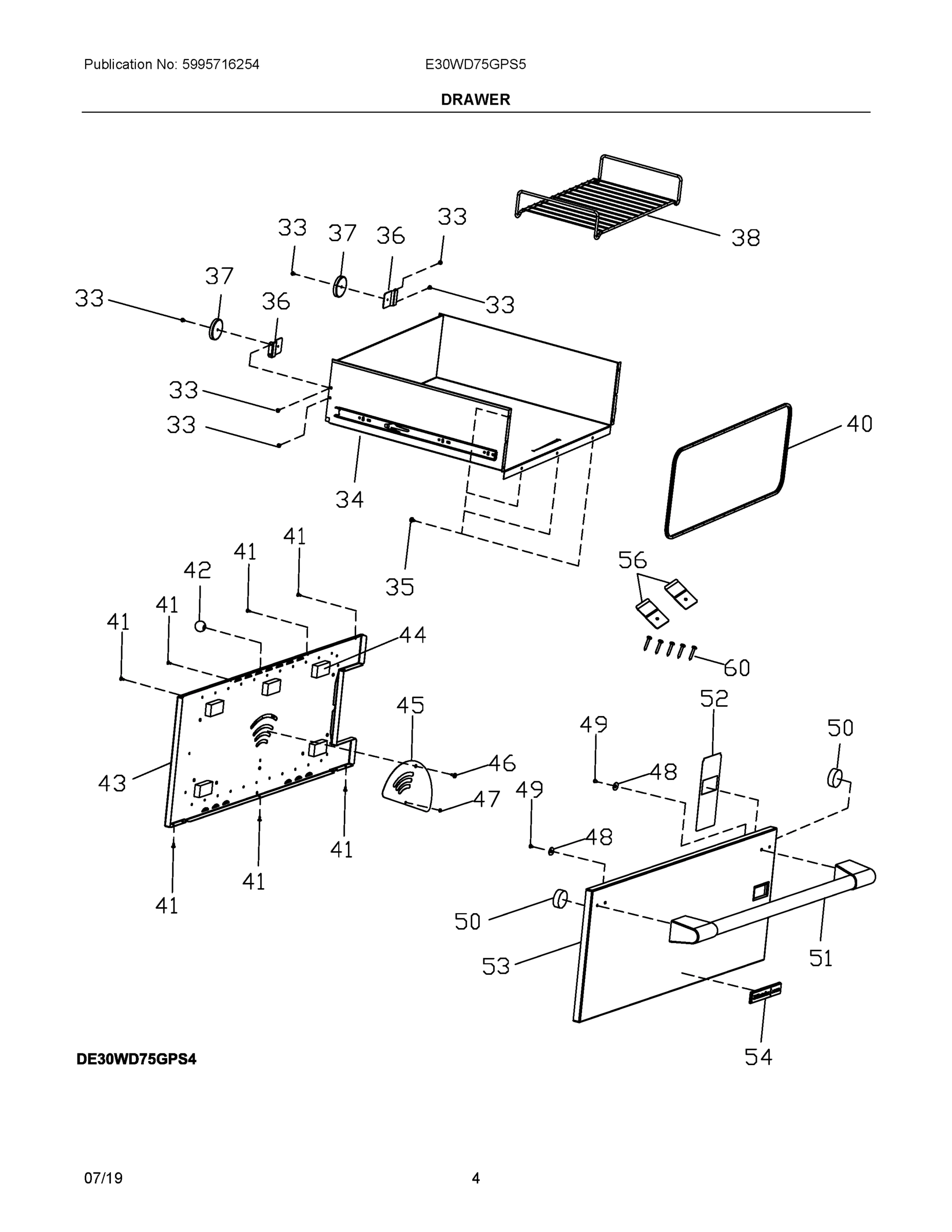

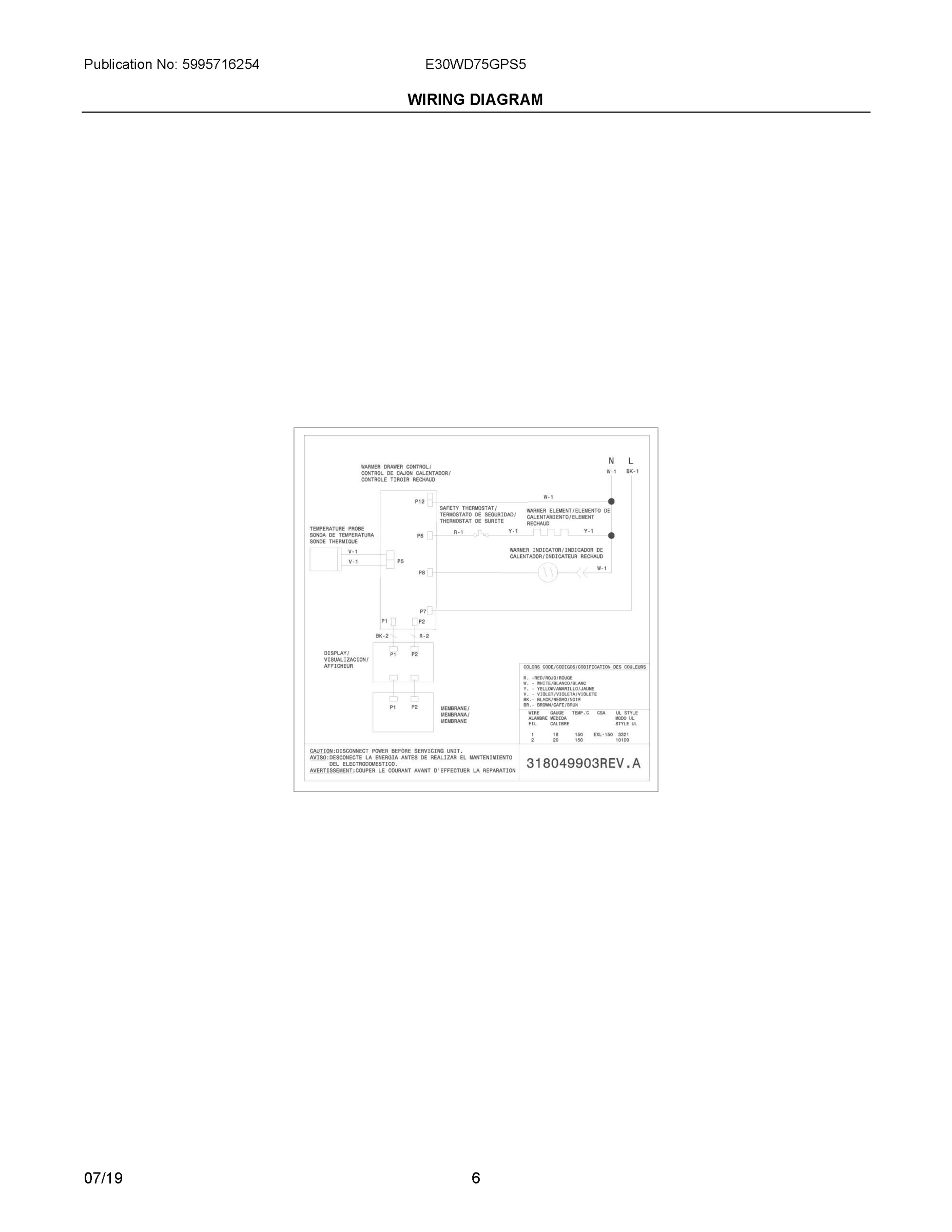

Model Electrolux E30WD75GPS5 SMALL APPLIANCE, WARMING DRAWER – Common Parts & Diagrams

19
SPACER, CONTROL
SPACER, CONTROL WCI 318293702 Contact Us For Availability
View on Model
20
CLIP, CONTROL, (4)
CLIP, CONTROL, (4) WCI 305560900 Contact Us For Availability
View on Model
23
PANEL, COVER
PANEL, COVER WCI 318310110 Contact Us For Availability
View on Model
24
WRAPPER, DRAWER
WRAPPER, DRAWER WCI 807319601 Contact Us For Availability
View on Model
25
BUMPER, ABSORBER, FELT, (2)
BUMPER, ABSORBER, FELT, (2) WCI 318388000 Contact Us For Availability
View on Model
26
THERMOSTAT, SAFETY
THERMOSTAT, SAFETY WCI 318005114 Contact Us For Availability
View on Model
27
SHIELD, WIRE
SHIELD, WIRE WCI 318399000 Contact Us For Availability
View on Model
28
SHIELD, ELEMENT, TERMINALS
SHIELD, ELEMENT, TERMINALS WCI 807319701 Contact Us For Availability
View on Model
31
WRAPPER, UPPER
WRAPPER, UPPER WCI 318281508 Contact Us For Availability
View on Model
33
SCREW, M4 X 5 MM, (6)
SCREW, M4 X 5 MM, (6) WCI 305338504 Contact Us For Availability
View on Model
34
DRAWER ASSEMBLY, W/GLIDES
DRAWER ASSEMBLY, W/GLIDES WCI 808248901 Contact Us For Availability
View on Model
36
BRACKET, MAGNET MTG., (2)
BRACKET, MAGNET MTG., (2) WCI 808499901 Contact Us For Availability
View on Model
37
MAGNET, DRAWER, (2)
MAGNET, DRAWER, (2) WCI 318373201 Contact Us For Availability
View on Model
40
GASKET, WARMER DRAWER
GASKET, WARMER DRAWER WCI 318254408 Contact Us For Availability
View on Model
41
SCREW, TRUSS HEAD, 8-18 X 3/8", (7)
SCREW, TRUSS HEAD, 8-18 X 3/8", (7) WCI 08016432 Contact Us For Availability
View on Model
43
LINER, DRAWER PANEL, INNER
LINER, DRAWER PANEL, INNER WCI 807356701 Contact Us For Availability
View on Model
44
SPACER, DOOR, FOAM, (5)
SPACER, DOOR, FOAM, (5) WCI 807273501 Contact Us For Availability
View on Model
45
PANEL, HUMIDITY CNTL
PANEL, HUMIDITY CNTL WCI 807393601 Contact Us For Availability
View on Model
49
SCREW, HANDLE MTG., 10-32 X 1/2", (2)
SCREW, HANDLE MTG., 10-32 X 1/2", (2) WCI 305615701 Contact Us For Availability
View on Model
50
BUMPER, BASE, (2)
BUMPER, BASE, (2) WCI 318339700 Contact Us For Availability
View on Model
51
HANDLE, DOOR
HANDLE, DOOR WCI 318392423 Contact Us For Availability
View on Model
52
DISPLAY, WINDOW
DISPLAY, WINDOW WCI 318394100 Contact Us For Availability
View on Model
53
PANEL, DRAWER, STAINLESS, OUTER
PANEL, DRAWER, STAINLESS, OUTER WCI 807446301 Contact Us For Availability
View on Model
56
BRACKET, WALL, (2)
BRACKET, WALL, (2) WCI 318247403 Contact Us For Availability
View on Model
62
SHIELD, SIDE PANEL, LH
SHIELD, SIDE PANEL, LH WCI 807221801 Contact Us For Availability
View on Model
NI
WIRING HARNESS, COMMUNICATION
WIRING HARNESS, COMMUNICATION WCI 318199765 Contact Us For Availability
View on Model
NI
WCI 5304522502
WCI 5304522502 WCI 5304522502 Contact Us For Availability
View on Model
NI
CLEANER, STAINLESS STEEL
CLEANER, STAINLESS STEEL WCI 318163602 Contact Us For Availability
View on Model
