Model Electrolux E30IC75FSS4 COOK-TOP – Common Parts & Diagrams

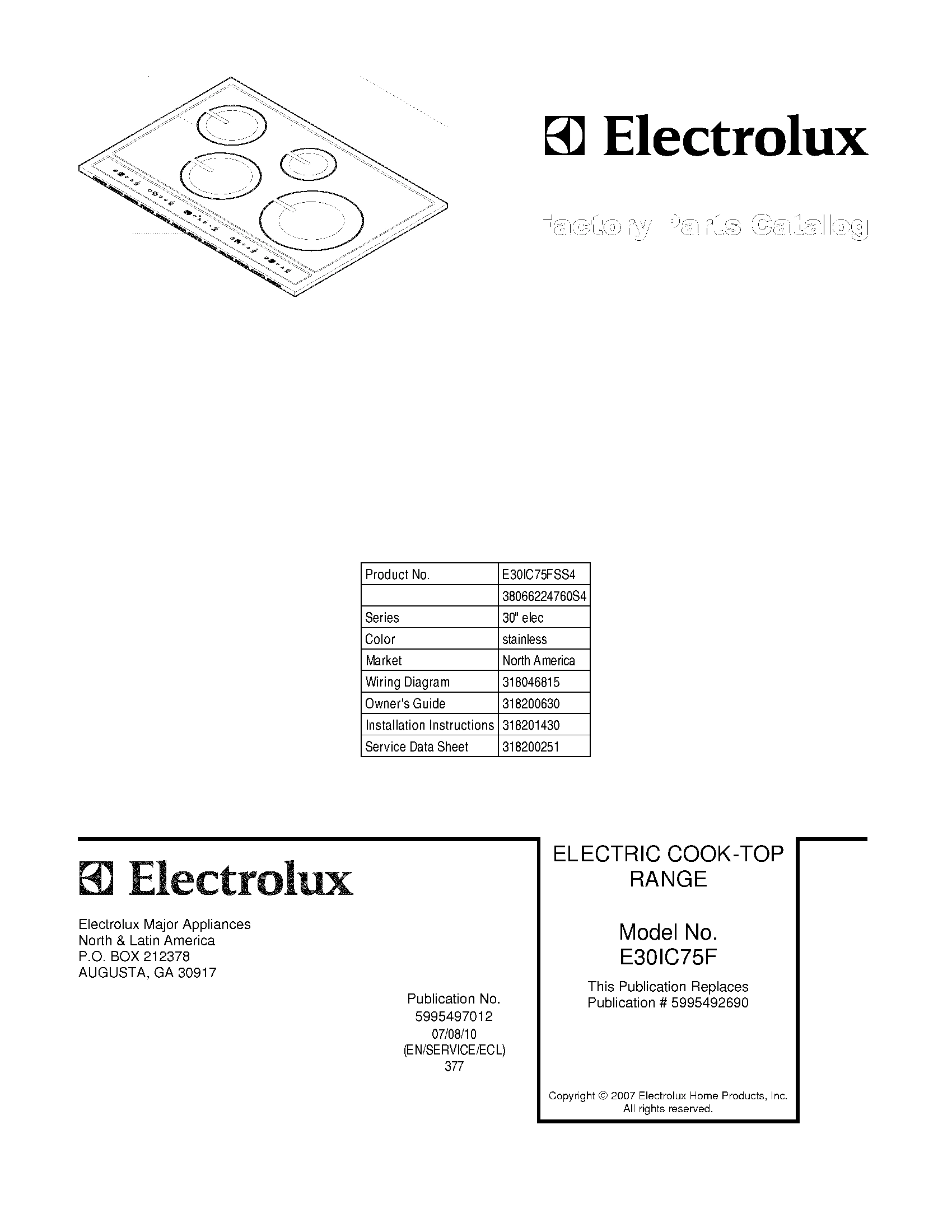

01 - COVER

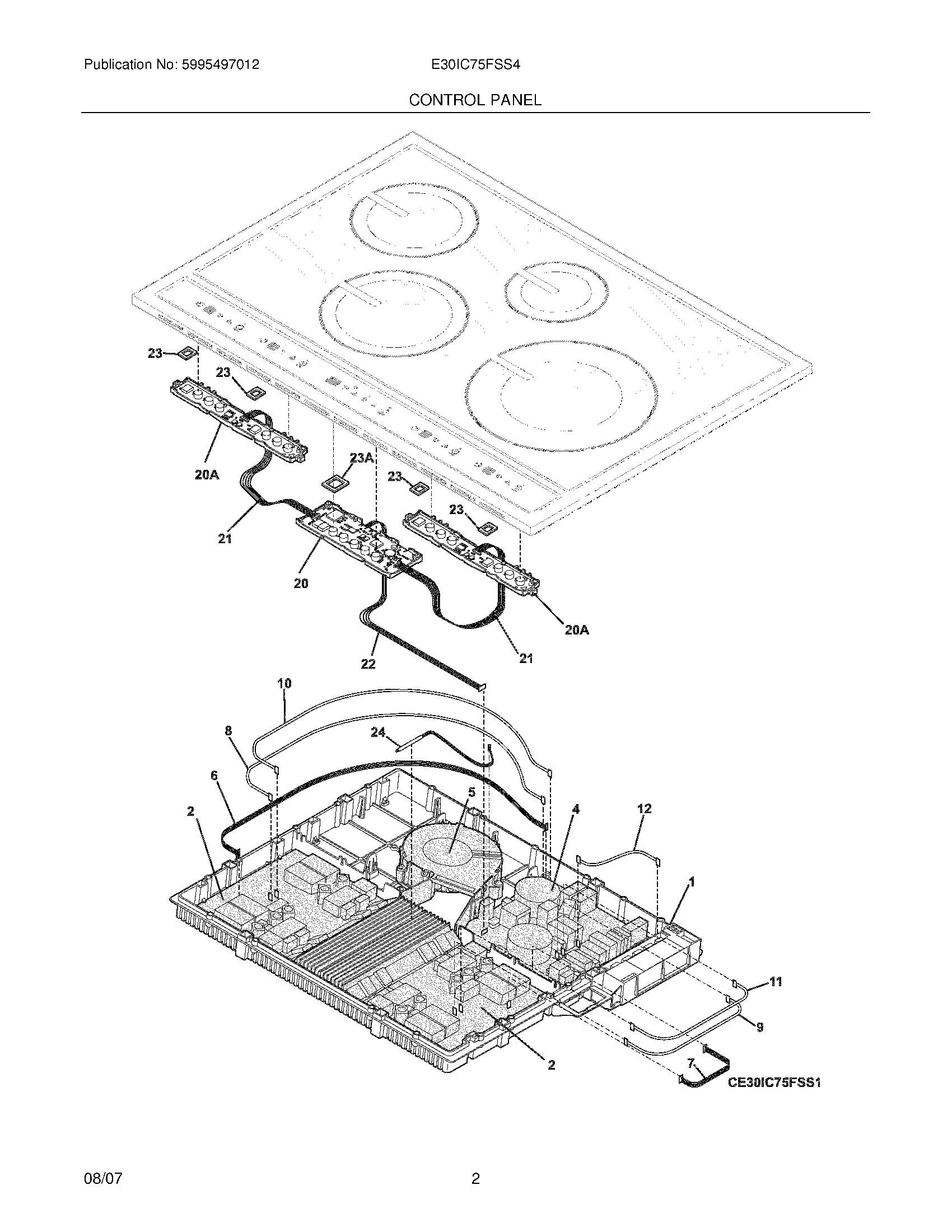

03 - CONTROL PANEL
05 - MAINTOP
06 - WIRING DIAGRAM
Common parts from model Electrolux E30IC75FSS4 COOK-TOP
1
Panel,CARRIER WCI 318329004 Contact Us For Availability
2
Insulation,elements WCI 318344500 Contact Us For Availability
8
Power Cable Set,generator ,18`` ,black ,to fi WCI 318052581 Contact Us For Availability
9
WCI 318052580 WCI 318052580 Contact Us For Availability
10
Power Cable Set,generator ,18`` ,blue ,to fil WCI 318052582 Contact Us For Availability
10
Screw,7-19 x 1/2`` ,(11) ,housing ring WCI 5304450850 Contact Us For Availability
11
WCI 318052579 WCI 318052579 Contact Us For Availability
12
WCI 318052596 WCI 318052596 Contact Us For Availability
15
Element,induction coil ,145MM ,right rear WCI 318329200 Contact Us For Availability
15A
Element,induction coil ,180MM ,left rear WCI 318329201 Contact Us For Availability
15B
Element,induction coil ,210MM ,left front WCI 318329202 Contact Us For Availability
15C
Element,induction coil ,260MM ,right front WCI 318329203 Contact Us For Availability
16
Main Top Assy,glass/steel ,black/stainless WCI 318282519 Contact Us For Availability
20
WCI 318330813 WCI 318330813 Contact Us For Availability
20
Bracket,retainer WCI 318121906 Contact Us For Availability
20A
WCI 318330713 WCI 318330713 Contact Us For Availability
21
Interface Cable,side control ,to center WCI 318083044 Contact Us For Availability
22
Communication Cable,center control ,to filter WCI 318083045 Contact Us For Availability
23
Frame,display ,single ,(5) WCI 318368900 Contact Us For Availability
23A
Frame,display ,double WCI 318368910 Contact Us For Availability
24
Thermal Cut-Out,short WCI 318349900 Contact Us For Availability
34
Pan,skilet ,induction WCI 318526700 Contact Us For Availability
46
WCI 318328918 WCI 318328918 Contact Us For Availability
47
WCI 318345115 WCI 318345115 Contact Us For Availability
50
Panel,spacer WCI 318356803 Contact Us For Availability
57
Panel,access WCI 318330911 Contact Us For Availability
58
Insulation,housing ,RH WCI 318346000 Contact Us For Availability
58A
Insulation,housing ,rear WCI 318346002 Contact Us For Availability
58B
Insulation,housing ,LH WCI 318346001 Contact Us For Availability
59
Insualtion,housing ,lower WCI 318346201 Contact Us For Availability
60
WCI 318329300 WCI 318329300 Contact Us For Availability
NI
WCI 316459400 WCI 316459400 Contact Us For Availability
NI
Washer,flat ,nylon ,(4) WCI 5304457268 Contact Us For Availability
NI
Palnut,No.8-32 ,(6) WCI 5304457269 Contact Us For Availability
NI
Tape,foam ,1/4``x1``x1`` ,(6) WCI 5304457271 Contact Us For Availability
NI
WCI 318078576 WCI 318078576 Contact Us For Availability
NI
Clamp,power cord WCI 318341500 Contact Us For Availability
× ![]()
