Model Electrolux E30EW85PPSB WALL OVEN, ELECTRIC, DOUBLE, 30 INCH – Common Parts & Diagrams

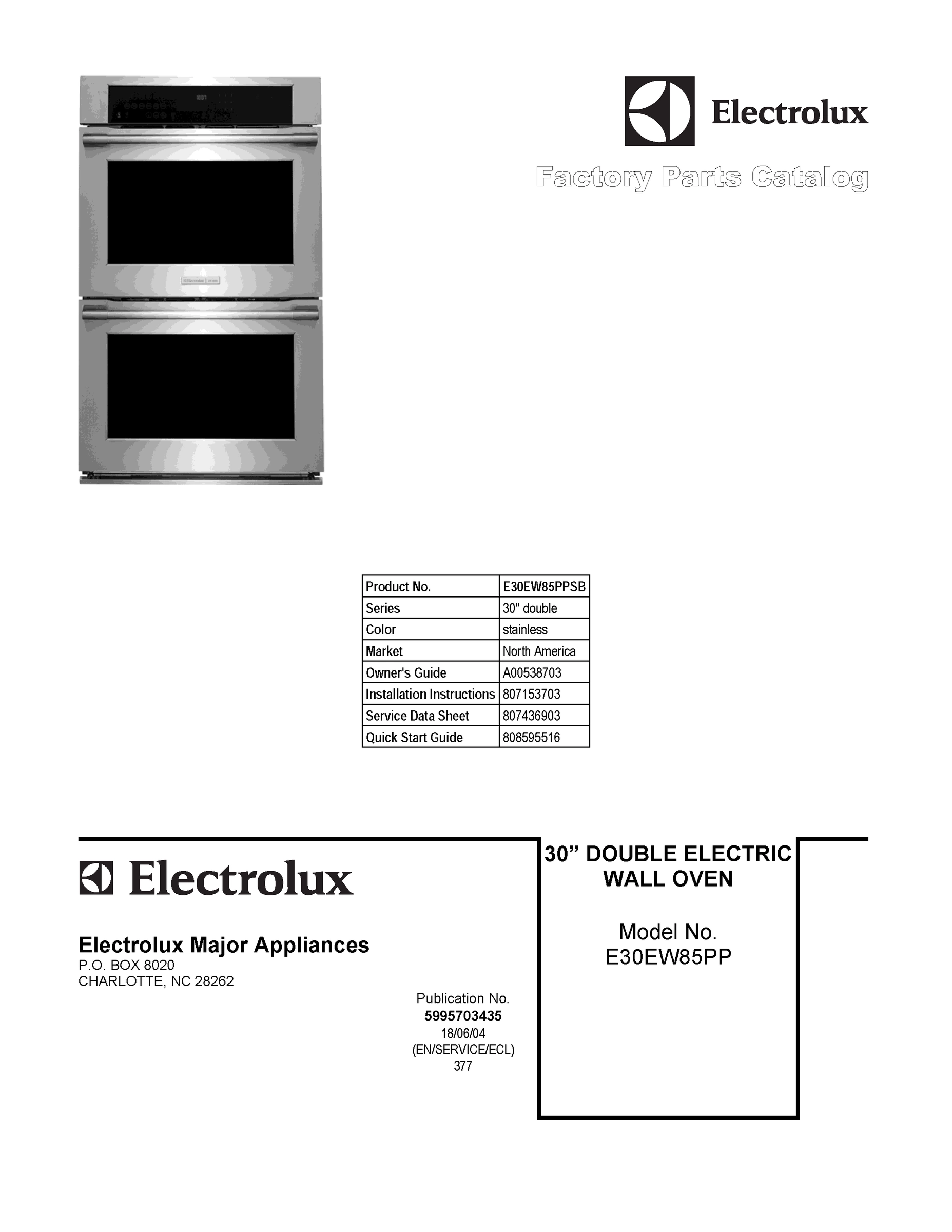

01 - COVER SHEET

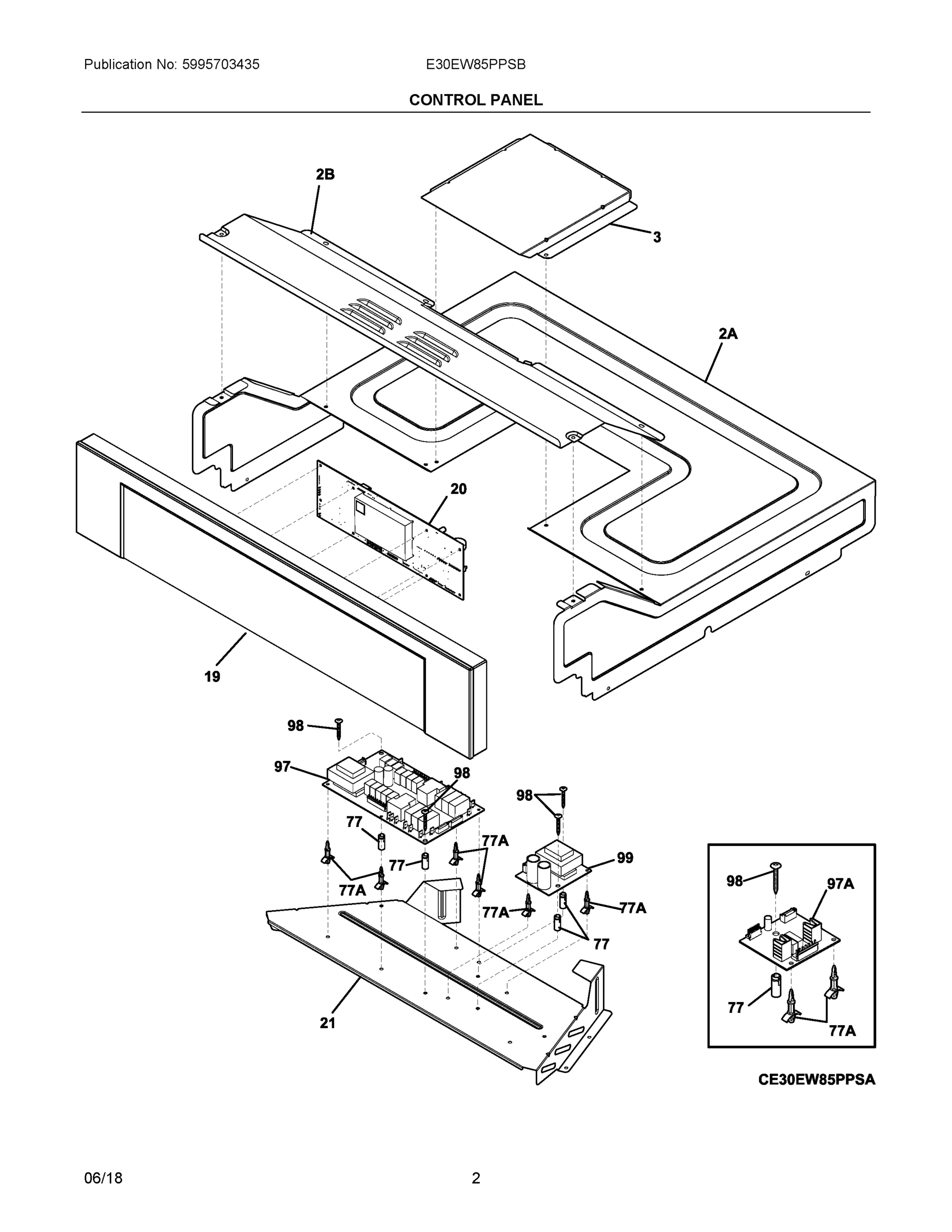

02 - CONTROL PANEL
03 - UPPER OVEN
04 - LOWER OVEN
05 - DOORS
06 - WIRING DIAGRAM
07 - WIRING DIAGRAM
Common parts from model Electrolux E30EW85PPSB WALL OVEN, ELECTRIC, DOUBLE, 30 INCH
2A
COVER, OVEN TOP WCI 139017901 Contact Us For Availability
2B
COVER, CONTROL ACCESS WCI 139017801 Contact Us For Availability
2B
HOUSING, FAN, AIR DIVERTER WCI 139038901 Contact Us For Availability
3
SPACER, DOOR GLASS, TOP WCI 5304491779 Contact Us For Availability
4
SPACER, DOOR GLASS, SILICONE, (2) WCI 808983501 Contact Us For Availability
5
CAP, SCREW HOLE, TRIM, (2) WCI 139010800 Contact Us For Availability
6A
GLIDE RACK, ASSEMBLY, COBALT, W/HANDLE WCI 808713906 Contact Us For Availability
7
GLASS, THERMAL, INNER, HB11 #2 WCI 139010505 Contact Us For Availability
8
GLASS, THERMAL, INNER, HB11 #1 WCI 139010504 Contact Us For Availability
9
PAN, BROILER, COBALT BLUE WCI 316081901 Contact Us For Availability
10
SCREW, HANDLE MTG., 10-24 X 1.77", (2) WCI 316439507 Contact Us For Availability
11
SEAL, OVEN DOOR, GRAY WCI 807545504 Contact Us For Availability
13
DOOR ASSEMBLY, OUTER, STEEL/GLASS, STAINLESS/ WCI 5304496651 Contact Us For Availability
13A
DOOR ASSEMBLY, OUTER, STAINLESS/BLACK, W/TRIM WCI 807722402 Contact Us For Availability
15AA
LAMP ASSEMBLY, HALOGEN, 26" HARNESS, W/G9 40W WCI 139001800 Contact Us For Availability
20
CONTROLLER, ELECTRONIC, ES630W1 WCI 316576673 Contact Us For Availability
23
HINGE, DOOR, GOLD, DUAL SPRING WCI 139010306 Contact Us For Availability
37
SENSOR, OVEN TEMP PROBE WCI 5304504897 Contact Us For Availability
52
TRIM ASSEMBLY, DOOR, TOP WCI 5304494448 Contact Us For Availability
56
TRIM, SIDE FILLER, BLACK, RH WCI 318903676 Contact Us For Availability
56A
TRIM, SIDE FILLER, BLACK, LH WCI 318903677 Contact Us For Availability
57
PANEL, SERVICE, BAKE ELEMENT WCI 807988901 Contact Us For Availability
59
DUCT, COOLING FAN, UPPER WCI 139027600 Contact Us For Availability
70
SHIELD, INSULATION, SIDES, (2) WCI 139000601 Contact Us For Availability
77
SPACER, POWER BOARD WCI 316247900 Contact Us For Availability
77A
SPACER WCI 316114100 Contact Us For Availability
86
RECEPTACLE, HINGE, DUAL SPRING WCI 139026900 Contact Us For Availability
87
BRACKET, CABLE MTG. WCI 139020100 Contact Us For Availability
89
MOTOR, LATCH ASSY., 2 POLE WCI 139021302 Contact Us For Availability
90
TRIM, OV WCI 318903536 Contact Us For Availability
97
BOARD, RELAY, DUAL OVEN WCI 316443936 Contact Us For Availability
97A
BOARD, RELAY, CONVECTION, TRIAC WCI 316519205 Contact Us For Availability
99
BOARD, POWER SUPPLY, 8V WCI 316535201 Contact Us For Availability
99
WCI 318256201 WCI 318256201 Contact Us For Availability
108
WCI 139038301 WCI 139038301 Contact Us For Availability
108
MOTOR, COOLING FAN, DUAL SPEED WCI 318575614 Contact Us For Availability
108A
WCI 139023900 WCI 139023900 Contact Us For Availability
111
NUT, FAN RETAINER WCI 316136600 Contact Us For Availability
112
WCI 5304494446 WCI 5304494446 Contact Us For Availability
127
WCI 139042600 WCI 139042600 Contact Us For Availability
131
WCI 139027700 WCI 139027700 Contact Us For Availability
264
WCI 139007801 WCI 139007801 Contact Us For Availability
264
WCI 139017601 WCI 139017601 Contact Us For Availability
272
WCI 139021700 WCI 139021700 Contact Us For Availability
NI
WCI 316021109 WCI 316021109 Contact Us For Availability
NI
WCI 318165800 WCI 318165800 Contact Us For Availability
NI
WCI 316021105 WCI 316021105 Contact Us For Availability
NI
HARNESS, WIRING, COMMUNICATION WCI 808319401 Contact Us For Availability
NI
WCI 5303289910 WCI 5303289910 Contact Us For Availability
NI
WCI 5304470882 WCI 5304470882 Contact Us For Availability
NIA
WCI 318946400 WCI 318946400 Contact Us For Availability
NIA
WCI 318946500 WCI 318946500 Contact Us For Availability
NIA
WCI 316205500 WCI 316205500 Contact Us For Availability
NIA
WCI 316418900 WCI 316418900 Contact Us For Availability
NIA
WCI 318231870 WCI 318231870 Contact Us For Availability
NIA
SCREW, CONTROL MTG, 6-32 X .25, (5) WCI 316524400 Contact Us For Availability
NIA
WCI 807181801 WCI 807181801 Contact Us For Availability
NIB
WCI 5303323130 WCI 5303323130 Contact Us For Availability
× ![]()
