Model LG E2742V-BN – Common Parts & Diagrams

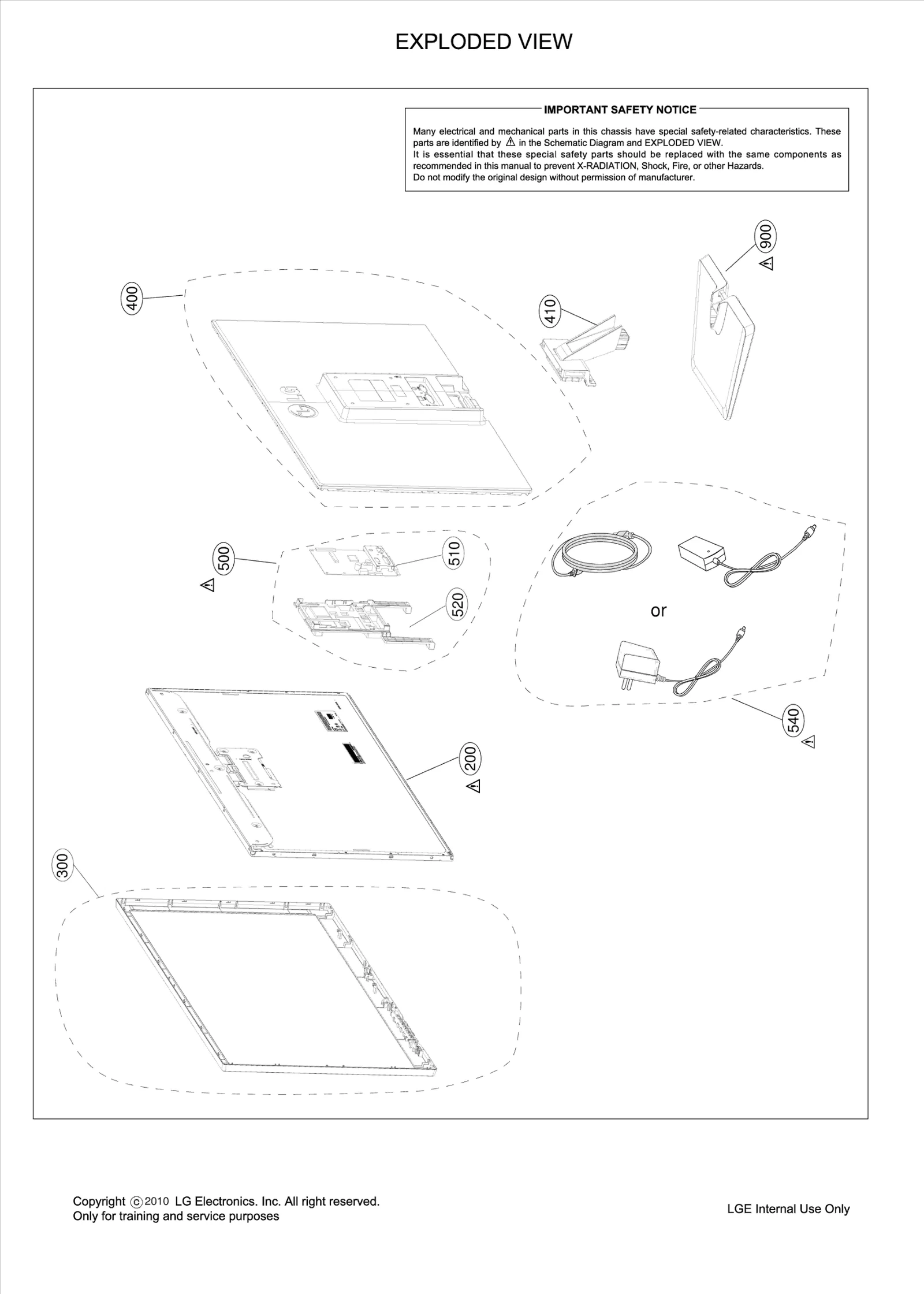

Diagram 0
Diagram 1
Common parts from model LG E2742V-BN
400
Cover Assembly,Rear LGE ACQ85921401 Contact Us For Availability
410
Base Assembly LGE AAN74132001 Contact Us For Availability
500
Package Assembly LGE AGF76451101 Contact Us For Availability
510
BPR Total Assembly LGE EBU61719101 Contact Us For Availability
520
Bracket LGE MAZ63429801 Contact Us For Availability
530
PCB Assembly LGE EBR74906801 Contact Us For Availability
540
Adapters LGE EAY61231403 Contact Us For Availability
900
Base Assembly LGE AAN74132301 Contact Us For Availability
A1
S/W Package LGE SAB34942001 Contact Us For Availability
A3
Power Cord,Detach LGE 6410VEH008F Contact Us For Availability
A4
Card LGE MBM63822101 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734003 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
A7
Card LGE MBM61965744 Contact Us For Availability
C10
Harness,Single LGE EAD62186003 Contact Us For Availability
C104
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C113
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C132
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C138
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C141
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C144
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C146
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C148
Capacitor,AL,Chip LGE EAE62721801 Contact Us For Availability
C158
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C308
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C311
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
D114
Diode,Schottky LGE EAH61533501 Contact Us For Availability
D302
Diode,TVS LGE EAH42720601 Contact Us For Availability
D318
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D318
Diode,Schottky LGE EAH44241601 Contact Us For Availability
IC105
S/W,Firmware LGE SAA36359801 Contact Us For Availability
LV1
Cable,FFC LGE EAD61905275 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P301
Connector,DSUB LGE 6630TGA005J Contact Us For Availability
Q111
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q111
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R3
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R100
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R100
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R111
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R128
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R136
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R140
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R145
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R146
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R155
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R161
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R164
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R167
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R170
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R193
Resistor,Metal Oxide Film LGE EBC62297501 Contact Us For Availability
R301
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R306
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R312
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R313
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R335
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
X100
Crystal LGE EAW60658001 Contact Us For Availability
X100
Crystal LGE 6212AA2001H Contact Us For Availability
× ![]()
