Model LG E2711PY-BN – Common Parts & Diagrams

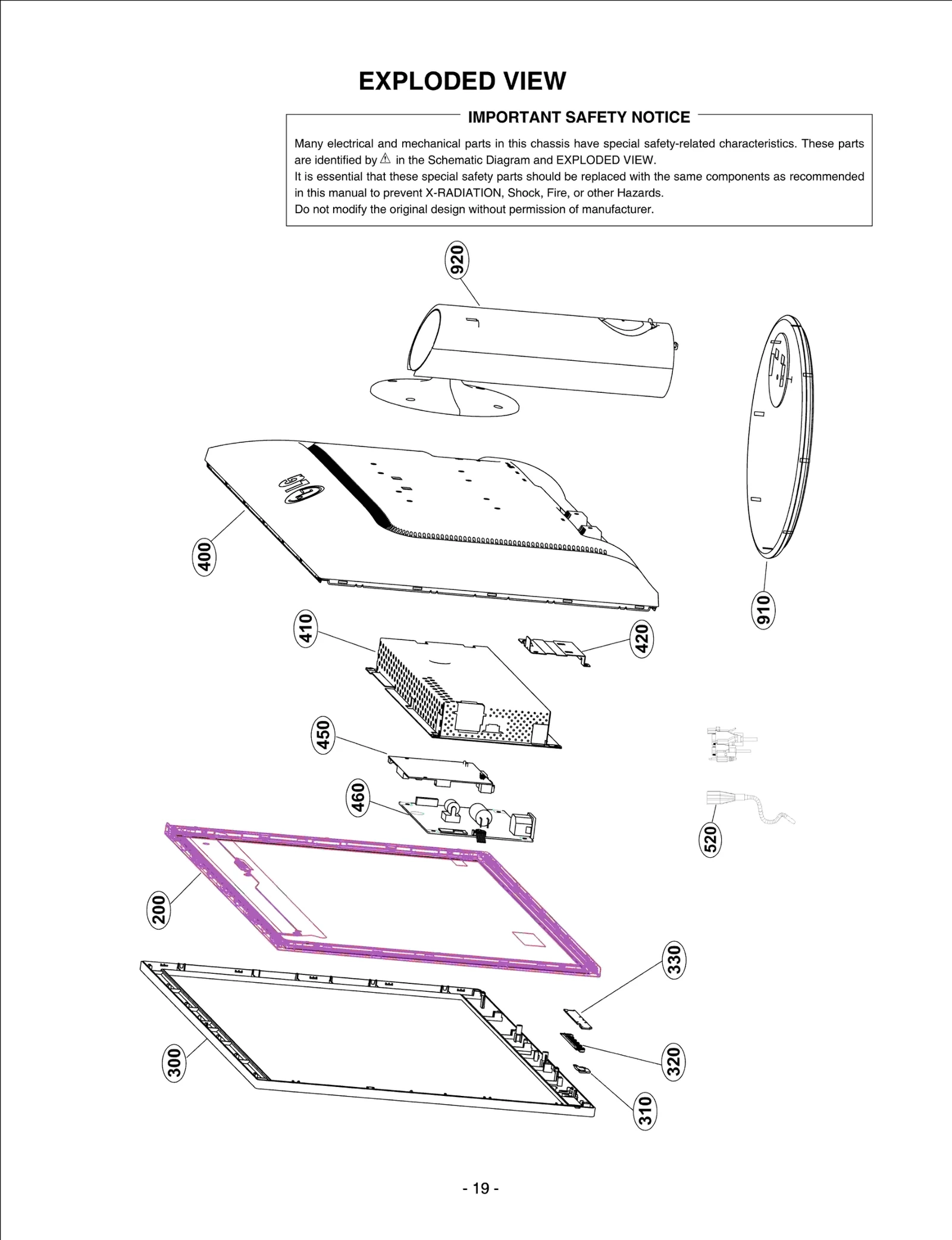

Diagram 0
Diagram 1
Common parts from model LG E2711PY-BN
310
Bracket Assembly LGE ABA72946301 Contact Us For Availability
330
PCB Assembly LGE EBR73167901 Contact Us For Availability
410
Frame Assembly LGE ADV74066702 Contact Us For Availability
420
Frame Assembly LGE ADV74087301 Contact Us For Availability
450
Hand Insert PCB Assembly,Main LGE EBR74493901 Contact Us For Availability
460
PCB Assembly,Power LGE EBR36269429 Contact Us For Availability
910
Base Assembly LGE AAN30364408 Contact Us For Availability
920
Base Assembly LGE AAN34881811 Contact Us For Availability
A1
S/W Package LGE SAB34799121 Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
C101
CAPACITOR,DRAWING LGE 0CZZ9ST017A Contact Us For Availability
C101
Capacitor,AL,Radial LGE EAE48859719 Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 0CKZTTA002Q Contact Us For Availability
C103
CAPACITOR,DRAWING LGE 0CZZ9ST014A Contact Us For Availability
C103
Capacitor,AL,Radial LGE EAE48859710 Contact Us For Availability
C106
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C204
CAPACITOR,DRAWING LGE 0CZZ9ST018A Contact Us For Availability
C204
Capacitor,AL,Radial LGE EAE48875607 Contact Us For Availability
C204
Capacitor,AL,Radial LGE EAE61104901 Contact Us For Availability
C208
Capacitor,Ceramic,Radial LGE 0CKZTTA002E Contact Us For Availability
C213
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C214
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C302
CAPACITOR,CHIP[CERAMIC M/L TC LGE 0CH5100K416 Contact Us For Availability
C303
Capacitor,AL,Radial LGE EAE44267901 Contact Us For Availability
C307
Capacitor,Ceramic,Ch LGE 0CK334DK56A Contact Us For Availability
C309
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C310
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C311
Capacitor,Ceramic,Chip LGE 0CH5102K416 Contact Us For Availability
C715
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C804
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C810
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C816
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C826
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C831
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C833
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
CY102
Capacitor,Ceramic,Radial LGE EAE42452301 Contact Us For Availability
CY102
Capacitor,Ceramic,Radial LGE EAE62505901 Contact Us For Availability
CY104
Capacitor,Ceramic,Radial LGE EAE42452201 Contact Us For Availability
CY104
Capacitor,Ceramic,Radial LGE EAE62505801 Contact Us For Availability
D101
Diode,Rectifier LGE EAH39173101 Contact Us For Availability
D102
Diode,Rectifier LGE EAH58801901 Contact Us For Availability
D102
Diode,Rectifier LGE EAH39171701 Contact Us For Availability
D106
Diode,Rectifier LGE EAH61274201 Contact Us For Availability
D106
Diode,Rectifier LGE 0DRTW00274A Contact Us For Availability
D205
Diode,Schottky LGE EAH41943701 Contact Us For Availability
D205
Diode,Schottky LGE EAH59170101 Contact Us For Availability
D300
Diode,Schottky LGE EAH61434201 Contact Us For Availability
D304
DIODE,SWITCHING LGE 0DSGF00019A Contact Us For Availability
D304
Diode,Switching LGE 0DSPT00029A Contact Us For Availability
D617
Diode,Schottky LGE EAH44241601 Contact Us For Availability
EL21
Eyelet LGE 4014900002A Contact Us For Availability
IC102
IC,POWER MANAGEMENT LGE 0IPMG78432A Contact Us For Availability
IC201
IC,POWER MANAGEMENT LGE 0IPMG78424A Contact Us For Availability
IC201
IC KEC KIA431 (TP) CQ465,CS556 LGE 0IKE431000B Contact Us For Availability
IC503
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC601
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
J34
Wire,Jump LGE EAD60905001 Contact Us For Availability
J34
Wire,Jump LGE 971-0016 Contact Us For Availability
J34
Wire,Jump LGE EAD60796901 Contact Us For Availability
L806
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LB201
Filter,Bead LGE 125-155K Contact Us For Availability
LB301
Filter,Bead LGE 6210TCE003H Contact Us For Availability
LV1
Cable,FFC LGE EAD61466515 Contact Us For Availability
LV2
Cable,FFC LGE EAD61905267 Contact Us For Availability
P201
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P304
Connector,FFC/FPC/PIC LGE EAG62790001 Contact Us For Availability
P306
Connector,BtoB LGE EAG62572201 Contact Us For Availability
P601
Connector,DSUB LGE EAG61073003 Contact Us For Availability
P701
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
P801
Connector,USB LGE 6630SK00804 Contact Us For Availability
P802
Connector,USB LGE 6630SK00704 Contact Us For Availability
PG1
CASE TERMINAL EARTH CM-770 CS- LGE 302-987A Contact Us For Availability
Q201
TR,Bipolar LGE 0TR222209AB Contact Us For Availability
Q201
TR,Bipolar LGE EBK42831501 Contact Us For Availability
Q501
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q505
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R4
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R5
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R109
Resistor,Metal Oxide Film LGE 0RS0470K607 Contact Us For Availability
R110
Resistor,Metal Oxide Film LGE 0RX1003K607 Contact Us For Availability
R111
Resistor,Carbon Film LGE 0RD0221Q609 Contact Us For Availability
R120
Resistor,Carbon Composition LGE 0RC2204A609 Contact Us For Availability
R201
Resistor,Metal Oxide Film LGE 0RX0102K607 Contact Us For Availability
R209
Resistor,Chip LGE 0RH1001D422 Contact Us For Availability
R212
Resistor,Metal Oxide Film LGE 0RX1001K607 Contact Us For Availability
R215
Resistor,Chip LGE 0RJ5102E472 Contact Us For Availability
R302
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R303
Resistor,Chip LGE EBC00768103 Contact Us For Availability
R305
RESISTOR,CHIP LGE 0RH2700D422 Contact Us For Availability
R307
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R310
Resistor,Chip LGE 0RH2001D422 Contact Us For Availability
R311
Resistor,Chip LGE 0RH2002D422 Contact Us For Availability
R314
Resistor,Chip LGE 0RH1003D422 Contact Us For Availability
R327
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R509
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R544
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R547
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R549
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R557
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R604
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R635
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R641
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R708
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R710
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R720
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R724
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R726
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R801
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R802
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R803
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R816
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
SK101
Jack,DC Power LGE 6620K00020B Contact Us For Availability
SW4
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW4
Switch,Tact LGE EBF55334201 Contact Us For Availability
TH101
Thermistor,NTC LGE EBG60662801 Contact Us For Availability
TH101
THERMISTOR,NTC LGE 6322A00035A Contact Us For Availability
ZD4
Diode,Zener LGE EAH60661201 Contact Us For Availability
ZD103
Diode,Zener LGE 0DZPT51009A Contact Us For Availability
ZD103
Diode,Zener LGE 0DZ510009AK Contact Us For Availability
ZD201
Diode,Zener LGE 0DZ240009BB Contact Us For Availability
ZD201
Diode,Zener LGE 0DZ240009BJ Contact Us For Availability
× ![]()
