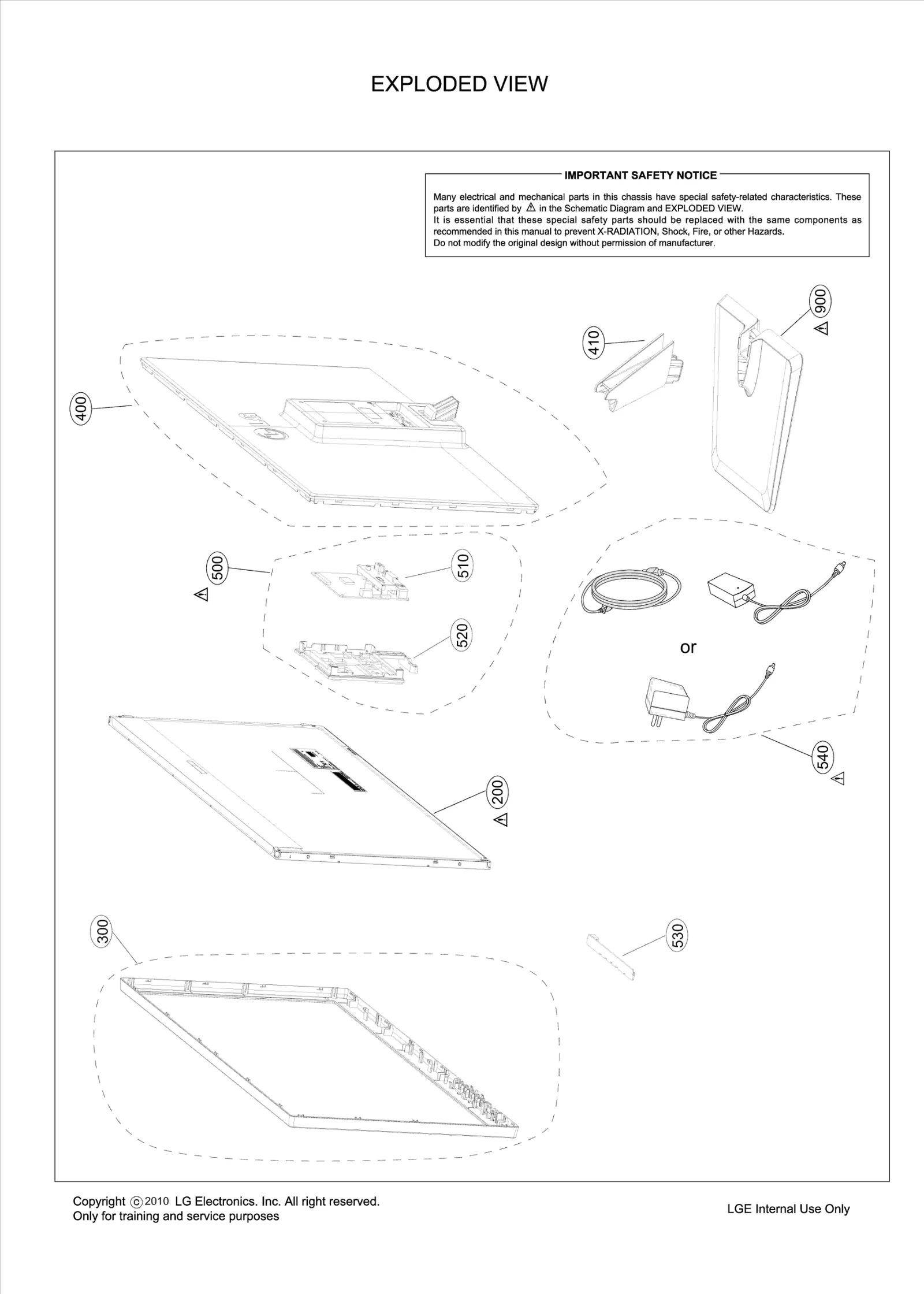

Model LG E2442V-BN – Common Parts & Diagrams

200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ61888002 Contact Us For Availability
View on Model
200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ62188202 Contact Us For Availability
View on Model
200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ61888001 Contact Us For Availability
View on Model
200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ62188201 Contact Us For Availability
View on Model
300
Cabinet Assembly
Cabinet Assembly LGE ABJ73808501 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ85921301 Contact Us For Availability
View on Model
410
Base Assembly
Base Assembly LGE AAN74131901 Contact Us For Availability
View on Model
500
Package Assembly
Package Assembly LGE AGF76391901 Contact Us For Availability
View on Model
510
BPR Total Assembly
BPR Total Assembly LGE EBU61756601 Contact Us For Availability
View on Model
520
Bracket
Bracket LGE MAZ63429702 Contact Us For Availability
View on Model
530
PCB Assembly
PCB Assembly LGE EBR74906801 Contact Us For Availability
View on Model
540
Adapters
Adapters LGE EAY62710705 Contact Us For Availability
View on Model
540
Adapters
Adapters LGE EAY62790005 Contact Us For Availability
View on Model
900
Base Assembly
Base Assembly LGE AAN74132201 Contact Us For Availability
View on Model
A1
S/W Package
S/W Package LGE SAB34942021 Contact Us For Availability
View on Model
A4
Card
Card LGE MBM61965730 Contact Us For Availability
View on Model
A5
Cable,Assembly
Cable,Assembly LGE EAD57734001 Contact Us For Availability
View on Model
C1
Harness,Single
Harness,Single LGE EAD61426314 Contact Us For Availability
View on Model
C100
Capacitor,Ceramic,Chip
Capacitor,Ceramic,Chip LGE EAE60663801 Contact Us For Availability
View on Model
C108
Capacitor,Ceramic,Ch
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
View on Model
C112
CAPACITOR,FIXED CERA
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
View on Model
C114
Capacitor,Ceramic,Chip
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
View on Model
C117
Capacitor,Ceramic,Ch
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
View on Model
C132
Capacitor,Ceramic,Ch
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
View on Model
C133
CAPACITOR,FIXED CERA
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
View on Model
C136
Capacitor,Ceramic,Chip
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
View on Model
C141
Capacitor,Ceramic,Chip
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
View on Model
C145
Capacitor,Ceramic,Chip
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
View on Model
C159
Capacitor,Ceramic,Chip
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
View on Model
C310
CAPACITOR,FIXED ELECTROLYTIC
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
View on Model
D108
Diode,TVS
Diode,TVS LGE EAH42720601 Contact Us For Availability
View on Model
D310
DIODE,SWITCHING
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
View on Model
D310
Diode,Schottky
Diode,Schottky LGE EAH44241601 Contact Us For Availability
View on Model
IC105
S/W,Firmware
S/W,Firmware LGE SAA36144701 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD61905275 Contact Us For Availability
View on Model
P100
WAFER
WAFER LGE 6602T20009E Contact Us For Availability
View on Model
P100
Connector,Wafer
Connector,Wafer LGE EAG31366106 Contact Us For Availability
View on Model
Q111
TR,Bipolar
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
View on Model
Q111
TRANSISTOR
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
View on Model
R3
RESISTOR,METAL GLAZE
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
View on Model
R100
Resistor,Chip
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
View on Model
R100
Resistor,Chip
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
View on Model
R106
Resistor,Chip
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
View on Model
R117
Resistor,Chip
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
View on Model
R127
Resistor,Chip
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
View on Model
R140
Resistor,Chip
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
View on Model
R141
Resistor,Chip
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
View on Model
R145
Resistor,Chip
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
View on Model
R155
Resistor,Chip
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
View on Model
R157
Resistor,Chip
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
View on Model
R158
Resistor,Chip
Resistor,Chip LGE EBC61076001 Contact Us For Availability
View on Model
R163
Resistor,Chip
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
View on Model
R178
Resistor,Chip
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
View on Model
R192
Resistor,Chip
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
View on Model
R193
Resistor,Metal Oxide Film
Resistor,Metal Oxide Film LGE EBC62297501 Contact Us For Availability
View on Model
R301
RESISTOR,METAL GLAZE
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
View on Model
R304
Resistor,Chip
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
View on Model
R318
Resistor,Chip
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
View on Model
R331
Resistor,Chip
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
View on Model
R334
Resistor,Chip
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
View on Model
X100
Crystal
Crystal LGE 6212AA2001H Contact Us For Availability
View on Model
X100
Crystal
Crystal LGE EAW60658001 Contact Us For Availability
View on Model
