Model Electrolux E23BC79SPS6 REFRIGERATOR, FRENCH DOOR, BOTTOM FREEZER, W/DISPE – Common Parts & Diagrams
01 - COVER SHEET
02 - FREEZER DRAWER, BASKETS

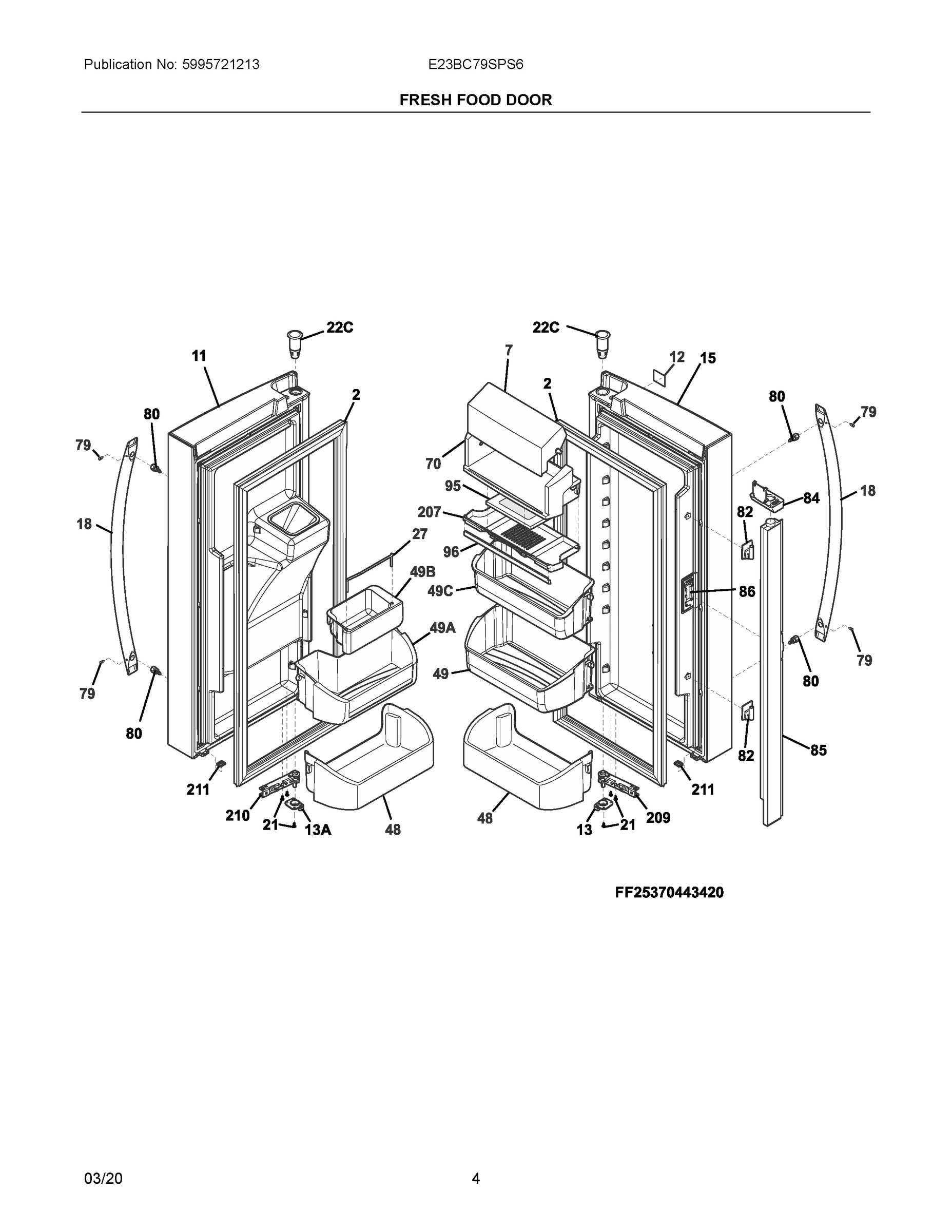

03 - FRESH FOOD DOOR

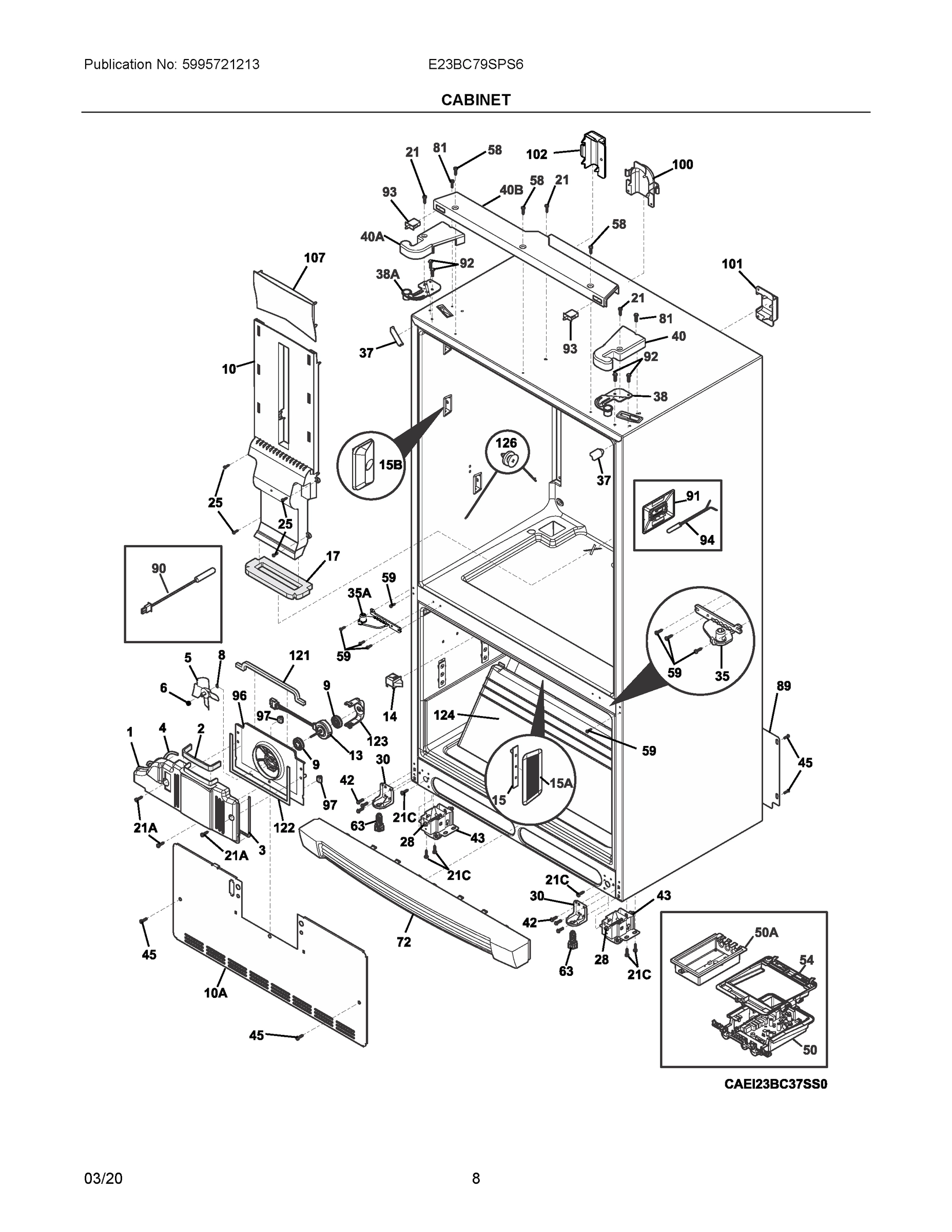

04 - CABINET

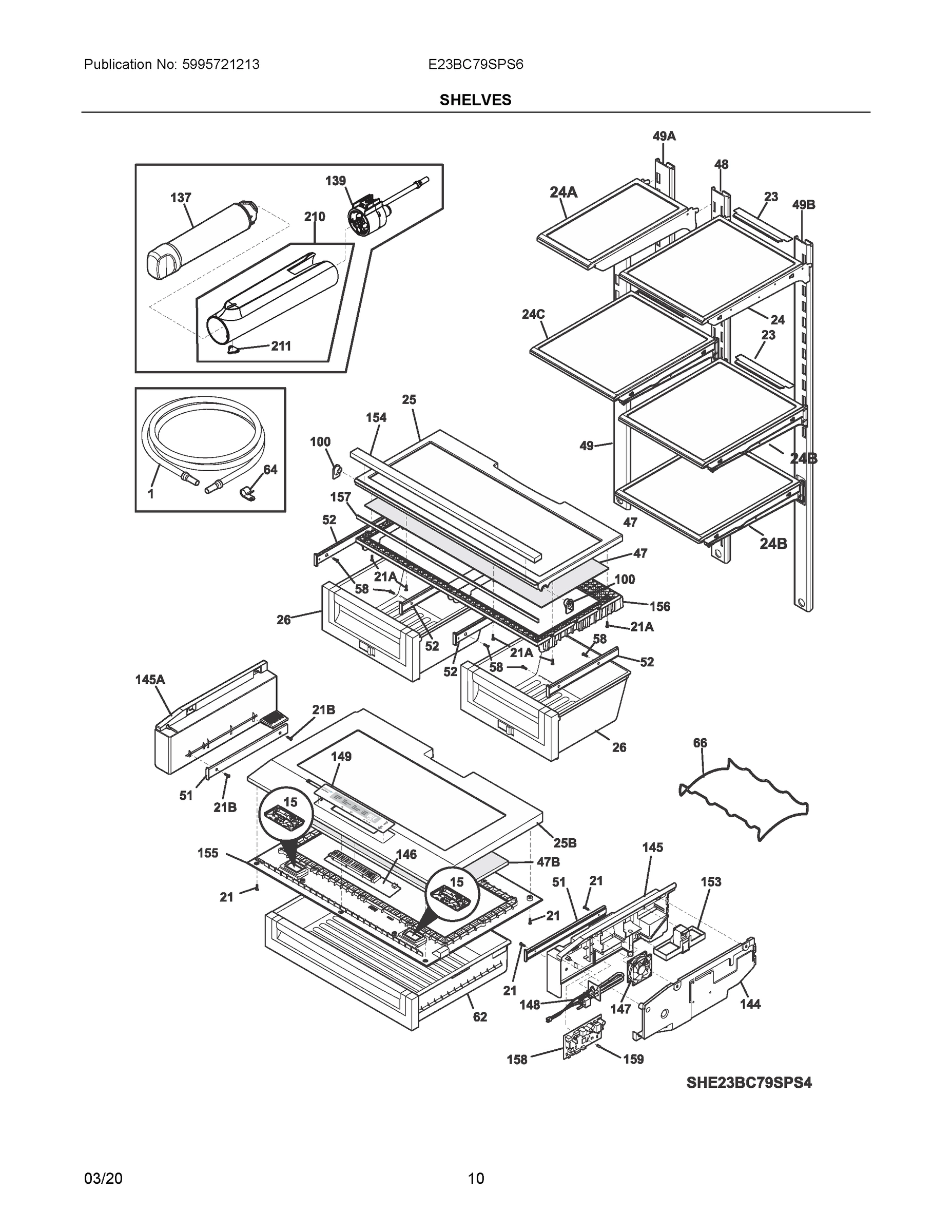

05 - SHELVES

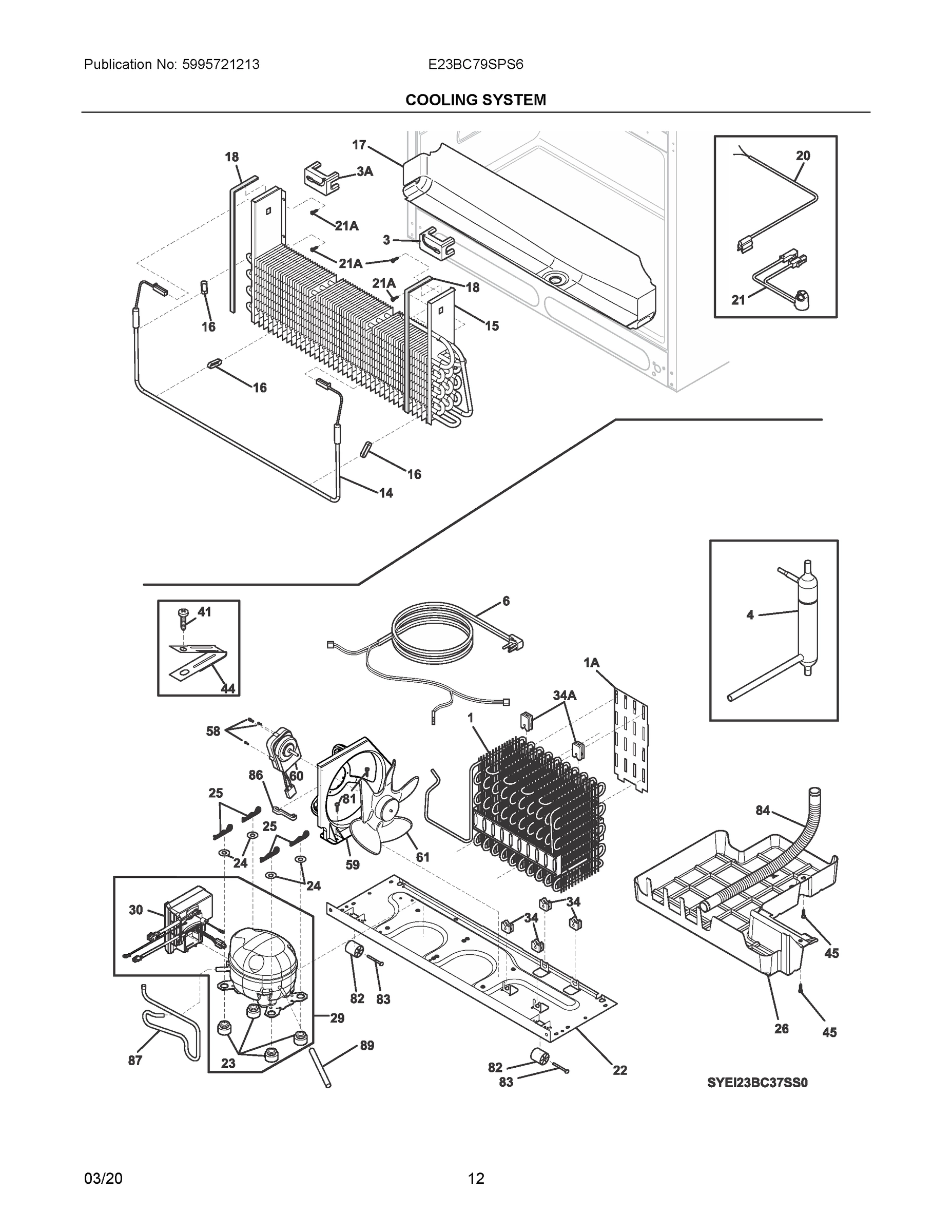

06 - COOLING SYSTEM

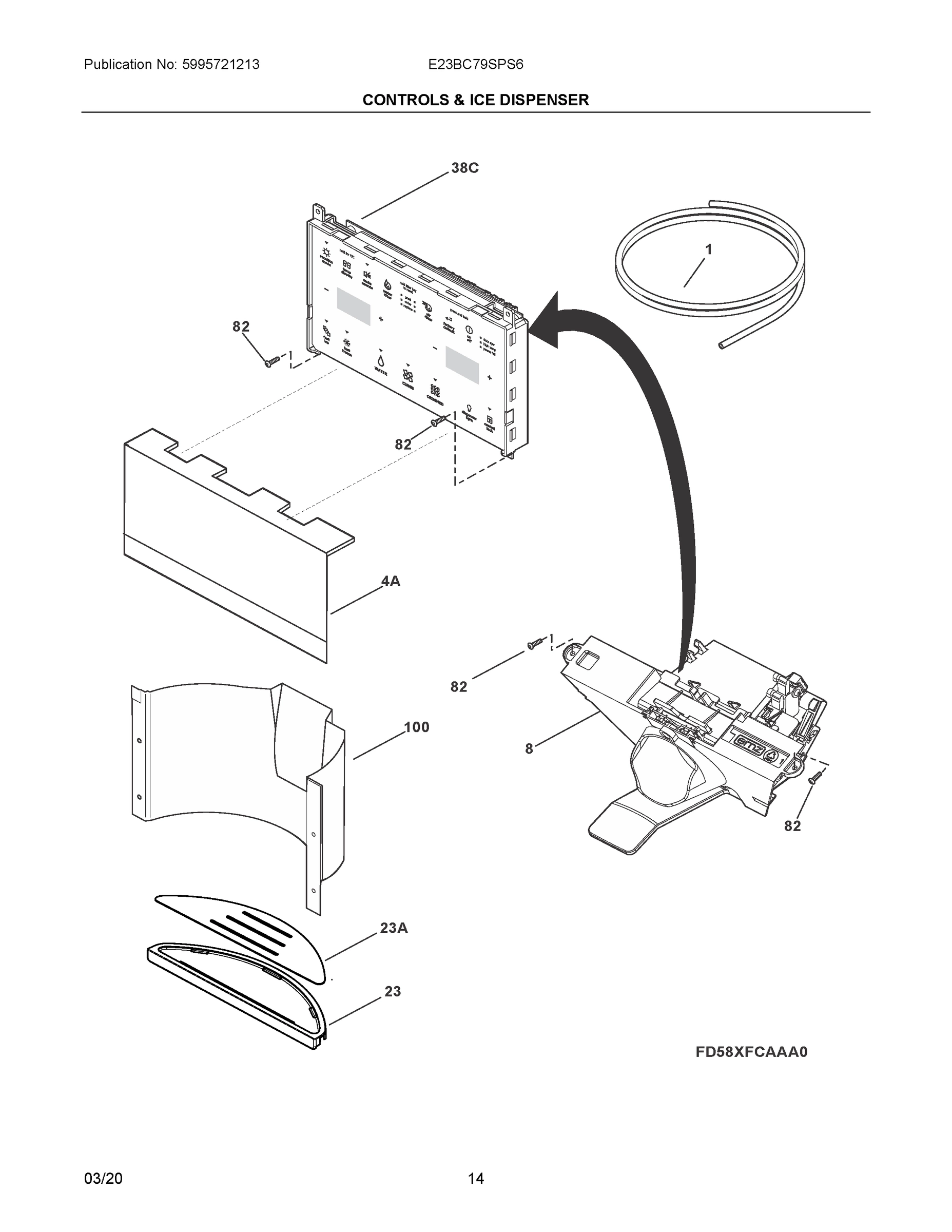

07 - CONTROLS & ICE DISPENSER

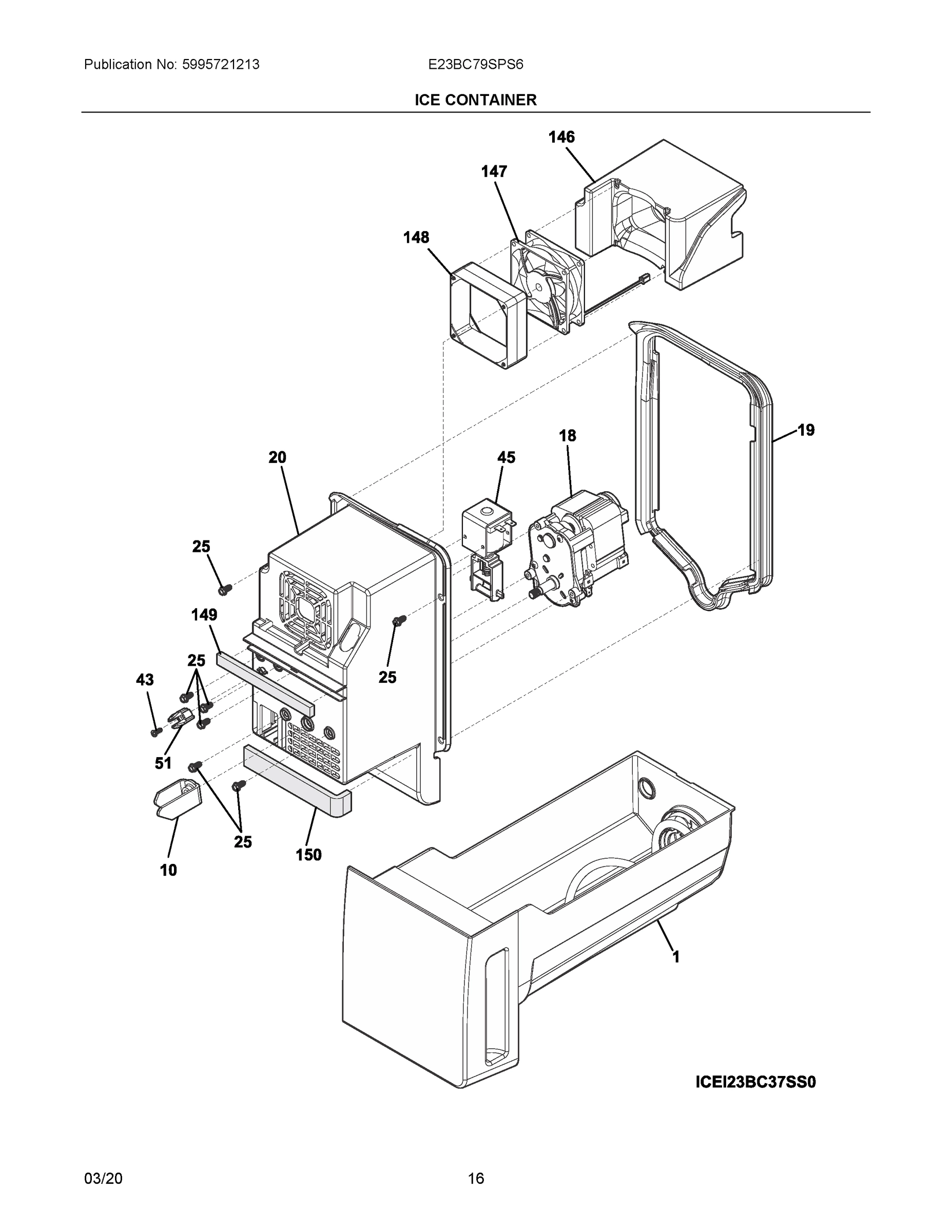

08 - ICE CONTAINER

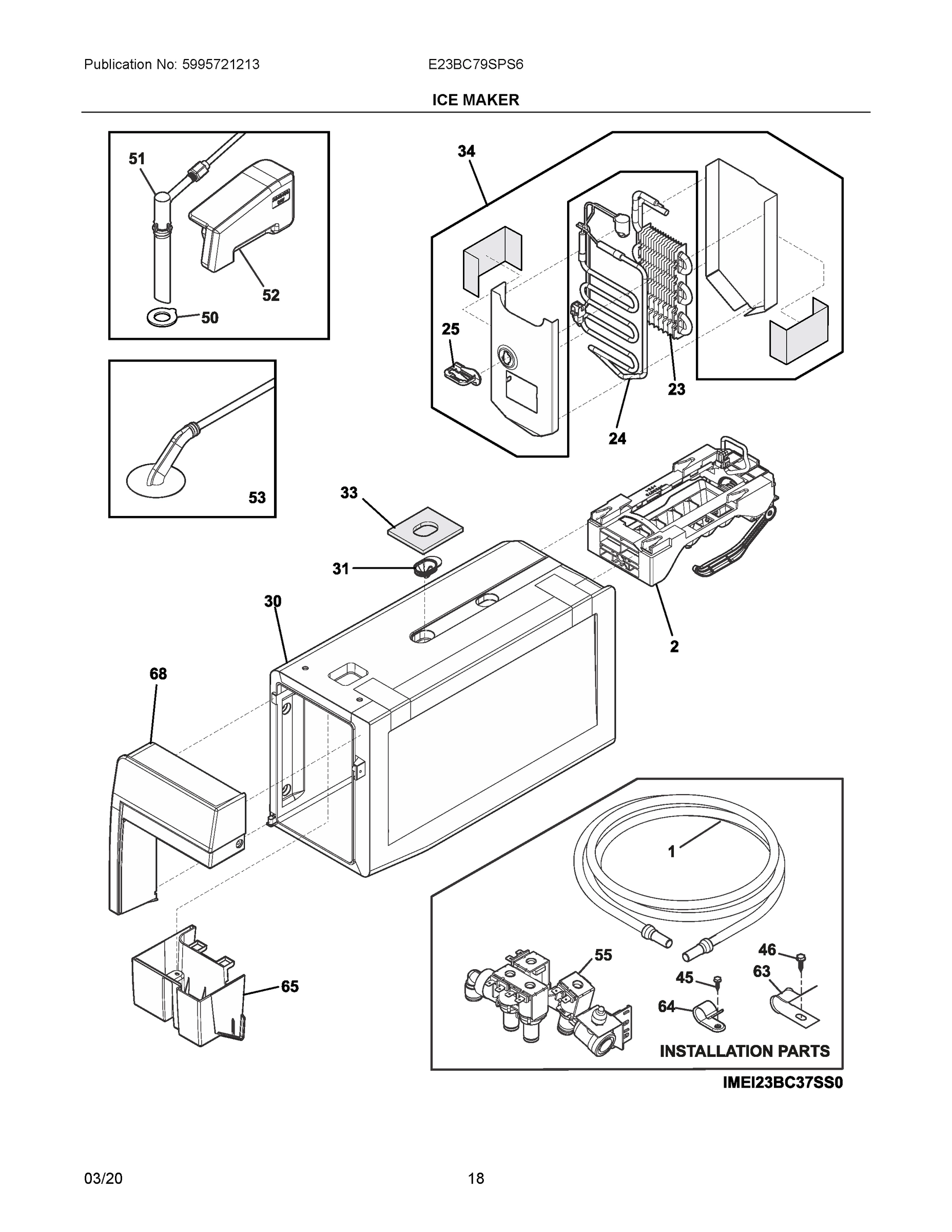

09 - ICE MAKER

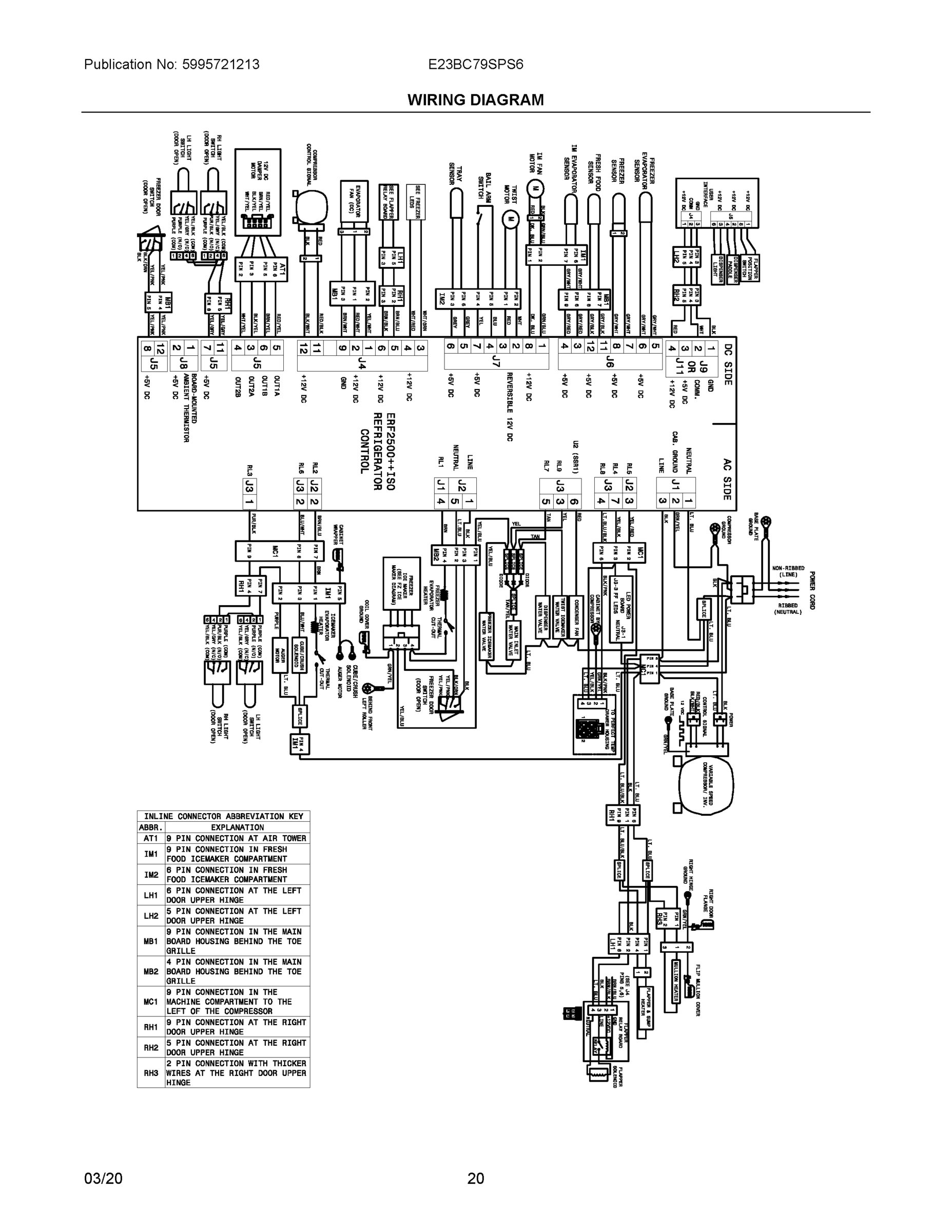

10 - WIRING DIAGRAM

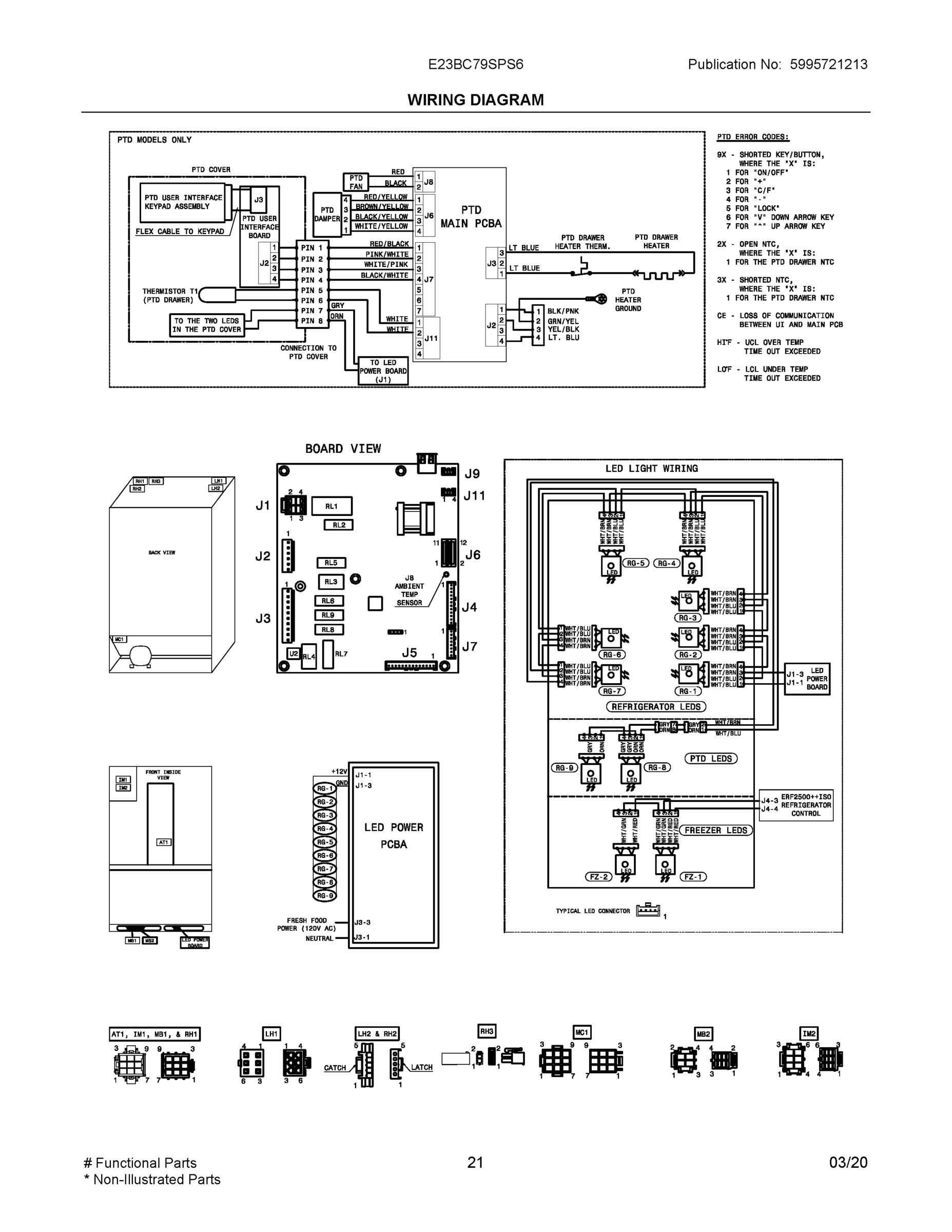

11 - WIRING DIAGRAM
Common parts from model Electrolux E23BC79SPS6 REFRIGERATOR, FRENCH DOOR, BOTTOM FREEZER, W/DISPE
1
TUBE-WATER, 1/4-36", LIGHT GREEN, VALVE TO, B WCI 241964707 Contact Us For Availability
1
TUBE-WATER, 97.5", NATURAL, FILTER BASE TO, S WCI 242220119 Contact Us For Availability
1
ICE CONTAINER ASSY, W/MOVING PARTS WCI 242100107 Contact Us For Availability
1
CONDENSER WCI 241862903 Contact Us For Availability
1
COVER, EVAPORATOR FAN WCI 5304503130 Contact Us For Availability
3
GASKET-EVAP, BOTTOM WCI 241860111 Contact Us For Availability
4A
TRIM, DISPENSER WCI 241912101 Contact Us For Availability
5
FAN BLADE, RED, EVAPORATOR FAN WCI 5308000010 Contact Us For Availability
8
MODULE-DISPENSER, SILVER WCI 242100024 Contact Us For Availability
8
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT WCI 215474201 Contact Us For Availability
9
BUSHING, MOTOR MOUNTING WCI 5304508006 Contact Us For Availability
10
BAR-DRIVE WCI 241829001 Contact Us For Availability
10
AIR TOWER, ASSEMBLY, W/DAMPER WCI 5304508375 Contact Us For Availability
10A
COVER-EVAP COIL, LOWER WCI 241860402 Contact Us For Availability
11
FRZ DRAWER, STAINLESS WCI 241987961 Contact Us For Availability
12
LABEL, NAMEPLATE, ELUX/ICON WCI 241603101 Contact Us For Availability
13
DOOR STOP, ASSEMBLY, RH, W/BUSHING WCI 5304508039 Contact Us For Availability
13A
DOOR STOP, ASSEMBLY, LH, W/BUSHING WCI 5304508038 Contact Us For Availability
14
DEFROST HEATER KIT, 28' WCI 5303918410 Contact Us For Availability
14
SWITCH-LIGHT/LAMP, FRZR DOOR WCI 242060202 Contact Us For Availability
15
EVAPORATOR KIT, C/D FDBM WCI 5303918569 Contact Us For Availability
15A
LENS, 3 LED CLUSTER WCI 242202701 Contact Us For Availability
15B
LIGHT ASSEMBLY, LED WCI 5304508199 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
17
GASKET, AIR DUCT, BOTTOM WCI 5304508008 Contact Us For Availability
17
TROUGH-DRAIN WCI 241791201 Contact Us For Availability
18
MOTOR-AUGER WCI 241816602 Contact Us For Availability
18
GASKET, CLOSED CELL WCI 241860101 Contact Us For Availability
19
GASKET, AIR HANDLER WCI 5304508066 Contact Us For Availability
20
THERMISTOR, FREEZER DEFROST, NTC, W/CONNECTOR WCI 5303918776 Contact Us For Availability
20
HOUSING, AIR HANDLER WCI 5304508036 Contact Us For Availability
21
SCREW, QUAD HILO, #8-18 X 0.380 WCI 241953902 Contact Us For Availability
21
SCREW, QUADREX, #10-16 HILO WCI 241690602 Contact Us For Availability
21
SCREW, 10-32 X 1/2 WCI 241732101 Contact Us For Availability
22C
BEARING, HINGE, TOP WCI 241760401 Contact Us For Availability
23
GROMMET-COMPR MTG, (4) WCI 218513300 Contact Us For Availability
23
EVAPORATOR, ASSEMBLY, ICE MAKER WCI 242094701 Contact Us For Availability
23
DRIP TRAY, SS BRUSHED WCI 241912301 Contact Us For Availability
23A
DRIP TRAY, STAINLESS WCI 241987001 Contact Us For Availability
24
HEATER-DEFROST, W/SAFETY THERM WCI 242094804 Contact Us For Availability
24
SCREW, TRUSS HD QUAD, #10-16 X .750, ZINC WCI 240383412 Contact Us For Availability
24
WASHER-COMPR MTG WCI 241812301 Contact Us For Availability
25
SCREW, TRUSS HD QUAD, #10-16 X .500, WHITE WCI 240383407 Contact Us For Availability
25
FRAME-CRISPER COVER, UPPER WCI 241802205 Contact Us For Availability
25
CLIP-SPRING WCI 242037702 Contact Us For Availability
25
CONNECTOR, HARNESS, EVAP COVER WCI 5304508037 Contact Us For Availability
25B
COVER-PAN, PTD, COVER KIT WCI 5303918487 Contact Us For Availability
26
PAN-CRISPER WCI 241772808 Contact Us For Availability
27
RETAINER, TALL BOTTLE WCI 241752703 Contact Us For Availability
30
COVER, ICMKR & BUCKET WCI 242142204 Contact Us For Availability
30
BRACKET-ANTI TIP WCI 241778702 Contact Us For Availability
31
TUBE-WATER, ICE MOLD FILL, BLACK, EXTENSION WCI 241844403 Contact Us For Availability
34
HOUSING KIT, FFIM EVAPORATOR, W/HARNESS CLIP WCI 5303918779 Contact Us For Availability
35
HINGE ASSEMBLY, LOWER, RH, W/ADJ SCREW WCI 5304508044 Contact Us For Availability
35A
HINGE ASSEMBLY, LOWER, LH, W/ADJ SCREW WCI 5304508045 Contact Us For Availability
37
TRIM-CABINET CORNER, GRAY, (2) WCI 242161206 Contact Us For Availability
38
BRACKET-UPPER HINGE, RH WCI 241761301 Contact Us For Availability
38A
BRACKET-UPPER HINGE, LH WCI 241761302 Contact Us For Availability
40B
COVER-UPPER HINGE, GREY, CENTER WCI 241862405 Contact Us For Availability
41
SCREW-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
42
SCREW, HEX HEAD, 1/4-20 X 5/8 WCI 240578902 Contact Us For Availability
43
SCREW, HILO PHIL PN, 8-18 X 3/8 WCI 241641502 Contact Us For Availability
47
GLASS-CRISPER FRAME WCI 241768802 Contact Us For Availability
47B
GLASS, 2 PANE INSULATD WCI 241967401 Contact Us For Availability
48
BIN-DOOR, CAN WCI 241804303 Contact Us For Availability
48
CHANNEL-SHELF MTG, CENTER WCI 242122101 Contact Us For Availability
49
BIN-DOOR, GALLON WCI 241804006 Contact Us For Availability
49A
BASKET-FRZR, UPPER WCI 241780826 Contact Us For Availability
49A
BIN-DOOR, 2-LITER WCI 241896003 Contact Us For Availability
49A
CHANNEL-SHELF MTG, CENTER, ICEMAKER SHELF WCI 242122001 Contact Us For Availability
49B
CHANNEL-SHELF MTG, SIDE, RH WCI 242122302 Contact Us For Availability
49C
BIN-DOOR, 1/2 GALLON WCI 241896103 Contact Us For Availability
50
CLIP, FREEZER BASKET WCI 5304501271 Contact Us For Availability
50
SEAL, DOUGHNUT WCI 241512813 Contact Us For Availability
50AA
BOARD-MAIN, LED WCI 241891610 Contact Us For Availability
51
SLIDE ASSEMBLY, BASKET LOWER, RH, W/PINION WCI 5304507977 Contact Us For Availability
51
PIN-ANTI TWIST BKT GEN II IM WCI 242095501 Contact Us For Availability
51
SLIDE-DELI WCI 241816101 Contact Us For Availability
51A
SLIDE ASSEMBLY, FREEZER BASKET, UPPER RH WCI 5304508094 Contact Us For Availability
52
SLIDE ASSEMBLY, BASKET LOWER, LH, W/PINION WCI 5304507976 Contact Us For Availability
52
INSULATION, I/M FILL TUBE WCI 5304508046 Contact Us For Availability
52
SLIDE-CRISPER COVER WCI 241769002 Contact Us For Availability
52A
SLIDE ASSEMBLY, FREEZER BASKET, UPPER LH WCI 5304508095 Contact Us For Availability
54
SUPPORT, HOUSING, MAIN BOARD WCI 807854301 Contact Us For Availability
55
VALVE-WATER, QUAD SOLENOID WCI 242253002 Contact Us For Availability
58
WCI 241853202 WCI 241853202 Contact Us For Availability
58
SCREW, 8-18 X .500 WCI 240569202 Contact Us For Availability
59
SHROUD-COND FAN WCI 241946106 Contact Us For Availability
60
MOTOR-CONDENSER FAN WCI 242018301 Contact Us For Availability
60
SCREW, HEX WASHER HEAD, 8-18AB X 1.250, SPACE WCI 218362501 Contact Us For Availability
62
PAN-DELI WCI 241827206 Contact Us For Availability
63
WCI 216396900 WCI 216396900 Contact Us For Availability
64
CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL WCI 240396801 Contact Us For Availability
65
COVER, WIRING WCI 808462601 Contact Us For Availability
68
COVER, -FRONT, BUCKET TRIM WCI 242095002 Contact Us For Availability
72
WCI 5304501186 WCI 5304501186 Contact Us For Availability
79
SCREW-SET, 10-32 X 0.375 WCI 218755401 Contact Us For Availability
80
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING WCI 218755504 Contact Us For Availability
81
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
82
HINGE-MULLION, UPPER/LOWER, FLIPPER WCI 241779401 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR WCI 240335202 Contact Us For Availability
82
DIVIDER, LOWER BASKET WCI 5304507996 Contact Us For Availability
83
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN WCI 5304455655 Contact Us For Availability
84
TUBE-DRAIN WCI 241830904 Contact Us For Availability
84
GUIDE-MULLION, MAGNET COVER, FLIPPER WCI 808274201 Contact Us For Availability
84
DIVIDER, BASKET, UPPER WCI 241780907 Contact Us For Availability
85A
SUPPORT-BEAM, DIVIDER, LOWER BASKET WCI 242139301 Contact Us For Availability
86
HINGE-MULLION, CENTER, FLIPPER WCI 241779802 Contact Us For Availability
86
TRIM, DRAWER, STABILIZER WCI 5304507340 Contact Us For Availability
86
SPACER-COND TUBE, BLACK WCI 240409302 Contact Us For Availability
87
TUBE-CONNECTOR, SUCTION WCI 5304502967 Contact Us For Availability
87
PINION WCI 5304507999 Contact Us For Availability
89
BRACKET, FREEZER DRAWER, (2) WCI 5304509676 Contact Us For Availability
89
TUBE-PROCESS WCI 215346900 Contact Us For Availability
91
WCI 5304508041 WCI 5304508041 Contact Us For Availability
91
CAP-DOOR RACK WCI 241824102 Contact Us For Availability
91A
CAP, DOOR RACK, WHITE WCI 241824101 Contact Us For Availability
92
WCI 241710601 WCI 241710601 Contact Us For Availability
93
WCI 241835505 WCI 241835505 Contact Us For Availability
94
WCI 5303918775 WCI 5303918775 Contact Us For Availability
95
WCI 241530501 WCI 241530501 Contact Us For Availability
96
TRIM-DOOR AIR FILTER, W/GRAPHICS WCI 242048001 Contact Us For Availability
100
WCI 242157601 WCI 242157601 Contact Us For Availability
100
SUPPORT-CRSPR COVER WCI 241768601 Contact Us For Availability
101
WCI 242157801 WCI 242157801 Contact Us For Availability
102
WCI 242157501 WCI 242157501 Contact Us For Availability
105
TRIM-BASKET WCI 242116801 Contact Us For Availability
107
WCI 241963102 WCI 241963102 Contact Us For Availability
123
WCI 5304508007 WCI 5304508007 Contact Us For Availability
124
WCI 242006903 WCI 242006903 Contact Us For Availability
145
HOUSING-DELI AIR CONTROL WCI 241803803 Contact Us For Availability
146
SUPPORT, FAN WCI 5304508072 Contact Us For Availability
147
FAN ASSEMBLY, MOTOR, WITH BLADE WCI 241825704 Contact Us For Availability
148
GROMMET, FAN WCI 5304508063 Contact Us For Availability
148
HEATER-PTD, 115 V WCI 241782001 Contact Us For Availability
149
GASKET WCI 242095415 Contact Us For Availability
149
OVERLAY, ELECTRONIC, MEMBRANE SWITCH WCI 242025902 Contact Us For Availability
150
GASKET WCI 242095423 Contact Us For Availability
153
MOTOR-DAMPER WCI 241775301 Contact Us For Availability
154
TRIM WCI 241879902 Contact Us For Availability
155
WCI 241803403 WCI 241803403 Contact Us For Availability
156
WCI 241872006 WCI 241872006 Contact Us For Availability
157
WCI 241872201 WCI 241872201 Contact Us For Availability
158
WCI 241955004 WCI 241955004 Contact Us For Availability
207
HOUSING-AIR FILTER WCI 242047901 Contact Us For Availability
210
WCI 5303918723 WCI 5303918723 Contact Us For Availability
211
WCI 807932201 WCI 807932201 Contact Us For Availability
211
BUMPER, DOOR, BOTTOM WCI 5304508077 Contact Us For Availability
NI
KIT, AC, DISPENSER HTR. WCI 5303918596 Contact Us For Availability
NI
WCI 240494001 WCI 240494001 Contact Us For Availability
NI
WCI 5304455650 WCI 5304455650 Contact Us For Availability
NI
SCREW, SER HEX WASH HD, 1/4-20 X 5/8, (4) WCI 242146401 Contact Us For Availability
NI
HEAT EXCHANGER KIT, SUCTION LINE, SERVICE WCI 5303918445 Contact Us For Availability
NI
CLIP, GRILLE/TUBE WCI 218515401 Contact Us For Availability
NI
HARNESS-DISPENSER, GROUNDING WCI 241510904 Contact Us For Availability
NI
WCI 240451503 WCI 240451503 Contact Us For Availability
NI
HARNESS-WIRING, DISPENSER WCI 242040801 Contact Us For Availability
NI
SPACER, HEAT EXCHANGER WCI 241947701 Contact Us For Availability
NIA
WCI 241695904 WCI 241695904 Contact Us For Availability
NIA
SCREW, #8 TRUSS WCI 218252201 Contact Us For Availability
NIA
WCI 240346701 WCI 240346701 Contact Us For Availability
NIA
BUMPER, RUBBER, WHITE, UPPER BASKET WCI 241979601 Contact Us For Availability
NIA
WCI 241500303 WCI 241500303 Contact Us For Availability
NIA
WCI 241842301 WCI 241842301 Contact Us For Availability
NIA
SCREW, 8-18 X 1/2 WCI 242015001 Contact Us For Availability
NIA
WCI 242200102 WCI 242200102 Contact Us For Availability
NIA
WCI 242036801 WCI 242036801 Contact Us For Availability
NIA
PIN-LOCK WCI 242011101 Contact Us For Availability
NIAA
SCREW, BASKET SLIDE WCI 242039701 Contact Us For Availability
NIAA
WCI 241860104 WCI 241860104 Contact Us For Availability
NIAB
WCI 241860105 WCI 241860105 Contact Us For Availability
NIB
CONNECTOR-WAT WCI 241503901 Contact Us For Availability
NIB
WCI 242068601 WCI 242068601 Contact Us For Availability
NIB
WCI 242096001 WCI 242096001 Contact Us For Availability
NIB
SCREW-SHOULDER WCI 240363602 Contact Us For Availability
NIE
TUBE-WATER, 5/16-67", NATURAL, DISPENSER TO, WCI 241965906 Contact Us For Availability
× ![]()
