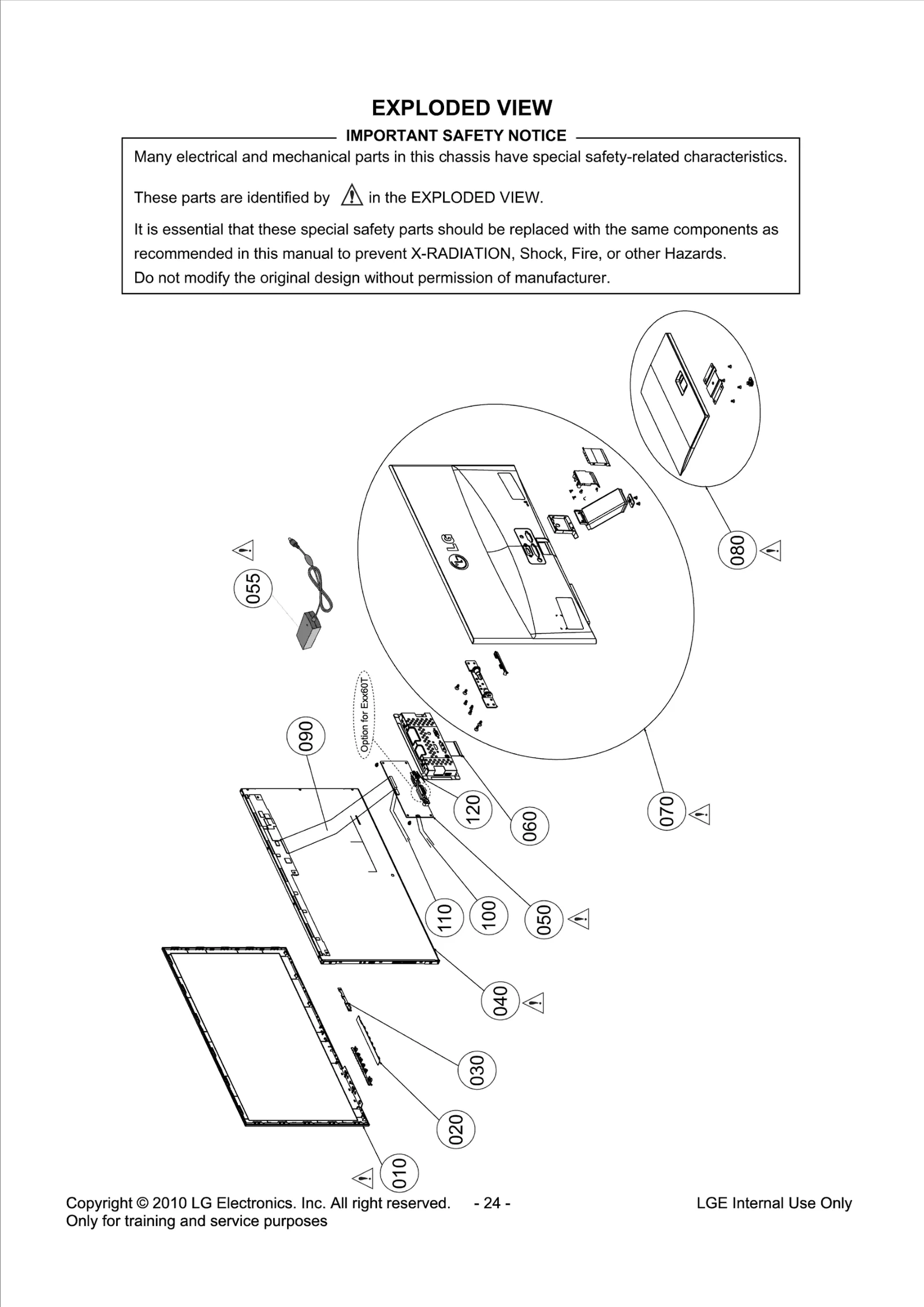

Model LG E2260T-PN – Common Parts & Diagrams

010
Cabinet Assembly
Cabinet Assembly LGE ABJ73308502 Contact Us For Availability
View on Model
020
Main Total Assembly
Main Total Assembly LGE EBU60704503 Contact Us For Availability
View on Model
030
Main Total Assembly
Main Total Assembly LGE EBU60934810 Contact Us For Availability
View on Model
040
LCD Module,Outsourcing
LCD Module,Outsourcing LGE COV30101221 Contact Us For Availability
View on Model
050
Main Total Assembly
Main Total Assembly LGE EBU60714335 Contact Us For Availability
View on Model
055
Adapter,Outsourcing
Adapter,Outsourcing LGE COV30101404 Contact Us For Availability
View on Model
060
Frame
Frame LGE MDQ62638102 Contact Us For Availability
View on Model
070
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ83873704 Contact Us For Availability
View on Model
080
Cover Assembly
Cover Assembly LGE ACQ83873802 Contact Us For Availability
View on Model
090
Harness,Single,Outsourcing
Harness,Single,Outsourcing LGE COV30101412 Contact Us For Availability
View on Model
100
Harness,Single,Outsourcing
Harness,Single,Outsourcing LGE COV30101415 Contact Us For Availability
View on Model
110
Harness,Single,Outsourcing
Harness,Single,Outsourcing LGE COV30101426 Contact Us For Availability
View on Model
120
Cable,Assembly
Cable,Assembly LGE 68509F0003C Contact Us For Availability
View on Model
S1
Cable,Assembly
Cable,Assembly LGE EAD57760001 Contact Us For Availability
View on Model
