Model LG E2242T-BN – Common Parts & Diagrams
Diagram 0
Diagram 1

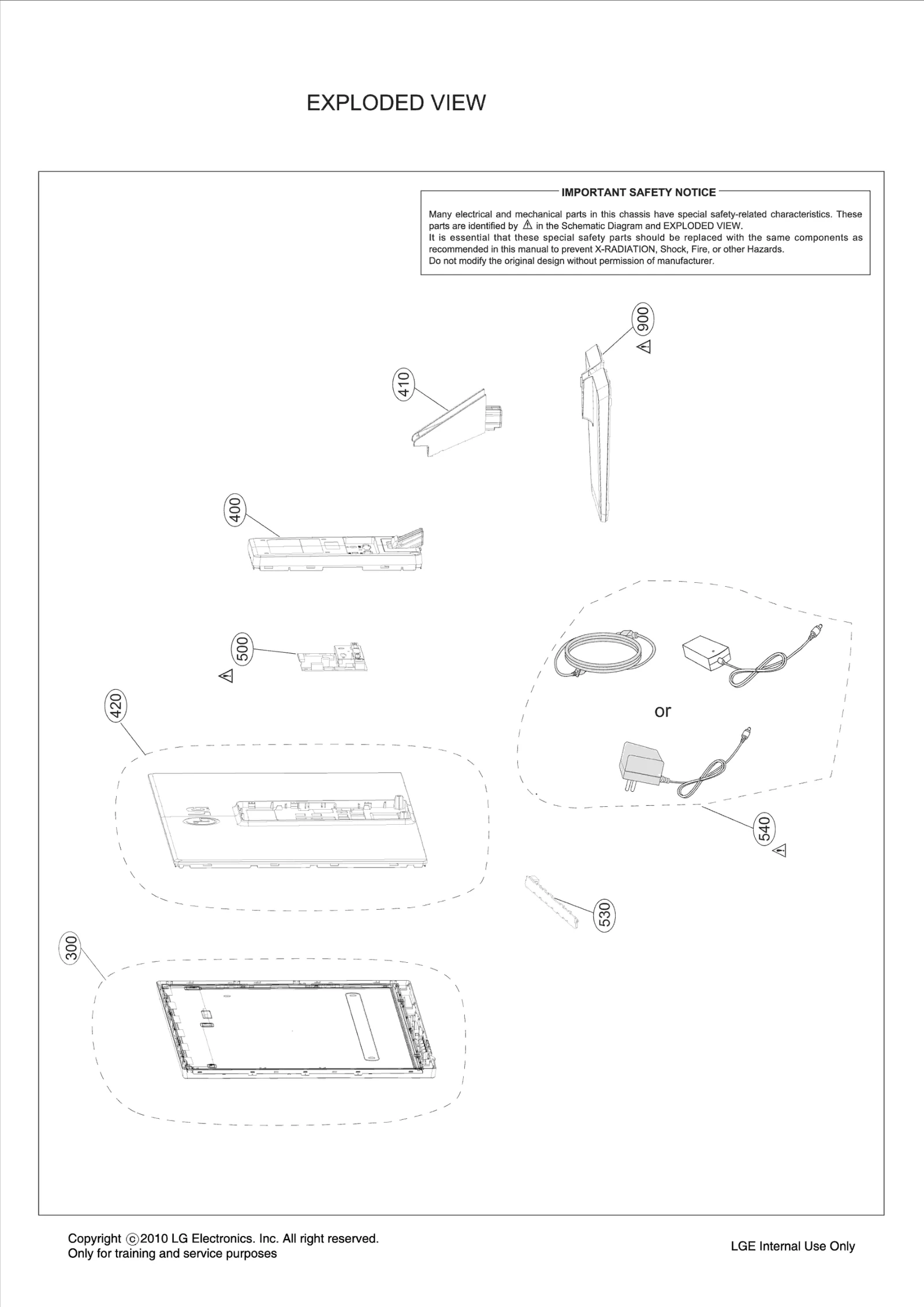

Common parts from model LG E2242T-BN
300
DMS Chassis Assembly LGE EBT62196402 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85976502 Contact Us For Availability
410
Base Assembly LGE AAN74131901 Contact Us For Availability
420
Cover Assembly,Rear LGE ACQ86076502 Contact Us For Availability
500
BPR Total Assembly LGE EBU61822402 Contact Us For Availability
530
PCB Assembly LGE EBR74906801 Contact Us For Availability
540
Adapters LGE EAY62768605 Contact Us For Availability
540
Adapters LGE EAY62768607 Contact Us For Availability
900
Base Assembly LGE AAN74132201 Contact Us For Availability
A4
Card LGE MBM61965767 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
C104
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C108
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C110
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C112
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C126
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C134
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C137
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C146
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
D1
Diode,TVS LGE EAH42720601 Contact Us For Availability
D313
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D313
Diode,Schottky LGE EAH44241601 Contact Us For Availability
IC104
S/W,Firmware LGE SAA36301806 Contact Us For Availability
JK100
Jack,DC Power LGE EAG35306605 Contact Us For Availability
LV1
Cable,FFC LGE EAD62122541 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P301
Connector,DSUB LGE 6630TGA005J Contact Us For Availability
P301
Connector,DSUB LGE EAG63252001 Contact Us For Availability
Q109
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R2
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R3
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R100
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R100
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R130
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R135
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R136
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R145
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R146
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R147
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R149
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R155
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R164
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R169
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R300
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R322
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R323
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
× ![]()
