Model LG E2241VB-BN – Common Parts & Diagrams

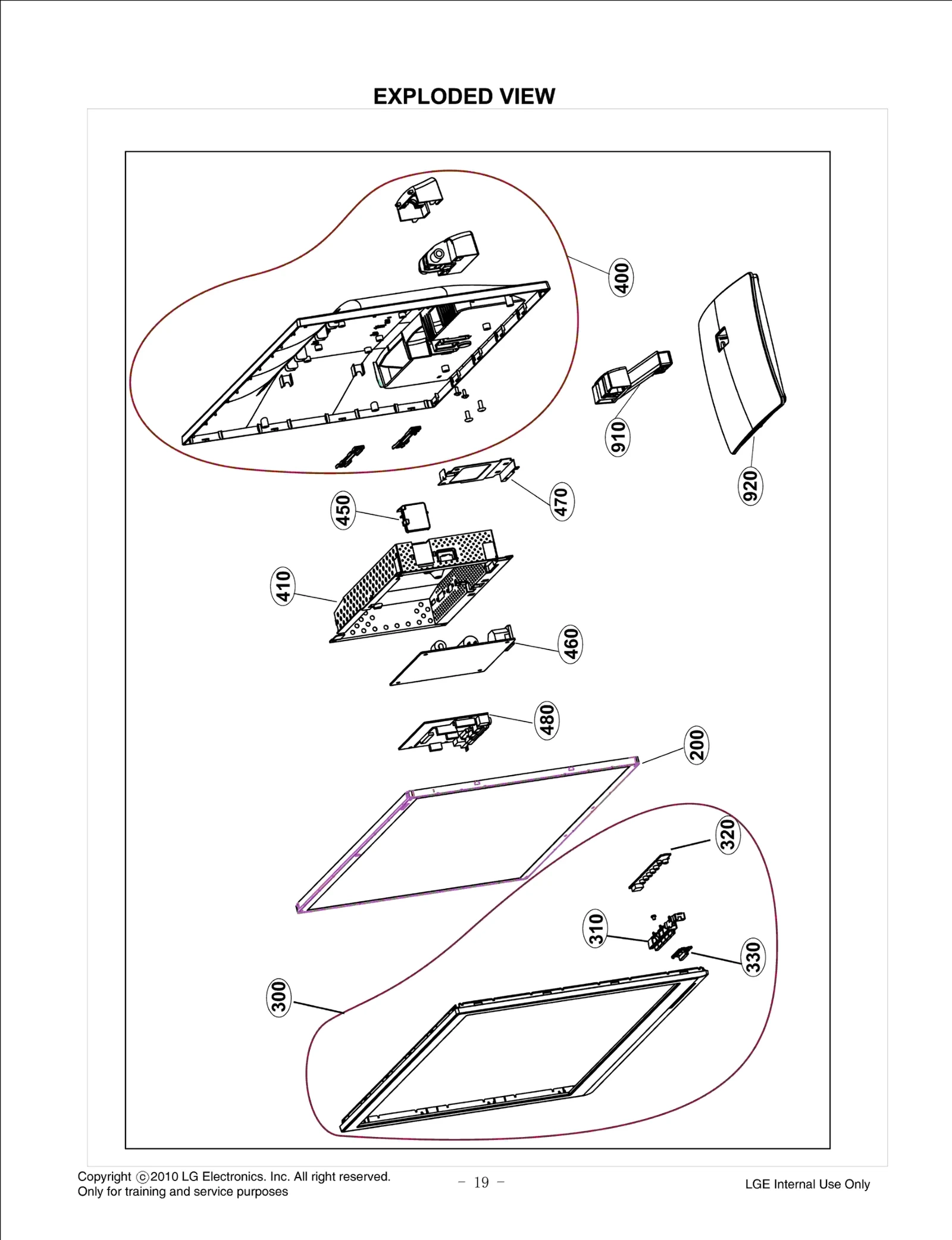

Diagram 0
Diagram 1
Common parts from model LG E2241VB-BN
200
LCD,Module-TFT LGE EAJ61747701 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61931101 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61907701 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61931102 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73387203 Contact Us For Availability
310
Button,Control LGE MBG63983801 Contact Us For Availability
320
PCB Assembly LGE EBR72726301 Contact Us For Availability
330
Button,Power LGE MBG63984101 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85289105 Contact Us For Availability
410
Frame Assembly LGE ADV73867309 Contact Us For Availability
460
Power Supply Assembly LGE EAY62168702 Contact Us For Availability
460
PCB Assembly,Power LGE EBR36269427 Contact Us For Availability
470
Supporter LGE MJH62295001 Contact Us For Availability
470
Frame Assembly LGE ADV74066801 Contact Us For Availability
480
PCB Assembly,Main LGE EBR72618504 Contact Us For Availability
910
Base Assembly LGE AAN73628801 Contact Us For Availability
920
Base Assembly LGE AAN73628701 Contact Us For Availability
A1
S/W Package LGE SAB34859102 Contact Us For Availability
A4
Card LGE MBM63216421 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
C101
Capacitor,AL,Radial LGE EAE43494301 Contact Us For Availability
C101
Capacitor,AL,Radial LGE EAE48859721 Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 0CKZTTA002Q Contact Us For Availability
C103
Capacitor,AL,Radial LGE EAE48859704 Contact Us For Availability
C103
Capacitor,AL,Radial LGE 0CE476EK638 Contact Us For Availability
C104
Capacitor,Ceramic,Chip LGE 0CH2222K516 Contact Us For Availability
C105
CAPACITOR,DRAWING LGE 0CZZ9ST013A Contact Us For Availability
C105
Capacitor,AL,Radial LGE EAE48859709 Contact Us For Availability
C201
Capacitor,Ceramic,Radial LGE 0CKZTTA002E Contact Us For Availability
C209
CAPACITOR,DRAWING LGE 0CZZ9ST018A Contact Us For Availability
C209
Capacitor,AL,Radial LGE EAE61104901 Contact Us For Availability
C209
Capacitor,AL,Radial LGE EAE48875607 Contact Us For Availability
C210
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C211
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C212
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C302
CAPACITOR,CHIP[CERAMIC M/L TC LGE 0CH5100K416 Contact Us For Availability
C303
Capacitor,AL,Radial LGE EAE44267901 Contact Us For Availability
C307
Capacitor,Ceramic,Ch LGE 0CK334DK56A Contact Us For Availability
C310
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C311
Capacitor,Ceramic,Chip LGE 0CH5102K416 Contact Us For Availability
C313
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C522
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C524
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C526
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C532
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C536
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C605
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
CX101
Capacitor,Film,Box LGE EAE36629401 Contact Us For Availability
CY102
Capacitor,Ceramic,Radial LGE EAE42452301 Contact Us For Availability
CY102
Capacitor,Ceramic,Radial LGE EAE62505901 Contact Us For Availability
CY104
Capacitor,Ceramic,Radial LGE EAE42452201 Contact Us For Availability
CY104
Capacitor,Ceramic,Radial LGE EAE62505801 Contact Us For Availability
D101
Diode,Rectifier LGE 0DRGF00354A Contact Us For Availability
D101
Diode,Rectifier LGE 0DD400709CC Contact Us For Availability
D101
Diode,Rectifier LGE EAH36077301 Contact Us For Availability
D102
Diode,Rectifier LGE EAH39171701 Contact Us For Availability
D102
Diode,Rectifier LGE EAH58801901 Contact Us For Availability
D107
Diode,Rectifier LGE 0DRTW00274A Contact Us For Availability
D107
Diode,Rectifier LGE EAH61274201 Contact Us For Availability
D302
DIODE,SWITCHING LGE 0DSGF00019A Contact Us For Availability
D302
Diode,Switching LGE 0DSPT00029A Contact Us For Availability
D604
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D604
Diode,Schottky LGE EAH44241601 Contact Us For Availability
EL13
Eyelet LGE 4014900002A Contact Us For Availability
IC102
IC,POWER MANAGEMENT LGE 0IPMG78432A Contact Us For Availability
IC201
IC,POWER MANAGEMENT LGE 0IPMG78424A Contact Us For Availability
IC201
IC KEC KIA431 (TP) CQ465,CS556 LGE 0IKE431000B Contact Us For Availability
IC501
S/W,Firmware LGE SAA35995101 Contact Us For Availability
LB301
Wire,Jump LGE EAD60905001 Contact Us For Availability
LB301
Wire,Jump LGE 971-0016 Contact Us For Availability
LB301
Wire,Jump LGE EAD60796901 Contact Us For Availability
LV1
Cable,FFC LGE EAD61466514 Contact Us For Availability
LV2
Cable,FFC LGE EAD57188316 Contact Us For Availability
LV2
Cable,FFC LGE EAD61905201 Contact Us For Availability
P304
Connector,FFC/FPC/PIC LGE EAG62790001 Contact Us For Availability
P500
Connector,Wafer LGE 6630V90220L Contact Us For Availability
PG1
CASE TERMINAL EARTH CM-770 CS- LGE 302-987A Contact Us For Availability
Q501
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q503
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q503
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R6
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R9
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R109
Resistor,Metal Oxide Film LGE 0RS0680K607 Contact Us For Availability
R110
Resistor,Metal Oxide Film LGE 0RX1003K607 Contact Us For Availability
R111
Resistor,Carbon Film LGE 0RD0331Q609 Contact Us For Availability
R112
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R120
Resistor,Carbon Composition LGE 0RC2204A609 Contact Us For Availability
R202
Resistor,Metal Oxide Film LGE 0RS0102J665 Contact Us For Availability
R203
Resistor,Chip LGE 0RH1800D422 Contact Us For Availability
R209
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R212
Resistor,Metal Oxide Film LGE 0RX1001K607 Contact Us For Availability
R302
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R303
Resistor,Chip LGE EBC00768103 Contact Us For Availability
R305
RESISTOR,CHIP LGE 0RH2700D422 Contact Us For Availability
R307
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R308
Resistor,Chip LGE 0RH2001D422 Contact Us For Availability
R311
Resistor,Chip LGE 0RH2002D422 Contact Us For Availability
R314
Resistor,Chip LGE 0RH1003D422 Contact Us For Availability
R326
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R503
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R524
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R545
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R605
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R623
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R625
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R632
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R635
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R651
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
SK101
Jack,DC Power LGE 6620K00020B Contact Us For Availability
TH101
THERMISTOR,NTC LGE 6322A00035A Contact Us For Availability
TH101
Thermistor,NTC LGE EBG60662801 Contact Us For Availability
X500
Crystal LGE 6212AA2001H Contact Us For Availability
X500
Crystal LGE EAW60658001 Contact Us For Availability
ZD201
Diode,Zener LGE 0DZ240009BB Contact Us For Availability
ZD201
Diode,Zener LGE 0DZ240009BJ Contact Us For Availability
× ![]()
