Model LG E2240V-PN – Common Parts & Diagrams

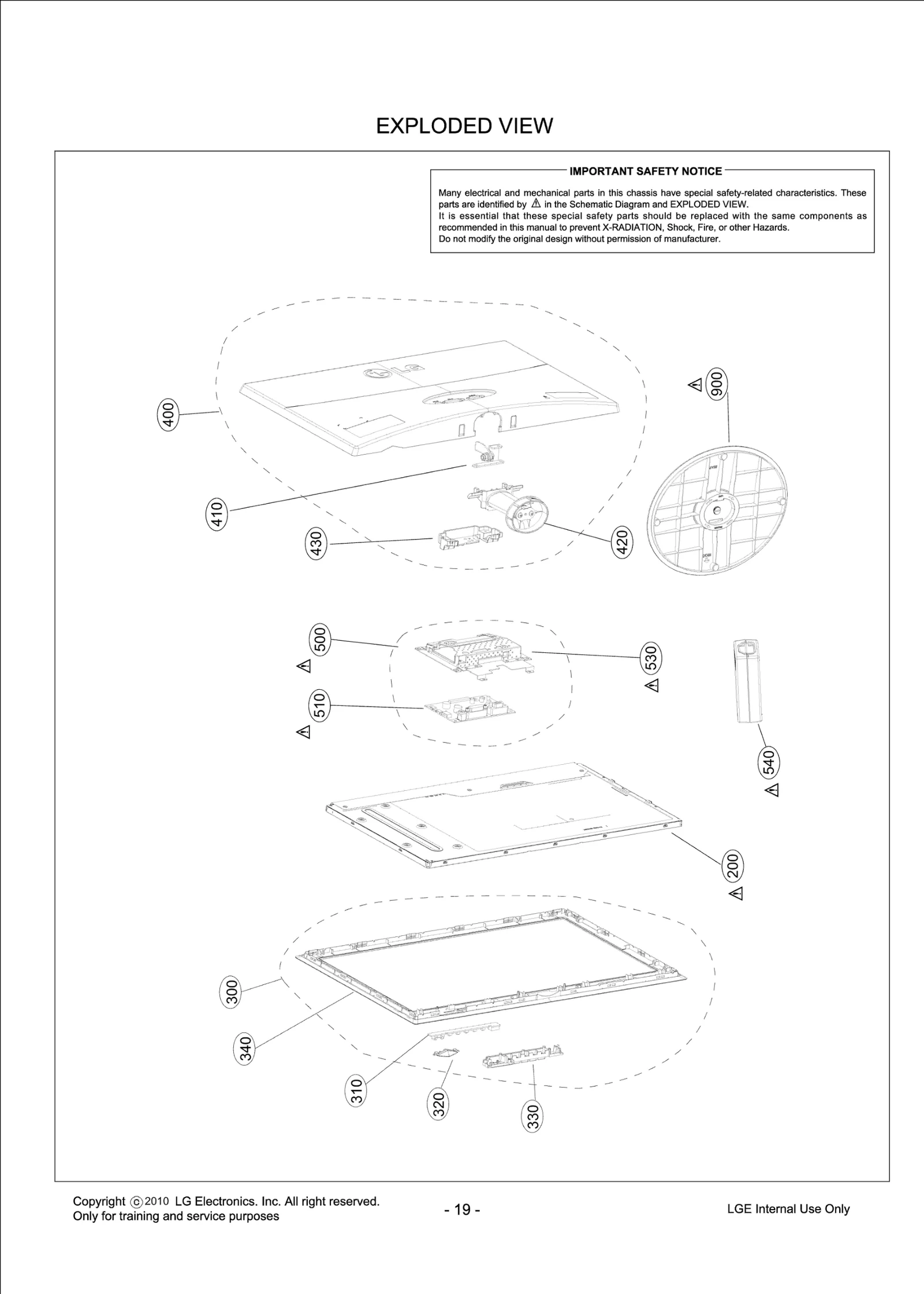

Diagram 0
Diagram 1
Common parts from model LG E2240V-PN
200
LCD,Module-TFT LGE EAJ61089601 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60868002 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72968632 Contact Us For Availability
310
PCB Assembly LGE EBR66586101 Contact Us For Availability
320
Lens LGE MFB61973401 Contact Us For Availability
330
Knob LGE MEY61914001 Contact Us For Availability
340
Cabinet LGE MBH61904101 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ75430003 Contact Us For Availability
410
Bracket Assembly LGE ABA73010001 Contact Us For Availability
430
Cover LGE MCK62991401 Contact Us For Availability
500
Package Assembly LGE AGF74678501 Contact Us For Availability
510
Main Total Assembly LGE EBU60944201 Contact Us For Availability
540
Adapters LGE EAY60870901 Contact Us For Availability
540
Adapters LGE EAY32008603 Contact Us For Availability
900
Base Assembly LGE AAN73011201 Contact Us For Availability
A1
S/W Package LGE SAB33073808 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
C519
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C534
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C610
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C621
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C629
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C632
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C637
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C640
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C643
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C646
Capacitor,Ceramic,Chip LGE 0CC821CK41A Contact Us For Availability
C647
Capacitor,Ceramic,Chip LGE 0CH2222K516 Contact Us For Availability
C704
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C805
Capacitor,Ceramic,Chip LGE 0CK684DF56A Contact Us For Availability
C829
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C836
Capacitor,Ceramic,Ch LGE 0CH2102K566 Contact Us For Availability
C837
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
D701
Diode,TVS LGE 0DRCE00028B Contact Us For Availability
LV1
Cable,FFC LGE EAD60952601 Contact Us For Availability
LV2
Cable,FFC LGE EAD57188327 Contact Us For Availability
P1
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P1
WAFER LGE 6602T20009E Contact Us For Availability
P601
Connector,DSUB LGE EAG55280002 Contact Us For Availability
P602
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
P700
Connector,DSUB LGE 6630TGA005J Contact Us For Availability
Q501
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q600
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q602
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
R1
Resistor,Chip LGE 0RJ1602D677 Contact Us For Availability
R3
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R5
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R103
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R511
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R525
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R547
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R553
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R554
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R555
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R606
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R615
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R620
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R630
Resistor,Metal Oxide Film LGE EBC01402305 Contact Us For Availability
R631
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R642
Resistor,Chip LGE 0RJ2402D677 Contact Us For Availability
R644
Resistor,Chip LGE 0RH1102D422 Contact Us For Availability
R646
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R647
RESISTOR,METAL GLAZE LGE 0RJ5902C477 Contact Us For Availability
R659
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R662
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R705
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R800
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R804
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R805
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R808
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R809
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R811
Resistor,Chip LGE 0RH7501D422 Contact Us For Availability
R813
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
R815
Resistor,Chip LGE EBC00711606 Contact Us For Availability
R850
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
SW104
Switch,Tact LGE EBF60694801 Contact Us For Availability
ZD1
Diode,Zener LGE EAH60661201 Contact Us For Availability
ZD600
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
