Model LG E2211TB-BN – Common Parts & Diagrams
Diagram 0

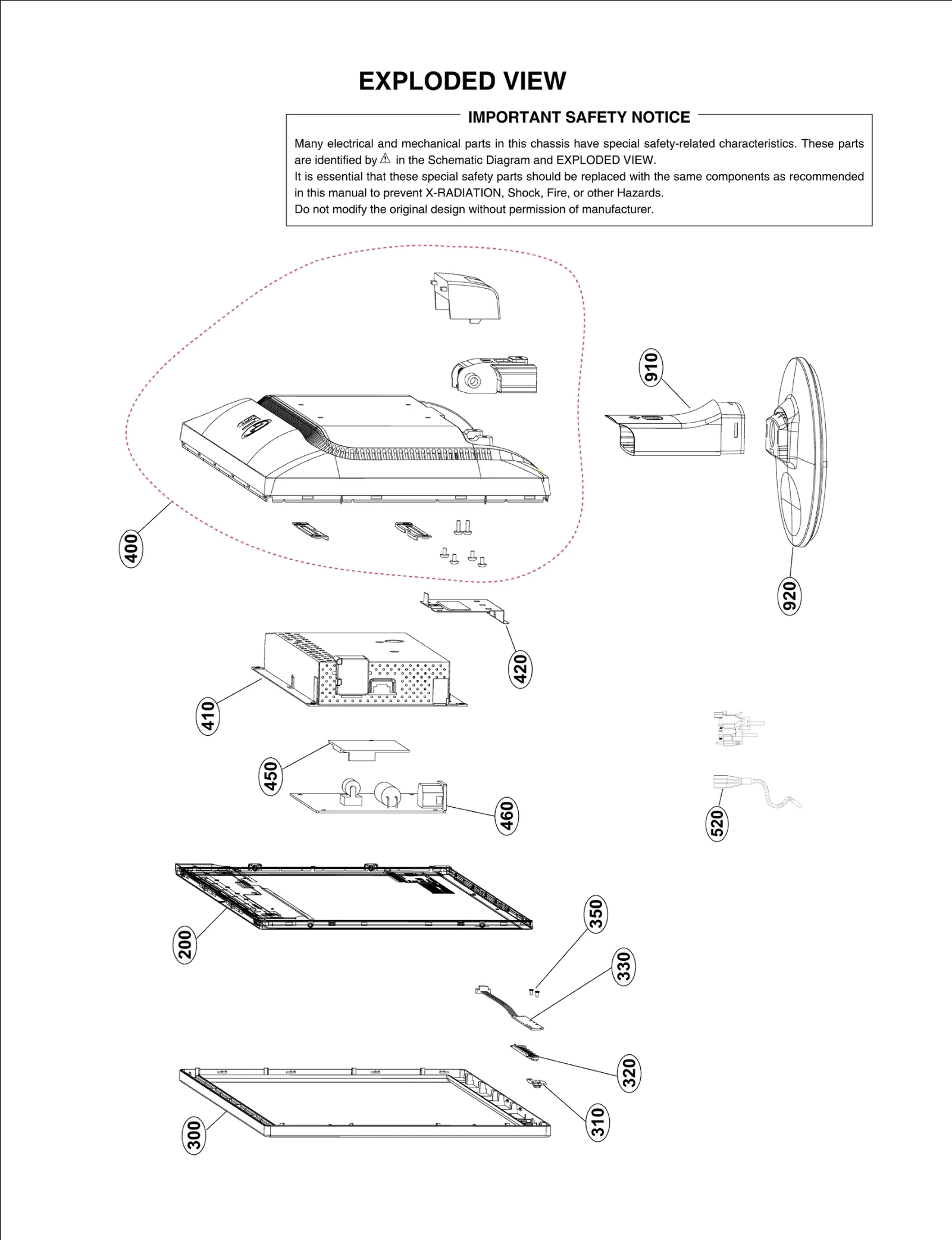

Diagram 1
Common parts from model LG E2211TB-BN
200
LCD,Module-TFT LGE EAJ61349501 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61887901 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61349502 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61887902 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72923828 Contact Us For Availability
310
Bracket Assembly LGE ABA72946302 Contact Us For Availability
320
Button,Control LGE MBG62153502 Contact Us For Availability
330
Package Assembly LGE AGF76143601 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85355312 Contact Us For Availability
410
Package Assembly LGE AGF76068204 Contact Us For Availability
420
Plate,Metal LGE MGJ62913403 Contact Us For Availability
450
Cover,Rear LGE MCK66017402 Contact Us For Availability
460
Power Supply Assembly LGE EAY62168702 Contact Us For Availability
460
PCB Assembly,Power LGE EBR36269427 Contact Us For Availability
520
Cable,Assembly LGE EAD57734001 Contact Us For Availability
910
Base Assembly LGE AAN73950204 Contact Us For Availability
920
Base Assembly LGE AAN72944609 Contact Us For Availability
C101
Capacitor,AL,Radial LGE EAE43494301 Contact Us For Availability
C101
Capacitor,AL,Radial LGE EAE48859721 Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 0CKZTTA002Q Contact Us For Availability
C104
Capacitor,Ceramic,Chip LGE 0CH2222K516 Contact Us For Availability
C201
Capacitor,Ceramic,Radial LGE 0CKZTTA002E Contact Us For Availability
C206
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C210
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C211
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C213
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C302
CAPACITOR,CHIP[CERAMIC M/L TC LGE 0CH5100K416 Contact Us For Availability
C311
Capacitor,Ceramic,Chip LGE 0CH5102K416 Contact Us For Availability
C313
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C513
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C525
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C528
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C530
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C619
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
CX101
Capacitor,Film,Box LGE EAE36629401 Contact Us For Availability
CY104
Capacitor,Ceramic,Radial LGE EAE42452201 Contact Us For Availability
CY104
Capacitor,Ceramic,Radial LGE EAE62505801 Contact Us For Availability
D101
Diode,Rectifier LGE 0DRGF00354A Contact Us For Availability
D101
Diode,Rectifier LGE EAH36077301 Contact Us For Availability
D101
Diode,Rectifier LGE 0DD400709CC Contact Us For Availability
D102
Diode,Rectifier LGE EAH58801901 Contact Us For Availability
D102
Diode,Rectifier LGE EAH39171701 Contact Us For Availability
D104
Diode,Rectifier LGE EAH61274201 Contact Us For Availability
D104
Diode,Rectifier LGE 0DRTW00274A Contact Us For Availability
D302
DIODE,SWITCHING LGE 0DSGF00019A Contact Us For Availability
D302
Diode,Switching LGE 0DSPT00029A Contact Us For Availability
D608
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D608
Diode,Schottky LGE EAH44241601 Contact Us For Availability
EL9
Eyelet LGE 4014900002A Contact Us For Availability
EL16
Eyelet LGE 4014TZZ001B Contact Us For Availability
IC102
IC,POWER MANAGEMENT LGE 0IPMG78432A Contact Us For Availability
IC201
IC KEC KIA431 (TP) CQ465,CS556 LGE 0IKE431000B Contact Us For Availability
IC201
IC,POWER MANAGEMENT LGE 0IPMG78424A Contact Us For Availability
IC504
IC,Voltage Regulator LGE EAN60918501 Contact Us For Availability
IC504
IC,LDO Voltage Regulator LGE EAN60804201 Contact Us For Availability
IC505
IC,LDO Voltage Regulator LGE EAN60804301 Contact Us For Availability
IC601
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
J7
Wire,Jump LGE 971-0016 Contact Us For Availability
J7
Wire,Jump LGE EAD60905001 Contact Us For Availability
J7
Wire,Jump LGE EAD60796901 Contact Us For Availability
P3
Connector,Wafer LGE 6602T12005E Contact Us For Availability
P201
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P301
Connector,Wafer LGE 6630V90220L Contact Us For Availability
P304
Connector,FFC/FPC/PIC LGE EAG62790001 Contact Us For Availability
P601
CONNECTOR (CIRC),D-S LGE 6630TGA004F Contact Us For Availability
P603
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
PG2
CASE TERMINAL EARTH CM-770 CS- LGE 302-987A Contact Us For Availability
Q500
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q500
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q500
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q601
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q601
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R4
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R5
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R109
Resistor,Metal Oxide Film LGE 0RS0680K607 Contact Us For Availability
R110
Resistor,Metal Oxide Film LGE 0RX1003K607 Contact Us For Availability
R111
Resistor,Carbon Film LGE 0RD0331Q609 Contact Us For Availability
R112
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R120
Resistor,Carbon Composition LGE 0RC2204A609 Contact Us For Availability
R202
Resistor,Metal Oxide Film LGE 0RS0102J665 Contact Us For Availability
R209
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R212
Resistor,Metal Oxide Film LGE 0RX1001K607 Contact Us For Availability
R213
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R302
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R303
Resistor,Chip LGE EBC00768103 Contact Us For Availability
R305
RESISTOR,CHIP LGE 0RH2700D422 Contact Us For Availability
R307
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R310
Resistor,Chip LGE 0RH2001D422 Contact Us For Availability
R311
Resistor,Chip LGE 0RH2002D422 Contact Us For Availability
R314
Resistor,Chip LGE 0RH1003D422 Contact Us For Availability
R502
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R503
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R509
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R532
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R539
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R602
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R603
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R617
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R622
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
SK101
Jack,DC Power LGE 6620K00020B Contact Us For Availability
SW4
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW4
Switch,Tact LGE EBF55334201 Contact Us For Availability
TH101
THERMISTOR,NTC LGE 6322A00035A Contact Us For Availability
TH101
Thermistor,NTC LGE EBG60662801 Contact Us For Availability
X500
Crystal LGE 6212AA2001H Contact Us For Availability
X500
Crystal LGE EAW60658001 Contact Us For Availability
ZD4
Diode,Zener LGE EAH60661201 Contact Us For Availability
ZD201
Diode,Zener LGE 0DZ240009BB Contact Us For Availability
ZD201
Diode,Zener LGE 0DZ240009BJ Contact Us For Availability
× ![]()
