Model LG E2211T-BN – Common Parts & Diagrams
Diagram 0

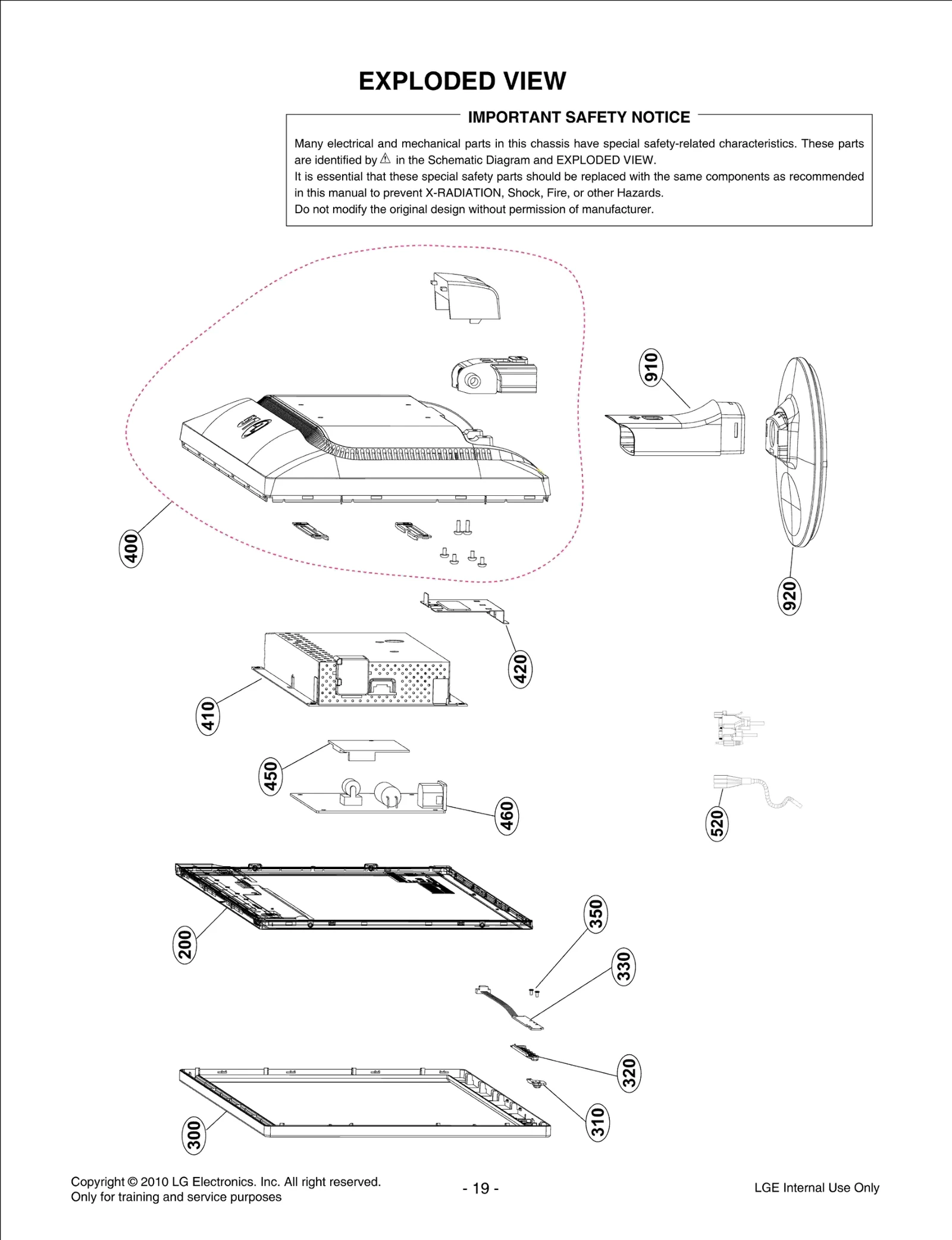

Diagram 1
Common parts from model LG E2211T-BN
200
LCD,Module-TFT LGE EAJ61931101 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61747701 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61907701 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61931102 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72923824 Contact Us For Availability
310
Bracket Assembly LGE ABA72946301 Contact Us For Availability
330
PCB Assembly LGE EBR73167901 Contact Us For Availability
340
Cabinet LGE MBH61857501 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85355305 Contact Us For Availability
410
Frame Assembly LGE ADV73867307 Contact Us For Availability
420
Plate,Metal LGE MGJ62913401 Contact Us For Availability
460
PCB Assembly,Power LGE EBR36269427 Contact Us For Availability
460
Power Supply Assembly LGE EAY62168702 Contact Us For Availability
A1
S/W Package LGE SAB34686721 Contact Us For Availability
A4
Card LGE MBM63299313 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
C507
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C513
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C516
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C520
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C528
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C536
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
D608
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D608
Diode,Schottky LGE EAH44241601 Contact Us For Availability
IC502
S/W,Firmware LGE SAA35918101 Contact Us For Availability
IC505
IC,LDO Voltage Regulator LGE EAN60804301 Contact Us For Availability
IC601
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
LV1
Cable,FFC LGE EAD61466510 Contact Us For Availability
LV2
Cable,FFC LGE EAD61905211 Contact Us For Availability
LV2
Cable,FFC LGE EAD57188302 Contact Us For Availability
P601
CONNECTOR (CIRC),D-S LGE 6630TGA004F Contact Us For Availability
P602
Connector,Wafer LGE 6630V90220L Contact Us For Availability
P603
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
Q601
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q601
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q602
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q602
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q602
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
R4
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R5
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R507
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R509
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R532
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R535
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R602
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R603
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R617
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R631
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R647
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
SW1
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW1
Switch,Tact LGE EBF55334201 Contact Us For Availability
X500
Crystal LGE EAW60658001 Contact Us For Availability
X500
Crystal LGE 6212AA2001H Contact Us For Availability
ZD4
Diode,Zener LGE EAH60661201 Contact Us For Availability
× ![]()
