Model LG E2210T-BN – Common Parts & Diagrams

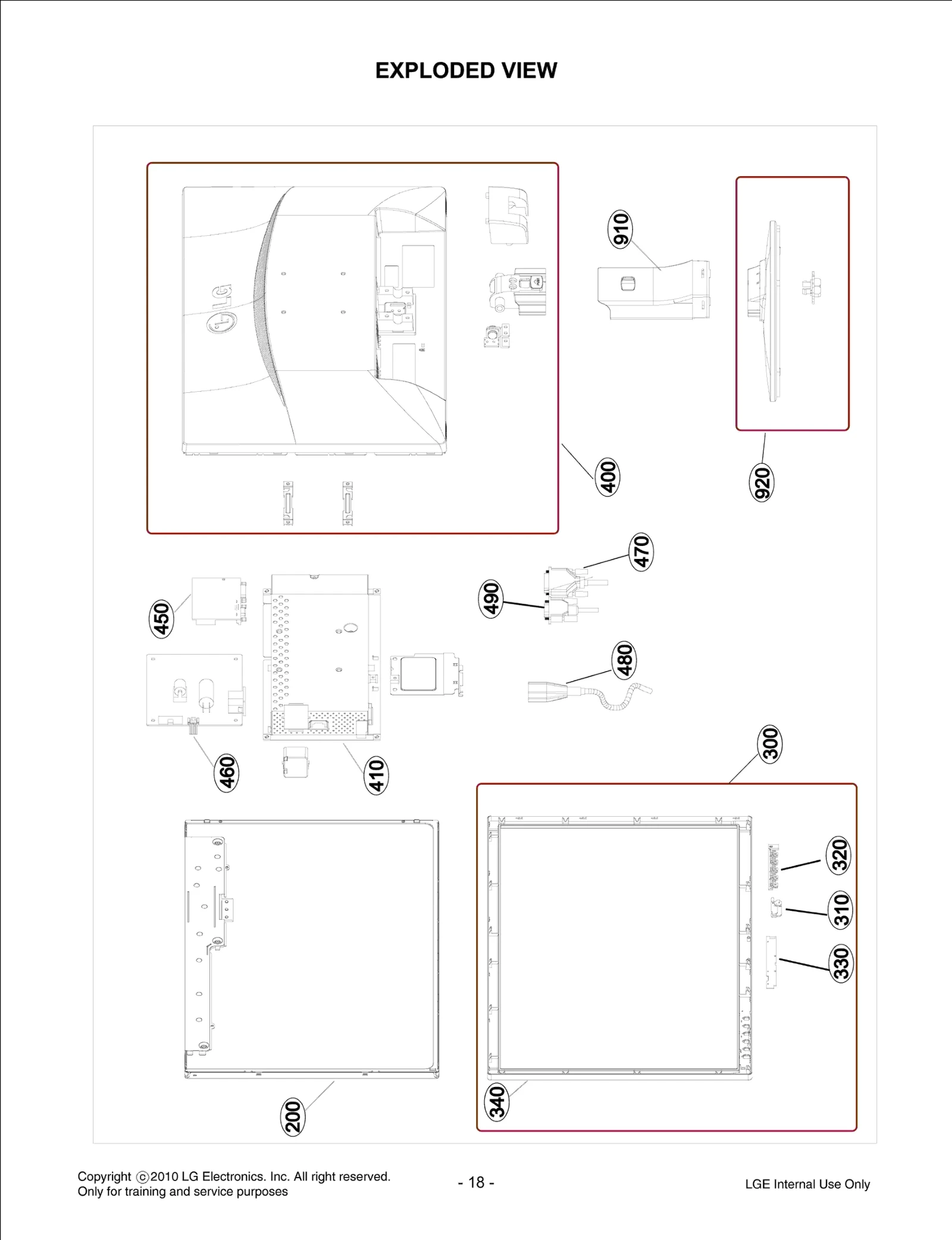

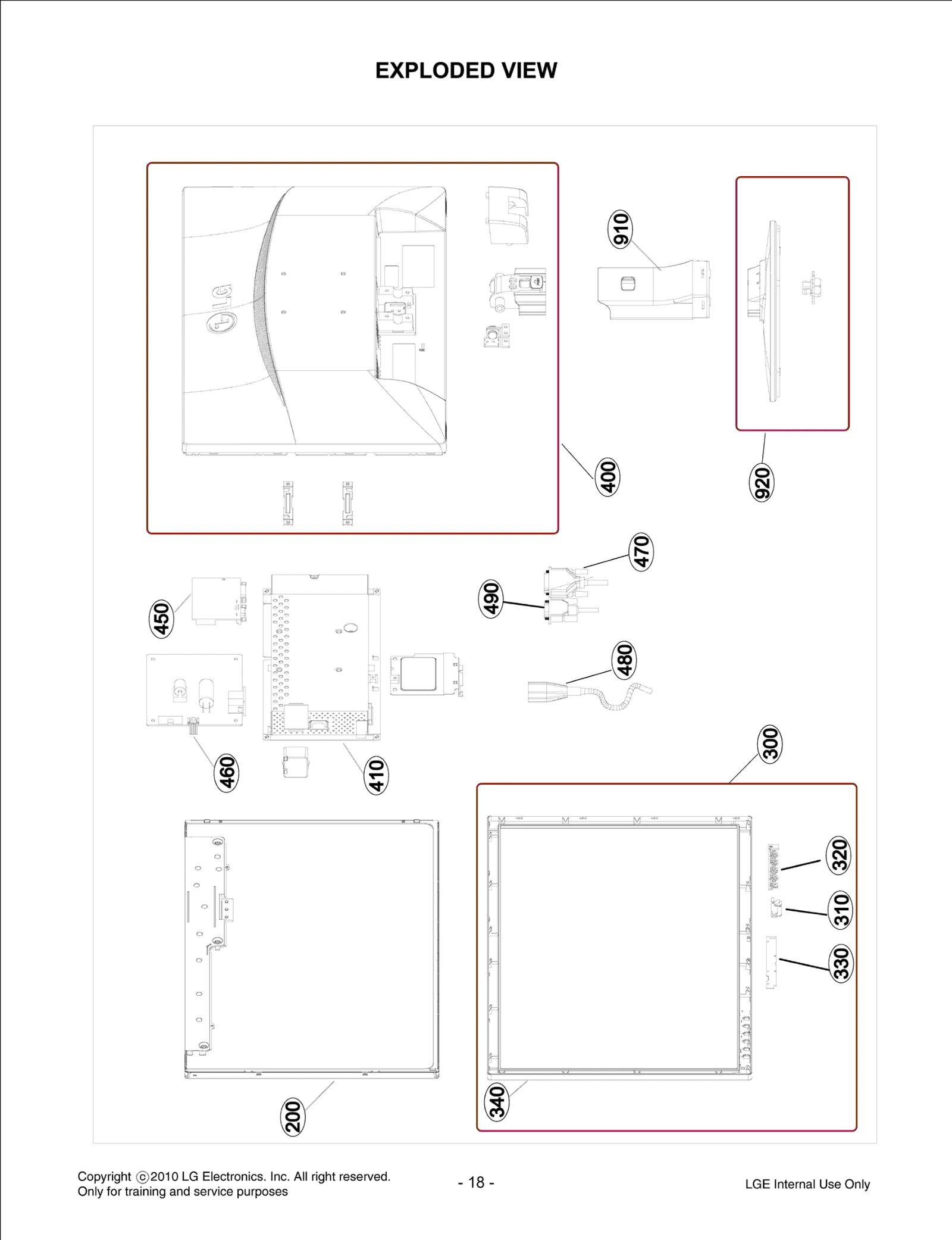

Diagram 0
Diagram 1
Common parts from model LG E2210T-BN
200
LCD,Module-TFT LGE EAJ61088801 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73147501 Contact Us For Availability
310
Bracket Assembly LGE ABA72946301 Contact Us For Availability
330
PCB Assembly LGE EBR71517201 Contact Us For Availability
340
Cabinet LGE MBH62102201 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ80789601 Contact Us For Availability
410
Frame LGE MDQ62416307 Contact Us For Availability
450
Main Total Assembly LGE EBU61043502 Contact Us For Availability
460
PCB Assembly,Power LGE EBR36269428 Contact Us For Availability
460
Power Supply Assembly LGE EAY62168801 Contact Us For Availability
460
Power Supply Assembly LGE EAY62168802 Contact Us For Availability
460
PCB Assembly,Power LGE EBR36269425 Contact Us For Availability
490
Cable,Assembly LGE EAD57734001 Contact Us For Availability
A1
S/W Package LGE SAB34419121 Contact Us For Availability
A4
Card LGE MBM62957301 Contact Us For Availability
C101
Capacitor,AL,Radial LGE EAE43494301 Contact Us For Availability
C101
Capacitor,AL,Radial LGE EAE48859721 Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 0CKZTTA002Q Contact Us For Availability
C104
Capacitor,Ceramic,Chip LGE 0CH2222K516 Contact Us For Availability
C201
Capacitor,Ceramic,Radial LGE 0CKZTTA002E Contact Us For Availability
C210
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C211
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C213
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C302
CAPACITOR,CHIP[CERAMIC M/L TC LGE 0CH5100K416 Contact Us For Availability
C303
Capacitor,AL,Radial LGE EAE44267901 Contact Us For Availability
C307
Capacitor,Ceramic,Ch LGE 0CK334DK56A Contact Us For Availability
C309
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C310
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C311
Capacitor,Ceramic,Chip LGE 0CH5102K416 Contact Us For Availability
C506
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C508
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C510
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C511
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C527
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C543
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C558
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C606
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C615
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
CX101
Capacitor,Film,Box LGE EAE36629401 Contact Us For Availability
CY104
Capacitor,Ceramic,Radial LGE EAE42452201 Contact Us For Availability
CY104
Capacitor,Ceramic,Radial LGE EAE62505801 Contact Us For Availability
D101
Diode,Rectifier LGE 0DD400709CC Contact Us For Availability
D101
Diode,Rectifier LGE EAH36077301 Contact Us For Availability
D101
Diode,Rectifier LGE 0DRGF00354A Contact Us For Availability
D102
Diode,Rectifier LGE EAH39171701 Contact Us For Availability
D102
Diode,Rectifier LGE EAH58801901 Contact Us For Availability
D107
Diode,Rectifier LGE 0DRTW00274A Contact Us For Availability
D107
Diode,Rectifier LGE EAH61274201 Contact Us For Availability
D302
DIODE,SWITCHING LGE 0DSGF00019A Contact Us For Availability
D302
Diode,Switching LGE 0DSPT00029A Contact Us For Availability
D601
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D601
Diode,Schottky LGE EAH44241601 Contact Us For Availability
EL9
Eyelet LGE 4014900002A Contact Us For Availability
IC102
IC,POWER MANAGEMENT LGE 0IPMG78432A Contact Us For Availability
IC201
IC,POWER MANAGEMENT LGE 0IPMG78424A Contact Us For Availability
IC201
IC KEC KIA431 (TP) CQ465,CS556 LGE 0IKE431000B Contact Us For Availability
IC502
S/W,Firmware LGE SAA36320701 Contact Us For Availability
IC601
IC,EEPROM LGE EAN61147701 Contact Us For Availability
J8
Wire,Jump LGE EAD60905001 Contact Us For Availability
J8
Wire,Jump LGE 971-0016 Contact Us For Availability
J8
Wire,Jump LGE EAD60796901 Contact Us For Availability
LV2
Cable,FFC LGE EAD57188316 Contact Us For Availability
LV2
Cable,FFC LGE EAD61905201 Contact Us For Availability
P304
Connector,FFC/FPC/PIC LGE EAG62790001 Contact Us For Availability
P605
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
PG2
CASE TERMINAL EARTH CM-770 CS- LGE 302-987A Contact Us For Availability
Q600
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q600
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q602
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q602
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
Q602
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q602
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
R1
Resistor,Chip LGE 0RH1602D422 Contact Us For Availability
R4
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R5
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R7
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R109
Resistor,Metal Oxide Film LGE 0RS0680K607 Contact Us For Availability
R110
Resistor,Metal Oxide Film LGE 0RX1003K607 Contact Us For Availability
R111
Resistor,Carbon Film LGE 0RD0331Q609 Contact Us For Availability
R112
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R120
Resistor,Carbon Composition LGE 0RC2204A609 Contact Us For Availability
R202
Resistor,Metal Oxide Film LGE 0RS0102J665 Contact Us For Availability
R203
Resistor,Chip LGE 0RH1800D422 Contact Us For Availability
R207
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R212
Resistor,Metal Oxide Film LGE 0RX1001K607 Contact Us For Availability
R302
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R303
Resistor,Chip LGE EBC00768103 Contact Us For Availability
R305
RESISTOR,CHIP LGE 0RH2700D422 Contact Us For Availability
R307
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R310
Resistor,Chip LGE 0RH2001D422 Contact Us For Availability
R311
Resistor,Chip LGE 0RH2002D422 Contact Us For Availability
R314
Resistor,Chip LGE 0RH1003D422 Contact Us For Availability
R326
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R501
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R511
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R515
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R518
Resistor,Metal Oxide Film LGE 0RX0511K665 Contact Us For Availability
R536
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R540
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R544
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R545
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R548
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R611
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R614
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R625
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R628
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
SK101
Jack,DC Power LGE 6620K00020B Contact Us For Availability
SW4
Switch,Tact LGE EBF55334201 Contact Us For Availability
SW4
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TH101
Thermistor,NTC LGE EBG60662801 Contact Us For Availability
TH101
THERMISTOR,NTC LGE 6322A00035A Contact Us For Availability
X500
Crystal LGE EAW60658001 Contact Us For Availability
X500
Crystal LGE 6212AA2001H Contact Us For Availability
ZD4
Diode,Zener LGE EAH60661201 Contact Us For Availability
ZD201
Diode,Zener LGE 0DZ240009BJ Contact Us For Availability
ZD201
Diode,Zener LGE 0DZ240009BB Contact Us For Availability
× ![]()
