Model LG E2042T-BN – Common Parts & Diagrams

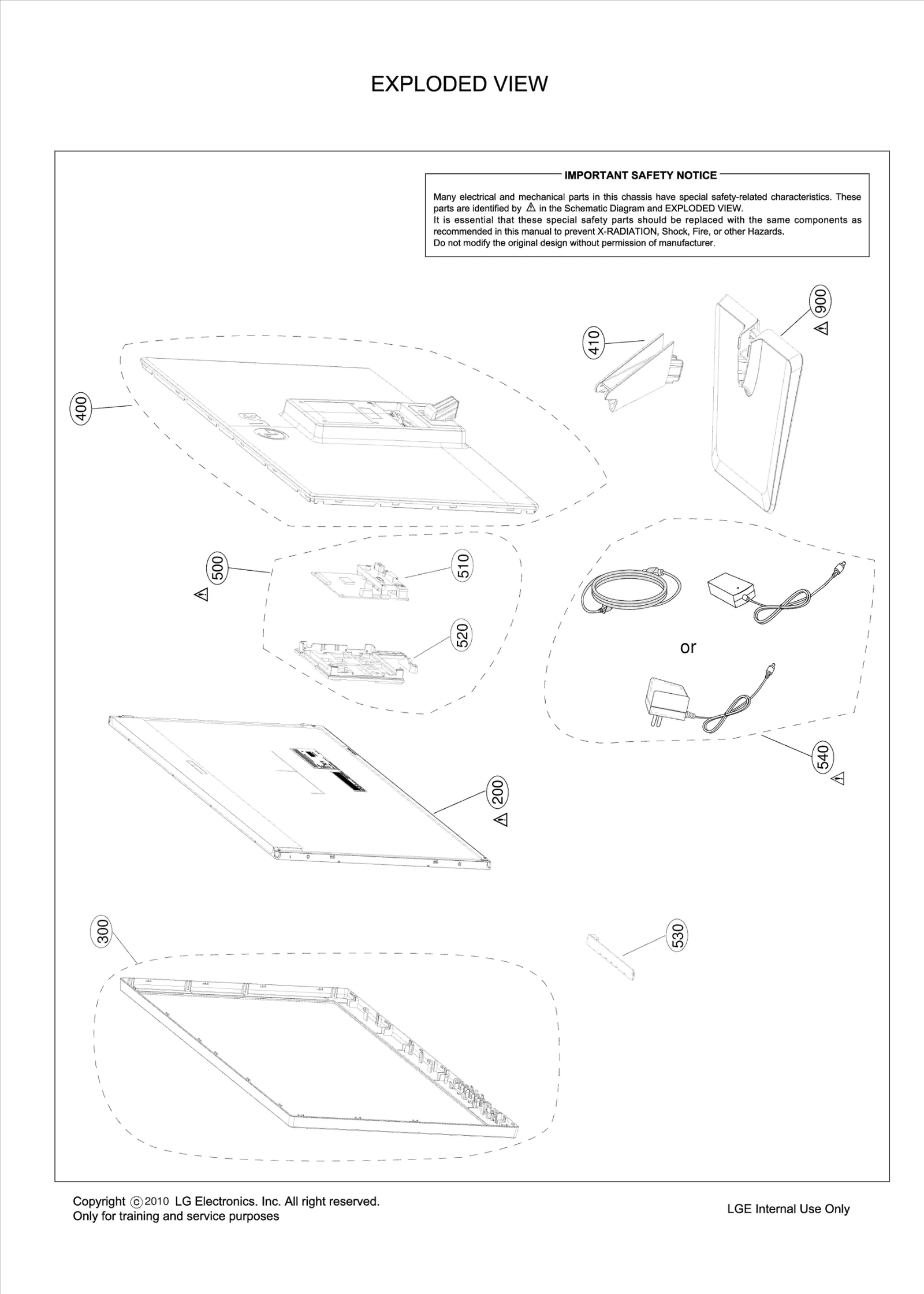

Diagram 0
Diagram 1
Common parts from model LG E2042T-BN
200
LCD,Module-TFT LGE EAJ62090401 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73808201 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85921001 Contact Us For Availability
410
Base Assembly LGE AAN74131901 Contact Us For Availability
500
Package Assembly LGE AGF76490002 Contact Us For Availability
510
BPR Total Assembly LGE EBU61870902 Contact Us For Availability
520
Bracket LGE MAZ63429701 Contact Us For Availability
530
PCB Assembly LGE EBR74906801 Contact Us For Availability
540
Adapters LGE EAY62768607 Contact Us For Availability
900
Base Assembly LGE AAN74132101 Contact Us For Availability
A1
S/W Package LGE SAB34943321 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
A6
Cable,Assembly LGE EAD57760001 Contact Us For Availability
C1
Harness,Single LGE EAD62186001 Contact Us For Availability
C108
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C110
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C111
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C118
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C126
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C145
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C148
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C149
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C156
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
D1
Diode,TVS LGE EAH42720601 Contact Us For Availability
D105
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D105
Diode,Schottky LGE EAH44241601 Contact Us For Availability
IC104
IC Assembly LGE EAN62666001 Contact Us For Availability
IC105
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
JK100
Jack,DC Power LGE EAG35306605 Contact Us For Availability
LV1
Cable,FFC LGE EAD61905269 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P102
Connector,Wafer LGE EAG62172203 Contact Us For Availability
Q100
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
R1
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R3
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R100
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R100
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R115
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R128
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R139
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R144
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R153
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R166
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R167
Resistor,Chip LGE 0RJ2201D477 Contact Us For Availability
R168
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R184
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R198
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R400
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R415
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R418
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
× ![]()
