Model Whirlpool E15Y-2RNTP REFRIGERATOR – Common Parts & Diagrams
01 - FREEZER COMPARTMENT
02 - FRESH FOOD & FREEZER DOOR

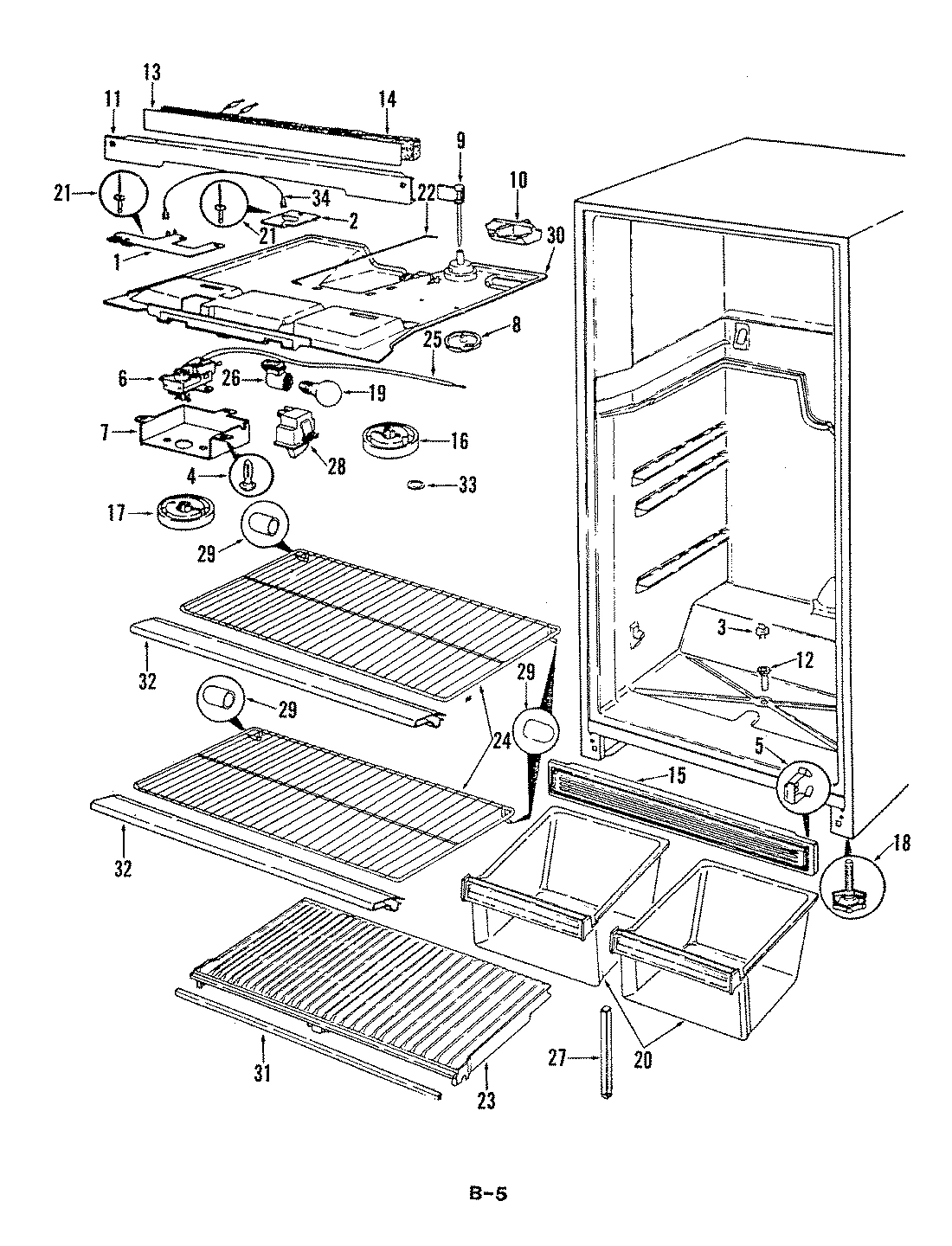

03 - FRESH FOOD COMPARTMENT

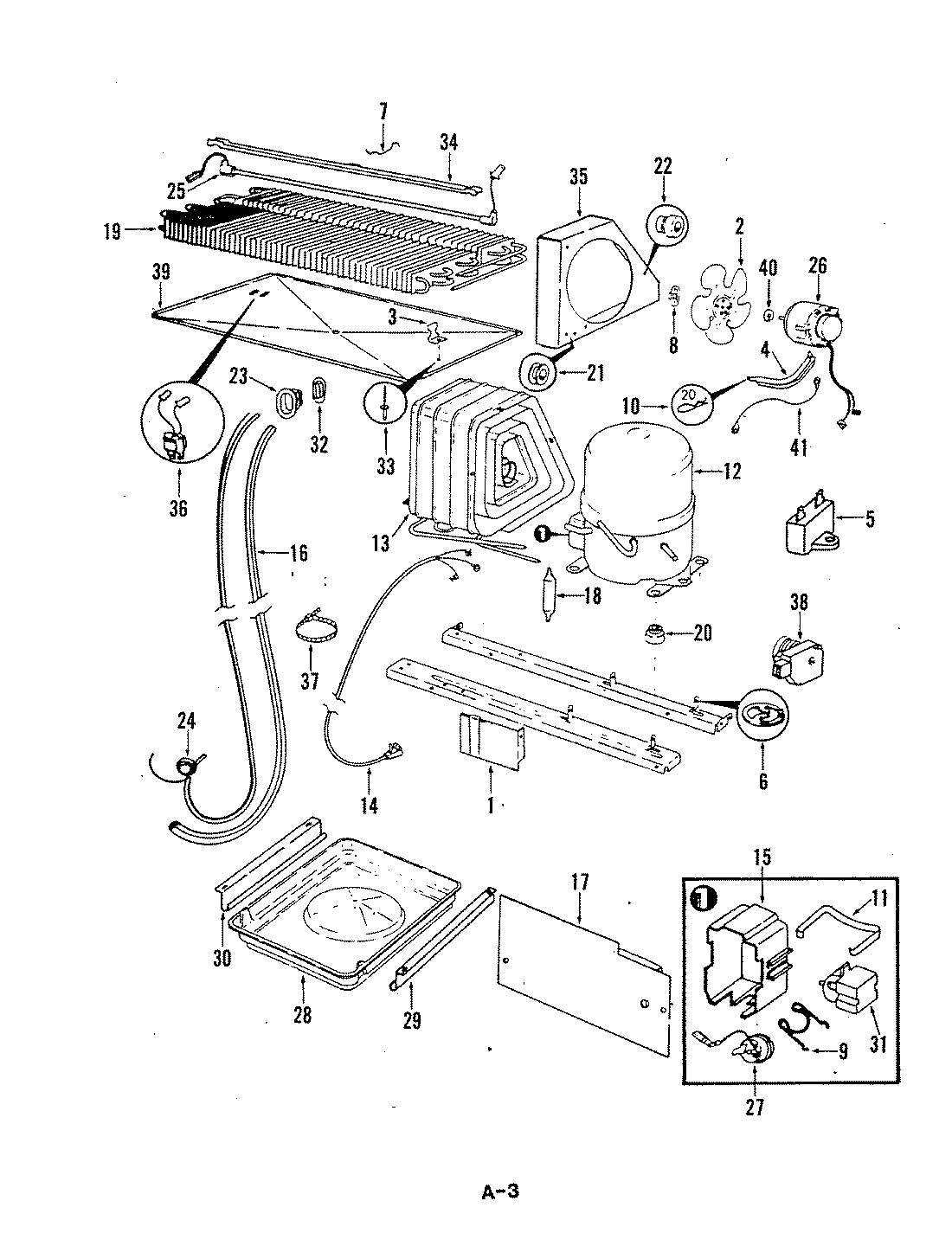

04 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool E15Y-2RNTP REFRIGERATOR
1
TUNNEL, AIR WPL 600844 Contact Us For Availability
1
BUMPER, DOOR WPL 282726 Contact Us For Availability
1
BRACKET, CONTROL WPL 601471 Contact Us For Availability
1
AIR DIVIDER WPL 606391 Contact Us For Availability
2
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
2
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
2
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
2
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
3
BOTTOM, FRZ. WPL 604741 Contact Us For Availability
3
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
3
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
3
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
PLUG BUTTON WPL 557829 Contact Us For Availability
4
BRACKET WPL 600361 Contact Us For Availability
5
PLUG BUTTON WPL 561869 Contact Us For Availability
5
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
6
COVER, EVAPORATOR WPL 605571 Contact Us For Availability
6
PLUG BUTTON WPL 5614412 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 5288145 Contact Us For Availability
6
CLIP WPL 621651 Contact Us For Availability
7
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
7
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
7
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
8
TRAY, DIVIDER WPL 605761 Contact Us For Availability
8
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
8
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
8
SPEEDNUT WPL 199141 Contact Us For Availability
9
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
9
DOOR, DAIRY WPL 604068 Contact Us For Availability
9
DAMPER WPL 600711 Contact Us For Availability
9
CLIP WPL 632951 Contact Us For Availability
10
FAN SHROUD WPL 606081 Contact Us For Availability
10
DEFLECTOR WPL 601202 Contact Us For Availability
10
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
11
CLIP WPL 629271 Contact Us For Availability
11
DIVIDER, MULLION (HW) WPL 657971HW Contact Us For Availability
11
CLIP WPL 632971 Contact Us For Availability
12
SCREW WPL 40001512 Contact Us For Availability
12
SCREW WPL 4060621 Contact Us For Availability
12
PLUG WPL 603211 Contact Us For Availability
12
GROMMET WPL 545318 Contact Us For Availability
12
COMPRESSOR WPL RA985 Contact Us For Availability
12
COMPRESSOR WPL RA995 Contact Us For Availability
13
SEAL WPL 655181 Contact Us For Availability
13
GASKET, DOOR WPL 604621 Contact Us For Availability
13
HEATER WIRE WPL 601057 Contact Us For Availability
13
CONDENSER WPL RA438714 Contact Us For Availability
14
GASKET, DOOR WPL 604622 Contact Us For Availability
14
INSULATION WPL 601401 Contact Us For Availability
14
CORD, POWER WPL 528902 Contact Us For Availability
14
WIRE COVER WPL 601101 Contact Us For Availability
15
ICE CUBE TRAY WPL 601121 Contact Us For Availability
15
KICKPLATE WPL 601386 Contact Us For Availability
15
COVER WPL 632962 Contact Us For Availability
16
TRIVET WPL 583865 Contact Us For Availability
16
WIRE HARNESS WPL 605651 Contact Us For Availability
16
DOOR HANDLE WPL 5711123 Contact Us For Availability
16
KNOB WPL 600613 Contact Us For Availability
16
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
17
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
17
KNOB WPL 600611 Contact Us For Availability
17
COVER WPL 660321 Contact Us For Availability
18
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
18
LEG, LEVELING WPL 60128 Contact Us For Availability
19
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
19
EVAPORATOR WPL RA4362040 Contact Us For Availability
20
PAN, CRISPER WPL 601456 Contact Us For Availability
20
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
21
INNER PANEL WPL 600449 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
21
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
22
INNER PANEL WPL 600516 Contact Us For Availability
22
ROD WPL 600783 Contact Us For Availability
22
SCREW WPL 9986117 Contact Us For Availability
22
GROMMET, BRACKET WPL 569331 Contact Us For Availability
23
OUTER PANEL WPL 600334HW Contact Us For Availability
23
SHELF, CRISPER WPL 654243 Contact Us For Availability
23
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
24
OUTER PANEL WPL 6003281HW Contact Us For Availability
24
SHELF, WIRE WPL 602209 Contact Us For Availability
24
HEAT EXCHANGER WPL RA4364543 Contact Us For Availability
25
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
25
PLASTIC TUBE WPL 400812 Contact Us For Availability
25
HEATER, DEFROST WPL 6010634 Contact Us For Availability
26
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
26
SOCKET, LIGHT WPL 605771 Contact Us For Availability
26
FAN MOTOR WPL 2805613 Contact Us For Availability
26
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
27
TAPPING PLATE WPL 606221 Contact Us For Availability
27
OVERLOAD WPL 632941 Contact Us For Availability
28
SCREW WPL 4030625 Contact Us For Availability
28
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
28
SCREW WPL 9986107 Contact Us For Availability
28
SCREW WPL 998687 Contact Us For Availability
28
SWITCH, LIGHT WPL 557321 Contact Us For Availability
28
PAN, DRAIN WPL 298394 Contact Us For Availability
29
TIP WPL 245803 Contact Us For Availability
29
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
29
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
30
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
30
TOP, F.F. COMPARTMENT WPL 6008545 Contact Us For Availability
30
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
31
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
31
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
31
RELAY, START WPL 632931 Contact Us For Availability
32
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
33
WASHER, SPRING WPL 420092900 Contact Us For Availability
33
DOOR STOP WPL 604191 Contact Us For Availability
33
WIRE HARNESS WPL 605601 Contact Us For Availability
33
RIVET WPL 263979 Contact Us For Availability
33
SCREW WPL 4000171 Contact Us For Availability
33
SCREW WPL 4030141 Contact Us For Availability
33
SCREW WPL 4050071 Contact Us For Availability
33
SCREW WPL 4140011 Contact Us For Availability
34
TRAY, BUTTER WPL 299362 Contact Us For Availability
34
GROUND WIRE WPL 2967528 Contact Us For Availability
34
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
35
TRAY, EGG WPL 600662 Contact Us For Availability
35
CONDENSER SHROUD WPL 600212 Contact Us For Availability
36
INSERT WPL 605734 Contact Us For Availability
36
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
37
WIRE TIE WPL 575763 Contact Us For Availability
38
TIMER, DEFROST WPL 653221 Contact Us For Availability
39
TRIM, DOOR SHELF WPL 6515193 Contact Us For Availability
39
TRAY, DRIP WPL 601017 Contact Us For Availability
40
TRIM, DOOR SHELF WPL 65151111 Contact Us For Availability
40
WASHER WPL 199134 Contact Us For Availability
40
WIRE HARNESS WPL 605668 Contact Us For Availability
41
TRIM, DOOR SHELF WPL 6515122 Contact Us For Availability
41
GROUND WIRE WPL 296753 Contact Us For Availability
42
WASHER WPL 542332 Contact Us For Availability
43
WASHER WPL 521851 Contact Us For Availability
× ![]()
