Model Whirlpool DWUA401AAE DISHWASHER – Common Parts &amp; Diagrams

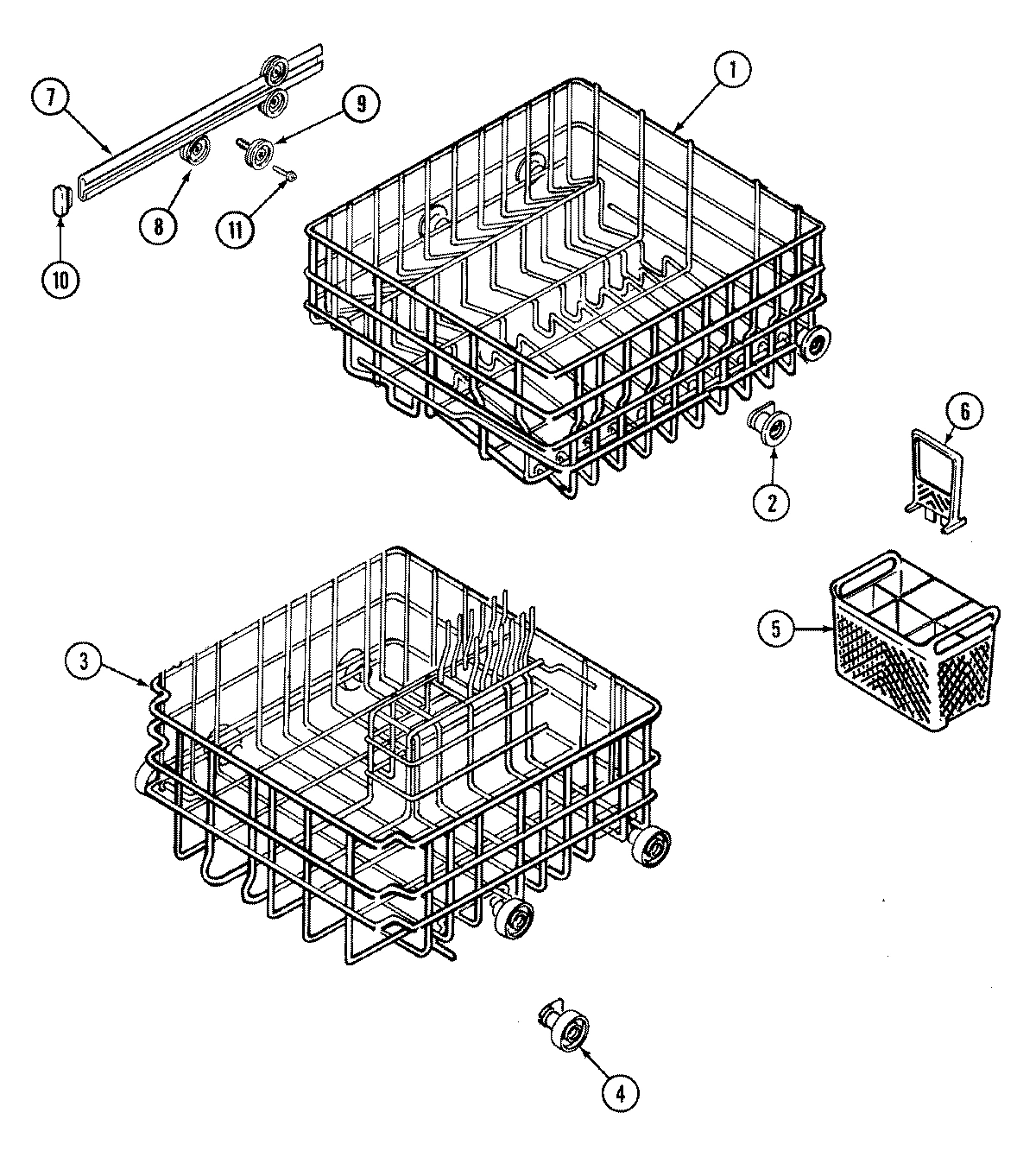

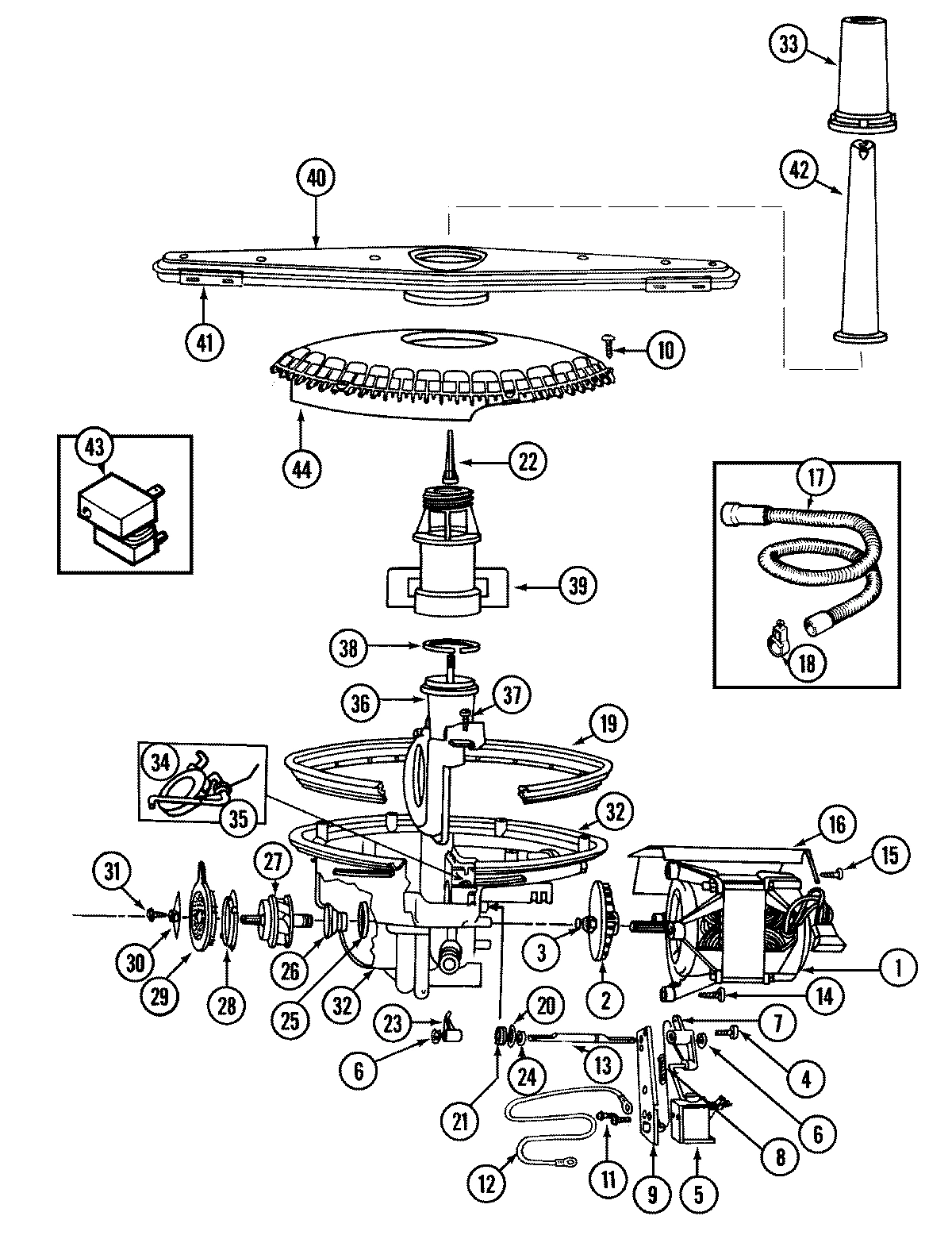

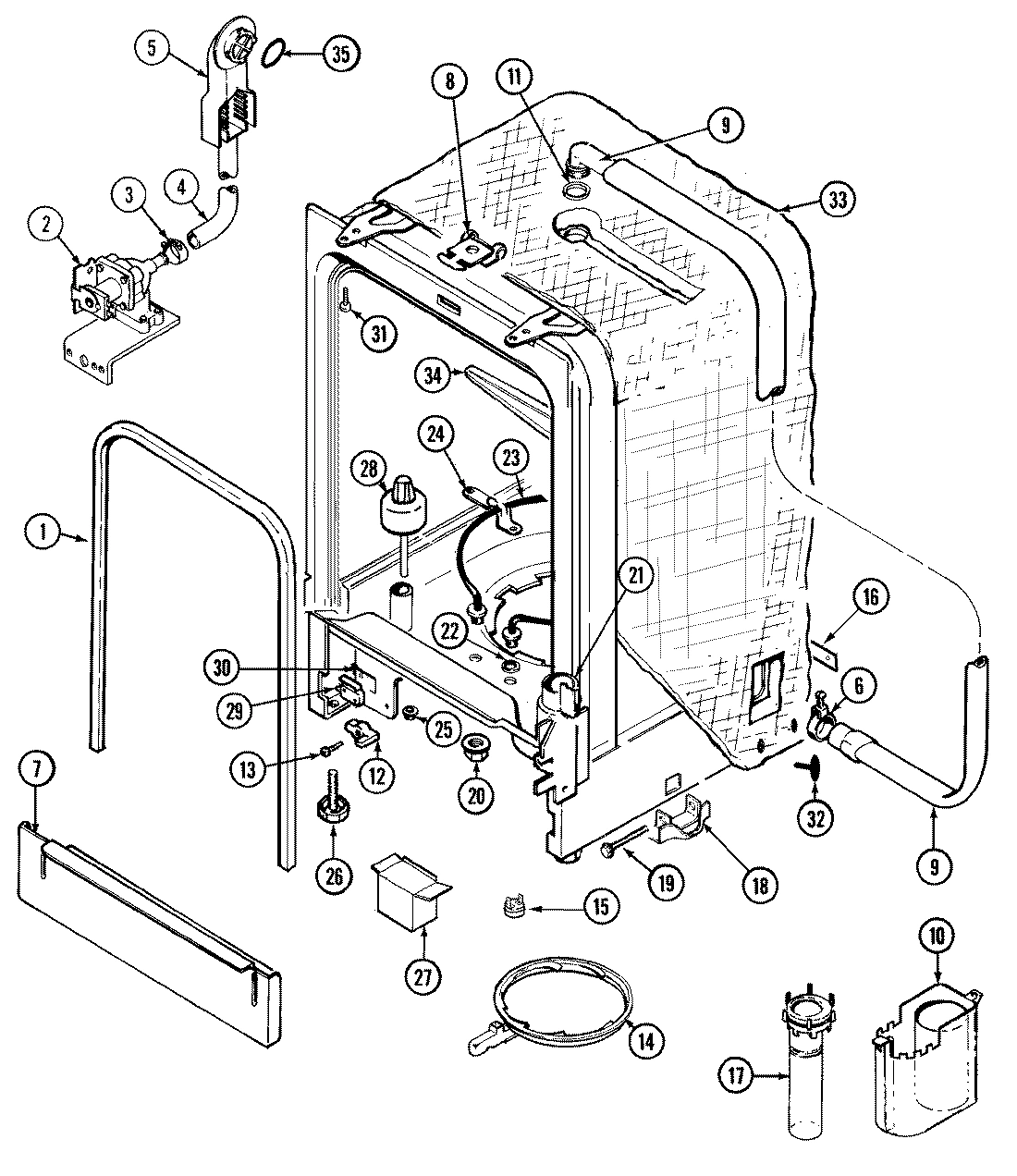

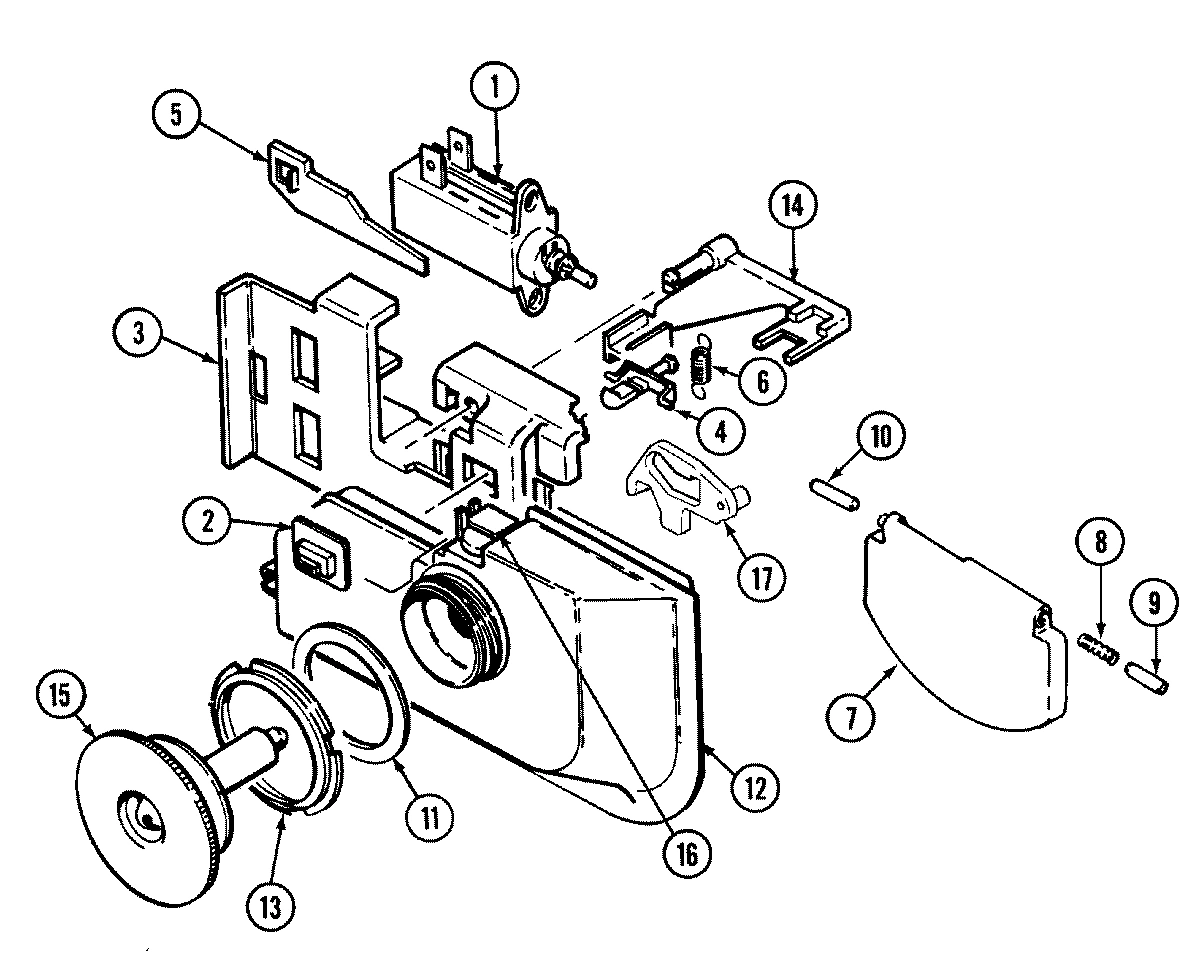

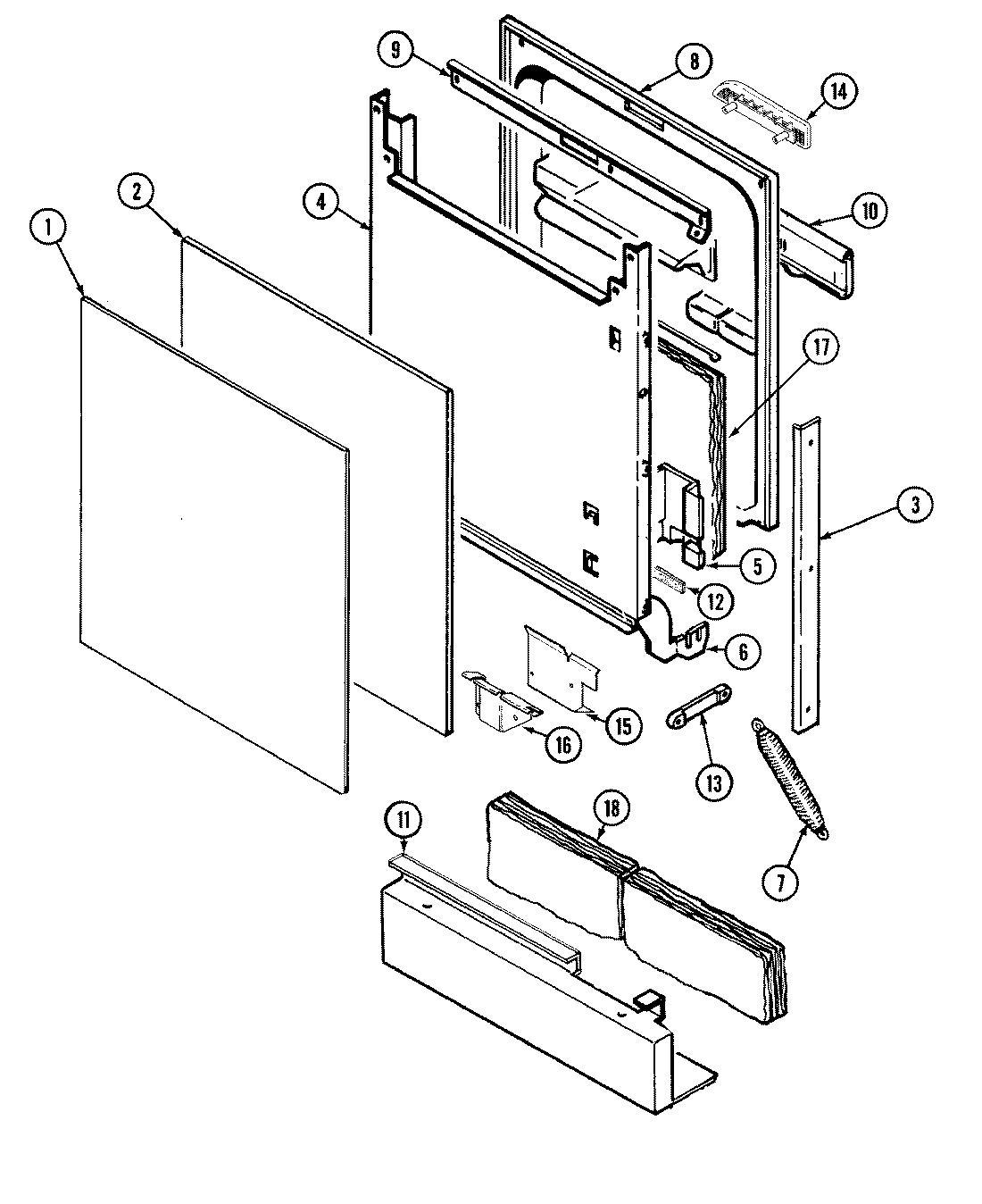

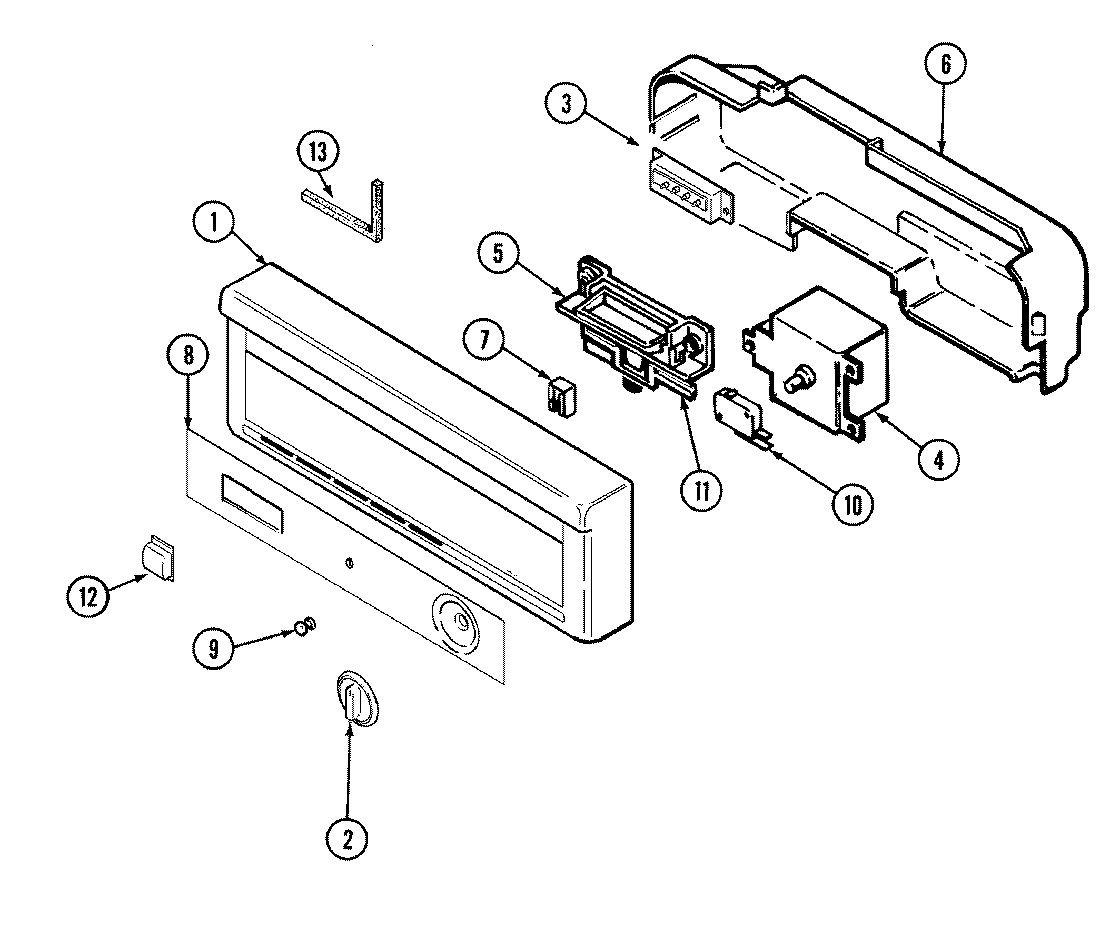

1

WP902899 Whirlpool Dishwasher Wax Motor Backorder WPL WP902899 $41.44

1

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

1

PANEL, CONTROL (WHT) WPL 99001567 Contact Us For Availability

1

MOTOR (W/O-RING & FAN) WPL 99001070 Contact Us For Availability

1

INSERT, FRONT PANEL (WHT/ALM) WPL Y913165 Contact Us For Availability

2

WP99001553 Whirlpool Dishwasher Grommet Backorder WPL WP99001553 $35.82

2

VALVE, WATER WPL 99001358 Contact Us For Availability

2

KNOB, TIMER (WHT) WPL 99001566 Contact Us For Availability

2

SPRING, MOTOR FAN WPL 99001145 Contact Us For Availability

2

FAN, MOTOR WPL Y912903 Contact Us For Availability

2

FILLER, FRONT PANEL WPL Y913184 Contact Us For Availability

3

912619 Whirlpool Dishwasher Trim Screw P-1 Backorder WPL 912619 $9.28

3

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

3

SWITCH, CONTROL (4 POS.) WPL 99001499 Contact Us For Availability

3

RETAINER, IMPELLER WPL Y913173 Contact Us For Availability

3

``O`` RING, MOTOR WPL Y913174 Contact Us For Availability

3

TRIM, SIDE (WHT) WPL 99001351 Contact Us For Availability

4

HOSE, INJECTOR WPL 912633 Contact Us For Availability

4

WHEEL ASSEMBLY (LWR) WPL 903815 Contact Us For Availability

4

TIMER WPL 99001554 Contact Us For Availability

4

DOOR ASSY (WHT) WPL 99001360 Contact Us For Availability

4

TRIM, BOTTOM (WHT) WPL Y912955 Contact Us For Availability

5

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $2.55

5

WP6-904023 Whirlpool Drain Solenoid Backorder WPL WP6-904023 $85.85

5

WP99001576 Whirlpool Dishwasher Basket Backorder WPL WP99001576 $14.92

5

SLIDER WPL 99001289 Contact Us For Availability

5

INJECTOR, WATER WPL 912533 Contact Us For Availability

5

RETAINER, WIRE WPL Y912666 Contact Us For Availability

6

WPW10116816 Whirlpool Dishwasher Spring Backorder WPL WPW10116816 $4.00

6

HANDLE, SILVERWARE BASKET WPL 99001585 Contact Us For Availability

6

BARRIER, CONTROL PANEL WPL 99001588 Contact Us For Availability

6

``E`` CLIP, ``D`` SHAFT WPL Y913109 Contact Us For Availability

6

HINGE (LT) WPL 903070 Contact Us For Availability

6

HINGE (RT) WPL 903071 Contact Us For Availability

6

SCREW WPL 99001075 Contact Us For Availability

7

WP912652 Whirlpool Dishwasher Spring In Stock WPL WP912652 $4.50

7

PANEL, TOE (WHT) WPL 99001106 Contact Us For Availability

7

CRANK, ``D`` SHAFT WPL 913099 Contact Us For Availability

8

SPRING, CUP LID WPL Y912547 Contact Us For Availability

8

DOOR LATCH HOOK ASSY WPL 903098 Contact Us For Availability

8

SPRING, LATCH WPL 912648 Contact Us For Availability

8

RETAINER, LATCH WPL 912650 Contact Us For Availability

8

HOOK, LATCH WPL 99001355 Contact Us For Availability

8

SCREW, LATCH WPL Y912873 Contact Us For Availability

8

OVERLAY, CONTROL PANEL (WHT) WPL 99001610 Contact Us For Availability

8

SPRING, RETURN WPL Y913201 Contact Us For Availability

8

DOOR, INNER WPL Y912918 Contact Us For Availability

9

WP6-912678 Whirlpool Hinge Pin In Stock WPL WP6-912678 $3.70

9

WPY912798 Whirlpool Dishwasher Tub Washer Whe Backorder WPL WPY912798 $2.55

9

HOSE, TOP SHOWER WPL 912647 Contact Us For Availability

9

LENS, INDICATOR LIGHT WPL Y912696 Contact Us For Availability

9

BRACKET, SOLENOID WPL Y913203 Contact Us For Availability

9

BAR, REINFORCEMENT WPL Y913093 Contact Us For Availability

9

SEAL, REINFORCEMENT WPL Y913178 Contact Us For Availability

99002254 Whirlpool Dishwasher Door Switch wit Backorder WPL 99002254 $54.43

WP99002136 Whirlpool Rack Stop Backorder WPL WP99002136 $8.91

LID, DETERGENT CUP WPL 903483 Contact Us For Availability

VENT, INLET WPL Y913095 Contact Us For Availability

SCREW WPL 912622 Contact Us For Availability

W10834433 Whirlpool Dishwasher Handle Backorder WPL W10834433 $55.77

WP99002947 Whirlpool Tub Wheel In Stock WPL WP99002947 $5.64

GASKET, RESERVOIR WPL Y913061 Contact Us For Availability

SCREW, ACCESS PANEL WPL 99001194 Contact Us For Availability

WASHER, TUB TOP WPL 910069 Contact Us For Availability

PANEL, ACCESS (WHT) WPL 99001411 Contact Us For Availability

WP99002833 Whirlpool Dishwasher Reservoir Backorder WPL WP99002833 $37.14

LEVER, ACTUATOR WPL 912014 Contact Us For Availability

BUTTON, CONTROL SWITCH (WHT) WPL 99001581 Contact Us For Availability

WIRE, GROUND WPL 903882 Contact Us For Availability

WP912653 Whirlpool Dishwasher Door Spring Lin In Stock WPL WP912653 $3.06

NUT, RESERVOIR WPL Y913060 Contact Us For Availability

PIN, LEVER PIVOT WPL 912015 Contact Us For Availability

LINER, VENT WPL Y913116 Contact Us For Availability

SEAL, VENT OUTLET WPL Y913177 Contact Us For Availability

``D`` SHAFT WPL 913105 Contact Us For Availability

ACTUATOR, RINSE AID WPL 99001290 Contact Us For Availability

RING, LOCKING WPL Y912686 Contact Us For Availability

WIRE HARNESS WPL 99001579 Contact Us For Availability

SCREW, MOTOR WPL Y912892 Contact Us For Availability

COVER, VENT WPL Y912910 Contact Us For Availability

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.68

WP6-912366 Whirlpool Dishwasher Screw Backorder WPL WP6-912366 $2.55

KNOB, RINSE AID (WHT) WPL Y912923 Contact Us For Availability

THERMOSTAT, BOOST (36TX02) WPL 99001005 Contact Us For Availability

THERMOSTAT, LIMITING WPL 99001006 Contact Us For Availability

CLIP, THERMOSTAT WPL 99001008 Contact Us For Availability

MANUAL, USE & CARE (FRENCH) WPL 99001542 Contact Us For Availability

MANUAL, USE & CARE WPL 99001559 Contact Us For Availability

SHIELD, TUB WPL 99001414 Contact Us For Availability

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.63

PLUNGER ASSEMBLY WPL 903124 Contact Us For Availability

STRAP, SUPPORT WPL 912654 Contact Us For Availability

SHIELD, MOTOR WPL Y912931 Contact Us For Availability

STRAP, HARNESS WPL 99001444 Contact Us For Availability

WPY913158 Whirlpool Dishwasher Drain Hose Backorder WPL WPY913158 $12.82

PIVOT WPL 99001287 Contact Us For Availability

TUBE, INLET WPL Y913096 Contact Us For Availability

HOOK, DRAIN HOSE WPL Y912790 Contact Us For Availability

INSULATION, DOOR WPL 99001718 Contact Us For Availability

18

BRACKET, ADJUSTING WPL 912651 Contact Us For Availability

18

INSULATION, ACCESS PANEL WPL Y912836 Contact Us For Availability

19

SCREW, ADJUSTING BRACKET WPL 912613 Contact Us For Availability

19

GASKET, PUMP WPL 912529 Contact Us For Availability

20

WASHER, SHAFT SEAL WPL 913106 Contact Us For Availability

20

NUT, HEATING ELEMENT WPL 912645 Contact Us For Availability

20

SLEEVE, INSULATING WPL 99001333 Contact Us For Availability

21

WP913108 Whirlpool Dishwasher Seal In Stock WPL WP913108 $3.92

21

CAP, AIR INLET WPL Y912659 Contact Us For Availability

22

O-RING, HEATER WPL Y913079 Contact Us For Availability

22

NUT, SPRAY ARM SUPPORT WPL Y912930 Contact Us For Availability

23

ELEMENT, HEATING WPL 903096 Contact Us For Availability

23

LIFTER WPL Y913200 Contact Us For Availability

24

BRACKET, HEATING ELEMENT WPL Y912541 Contact Us For Availability

24

``E`` CLIP, ``D`` SHAFT WPL 913110 Contact Us For Availability

25

SEAT, SEAL WPL 903494 Contact Us For Availability

26

WPW10143258 Whirlpool Dishwasher Leg Leveler Backorder WPL WPW10143258 $5.45

26

SEAL HEAD ASSY. WPL 903493 Contact Us For Availability

27

4396672 Whirlpool Dishwasher Connector Backorder WPL 4396672 $7.61

27

BOX, TERMINAL WPL 912563 Contact Us For Availability

27

IMPELLER, PUMP WPL 903962 Contact Us For Availability

28

WP99002363 Whirlpool Dishwasher Float Backorder WPL WP99002363 $3.70

28

RING, WEAR WPL Y912901 Contact Us For Availability

29

SCREW WPL 912012 Contact Us For Availability

29

PLATE, CHOPPER WPL Y912913 Contact Us For Availability

30

BRACKET, WATER LEVEL SWITCH WPL 912656 Contact Us For Availability

30

CHOPPER WPL Y913274 Contact Us For Availability

31

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.55

31

SCREW, CHOPPER WPL 913275 Contact Us For Availability

32

FASTENER, INSULATION WPL 911917 Contact Us For Availability

32

HOUSING, PUMP WPL Y912902 Contact Us For Availability

33

WPW10223013 Whirlpool Dishwasher Insulation P Backorder WPL WPW10223013 $45.42

33

FASTENER, PANEL WPL 99001057 Contact Us For Availability

33

STRAP, INSULATION WPL 99001076 Contact Us For Availability

34

W10877037 Whirlpool Dishwasher Spray Arm Nut Backorder WPL W10877037 $3.76

34

FLAPPER ASSY. WPL Y99001331 Contact Us For Availability

35

SEAL RING, INJECTOR WPL 912644 Contact Us For Availability

35

SPRING, FLAPPER WPL Y913202 Contact Us For Availability

36

VOLUTE, PUMP (W/SHAFT) WPL Y912915 Contact Us For Availability

37

SCREW, PUMP VOLUTE WPL Y912891 Contact Us For Availability

38

SEAL, RING WPL Y912904 Contact Us For Availability

39

WPY912900 Whirlpool Dishwasher Support In Stock WPL WPY912900 $46.77

40

ARM, LOWER SPRAY (W/SHIELD) WPL 904026 Contact Us For Availability

41

SHIELD, RADIANT WPL Y912895 Contact Us For Availability

42

WPY912912 Whirlpool Dishwasher Spray Tower Backorder WPL WPY912912 $36.33

43

RELAY, MOTOR WPL 903482 Contact Us For Availability

43

SCREW, RELAY WPL 912612 Contact Us For Availability

43

BRACKET, RELAY WPL Y913156 Contact Us For Availability

44

STRAINER WPL Y912917 Contact Us For Availability

NI

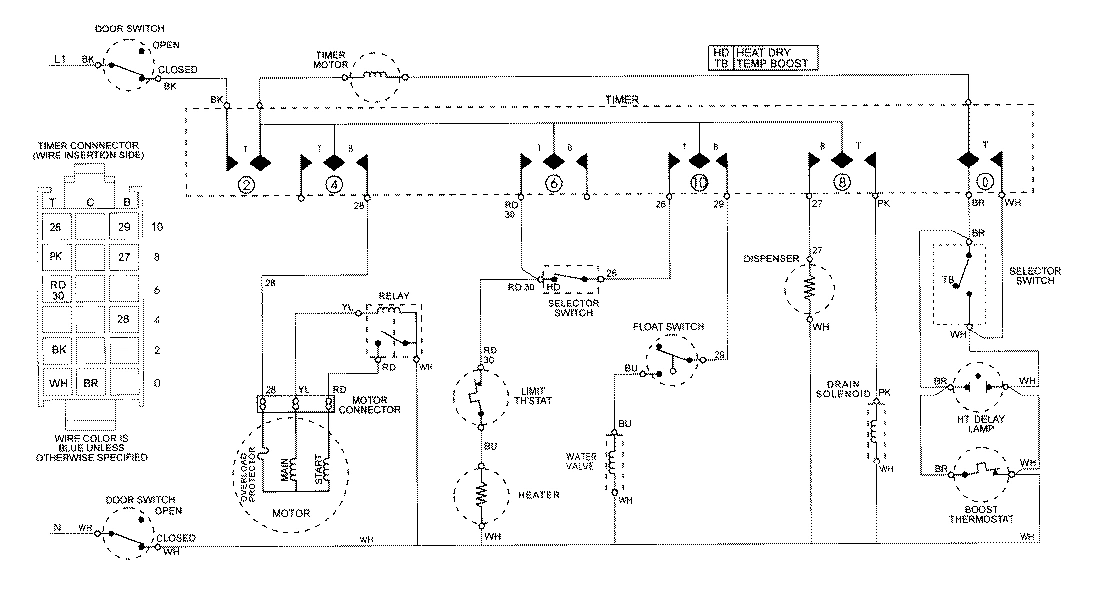

WIRING INFORMATION WPL 15001983 Contact Us For Availability
