Model Electrolux DWU4005W2 DISHWASHER – Common Parts & Diagrams
01 - COVER

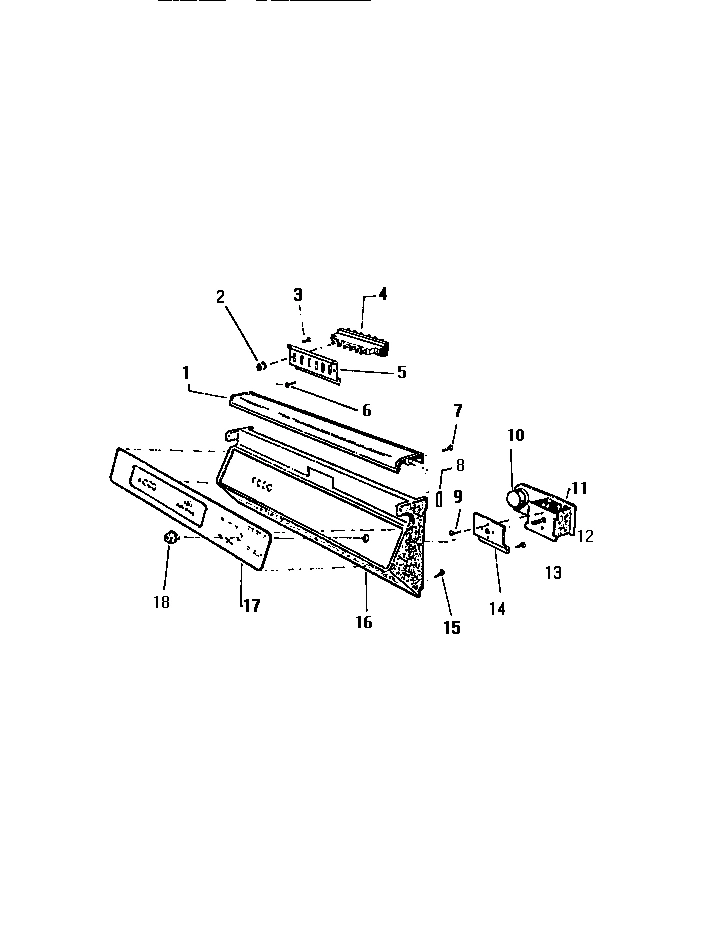

02 - CONTROL PANEL

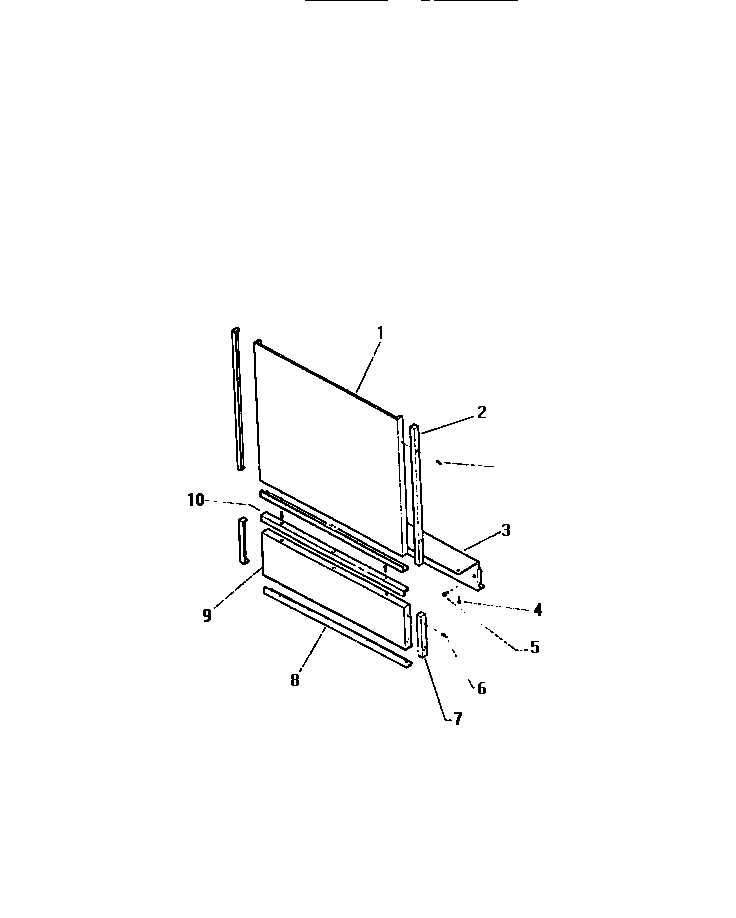

03 - DOOR PANEL

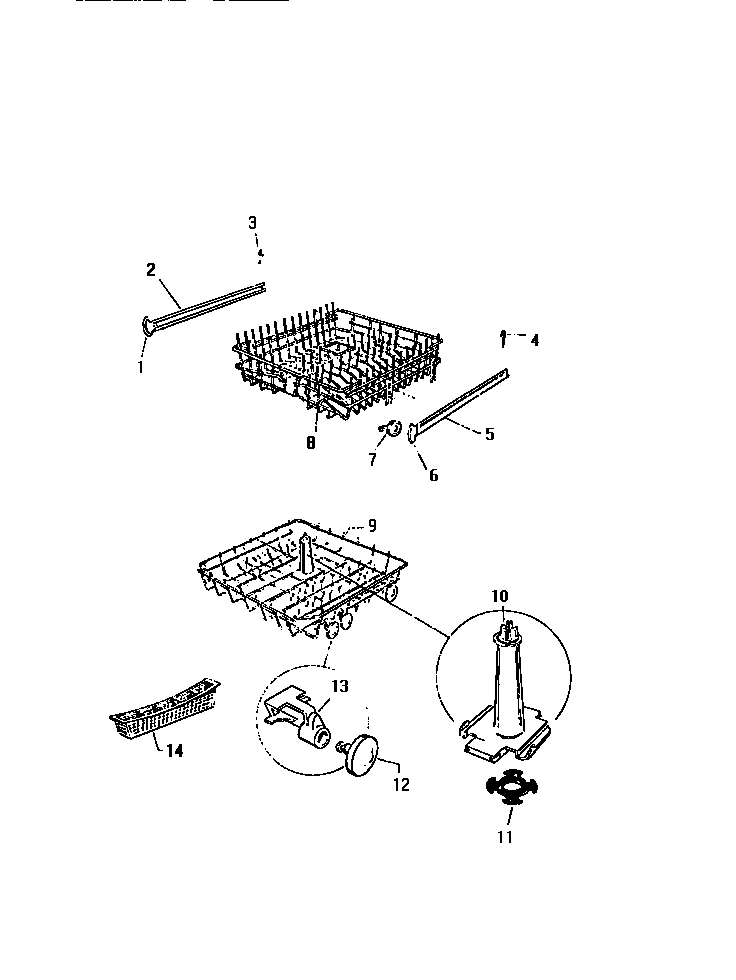

04 - RACKS & WASH TOWER

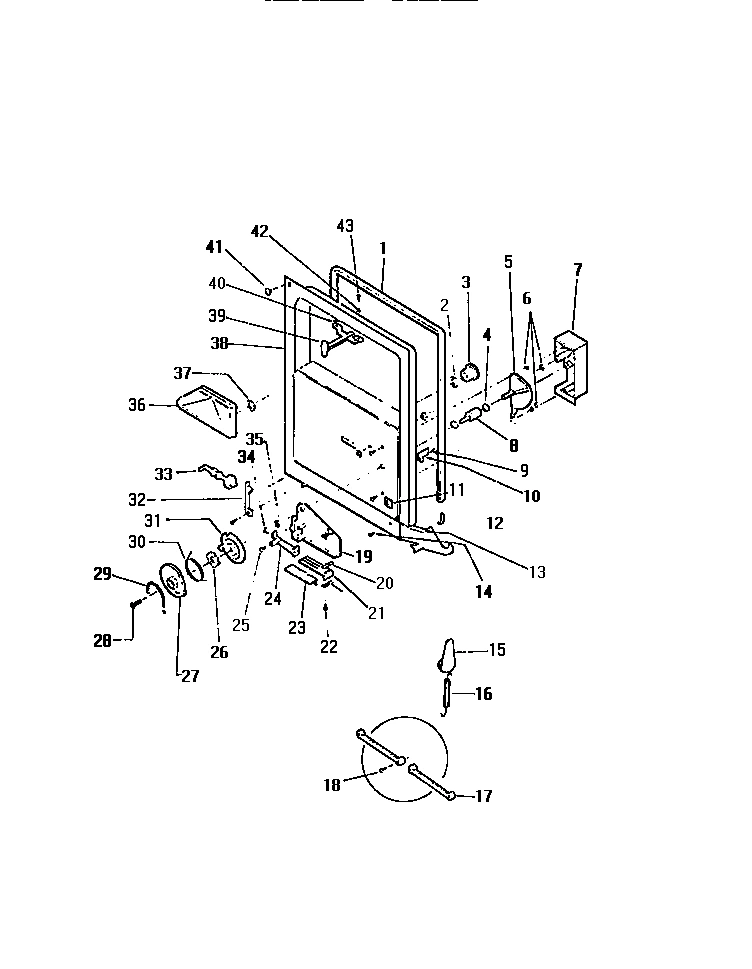

05 - DOOR-DISPENSER & INNER PANELS

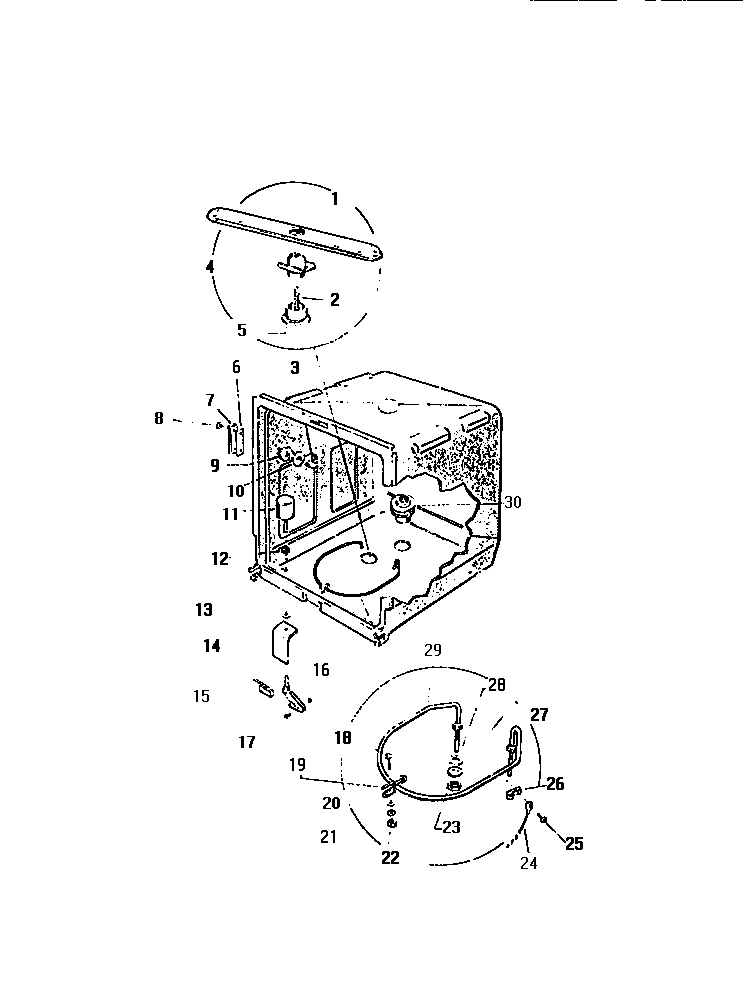

06 - INNER TUB COMPONENTS

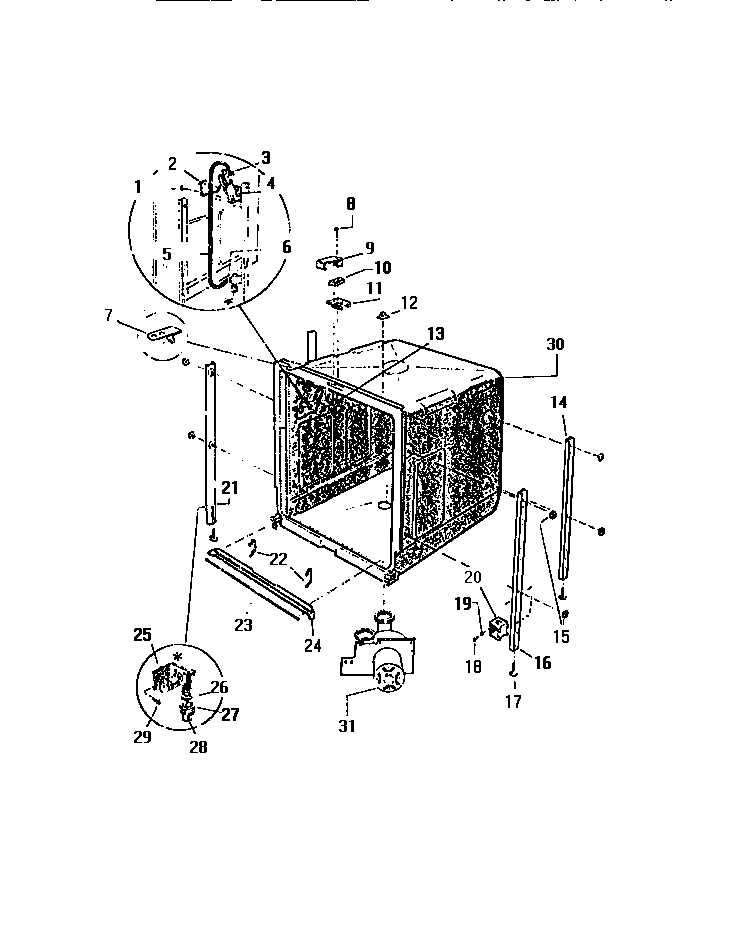

07 - OUTER TUB COMPONENTS

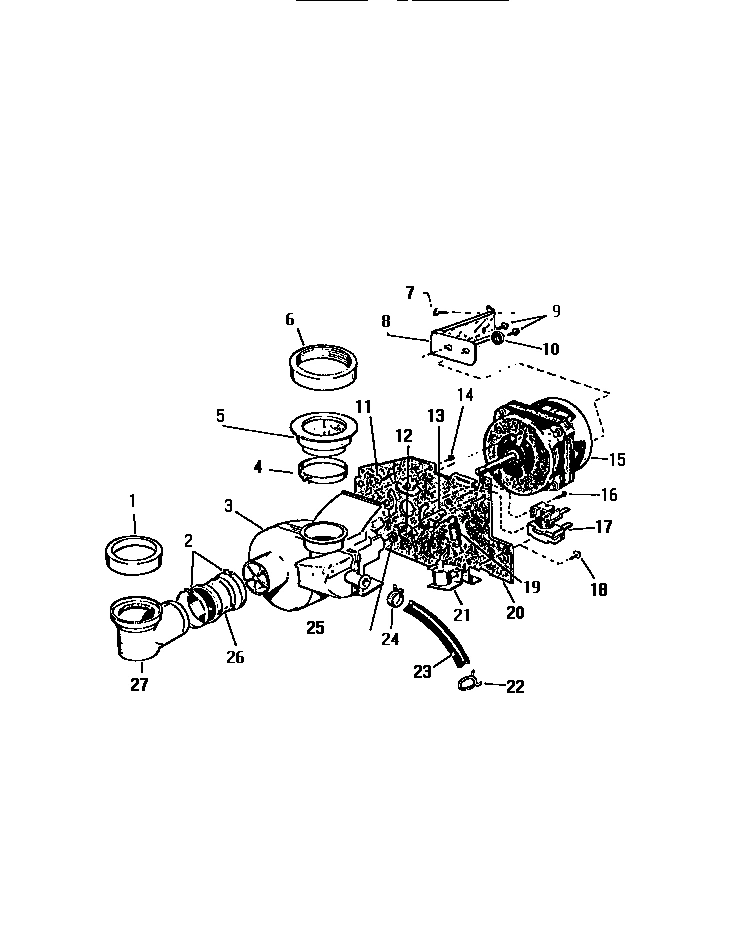

08 - PUMP, MOTOR & COMPONENTS
Common parts from model Electrolux DWU4005W2 DISHWASHER
*87680
PORCELAIN TUB PATCH AND SEALER WCI WS900113 Contact Us For Availability
*87681
INSULATION-TOP REAR SIDES WCI WS900134 Contact Us For Availability
*87682
WCI WS900123 WCI WS900123 Contact Us For Availability
*87683
WCI WS123702 WCI WS123702 Contact Us For Availability
*87684
SCREW, BRACKET MOUNTING (2) WCI WC418701 Contact Us For Availability
*87685
WCI WS452601 WCI WS452601 Contact Us For Availability
1
WCI WS437605 WCI WS437605 Contact Us For Availability
1
WCI WS263802 WCI WS263802 Contact Us For Availability
1
WCI WS263812 WCI WS263812 Contact Us For Availability
1
WCI WS263814 WCI WS263814 Contact Us For Availability
1
WCI WS428003 WCI WS428003 Contact Us For Availability
1
WCI WS1129945 WCI WS1129945 Contact Us For Availability
1
GASKET-WITH CLIPS WCI WS900127 Contact Us For Availability
1
ARM, WASH WCI WS414601 Contact Us For Availability
1
WCI WS104801 WCI WS104801 Contact Us For Availability
2
WCI WS253501 WCI WS253501 Contact Us For Availability
2
WCI WS430501 WCI WS430501 Contact Us For Availability
2
WCI WS266002 WCI WS266002 Contact Us For Availability
2
WCI WS100401 WCI WS100401 Contact Us For Availability
2
WCI WS255703 WCI WS255703 Contact Us For Availability
2
WCI WS1601 WCI WS1601 Contact Us For Availability
2
WCI W2646D60H34 WCI W2646D60H34 Contact Us For Availability
3
WCI WS414904 WCI WS414904 Contact Us For Availability
3
COVER-NUT WCI WS250001 Contact Us For Availability
3
SCREW (4) WCI WS5401 Contact Us For Availability
3
WCI W194C64SH26 WCI W194C64SH26 Contact Us For Availability
3
WCI WS412201 WCI WS412201 Contact Us For Availability
4
WCI WS444002 WCI WS444002 Contact Us For Availability
4
PIN (2) WCI WS118201 Contact Us For Availability
4
O-RING (2) WCI WC507907 Contact Us For Availability
4
BEARING, WASH ARM WCI WS414702 Contact Us For Availability
4
WCI WS408901 WCI WS408901 Contact Us For Availability
4
WCI W2645D60H32 WCI W2645D60H32 Contact Us For Availability
5
WCI WS118101 WCI WS118101 Contact Us For Availability
5
WCI WS266001 WCI WS266001 Contact Us For Availability
5
CUP-DETERGENT WCI WS401601 Contact Us For Availability
5
WCI WS255502 WCI WS255502 Contact Us For Availability
5
HOSE, FILL, INLET WCI W689B519H04 Contact Us For Availability
5
WCI W689B559H01 WCI W689B559H01 Contact Us For Availability
6
WCI WC413102 WCI WC413102 Contact Us For Availability
6
WCI WC505860 WCI WC505860 Contact Us For Availability
6
WCI WS1129944 WCI WS1129944 Contact Us For Availability
6
WCI WC507905 WCI WC507905 Contact Us For Availability
6
WCI WS5001 WCI WS5001 Contact Us For Availability
6
CLAMP, VALVE, FILL HOSE WCI W194C546H26 Contact Us For Availability
6
WCI WS120601 WCI WS120601 Contact Us For Availability
7
WCI WS412703 WCI WS412703 Contact Us For Availability
7
ROLLER (4) WCI WS1133590 Contact Us For Availability
7
WCI WS900041 WCI WS900041 Contact Us For Availability
7
WCI WS119301 WCI WS119301 Contact Us For Availability
7
BRACKET (TUB TO CAB) (2) WCI W689B594H01 Contact Us For Availability
7
WCI WC501511 WCI WC501511 Contact Us For Availability
8
WCI WS265501 WCI WS265501 Contact Us For Availability
8
WCI WS412704 WCI WS412704 Contact Us For Availability
8
WCI WS702302 WCI WS702302 Contact Us For Availability
8
BEARING-WITH 2 O-RINGS WCI WS900042 Contact Us For Availability
8
WCI WS004401 WCI WS004401 Contact Us For Availability
8
WCI WS003502 WCI WS003502 Contact Us For Availability
8
WCI WS446501 WCI WS446501 Contact Us For Availability
9
WCI WS256014 WCI WS256014 Contact Us For Availability
9
WCI WS263813 WCI WS263813 Contact Us For Availability
9
WCI WS263815 WCI WS263815 Contact Us For Availability
9
WCI WS423810 WCI WS423810 Contact Us For Availability
9
WCI WS700203 WCI WS700203 Contact Us For Availability
9
WASHER (SEALING) (4) WCI WS4203 Contact Us For Availability
9
SHIELD, SWITCH WCI WS125101 Contact Us For Availability
9
WCI WS10401 WCI WS10401 Contact Us For Availability
10
MOTOR WCI WS900152 Contact Us For Availability
10
WCI WS412705 WCI WS412705 Contact Us For Availability
10
WCI WS404815 WCI WS404815 Contact Us For Availability
10
WCI W689B600H01 WCI W689B600H01 Contact Us For Availability
10
ROLLER (4) WCI WS116201 Contact Us For Availability
10
SWITCH, DOOR WCI WS125001 Contact Us For Availability
10
GROMMET (2) WCI WS9401 Contact Us For Availability
11
WCI WS444502 WCI WS444502 Contact Us For Availability
11
GASKET-TOWER ASSEMBLY WCI W194C658H02 Contact Us For Availability
11
WCI WS415202 WCI WS415202 Contact Us For Availability
11
WCI WS272502 WCI WS272502 Contact Us For Availability
11
WCI WC402401 WCI WC402401 Contact Us For Availability
12
WCI WS406003 WCI WS406003 Contact Us For Availability
12
WCI WS251901 WCI WS251901 Contact Us For Availability
12
GUIDE, WIRE HARNESS (3) WCI WS006301 Contact Us For Availability
12
WCI WS6201 WCI WS6201 Contact Us For Availability
12
WCI WS117901 WCI WS117901 Contact Us For Availability
12
WCI WS255704 WCI WS255704 Contact Us For Availability
13
WCI WQ20363 WCI WQ20363 Contact Us For Availability
13
SUPPORT-WHEEL (8) WCI WS404501 Contact Us For Availability
13
WCI WC071095 WCI WC071095 Contact Us For Availability
13
GASKET, GUIDE WCI W848A024H01 Contact Us For Availability
13
WCI WS104001 WCI WS104001 Contact Us For Availability
14
WCI WS117701 WCI WS117701 Contact Us For Availability
14
SHIELD, SWITCH WCI WS105001 Contact Us For Availability
14
WCI WC505458 WCI WC505458 Contact Us For Availability
15
WCI WS4501 WCI WS4501 Contact Us For Availability
15
WCI W194C581H04 WCI W194C581H04 Contact Us For Availability
15
SWITCH, FLOAT WCI W2646D25H03 Contact Us For Availability
15
WCI WS443701 WCI WS443701 Contact Us For Availability
16
WCI WS431312 WCI WS431312 Contact Us For Availability
16
WCI W194C676H04 WCI W194C676H04 Contact Us For Availability
16
GUIDE, FLOAT WCI W2646D68H03 Contact Us For Availability
16
WCI WS6901 WCI WS6901 Contact Us For Availability
17
WCI WS438302 WCI WS438302 Contact Us For Availability
17
WCI WS255001 WCI WS255001 Contact Us For Availability
17
WCI WS900018 WCI WS900018 Contact Us For Availability
17
LEG, LEVELING (4) WCI WC503489 Contact Us For Availability
17
WCI WS269101 WCI WS269101 Contact Us For Availability
18
SCREW (2) WCI WC507511 Contact Us For Availability
18
KNOB WCI WS407002 Contact Us For Availability
18
WCI WC504605 WCI WC504605 Contact Us For Availability
18
SCREW, GROUND, LINE WCI WC505964 Contact Us For Availability
19
WCI WS406702 WCI WS406702 Contact Us For Availability
19
CLIP, HEATER WCI W848A040H01 Contact Us For Availability
19
WCI W500411 WCI W500411 Contact Us For Availability
19
WCI WS255701 WCI WS255701 Contact Us For Availability
20
BLOCK-ACTUATOR MOUNTING (2) WCI WS106901 Contact Us For Availability
20
WCI WC505381 WCI WC505381 Contact Us For Availability
20
BOX, CONNECTION WCI W194C608H02 Contact Us For Availability
20
WCI WS405806 WCI WS405806 Contact Us For Availability
21
ACTUATOR BI-METAL WCI WS102501 Contact Us For Availability
21
WASHER, CLIP, MOUNTING (HEATER) WCI WC411605 Contact Us For Availability
21
LEG, FRONT, LH WCI W2647D67H04 Contact Us For Availability
21
WCI WS266801 WCI WS266801 Contact Us For Availability
22
SCREW BI-METAL TO PLATE (2) WCI WC413103 Contact Us For Availability
22
NUT, CLIP, MOUNTING (HEATER) WCI WC501879 Contact Us For Availability
22
WCI WS000601 WCI WS000601 Contact Us For Availability
22
WCI W194C546H18 WCI W194C546H18 Contact Us For Availability
23
WCI WS117601 WCI WS117601 Contact Us For Availability
23
NUT, HEATER (2) WCI WC501305 Contact Us For Availability
23
WIRE-GASKET RETAINING WCI WC505132 Contact Us For Availability
23
WCI W194C644H01 WCI W194C644H01 Contact Us For Availability
24
LEVER WCI WS253102 Contact Us For Availability
24
WIRE, GROUND, HEATER WCI W2645D77A15 Contact Us For Availability
24
GASKET-TUB WCI WS401801 Contact Us For Availability
24
WCI WQ502227 WCI WQ502227 Contact Us For Availability
25
WCI WS402701 WCI WS402701 Contact Us For Availability
25
SCREW, GROUND (HEATER) WCI WC503731 Contact Us For Availability
25
WCI W2847D57H02 WCI W2847D57H02 Contact Us For Availability
25
SEAL-DRAIN SHAFT WCI WS104701 Contact Us For Availability
26
WHEEL-SNUBBER WCI WS115301 Contact Us For Availability
26
CLAMP, GROUND HEATER WCI WC507337 Contact Us For Availability
26
WCI WS100701 WCI WS100701 Contact Us For Availability
27
WHEEL-CUP STOP WCI WS406601 Contact Us For Availability
27
GASKET, HEATER (OUTSIDE TUB) (2) WCI WC411208 Contact Us For Availability
27
NUT-COUPLING WCI WS122201 Contact Us For Availability
27
WCI WS410401 WCI WS410401 Contact Us For Availability
28
SCREW (4) WCI WC402701 Contact Us For Availability
28
GASKET, HEATER (INSIDE TUB) (2) WCI WC411210 Contact Us For Availability
28
WCI WS122301 WCI WS122301 Contact Us For Availability
29
WCI WS102602 WCI WS102602 Contact Us For Availability
29
WCI WS900029 WCI WS900029 Contact Us For Availability
30
SPRING-CLUTCH WCI WS102701 Contact Us For Availability
30
WCI WS26801 WCI WS26801 Contact Us For Availability
31
WHEEL, CLUTCH WCI WS406501 Contact Us For Availability
32
WCI WS115101 WCI WS115101 Contact Us For Availability
33
PLUNGER-SHAFT WCI WS250402 Contact Us For Availability
34
WCI WS105601 WCI WS105601 Contact Us For Availability
35
WCI WS102301 WCI WS102301 Contact Us For Availability
36
WCI WS401001 WCI WS401001 Contact Us For Availability
37
WCI WC411209 WCI WC411209 Contact Us For Availability
38
INNER DOOR WCI WS417037 Contact Us For Availability
39
WCI WS450402 WCI WS450402 Contact Us For Availability
40
WASHER-LATCH (2) WCI W194C549H01 Contact Us For Availability
41
WCI WC502328 WCI WC502328 Contact Us For Availability
43
SCREW, LATCH (2) WCI WC501752 Contact Us For Availability
× ![]()
