Model Whirlpool DW980W-CAN DISHWASHER – Common Parts & Diagrams

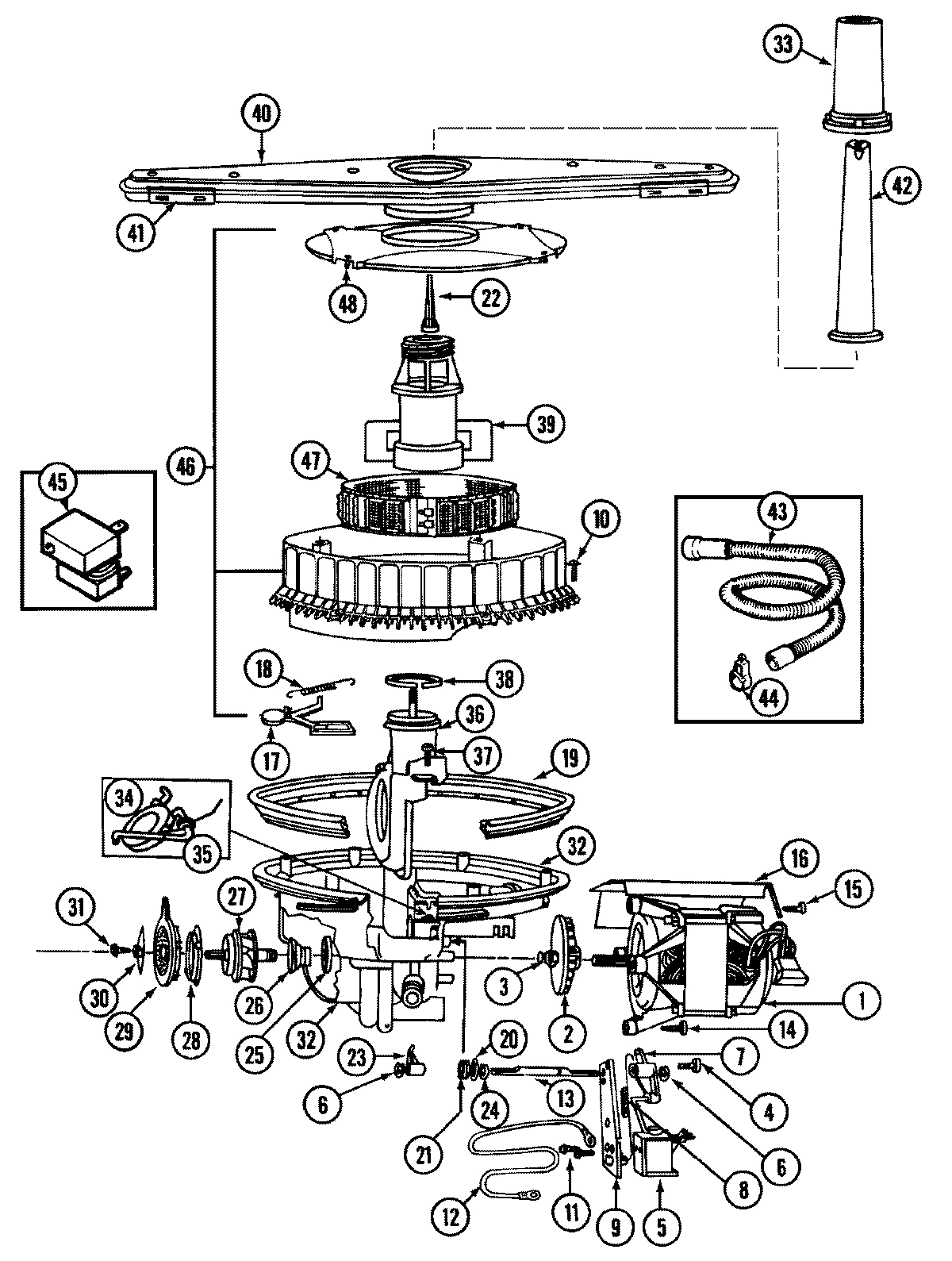

03 - PUMP & MOTOR

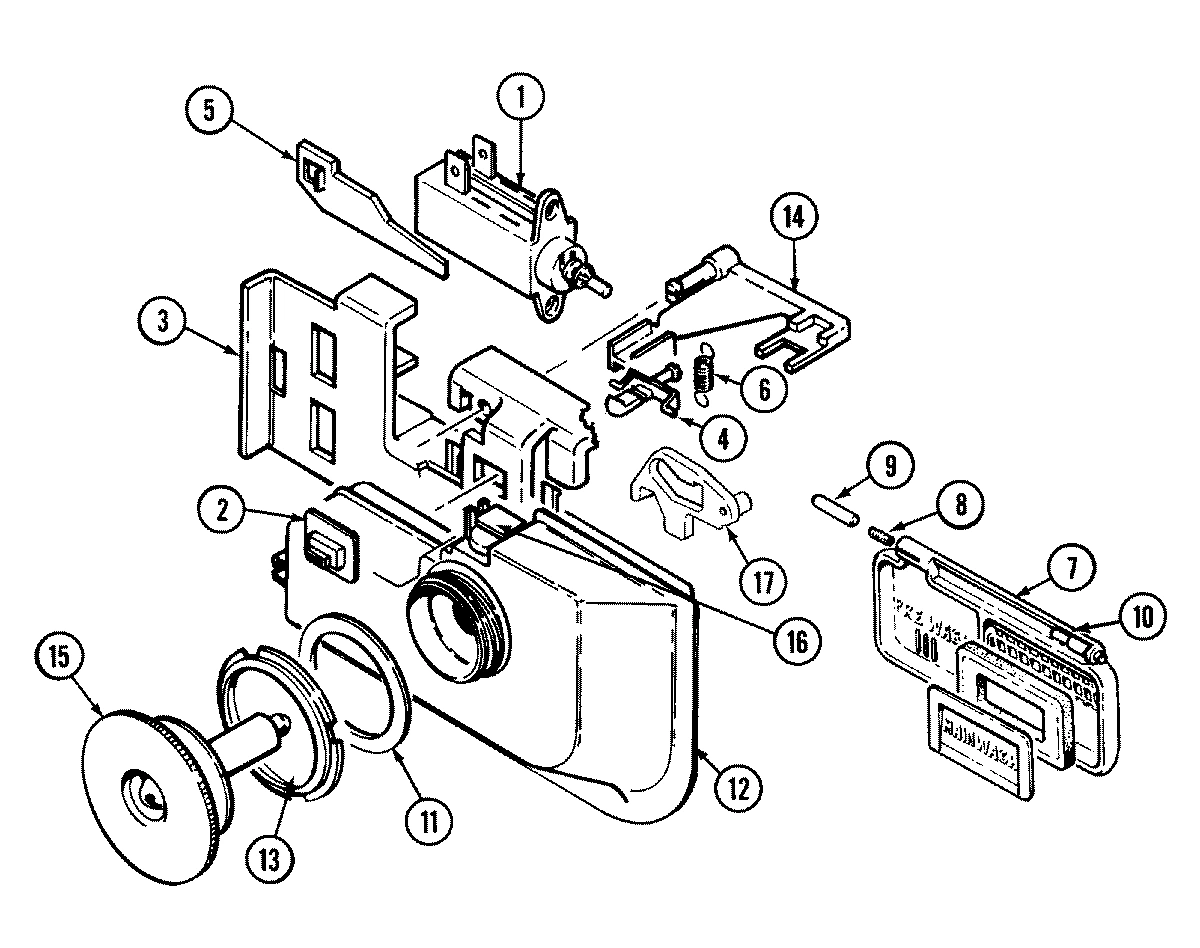

05 - RINSE AID ASSEMBLY

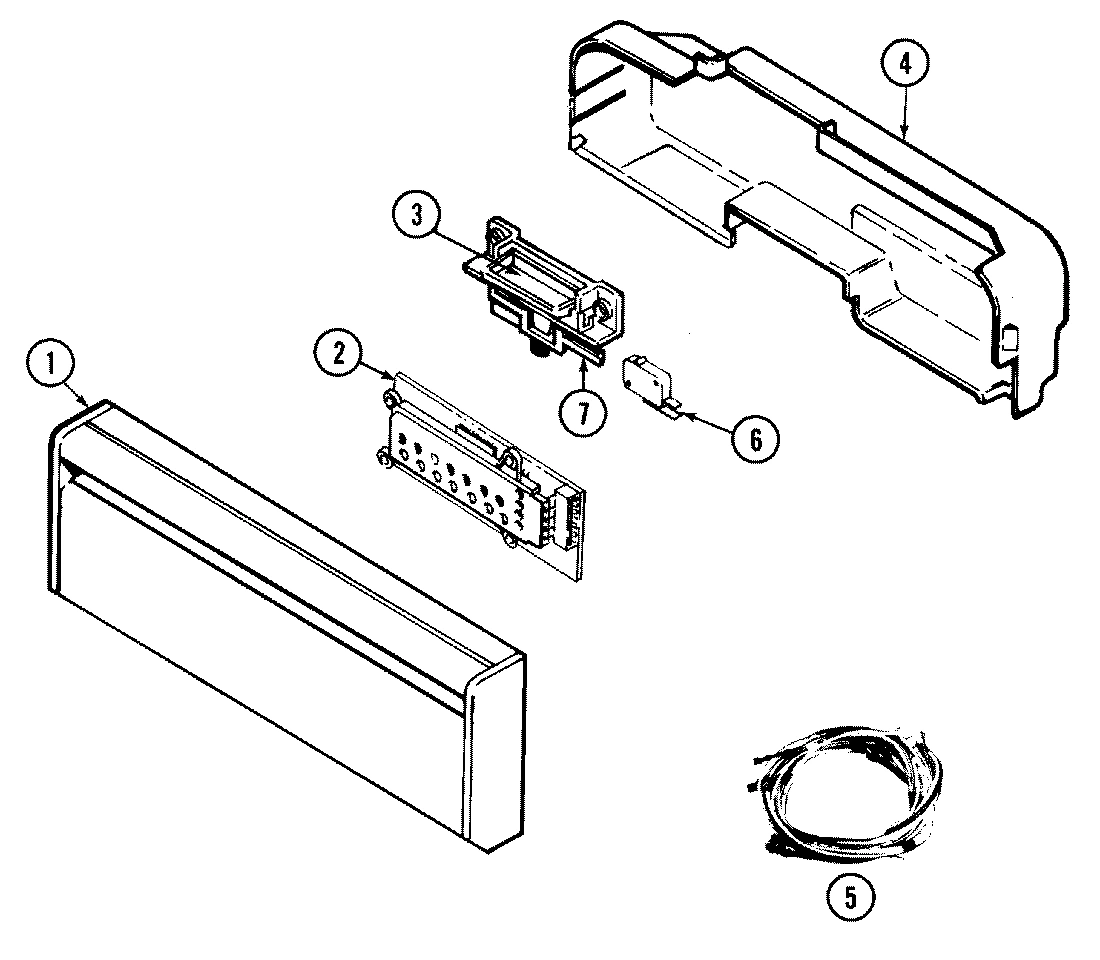

02 - CONTROL PANEL

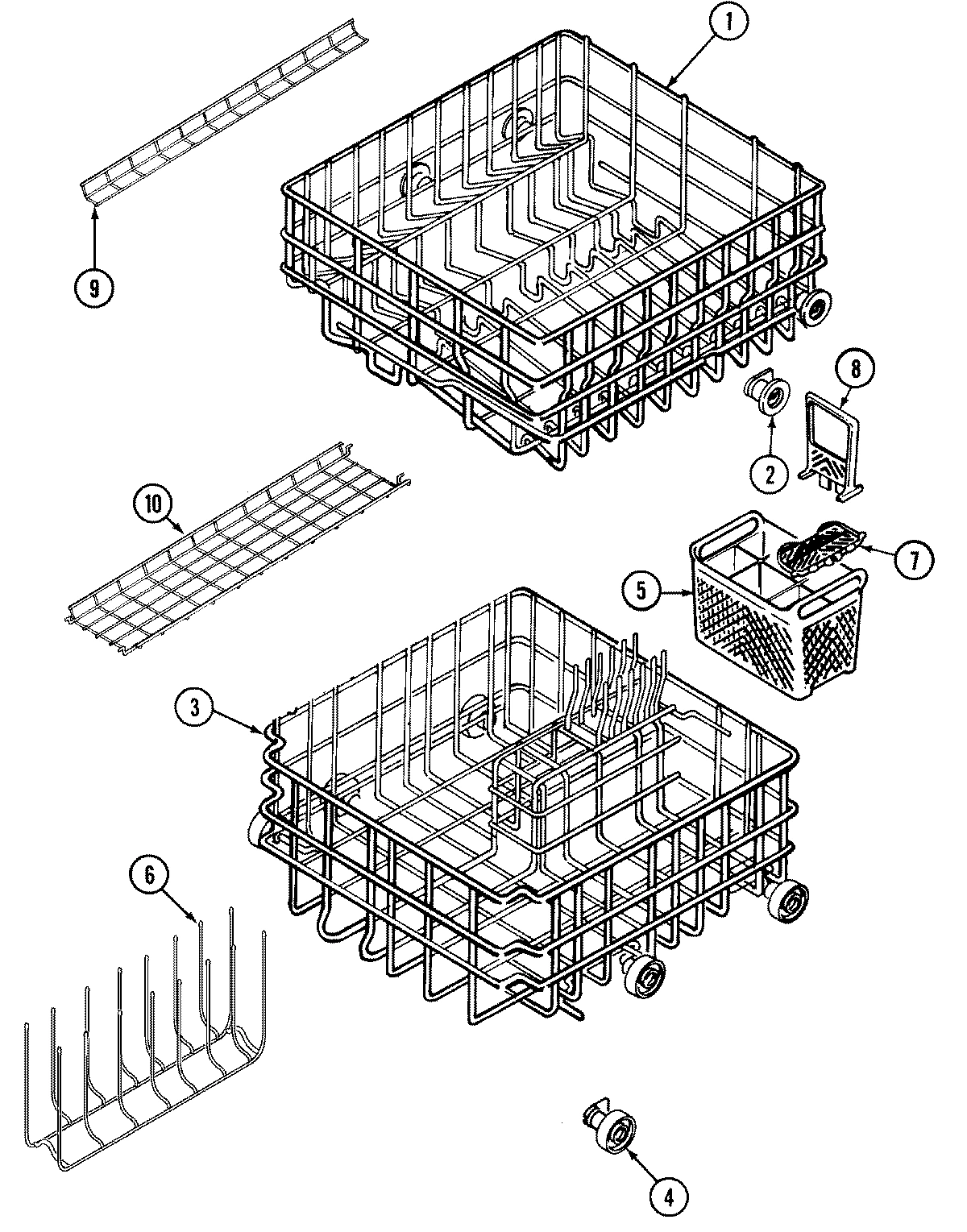

04 - RACKS

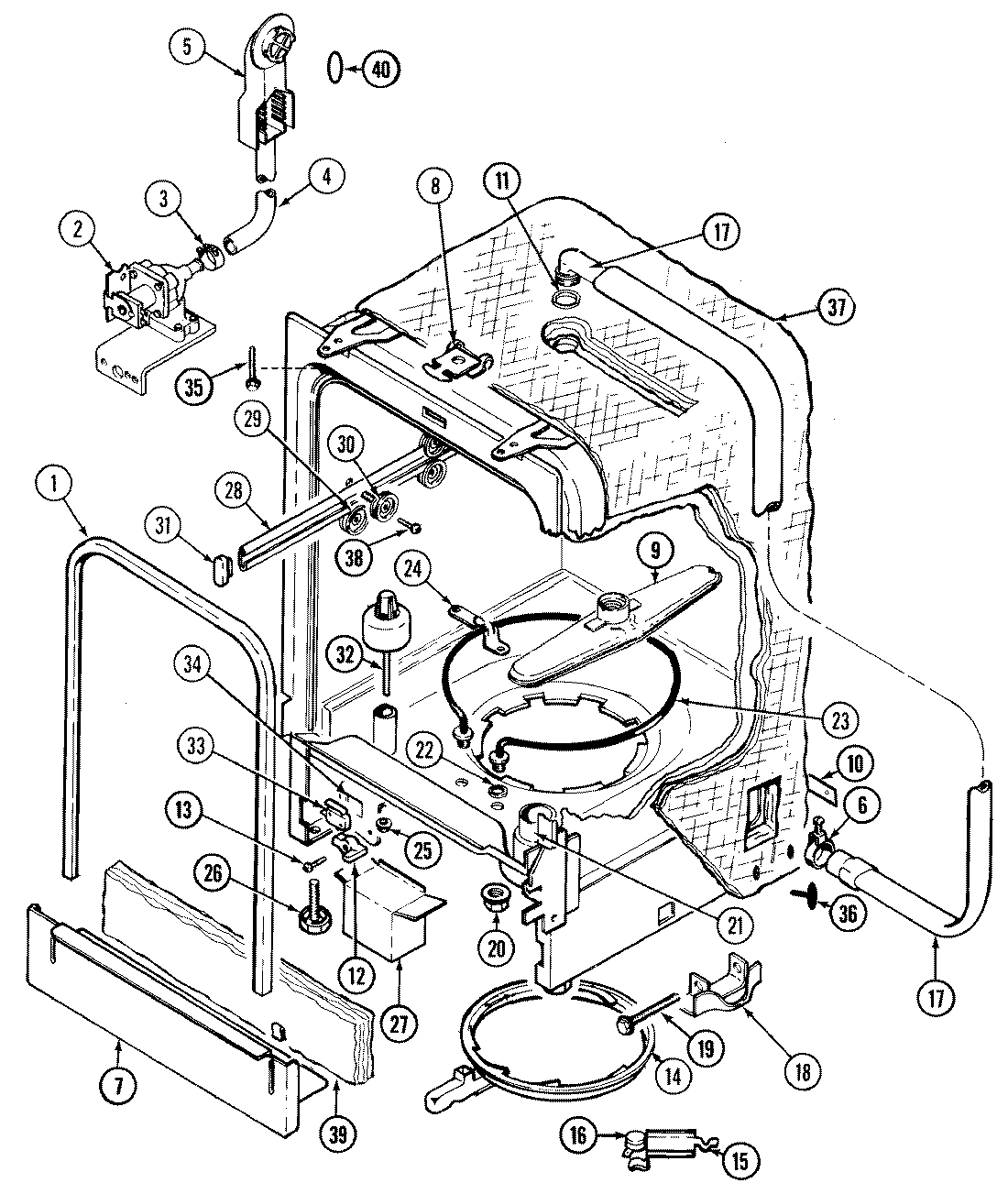

06 - TUB

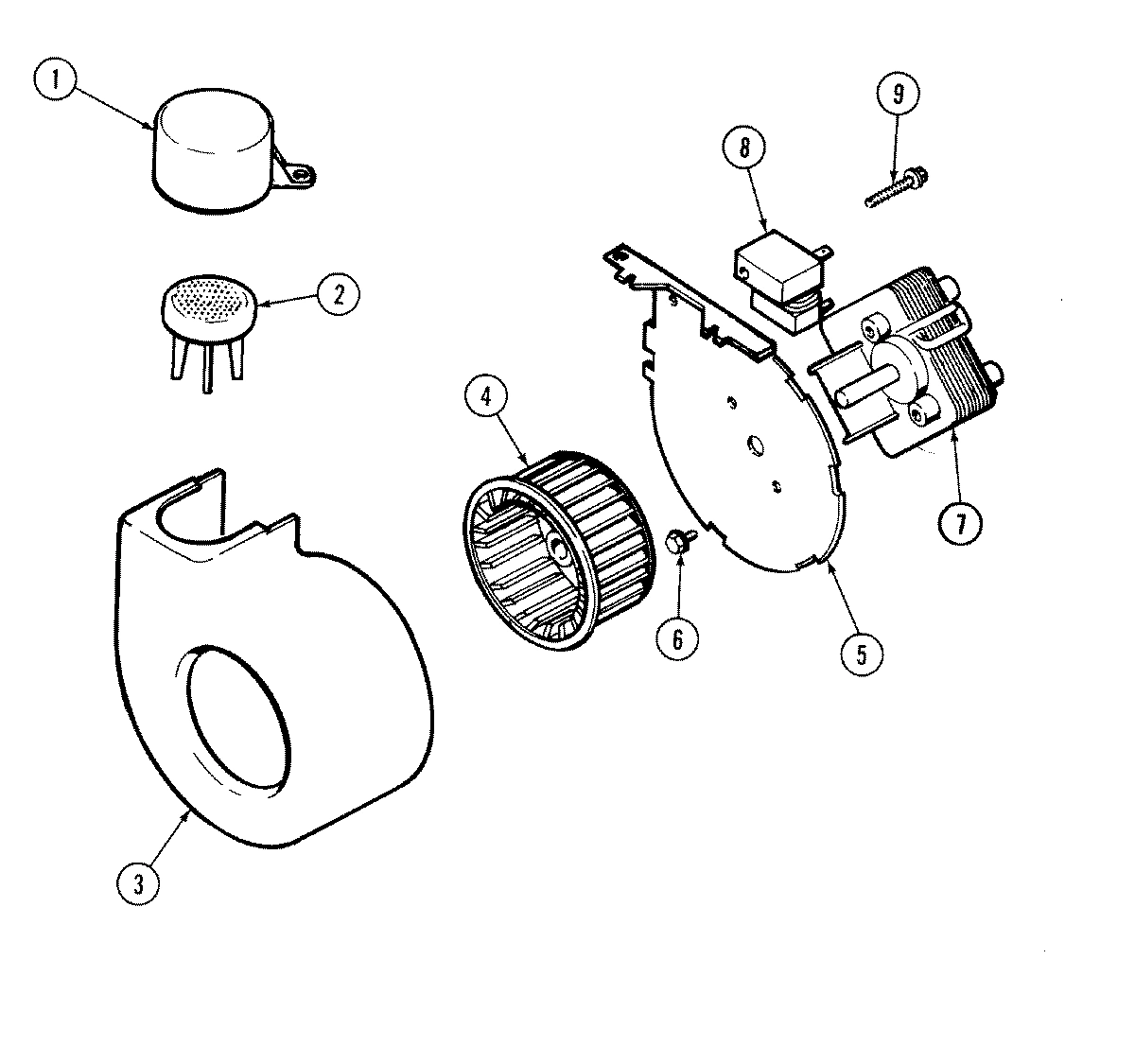

01 - BLOWER
Common parts from model Whirlpool DW980W-CAN DISHWASHER
1
SCREW WPL 912622 Contact Us For Availability
1
PANEL, CONTROL (WHT) WPL 903894 Contact Us For Availability
1
PANEL, CONTROL (WHT) WPL 99001285 Contact Us For Availability
1
RACK (UPR) WPL 903918 Contact Us For Availability
1
CAP, AIR INLET WPL Y912659 Contact Us For Availability
2
GROMMET, DISPENSER WPL W10131752 No Longer Available
2
FAN, MOTOR WPL Y912903 Contact Us For Availability
2
PCB & MTG. PLATE ASSY. WPL 903926 Contact Us For Availability
2
PCB & MOUNTING PLATE ASSY. WPL 99001001 Contact Us For Availability
2
SHIELD, PCB (PLASTIC FILM) WPL Y913181 Contact Us For Availability
2
SCREEN, BLOWER VALVE WPL Y912660 Contact Us For Availability
2
BAFFLE, WATER WPL Y913085 Contact Us For Availability
3
RETAINER, IMPELLER WPL Y913173 Contact Us For Availability
3
``O`` RING, MOTOR WPL Y913174 Contact Us For Availability
3
RETAINER WPL Y912673 Contact Us For Availability
3
HOLDER, DOOR SWITCH WPL Y912664 Contact Us For Availability
3
RACK (LWR) WPL 903923 Contact Us For Availability
3
HOUSING, BLOWER WPL 912556 Contact Us For Availability
4
HOSE, INJECTOR WPL 912633 Contact Us For Availability
4
BARRIER, CONTROL PANEL WPL Y912667 Contact Us For Availability
4
WHEEL ASSEMBLY (LWR) WPL 903815 Contact Us For Availability
4
WHEEL, BLOWER WPL 902902 Contact Us For Availability
5
LATCH, SLIDER WPL Y912675 Contact Us For Availability
5
RETAINER, WIRE WPL 315471 Contact Us For Availability
5
WIRE HARNESS, MAIN-CANADA WPL 903542 Contact Us For Availability
5
WIRE HARNESS, MAIN WPL 99001053 Contact Us For Availability
5
CLIP, WIRE HARNESS WPL Y913176 Contact Us For Availability
5
INJECTOR, WATER WPL 912533 Contact Us For Availability
5
PLATE, BLOWER WPL 912557 Contact Us For Availability
6
``E`` CLIP, ``D`` SHAFT WPL Y913109 Contact Us For Availability
6
INSERT, LOWER RACK WPL 903859 Contact Us For Availability
7
CRANK, ``D`` SHAFT WPL 913099 Contact Us For Availability
7
LID, DETERGENT CUP WPL 903108 Contact Us For Availability
7
KIT, LATCH HANDLE (WHT) WPL 12001118 Contact Us For Availability
7
HANDLE, LATCH (WHT) WPL Y912793 Contact Us For Availability
7
CLIP, GROUNDING WPL 912882 Contact Us For Availability
7
PANEL, TOE (WHT) WPL 99001112 Contact Us For Availability
7
SCREW, ACCESS PANEL WPL 99001194 Contact Us For Availability
7
PANEL, TOE (BLK) WPL Y912694 Contact Us For Availability
7
MOTOR, BLOWER WPL 902900 Contact Us For Availability
8
SPRING, RETURN WPL Y913201 Contact Us For Availability
8
RELAY, MOTOR WPL 903482 Contact Us For Availability
8
SPRING, CUP LID WPL Y912547 Contact Us For Availability
8
MANUAL, USE & CARE (FRENCH) WPL Y913026 Contact Us For Availability
8
HANDLE, SILVERWARE BASKET WPL Y912708 Contact Us For Availability
8
SPRING, LATCH WPL 912648 Contact Us For Availability
8
HOOK, LATCH WPL 912649 Contact Us For Availability
8
RETAINER, LATCH WPL 912650 Contact Us For Availability
8
SCREW, LATCH WPL Y912873 Contact Us For Availability
9
BRACKET, SOLENOID WPL Y913203 Contact Us For Availability
9
SCREW, RELAY WPL 912612 Contact Us For Availability
9
SHELF, UPPER RACK WPL 903861 Contact Us For Availability
9
CLIP, UPPER RACK SHELF WPL Y912984 Contact Us For Availability
10
STRAP, SUPPORT WPL 912654 Contact Us For Availability
11
GASKET, RESERVOIR WPL Y913061 Contact Us For Availability
11
WASHER, TUB TOP WPL 910069 Contact Us For Availability
12
WIRE, GROUND WPL 903882 Contact Us For Availability
12
LEVER, ACTUATOR WPL 912014 Contact Us For Availability
13
``D`` SHAFT WPL 913105 Contact Us For Availability
13
NUT, RESERVOIR WPL Y913060 Contact Us For Availability
13
PIN, LEVER PIVOT WPL 912015 Contact Us For Availability
14
SCREW, MOTOR WPL Y912892 Contact Us For Availability
14
ACTUATOR, RINSE AID WPL 912576 Contact Us For Availability
14
RING, LOCKING WPL Y912686 Contact Us For Availability
15
CLIP, THERMOSTAT WPL 99001008 Contact Us For Availability
15
BRACKET, THERMOSTAT WPL Y912698 Contact Us For Availability
16
SHIELD, MOTOR WPL Y912931 Contact Us For Availability
16
PLUNGER ASSEMBLY WPL 903124 Contact Us For Availability
16
THERMOSTAT WPL 903078 Contact Us For Availability
16
THERMOSTAT (TEMP. BOOST) WPL 903120 Contact Us For Availability
16
THERMOSTAT, BOOST (36TX02) WPL 99001005 Contact Us For Availability
16
THERMOSTAT, LIMITING WPL 99001006 Contact Us For Availability
17
VALVE, FILTER WPL Y913135 Contact Us For Availability
17
HOSE, TOP SHOWER WPL 912647 Contact Us For Availability
18
SPRING, FILTER VALVE WPL Y913134 Contact Us For Availability
18
BRACKET, ADJUSTING WPL 912651 Contact Us For Availability
19
GASKET, PUMP WPL 912529 Contact Us For Availability
19
SCREW, ADJUSTING BRACKET WPL 912613 Contact Us For Availability
20
WASHER, SHAFT SEAL WPL 913106 Contact Us For Availability
20
NUT, HEATING ELEMENT WPL 912645 Contact Us For Availability
22
NUT, SPRAY ARM SUPPORT WPL Y912930 Contact Us For Availability
22
WASHER, HEATING ELEMENT WPL 910603 Contact Us For Availability
23
LIFTER WPL Y913200 Contact Us For Availability
23
ELEMENT, HEATING WPL 903096 Contact Us For Availability
24
``E`` CLIP, ``D`` SHAFT WPL 913110 Contact Us For Availability
24
BRACKET, HEATING ELEMENT WPL Y912541 Contact Us For Availability
25
SEAT, SEAL WPL 903494 Contact Us For Availability
26
SEAL HEAD ASSY. WPL 903493 Contact Us For Availability
27
IMPELLER, PUMP WPL 903962 Contact Us For Availability
27
BOX, TERMINAL WPL 912563 Contact Us For Availability
28
RING, WEAR WPL Y912901 Contact Us For Availability
29
PLATE, CHOPPER WPL Y912913 Contact Us For Availability
30
CHOPPER WPL Y912909 Contact Us For Availability
30
CHOPPER WPL Y913274 Contact Us For Availability
31
SCREW, CHOPPER WPL 913275 Contact Us For Availability
32
HOUSING, PUMP WPL Y912902 Contact Us For Availability
32
FLOAT WPL 99001187 Contact Us For Availability
33
SCREW WPL 912012 Contact Us For Availability
34
FLAPPER, DRAIN WPL Y912924 Contact Us For Availability
34
BRACKET, WATER LEVEL SWITCH WPL 912656 Contact Us For Availability
35
NOT REQUIRED PART OR SEE NOTE WIRE HARNESS, C WPL W10124350 Contact Us For Availability
35
SPRING, FLAPPER WPL Y913202 Contact Us For Availability
36
VOLUTE, PUMP (W/SHAFT) WPL Y912915 Contact Us For Availability
36
FASTENER, INSULATION WPL 911917 Contact Us For Availability
37
SCREW, PUMP VOLUTE WPL Y912891 Contact Us For Availability
37
DAMPER, SOUND (TOP-BACK) WPL 912747 Contact Us For Availability
37
DAMPER, SOUND (BACK) WPL 912749 Contact Us For Availability
37
DAMPER, SOUND (LT) WPL Y912744 Contact Us For Availability
37
DAMPER, SOUND (RT) WPL Y912745 Contact Us For Availability
37
DAMPER, SOUND (TOP-FRT) WPL Y913097 Contact Us For Availability
38
SEAL, RING WPL Y912904 Contact Us For Availability
40
WPL 904026 WPL 904026 Contact Us For Availability
40
WPL 912644 WPL 912644 Contact Us For Availability
41
WPL Y912895 WPL Y912895 Contact Us For Availability
43
WPL Y913159 WPL Y913159 Contact Us For Availability
46
WPL 903736 WPL 903736 Contact Us For Availability
47
WPL Y913131 WPL Y913131 Contact Us For Availability
48
WPL Y913132 WPL Y913132 Contact Us For Availability
× ![]()
