Model Electrolux DW6000AWL1 DISHWASHER – Common Parts & Diagrams

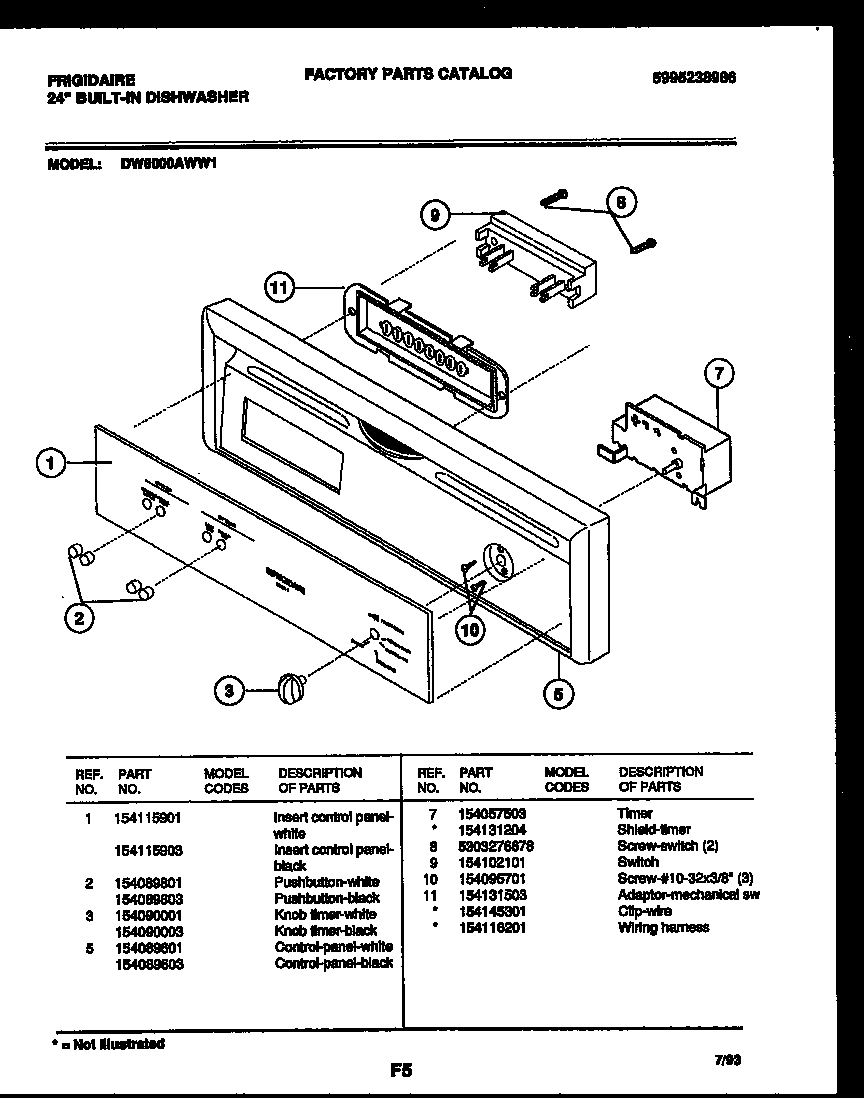

02 - CONSOLE AND CONTROL PARTS

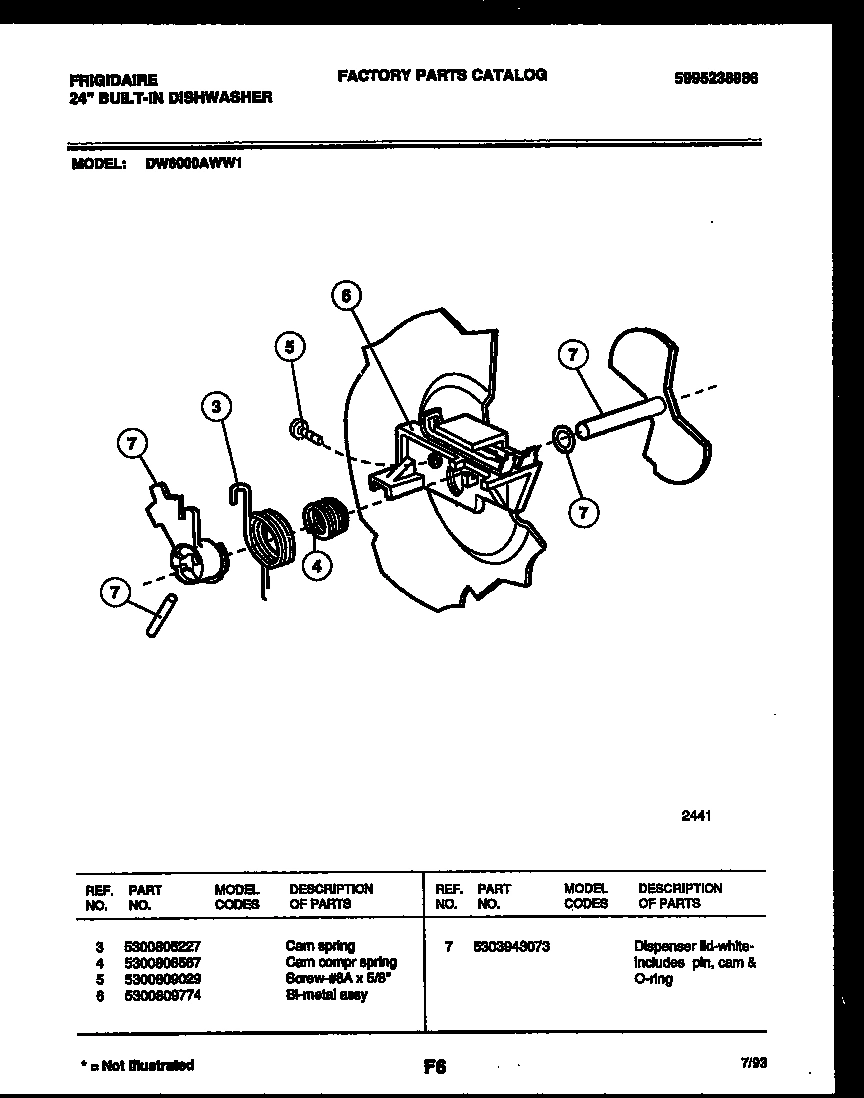

03 - CAM

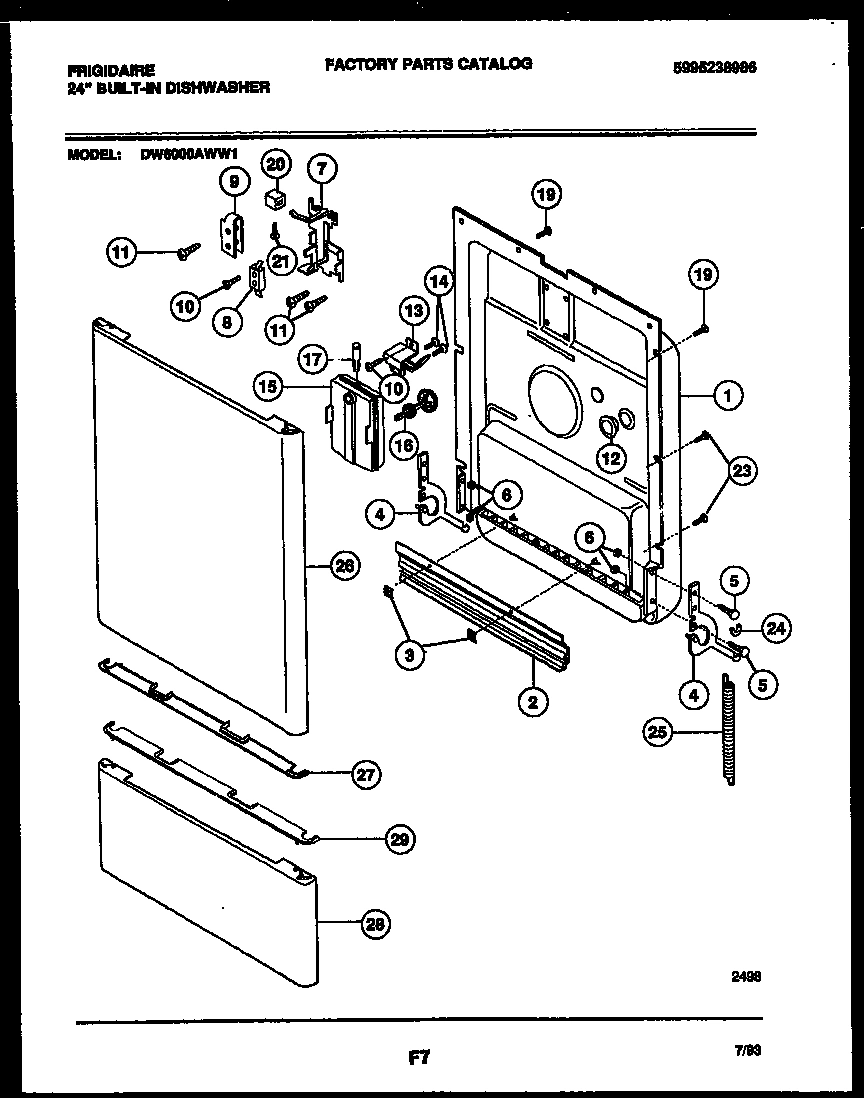

04 - DOOR PARTS

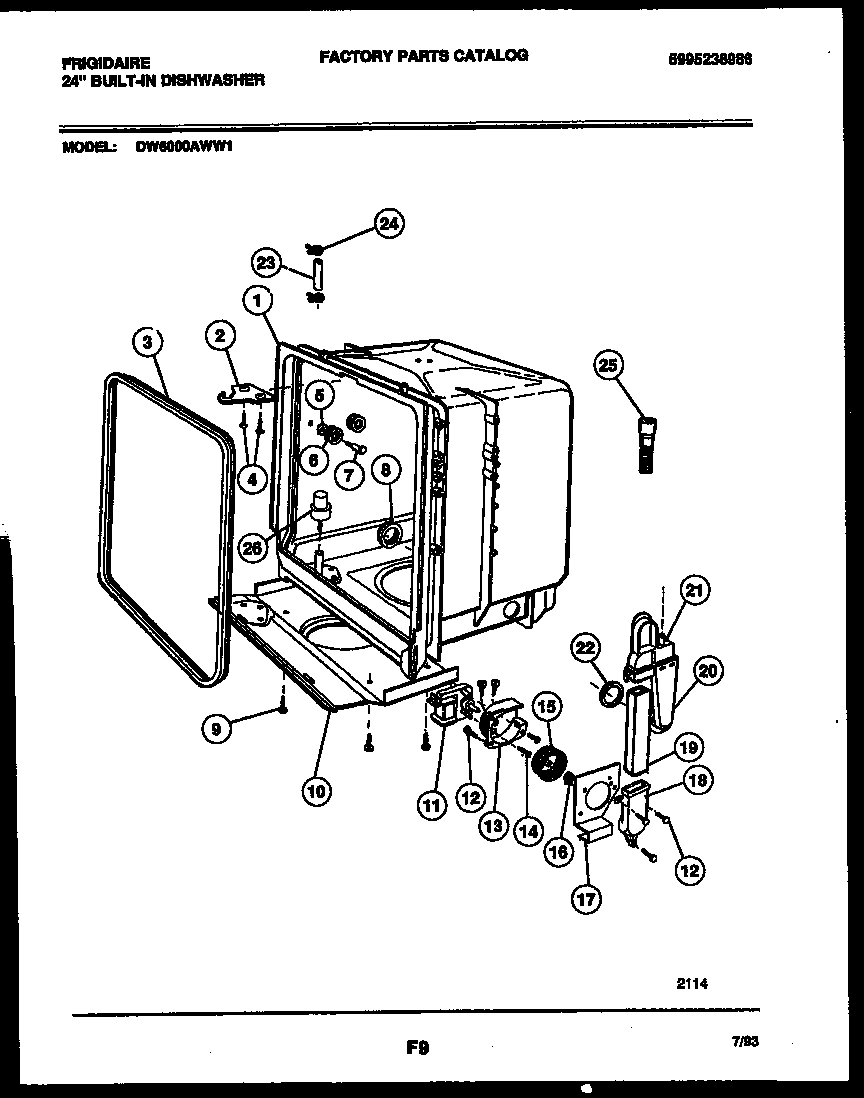

05 - TUB AND FRAME PARTS

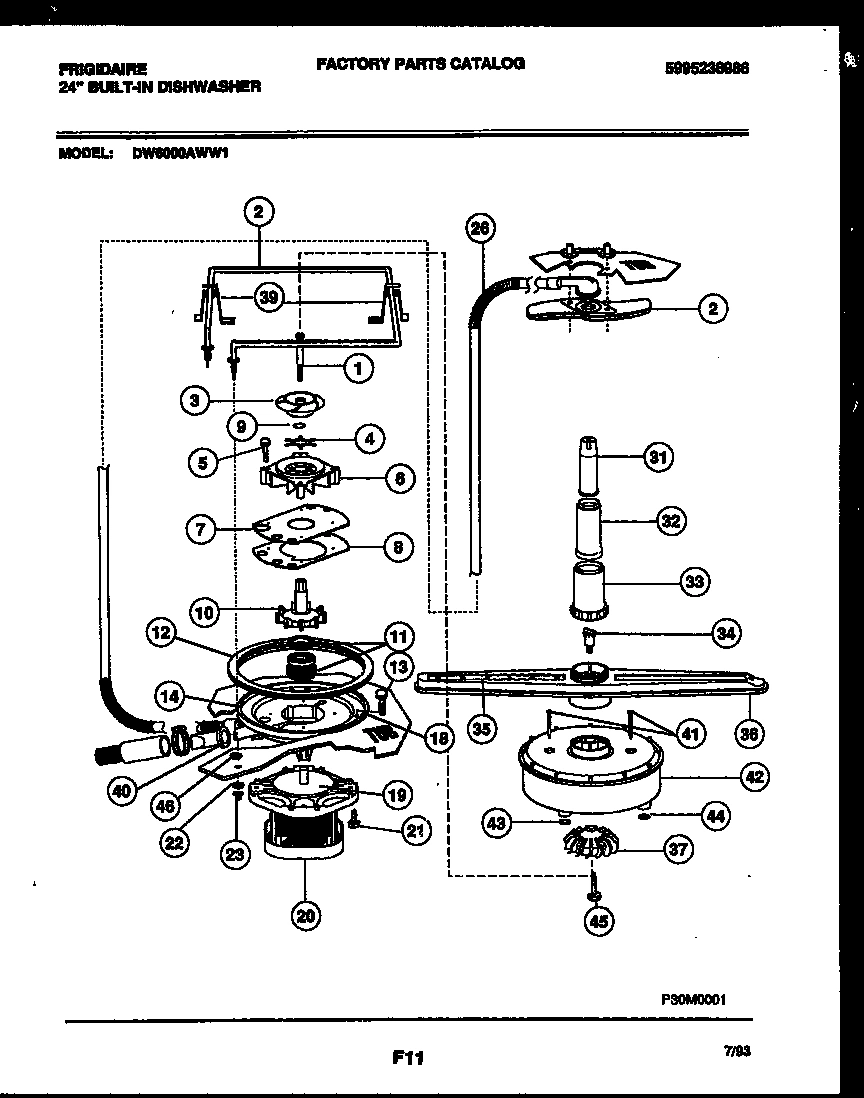

06 - MOTOR PUMP PARTS

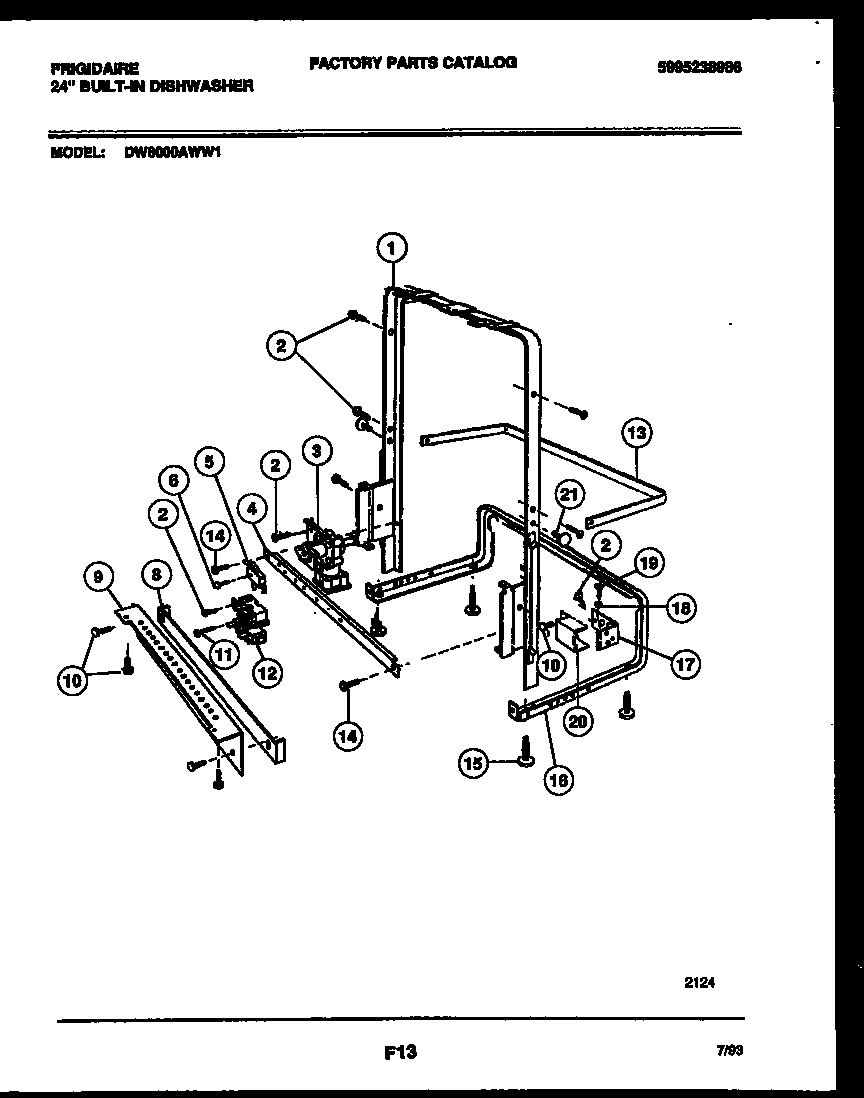

07 - POWER DRY AND MOTOR PARTS

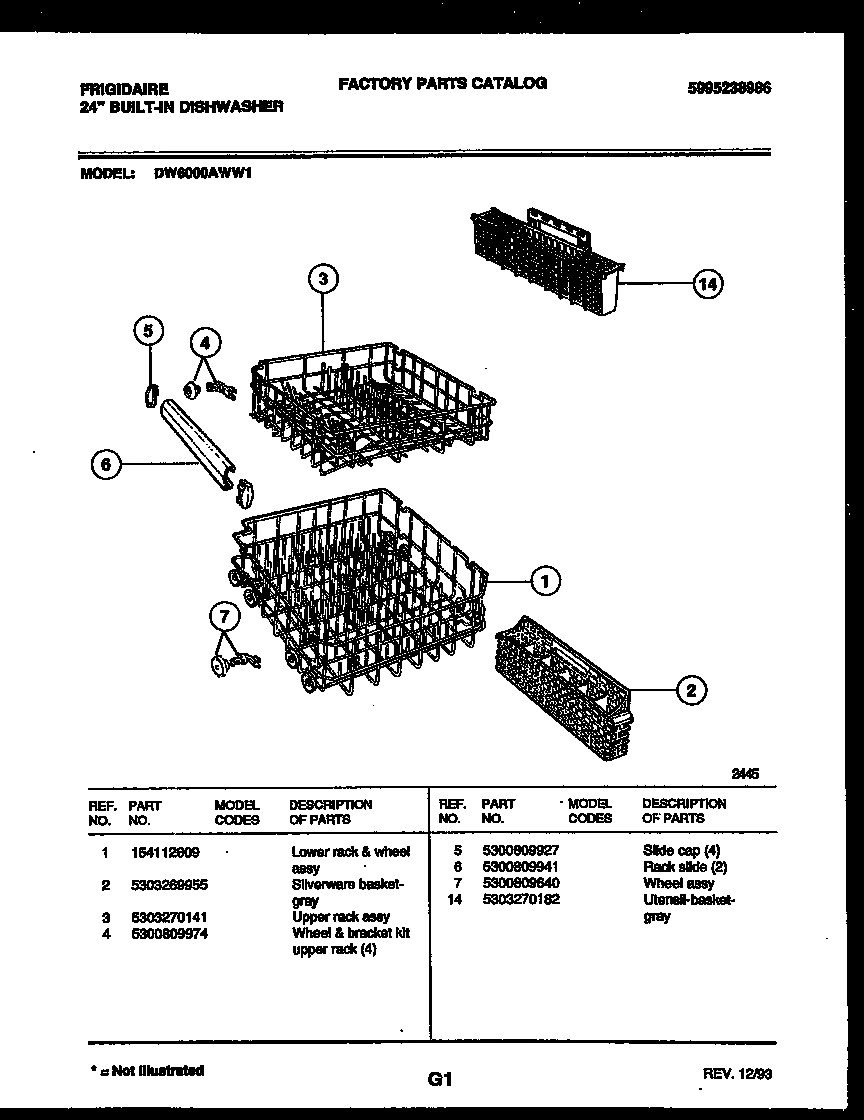

08 - RACKS AND TRAYS
Common parts from model Electrolux DW6000AWL1 DISHWASHER
*80721
WCI 5300809781 WCI 5300809781 Contact Us For Availability
*80728
WCI 154123301 WCI 154123301 Contact Us For Availability
*80728
WCI 5303212477 WCI 5303212477 Contact Us For Availability
1
WCI 5300806353 WCI 5300806353 Contact Us For Availability
1
WCI 5303943090 WCI 5303943090 Contact Us For Availability
1
WCI 5300809604 WCI 5300809604 Contact Us For Availability
1
LOWER RACK & WHEEL ASSY WCI 154112609 Contact Us For Availability
2
WCI 5300809610 WCI 5300809610 Contact Us For Availability
2
HEATER-INCLUDES 22 & 23 WCI 5300809584 Contact Us For Availability
2
SCREW-10 X 3/8`` WCI 5300807004 Contact Us For Availability
3
WCI 5300809611 WCI 5300809611 Contact Us For Availability
3
WCI 5300809606 WCI 5300809606 Contact Us For Availability
3
WCI 5303270141 WCI 5303270141 Contact Us For Availability
4
ARM-COUNTERBALANCE (2) WCI 5303270031 Contact Us For Availability
4
SCREW-10 X 5/8`` (2) WCI 154026001 Contact Us For Availability
4
WCI 5303286368 WCI 5303286368 Contact Us For Availability
5
WCI 5300809863 WCI 5300809863 Contact Us For Availability
5
SCREW-10 X 1 3/4`` (4) WCI 5300807359 Contact Us For Availability
6
WCI 5300809921 WCI 5300809921 Contact Us For Availability
6
WCI 5300804594 WCI 5300804594 Contact Us For Availability
6
RACK SLIDE (2) WCI 5300809941 Contact Us For Availability
7
WCI 5300809006 WCI 5300809006 Contact Us For Availability
8
WCI 5300809724 WCI 5300809724 Contact Us For Availability
8
WCI 5300809007 WCI 5300809007 Contact Us For Availability
8
WCI 5300809303 WCI 5300809303 Contact Us For Availability
9
WCI 5300809765 WCI 5300809765 Contact Us For Availability
10
PUMP IMPELLER KIT-INCLUDES 3, 4, 9 & 11 WCI 5300809909 Contact Us For Availability
10
WCI 5300809614 WCI 5300809614 Contact Us For Availability
11
WCI 5300803903 WCI 5300803903 Contact Us For Availability
11
WCI 5300809725 WCI 5300809725 Contact Us For Availability
11
WCI 5300804672 WCI 5300804672 Contact Us For Availability
12
WCI 154102801 WCI 154102801 Contact Us For Availability
12
WCI 5303351059 WCI 5303351059 Contact Us For Availability
13
WCI 5300809782 WCI 5300809782 Contact Us For Availability
13
WCI 5300809726 WCI 5300809726 Contact Us For Availability
13
SCREW 10 X 1 (8) WCI 5300807268 Contact Us For Availability
13
WCI 5300809712 WCI 5300809712 Contact Us For Availability
14
SCREW-8-32 X 3/8``(2) WCI 5300809731 Contact Us For Availability
14
WCI 5300809591 WCI 5300809591 Contact Us For Availability
14
SCREW-10 X 5/8`` WCI 5303211177 Contact Us For Availability
14
UTENSIL-BASKET-GRAY WCI 5303270182 Contact Us For Availability
14A
HOSE CLAMP (NON-ILLUSTRATED) WCI 5300808186 Contact Us For Availability
14B
CONNECTOR HOSE (NON-ILLUSTRATED) WCI 5300808174 Contact Us For Availability
15
BODY-RINSE AGENT DISPENSER WCI 5300806753 Contact Us For Availability
15
WCI 08016015 WCI 08016015 Contact Us For Availability
15
LEVELER(4) WCI 154026101 Contact Us For Availability
16
WCI 5300809728 WCI 5300809728 Contact Us For Availability
16
WCI 5303211181 WCI 5303211181 Contact Us For Availability
17
WCI 5300809898 WCI 5300809898 Contact Us For Availability
17
WCI 5300809615 WCI 5300809615 Contact Us For Availability
17
WCI 5300807019 WCI 5300807019 Contact Us For Availability
18
WCI 5300809729 WCI 5300809729 Contact Us For Availability
18
CLAMP RING WCI 5300809590 Contact Us For Availability
19
WCI 5300809366 WCI 5300809366 Contact Us For Availability
19
WCI 5300809617 WCI 5300809617 Contact Us For Availability
19
WCI 5300807951 WCI 5300807951 Contact Us For Availability
20
WCI 5300809616 WCI 5300809616 Contact Us For Availability
20
MOTOR ASSY-INCLUDES 1, 9 & 19 WCI 5300809984 Contact Us For Availability
20
WCI 08057593 WCI 08057593 Contact Us For Availability
21
WCI 5300809730 WCI 5300809730 Contact Us For Availability
21
SCREW-10 X 1`` (4) WCI 5300809022 Contact Us For Availability
21
WCI 5300809711 WCI 5300809711 Contact Us For Availability
22
WCI 5300809618 WCI 5300809618 Contact Us For Availability
22
HEATER WASHER (2) WCI 5300809587 Contact Us For Availability
23
WCI 5300809619 WCI 5300809619 Contact Us For Availability
24
WCI 5300807813 WCI 5300807813 Contact Us For Availability
26
WCI 154144301 WCI 154144301 Contact Us For Availability
26
WCI 154119301 WCI 154119301 Contact Us For Availability
27
WCI 154119401 WCI 154119401 Contact Us For Availability
27A
WCI 154126401 WCI 154126401 Contact Us For Availability
27B
SCREW 8 X .438 C.R. TRUSS S.S. (4) WCI 5300809055 Contact Us For Availability
28
WCI 154087702 WCI 154087702 Contact Us For Availability
29
WCI 154087802 WCI 154087802 Contact Us For Availability
31
WCI 154122701 WCI 154122701 Contact Us For Availability
32
WCI 154122601 WCI 154122601 Contact Us For Availability
33
WCI 154122501 WCI 154122501 Contact Us For Availability
34
WCI 5300809018 WCI 5300809018 Contact Us For Availability
35
WCI 5300809954 WCI 5300809954 Contact Us For Availability
36
WCI 5300809938 WCI 5300809938 Contact Us For Availability
37
WCI 5300809014 WCI 5300809014 Contact Us For Availability
39
BRACKET-HEATER (2) WCI 5300809585 Contact Us For Availability
39A
SCREW-10 X 5/8`` (2) (NON-ILLUSTRATED) WCI 5300810094 Contact Us For Availability
40
WCI 5300809937 WCI 5300809937 Contact Us For Availability
41
WCI 5300809012 WCI 5300809012 Contact Us For Availability
44
WCI 5300809011 WCI 5300809011 Contact Us For Availability
45
WCI 5300809073 WCI 5300809073 Contact Us For Availability
46
WASHER-INSULATING WCI 154064901 Contact Us For Availability
× ![]()
