Model Electrolux DW3350LW3 DISHWASHER – Common Parts & Diagrams

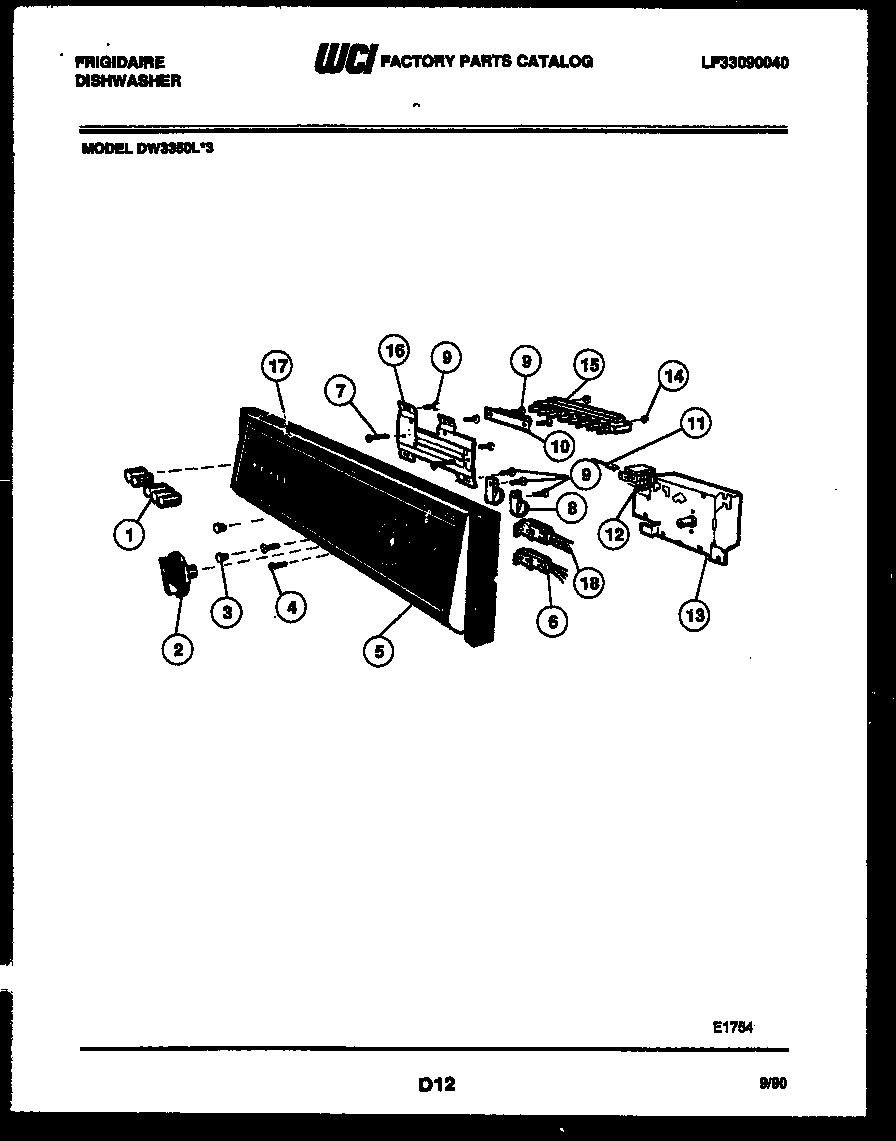

02 - CONSOLE AND CONTROL PARTS

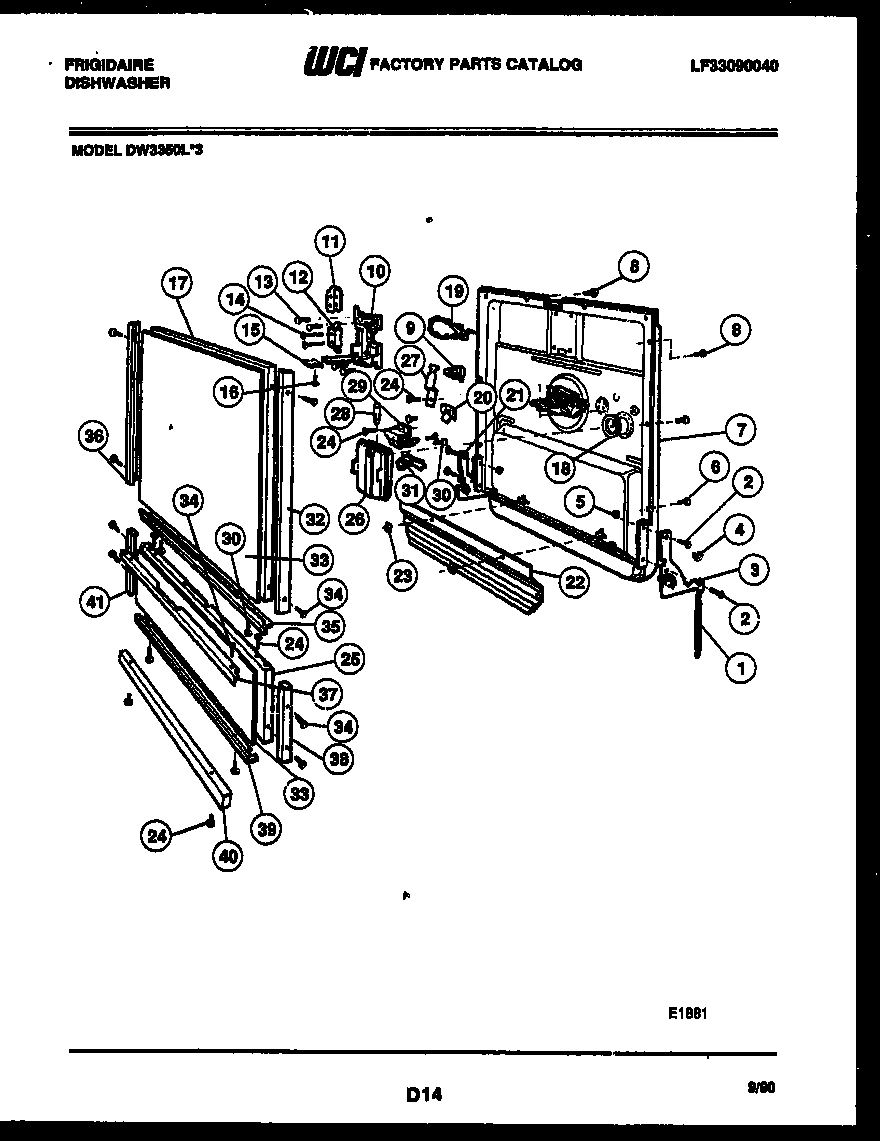

03 - DOOR PARTS
04 - CAM

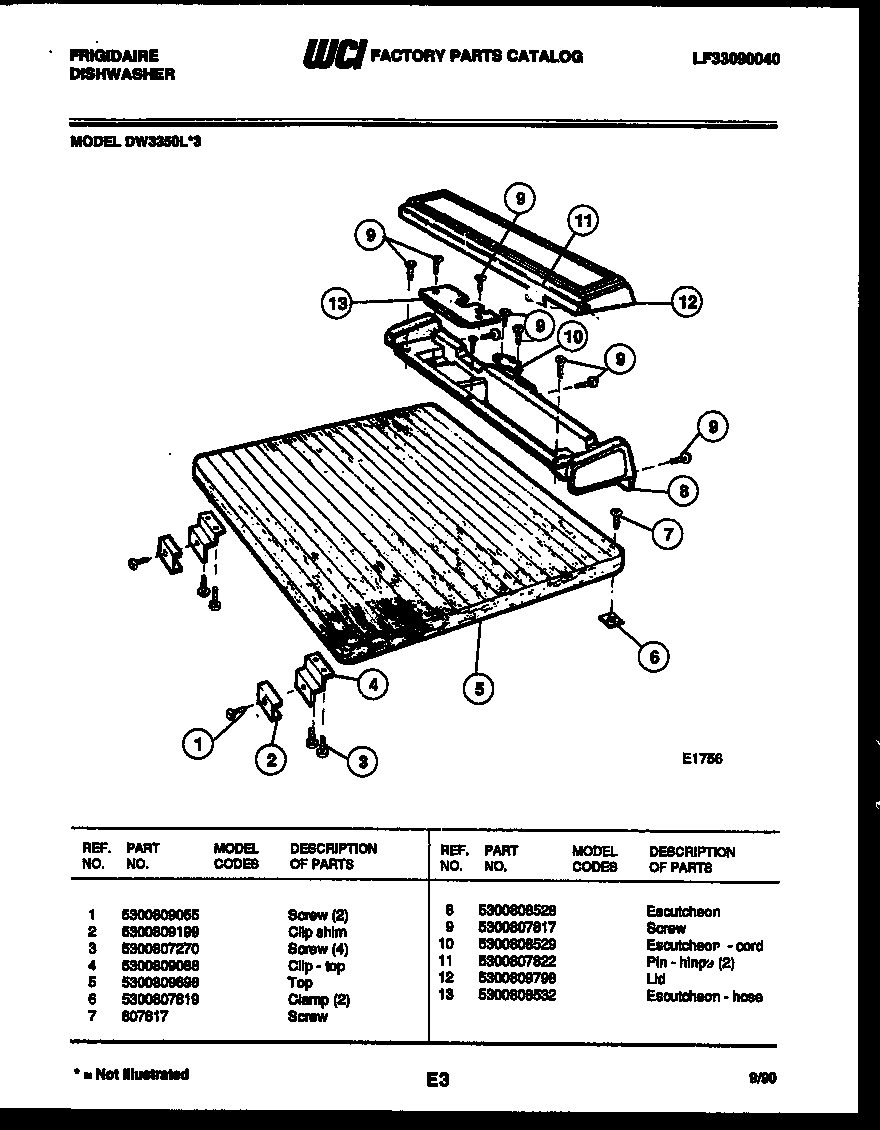

05 - TOP AND MISCELLANEOUS PARTS

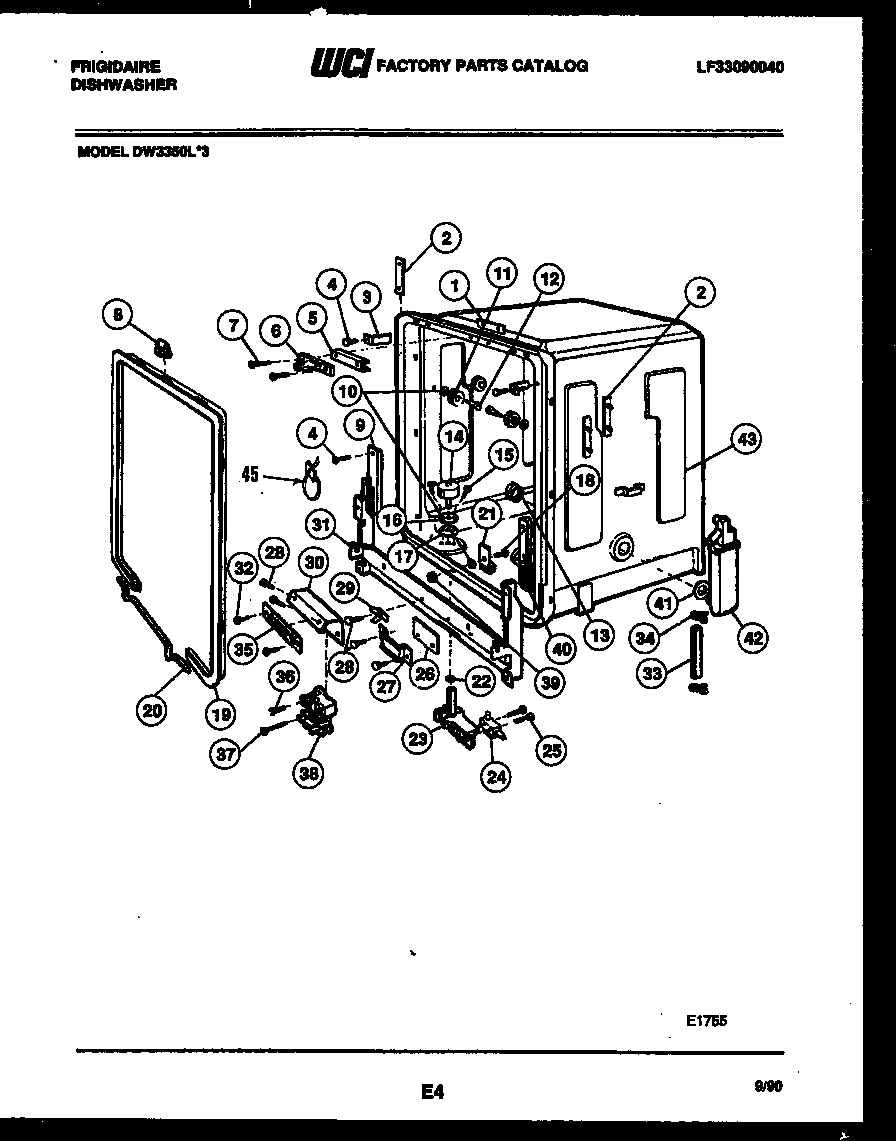

06 - TUB AND FRAME PARTS

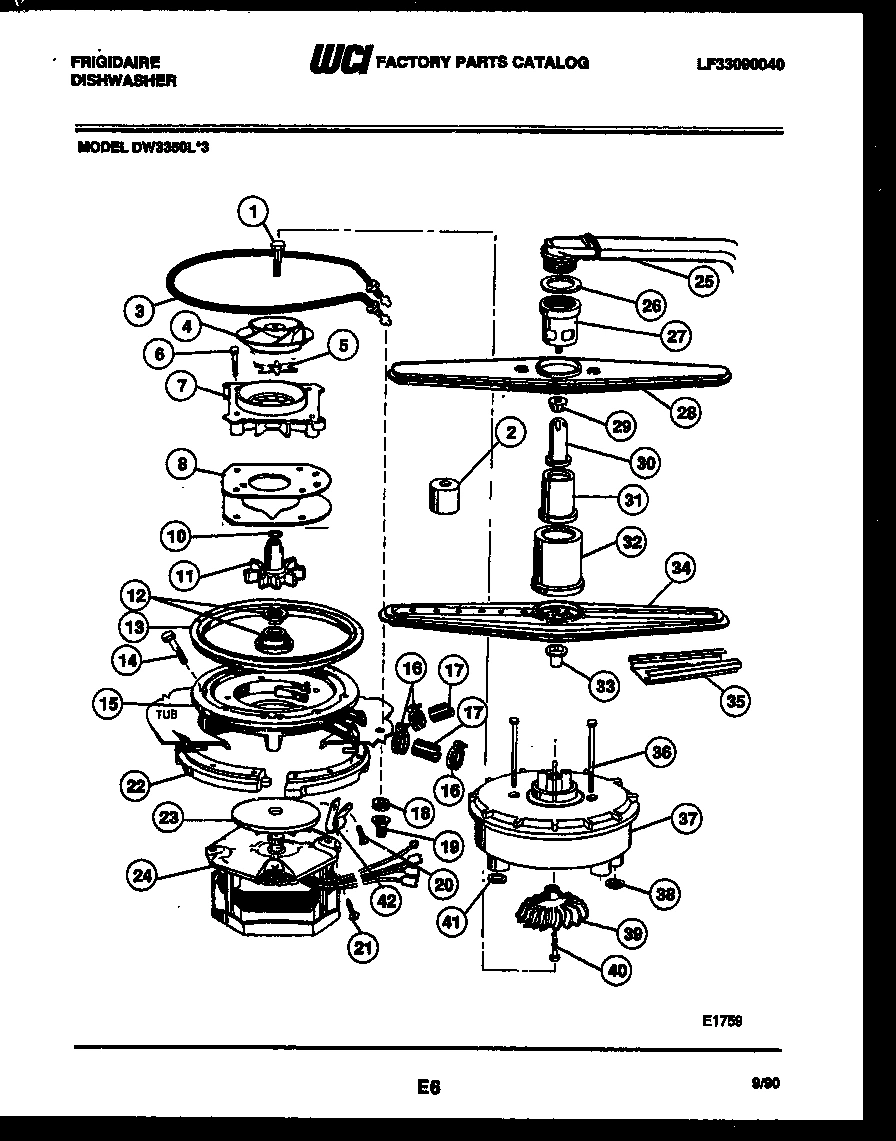

07 - MOTOR PUMP PARTS

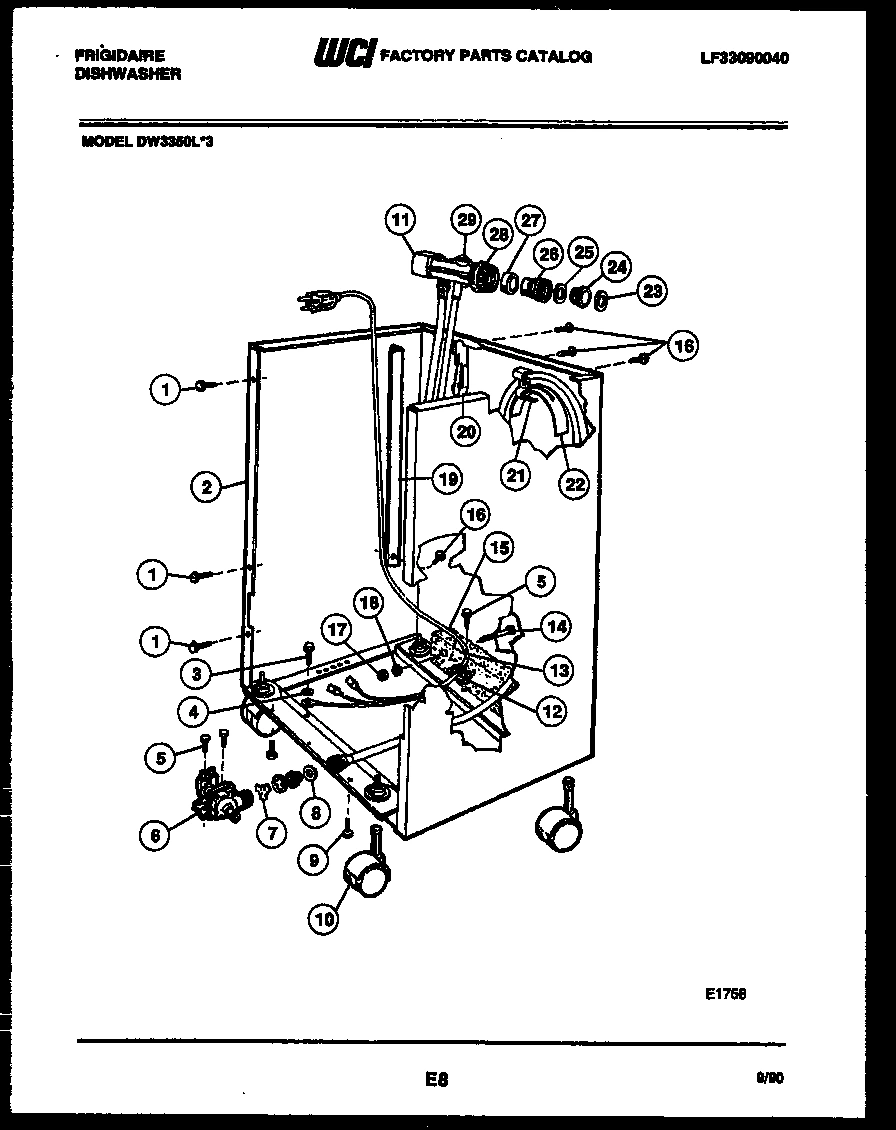

08 - CABINET PARTS

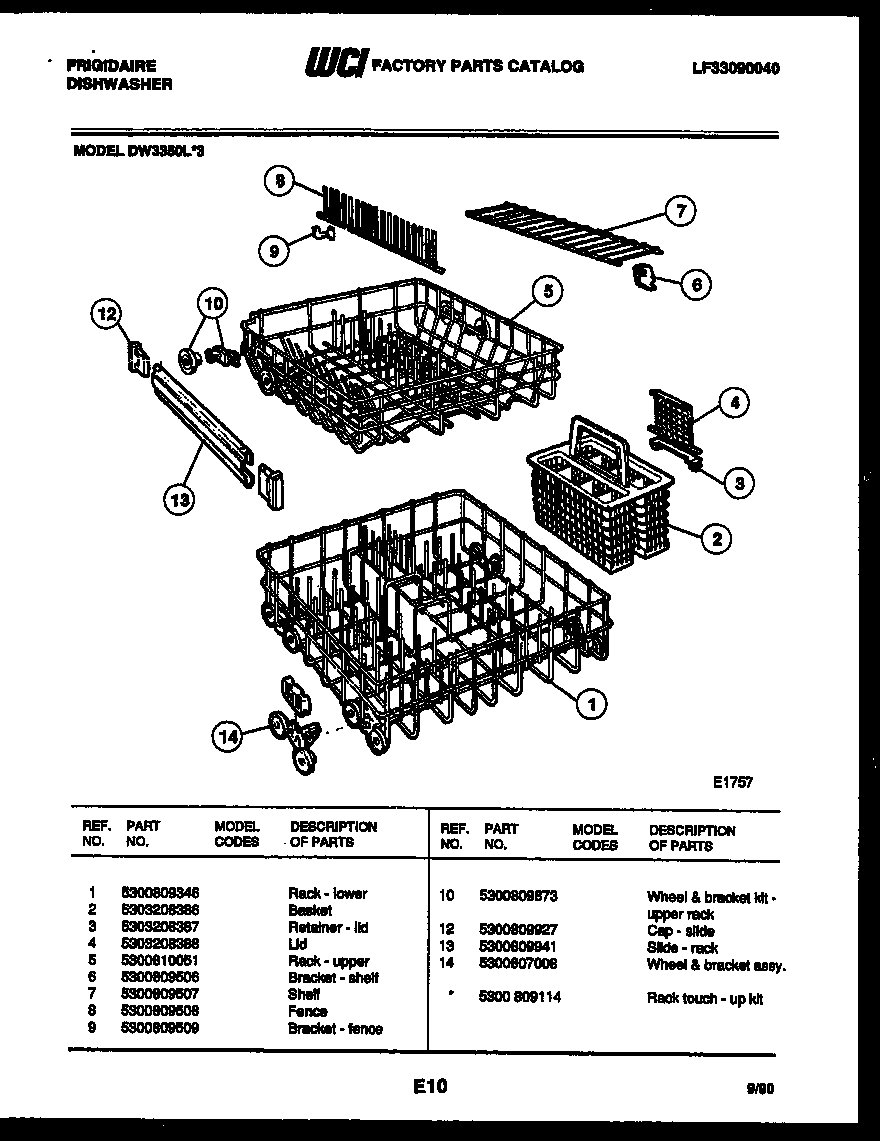

09 - RACKS AND TRAYS
Common parts from model Electrolux DW3350LW3 DISHWASHER
*35152
RACK TOUCH - UP KIT WCI 5300809114 Contact Us For Availability
1
SPRING - DOOR WCI 5300809360 No Longer Available
1
WCI 5300806353 WCI 5300806353 Contact Us For Availability
1
SCREW (2) WCI 5300809055 Contact Us For Availability
1
PIN WCI 5300808827 Contact Us For Availability
1
PLATE - LATCH WCI 5300808868 Contact Us For Availability
1
SCREW (4) WCI 5300806539 Contact Us For Availability
1
WCI 5300809346 WCI 5300809346 Contact Us For Availability
2
SCREW (4) WCI 5300803311 Contact Us For Availability
2
CLIP SHIM WCI 5300809199 Contact Us For Availability
2
WCI 3018073 WCI 3018073 Contact Us For Availability
2
WCI 5300803923 WCI 5300803923 Contact Us For Availability
2
FRAME ASSY (ALMOND) WCI 5300808537 Contact Us For Availability
2
BASKET WCI 5303208386 Contact Us For Availability
3
WCI 5300805681 No Longer Available
3
SPRING-CAM WCI 5300805227 Contact Us For Availability
3
SCREW (4) WCI 5300807270 Contact Us For Availability
3
PAD - TUB WCI 5300807454 Contact Us For Availability
3
WCI 5300809004 WCI 5300809004 Contact Us For Availability
3
WCI 5300807372 WCI 5300807372 Contact Us For Availability
3
FRAME ASSY (WHITE) WCI 5300808533 Contact Us For Availability
3
WCI 5303208387 WCI 5303208387 Contact Us For Availability
4
WCI 5300809918 WCI 5300809918 Contact Us For Availability
4
PAD-SPRING (2) WCI 5300805884 Contact Us For Availability
4
SPRING - COMPRESSION WCI 5300806567 Contact Us For Availability
4
CLIP - TOP WCI 5300809088 Contact Us For Availability
4
WCI 809446 WCI 809446 Contact Us For Availability
4
WCI 5303208388 WCI 5303208388 Contact Us For Availability
5
SCREW WCI 5300809029 Contact Us For Availability
5
WCI 5300809698 WCI 5300809698 Contact Us For Availability
5
SHIM - STRIKE WCI 5300809214 Contact Us For Availability
5
SCREW (3) WCI 5300807004 Contact Us For Availability
5
WCI 5300810051 WCI 5300810051 Contact Us For Availability
6
STRIKE - DOOR WCI 5300807015 Contact Us For Availability
6
WCI 5300809072 WCI 5300809072 Contact Us For Availability
6
WCI 5300807819 WCI 5300807819 Contact Us For Availability
6
WCI 5300807359 WCI 5300807359 Contact Us For Availability
6
VALVE - WATER (INCLUDES 14) WCI 5303212601 Contact Us For Availability
6
BRACKET - SHELF WCI 5300809506 Contact Us For Availability
7
DOOR ASSY WCI 5300809054 Contact Us For Availability
7
WCI 5300809491 WCI 5300809491 Contact Us For Availability
7
WCI 807817 WCI 807817 Contact Us For Availability
7
WCI 5300809921 WCI 5300809921 Contact Us For Availability
7
WCI 808432 WCI 808432 Contact Us For Availability
7
WCI 5300809507 WCI 5300809507 Contact Us For Availability
8
SCREW (6) WCI 5300808749 Contact Us For Availability
8
WCI 5300806647 WCI 5300806647 Contact Us For Availability
8
WCI 5300808528 WCI 5300808528 Contact Us For Availability
8
WCI 5300805763 WCI 5300805763 Contact Us For Availability
8
WCI 5300809006 WCI 5300809006 Contact Us For Availability
8
WCI 5300809508 WCI 5300809508 Contact Us For Availability
9
THERMOSTAT (WATER HEAT) WCI 5300808956 Contact Us For Availability
9
SCREW WCI 5300807817 Contact Us For Availability
9
WCI 5300807470 WCI 5300807470 Contact Us For Availability
9
WCI 5300809007 WCI 5300809007 Contact Us For Availability
9
BRACKET - FENCE WCI 5300809509 Contact Us For Availability
10
LATCH ASSY WCI 5300807016 Contact Us For Availability
10
WCI 5300808529 WCI 5300808529 Contact Us For Availability
10
WASHER WCI 5300809044 Contact Us For Availability
10
WCI 5300806521 WCI 5300806521 Contact Us For Availability
10
CASTERS WCI 5300809661 Contact Us For Availability
10
WHEEL & BRACKET KIT - UPPER RACK WCI 5300809873 Contact Us For Availability
11
PUMP SEAL KIT (INCLUDES 9 & 11) WCI 5300809910 Contact Us For Availability
11
COVER - SWITCH WCI 5300807450 Contact Us For Availability
11
PIN - HINGE (2) WCI 5300807822 Contact Us For Availability
11
WCI 5300807496 WCI 5300807496 Contact Us For Availability
12
WCI 5300803903 WCI 5300803903 Contact Us For Availability
12
WCI 5300808564 WCI 5300808564 Contact Us For Availability
12
WCI 5300807043 WCI 5300807043 Contact Us For Availability
12
LID WCI 5300809798 Contact Us For Availability
12
WCI 5300804426 WCI 5300804426 Contact Us For Availability
13
WCI 5300809008 WCI 5300809008 Contact Us For Availability
13
WCI 5300808532 WCI 5300808532 Contact Us For Availability
13
WCI 5300805669 WCI 5300805669 Contact Us For Availability
13
CORD - POWER WCI 5300805046 Contact Us For Availability
13
SLIDE - RACK WCI 5300809941 Contact Us For Availability
14
SCREW (2) WCI 5300808618 Contact Us For Availability
14
WCI 5300809861 WCI 5300809861 Contact Us For Availability
14
WCI 5300807268 WCI 5300807268 Contact Us For Availability
14
WCI 5300808612 WCI 5300808612 Contact Us For Availability
14
WHEEL & BRACKET ASSY. WCI 5300807008 Contact Us For Availability
15
KNOB - LATCH WCI 5300808712 Contact Us For Availability
15
WCI 3014699 WCI 3014699 Contact Us For Availability
15
HOUSING WCI 5300809939 Contact Us For Availability
15
WCI 808615 WCI 808615 Contact Us For Availability
16
SCREW WCI 5300808715 Contact Us For Availability
16
PLATE - FLOAT WCI 5300808064 Contact Us For Availability
16
HOSE CLAMP WCI 3018117 Contact Us For Availability
16
SCREW WCI 5300807501 Contact Us For Availability
17
GASKET - FLOAT WCI 5300808063 Contact Us For Availability
17
PANEL - DOOR (WHITE) WCI 5300807262 Contact Us For Availability
17
WCI 5300808174 WCI 5300808174 Contact Us For Availability
17
NUT WCI 5300808661 Contact Us For Availability
18
WCI 5303212561 WCI 5303212561 Contact Us For Availability
18
WCI 3018081 WCI 3018081 Contact Us For Availability
18
HEATER GROMMET WCI 5303351028 Contact Us For Availability
18
WASHER (2) WCI 5300808613 Contact Us For Availability
19
WCI 5300809035 WCI 5300809035 Contact Us For Availability
19
WCI 5300808120 WCI 5300808120 Contact Us For Availability
20
WCI 5300808959 WCI 5300808959 Contact Us For Availability
20
WCI 5300805859 WCI 5300805859 Contact Us For Availability
21
WCI 5300805682 WCI 5300805682 Contact Us For Availability
21
WCI 3018082 WCI 3018082 Contact Us For Availability
21
WCI 5300809022 WCI 5300809022 Contact Us For Availability
21
CLAMP WCI 5300806142 Contact Us For Availability
22
WCI 5300809025 WCI 5300809025 Contact Us For Availability
22
WCI 3018083 WCI 3018083 Contact Us For Availability
22
WCI 5300807712 WCI 5300807712 Contact Us For Availability
22
WCI 5300806143 WCI 5300806143 Contact Us For Availability
23
WATERSHIELD ASSEMBLY WCI 5300809366 Contact Us For Availability
23
SPEEDNUT (2) WCI 5300809026 Contact Us For Availability
23
FLOAT SWITCH KIT (INCLUDES 14, 16, 17, 22, 24 WCI 5300809859 Contact Us For Availability
23
WCI 5300803393 WCI 5300803393 Contact Us For Availability
24
SWITCH - FLOAT WCI 5300809863 Contact Us For Availability
24
MOTOR ASSY (INCLUDES 1, 7, & 14) WCI 5300809985 Contact Us For Availability
24
WCI 5300800782 WCI 5300800782 Contact Us For Availability
25
PANEL - ACCESS (WHITE) WCI 5300809108 Contact Us For Availability
25
SCREW WCI 5300809864 Contact Us For Availability
25
WCI 5300808185 WCI 5300808185 Contact Us For Availability
25
WCI 06592042 WCI 06592042 Contact Us For Availability
26
WCI 5300806753 WCI 5300806753 Contact Us For Availability
26
WCI 5300809144 WCI 5300809144 Contact Us For Availability
26
WCI 5300808184 WCI 5300808184 Contact Us For Availability
26
WCI 5300803149 WCI 5300803149 Contact Us For Availability
27
WCI 5300806584 WCI 5300806584 Contact Us For Availability
27
RETAINER-THERMOSTAT WCI 5300809097 Contact Us For Availability
27
CLAMP - WIRE WCI 5300806723 Contact Us For Availability
27
WCI 5300808183 WCI 5300808183 Contact Us For Availability
28
WCI 5300809898 WCI 5300809898 Contact Us For Availability
28
SPRAY ARM ASSEMBLY WCI 5300809021 Contact Us For Availability
28
WCI 5300809139 WCI 5300809139 Contact Us For Availability
29
TERMINAL - GROUND WCI 5300808933 Contact Us For Availability
29
BI-METAL WCI 5300809109 Contact Us For Availability
29
WCI 5300808181 WCI 5300808181 Contact Us For Availability
29
WCI 5300807498 WCI 5300807498 Contact Us For Availability
30
BRACKET WCI 5300807849 Contact Us For Availability
30
WCI 5300808180 WCI 5300808180 Contact Us For Availability
31
FILL PLUG WCI 5300807673 Contact Us For Availability
31
WCI 5300808739 WCI 5300808739 Contact Us For Availability
31
WCI 5300808179 WCI 5300808179 Contact Us For Availability
32
WCI 3018065 WCI 3018065 Contact Us For Availability
32
TRIM - DOOR RH WCI 5300809912 Contact Us For Availability
32
WCI 5300808178 WCI 5300808178 Contact Us For Availability
33
WCI 5300807644 WCI 5300807644 Contact Us For Availability
33
WCI 5300808755 WCI 5300808755 Contact Us For Availability
33
WHITE WCI 5300808804 Contact Us For Availability
33
ALMOND WCI 5300808908 Contact Us For Availability
33
WCI 5300808909 WCI 5300808909 Contact Us For Availability
33
WCI 5300808912 WCI 5300808912 Contact Us For Availability
33
WCI 5300809196 WCI 5300809196 Contact Us For Availability
33
TUBING - INLET (INCLUDES 34) WCI 5300807891 Contact Us For Availability
33
WCI 5300809018 WCI 5300809018 Contact Us For Availability
34
SPRAY ARM ASSEMBLY WCI 5300809954 Contact Us For Availability
34
WCI 5300807813 WCI 5300807813 Contact Us For Availability
35
TRIM - DOOR BOTTOM WCI 5300807347 Contact Us For Availability
35
TERMINAL BLOCK WCI 5300809830 Contact Us For Availability
35
WCI 5300809938 WCI 5300809938 Contact Us For Availability
36
WCI 5300808918 WCI 5300808918 Contact Us For Availability
36
SCREW WCI 3018140 Contact Us For Availability
36
SCREW-10-2 7/8`` WCI 5300809012 Contact Us For Availability
37
FILTER BODY ASSEMBLY (INCLUDES DIFFUSER) WCI 5300809011 Contact Us For Availability
37
TRIM - ACCESS TOP WCI 5300808346 Contact Us For Availability
37
SCREW WCI 3018141 Contact Us For Availability
38
TRIM - ACCESS RH WCI 5300809914 Contact Us For Availability
38
WCI 53003014653 WCI 53003014653 Contact Us For Availability
38
WCI 5300809015 WCI 5300809015 Contact Us For Availability
39
TRIM - ACCESS BOTTOM WCI 5300808521 Contact Us For Availability
39
WCI 83350-2 WCI 83350-2 Contact Us For Availability
39
WCI 5300809014 WCI 5300809014 Contact Us For Availability
40
WCI 5300808522 WCI 5300808522 Contact Us For Availability
40
WCI 5300807471 WCI 5300807471 Contact Us For Availability
40
WCI 0809073 WCI 0809073 Contact Us For Availability
41
TRIM - ACCESS LH WCI 5300809915 Contact Us For Availability
41
WCI 3018091 WCI 3018091 Contact Us For Availability
41
WCI 5300809016 WCI 5300809016 Contact Us For Availability
42
WATER INLET WCI 5300806470 Contact Us For Availability
43
WCI 5300809347 WCI 5300809347 Contact Us For Availability
× ![]()
