Model Electrolux DW1805KA3 DISHWASHER – Common Parts & Diagrams
02 - CONSOLE AND CONTROL PARTS
03 - CAM

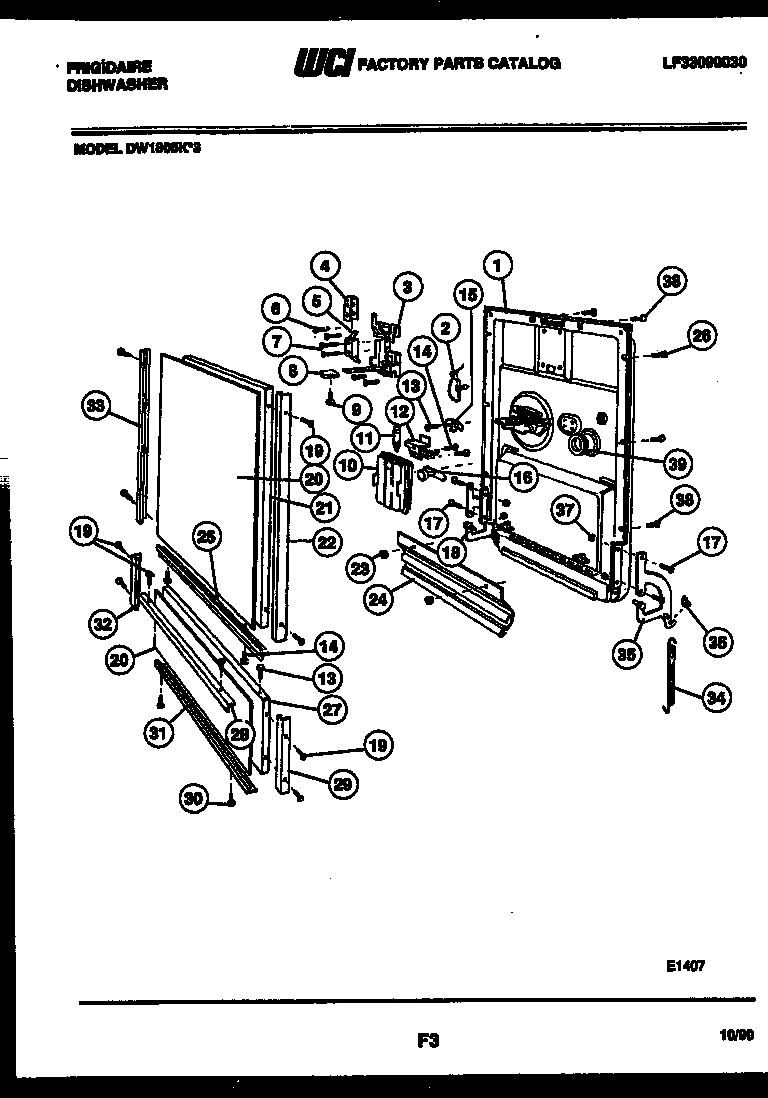

04 - DOOR PARTS

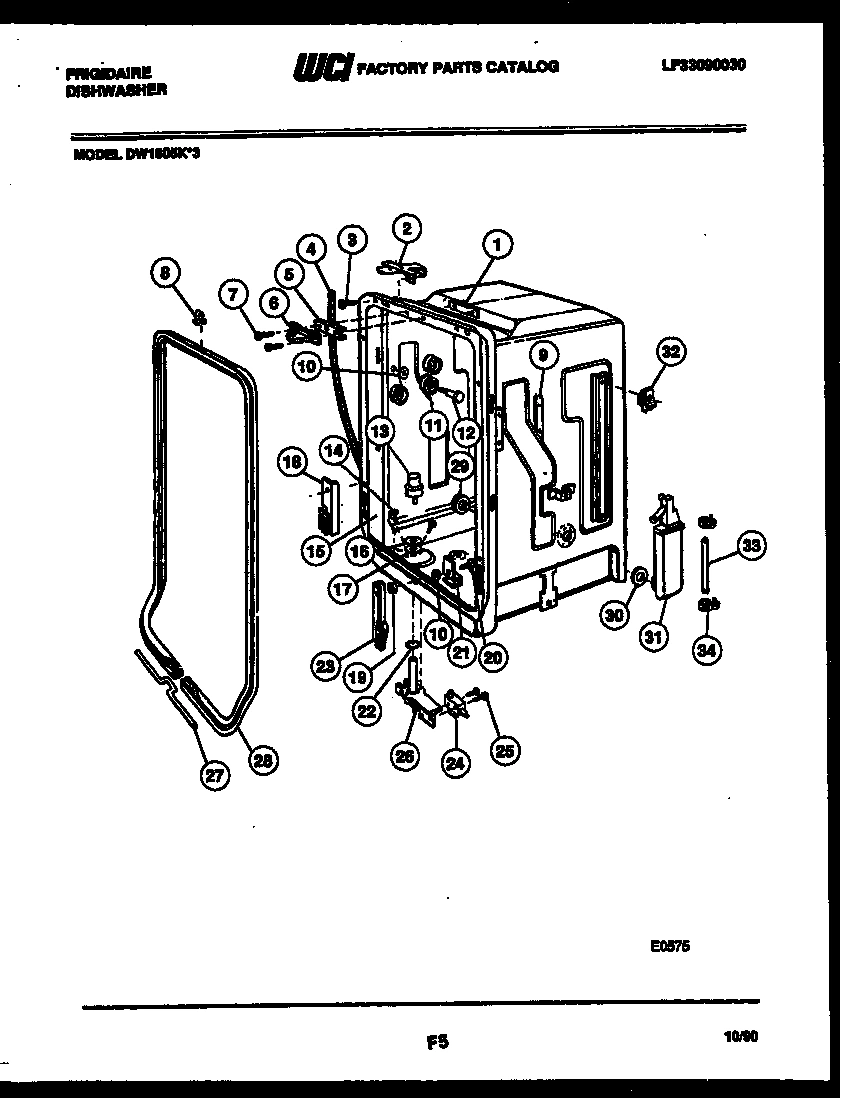

05 - TUB AND FRAME PARTS

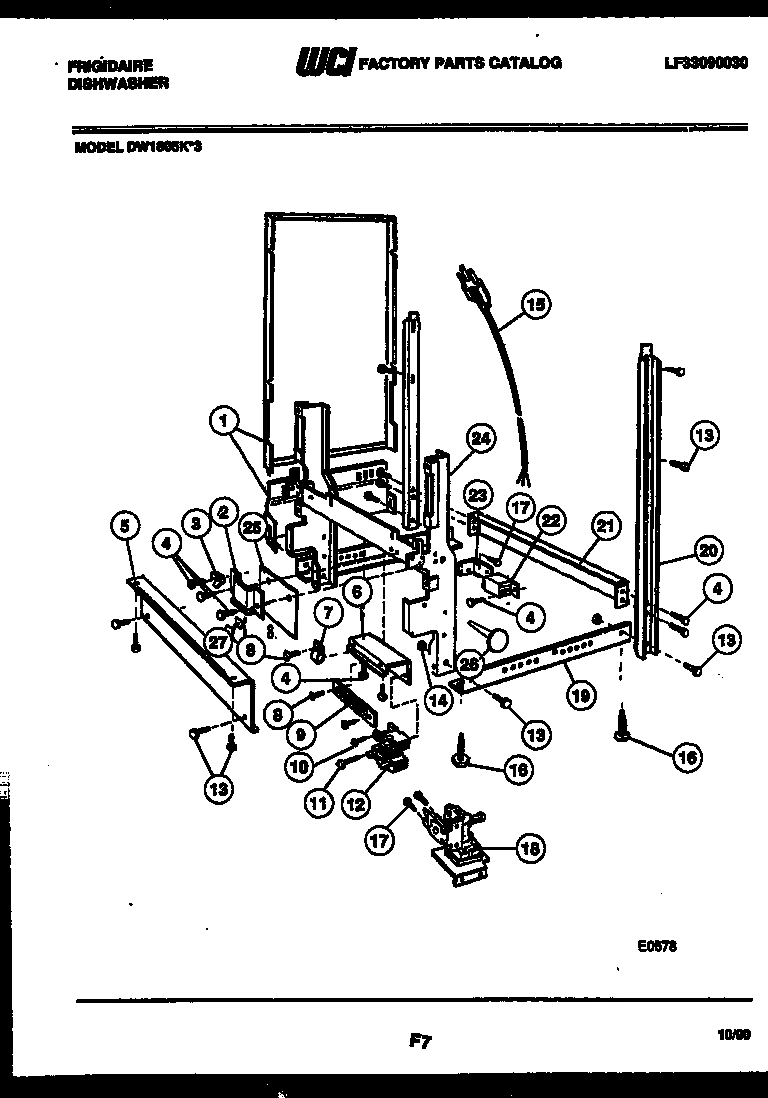

06 - POWER DRY AND MOTOR PARTS

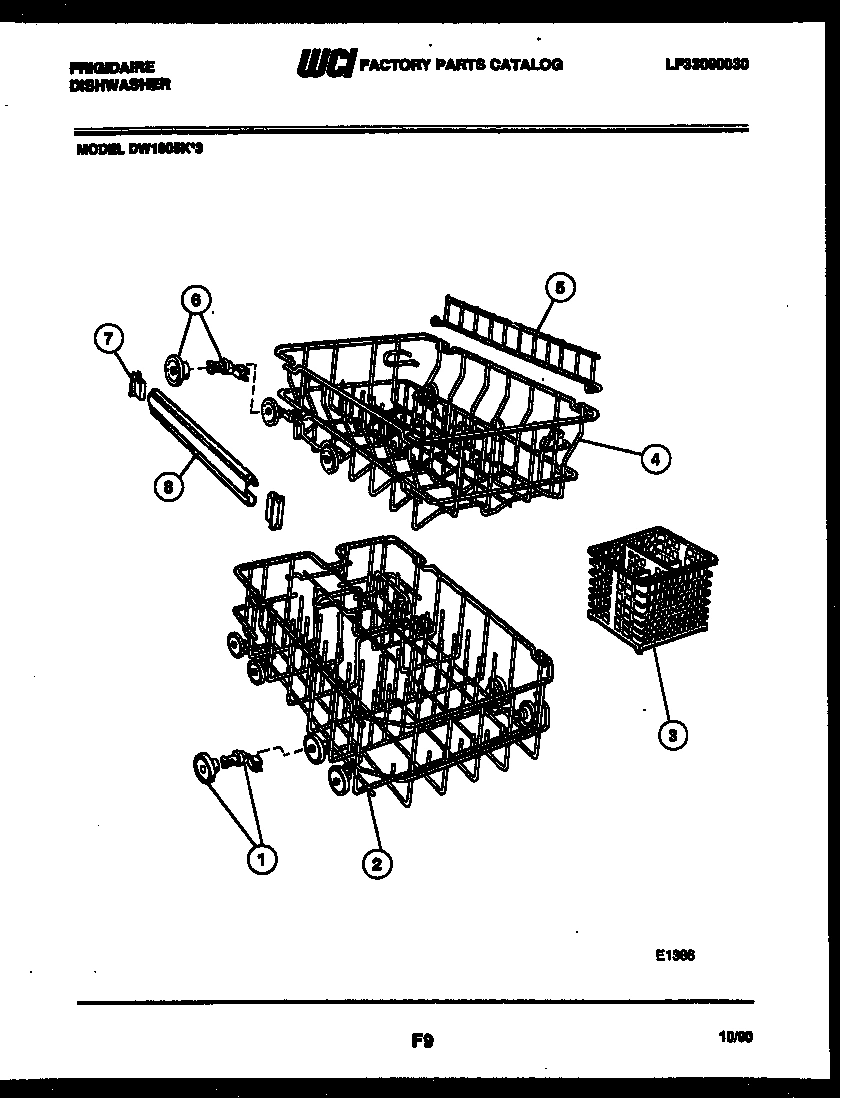

07 - RACKS AND TRAYS

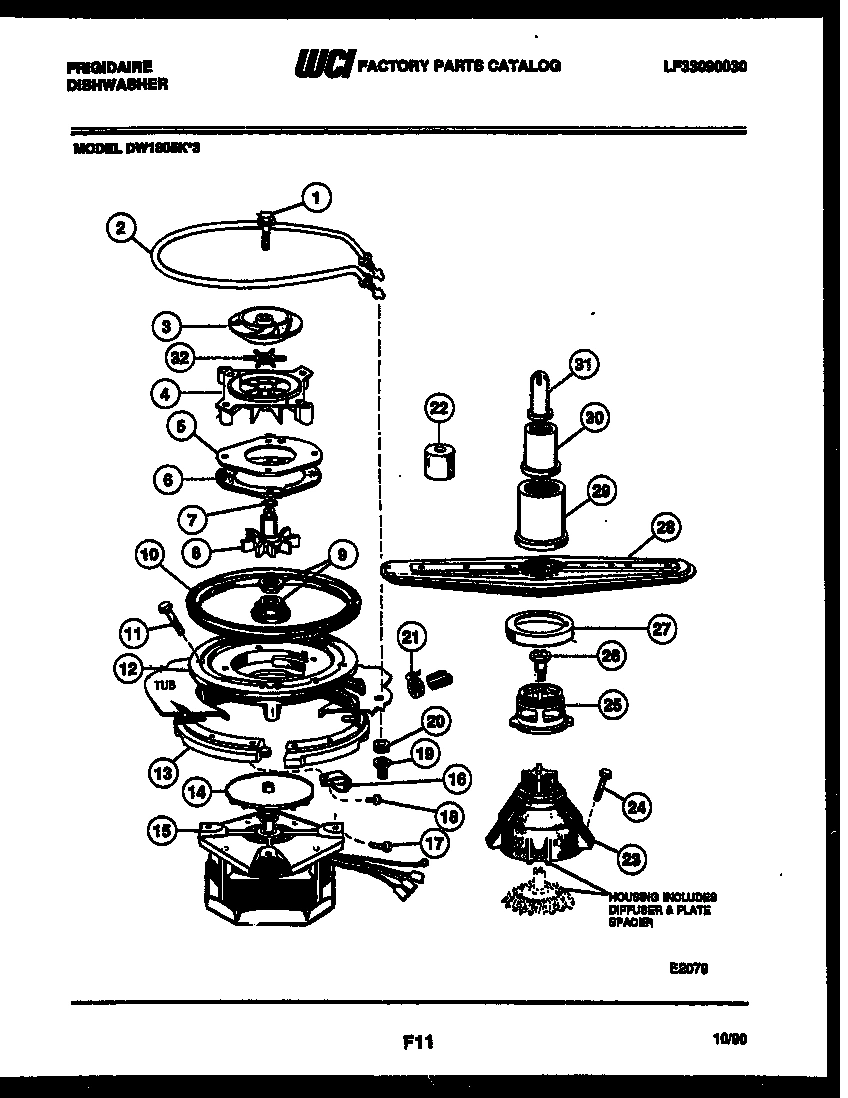

08 - MOTOR PUMP PARTS
Common parts from model Electrolux DW1805KA3 DISHWASHER
*38152
WCI 5303208361 WCI 5303208361 Contact Us For Availability
1
SCREW WCI 5300806353 Contact Us For Availability
1
WCI 3018099 WCI 3018099 Contact Us For Availability
1
WCI 5300809635 WCI 5300809635 Contact Us For Availability
1
PLATE - LATCH WCI 5300808868 Contact Us For Availability
1
SIDE PANEL KIT-AVOC WCI 3018190 Contact Us For Availability
2
WCI 5300808289 WCI 5300808289 Contact Us For Availability
2
CLAMP-WIRE WCI 3018136 Contact Us For Availability
2
RACK-LOWER WCI 5300809641 Contact Us For Availability
2
HEATER (INCLUDES 19 AND 20) WCI 5300806864 Contact Us For Availability
3
IMPELLER-UPPER WCI 5300809918 Contact Us For Availability
3
SPRING-CAM WCI 5300805227 Contact Us For Availability
3
LATCH ASSY WCI 5300807016 Contact Us For Availability
3
WCI 3018034 WCI 3018034 Contact Us For Availability
3
TERMINAL GROUNDING WCI 3018047 Contact Us For Availability
3
WCI 3018129 WCI 3018129 Contact Us For Availability
4
COVER - SWITCH WCI 5300807450 Contact Us For Availability
4
HOSE-DRAIN (CORRUGATED) WCI 5300809112 Contact Us For Availability
4
WCI 5300809659 WCI 5300809659 Contact Us For Availability
4
PLATE-SPACER WCI 5300809921 Contact Us For Availability
5
WCI 5300807043 WCI 5300807043 Contact Us For Availability
5
SHIM - STRIKE WCI 5300809214 Contact Us For Availability
5
WCI 3018137 WCI 3018137 Contact Us For Availability
5
WCI 3202859 WCI 3202859 Contact Us For Availability
5
WCI 5303018105 WCI 5303018105 Contact Us For Availability
6
SCREW WCI 5300809029 Contact Us For Availability
6
WCI 5300809072 WCI 5300809072 Contact Us For Availability
6
WCI 3014689 WCI 3014689 Contact Us For Availability
6
BRACKET-TERMINAL BOARD WCI 3018138 Contact Us For Availability
6
WHEEL & BRACKET KIT - UPPER RACK WCI 5300809873 Contact Us For Availability
7
LID - DISPENSER WCI 5300809028 Contact Us For Availability
7
SCREW WCI 5300808618 Contact Us For Availability
7
WCI 3014675 WCI 3014675 Contact Us For Availability
8
PUMP SEAL KIT (INCLUDES 7 & 9) WCI 5300809909 Contact Us For Availability
8
WCI 3202543 WCI 3202543 Contact Us For Availability
8
WCI 5300808698 WCI 5300808698 Contact Us For Availability
8
WCI 3018065 WCI 3018065 Contact Us For Availability
8
WCI 5300805763 WCI 5300805763 Contact Us For Availability
8
SLIDE-RACK WCI 5300809928 Contact Us For Availability
9
WCI 5300803903 WCI 5300803903 Contact Us For Availability
9
SCREW WCI 5300808715 Contact Us For Availability
9
PLATE WCI 3018073 Contact Us For Availability
9
TERMINAL BLOCK ASSY WCI 3018139 Contact Us For Availability
10
WCI 5300806753 WCI 5300806753 Contact Us For Availability
10
WCI 5300809008 WCI 5300809008 Contact Us For Availability
10
WASHER WCI 5300809044 Contact Us For Availability
10
SCREW WCI 3018140 Contact Us For Availability
11
WCI 5300809898 WCI 5300809898 Contact Us For Availability
11
WCI 3014699 WCI 3014699 Contact Us For Availability
11
SCREW WCI 3018141 Contact Us For Availability
12
WCI 5300808564 WCI 5300808564 Contact Us For Availability
12
BI-METAL WCI 5300809109 Contact Us For Availability
12
WCI 5303014653 WCI 5303014653 Contact Us For Availability
12
WCI 5300809919 WCI 5300809919 Contact Us For Availability
13
WCI 5300809861 WCI 5300809861 Contact Us For Availability
13
SCREW WCI 5303013944 Contact Us For Availability
13
CLAMP RING (2) WCI 5300807712 Contact Us For Availability
14
WCI 5300809366 WCI 5300809366 Contact Us For Availability
14
WCI 3018143 WCI 3018143 Contact Us For Availability
15
WCI 3018035 WCI 3018035 Contact Us For Availability
15
TERMINAL GROUND WCI 5300807213 Contact Us For Availability
15
TUB & GASKET ASSY WCI 3202858 Contact Us For Availability
15
POWER CORD WCI 3018144 Contact Us For Availability
15
MOTOR ASSY WCI 5300809985 Contact Us For Availability
16
WCI 5303018168 WCI 5303018168 Contact Us For Availability
16
PLUG-DISPENSER WCI 5300807673 Contact Us For Availability
16
PLATE - FLOAT WCI 5300808064 Contact Us For Availability
16
WCI 3018145 WCI 3018145 Contact Us For Availability
17
GASKET - FLOAT WCI 5300808063 Contact Us For Availability
17
WCI 3018030 WCI 3018030 Contact Us For Availability
17
SCREW WCI 5300803311 Contact Us For Availability
17
WCI 3018146 WCI 3018146 Contact Us For Availability
17
SCREW WCI 5300809022 Contact Us For Availability
18
ARM ASSY-LH WCI 5300807539 Contact Us For Availability
18
WCI 3018079 WCI 3018079 Contact Us For Availability
18
VALVE-WATER INLET WCI 5300809241 Contact Us For Availability
19
WCI 3018169 WCI 3018169 Contact Us For Availability
19
WCI 3018080 WCI 3018080 Contact Us For Availability
19
WCI 3018148 WCI 3018148 Contact Us For Availability
20
WCI 3018170 WCI 3018170 Contact Us For Availability
20
WCI 5300808922 WCI 5300808922 Contact Us For Availability
20
INSERTS-DOOR & ACCESS PANEL BLACK WCI 5300808923 Contact Us For Availability
20
WCI 3018081 WCI 3018081 Contact Us For Availability
20
WCI 3018149 WCI 3018149 Contact Us For Availability
20
HEATER GROMMET WCI 5303351028 Contact Us For Availability
21
CONNECTOR BLOCK- 18 PIN WCI 5300809883 Contact Us For Availability
21
WCI 3018082 WCI 3018082 Contact Us For Availability
21
WCI 3018150 WCI 3018150 Contact Us For Availability
21
HOSE CLAMP WCI 3018117 Contact Us For Availability
22
WCI 5300809885 WCI 5300809885 Contact Us For Availability
22
TRIM-DOOR RH WCI 5300808990 Contact Us For Availability
22
WCI 3018083 WCI 3018083 Contact Us For Availability
22
COVER-JUNCTION BOX WCI 3018151 Contact Us For Availability
22
WCI 5300803923 WCI 5300803923 Contact Us For Availability
23
WCI 5300809026 WCI 5300809026 Contact Us For Availability
23
WCI 3018084 WCI 3018084 Contact Us For Availability
23
BRACKET-JUNCTION BOX WCI 3018152 Contact Us For Availability
23
UPPER HOUSING ASSY-INCLUDES DIFFUSER WCI 5300809953 Contact Us For Availability
24
SWITCH - FLOAT WCI 5300809863 Contact Us For Availability
24
WCI 5300809636 WCI 5300809636 Contact Us For Availability
24
HINGE-WELD ASSY WCI 3018153 Contact Us For Availability
24
WCI 5300809831 WCI 5300809831 Contact Us For Availability
25
TRIM-DOOR BOTTOM WCI 5300809637 Contact Us For Availability
25
SCREW WCI 5300809864 Contact Us For Availability
25
WCI 3202614 WCI 3202614 Contact Us For Availability
25
WCI 5303943010 WCI 5303943010 Contact Us For Availability
26
SCREW WCI 5300808749 Contact Us For Availability
26
FLOAT SWITCH KIT (INCLUDES 13, 16, 17, 22 & 2 WCI 5300809859 Contact Us For Availability
26
RETAINER-INSULATION WCI 5300809711 Contact Us For Availability
26
WCI 5300809018 WCI 5300809018 Contact Us For Availability
27
WCI 3202776 WCI 3202776 Contact Us For Availability
27
WCI 5300808924 WCI 5300808924 Contact Us For Availability
28
TRIM-ACCESS TOP WCI 5300808471 Contact Us For Availability
28
WCI 530809633 WCI 530809633 Contact Us For Availability
28
SPRAY ARM ASSY WCI 5300808848 Contact Us For Availability
29
TRIM-ACCESS RH WCI 5300808103 Contact Us For Availability
29
WCI 3018090 WCI 3018090 Contact Us For Availability
29
WCI 5300808178 WCI 5300808178 Contact Us For Availability
30
GASKET-INLET WCI 5300803573 Contact Us For Availability
30
WCI 5300808179 WCI 5300808179 Contact Us For Availability
31
TRIM-ACCESS BOTTOM WCI 5300808303 Contact Us For Availability
31
INLET WATER WCI 5300806470 Contact Us For Availability
31
WCI 3018116 WCI 3018116 Contact Us For Availability
32
WCI 3018182 WCI 3018182 Contact Us For Availability
32
WCI 3018093 WCI 3018093 Contact Us For Availability
33
WCI 5300808918 WCI 5300808918 Contact Us For Availability
33
TUBING - INLET (INCLUDES 34) WCI 5300807891 Contact Us For Availability
34
WCI 5300807601 No Longer Available
35
WCI 3018054 WCI 3018054 Contact Us For Availability
36
PAD-SPRING WCI 5300805884 Contact Us For Availability
38
SCREW WCI 5300809055 Contact Us For Availability
39
GROMMET WCI 3018174 Contact Us For Availability
× ![]()
