Model Electrolux DW1805KA1 DISHWASHER – Common Parts & Diagrams

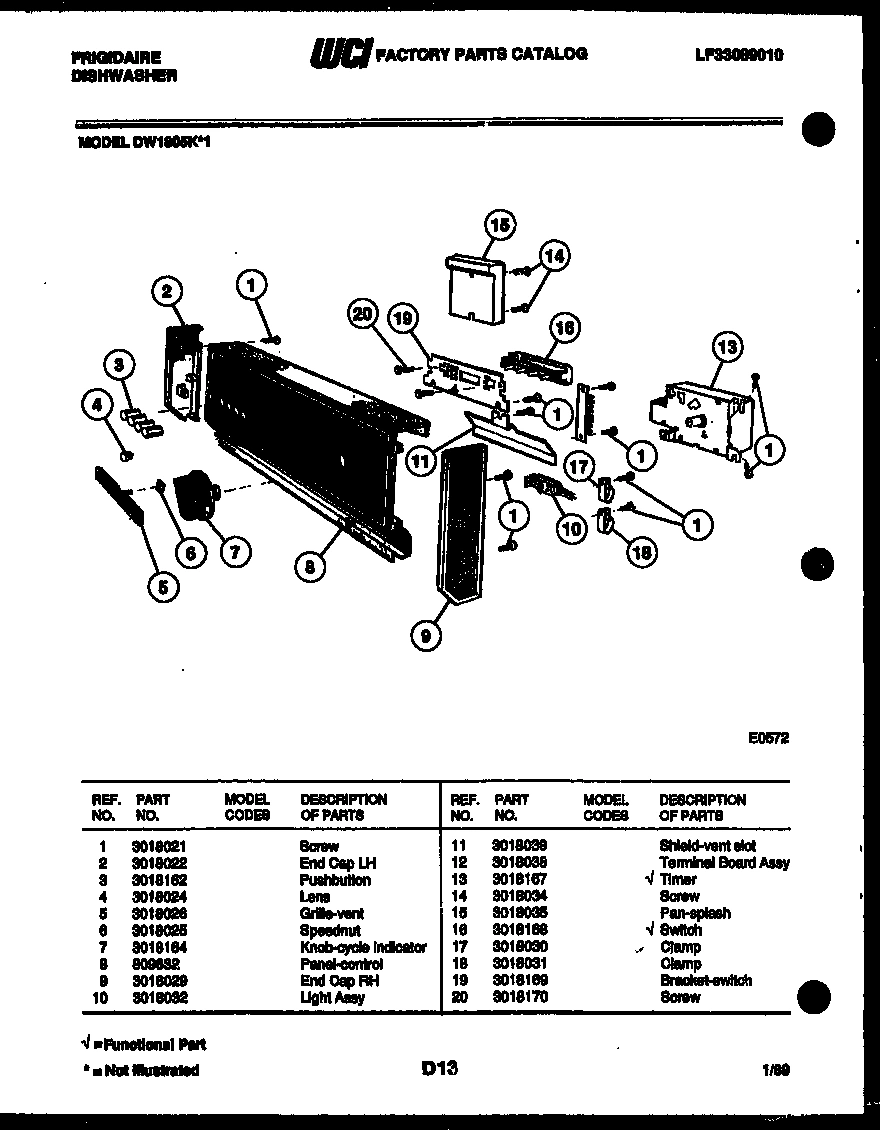

02 - CONSOLE AND CONTROL PARTS

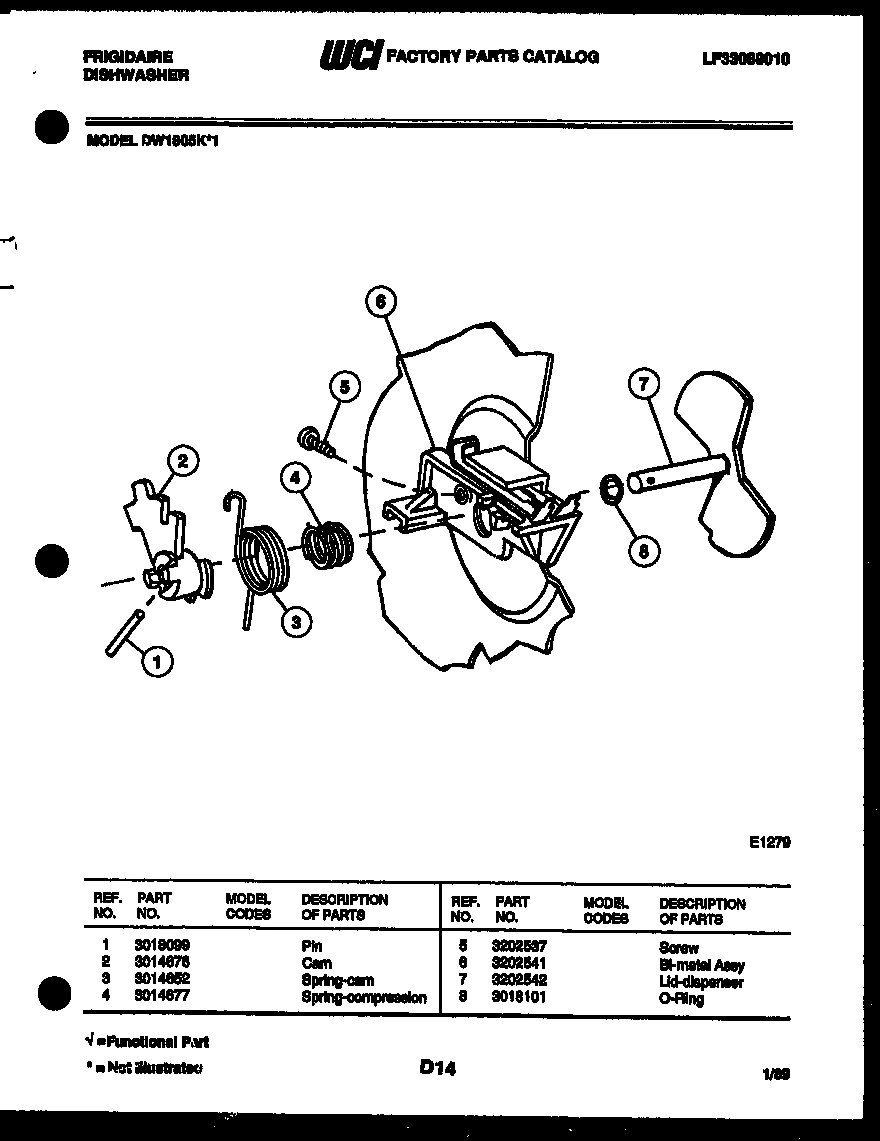

03 - CAM
04 - DOOR PARTS
05 - TUB AND FRAME PARTS
06 - POWER DRY AND MOTOR PARTS
07 - MOTOR PUMP PARTS
08 - RACKS AND TRAYS
Common parts from model Electrolux DW1805KA1 DISHWASHER
*75362
WCI 3018187 WCI 3018187 Contact Us For Availability
1
WCI 3018021 WCI 3018021 Contact Us For Availability
1
WCI 3018099 WCI 3018099 Contact Us For Availability
1
DOOR-INNER WCI 3202663 Contact Us For Availability
1
PLATE-TAPPING WCI 3018068 Contact Us For Availability
1
SIDE PANEL KIT-AVOC RS OR LS WCI 3018190 Contact Us For Availability
1
WCI 3014673 WCI 3014673 Contact Us For Availability
2
WCI 3018022 WCI 3018022 Contact Us For Availability
2
WCI 3018069 WCI 3018069 Contact Us For Availability
2
CLAMP-WIRE WCI 3018136 Contact Us For Availability
2
WCI 3018102 WCI 3018102 Contact Us For Availability
2
LOWER RACK ASSY WCI 3202760 Contact Us For Availability
3
WCI 3018162 WCI 3018162 Contact Us For Availability
3
WCI 3018034 WCI 3018034 Contact Us For Availability
3
WCI 3014652 WCI 3014652 Contact Us For Availability
3
WCI 3014690 WCI 3014690 Contact Us For Availability
3
TERMINAL GROUNDING WCI 3018047 Contact Us For Availability
3
HEATER (INCLUDES NO. 23 & 24) WCI 3014683 Contact Us For Availability
3
BASKET-SLIVERWARE WCI 3018129 Contact Us For Availability
4
WCI 3018024 WCI 3018024 Contact Us For Availability
4
WCI 3018041 WCI 3018041 Contact Us For Availability
4
HOSE-DRAIN WCI 3018070 Contact Us For Availability
4
WCI 3018103 WCI 3018103 Contact Us For Availability
4
UPPER RACK ASSY WCI 3202759 Contact Us For Availability
5
GRILLE-VENT WCI 3018026 Contact Us For Availability
5
WCI 3018043 WCI 3018043 Contact Us For Availability
5
WCI 3202565 WCI 3202565 Contact Us For Availability
5
WCI 3018137 WCI 3018137 Contact Us For Availability
5
WCI 3018104 WCI 3018104 Contact Us For Availability
5
WCI 3202859 WCI 3202859 Contact Us For Availability
6
WCI 3018025 WCI 3018025 Contact Us For Availability
6
WCI 3202537 WCI 3202537 Contact Us For Availability
6
BI-METAL ASSY WCI 3202541 Contact Us For Availability
6
WCI 3014689 WCI 3014689 Contact Us For Availability
6
BRACKET-TERMINAL BOARD WCI 3018138 Contact Us For Availability
6
WCI 3014671 WCI 3014671 Contact Us For Availability
6
WCI 3202556 WCI 3202556 Contact Us For Availability
7
KNOB-CYCLE INDICATOR WCI 3018164 Contact Us For Availability
7
WCI 3202542 WCI 3202542 Contact Us For Availability
7
WCI 3018042 WCI 3018042 Contact Us For Availability
7
WCI 3018105 WCI 3018105 Contact Us For Availability
7
CAP-SLIDE WCI 809721 Contact Us For Availability
8
WCI 809632 WCI 809632 Contact Us For Availability
8
WCI 3018101 WCI 3018101 Contact Us For Availability
8
WCI 3018045 WCI 3018045 Contact Us For Availability
8
WCI 3018065 WCI 3018065 Contact Us For Availability
8
CLIP KIT (INCLUDES NO. 21) WCI 3014661 Contact Us For Availability
8
RACK SLIDE WCI 3202775 Contact Us For Availability
9
WCI 3018029 WCI 3018029 Contact Us For Availability
9
WCI 3202538 WCI 3202538 Contact Us For Availability
9
WCI 3018073 WCI 3018073 Contact Us For Availability
9
TERMINAL BLOCK ASSY WCI 3018139 Contact Us For Availability
9
WCI 3014675 WCI 3014675 Contact Us For Availability
9
PIN-CAP SLIDE WCI 3202558 Contact Us For Availability
10
LIGHT ASSY WCI 3018032 Contact Us For Availability
10
WCI 3014680 WCI 3014680 Contact Us For Availability
10
WCI 3018074 WCI 3018074 Contact Us For Availability
10
SCREW WCI 3018140 Contact Us For Availability
10
PUMP SEAL KIT (INCLUDES NO. 2, 4, 5, 9, 11 & WCI 3018107 Contact Us For Availability
11
SHIELD-VENT SLOT WCI 3018039 Contact Us For Availability
11
WCI 3018172 WCI 3018172 Contact Us For Availability
11
WCI 3014693 WCI 3014693 Contact Us For Availability
11
SCREW WCI 3018141 Contact Us For Availability
11
WATER SEAL WCI 3014633 Contact Us For Availability
12
WCI 3018038 WCI 3018038 Contact Us For Availability
12
BI-METAL ASSY WCI 3018173 Contact Us For Availability
12
SCREW-WASHER KIT (INCLUDES NO. 10) WCI 3018075 Contact Us For Availability
12
WCI 3014653 WCI 3014653 Contact Us For Availability
12
WCI 3018108 WCI 3018108 Contact Us For Availability
13
WCI 3018167 WCI 3018167 Contact Us For Availability
13
WCI 3014636 WCI 3014636 Contact Us For Availability
13
WCI 3014699 WCI 3014699 Contact Us For Availability
13
WCI 3018142 WCI 3018142 Contact Us For Availability
14
WCI 3018143 WCI 3018143 Contact Us For Availability
14
WCI 3018109 WCI 3018109 Contact Us For Availability
15
WCI 3018035 WCI 3018035 Contact Us For Availability
15
TUB & GASKET ASSY WCI 3202858 Contact Us For Availability
15
POWER CORD KIT (USE ONLY WHEN LOCAL CODES PER WCI 3018144 Contact Us For Availability
15
CLAMP RING WCI 3018064 Contact Us For Availability
16
WCI 3018168 WCI 3018168 Contact Us For Availability
16
PLUG-DISPINSER FILL WCI 3018176 Contact Us For Availability
16
PLATE-FLOAT TUBE WCI 3018077 Contact Us For Availability
16
WCI 3018145 WCI 3018145 Contact Us For Availability
16
WCI 3018110 WCI 3018110 Contact Us For Availability
17
WCI 3018030 WCI 3018030 Contact Us For Availability
17
WCI 3018056 WCI 3018056 Contact Us For Availability
17
GASKET-FLOAT TUBE WCI 3018078 Contact Us For Availability
17
WCI 3018146 WCI 3018146 Contact Us For Availability
17
WCI 3018111 WCI 3018111 Contact Us For Availability
18
ARM-COUNTERBALANCE LH WCI 3018048 Contact Us For Availability
18
ARM-COUNTERBALANCE LH WCI 3018079 Contact Us For Availability
18
WCI 3018147 WCI 3018147 Contact Us For Availability
18
WCI 3018112 WCI 3018112 Contact Us For Availability
19
WCI 3018169 WCI 3018169 Contact Us For Availability
19
WCI 3018062 WCI 3018062 Contact Us For Availability
19
WCI 3018080 WCI 3018080 Contact Us For Availability
19
WCI 3018148 WCI 3018148 Contact Us For Availability
19
SEAL INSTALLATION TOOL (REQUIRED WHEN INSTALL WCI 3018114 Contact Us For Availability
20
WCI 3018170 WCI 3018170 Contact Us For Availability
20
INSERT-DOOR & ACCESS PANEL-AVOCADO WCI 3018180 Contact Us For Availability
20
INSERT-DOOR & ACCESS PANEL-BLACK WCI 3018181 Contact Us For Availability
20
WCI 3018081 WCI 3018081 Contact Us For Availability
20
WCI 3018149 WCI 3018149 Contact Us For Availability
20
SEAL SHIM GAGE WCI 3018115 Contact Us For Availability
21
WCI 3018082 WCI 3018082 Contact Us For Availability
21
WCI 3018150 WCI 3018150 Contact Us For Availability
21
WCI 3018116 WCI 3018116 Contact Us For Availability
22
WCI 3018044 WCI 3018044 Contact Us For Availability
22
WCI 3018083 WCI 3018083 Contact Us For Availability
22
COVER-JUNCTION BOX WCI 3018151 Contact Us For Availability
22
CLAMP-HOSE WCI 3018117 Contact Us For Availability
23
WCI 3202540 WCI 3202540 Contact Us For Availability
23
ARM-COUNTERBALANCE RH WCI 3018084 Contact Us For Availability
23
WCI 3018152 WCI 3018152 Contact Us For Availability
23
WCI 3014682 WCI 3014682 Contact Us For Availability
24
BAFFLE WCI 3202856 Contact Us For Availability
24
WCI 3018085 WCI 3018085 Contact Us For Availability
24
HINGE-WELD ASSY WCI 3018153 Contact Us For Availability
25
WCI 3202661 WCI 3202661 Contact Us For Availability
25
WCI 3018086 WCI 3018086 Contact Us For Availability
25
WCI 3202614 WCI 3202614 Contact Us For Availability
26
WCI 3018058 WCI 3018058 Contact Us For Availability
26
FLOAT SWITCH KIT (INCLUDES NO. 16, 17, 22, 24 WCI 3018087 Contact Us For Availability
26
RETAINER WCI 809711 Contact Us For Availability
27
ROD-JUNCTION WCI 3202776 Contact Us For Availability
27
IMPELLER HOUSING KIT (INCLUDES 6 & 7) WCI 3018120 Contact Us For Availability
28
TRIM-ACCESS-PANEL TOP WCI 3018186 Contact Us For Availability
28
TUB GASKET & WIRE ASSY (INCLUDES NO. 8 & 27) WCI 3202756 Contact Us For Availability
28
WCI 3018154 WCI 3018154 Contact Us For Availability
29
TRIM-ACCESS-PANEL RH WCI 3018185 Contact Us For Availability
29
WCI 3018090 WCI 3018090 Contact Us For Availability
29
WCI 3018121 WCI 3018121 Contact Us For Availability
30
GASKET - WATER INLET WCI 3018091 Contact Us For Availability
30
WCI 3018122 WCI 3018122 Contact Us For Availability
31
TRIM-ACCESS-PANEL BOTTOM WCI 3018183 Contact Us For Availability
31
WATER INLET ASSY WCI 3018092 Contact Us For Availability
31
WCI 3018123 WCI 3018123 Contact Us For Availability
32
TRIM-ACCESS-PANEL LH WCI 3018182 Contact Us For Availability
32
WCI 3018093 WCI 3018093 Contact Us For Availability
32
SPRAY ARM ASSY WCI 3018124 Contact Us For Availability
33
TRIM-DOOR PANEL LH WCI 3018061 Contact Us For Availability
33
TUBING-WATER INLET (INCLUDES NO. 34) WCI 3018094 Contact Us For Availability
33
BASE-TOWER WCI 3018125 Contact Us For Availability
34
WCI 5300807601 No Longer Available
34
WCI 3018126 WCI 3018126 Contact Us For Availability
35
ARM-COUNTERBALANCE RH WCI 3018054 Contact Us For Availability
35
WCI 3018127 WCI 3018127 Contact Us For Availability
36
WCI 3014666 WCI 3014666 Contact Us For Availability
38
WCI 3202534 WCI 3202534 Contact Us For Availability
39
WCI 3018174 WCI 3018174 Contact Us For Availability
× ![]()
