Model Electrolux DW1805FA DISHWASHER – Common Parts & Diagrams

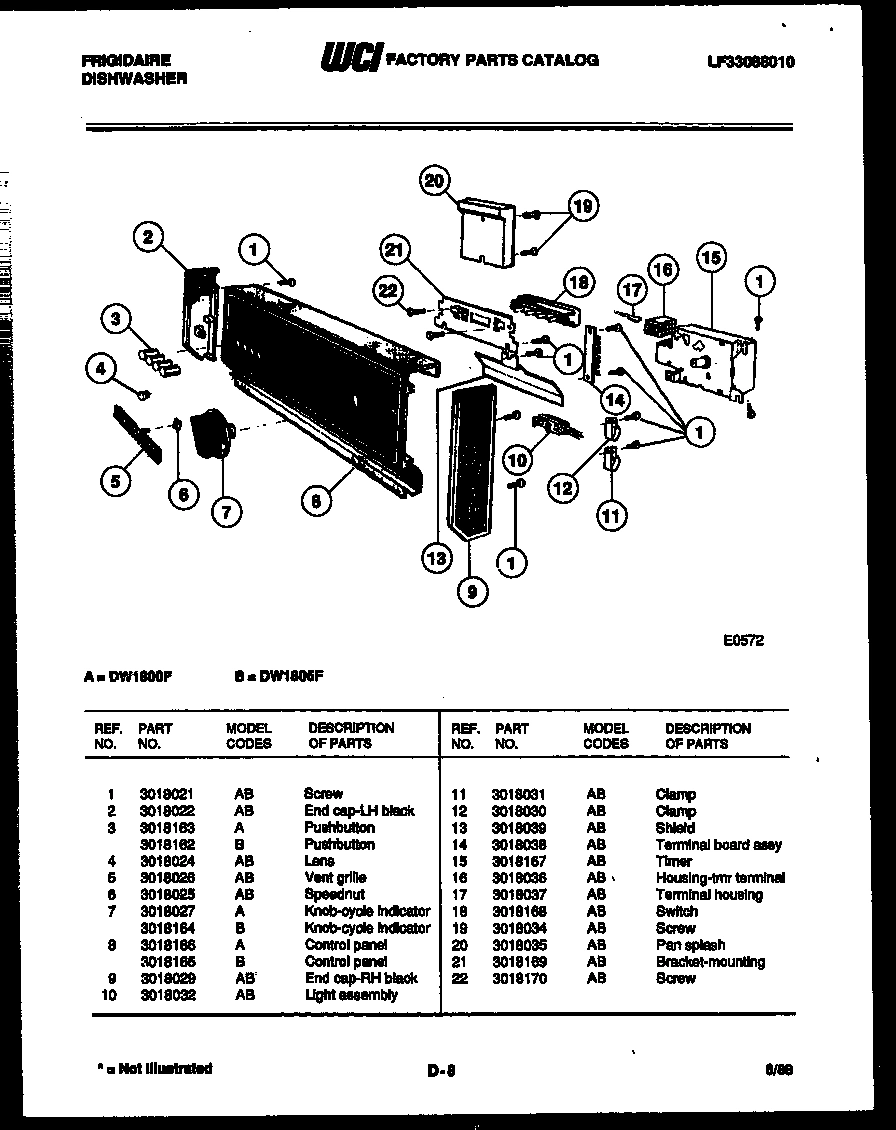

02 - CONSOLE AND CONTROL PARTS

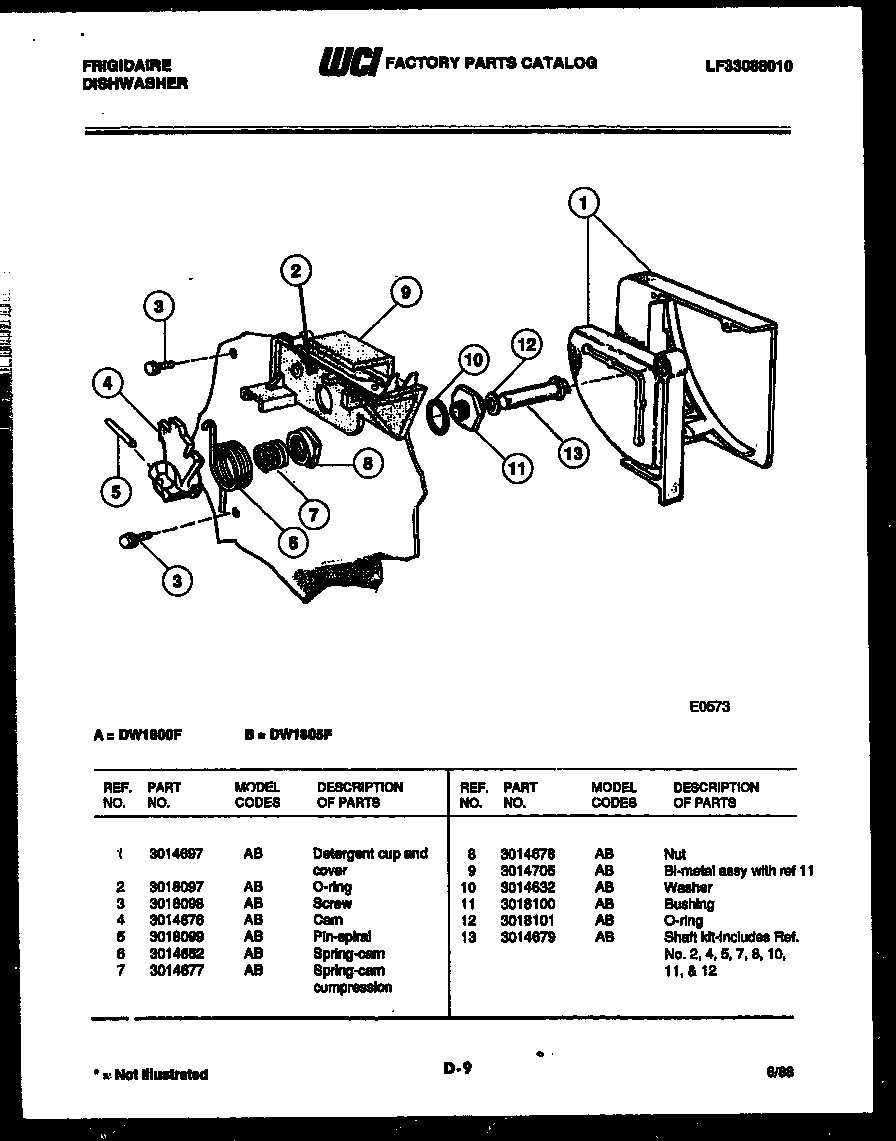

03 - CAM

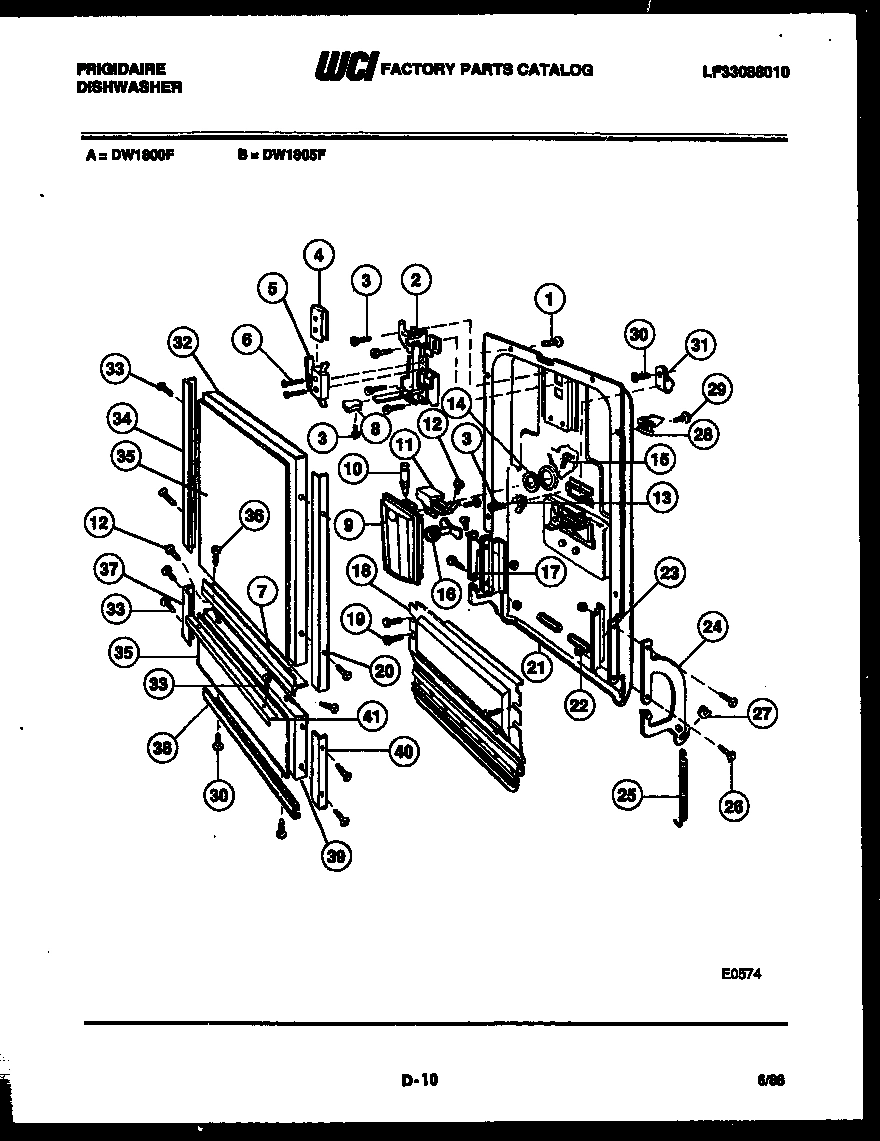

04 - DOOR PARTS

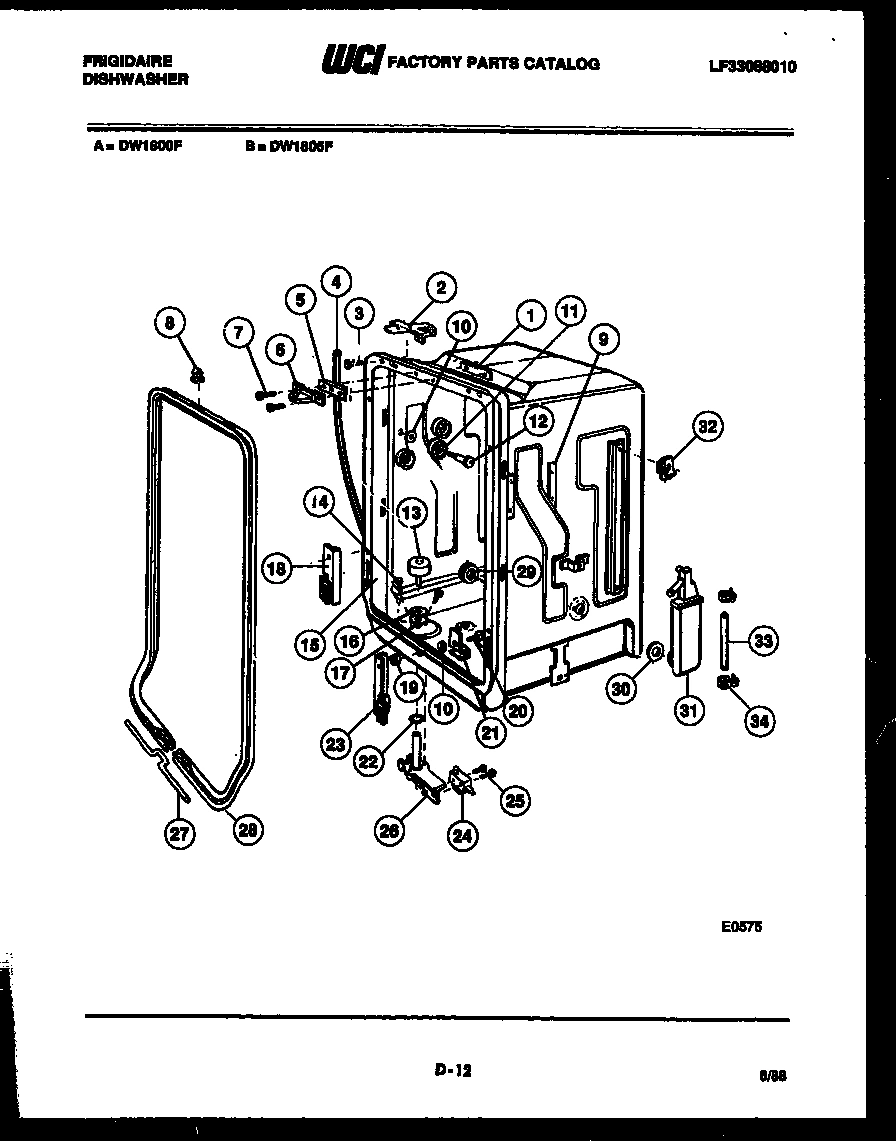

05 - TUB AND FRAME PARTS

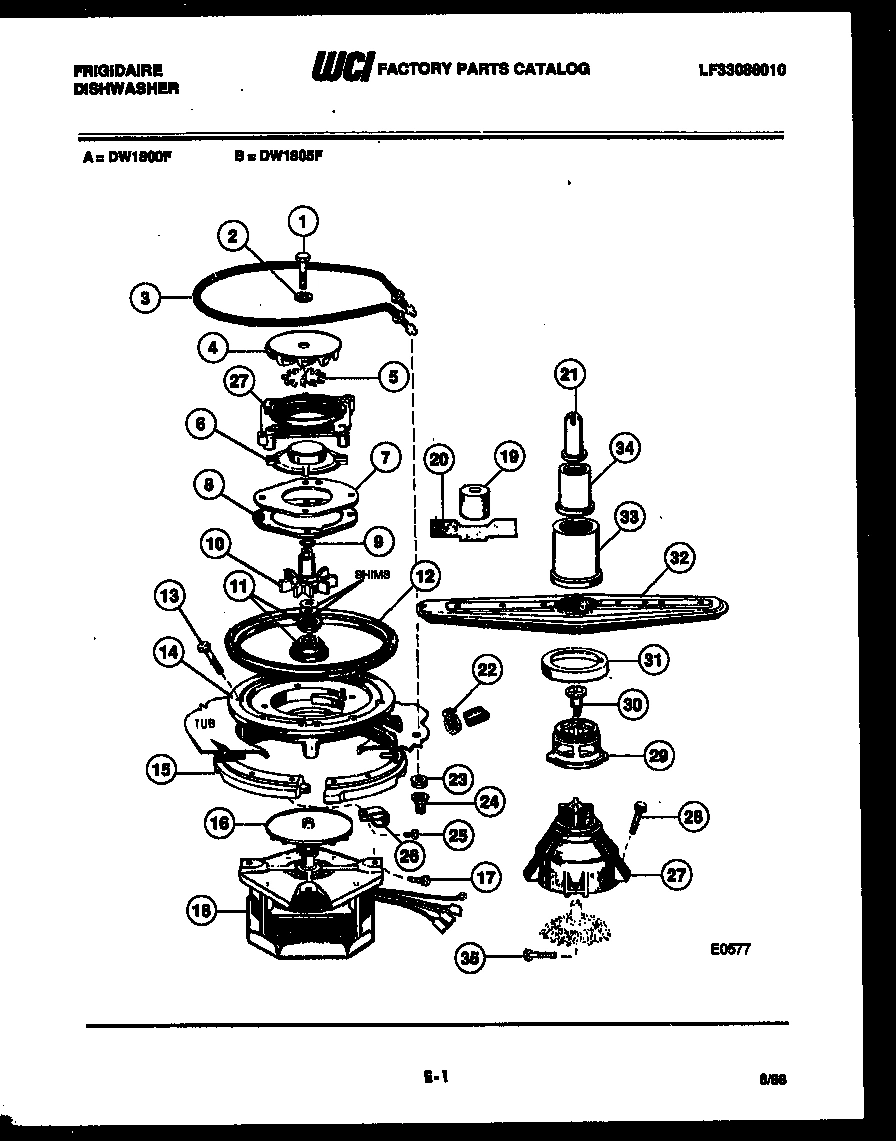

06 - MOTOR PUMP PARTS

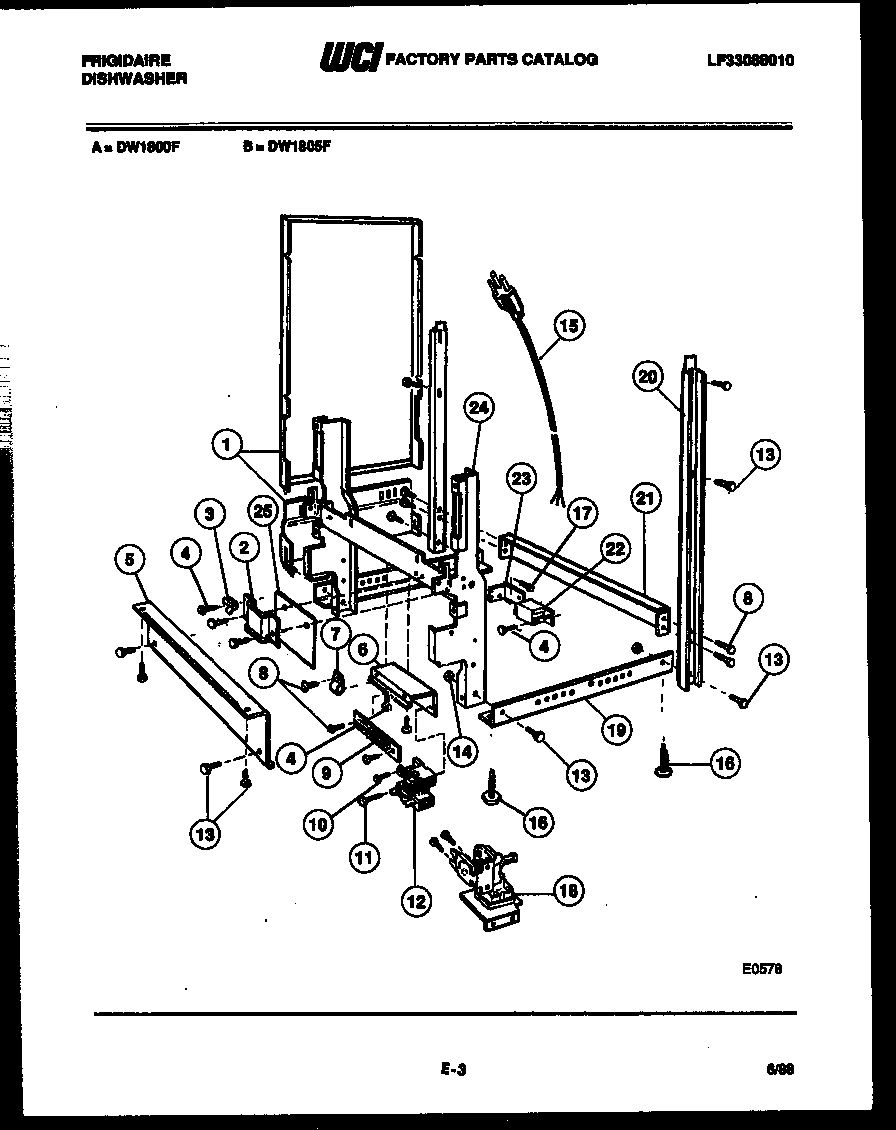

07 - POWER DRY AND MOTOR PARTS

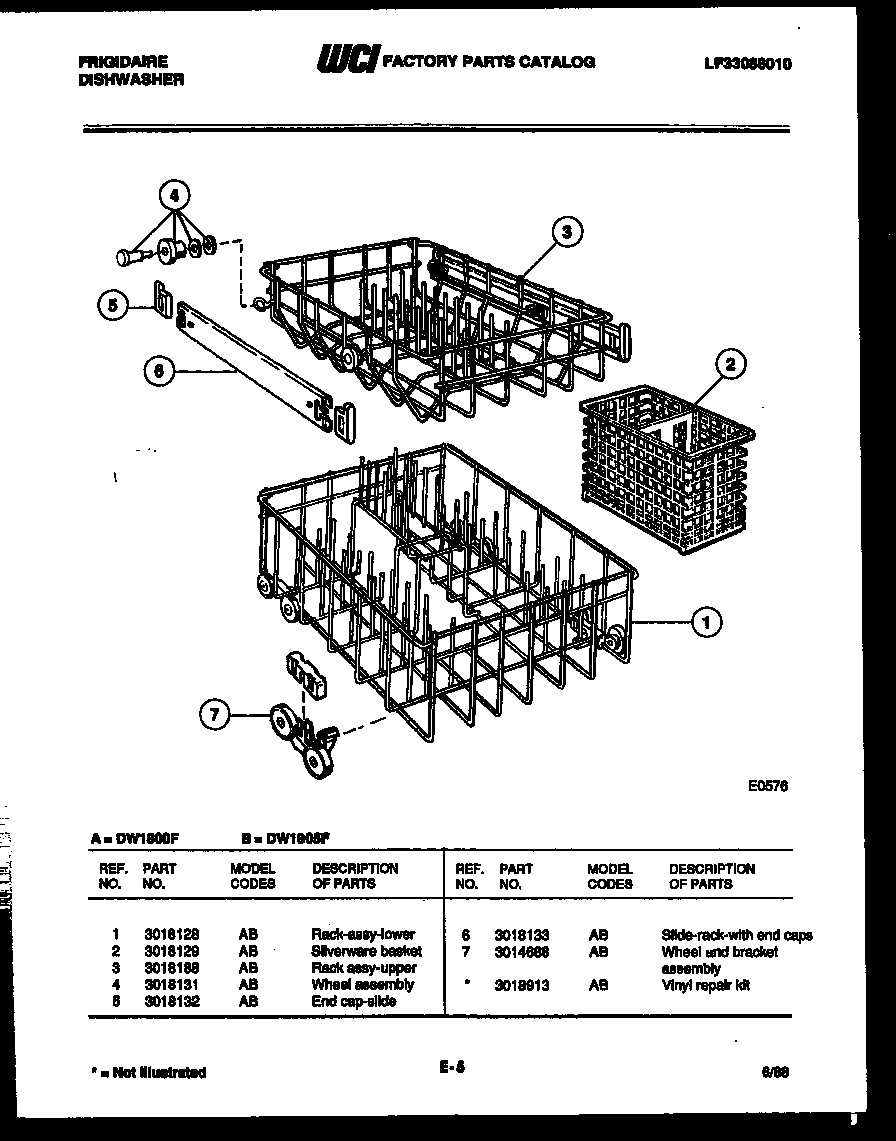

08 - RACKS AND TRAYS
Common parts from model Electrolux DW1805FA DISHWASHER
*13992
WCI 3018187 WCI 3018187 Contact Us For Availability
*13996
WCI 3018913 WCI 3018913 Contact Us For Availability
1
WCI 3018021 WCI 3018021 Contact Us For Availability
1
WCI 3014697 WCI 3014697 Contact Us For Availability
1
WCI 3018068 WCI 3018068 Contact Us For Availability
1
WCI 3014673 WCI 3014673 Contact Us For Availability
1
SIDE PANEL KIT-AVOC (REVERSIBLE RIGHT OR LEFT WCI 3018190 Contact Us For Availability
1
WCI 3018128 WCI 3018128 Contact Us For Availability
2
END CAP-LH BLACK WCI 3018022 Contact Us For Availability
2
WCI 3018097 WCI 3018097 Contact Us For Availability
2
LATCH-ASSEMBLY WCI 3014690 Contact Us For Availability
2
WCI 3018069 WCI 3018069 Contact Us For Availability
2
WCI 3018102 WCI 3018102 Contact Us For Availability
2
CLAMP-WIRE WCI 3018136 Contact Us For Availability
2
SILVERWARE BASKET WCI 3018129 Contact Us For Availability
3
WCI 3018162 WCI 3018162 Contact Us For Availability
3
WCI 3018034 WCI 3018034 Contact Us For Availability
3
WCI 3018098 WCI 3018098 Contact Us For Availability
3
WCI 3018040 WCI 3018040 Contact Us For Availability
3
WCI 3018047 WCI 3018047 Contact Us For Availability
3
WCI 3014683 WCI 3014683 Contact Us For Availability
3
WCI 3018188 WCI 3018188 Contact Us For Availability
4
WCI 3018024 WCI 3018024 Contact Us For Availability
4
WCI 3018041 WCI 3018041 Contact Us For Availability
4
HOSE-DRAIN-CORRIGATED WCI 3018070 Contact Us For Availability
4
WCI 3018103 WCI 3018103 Contact Us For Availability
4
WCI 3018131 WCI 3018131 Contact Us For Availability
5
VENT GRILLE WCI 3018026 Contact Us For Availability
5
PIN-SPIRAL WCI 3018099 Contact Us For Availability
5
WCI 3018043 WCI 3018043 Contact Us For Availability
5
WCI 3018071 WCI 3018071 Contact Us For Availability
5
WCI 3018104 WCI 3018104 Contact Us For Availability
5
WCI 3018137 WCI 3018137 Contact Us For Availability
5
WCI 3018132 WCI 3018132 Contact Us For Availability
6
WCI 3018025 WCI 3018025 Contact Us For Availability
6
WCI 3014652 WCI 3014652 Contact Us For Availability
6
WCI 3018042 WCI 3018042 Contact Us For Availability
6
WCI 3014689 WCI 3014689 Contact Us For Availability
6
WCI 3014671 WCI 3014671 Contact Us For Availability
6
BRACKET-TERM BOARD WCI 3018138 Contact Us For Availability
6
WCI 3018133 WCI 3018133 Contact Us For Availability
7
KNOB-CYCLE INDICATOR WCI 3018164 Contact Us For Availability
7
WCI 3018059 WCI 3018059 Contact Us For Availability
7
WCI 3018105 WCI 3018105 Contact Us For Availability
7
WCI 3014688 WCI 3014688 Contact Us For Availability
8
WCI 3018165 WCI 3018165 Contact Us For Availability
8
WCI 3014678 WCI 3014678 Contact Us For Availability
8
WCI 3018045 WCI 3018045 Contact Us For Availability
8
WCI 3018065 WCI 3018065 Contact Us For Availability
8
CLIP KIT-TUB GASKET WITH REF 21 WCI 3014661 Contact Us For Availability
9
END CAP-RH BLACK WCI 3018029 Contact Us For Availability
9
WCI 3014705 WCI 3014705 Contact Us For Availability
9
BODY ASSEMBLY WCI 3014680 Contact Us For Availability
9
WCI 3018073 WCI 3018073 Contact Us For Availability
9
WCI 3014675 WCI 3014675 Contact Us For Availability
9
TERMINAL BLOCK ASSY WCI 3018139 Contact Us For Availability
10
WCI 3018032 WCI 3018032 Contact Us For Availability
10
WCI 3014632 WCI 3014632 Contact Us For Availability
10
WCI 3018172 WCI 3018172 Contact Us For Availability
10
WCI 3018074 WCI 3018074 Contact Us For Availability
10
LOWER IMPELLER/SEAL KIT INCLUDES NO. 2, 4, 5, WCI 3018107 Contact Us For Availability
10
SCREW WCI 3018140 Contact Us For Availability
11
WCI 3018100 WCI 3018100 Contact Us For Availability
11
WCI 3018173 WCI 3018173 Contact Us For Availability
11
WCI 3014693 WCI 3014693 Contact Us For Availability
11
WCI 3014633 WCI 3014633 Contact Us For Availability
11
SCREW WCI 3018141 Contact Us For Availability
12
WCI 3018030 WCI 3018030 Contact Us For Availability
12
WCI 3018101 WCI 3018101 Contact Us For Availability
12
SCREW AND WASHER KIT-INCLUDES NO. 10 WCI 3018075 Contact Us For Availability
12
WCI 3018108 WCI 3018108 Contact Us For Availability
12
WCI 3014653 WCI 3014653 Contact Us For Availability
13
SHIELD WCI 3018039 Contact Us For Availability
13
WCI 3014679 WCI 3014679 Contact Us For Availability
13
WCI 3014636 WCI 3014636 Contact Us For Availability
13
WCI 3014699 WCI 3014699 Contact Us For Availability
13
WCI 3018142 WCI 3018142 Contact Us For Availability
14
WCI 3018038 WCI 3018038 Contact Us For Availability
14
WCI 3018174 WCI 3018174 Contact Us For Availability
14
WCI 3018109 WCI 3018109 Contact Us For Availability
14
WCI 3018143 WCI 3018143 Contact Us For Availability
15
WCI 3018167 WCI 3018167 Contact Us For Availability
15
WCI 3018175 WCI 3018175 Contact Us For Availability
15
WCI 3018076 WCI 3018076 Contact Us For Availability
15
WCI 3018064 WCI 3018064 Contact Us For Availability
15
POWER CORD KIT-USE ONLY WHEN LOCAL CODES PERM WCI 3018144 Contact Us For Availability
16
WCI 3018036 WCI 3018036 Contact Us For Availability
16
PLUG-DISPENSER FILL WCI 3018176 Contact Us For Availability
16
PLATE-FLOAT TUBE WCI 3018077 Contact Us For Availability
16
WCI 3018110 WCI 3018110 Contact Us For Availability
16
WCI 3018145 WCI 3018145 Contact Us For Availability
17
WCI 3018037 WCI 3018037 Contact Us For Availability
17
COUNTERBALANCE ARM ASSEMBLY-LH WCI 3018048 Contact Us For Availability
17
GASKET-FLOAT TUBE WCI 3018078 Contact Us For Availability
17
WCI 3018111 WCI 3018111 Contact Us For Availability
17
WCI 3018146 WCI 3018146 Contact Us For Availability
18
WCI 3018168 WCI 3018168 Contact Us For Availability
18
WCI 3018050 WCI 3018050 Contact Us For Availability
18
GUIDE-LH COUNTER-BALANCE ARM WCI 3018079 Contact Us For Availability
18
MOTOR ASSY INCLUDES NO. 1, 9, 16, 20 AND SHIM WCI 3018112 Contact Us For Availability
18
WCI 3018113 WCI 3018113 Contact Us For Availability
18
WCI 3018147 WCI 3018147 Contact Us For Availability
19
WCI 3018049 WCI 3018049 Contact Us For Availability
19
WCI 3018080 WCI 3018080 Contact Us For Availability
19
TOOL-SEAL INSTALLATION REQUIRED WHEN INSTALL. WCI 3018114 Contact Us For Availability
19
ANGLE KIT-SIDE WCI 3018148 Contact Us For Availability
20
WCI 30108035 WCI 30108035 Contact Us For Availability
20
TRIM-RH DOOR PANEL WCI 3018044 Contact Us For Availability
20
WCI 3018081 WCI 3018081 Contact Us For Availability
20
WCI 3018115 WCI 3018115 Contact Us For Availability
20
WCI 3018149 WCI 3018149 Contact Us For Availability
21
BRACKET-MOUNTING WCI 3018169 Contact Us For Availability
21
WCI 3018177 WCI 3018177 Contact Us For Availability
21
WCI 3018082 WCI 3018082 Contact Us For Availability
21
TIP-TOWER WCI 3018116 Contact Us For Availability
21
WCI 3018150 WCI 3018150 Contact Us For Availability
22
WCI 3018170 WCI 3018170 Contact Us For Availability
22
WCI 3018083 WCI 3018083 Contact Us For Availability
22
CLAMP-HOSE WCI 3018117 Contact Us For Availability
22
COVER-JUNCTION BOX WCI 3018151 Contact Us For Availability
23
WCI 3018053 WCI 3018053 Contact Us For Availability
23
GUIDE-RH COUNTER-BALANCE ARM WCI 3018084 Contact Us For Availability
23
WCI 3014682 WCI 3014682 Contact Us For Availability
23
BRACKET-JUNCTION BOX WCI 3018152 Contact Us For Availability
24
COUNTERBALANCE ARM ASSEMBLY-RH WCI 3018054 Contact Us For Availability
24
WCI 3018085 WCI 3018085 Contact Us For Availability
24
HINGE-WELD ASSEMBLY WCI 3018153 Contact Us For Availability
25
WCI 3018055 WCI 3018055 Contact Us For Availability
25
WCI 3018086 WCI 3018086 Contact Us For Availability
25
WCI 808013 WCI 808013 Contact Us For Availability
26
WCI 3018056 WCI 3018056 Contact Us For Availability
26
FLOAT SWITCH KIT-INCLUDES NO. 16, 17, 22, 24, WCI 3018087 Contact Us For Availability
27
SPRING PAD WCI 3014666 Contact Us For Availability
27
WCI 3018088 WCI 3018088 Contact Us For Availability
27
HOUSING KIT-IMPELLER INCLUDES 6 AND 7-(HOUSIN WCI 3018120 Contact Us For Availability
28
WCI 3018057 WCI 3018057 Contact Us For Availability
28
WCI 3018089 WCI 3018089 Contact Us For Availability
28
WCI 3018154 WCI 3018154 Contact Us For Availability
29
WCI 3018058 WCI 3018058 Contact Us For Availability
29
WCI 3018090 WCI 3018090 Contact Us For Availability
29
WCI 3018121 WCI 3018121 Contact Us For Availability
30
GASKET - WATER INLET WCI 3018091 Contact Us For Availability
30
WCI 3018122 WCI 3018122 Contact Us For Availability
31
WATER INLET ASSY WCI 3018092 Contact Us For Availability
31
WCI 3018123 WCI 3018123 Contact Us For Availability
32
WCI 3018093 WCI 3018093 Contact Us For Availability
32
SPRAY ARM ASSY WCI 3018124 Contact Us For Availability
33
WCI 3018062 WCI 3018062 Contact Us For Availability
33
TUBING-WATER INLET (INCLUDES NO. 34) WCI 3018094 Contact Us For Availability
33
BASE-TOWER WCI 3018125 Contact Us For Availability
34
TRIM-LH-DOOR PANEL WCI 3018061 Contact Us For Availability
34
WCI 3018126 WCI 3018126 Contact Us For Availability
35
INSERTS-DOOR AND ACCESS PANEL-AVOCADO WCI 3018180 Contact Us For Availability
35
INSERTS-DOOR AND ACCESS PANEL-BLACK WCI 3018181 Contact Us For Availability
35
WCI 3018127 WCI 3018127 Contact Us For Availability
37
TRIM-LH ACCESS PNL WCI 3018182 Contact Us For Availability
38
TRIM-BOTTOM ACCESS PANEL WCI 3018183 Contact Us For Availability
40
WCI 3018185 WCI 3018185 Contact Us For Availability
41
TRIM-TOP ACCESS PNL WCI 3018186 Contact Us For Availability
× ![]()
