Model Electrolux DW1800Y0 DISHWASHER – Common Parts & Diagrams

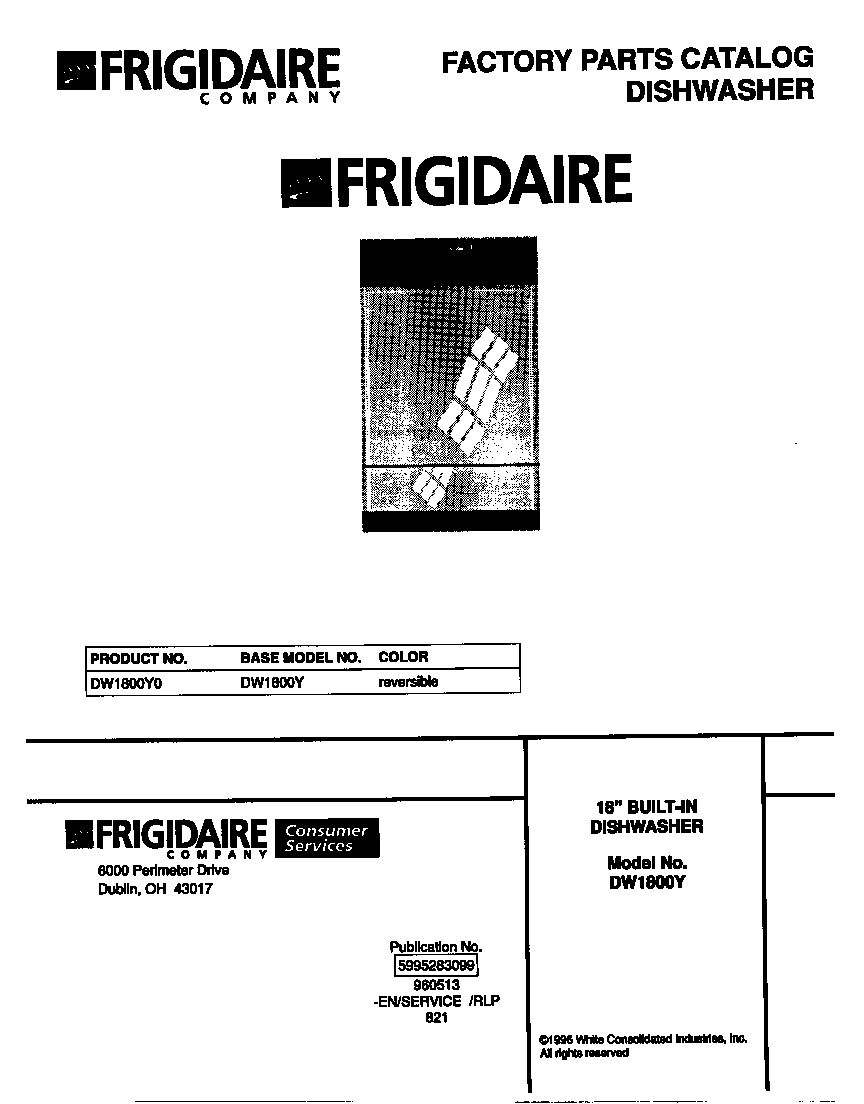

01 - COVER

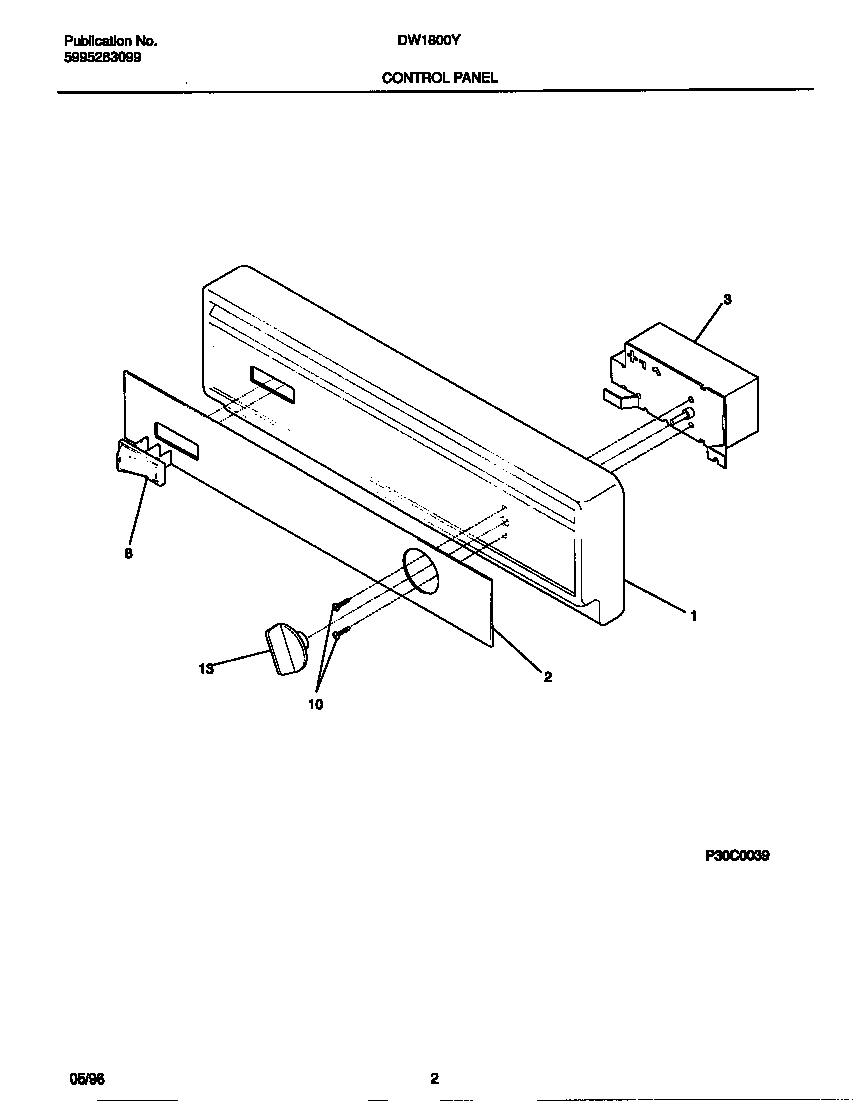

02 - CONTROL PANEL

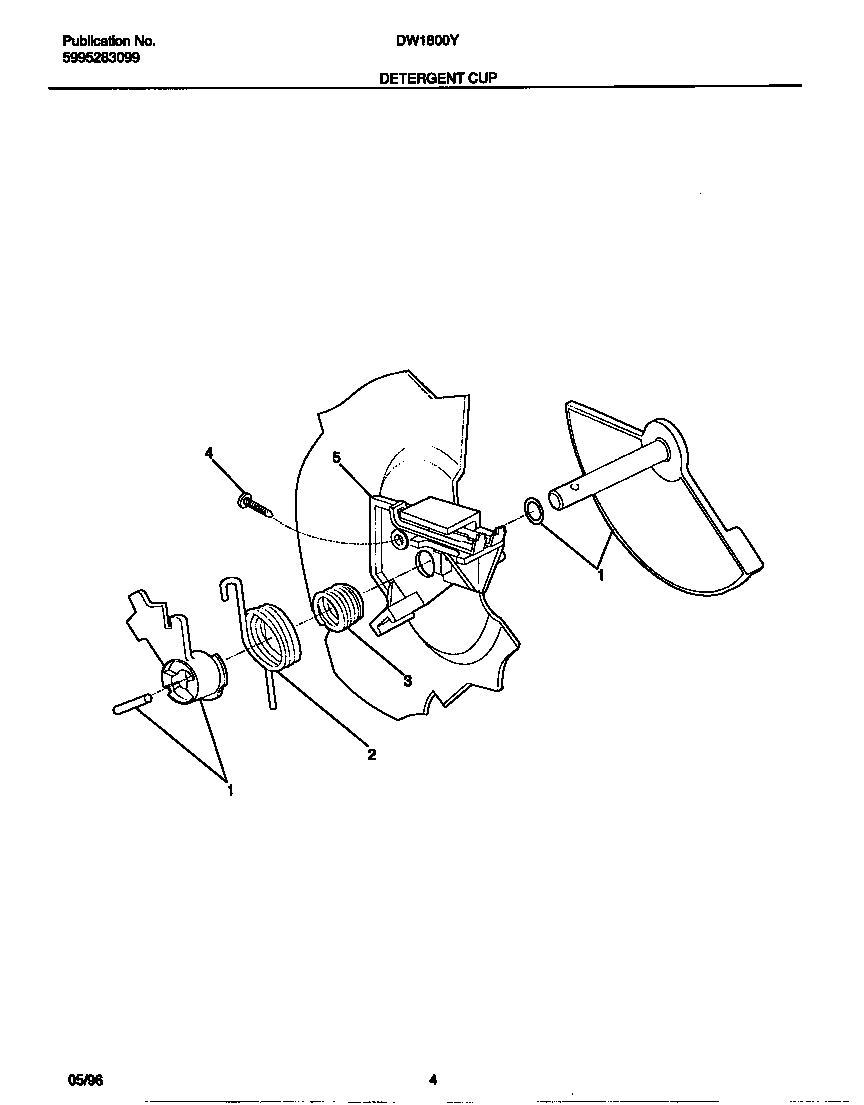

03 - DETERGENT CUP

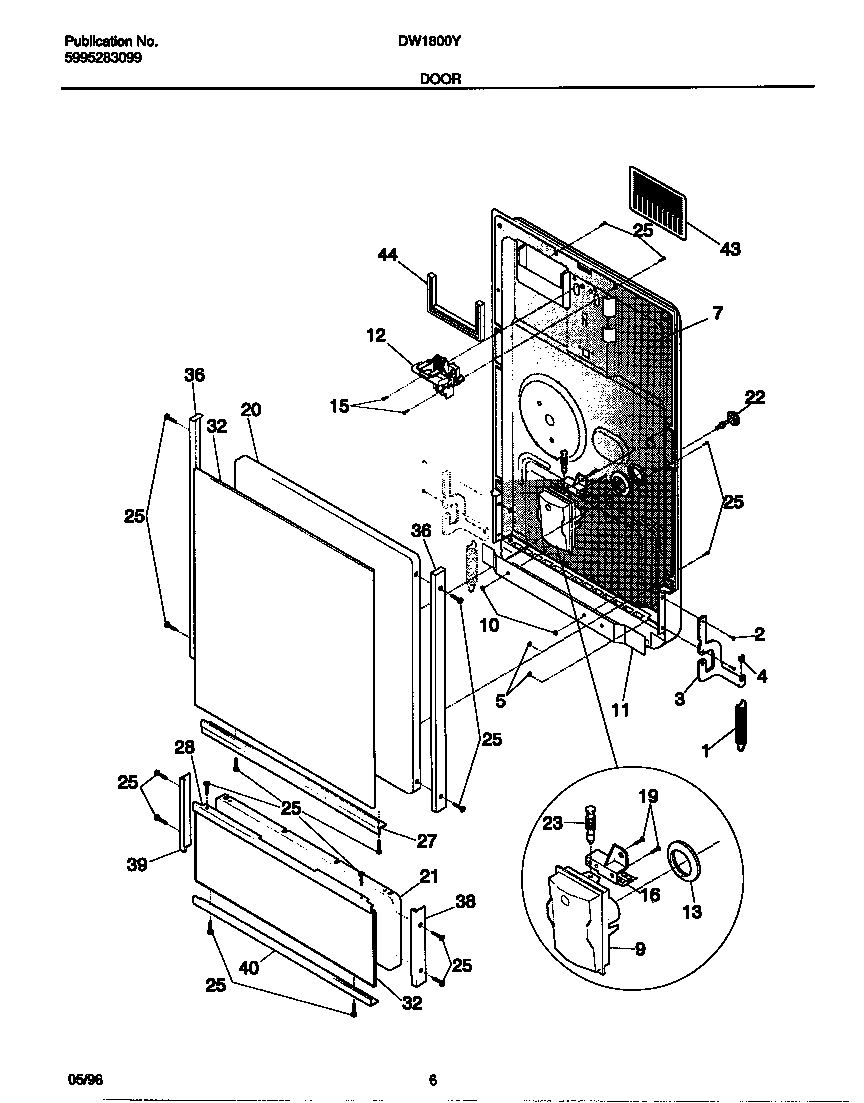

04 - DOOR

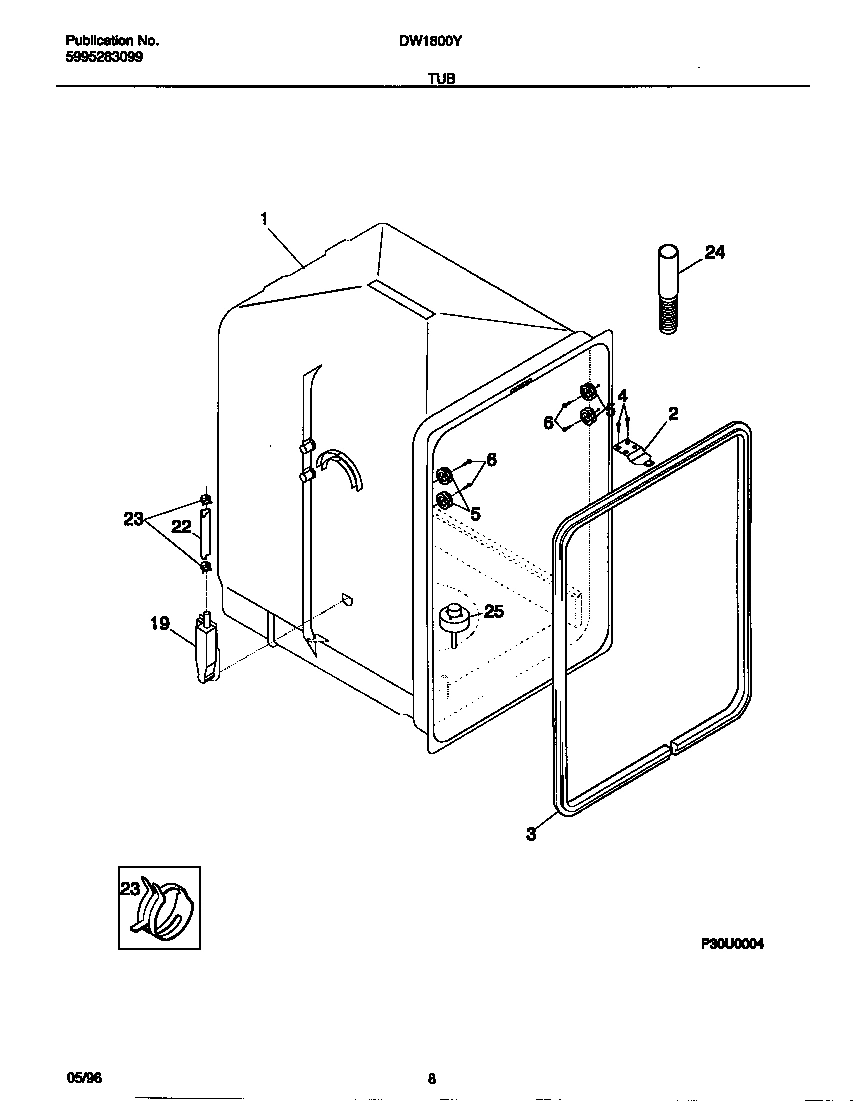

05 - TUB

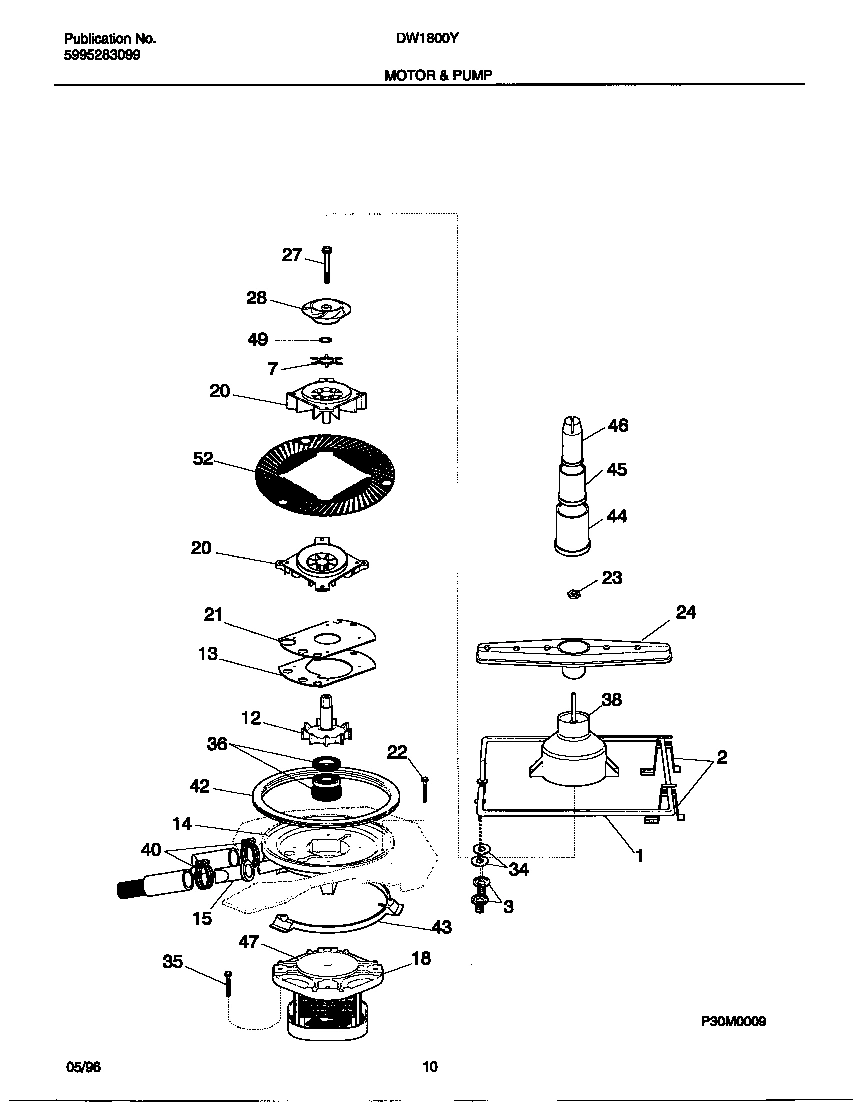

06 - MOTOR & PUMP

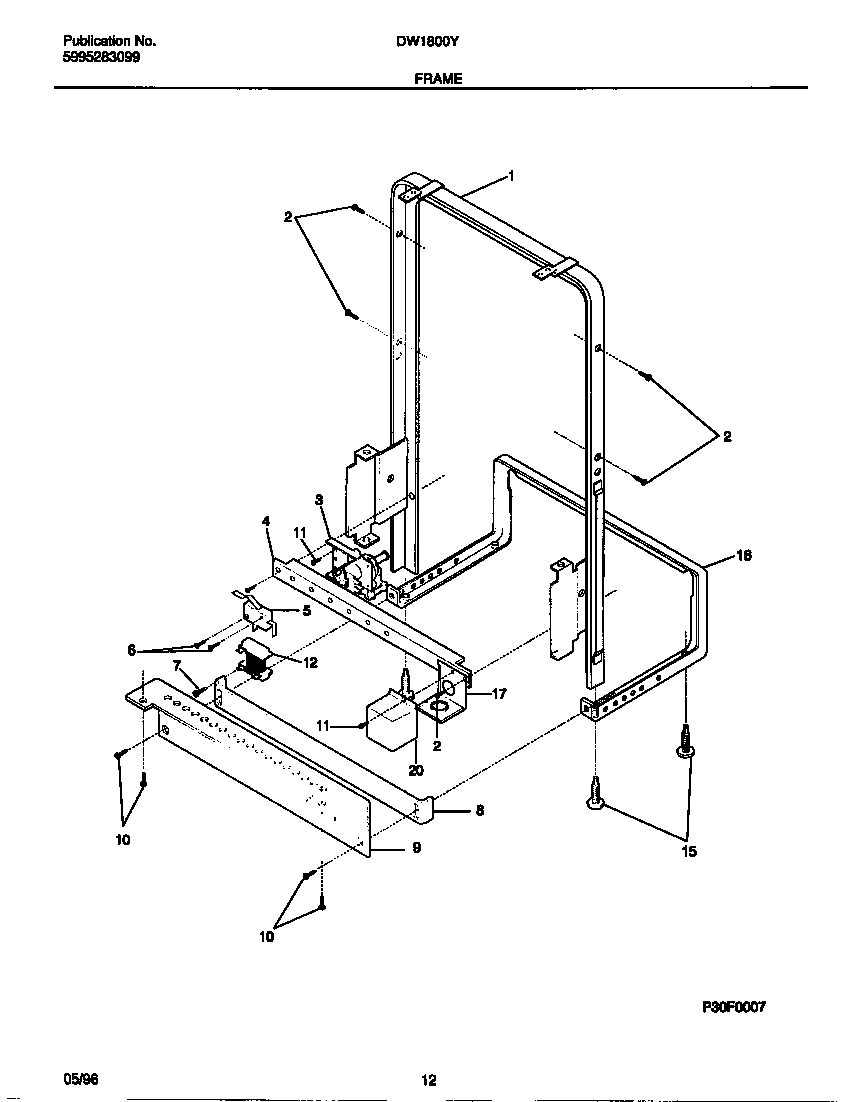

07 - FRAME

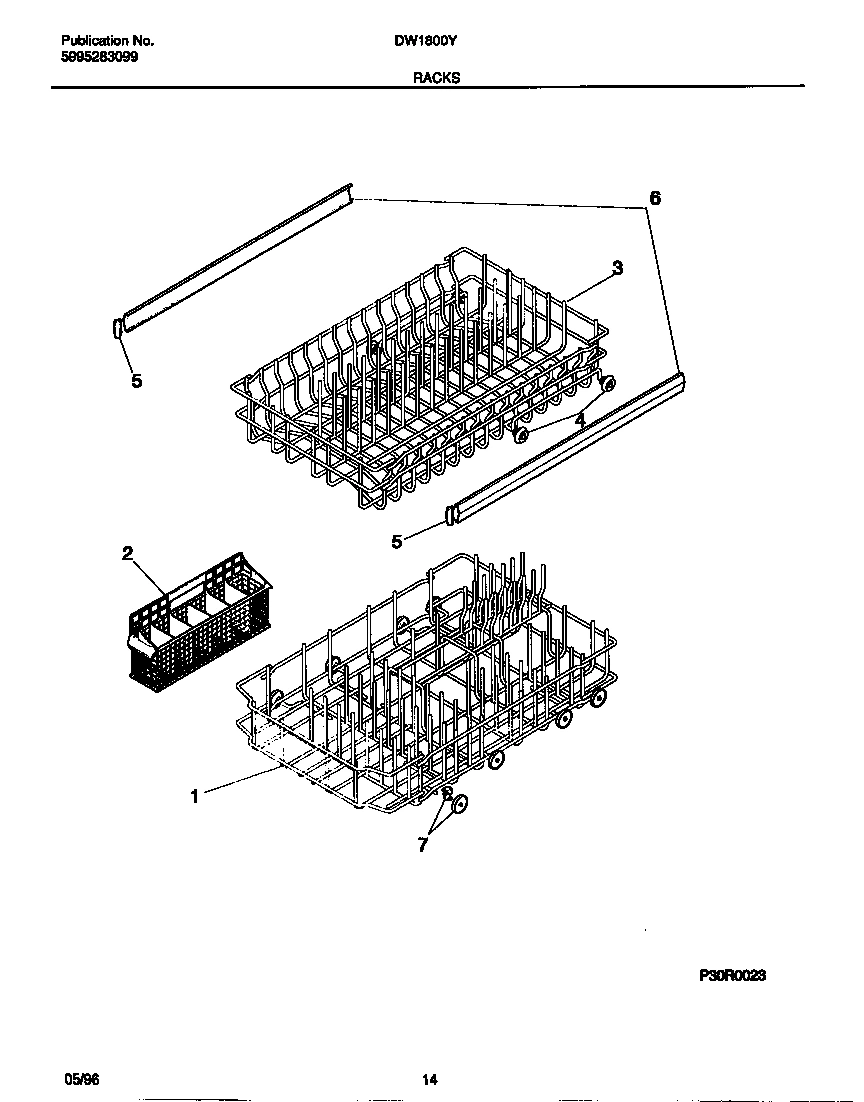

08 - RACKS
Common parts from model Electrolux DW1800Y0 DISHWASHER
*66966
SCREW-10-16 X 3/8 WCI 154200601 Contact Us For Availability
1
WCI 154220901 WCI 154220901 Contact Us For Availability
1
WCI 154218801 WCI 154218801 Contact Us For Availability
1
WCI 154237602 WCI 154237602 Contact Us For Availability
3
ARM ASSY, RH & LH WCI 5303270031 No Longer Available
3
WCI 154237502 WCI 154237502 Contact Us For Availability
4
WCI 154219101 WCI 154219101 Contact Us For Availability
5
WCI 154225501 WCI 154225501 Contact Us For Availability
5
WCI 154183301 WCI 154183301 Contact Us For Availability
6
SCREW, TRUSS HEAD, 10 X 0.625 WCI 154025901 Contact Us For Availability
7
WCI 5300809920 WCI 5300809920 Contact Us For Availability
7
SCREW-RELAY WCI 5300804672 Contact Us For Availability
8
WCI 154220802 WCI 154220802 Contact Us For Availability
9
BODY-DISPENSER WCI 5300806753 Contact Us For Availability
9
WCI 154220702 WCI 154220702 Contact Us For Availability
11
WCI 154221101 WCI 154221101 Contact Us For Availability
12
IMPELLER-LOWER WCI 5300809909 Contact Us For Availability
12
RELAY-MOTOR WCI 5303351059 Contact Us For Availability
13
WCI 154239301 WCI 154239301 Contact Us For Availability
13
GROMMET-RINSE AGENT WCI 5300805631 Contact Us For Availability
15
WCI 5300809937 WCI 5300809937 Contact Us For Availability
15
WCI 154210902 WCI 154210902 Contact Us For Availability
16
BI-METAL-RINSE DISP WCI 5300809782 Contact Us For Availability
16
WCI 154219001 WCI 154219001 Contact Us For Availability
17
BRACKET-JUNCTION BOX WCI 154112901 Contact Us For Availability
18
MOTOR WCI 5300809984 Contact Us For Availability
19
WCI 5300809902 WCI 5300809902 Contact Us For Availability
20
PLATE-SPACER WCI 5300809921 Contact Us For Availability
20
COVER-JUNCTION BOX WCI 154128301 Contact Us For Availability
21
PLATE-PUMP WCI 5300807884 Contact Us For Availability
22
WCI 154200201 WCI 154200201 Contact Us For Availability
23
WCI 154234301 WCI 154234301 Contact Us For Availability
24
WCI 154219201 WCI 154219201 Contact Us For Availability
27
SCREW-UPPER IMPELLER WCI 5300806353 Contact Us For Availability
28
IMPELLER-UPPER WCI 5300809918 Contact Us For Availability
32
WCI 5300808756 WCI 5300808756 Contact Us For Availability
34
WASHER-INSULATING WCI 154064901 Contact Us For Availability
35
WCI 154200901 WCI 154200901 Contact Us For Availability
36
SEAL KIT WCI 5300803903 Contact Us For Availability
38
WCI 154158402 WCI 154158402 Contact Us For Availability
38
TRIM-ACCESS PANEL,CHROME ,RH WCI 5303272124 Contact Us For Availability
40
TRIM-ACCESS, CHROME, BOTTOM WCI 154043802 Contact Us For Availability
43
CLAMP,PUMP WCI 5300809590 Contact Us For Availability
44
BASE-TOWER WCI 154122502 Contact Us For Availability
44
WCI 154221001 WCI 154221001 Contact Us For Availability
45
MIDDLE-TOWER WCI 154122601 Contact Us For Availability
46
TIP-TOWER WCI 154122701 Contact Us For Availability
49
WCI 5300809366 WCI 5300809366 Contact Us For Availability
52
WCI 154207502 WCI 154207502 Contact Us For Availability
× ![]()
