Model Electrolux DW1800H3 DISHWASHER – Common Parts & Diagrams
02 - CONSOLE AND CONTROL PARTS
03 - CAM

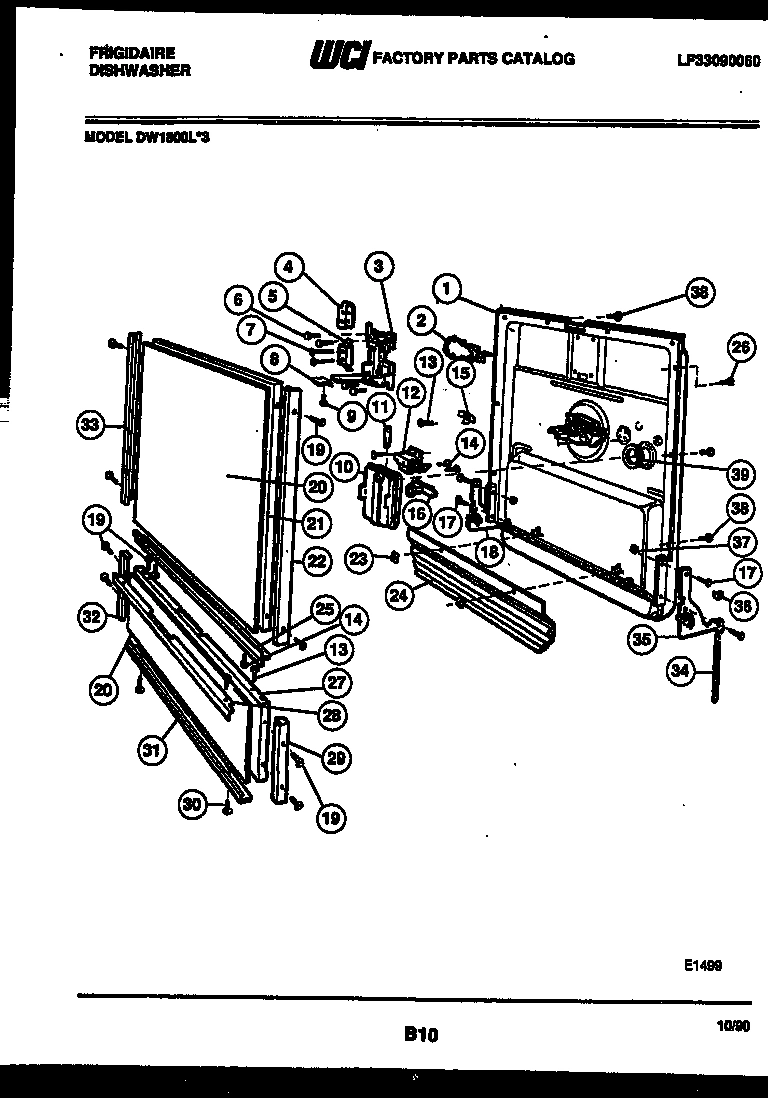

04 - DOOR PARTS

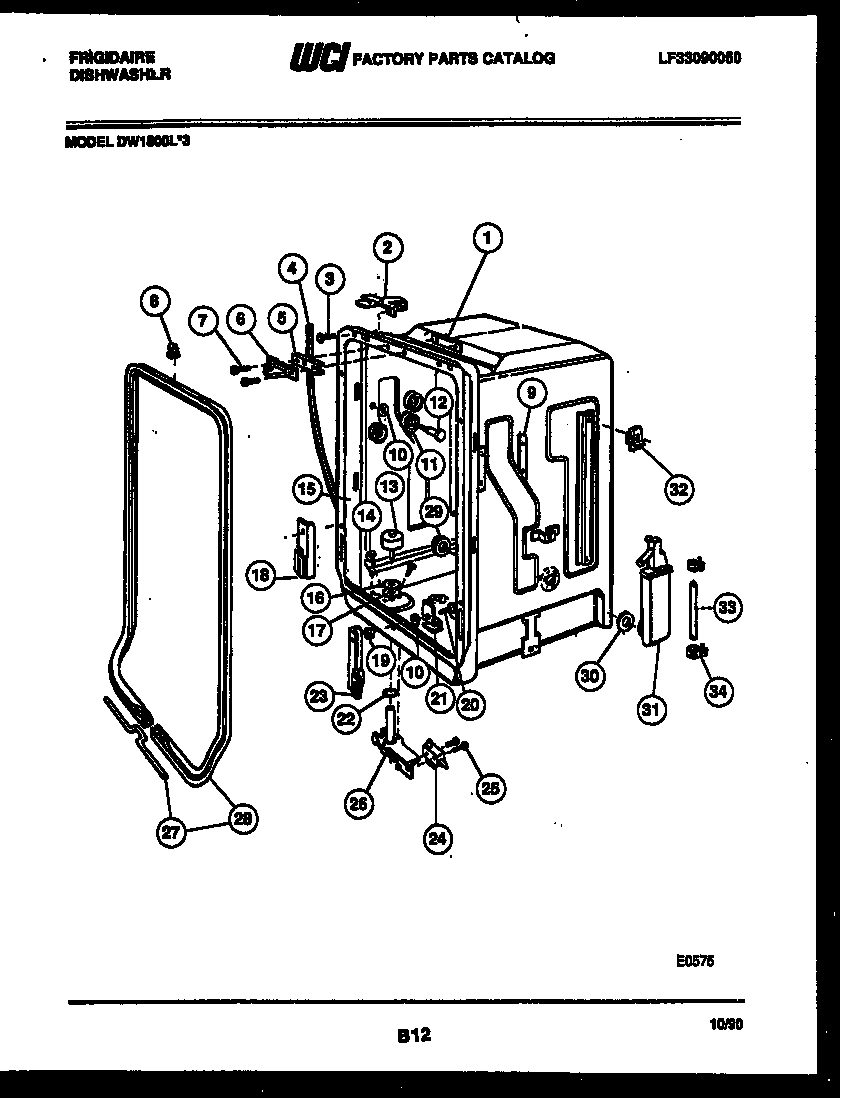

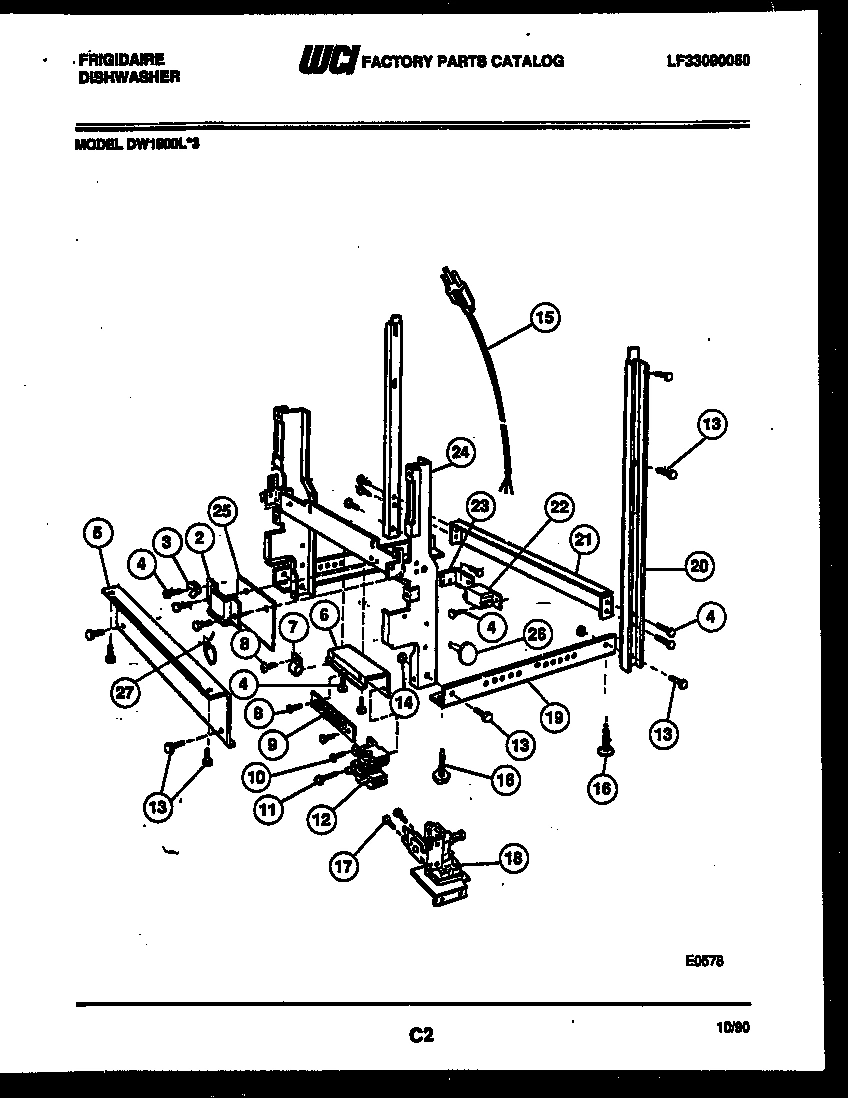

05 - TUB AND FRAME PARTS

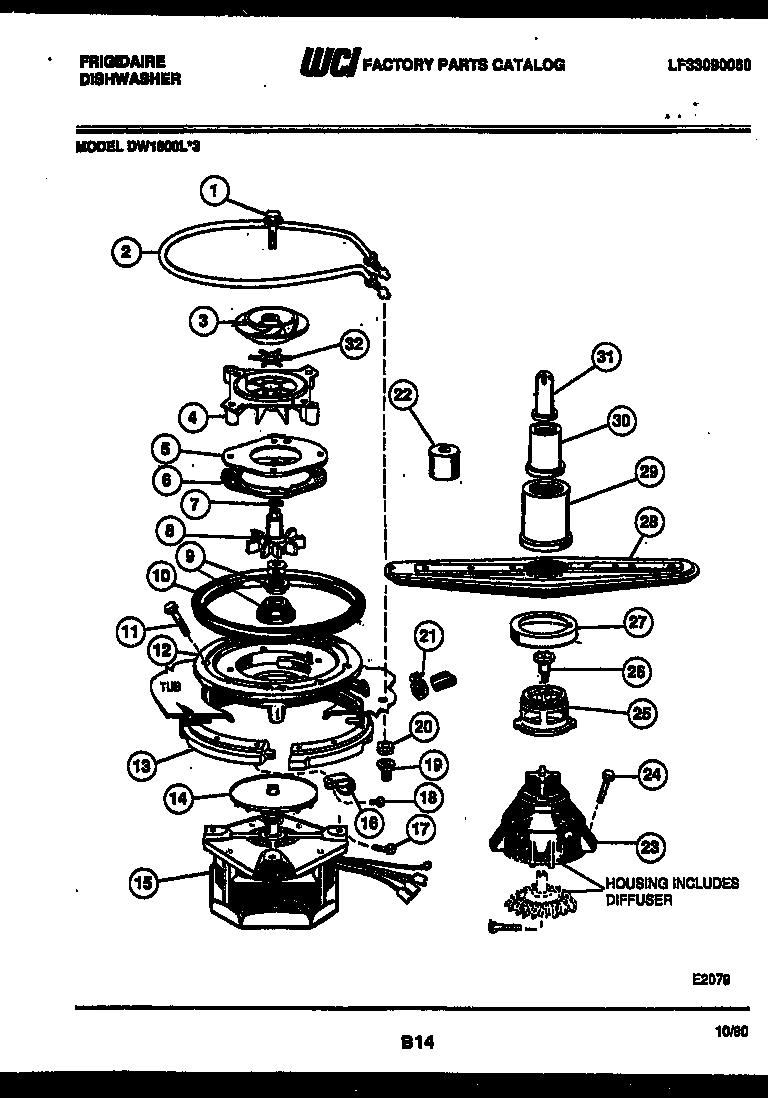

06 - MOTOR PUMP PARTS
07 - POWER DRY AND MOTOR PARTS

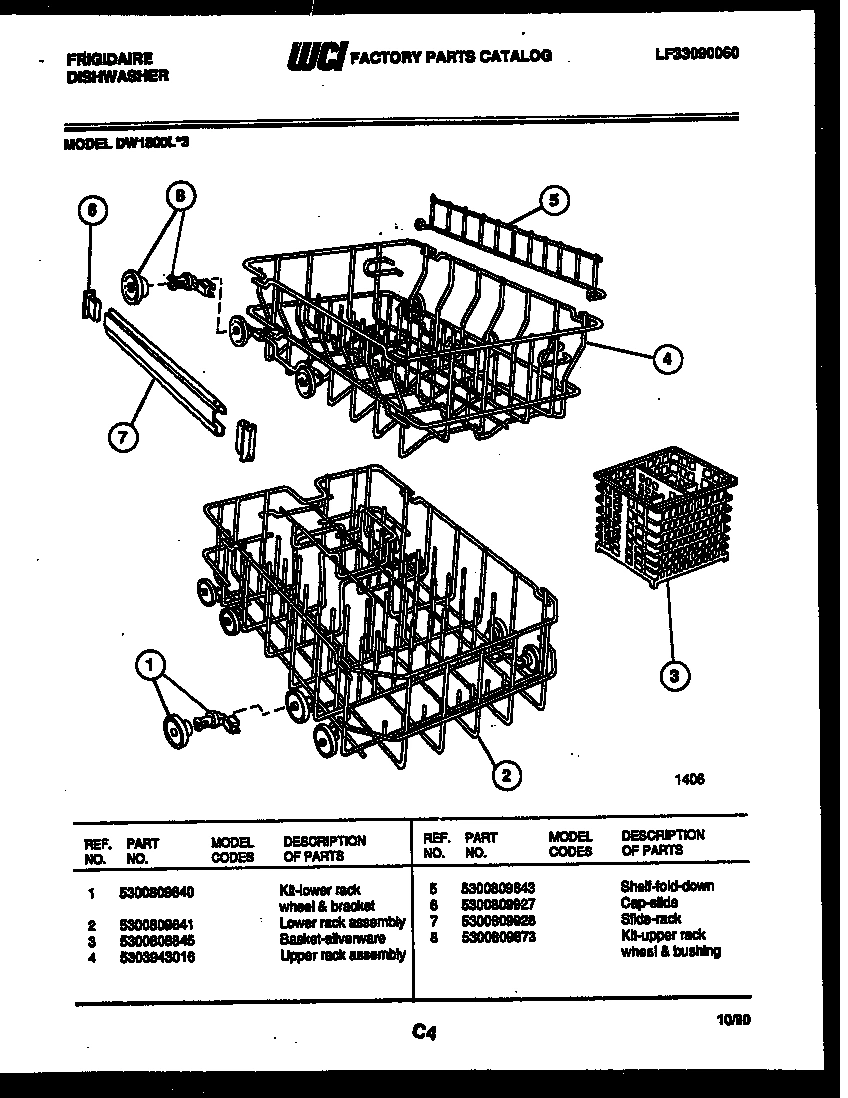

08 - RACKS AND TRAYS
Common parts from model Electrolux DW1800H3 DISHWASHER
*37776
WCI 5300808935 WCI 5300808935 Contact Us For Availability
1
SCREW-NO 10-32 X 2 1/4`` WCI 5300806353 Contact Us For Availability
1
PIN-SPIRAL WCI 5300808827 Contact Us For Availability
1
DOOR ASSEMBLY WCI 5300809635 Contact Us For Availability
1
PLATE-LATCH TAPPING WCI 5300808868 Contact Us For Availability
2
CLIP-ATTACH WCI 5300808289 Contact Us For Availability
2
HEATER-INCL KEY 19 & 20 WCI 5300806864 Contact Us For Availability
2
CLAMP - WIRE WCI 5300806723 Contact Us For Availability
2
WCI 5300809641 WCI 5300809641 Contact Us For Availability
3
SPRING-CAM WCI 5300805227 Contact Us For Availability
3
WCI 5300807016 WCI 5300807016 Contact Us For Availability
3
WCI 5300808933 WCI 5300808933 Contact Us For Availability
3
SCREW-NO 8 X 5/16`` WCI 5300806894 Contact Us For Availability
3
WCI 5300808845 WCI 5300808845 Contact Us For Availability
4
COVER - SWITCH WCI 5300807450 Contact Us For Availability
4
HOSE-CORRUGATED DRAIN WCI 5300809112 Contact Us For Availability
4
PLATE-SPACER WCI 5300809921 Contact Us For Availability
4
WCI 5303943016 WCI 5303943016 Contact Us For Availability
5
WCI 5300807043 WCI 5300807043 Contact Us For Availability
5
SHIM - STRIKE WCI 5300809214 Contact Us For Availability
5
PLATE-PUMP WCI 5300807884 Contact Us For Availability
5
WCI 5300807559 WCI 5300807559 Contact Us For Availability
5
WCI 5300809643 WCI 5300809643 Contact Us For Availability
6
STRIKE - DOOR WCI 5300807015 Contact Us For Availability
6
SCREW-NO 8A X 5/8`` WCI 5300809029 Contact Us For Availability
6
BI-METAL ASSEMBLY WCI 5300809072 Contact Us For Availability
6
BRACKET-TERMINAL BOARD WCI 5300807849 Contact Us For Availability
7
LID - DISPENSER WCI 5300809028 Contact Us For Availability
7
SCREW-NO 6-32 X 1`` WCI 5300808618 Contact Us For Availability
7
SLIDE-RACK WCI 5300809928 Contact Us For Availability
8
PUMP IMPELLER INCLUDES 7&9 WCI 5300809909 Contact Us For Availability
8
KNOB - LATCH WCI 5300808712 Contact Us For Availability
8
WCI 5300806647 WCI 5300806647 Contact Us For Availability
8
WCI 5300807501 WCI 5300807501 Contact Us For Availability
8
KIT-TUB GASKET CLIP INCLUDES KEY NO 21 WCI 5300805763 Contact Us For Availability
8
KIT-UPPER RACK WHEEL & BUSHING WCI 5300809873 Contact Us For Availability
9
SEAL-WATER WCI 5300803903 Contact Us For Availability
9
SCREW-NO 8-32 X 5/16`` WCI 5300808715 Contact Us For Availability
9
PLATE - TAPPING WCI 5300807038 Contact Us For Availability
9
TERMINAL BLOCK ASSY WCI 5300807486 Contact Us For Availability
10
BODY ASSEMBLY WCI 5300806753 Contact Us For Availability
10
WCI 5300809008 WCI 5300809008 Contact Us For Availability
10
WASHER WCI 5300809044 Contact Us For Availability
10
WCI 3018140 WCI 3018140 Contact Us For Availability
11
PLUNGER-INCLUDES RUBBER TIP WCI 5300809898 Contact Us For Availability
11
SCREW-NO 10 X 1`` WCI 3014699 Contact Us For Availability
11
WCI 3018141 WCI 3018141 Contact Us For Availability
12
KIT-SCREW & WASHER INCLUDES 10 WCI 5300808564 Contact Us For Availability
12
BI-METAL ASSEMBLY WCI 5300809109 Contact Us For Availability
12
HOUSING-PUMP WCI 5300809919 Contact Us For Availability
12
RELAY - MOTOR WCI 5300805255 Contact Us For Availability
13
WCI 5300809861 WCI 5300809861 Contact Us For Availability
13
RING-CLAMP (2) WCI 5300807712 Contact Us For Availability
13
SCREW-1/4-20 X 1/2`` WCI 5300806889 Contact Us For Availability
14
WCI 5300809366 WCI 5300809366 Contact Us For Availability
14
NUT WCI 5300804619 Contact Us For Availability
15
WCI 5300809716 WCI 5300809716 Contact Us For Availability
15
MOTORASSY INCLS 1, 7 & 14 WCI 5300809985 Contact Us For Availability
15
KIT-POWER CORD-USE ONLY WHEN LOCAL CODES PERM WCI 5300808395 Contact Us For Availability
16
WCI 5300807673 WCI 5300807673 Contact Us For Availability
16
PLATE-FLOAT TUBE WCI 5300808064 Contact Us For Availability
16
WCI 5300809422 WCI 5300809422 Contact Us For Availability
17
GASKET-FLOAT TUBE WCI 5300808063 Contact Us For Availability
17
SCREW-NO 10-24 X 5/8`` WCI 5300803311 Contact Us For Availability
17
SCREW-NO 10 X 1`` WCI 5300809022 Contact Us For Availability
17
SCREW-NO 10B X 1/2`` WCI 5300807004 Contact Us For Availability
18
COUNTERBALANCE ARM ASSEMBLY-LH WCI 5300807539 Contact Us For Availability
18
GUIDE-LH COUNTERBALANCE ARM WCI 5300807599 Contact Us For Availability
18
SCREW-NO 8 X 5/8`` WCI 5300807270 Contact Us For Availability
18
VALVE-WATER INLET WCI 5300809241 Contact Us For Availability
19
WCI 83350-2 WCI 83350-2 Contact Us For Availability
19
KIT-SIDE BASE ANGLE WCI 5300809543 Contact Us For Availability
20
GROMMET-HEATER WCI 5300806833 Contact Us For Availability
20
INSERTS-DR/ACC PANEL-WHEAT WCI 3018178 Contact Us For Availability
20
INSERTS-DR/ACC PANEL-BLACK WCI 3018181 Contact Us For Availability
20
SCREW-NO 8-32 X 1/2`` WCI 5300803319 Contact Us For Availability
20
CHANNEL-SUPPORT WCI 5300808670 Contact Us For Availability
21
CLIP-DAM WCI 5300808115 Contact Us For Availability
21
CLAMP-HOSE WCI 5300808186 Contact Us For Availability
21
WCI 5300807566 WCI 5300807566 Contact Us For Availability
22
WCI 5300809885 WCI 5300809885 Contact Us For Availability
22
WCI 5300808990 WCI 5300808990 Contact Us For Availability
22
WCI 5300807759 WCI 5300807759 Contact Us For Availability
22
TOOL-SEAT INSTALLATION REQUIRED WHEN INSTALLI WCI 5300803923 Contact Us For Availability
22
COVER - JUNCTION BOX WCI 5300800222 Contact Us For Availability
23
WCI 83212-5 WCI 83212-5 Contact Us For Availability
23
GUIDE-RH COUNTERBALANCE ARM WCI 5300807600 Contact Us For Availability
23
UPPER HOUSING ASSY-INCLUDES DIFFUSER WCI 5300809953 Contact Us For Availability
23
BRACKET-JUNCTION BOX WCI 5300807019 Contact Us For Availability
24
SWITCH - FLOAT WCI 5300809863 Contact Us For Availability
24
SEAL-BAFFLE WCI 5300809636 Contact Us For Availability
24
WCI 5300807359 WCI 5300807359 Contact Us For Availability
24
WCI 5300809212 WCI 5300809212 Contact Us For Availability
25
TRIM-BOTTOM DOOR WCI 5300809637 Contact Us For Availability
25
WCI 5300809864 WCI 5300809864 Contact Us For Availability
25
WCI 5303943010 WCI 5303943010 Contact Us For Availability
25
WCI 5300809144 WCI 5300809144 Contact Us For Availability
26
SCREW-NO 8 X 5/8`` WCI 5300808749 Contact Us For Availability
26
KIT-FLOAT SWITCH-INCLUDES 13, 16, 17, 22, 24 WCI 5300809859 Contact Us For Availability
26
BOLT-SPRAY ARM WCI 5300809018 Contact Us For Availability
26
RETAINER-INSULATION WCI 5300809711 Contact Us For Availability
27
WCI 5300809634 WCI 5300809634 Contact Us For Availability
27
SHIELD-BEARING WCI 5300808924 Contact Us For Availability
28
TUB GASKET & WIRE ASSY-INCLUDES 8 & 27 WCI 5300809633 Contact Us For Availability
28
TRIM-TOP ACCESS PANEL WCI 5300808471 Contact Us For Availability
28
SPRAY ARM ASSY WCI 5300808848 Contact Us For Availability
29
WCI 5300808103 WCI 5300808103 Contact Us For Availability
29
WCI 5300805669 WCI 5300805669 Contact Us For Availability
29
BASE-TOWER WCI 5300808178 Contact Us For Availability
30
GASKET - WATER INLET WCI 5300803573 Contact Us For Availability
30
SECTION-TOWER WCI 5300808179 Contact Us For Availability
31
WCI 5300808303 WCI 5300808303 Contact Us For Availability
31
WATER INLET ASSEMBLY WCI 5300806470 Contact Us For Availability
31
TIP-TOWER WCI 5300808849 Contact Us For Availability
32
WCI 5300808104 WCI 5300808104 Contact Us For Availability
32
NUT-CAGE WCI 5300806291 Contact Us For Availability
33
WCI 5300808991 WCI 5300808991 Contact Us For Availability
33
TUBING-WATER INLET-INCLUDES 34 WCI 5300807891 Contact Us For Availability
34
CLAMP WCI 5300807813 Contact Us For Availability
35
COUNTERBALANCE ARM ASSEMBLY-RH WCI 5300807538 Contact Us For Availability
36
PAD-SPRING WCI 5300805884 Contact Us For Availability
38
SCREW-NO 8 X 7/16`` WCI 5300809055 Contact Us For Availability
39
GROMMET-DISPENSER WCI 5300805631 Contact Us For Availability
× ![]()
