Model Electrolux DW1050LA2 DISHWASHER – Common Parts & Diagrams

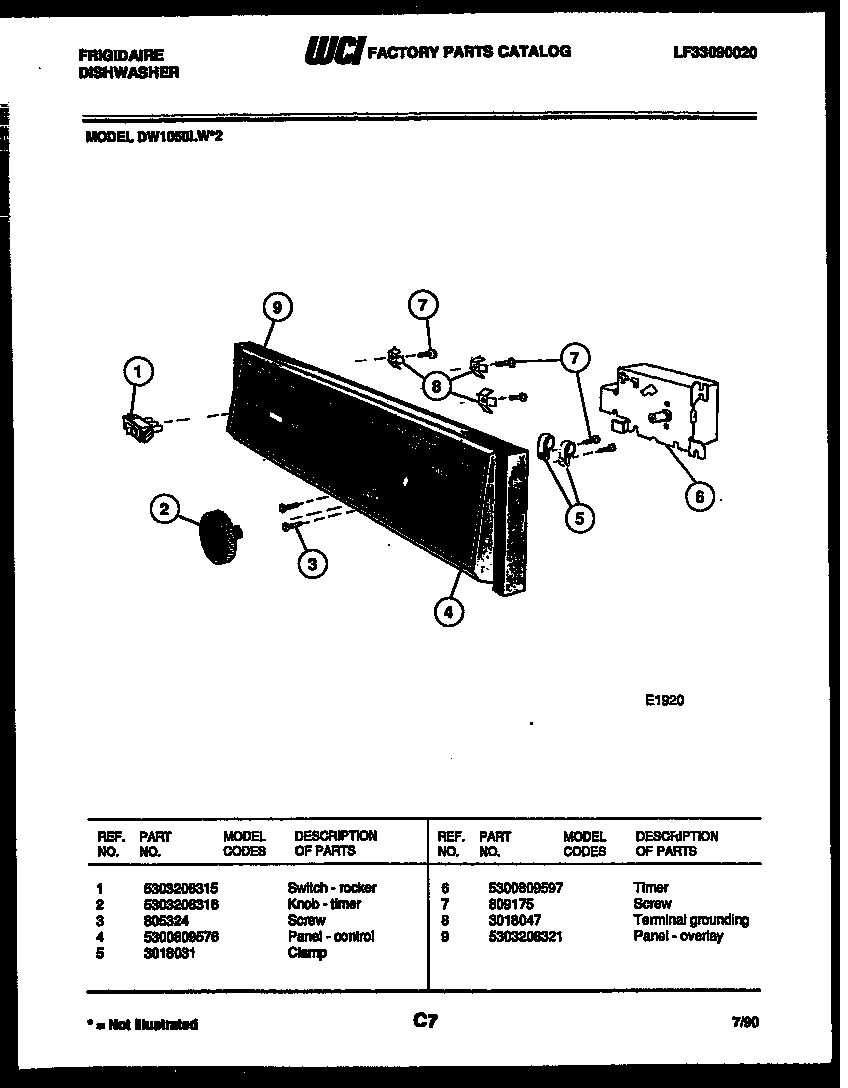

02 - CONSOLE AND CONTROL PARTS

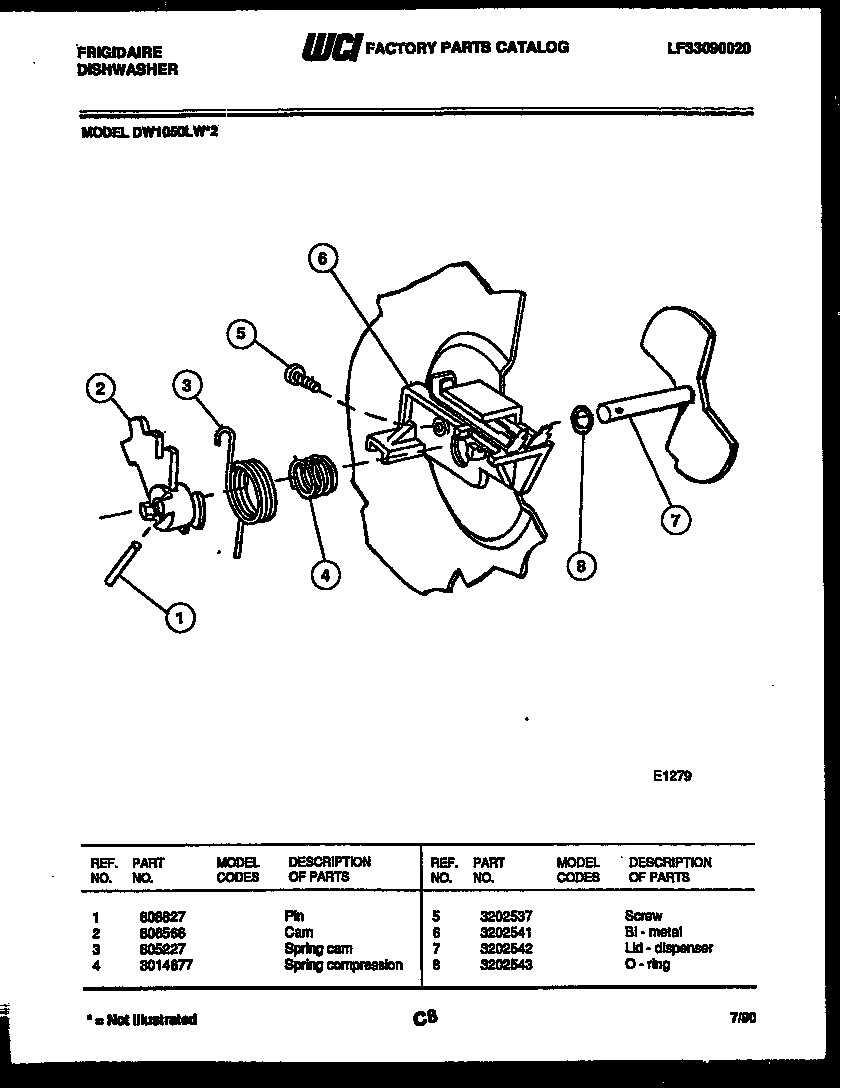

03 - CAM
04 - DOOR PARTS

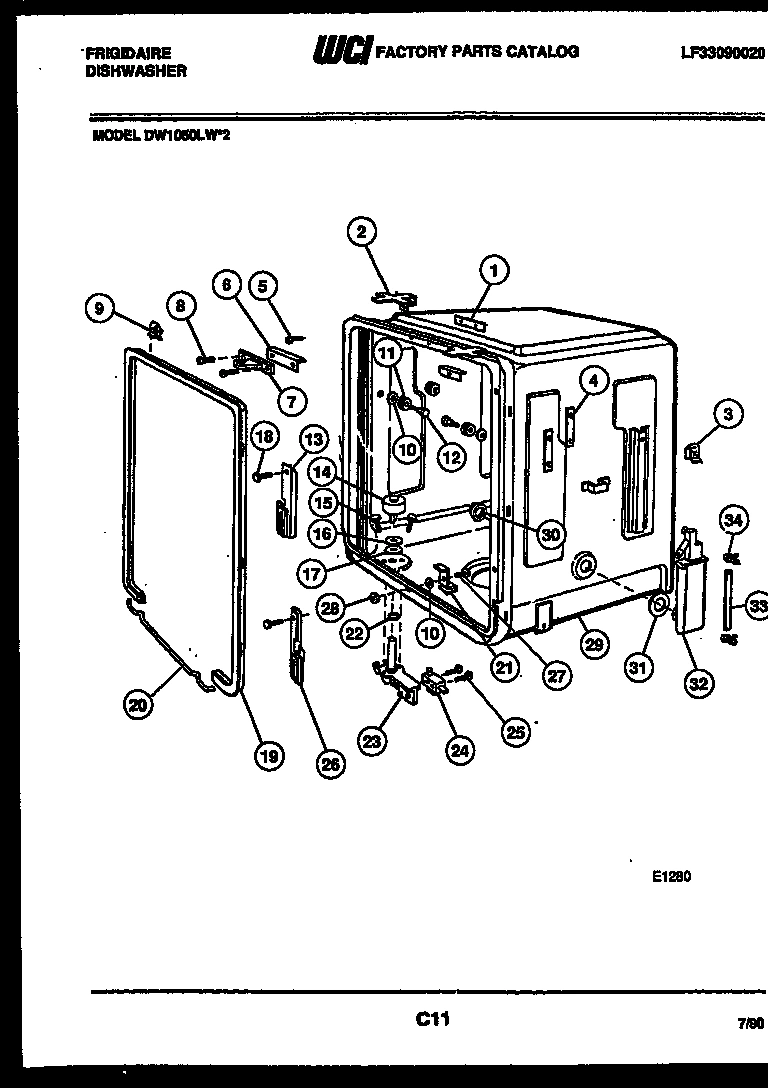

05 - TUB AND FRAME PARTS

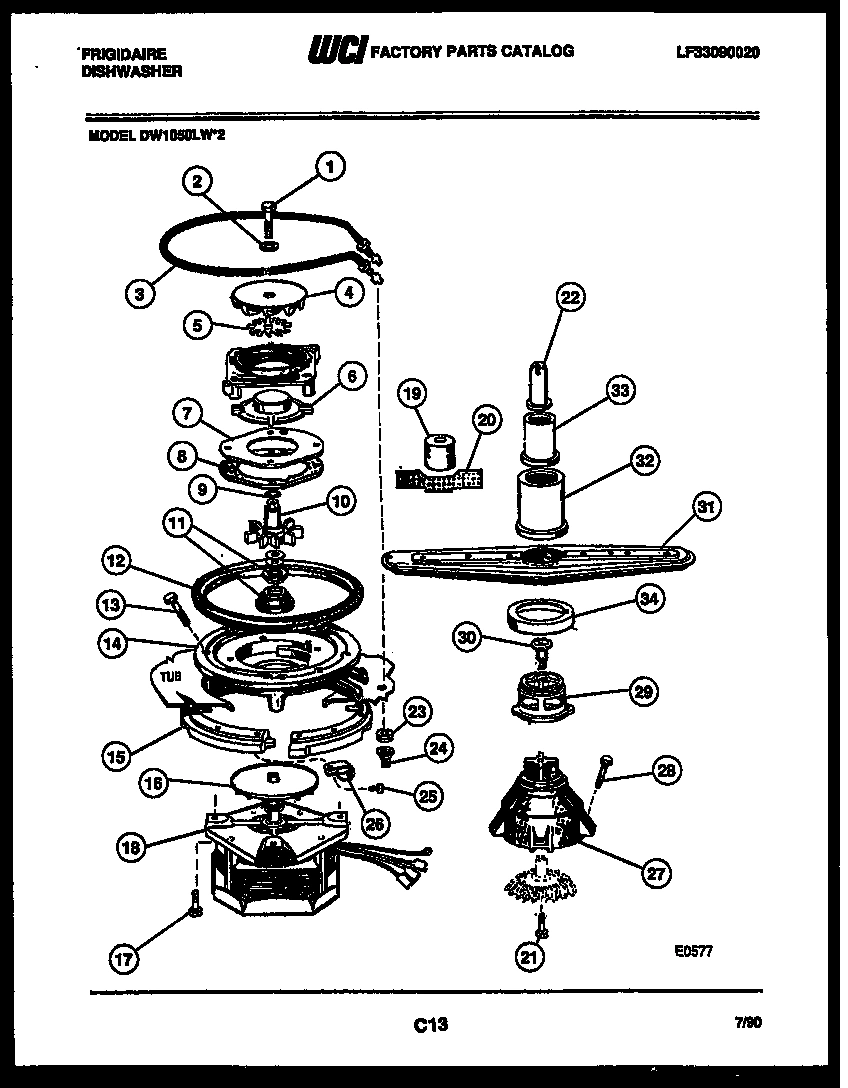

06 - MOTOR PUMP PARTS

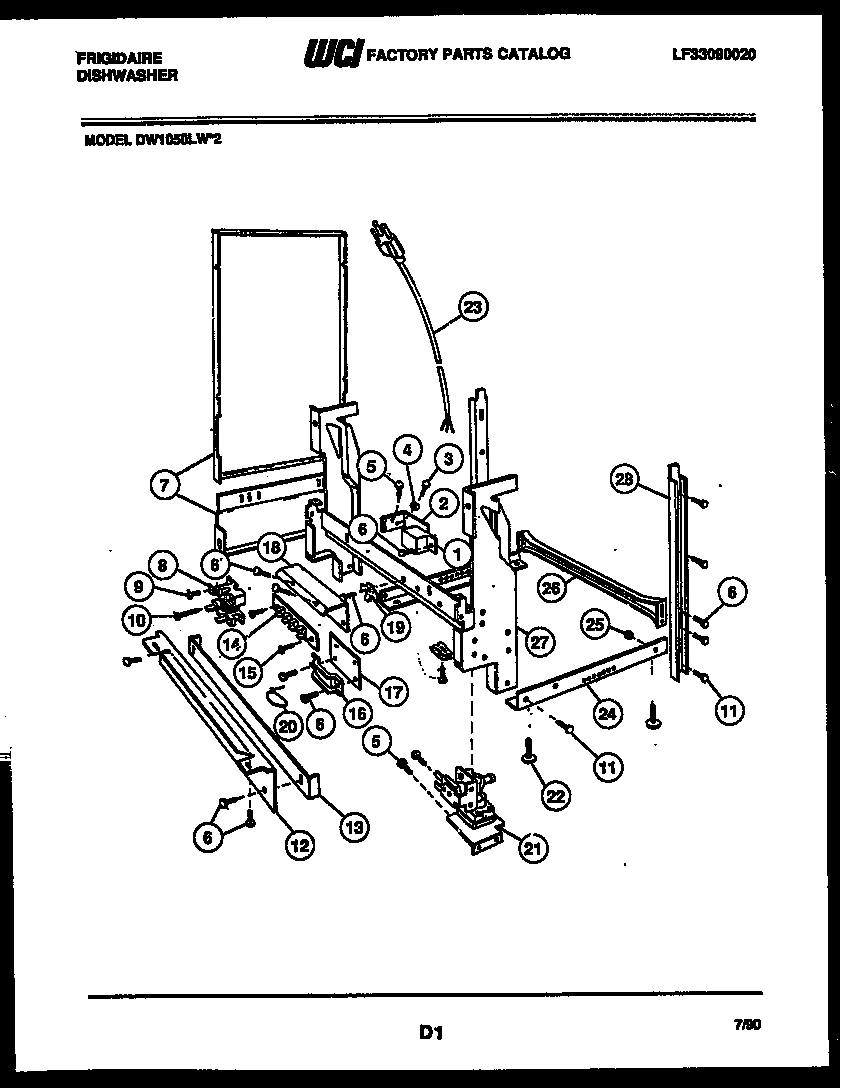

07 - POWER DRY AND MOTOR PARTS

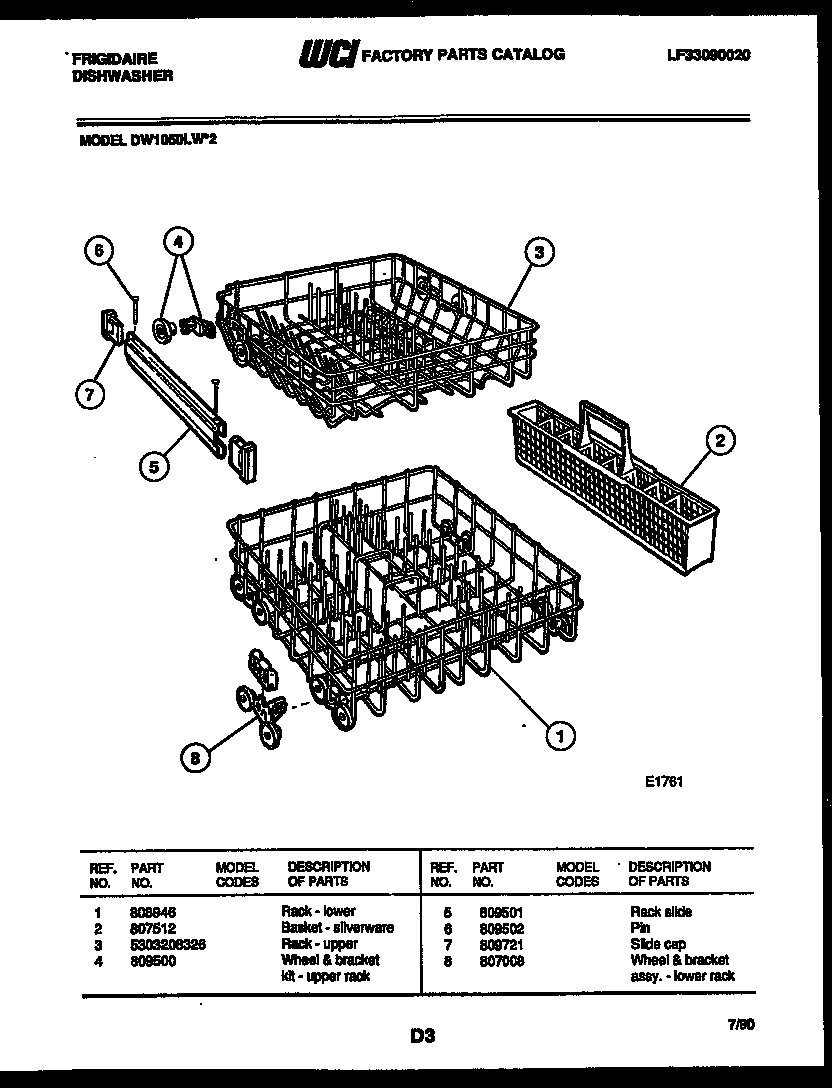

08 - RACKS AND TRAYS
Common parts from model Electrolux DW1050LA2 DISHWASHER
1
WCI 808827 WCI 808827 Contact Us For Availability
1
WCI 809360 WCI 809360 Contact Us For Availability
1
WCI 808868 WCI 808868 Contact Us For Availability
1
WCI 806353 WCI 806353 Contact Us For Availability
1
COVER-JUNCTION BOX WCI 3018151 Contact Us For Availability
1
WCI 808946 WCI 808946 Contact Us For Availability
2
WCI 5303208316 WCI 5303208316 Contact Us For Availability
2
WCI 806566 WCI 806566 Contact Us For Availability
2
WCI 3018056 WCI 3018056 Contact Us For Availability
2
WCI 5300809677 WCI 5300809677 Contact Us For Availability
2
WCI 3018102 WCI 3018102 Contact Us For Availability
2
BRACKET WCI 3018152 Contact Us For Availability
2
WCI 807512 WCI 807512 Contact Us For Availability
3
WCI 805324 WCI 805324 Contact Us For Availability
3
WCI 805227 WCI 805227 Contact Us For Availability
3
WCI 805681 WCI 805681 Contact Us For Availability
3
WCI 3018093 WCI 3018093 Contact Us For Availability
3
WCI 3202593 WCI 3202593 Contact Us For Availability
3
WCI 3202610 WCI 3202610 Contact Us For Availability
3
WCI 5303208326 WCI 5303208326 Contact Us For Availability
4
PANEL - CONTROL WCI 5300809576 Contact Us For Availability
4
WCI 3014666 WCI 3014666 Contact Us For Availability
4
WCI 3018073 WCI 3018073 Contact Us For Availability
4
WCI 5303018103 WCI 5303018103 Contact Us For Availability
4
WHEEL & BRACKET KIT-UPPER RACK WCI 809500 Contact Us For Availability
5
WCI 3202537 WCI 3202537 Contact Us For Availability
5
WCI 806976 WCI 806976 Contact Us For Availability
5
WCI 3018104 WCI 3018104 Contact Us For Availability
5
WCI 3018146 WCI 3018146 Contact Us For Availability
5
WCI 809501 WCI 809501 Contact Us For Availability
6
WCI 5300809597 WCI 5300809597 Contact Us For Availability
6
WCI 3202541 WCI 3202541 Contact Us For Availability
6
WCI 809055 WCI 809055 Contact Us For Availability
6
WCI 809214 WCI 809214 Contact Us For Availability
6
WCI 5303014671 WCI 5303014671 Contact Us For Availability
6
PIN WCI 809502 Contact Us For Availability
7
WCI 809175 WCI 809175 Contact Us For Availability
7
WCI 3202542 WCI 3202542 Contact Us For Availability
7
WCI 3202535 WCI 3202535 Contact Us For Availability
7
WCI 3014689 WCI 3014689 Contact Us For Availability
7
WCI 5303018105 WCI 5303018105 Contact Us For Availability
7
AVOCADO (REVERSIBLE RIGHT OR LEFT) WCI 5300808882 Contact Us For Availability
7
SLIDE CAP WCI 809721 Contact Us For Availability
8
WCI 3202543 WCI 3202543 Contact Us For Availability
8
WCI 808749 WCI 808749 Contact Us For Availability
8
WCI 5303014653 WCI 5303014653 Contact Us For Availability
8
WCI 807008 WCI 807008 Contact Us For Availability
9
WCI 5303208321 WCI 5303208321 Contact Us For Availability
9
WCI 809075 WCI 809075 Contact Us For Availability
9
WCI 3014661 WCI 3014661 Contact Us For Availability
9
WCI 3014675 WCI 3014675 Contact Us For Availability
9
SCREW WCI 3018140 Contact Us For Availability
10
WCI 5300809832 WCI 5300809832 Contact Us For Availability
10
WCI 3018074 WCI 3018074 Contact Us For Availability
10
PUMP SEAL KIT (INCLUDES 2, 4, 5, 9, 11 & 20) WCI 5303018107 Contact Us For Availability
10
SCREW WCI 3018141 Contact Us For Availability
11
WCI 3018041 WCI 3018041 Contact Us For Availability
11
WCI 807180 WCI 807180 Contact Us For Availability
11
WCI 803903 WCI 803903 Contact Us For Availability
11
WCI 806889 WCI 806889 Contact Us For Availability
12
WCI 5303018043 WCI 5303018043 Contact Us For Availability
12
WCI 3018075 WCI 3018075 Contact Us For Availability
12
WCI 3018108 WCI 3018108 Contact Us For Availability
12
WCI 809765 WCI 809765 Contact Us For Availability
13
WCI 809029 WCI 809029 Contact Us For Availability
13
WCI 807470 WCI 807470 Contact Us For Availability
13
WCI 5300809697 WCI 5300809697 Contact Us For Availability
13
WCI 3202613 WCI 3202613 Contact Us For Availability
14
WCI 3018042 WCI 3018042 Contact Us For Availability
14
WCI 5300809861 WCI 5300809861 Contact Us For Availability
14
WCI 5300809059 WCI 5300809059 Contact Us For Availability
14
WCI 3018139 WCI 3018139 Contact Us For Availability
15
WCI 808712 WCI 808712 Contact Us For Availability
15
WCI 5303018064 WCI 5303018064 Contact Us For Availability
15
WCI 3018065 WCI 3018065 Contact Us For Availability
16
WCI 809163 WCI 809163 Contact Us For Availability
16
WCI 3018077 WCI 3018077 Contact Us For Availability
16
WCI 5300808899 WCI 5300808899 Contact Us For Availability
16
WCI 3018136 WCI 3018136 Contact Us For Availability
17
WCI 3018078 WCI 3018078 Contact Us For Availability
17
WCI 809022 WCI 809022 Contact Us For Availability
17
WCI 809144 WCI 809144 Contact Us For Availability
18
WCI 806539 WCI 806539 Contact Us For Availability
18
WCI 5300809100 WCI 5300809100 Contact Us For Availability
18
BRACKET - TERMINAL WCI 3018138 Contact Us For Availability
19
TERMINAL GROUNDING WCI 3018047 Contact Us For Availability
19
WCI 805682 WCI 805682 Contact Us For Availability
19
WCI 5303208324 WCI 5303208324 Contact Us For Availability
19
SEAL INSTALLATION TOOL (REQUIRED WHEN INSTALL WCI 5303018114 Contact Us For Availability
20
WCI 3202539 WCI 3202539 Contact Us For Availability
20
WCI 809320 WCI 809320 Contact Us For Availability
20
WCI 3018115 WCI 3018115 Contact Us For Availability
21
WCI 5300809695 WCI 5300809695 Contact Us For Availability
21
WCI 3018082 WCI 3018082 Contact Us For Availability
21
WCI 3018127 WCI 3018127 Contact Us For Availability
21
WCI 3202615 WCI 3202615 Contact Us For Availability
22
WCI 3018083 WCI 3018083 Contact Us For Availability
22
WCI 808180 WCI 808180 Contact Us For Availability
22
WCI 3018145 WCI 3018145 Contact Us For Availability
23
FLOAT SWITCH KIT (INCLUDES 14, 16, 17, 22, 24 WCI 5300809859 Contact Us For Availability
23
WCI 5303351028 WCI 5303351028 Contact Us For Availability
23
WCI 3018144 WCI 3018144 Contact Us For Availability
24
SWITCH - FLOAT WCI 5300809863 Contact Us For Availability
24
WCI 807851 WCI 807851 Contact Us For Availability
25
WCI 5303208367 WCI 5303208367 Contact Us For Availability
25
WCI 3018143 WCI 3018143 Contact Us For Availability
26
WCI 807471 WCI 807471 Contact Us For Availability
26
WCI 807852 WCI 807852 Contact Us For Availability
27
WCI 3018081 WCI 3018081 Contact Us For Availability
27
IMPELLER HOUSING KIT (INCLUDES 6 & 7) WCI 3018120 Contact Us For Availability
27
WCI 807848 WCI 807848 Contact Us For Availability
28
WCI 3018080 WCI 3018080 Contact Us For Availability
28
WCI 3018154 WCI 3018154 Contact Us For Availability
28
WCI 3018149 WCI 3018149 Contact Us For Availability
29
WCI 5300809263 WCI 5300809263 Contact Us For Availability
29
WCI 5303018121 WCI 5303018121 Contact Us For Availability
30
WCI 3018090 WCI 3018090 Contact Us For Availability
30
WCI 3018122 WCI 3018122 Contact Us For Availability
31
GASKET - WATER INLET WCI 3018091 Contact Us For Availability
31
WCI 808177 WCI 808177 Contact Us For Availability
32
WCI 5303018092 WCI 5303018092 Contact Us For Availability
32
BASE-TOWER WCI 3018125 Contact Us For Availability
33
WCI 3018094 WCI 3018094 Contact Us For Availability
33
WCI 3018126 WCI 3018126 Contact Us For Availability
34
WCI 3018123 WCI 3018123 Contact Us For Availability
× ![]()
