Model LG DVT723 – Common Parts & Diagrams

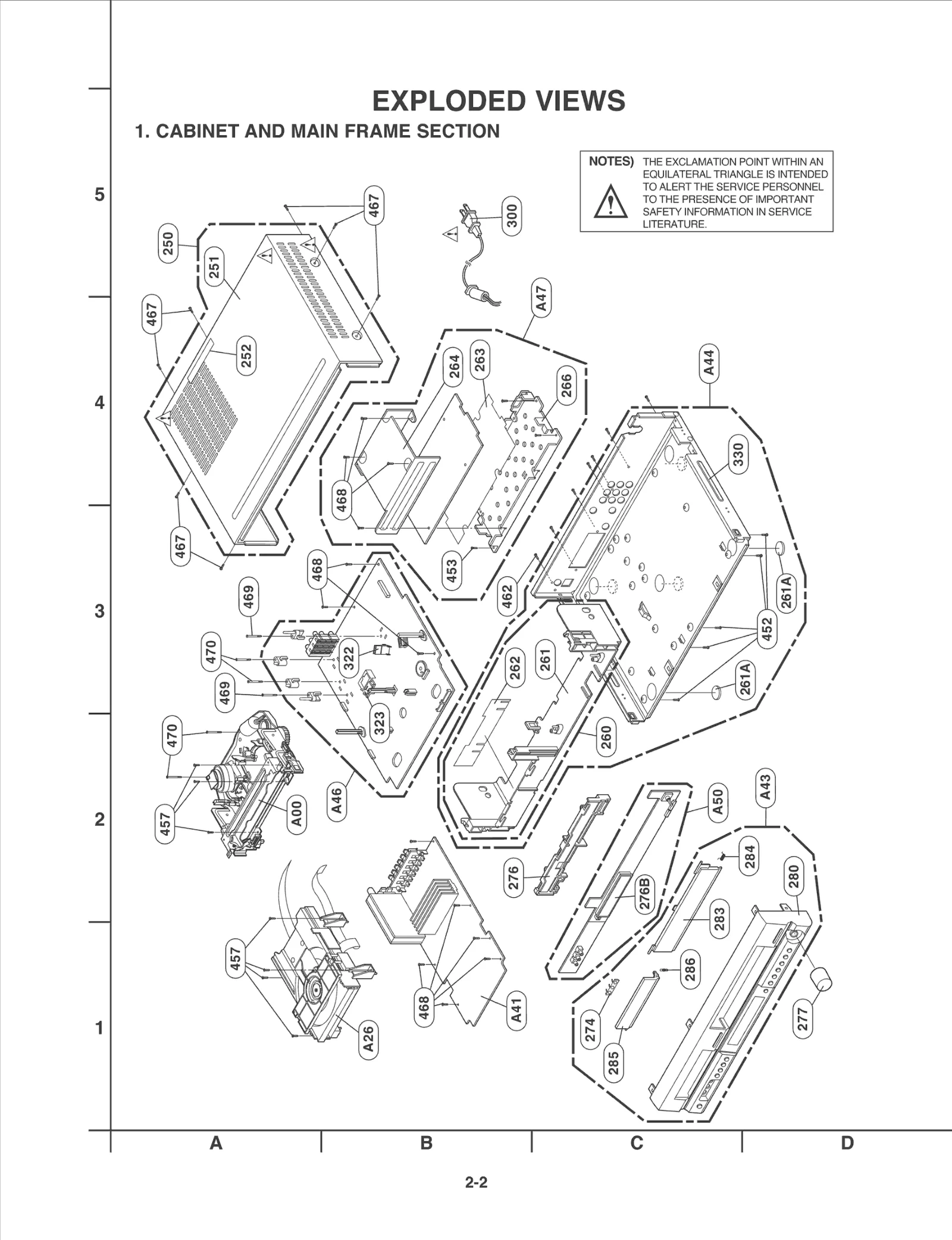

Diagram 0

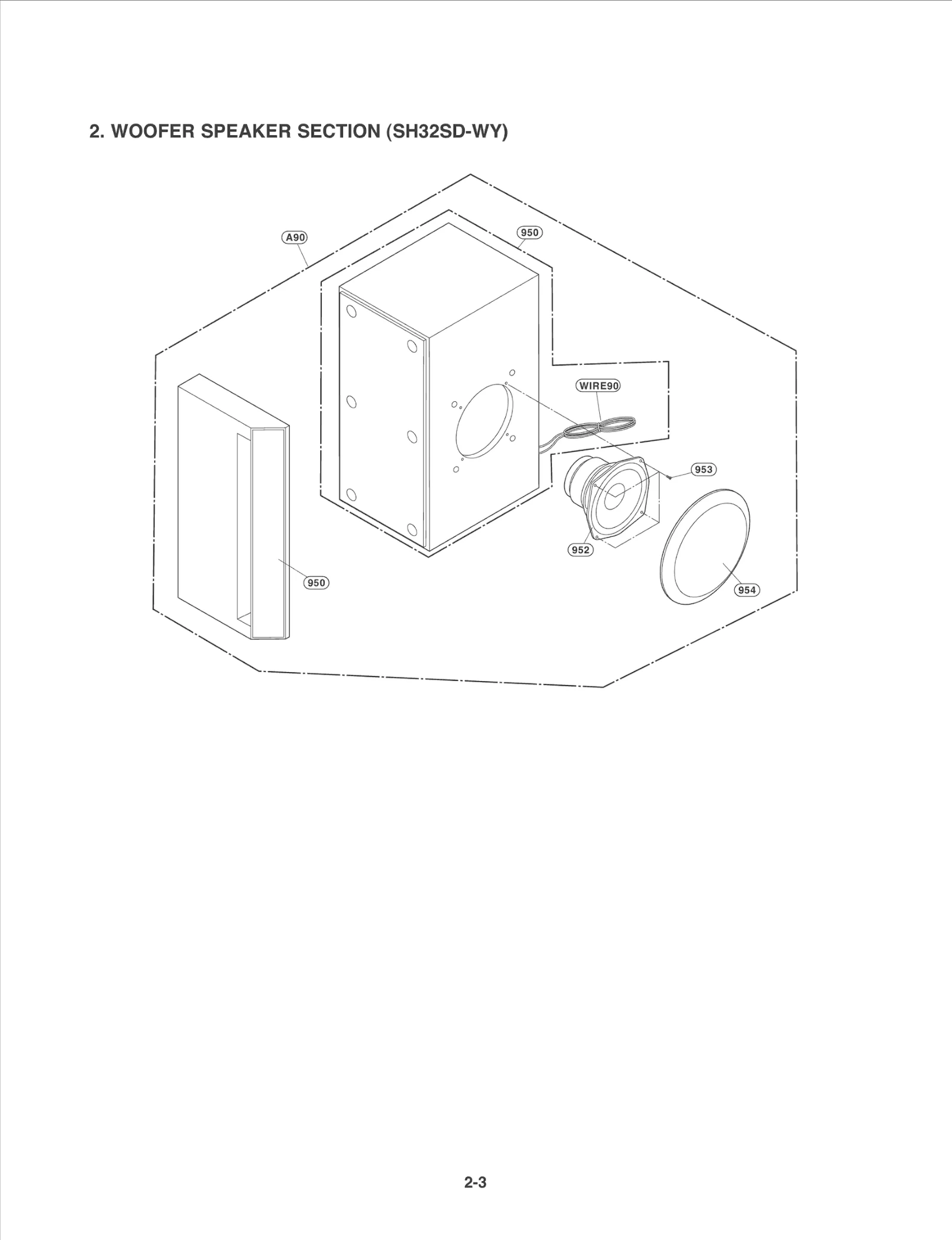

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Diagram 8
Common parts from model LG DVT723
001
PLATE LGE 3300R-0547A Contact Us For Availability
002
MAGNET LGE 5016H-1016B Contact Us For Availability
003
HOLDER LGE 4930R-0376A Contact Us For Availability
003
CLAMP LGE 4860R-0021A Contact Us For Availability
004
HOLDER LGE 4930R-0171A Contact Us For Availability
004
CAP LGE 5006R-0042A Contact Us For Availability
006
Roller LGE 4580R-0004A Contact Us For Availability
007
Arm LGE 4260R-0053A Contact Us For Availability
008
CABLE,FLAT LGE 6850R-HG18Y Contact Us For Availability
009
ARM LGE 4260R-0056A Contact Us For Availability
010
Wire,Flat LGE 6850R-JK18Z Contact Us For Availability
010
CABLE,FLAT LGE 6850R-GK22Z Contact Us For Availability
011
ARM ASSEMBLY LGE 4261R-0040A Contact Us For Availability
011
FRAME LGE 3210R-M002A Contact Us For Availability
011A
CABLE,FLAT LGE 6850R-JW14E Contact Us For Availability
012
BASE ASSEMBLY LGE 3041R-M037A Contact Us For Availability
012
RUBBER LGE 5040R-0075D Contact Us For Availability
012
BASE ASSEMBLY LGE 3041R-M037B Contact Us For Availability
012
Damper LGE 5040R-0075B Contact Us For Availability
013
BASE ASSEMBLY LGE 3041R-M038A Contact Us For Availability
013
BASE ASSEMBLY LGE 3041R-M038B Contact Us For Availability
013
BELT LGE 4400R-0006B Contact Us For Availability
014
BASE ASSEMBLY LGE 3041R-M039A Contact Us For Availability
014
GEAR LGE 4470R-0055A Contact Us For Availability
015
PWB(PCB) ASSEMBLY,OT LGE 6871RZ5130A Contact Us For Availability
015
OPENER LGE 5870R-0007A Contact Us For Availability
015A
MOTOR ASSEMBLY LGE 4681R-1023E Contact Us For Availability
015B
Pulley LGE 4560R-0008A Contact Us For Availability
015C
MOTOR(MECH) LGE 4680R-E010A Contact Us For Availability
015C
MOTOR(MECH) LGE 4680R-E009A Contact Us For Availability
015C
Motor,Unclassified LGE 4680R-D003A Contact Us For Availability
015C
MOTOR LGE 4680HP2001A Contact Us For Availability
016
BASE ASSEMBLY LGE 3041R-M036C Contact Us For Availability
016
BASE ASSEMBLY LGE 3041R-M036A Contact Us For Availability
016
Base Assembly LGE 3041R-M036B Contact Us For Availability
017
REEL LGE 4408R-0005B Contact Us For Availability
017
GEAR LGE 4470R-0056A Contact Us For Availability
017
REEL LGE 4408R-0005A Contact Us For Availability
018
GUIDE LGE 4974R-0023A Contact Us For Availability
020
BASE LGE 3040R-M001A Contact Us For Availability
021
BRAKE ASSEMBLY LGE 4421R-M002A Contact Us For Availability
021
MOTOR(MECH) LGE 4680R-C011A Contact Us For Availability
022
MOTOR ASSEMBLY LGE 4681R-0034C Contact Us For Availability
022
HEAD(CIRC) LGE 6520D00004A Contact Us For Availability
023
BASE LGE 3040R-M056A Contact Us For Availability
024
GEAR LGE 4470R-0131A Contact Us For Availability
024
ARM ASSEMBLY LGE 4261R-0042A Contact Us For Availability
024A
CAP LGE 5006R-0044A Contact Us For Availability
024B
CAP LGE 5006R-0043A Contact Us For Availability
025
GEAR LGE 4470R-0130A Contact Us For Availability
026
MOTOR ASSEMBLY LGE 4681RF0039C Contact Us For Availability
026
TRAY LGE 3390R-0017A Contact Us For Availability
026
MOTOR ASSEMBLY LGE 4681RF0039A Contact Us For Availability
027
GEAR LGE 4470R-0133A Contact Us For Availability
028
SHAFT LGE 4370R-0082B Contact Us For Availability
028
REEL LGE 4408R-0006A Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0037D Contact Us For Availability
029
Arm Assembly LGE 4261R-0037E Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0037A Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0037B Contact Us For Availability
029
SHAFT LGE 4370R-0082A Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0037C Contact Us For Availability
030
GEAR ASSEMBLY LGE 4471R-0013C Contact Us For Availability
031
SPRING LGE 4970R-0175A Contact Us For Availability
032
CHASSIS ASSEMBLY LGE 3141R-M002A Contact Us For Availability
051
BELT LGE 4400R-0005A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A016B Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A016A Contact Us For Availability
052
Motor,DC LGE 4680R-A015B Contact Us For Availability
052A
SUPPORTER LGE 4980R-0029A Contact Us For Availability
054
GEAR LGE 4470R-0136A Contact Us For Availability
054A
SPRING LGE 4970R-0171A Contact Us For Availability
055
GEAR LGE 4470R-0140A Contact Us For Availability
056
GEAR LGE 4470R-0139A Contact Us For Availability
058
BRAKE ASSEMBLY LGE 4421R-M001A Contact Us For Availability
060
LEVER LGE 4510R-0065A Contact Us For Availability
061
CLUTCH ASSEMBLY LGE 4265R-0007A Contact Us For Availability
064
GEAR LGE 4470R-0141A Contact Us For Availability
065
ARM ASSEMBLY LGE 4261R-0044A Contact Us For Availability
067
GEAR LGE 4470R-0135A Contact Us For Availability
068
GEAR LGE 4470R-0134A Contact Us For Availability
069
SPRING LGE 4970R-0122A Contact Us For Availability
070
ARM ASSEMBLY LGE 4261R-0043A Contact Us For Availability
076
LEVER LGE 4510R-0063A Contact Us For Availability
077
PLATE LGE 3300R-M203A Contact Us For Availability
078
LEVER LGE 4510R-0062A Contact Us For Availability
079
BASE LGE 3040R-M057A Contact Us For Availability
080
LEVER LGE 4510R-0064A Contact Us For Availability
100
PLATE ASSEMBLY LGE 3301R-M193A Contact Us For Availability
102
SPRING LGE 4970R-0173A Contact Us For Availability
103
HOLDER LGE 4930R-0452A Contact Us For Availability
105
HOLDER LGE 4930R-0450A Contact Us For Availability
106
HOLDER LGE 4930R-0451A Contact Us For Availability
107
LEVER LGE 4510R-0061A Contact Us For Availability
109
OPENER LGE 5870R-0008A Contact Us For Availability
110
ARM LGE 4260R-0051A Contact Us For Availability
112
BODY LGE 3070R-0002A Contact Us For Availability
113
SPRING LGE 4970R-0169A Contact Us For Availability
114
ARM LGE 4260R-0052A Contact Us For Availability
115
LEVER LGE 4510R-0060A Contact Us For Availability
116
SPRING LGE 4970R-0163A Contact Us For Availability
250
Cover Assembly LGE 3091RLP001H Contact Us For Availability
251
CABINET LGE 3090R-H002B Contact Us For Availability
252
Damper LGE 4850RL0001A Contact Us For Availability
260
Frame Assembly LGE 3211R-H002B Contact Us For Availability
261
FRAME LGE 3210R-H004A Contact Us For Availability
261A
Damper LGE 5040RL0001E Contact Us For Availability
262
Plate LGE 3300R-H011A Contact Us For Availability
263
Sheet LGE MHK33028401 Contact Us For Availability
264
Cover LGE 3550R-4066A Contact Us For Availability
266
Case LGE 3110R-V017A Contact Us For Availability
274
Plate LGE 3300R-T001A Contact Us For Availability
275
HOLDER LGE 4930R-0381A Contact Us For Availability
276
Holder LGE 4930RL0001B Contact Us For Availability
276B
HOLDER LGE 4930RL5001A Contact Us For Availability
277
Knob LGE 4940R-V059B Contact Us For Availability
280
Panel,Audio LGE 3720R-M025R Contact Us For Availability
283
Door LGE 3580R-V124E Contact Us For Availability
284
SPRING DOOR P-705M P-710M LGE 442-681A Contact Us For Availability
285
DOOR LGE 3580R-T157A Contact Us For Availability
286
SPRING LGE 4970R-0146A Contact Us For Availability
300
POWER CORD LGE 6410RAHP02D Contact Us For Availability
322
CASE LGE 3110R-V013A Contact Us For Availability
323
CASE ASSEMBLY LGE 3111R-0089E Contact Us For Availability
330
CHASSIS LGE 3140R-H003B Contact Us For Availability
405
SCREW MACHINE,PAN HE LGE 1MPC0301270 Contact Us For Availability
406
PAN HEAD MACHINE SCREW S/W + LGE 1MEC0302018 Contact Us For Availability
409
SCREW,DRAWING LGE 1SZZR-0032B Contact Us For Availability
410
SCREW TAP TITE(B),PA LGE 1APF0262218 Contact Us For Availability
429
SCREW, LGE 1SZZR-0012A Contact Us For Availability
430
SCREW LGE 1SZZH-1003A Contact Us For Availability
431
SCREW, LGE 1SZZH-1007B Contact Us For Availability
432
SCREW,DRAWING LGE 1SZZR-0023B Contact Us For Availability
433
SCREW,DRAWING LGE 1SZZR-0050A Contact Us For Availability
435
SCREW, LGE 1SZZR-0011A Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098B Contact Us For Availability
453
SCREW,DRAWING LGE 1SZZR-0097B Contact Us For Availability
457
SCREW,DRAWING LGE 1SZZR-0098E Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
467
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
469
Screw,Customized LGE 1SZZR-0081A Contact Us For Availability
470
SCREW,DRAWING LGE 1SZZR-0098K Contact Us For Availability
517
WASHER LGE 1WZZR-0004D Contact Us For Availability
517
WASHER,DRAWING LGE 1WZZR-0004F Contact Us For Availability
518
WASHER LGE 1WZZR-0004A Contact Us For Availability
801
Manual Assembly,Owne LGE AFN32244137 Contact Us For Availability
802
Box,Master LGE MAY39266496 Contact Us For Availability
803
Packing LGE MFZ34189142 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
810
CABLE ASSEMBLY LGE 6851R-0081B Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA8F Contact Us For Availability
812
CABLE,COAXIAL LGE 6850R-PBA8H Contact Us For Availability
824
ANTENNA,LOOP LGE 5010R-L002B Contact Us For Availability
825
Antenna,T LGE 5010R-T001D Contact Us For Availability
826
FERRITE CORE LGE 6200JB8010K Contact Us For Availability
850
Frame Assembly LGE ADV32441852 Contact Us For Availability
851
Speaker,Full Range LGE 6400GKGB02C Contact Us For Availability
853
Case LGE MBN33944052 Contact Us For Availability
900
Remote Controller LGE 6710CDAM01E Contact Us For Availability
950
Panel Assembly,Audio LGE AGL32558552 Contact Us For Availability
951
Cover Assembly LGE ACQ32513753 Contact Us For Availability
952
Speaker,Full Range LGE EAB34998101 Contact Us For Availability
953
SCREW BH 3.5X16 FBK FE-272E LGE 353M050C Contact Us For Availability
954
Frame Assembly LGE ADV32558352 Contact Us For Availability
A00
Deck Assembly,Video LGE 6721RF0940B Contact Us For Availability
A01
CLAMP ASSEMBLY LGE 4861R-0016C Contact Us For Availability
A01
DRUM(CIRC) ASSEMBLY LGE 6723R-0603E Contact Us For Availability
A02
BASE ASSEMBLY LGE 3041R-M013C Contact Us For Availability
A03
ARM ASSEMBLY LGE 4261R-0039A Contact Us For Availability
A03
BASE ASSEMBLY LGE 3041R-M016I Contact Us For Availability
A11
GEAR ASSEMBLY LGE 4471R-0017A Contact Us For Availability
A12
GEAR ASSEMBLY LGE 4471R-0015A Contact Us For Availability
A21
HOLDER ASSEMBLY LGE 4931R-0084A Contact Us For Availability
A22
GEAR ASSEMBLY LGE 4471R-0016A Contact Us For Availability
A23
ARM ASSEMBLY LGE 4261R-0038A Contact Us For Availability
A24
LEVER ASSEMBLY LGE 4511R-0004A Contact Us For Availability
A26
DECK ASSEMBLY,VIDEO LGE 6721RF0379C Contact Us For Availability
A41
Option Code Assembly LGE EBR36580101 Contact Us For Availability
A43
Panel Assembly,Audio LGE 3721R-M026R Contact Us For Availability
A44
Frame Assembly LGE 3141R-H027Q Contact Us For Availability
A46
Board Assembly LGE AAX32936801 Contact Us For Availability
A47
Board Assembly LGE 3501R-8874C Contact Us For Availability
A50
PWB(PCB) ASSEMBLY,TO LGE 6871R-2657A Contact Us For Availability
A80
Speaker Assembly LGE EAB35623603 Contact Us For Availability
A80C
Case Assembly LGE ABQ32450958 Contact Us For Availability
A80FL
Case Assembly LGE ABQ32450956 Contact Us For Availability
A80FR
Case Assembly LGE ABQ32450957 Contact Us For Availability
A80SL
Case Assembly LGE ABQ32450959 Contact Us For Availability
A80SR
Case Assembly LGE ABQ32450960 Contact Us For Availability
A81
Speaker Assembly LGE EAB35623503 Contact Us For Availability
A82
Speaker Assembly LGE EAB35623703 Contact Us For Availability
A83
Speaker Assembly LGE EAB35624103 Contact Us For Availability
A84
Speaker Assembly LGE EAB35624003 Contact Us For Availability
A90
Speaker Assembly, woofer LGE EAB35856401 Contact Us For Availability
BC101
Filter,Bead LGE 636-004C Contact Us For Availability
BD101
DIODE,RECTIFIERS LGE 0DRGS00370A Contact Us For Availability
C6P1
Capacitor,Ceramic,Axial LGE 0CN2210K518 Contact Us For Availability
C7A7
Capacitor,Ceramic,Chip LGE 0CH1224K946 Contact Us For Availability
C7C4
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C101
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
C101
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
C101
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
C103
CAPACITOR,FIXED ELEC LGE 0CE227JR6A0 Contact Us For Availability
C104
Capacitor,Ceramic,Chip LGE 0CH4180K412 Contact Us For Availability
C107
Capacitor,Film,DIP LGE 0CF56111410 Contact Us For Availability
C108
Capacitor,Film,DIP LGE 0CQ2721N409 Contact Us For Availability
C108
Capacitor,AL,Radial LGE 0CE1074H638 Contact Us For Availability
C109
Capacitor,Film,DIP LGE 0CQ4732L439 Contact Us For Availability
C110
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C114
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C115
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C117
Capacitor,Ceramic,Radial,Disc LGE 624-087S Contact Us For Availability
C120
Capacitor,Ceramic,Axial LGE 0CN4730K948 Contact Us For Availability
C122
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C130
Capacitor,AL,Radial LGE 0CE2276F638 Contact Us For Availability
C131
Capacitor,Ceramic,Radial,Disc LGE 624-087J Contact Us For Availability
C132
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C134
Capacitor,AL,Radial LGE 0CE4776D618 Contact Us For Availability
C138
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C140
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C141
Capacitor,AL,Radial LGE 624-082G Contact Us For Availability
C142
Capacitor,AL,Radial LGE 0CE228BF630 Contact Us For Availability
C146
Capacitor,AL,Radial LGE 0CE4776F638 Contact Us For Availability
C147
Capacitor,AL,Radial LGE 624-082H Contact Us For Availability
C150
Capacitor,Ceramic,Chip LGE 0CH1332K562 Contact Us For Availability
C172
Capacitor,AL,Radial LGE 0CE4764K638 Contact Us For Availability
C177
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C178
Capacitor,AL,Radial LGE 0CE1076K618 Contact Us For Availability
C214
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C221
Capacitor,Ceramic,Chip LGE 0CH4271K412 Contact Us For Availability
C228
Capacitor,AL,Radial LGE 0CE4766F618 Contact Us For Availability
C230
Capacitor,Ceramic,Chip LGE 0CH1225F946 Contact Us For Availability
C232
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C240
Capacitor,AL,Radial LGE 0CE3356K618 Contact Us For Availability
C242
Capacitor,Ceramic,Chip LGE 0CH1392K562 Contact Us For Availability
C251
Capacitor,Ceramic,Chip LGE 0CH4561K412 Contact Us For Availability
C301
Capacitor,Film,DIP LGE 0CQ2232L559 Contact Us For Availability
C312
Capacitor,AL,Radial LGE 0CE3364F638 Contact Us For Availability
C317
Capacitor,Ceramic,Chip LGE 0CH1821K516 Contact Us For Availability
C318
Capacitor,AL,Radial LGE 0CE1086C638 Contact Us For Availability
C323
Capacitor,Ceramic,Chip LGE 0CH4101K416 Contact Us For Availability
C324
Capacitor,AL,Radial LGE 0CE2276D618 Contact Us For Availability
C325
Capacitor,Ceramic,Chip LGE 0CH1473H942 Contact Us For Availability
C328
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1076F618 Contact Us For Availability
C341
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C346
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C347
Capacitor,Ceramic,Chip LGE 0CH1473K516 Contact Us For Availability
C441
CAPACITOR,AL.ELECTROLYTIC LGE 0CE477CD638 Contact Us For Availability
C461
Capacitor,Ceramic,Chip LGE 0CH1105D942 Contact Us For Availability
C472
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C473
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C474
Capacitor,Ceramic,Chip LGE 0CH4471K412 Contact Us For Availability
C476
Capacitor,Ceramic,Chip LGE 0CH4100K112 Contact Us For Availability
C477
Capacitor,Ceramic,Chip LGE 0CH1153K562 Contact Us For Availability
C478
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C500
Capacitor,AL,Chip LGE 0CE4775C638 Contact Us For Availability
C504
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C506
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C508
CAPACITOR,FIXED CERA LGE 0CK105EK94A Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CH4240K416 Contact Us For Availability
C515
Capacitor,Ceramic,Chip LGE 0CH4270K416 Contact Us For Availability
C521
Capacitor,Ceramic,Chip LGE 0CH1225F944 Contact Us For Availability
C542
Capacitor,Ceramic,Chip LGE 0CH4681K416 Contact Us For Availability
C545
Capacitor,Ceramic,Chip LGE 0CH1223K516 Contact Us For Availability
C551
Capacitor,Ceramic,Chip LGE 0CH1333H516 Contact Us For Availability
C564
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C566
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C570
Capacitor,Ceramic,Chip LGE 0CH4180K416 Contact Us For Availability
C574
Capacitor,Ceramic,Chip LGE 0CH4102K416 Contact Us For Availability
C582
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C582
Capacitor,Ceramic,Chip LGE 0CH1103K516 Contact Us For Availability
C584
Capacitor,AL,Radial LGE 0CE4764C638 Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CH4221K416 Contact Us For Availability
C592
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C595
Capacitor,Ceramic,Chip LGE 0CH4150K416 Contact Us For Availability
C597
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C598
Capacitor,AL,Radial LGE 0CE108CC638 Contact Us For Availability
C601
Capacitor,Ceramic,Axial LGE 0CN1050K948 Contact Us For Availability
C603
Capacitor,Ceramic,Axial LGE 0CN223AK948 Contact Us For Availability
C610
Capacitor,Ceramic,Axial LGE 0CN1020K518 Contact Us For Availability
C712
Capacitor,Ceramic,Chip LGE 0CH4331K416 Contact Us For Availability
C747
CAPACITOR,ELECTROLYTIC LGE 0CE4764H638 Contact Us For Availability
C753
CAPACITOR,FIXED CERA LGE 0CH1103K464 Contact Us For Availability
C779
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C780
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C781
Capacitor,Film,DIP LGE EAE41288101 Contact Us For Availability
C787
Capacitor,AL,Radial LGE 0CE477CK610 Contact Us For Availability
C792
Capacitor,Ceramic,Chip LGE 0CH1333K566 Contact Us For Availability
C807
C.ELECTROLYTIC 4.7M SRA 50VGVP LGE 0CE4754K638 Contact Us For Availability
C829
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C834
Capacitor,Ceramic,Chip LGE 0CH1472K516 Contact Us For Availability
C838
CHIP CAPA CERAMIC M/L H.D F/S LGE 0CH1104K946 Contact Us For Availability
C848
Capacitor,Ceramic,Chip LGE 0CH1105F946 Contact Us For Availability
C872
Capacitor,Ceramic,Chip LGE 0CH4560K416 Contact Us For Availability
C873
Capacitor,AL,Radial LGE 0CE2254K638 Contact Us For Availability
C881
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C887
Capacitor,AL,Radial LGE 0CE3354K638 Contact Us For Availability
CABLE12
Cable,FFC LGE 6850R-HL06A Contact Us For Availability
CONNECTOR
CONNECTOR (CIRC),WAF LGE 561-712E Contact Us For Availability
CONNECTOR
CONNECTOR ASSEMBLY LGE 6631R-E055B Contact Us For Availability
CS501
SWITCH,PUSH LGE 6600M000026 Contact Us For Availability
D103
DIODE 1SS133 DETECT, SW TP LGE 0DD133009AA Contact Us For Availability
D104
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D104
DIODE LGE 0DD221009AA Contact Us For Availability
D108
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D108
Diode,Rectifier LGE 0DR180209AA Contact Us For Availability
D122
DIODE,SWITCHING LGE 0DSTW00060A Contact Us For Availability
D122
DIODE,RECTIFIERS LGE 0DRVH00020A Contact Us For Availability
D123
DIODE EU01W(R-FORM) T R-B413M LGE 0DD010009AC Contact Us For Availability
D126
DIODE,RECTIFIERS LGE 0DRFC00171A Contact Us For Availability
D126
DIODE,SWITCHING LGE 0DSTW00010A Contact Us For Availability
D129
DIODE,RECTIFIERS LGE 0DRSA00020A Contact Us For Availability
D129
Diode,Schottky LGE 0DR104510AB Contact Us For Availability
D301
DIODE,RECTIFIER LGE 0DR104009AB Contact Us For Availability
D604
Diode,Switching LGE 0DD160009AB Contact Us For Availability
DIG601
DIGITRON LGE 6302R-V212A Contact Us For Availability
ES501
HOLDER ASSEMBLY LGE 4931R-0078C Contact Us For Availability
F101
FUSE,SLOW BLOW LGE 0FS3151B51D Contact Us For Availability
F502
Filter,LCR LGE 6200JB8010V Contact Us For Availability
F618
FILTER(CIRC),EMI LGE 6200HJC901A Contact Us For Availability
FL301
COIL LGE 633-032K Contact Us For Availability
IC5A1A
PROGRAM LGE 6957R-645AM Contact Us For Availability
IC101
IC,Microcontrollers LGE EAN36658501 Contact Us For Availability
IC101
IC,POWER MANAGEMENT LGE 0IPMGFA048A Contact Us For Availability
IC104
IC,POWER MANAGEMENT LGE 0IPMGFA039A Contact Us For Availability
IC105
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC106
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC106
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC106
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC123
IC,KEC LGE 0IKE781200P Contact Us For Availability
IC160
IC,Voltage Regulator LGE 0IPMGSH009A Contact Us For Availability
IC160
IC,POWER MANAGEMENT LGE 0IPMGFA016A Contact Us For Availability
IC160
IC,POWER MANAGEMENT LGE 0IPMGJR007A Contact Us For Availability
IC161
IC,POWER MANAGEMENT LGE 0IPMGKE006B Contact Us For Availability
IC161
IC,POWER MANAGEMENT LGE 0IPMGGM002A Contact Us For Availability
IC162
IC,POWER MANAGEMENT LGE 0IPMGKE046A Contact Us For Availability
IC201
IC,STANDARD LOGIC LGE 0ISTLTO015A Contact Us For Availability
IC203
IC,PERIPHERALS LGE 0IPRPMT007A Contact Us For Availability
IC204
IC,LINEAR LGE 0ILNRUC001A Contact Us For Availability
IC205
IC JRC(JAPAN RADIO CORP) LGE 0IJR456000B Contact Us For Availability
IC206
IC,CRYSTAL SEMICONDUCTOR LGE 0ICB533100A Contact Us For Availability
IC301
IC,LINEAR LGE 0ILNRSA012A Contact Us For Availability
IC301
IC,POWER MANAGEMENT LGE 0IPMG00022A Contact Us For Availability
IC301
IC,POWER MANAGEMENT LGE 0IPMGPV002B Contact Us For Availability
IC401
IC,LINEAR LGE 0ILNRNF006A Contact Us For Availability
IC402
IC,PERIPHERALS LGE 0IPRPSA010A Contact Us For Availability
IC501
IC,LINEAR LGE 0ILNRNF007B Contact Us For Availability
IC501
IC,Microcontrollers LGE EAN36727701 Contact Us For Availability
IC503
IC,MEMORIES LGE 0IMMREB006C Contact Us For Availability
IC503
IC,EEPROM LGE 0ISS241610A Contact Us For Availability
IC503
IC,CATALYST LGE 0ICS241600B Contact Us For Availability
IC504
IC KEC KIA7031P 3P 3.1V RES LGE 0IKE703100A Contact Us For Availability
IC505
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IC505
IC,SAMSUNG ELECTRONICS LGE 0ISS240210A Contact Us For Availability
IC507
IC,PERIPHERALS LGE 0IPRPMT008A Contact Us For Availability
IC601
IC,PERIPHERALS LGE 0IPRPNE001A Contact Us For Availability
IC601
IC,PERIPHERALS LGE 0IPRPPY002A Contact Us For Availability
IC602
IC,PERIPHERALS LGE 0IPRPMT006A Contact Us For Availability
IC702
IC,PERIPHERALS LGE 0IPRP00029A Contact Us For Availability
IC703
IC,JRC LGE 0IJR458000B Contact Us For Availability
IC801
IC,LINEAR LGE 0ILNRSA013B Contact Us For Availability
JK601
JACK,RCA LGE 6612JH003AC Contact Us For Availability
JK602
JACK,RCA LGE 6612JH003AB Contact Us For Availability
JK603
JACK,RCA LGE 6612JH003AA Contact Us For Availability
JK701
Connector,Terminal B LGE 6640000070C Contact Us For Availability
JK801
JACK,RCA LGE 6612JH003DA Contact Us For Availability
L101
FILTER(CIRC),EMC LGE 6200JB8011L Contact Us For Availability
L124
Coil,Choke LGE 633-088D Contact Us For Availability
L305
INDUCTOR RADIAL LEAD R-E41M 1U LGE 0LR0102K035 Contact Us For Availability
L403
INDUCTOR RADIAL LEAD *R-V422M LGE 0LR0102J025 Contact Us For Availability
L461
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L510
INDUCTOR RADIAL LEAD 68M K 6X6 LGE 0LR0682K035 Contact Us For Availability
L511
INDUCTOR,RADIAL LEAD LGE 0LR0221J0N5 Contact Us For Availability
L598
INDUCTOR,CHIP LGE 0LCCE00004L Contact Us For Availability
L601
INDUCTOR RADIAL LEAD LGE 0LR8200J025 Contact Us For Availability
L603
INDUCTOR AXIAL LEAD * R-V422M LGE 0LA1000K018 Contact Us For Availability
L706
Coil,RF LGE 6140RCC008A Contact Us For Availability
L711
Filter,Bead LGE 0LCCE00005N Contact Us For Availability
L822
Inductor,Wire Wound,Radial LGE 0LR1000K035 Contact Us For Availability
LD501
HOLDER ASSEMBLY LGE 4931R-0086C Contact Us For Availability
MS501
SWITCH,MODE LGE 6600JR3002C Contact Us For Availability
P3D01
CONNECTOR(CIRC),DRAWING LGE 561-234S Contact Us For Availability
P3D02
CONNECTOR(CIRC),DRAW LGE 6630R5S008J Contact Us For Availability
P3D03
Connector,BtoB LGE 561-251B Contact Us For Availability
P6M01
CONNECTOR (CIRC) LGE 561-844L Contact Us For Availability
P6M02
Connector,BtoB LGE 561-844F Contact Us For Availability
P6602
Connector,BtoB LGE 6630S-BC02H Contact Us For Availability
P6603
Connector,BtoB LGE 6630S-BC01H Contact Us For Availability
PDM01
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
PDM03
Connector,FFC/FPC/PIC LGE 6630XE00111 Contact Us For Availability
PDV01
CONNECTOR (CIRC) LGE 561-036K Contact Us For Availability
PDV02
CONNECTOR (CIRC),FFC LGE 561-686L Contact Us For Availability
PMC01
Connector,BtoB LGE 6630R-BE01L Contact Us For Availability
PSV01
CONNECTOR (CIRC),WAF LGE 561-7150 Contact Us For Availability
PSW01
Connector,Wafer LGE 561-715J Contact Us For Availability
PV601
CONNECTOR (CIRC) LGE 561-843L Contact Us For Availability
PV602
CONNECTOR(CIRC),DRAW LGE 561-843F Contact Us For Availability
PVD01
CONNECTOR ASSEMBLY LGE 6631R-E007M Contact Us For Availability
PW101
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
PWS01
CONNECTOR ASSEMBLY LGE 6631R-F010J Contact Us For Availability
Q163
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q166
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q168
TR,Bipolar LGE 0TR928009AD Contact Us For Availability
Q169
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q304
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q306
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q306
TR,Bipolar LGE 0TRAU80008A Contact Us For Availability
Q310
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q310
TR,Bipolar LGE 0TRAU80012A Contact Us For Availability
Q402
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q405
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q503
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q506
TRANSISTOR,BIPOLARS LGE 0TRAU80002A Contact Us For Availability
Q506
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q607
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q607
TR,Bipolar LGE 0TRAU80017A Contact Us For Availability
R5A9
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R6P1
Resistor,Carbon Film LGE 0RD6802F608 Contact Us For Availability
R100
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R101
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R102
Resistor,Carbon Film LGE 0RD6800F608 Contact Us For Availability
R105
Resistor,Carbon Film LGE 0RD0821F608 Contact Us For Availability
R106
Resistor,Carbon Film LGE 0RD3300F608 Contact Us For Availability
R110
Resistor,Metal Oxide Film LGE 0RS1803K619 Contact Us For Availability
R112
Resistor,Fusible LGE 0RF0200F708 Contact Us For Availability
R115
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R121
Resistor,Carbon Film LGE 0RD4700F608 Contact Us For Availability
R124
Resistor,Metal Film LGE 0RN2402F408 Contact Us For Availability
R125
Resistor,Metal Film LGE 0RN1501F408 Contact Us For Availability
R126
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R129
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R132
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R135
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R136
Resistor,Metal Film LGE 0RN2701F408 Contact Us For Availability
R138
Resistor,Metal Oxide Film LGE 0RS1800K619 Contact Us For Availability
R156
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R174
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R179
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R181
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R185
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R215
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R217
RESISTOR,CHIP LGE 0RH3901C622 Contact Us For Availability
R221
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R222
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R234
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
R235
Resistor,Chip LGE 0RH7501C622 Contact Us For Availability
R238
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R243
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R265
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R302
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R304
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R305
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
R306
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R311
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R312
RESISTOR CHIP 3.9K 1/10W 5 D. LGE 0RH3901D622 Contact Us For Availability
R313
Resistor,Chip LGE 0RH1801D622 Contact Us For Availability
R318
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R320
Resistor,Chip LGE 0RH1200D622 Contact Us For Availability
R327
RESISTOR CHIP 6.8K 1/10W 5 D. LGE 0RH6801D622 Contact Us For Availability
R333
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R336
RESISTOR CHIP 12K 1/10W 5 D.R LGE 0RH1202D622 Contact Us For Availability
R339
RESISTOR CHIP 18K 1/10W 5 D.R LGE 0RH1802D622 Contact Us For Availability
R342
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R348
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R404
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R412
Resistor,Chip LGE 0RJ7503C677 Contact Us For Availability
R413
Resistor,Chip LGE 0RH3903C622 Contact Us For Availability
R416
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R417
Resistor,Chip LGE 0RH0221C622 Contact Us For Availability
R420
Resistor,Chip LGE 0RH0272C622 Contact Us For Availability
R444
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R445
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R451
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R503
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R507
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R509
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R515
RESISTOR CHIP 270 1/10W 5 D.R LGE 0RH2700D622 Contact Us For Availability
R518
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R525
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R541
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R543
Resistor,Chip LGE 0RH1500C422 Contact Us For Availability
R553
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R554
RESISTOR CHIP 1.0M 1/10W 5 D. LGE 0RH1004D622 Contact Us For Availability
R570
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R572
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R579
RESISTOR CHIP 56K 1/10W 5 D.R LGE 0RH5602D622 Contact Us For Availability
R588
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R607
Resistor,Carbon Film LGE 0RD0471F608 Contact Us For Availability
R609
Resistor,Carbon Film LGE 0RD0122F608 Contact Us For Availability
R614
Resistor,Carbon Film LGE 0RD1201F608 Contact Us For Availability
R618
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R619
Resistor,Carbon Film LGE 0RD8201F608 Contact Us For Availability
R626
RESISTOR CHIP 82K 1/10W 5 D.R LGE 0RH8202D622 Contact Us For Availability
R632
Resistor,Carbon Film LGE 0RD3301F608 Contact Us For Availability
R633
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R634
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R636
Resistor,Carbon Film LGE 0RD8200F608 Contact Us For Availability
R641
Resistor,Carbon Film LGE 0RD0752F608 Contact Us For Availability
R712
RESISTOR,METAL GLAZE LGE 0RH3300G622 Contact Us For Availability
R729
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R732
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R742
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R753
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R766
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R769
RESISTOR,METAL GLAZED(CHIP) LGE 0RH0102G622 Contact Us For Availability
R776
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R780
Resistor,Chip LGE 0RH9101D622 Contact Us For Availability
R809
Resistor,Chip LGE 0RH1800D622 Contact Us For Availability
R812
RESISTOR CHIP GVC-C425 1UG1 GS LGE 0RH8201D622 Contact Us For Availability
R818
Resistor,Chip LGE 0RH5601D622 Contact Us For Availability
R822
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R858
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
RC601
REMOTE CONTROLLER RE LGE 6712R1638GB Contact Us For Availability
RC601
Receiver Module LGE 6712R1638GD Contact Us For Availability
RS501
SENSOR LGE 6500RAB009A Contact Us For Availability
SW606
SWITCH,TACT LGE 556-219B Contact Us For Availability
SW634
Switch,Tact LGE 556-282C Contact Us For Availability
T101
TRANSFORMER,SMPS[COI LGE 6170RNGW17W Contact Us For Availability
T102
TRANSFORMER,SMPS[COI LGE 6170RNGW16C Contact Us For Availability
TH01
Thermistor,NTC LGE 6322RC0001A Contact Us For Availability
TU101
Tuner,Analog LGE 6700FM0091D Contact Us For Availability
V101
VARISTOR LGE 656-004C Contact Us For Availability
VR601
VOLUME,ROTARY LGE 6110R-ER01A Contact Us For Availability
VR601
VOLUME,ROTARY LGE 6110S-ET01A Contact Us For Availability
WIRE80
PCB Assembly,Sub LGE EBR36235702 Contact Us For Availability
WIRE81
PCB Assembly,Sub LGE EBR36235701 Contact Us For Availability
WIRE82
PCB Assembly,Sub LGE EBR36235703 Contact Us For Availability
WIRE83
PCB Assembly,Sub LGE EBR36235705 Contact Us For Availability
WIRE84
PCB Assembly,Sub LGE EBR36235704 Contact Us For Availability
WIRE90
PCB Assembly,Sub LGE EBR36235706 Contact Us For Availability
X101
RESONATOR,CRYSTAL LGE 6212AA2983C Contact Us For Availability
X201
Crystal LGE EAW32919901 Contact Us For Availability
X301
Crystal LGE 6202R1357AE Contact Us For Availability
X501
Crystal LGE 6212AC2327E Contact Us For Availability
X501
CRYSTAL,STANDARD LGE 6202R-BL06C Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6202R-DA01B Contact Us For Availability
ZD101
Diode,Zener LGE 0DZ470009AE Contact Us For Availability
ZD101
Diode,Zener LGE 0DZ472609AA Contact Us For Availability
ZD101
LGE 0DZ472609AB LGE 0DZ472609AB Contact Us For Availability
ZD102
Diode,Zener LGE 0DZ100009AA Contact Us For Availability
ZD121
Diode,Zener LGE 0DZ337729AA Contact Us For Availability
ZD161
Diode,Zener LGE 0DZ560009CB Contact Us For Availability
ZD701
Diode,Zener LGE 0DZPH00128A Contact Us For Availability
× ![]()
Login and Registration Form
