Model LG DVT654 – Common Parts & Diagrams
Diagram 0
Diagram 1

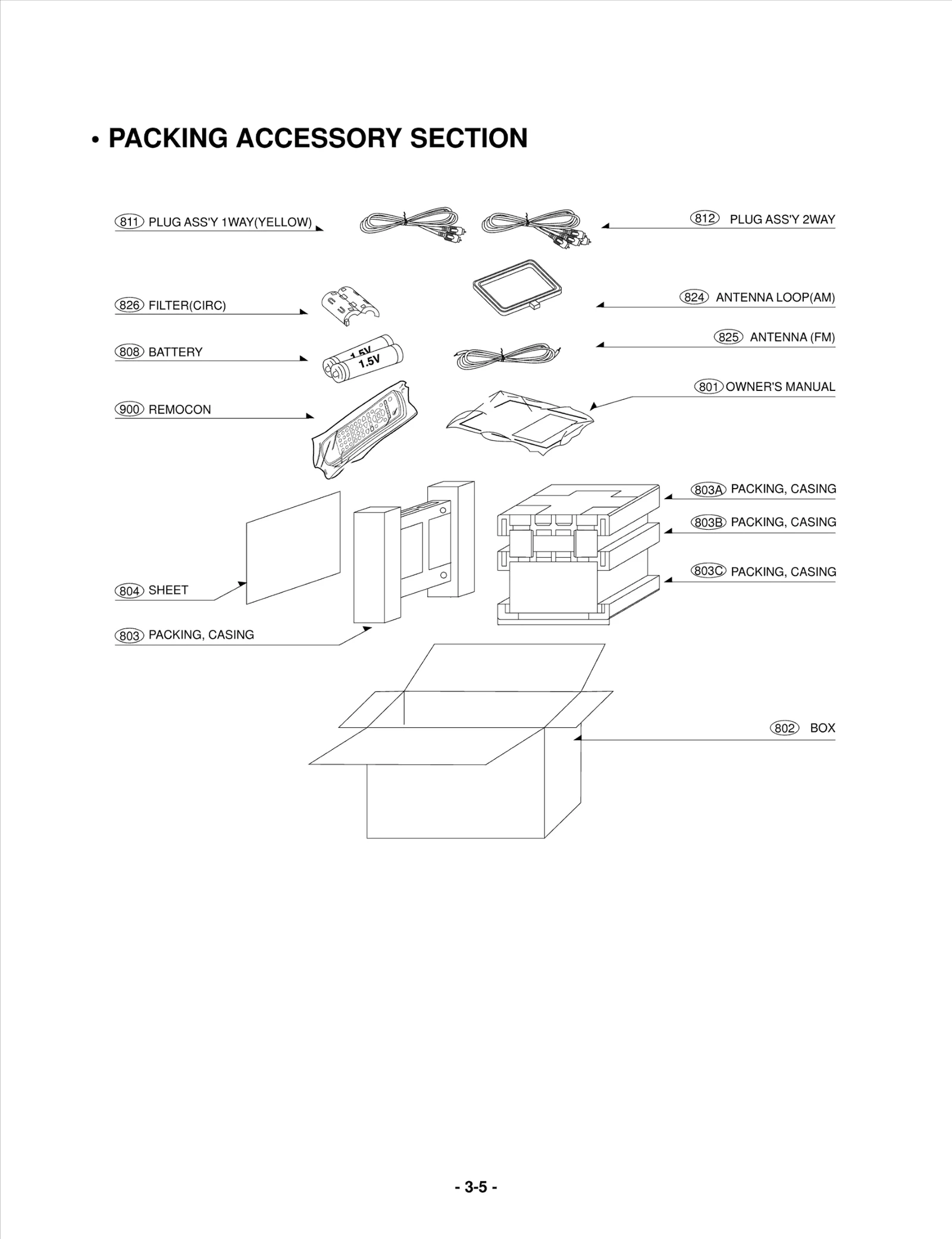

Diagram 2

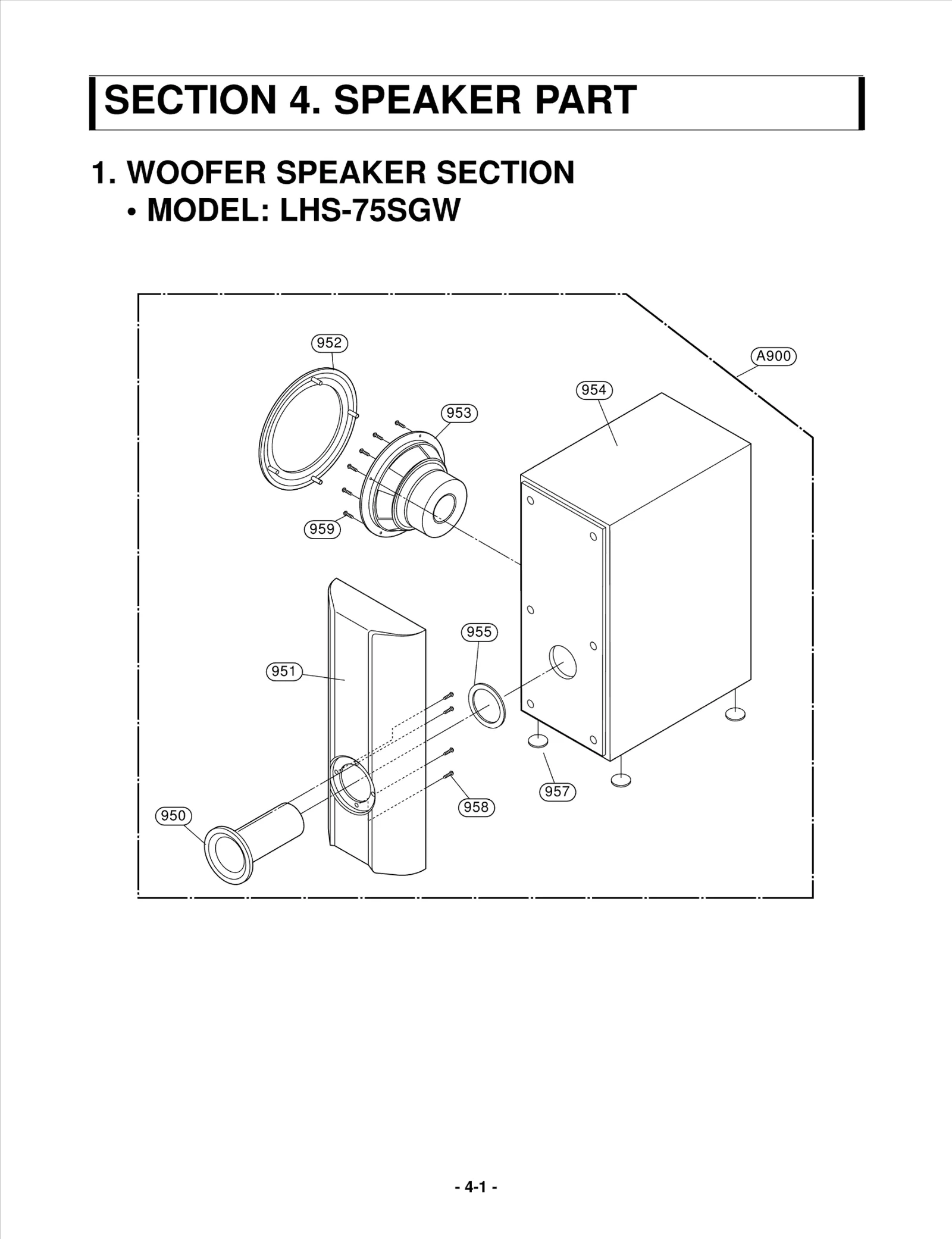

Diagram 3

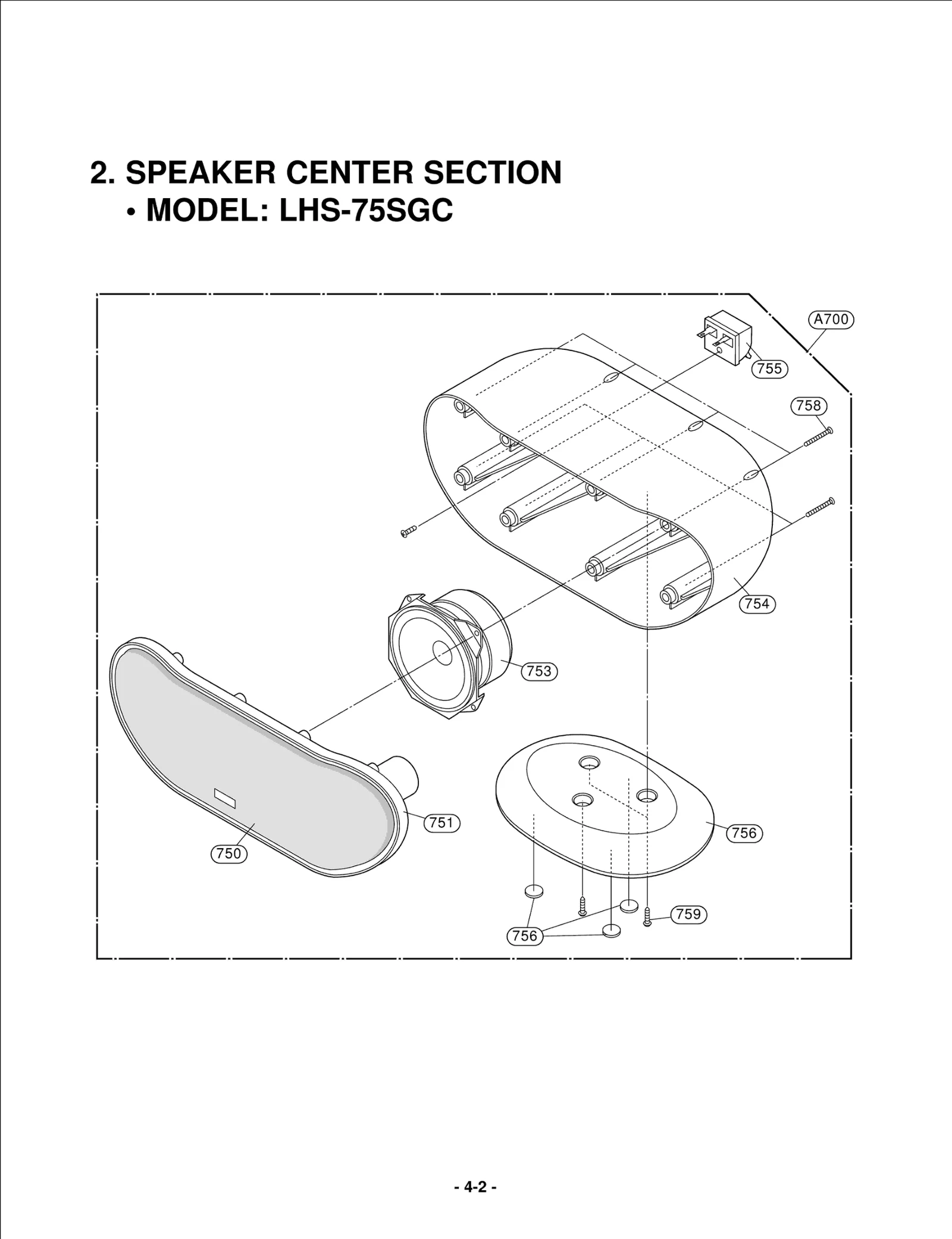

Diagram 4

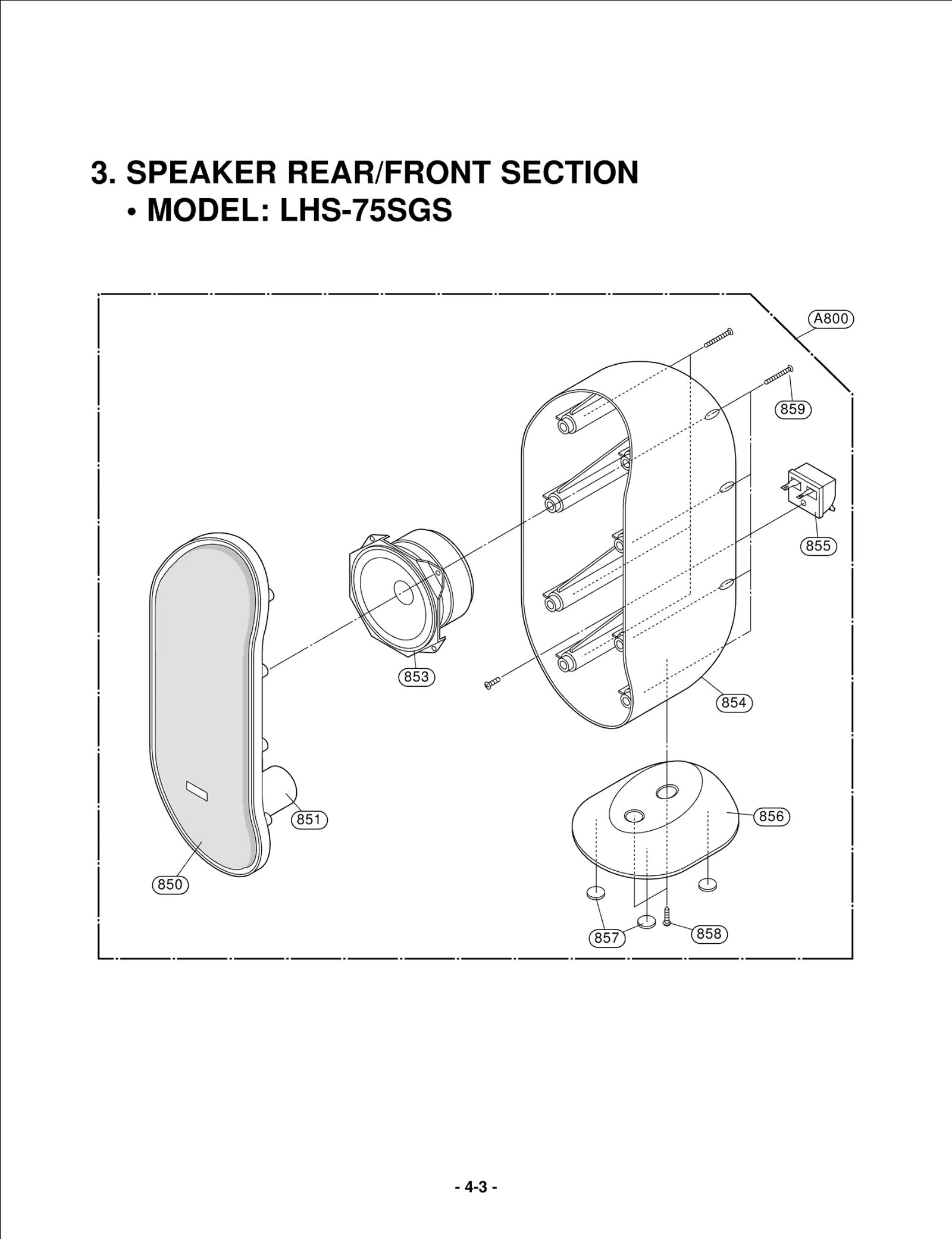

Diagram 5
Diagram 6
Common parts from model LG DVT654
001
FRAME LGE 3210RZM001A Contact Us For Availability
002
FRAME LGE 3210RZM002A Contact Us For Availability
003
TRAY LGE 3390RZ0002A Contact Us For Availability
004
TRAY LGE 3390RZ0002B Contact Us For Availability
005
TRAY LGE 3390RZ0002C Contact Us For Availability
006
TRAY LGE 3390RZ0002D Contact Us For Availability
007
TRAY LGE 3390RZ0002E Contact Us For Availability
008
FRAME LGE 3210RZM003A Contact Us For Availability
009
ARM LGE 4260RZ0001A Contact Us For Availability
010
ARM LGE 4260RZ0001B Contact Us For Availability
011
ARM LGE 4260RZ0001C Contact Us For Availability
012
GEAR LGE 4470RZ0005A Contact Us For Availability
013
GEAR LGE 4470RZ0005B Contact Us For Availability
014
ARM LGE 4260RZ0002A Contact Us For Availability
015
ARM LGE 4260RZ0002B Contact Us For Availability
016
ARM LGE 4260RZ0002C Contact Us For Availability
017
ARM LGE 4260RZ0003A Contact Us For Availability
018
LEVER LGE 4510RZ0001A Contact Us For Availability
019
BRACKET LGE 4810RZ0003A Contact Us For Availability
020
GEAR LGE 4470RZ0006A Contact Us For Availability
021
COVER LGE 3550RZ0001A Contact Us For Availability
022
CLAMP ASSEMBLY LGE 4861RZ0002A Contact Us For Availability
023
ARM LGE 4260RZ0004A Contact Us For Availability
024
FRAME LGE 3210RZM004A Contact Us For Availability
025
FRAME LGE 3210RZM004B Contact Us For Availability
026
LEVER LGE 4510RZ0002A Contact Us For Availability
027
FRAME LGE 3210RZM005A Contact Us For Availability
028
FRAME LGE 3210RZM006A Contact Us For Availability
029
FRAME LGE 3210RZM007A Contact Us For Availability
030
CHASSIS LGE 3140RZM001A Contact Us For Availability
031
DECK MECHANISM PARTS LGE 6768RZVP01A Contact Us For Availability
032
MOTOR ASSEMBLY LGE 4681RZ0001A Contact Us For Availability
033
ARM LGE 4260RZ0005A Contact Us For Availability
034
GEAR LGE 4470RZ0007A Contact Us For Availability
035
GEAR LGE 4470RZ0008A Contact Us For Availability
036
RING LGE 4350RZ0001A Contact Us For Availability
037
PWB(PCB) ASSEMBLY,OT LGE 6871RZ0022A Contact Us For Availability
038
PWB(PCB) ASSEMBLY,OT LGE 6871RZ0023A Contact Us For Availability
039
GEAR LGE 4470RZ0009A Contact Us For Availability
040
PLATE LGE 3300RZM001A Contact Us For Availability
041
GEAR LGE 4470RZ0010A Contact Us For Availability
042
LEVER LGE 4510RZ0003A Contact Us For Availability
043
LEVER LGE 4510RZ0004A Contact Us For Availability
044
GEAR LGE 4470RZ0011A Contact Us For Availability
045
GEAR LGE 4470RZ0012A Contact Us For Availability
046
FELT LGE 4766RZ0001A Contact Us For Availability
047
SPRING LGE 4970RZ0001A Contact Us For Availability
048
SPRING LGE 4970RZ0002A Contact Us For Availability
049
SPRING LGE 4970RZ0003A Contact Us For Availability
050
STOPPER LGE 4620RZ0001A Contact Us For Availability
051
STOPPER LGE 4620RZ0002A Contact Us For Availability
052
SPRING LGE 4970RZ0004A Contact Us For Availability
053
SPRING LGE 4970RZ0005A Contact Us For Availability
054
SPRING LGE 4970RZ0006A Contact Us For Availability
055
SPRING LGE 4970RZ0007A Contact Us For Availability
056
SPRING LGE 4970RZ0008A Contact Us For Availability
057
SPRING LGE 4970RZ0009A Contact Us For Availability
058
SPRING LGE 4970RZ0010A Contact Us For Availability
059
SPRING LGE 4970RZ0011A Contact Us For Availability
060
SPRING LGE 4970RZ0012A Contact Us For Availability
061
WASHER,DRAWING LGE 1WZZRZ0001A Contact Us For Availability
062
BELT LGE 4400RZ0002A Contact Us For Availability
250
CABINET LGE 3090RCT001B Contact Us For Availability
252
PLATE LGE 3300RLH655A Contact Us For Availability
253
PLATE LGE 3300RLH650A Contact Us For Availability
255
HOLDER LGE 4930RC0185A Contact Us For Availability
260
CHASSIS LGE 3140RCT001A Contact Us For Availability
261
RUBBER LGE 5040R-5040A Contact Us For Availability
263
HOLDER LGE 4930RC0119A Contact Us For Availability
264
FAN,DC LGE 5900R-D006C Contact Us For Availability
265
RUBBER LGE 5040R-0093A Contact Us For Availability
266
HOLDER LGE 4930RL0650A Contact Us For Availability
267
HEAT SINK LGE 4920R-E010B Contact Us For Availability
274
PLATE LGE 3300RCT004A Contact Us For Availability
279
KNOB LGE 4940RCV658A Contact Us For Availability
280
PANEL ASSEMBLY,FRONT LGE 3721R-F997D Contact Us For Availability
283
DOOR ASSEMBLY LGE 3581R-T172A Contact Us For Availability
292
PLATE LGE 3300RLT732A Contact Us For Availability
300
POWER CORD LGE 6410RAHK06A Contact Us For Availability
431
DECK MECHANISM PARTS LGE 6768RZCP01A Contact Us For Availability
432
DECK MECHANISM PARTS LGE 6768RZCP02A Contact Us For Availability
433
DECK MECHANISM PARTS LGE 6768RZCP03A Contact Us For Availability
434
DECK MECHANISM PARTS LGE 6768RZCP04A Contact Us For Availability
435
DECK MECHANISM PARTS LGE 6768RZCP05A Contact Us For Availability
436
DECK MECHANISM PARTS LGE 6768RZCP06A Contact Us For Availability
437
DECK MECHANISM PARTS LGE 6768RZCP07A Contact Us For Availability
438
DECK MECHANISM PARTS LGE 6768RZCP08A Contact Us For Availability
750
GRILLE LGE 3530RMP044B Contact Us For Availability
754
LGE 3110RMP072A LGE 3110RMP072A Contact Us For Availability
756
LGE 3040RMP036A LGE 3040RMP036A Contact Us For Availability
757
FOOT LGE 3610RM0044A Contact Us For Availability
801
INSTRUCTION ASSEMBLY LGE 3835RH0145A Contact Us For Availability
802
BOX,MASTER LGE 3890RCC203D Contact Us For Availability
803
PACKING LGE 3920R-E145A Contact Us For Availability
803A
LGE 3920RME171A LGE 3920RME171A Contact Us For Availability
803B
LGE 3920RME171B LGE 3920RME171B Contact Us For Availability
803C
LGE 3920RME171C LGE 3920RME171C Contact Us For Availability
804
Bag LGE 3880SCS001E Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA8F Contact Us For Availability
812
CABLE,COAXIAL LGE 6850R-PBA8H Contact Us For Availability
824
ANTENNA,LOOP LGE 5010R-L002B Contact Us For Availability
825
ANTENNA,T LGE 5010R-T001E Contact Us For Availability
826
FERRITE CORE LGE 6200JB8010K Contact Us For Availability
850
GRILLE LGE 3530RMP044A Contact Us For Availability
851
PANEL,AUDIO LGE 3720RMM015A Contact Us For Availability
853
SPEAKER,FULLRANGE LGE 6400GSMD01A Contact Us For Availability
854
CASE LGE 3110RMP073A Contact Us For Availability
855
PWB(PCB) ASSEMBLY,SU LGE 6871RU0092A Contact Us For Availability
856
BASE LGE 3040RMP037A Contact Us For Availability
858
SCREW LGE 353M025G Contact Us For Availability
859
SCREW,DRAWING LGE 353M025H Contact Us For Availability
900
REMOTE CONTROLLER LGE 6710CDAK01B Contact Us For Availability
950
DUCT LGE 5208RM0059B Contact Us For Availability
951
PANEL,AUDIO LGE 3720RMM013B Contact Us For Availability
952
LGE 3701RM0110A LGE 3701RM0110A Contact Us For Availability
953
SPEAKER,WOOFER LGE 6400WBHM01A Contact Us For Availability
954
CABINET ASSEMBLY LGE 3091RMW107D Contact Us For Availability
955
LGE 4766RM0110A LGE 4766RM0110A Contact Us For Availability
957
Foot LGE 3610RM0009A Contact Us For Availability
959
SCREW BH 3.5X16 FBK FE-272E LGE 353M050C Contact Us For Availability
A26
MECHANISM ASSEMBLY LGE 4405RCH500A Contact Us For Availability
A40
PLATE ASSEMBLY LGE 3301RLH650A Contact Us For Availability
A42
HAND INS PWB(PCB) AS LGE 6874RV7071A Contact Us For Availability
A43
BOARD ASSEMBLY LGE 3501RD0945D Contact Us For Availability
A44
CHASSIS ASSEMBLY LGE 3141R-H028D Contact Us For Availability
A46
SUB PWB(PCB) ASSEMBL LGE 6885R-7071C Contact Us For Availability
A47
PWB(PCB) ASSEMBLY,TO LGE 6871R-6739A Contact Us For Availability
A49
HAND INS PWB(PCB) AS LGE 6874RF7071A Contact Us For Availability
A49A
HAND INS PWB(PCB) AS LGE 6874RH7071A Contact Us For Availability
A50
PWB(PCB) ASSEMBLY,TO LGE 6871R-7071A Contact Us For Availability
A60
MECHANISM ASSEMBLY LGE 4405RLH650A Contact Us For Availability
A700
SPEAKER ASSEMBLY LGE 6401RM0158C Contact Us For Availability
A800
SPEAKER ASSEMBLY LGE 6401RM0158B Contact Us For Availability
A900
SPEAKER ASSEMBLY LGE 6401RM0158D Contact Us For Availability
BD901
Diode,Bridge LGE 0DRVH00050A Contact Us For Availability
C001
Capacitor,AL,Radial LGE 0CE2273D638 Contact Us For Availability
C006
CAPACITOR,FIXED TUBU LGE 0CN2230K948 Contact Us For Availability
C104
Capacitor,Ceramic,Chip LGE 0CH1682K562 Contact Us For Availability
C113
Capacitor,AL,Radial LGE 0CE3356K618 Contact Us For Availability
C211
Capacitor,Ceramic,Chip LGE 0CH1821K562 Contact Us For Availability
C331
Capacitor,AL,Radial LGE 0CE1066F618 Contact Us For Availability
C352
Capacitor,AL,Radial LGE 0CE4766F618 Contact Us For Availability
C366
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4756K618 Contact Us For Availability
C368
Capacitor,AL,Radial LGE 0CE1076D618 Contact Us For Availability
C386
Capacitor,Ceramic,Chip LGE 0CH1272K512 Contact Us For Availability
C540
LGE 0CE1066J618 LGE 0CE1066J618 Contact Us For Availability
C544
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C554
Capacitor,AL,Radial LGE 0CE4776D618 Contact Us For Availability
C614
Capacitor,Ceramic,Chip LGE 0CH1153K562 Contact Us For Availability
C653
Capacitor,Ceramic,Chip LGE 0CH1473K942 Contact Us For Availability
C760
LGE 0CE337EK638 LGE 0CE337EK638 Contact Us For Availability
C769
Capacitor,Film,DIP,DC LGE 0CQ4742L439 Contact Us For Availability
C780
Capacitor,Ceramic,Chip LGE 0CH1682K566 Contact Us For Availability
C901
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C902
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C903
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK1040K945 Contact Us For Availability
C904
Capacitor,AL,Radial LGE 0CE687RR640 Contact Us For Availability
C906
Capacitor,AL,Radial LGE 0CE107CK638 Contact Us For Availability
C907
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C908
LGE 0CE476CD638 LGE 0CE476CD638 Contact Us For Availability
C909
Capacitor,Film,DIP LGE 0CQ4721N409 Contact Us For Availability
C910
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C911
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4766K618 Contact Us For Availability
C913
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE2256K618 Contact Us For Availability
C918
Capacitor,Film,DIP LGE 0CQ1021N409 Contact Us For Availability
C923
Capacitor,AL,Radial LGE 0CE108BD630 Contact Us For Availability
C924
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C926
Capacitor,AL,Radial LGE 0CE1076H618 Contact Us For Availability
C927
Capacitor,AL,Radial LGE 0CE1076K618 Contact Us For Availability
C928
Capacitor,AL,Radial LGE 0CE108CD638 Contact Us For Availability
C932
Capacitor,AL,Radial LGE 0CE108CC618 Contact Us For Availability
C933
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE1076F638 Contact Us For Availability
C941
CAPACITOR ELECTROLYTIC KCN20A8 LGE 0CE3376F618 Contact Us For Availability
C943
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C953
Capacitor,AL,Radial LGE 0CE228ZK610 Contact Us For Availability
CABLE
CABLE,FLAT LGE 6850R-GX10Z Contact Us For Availability
CABLE
CABLE,FLAT LGE 6850R-JW29Z Contact Us For Availability
CABLE
CABLE,FLAT LGE 6850R-HQ24Y Contact Us For Availability
CABLE
CABLE,FLAT LGE 6850R-GZ10Y Contact Us For Availability
CM902
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
CM902
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CN005
CONNECTOR ASSEMBLY LGE 6631R-E034V Contact Us For Availability
CN006
CONNECTOR ASSEMBLY LGE 6631R-E051V Contact Us For Availability
CN201
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
CN202
CONNECTOR CD-910A UG2 LGE 561-711F Contact Us For Availability
CN203
CONNECTOR (CIRC),FFC LGE 6630XF00417 Contact Us For Availability
CN901
Harness,Single LGE 6631R-F010V Contact Us For Availability
CN902
CONNECTOR ASSEMBLY LGE 6631R-F039C Contact Us For Availability
D906
Diode,Rectifier LGE 0DR400709AA Contact Us For Availability
D922
DIODE,RECTIFIERS LGE 0DRVH00030A Contact Us For Availability
D923
DIODE,RECTIFIERS LGE 0DRVH00020A Contact Us For Availability
D923
DIODE,SWITCHING LGE 0DSTW00060A Contact Us For Availability
D928
DIODE,SWITCHING LGE 0DS141489BB Contact Us For Availability
D934
DIODE 1N5402,RECT,SILTER,FORM LGE 0DD540200CA Contact Us For Availability
D941
DIODE,SWITCHING LGE 0DSTW00099A Contact Us For Availability
D951
DIODE,SWITCHING LGE 0DSSD00010A Contact Us For Availability
D951
DIODE,SWITCHING LGE 0DSFC00020A Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS6301B51D Contact Us For Availability
IC101
IC,MICRO CONTROLLER LGE 0IMCR02091A Contact Us For Availability
IC102
IC,STANDARD LOGIC LGE 0ISTLFA033B Contact Us For Availability
IC102
IC,PERIPHERALS LGE 0IPRP00714A Contact Us For Availability
IC201
IC,LINEAR LGE 0ILNRIJ001B Contact Us For Availability
IC301
IC,POWER MANAGEMENT LGE 0IPMGPV002A Contact Us For Availability
IC301
IC,POWER MANAGEMENT LGE 0IPMG00022A Contact Us For Availability
IC301
IC,POWER MANAGEMENT LGE 0IPMGPV002B Contact Us For Availability
IC302
IC,PERIPHERALS LGE 0IPRPCI014A Contact Us For Availability
IC303
IC,ROHM LGE 0IRH405200C Contact Us For Availability
IC502
IC,PERIPHERALS LGE 0IPRPJR024A Contact Us For Availability
IC601
IC,LINEAR LGE 0ILNRNF009A Contact Us For Availability
IC602A
PROGRAM LGE 6957R-700AC Contact Us For Availability
IC603
IC,MEMORIES LGE 0IMMREB004A Contact Us For Availability
IC604
IC,POWER MANAGEMENT LGE 0IPMGUC006A Contact Us For Availability
IC605
IC,PERIPHERALS LGE 0IPRPMT008A Contact Us For Availability
IC703
IC,PERIPHERALS LGE 0IPRPSG033A Contact Us For Availability
IC901
IC,POWER MANAGEMENT LGE 0IPMG00041A Contact Us For Availability
IC902
IC,POWER MANAGEMENT LGE 0IPMGFA010A Contact Us For Availability
IC921
IC,POWER MANAGEMENT LGE 0IPMGKE018A Contact Us For Availability
IC922
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC923
IC,POWER MANAGEMENT LGE 0IPMGKE006B Contact Us For Availability
IC924
IC,POWER MANAGEMENT LGE 0IPMGKE009C Contact Us For Availability
IC941
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
JK001
JACK,HEADPHONE LGE 6612R-A002A Contact Us For Availability
JK002
JACK,RCA LGE 6612JH003AB Contact Us For Availability
JK003
JACK,RCA LGE 6612JH003AA Contact Us For Availability
JK501
JACK,RCA LGE 6612J00050D Contact Us For Availability
JK503
JACK,FIBER OPTIC LGE 6612K00010B Contact Us For Availability
JK701
TERMINAL BLOCK LGE 664000009AA Contact Us For Availability
L201
INDUCTOR RADIAL LEAD *R-V422M LGE 0LR0102J025 Contact Us For Availability
L708
LGE 6140RCC007D LGE 6140RCC007D Contact Us For Availability
L712
COIL,RF LGE 6140RCC007G Contact Us For Availability
L901
Coil,Choke LGE 6140RCC002A Contact Us For Availability
L951
TRANSFORMER,SMPS[COI LGE 6170RNGW18C Contact Us For Availability
LD002
LED LGE 0DLLT0359AA Contact Us For Availability
LF902
LGE 6200JB8013N LGE 6200JB8013N Contact Us For Availability
PN001
CONNECTOR (CIRC),FFC LGE 6630R-FB05Z Contact Us For Availability
PN002
CONNECTOR (CIRC),FFC LGE 6630R-FB05X Contact Us For Availability
PN005
Connector,Wafer LGE 561-711H Contact Us For Availability
PN007
CONNECTOR LGE 561-711E Contact Us For Availability
PN105
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
PN901
Connector,Wafer LGE 561-715J Contact Us For Availability
PN902
CONNECTOR (CIRC),WAF LGE 561-715N Contact Us For Availability
Q103
TRANSISTOR LGE 0TR126709AB Contact Us For Availability
Q203
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q205
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q506
TRANSISTOR CD-340A UG8 CD-945A LGE 0TR130209AA Contact Us For Availability
Q901
TRANSISTOR LGE 0TR128109AA Contact Us For Availability
Q903
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q910
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
R017
Resistor,Carbon Film LGE 0RD8202F608 Contact Us For Availability
R217
Resistor,Chip LGE 0RJ7503C677 Contact Us For Availability
R222
RESISTOR CHIP LGE 0RH0201D622 Contact Us For Availability
R346
Resistor,Chip LGE 0RH0912C622 Contact Us For Availability
R625
Resistor,Chip LGE 0RH0681C622 Contact Us For Availability
R756
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R903
Resistor,Carbon Film LGE 0RD0392F608 Contact Us For Availability
R903
Resistor,Chip LGE 0RH8203D622 Contact Us For Availability
R909
RESISTOR,FIXED METAL LGE 0RS0680K618 Contact Us For Availability
R932
Resistor,Carbon Film LGE 0RD1203F608 Contact Us For Availability
R946
Resistor,Metal Film LGE 0RN2402F408 Contact Us For Availability
R947
Resistor,Metal Film LGE 0RN1801F408 Contact Us For Availability
R952
Resistor,Metal Oxide Film LGE 0RS0222K619 Contact Us For Availability
T901
TRANSFORMER,SMPS[COI LGE 6170RNGW18P Contact Us For Availability
T902
TRANSFORMER,SMPS[COI LGE 6170RNGW18B Contact Us For Availability
TH901
THERMISTOR,PTC LGE 6322B62204A Contact Us For Availability
TUN101
TUNER LGE 6700FM0131A Contact Us For Availability
VFD001
DIGITRON LGE 6302R-V241A Contact Us For Availability
VR001
VOLUME,ROTARY LGE 6110S-ET01A Contact Us For Availability
VR001
VOLUME,ROTARY LGE 6110R-ER01A Contact Us For Availability
VR901
VARISTOR LGE 6102R2A002A Contact Us For Availability
WIRE70
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271N Contact Us For Availability
WIRE80
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271L Contact Us For Availability
WIRE81
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271M Contact Us For Availability
WIRE82
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271D Contact Us For Availability
WIRE83
WIRE R,L LGE 6871RU9271E Contact Us For Availability
WIRE90
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271P Contact Us For Availability
X101
RESONATOR,CRYSTAL LGE 6212AA2125K Contact Us For Availability
X301
OSCILLATOR,STD LGE 6204R-HK01C Contact Us For Availability
X601
CRYSTAL,STANDARD LGE 6202R-BL06C Contact Us For Availability
ZD901
DIODE,ZENER LGE 0DZ272609BA Contact Us For Availability
ZD902
DIODE,ZENERS LGE 0DZ910009BE Contact Us For Availability
ZD903
DIODE,ZENER LGE 0DZ512609BA Contact Us For Availability
ZD912
DIODE,ZENERS LGE 0DZ332609BA Contact Us For Availability
ZD913
DIODE,ZENERS LGE 0DZ912609AA Contact Us For Availability
ZD921
DIODE,ZENERS LGE 0DZ120009BH Contact Us For Availability
× ![]()
Login and Registration Form
