Model LG DVRK687X – Common Parts & Diagrams

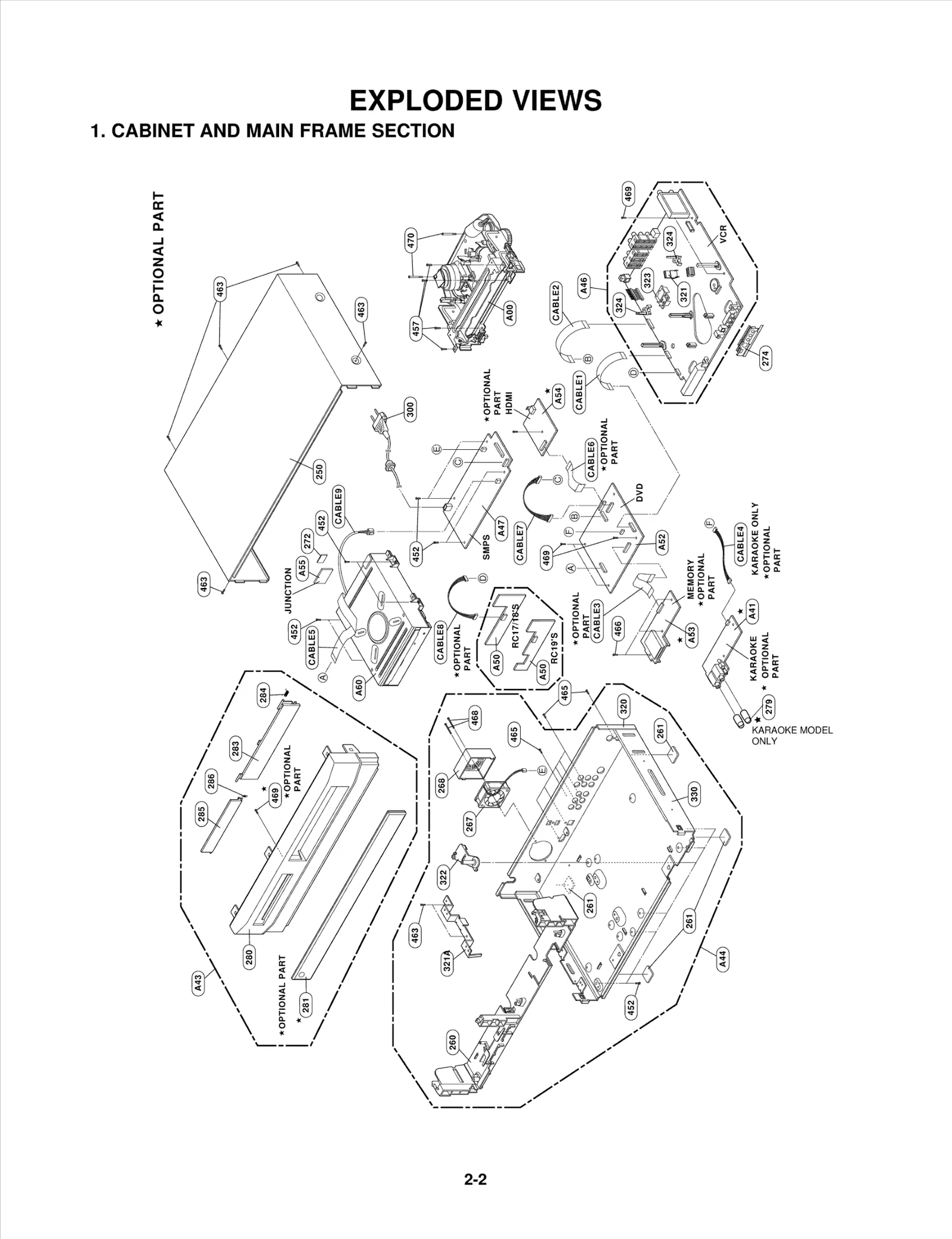

Diagram 0

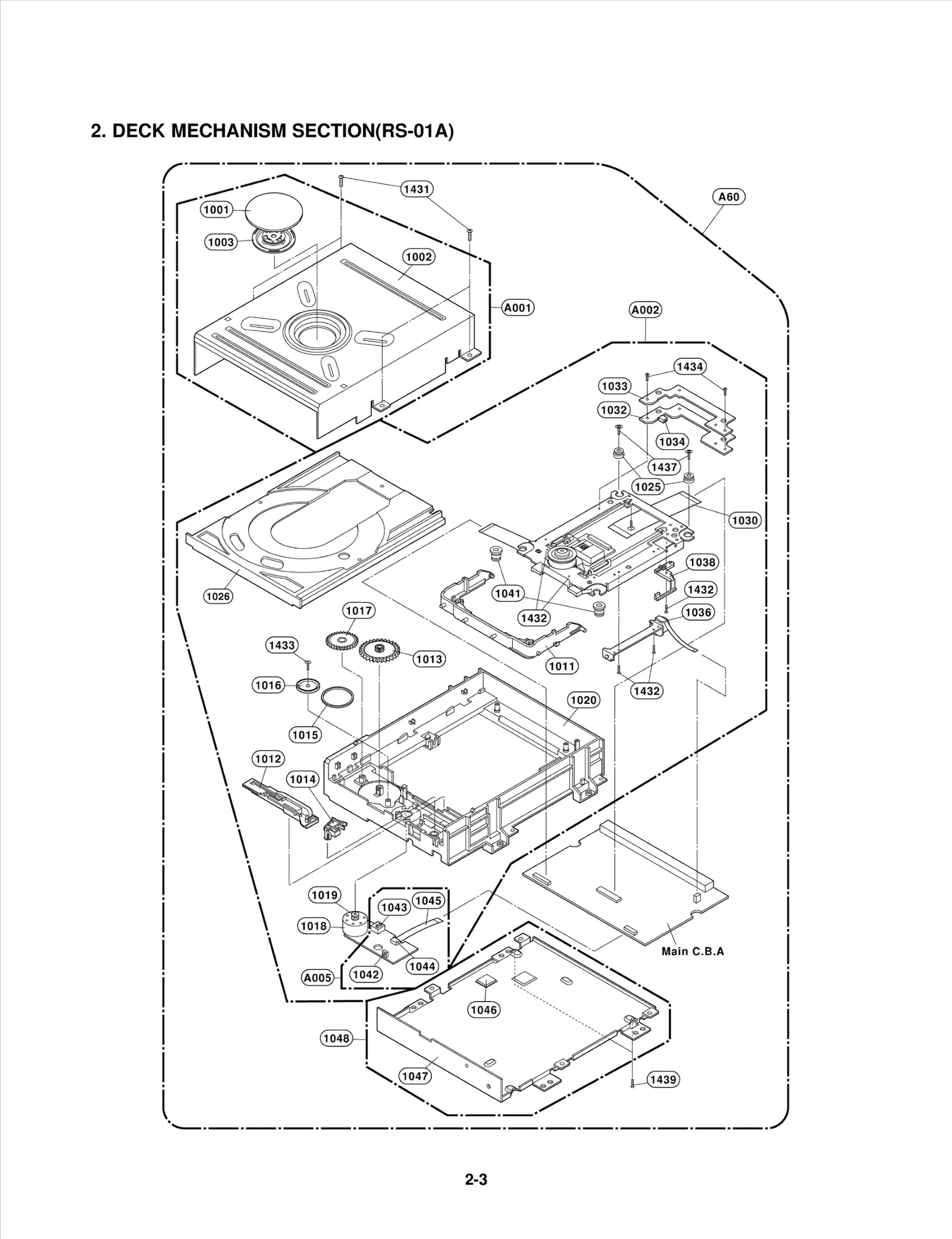

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Common parts from model LG DVRK687X
003
HOLDER LGE 4930R-0449A Contact Us For Availability
004
CAP LGE 5006R-0045A Contact Us For Availability
008
CABLE,FLAT LGE 6850R-HG18Y Contact Us For Availability
009
ARM LGE 4260R-0056A Contact Us For Availability
011
ARM ASSEMBLY LGE 4261R-0040A Contact Us For Availability
012
BASE ASSEMBLY LGE 3041R-M037A Contact Us For Availability
012
BASE ASSEMBLY LGE 3041R-M037B Contact Us For Availability
013
BASE ASSEMBLY LGE 3041R-M038A Contact Us For Availability
013
BASE ASSEMBLY LGE 3041R-M038B Contact Us For Availability
014
BASE ASSEMBLY LGE 3041R-M039A Contact Us For Availability
015
OPENER LGE 5870R-0007A Contact Us For Availability
016
BASE ASSEMBLY LGE 3041R-M036E Contact Us For Availability
016
BASE ASSEMBLY LGE 3041R-M036D Contact Us For Availability
017
REEL LGE 4408R-0005B Contact Us For Availability
017
REEL LGE 4408R-0005A Contact Us For Availability
021
BRAKE ASSEMBLY LGE 4421R-M002A Contact Us For Availability
022
HEAD(CIRC) LGE 6520D00004B Contact Us For Availability
022
HEAD(CIRC) LGE 6520D00006A Contact Us For Availability
023
BASE LGE 3040R-M056A Contact Us For Availability
024
ARM ASSEMBLY LGE 4261R-0042A Contact Us For Availability
026
MOTOR ASSEMBLY LGE 4681RF0039A Contact Us For Availability
026
MOTOR ASSEMBLY LGE 4681RF0039C Contact Us For Availability
027
GEAR LGE 4470R-0133A Contact Us For Availability
028
REEL LGE 4408R-0006A Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0037C Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0037A Contact Us For Availability
029
Arm Assembly LGE 4261R-0037E Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0037D Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0037B Contact Us For Availability
031
SPRING LGE 4970R-0175A Contact Us For Availability
032
CHASSIS ASSEMBLY LGE 3141R-M002A Contact Us For Availability
051
BELT LGE 4400R-0005A Contact Us For Availability
052
Motor,DC LGE 4680R-A015B Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A016B Contact Us For Availability
052A
SUPPORTER LGE 4980R-0029A Contact Us For Availability
054
GEAR LGE 4470R-0136A Contact Us For Availability
054A
SPRING LGE 4970R-0171A Contact Us For Availability
055
GEAR LGE 4470R-0140A Contact Us For Availability
056
GEAR LGE 4470R-0139A Contact Us For Availability
058
BRAKE ASSEMBLY LGE 4421R-M001A Contact Us For Availability
060
LEVER LGE 4510R-0065A Contact Us For Availability
061
CLUTCH ASSEMBLY LGE 4265R-0007A Contact Us For Availability
064
GEAR LGE 4470R-0141A Contact Us For Availability
065
ARM ASSEMBLY LGE 4261R-0044A Contact Us For Availability
066
SPRING LGE 4970R-0122A Contact Us For Availability
067
GEAR LGE 4470R-0135A Contact Us For Availability
068
GEAR LGE 4470R-0134A Contact Us For Availability
070
ARM ASSEMBLY LGE 4261R-0043A Contact Us For Availability
076
LEVER LGE 4510R-0063A Contact Us For Availability
077
PLATE LGE 3300R-M203A Contact Us For Availability
078
LEVER LGE 4510R-0062A Contact Us For Availability
079
BASE LGE 3040R-M057A Contact Us For Availability
080
LEVER LGE 4510R-0064A Contact Us For Availability
100
PLATE ASSEMBLY LGE 3301R-M193A Contact Us For Availability
102
SPRING LGE 4970R-0173A Contact Us For Availability
103
HOLDER LGE 4930R-0452A Contact Us For Availability
105
HOLDER LGE 4930R-0450A Contact Us For Availability
106
HOLDER LGE 4930R-0451A Contact Us For Availability
107
LEVER LGE 4510R-0061A Contact Us For Availability
109
OPENER LGE 5870R-0008A Contact Us For Availability
110
ARM LGE 4260R-0051A Contact Us For Availability
112
BODY LGE 3070R-0002A Contact Us For Availability
113
SPRING LGE 4970R-0169A Contact Us For Availability
114
ARM LGE 4260R-0052A Contact Us For Availability
115
LEVER LGE 4510R-0070A Contact Us For Availability
116
SPRING LGE 4970R-0163A Contact Us For Availability
250
CASE LGE 3110R-V043D Contact Us For Availability
260
LGE 3210R-V016A LGE 3210R-V016A Contact Us For Availability
261
RUBBER LGE 5040R-0069X Contact Us For Availability
267
HOLDER LGE 4930R-0558A Contact Us For Availability
268
Fan Module LGE 5900R-D023D Contact Us For Availability
272
PLATE LGE 3300R-D079A Contact Us For Availability
274
PLATE LGE 3300R-V155A Contact Us For Availability
280
LGE 3720R-F979F LGE 3720R-F979F Contact Us For Availability
281
Window,Decor LGE 3790R-M052A Contact Us For Availability
283
LGE 3580R-V139M LGE 3580R-V139M Contact Us For Availability
284
SPRING DOOR P-705M P-710M LGE 442-681A Contact Us For Availability
285
LGE 3580R-T215C LGE 3580R-T215C Contact Us For Availability
286
SPRING LGE 4970R-0146B Contact Us For Availability
300
LGE 6410RCHV04B LGE 6410RCHV04B Contact Us For Availability
320
LGE 3720R-D141F LGE 3720R-D141F Contact Us For Availability
321
CASE LGE 3110R-V013A Contact Us For Availability
321A
BRACKET LGE 4810R-0353A Contact Us For Availability
322
HOLDER LGE 4930R-0637A Contact Us For Availability
323
CASE ASSEMBLY LGE 3111R-0089E Contact Us For Availability
324
HOLDER LGE 4930R-0472A Contact Us For Availability
330
CHASSIS LGE 3140R-V016A Contact Us For Availability
405
SCREW MACHINE,PAN HE LGE 1MPC0301270 Contact Us For Availability
406
PAN HEAD MACHINE SCREW S/W + LGE 1MEC0302018 Contact Us For Availability
409
SCREW,DRAWING LGE 1SZZR-0032B Contact Us For Availability
410
SCREW TAP TITE(B),PA LGE 1APF0262218 Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
457
SCREW,DRAWING LGE 1SZZR-0098E Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098X Contact Us For Availability
469
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
470
SCREW,DRAWING LGE 1SZZR-0098K Contact Us For Availability
517
WASHER,DRAWING LGE 1WZZR-0004F Contact Us For Availability
517
WASHER LGE 1WZZR-0004D Contact Us For Availability
518
WASHER LGE 1WZZR-0004A Contact Us For Availability
801
LGE 3835RV0052U LGE 3835RV0052U Contact Us For Availability
802
LGE 3890R-C464B LGE 3890R-C464B Contact Us For Availability
803
PACKING LGE 3920R-E197A Contact Us For Availability
804
Bag LGE 292-053A Contact Us For Availability
804
BAG LGE 292-053B Contact Us For Availability
806
LGE 6850R-CAA8H LGE 6850R-CAA8H Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
810
LGE 6851R-0038B LGE 6851R-0038B Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA8F Contact Us For Availability
812
CABLE,COAXIAL LGE 6850R-PBA8H Contact Us For Availability
821
LGE 6850R-SUA8F LGE 6850R-SUA8F Contact Us For Availability
832
DISC LGE 3008R-0010J Contact Us For Availability
832A
LGE 3008R-0017L LGE 3008R-0017L Contact Us For Availability
900
LGE 6711R1P107F LGE 6711R1P107F Contact Us For Availability
1001
Cover LGE MCK30125801 Contact Us For Availability
1002
Cover LGE 3550R-2003B Contact Us For Availability
1002
COVER LGE 3550R-2003A Contact Us For Availability
1003
CLAMP ASSEMBLY LGE 4861R-0021B Contact Us For Availability
1011
Base LGE MAM30122601 Contact Us For Availability
1012
Guide LGE 4974R-0082A Contact Us For Availability
1013
Gear - loc 1017 LGE MDT30123101 Contact Us For Availability
1014
Lever LGE MFC30123901 Contact Us For Availability
1015
BELT LGE 4400H-1014A Contact Us For Availability
1016
Pulley LGE MGN30124101 Contact Us For Availability
1017
Gear - loc 1013 LGE MDT30122801 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E009A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1020
Base LGE 3040R-D026B Contact Us For Availability
1020
BASE LGE 3040R-D026A Contact Us For Availability
1020
Base LGE 3040R-D026C Contact Us For Availability
1025
RUBBER LGE 5040H-1104C Contact Us For Availability
1026
Tray LGE 3390R-0037B Contact Us For Availability
1026
TRAY LGE 3390R-0037A Contact Us For Availability
1030
CABLE,FLAT LGE 6850R-EA78Z Contact Us For Availability
1032
Bracket LGE 4810R-0383A Contact Us For Availability
1033
Bracket LGE MAZ30126001 Contact Us For Availability
1034
RUBBER LGE 5040H-1078A Contact Us For Availability
1036
MOTOR(MECH) LGE 4680HP5025C Contact Us For Availability
1038
Holder LGE 4930R-0669A Contact Us For Availability
1041
RUBBER LGE 5040H-1103C Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1045
Cable,FFC LGE EAD32990301 Contact Us For Availability
1046
RUBBER LGE 5040H-1074D Contact Us For Availability
1047
COVER LGE 3550R-2004A Contact Us For Availability
1048
COVER ASSEMBLY LGE 3551R-0678B Contact Us For Availability
1431
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
1432
SCREW,DRAWING LGE 1SZZH-1072D Contact Us For Availability
1434
SCREW,DRAWING LGE 1SZZH-1072E Contact Us For Availability
1437
SCREW,DRAWING LGE 1SZZH-1003E Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A00
DECK ASSEMBLY,VIDEO LGE 6721RF0953K Contact Us For Availability
A001
COVER ASSEMBLY LGE 3551R-0677B Contact Us For Availability
A002
Deck Assembly,DVD LGE 6721R-D021F Contact Us For Availability
A005
PCB Assembly LGE 6871R-0P54E Contact Us For Availability
A01
LGE 6723R-0603F LGE 6723R-0603F Contact Us For Availability
A11
GEAR ASSEMBLY LGE 4471R-0017A Contact Us For Availability
A12
GEAR ASSEMBLY LGE 4471R-0015A Contact Us For Availability
A21
HOLDER ASSEMBLY LGE 4931R-0084A Contact Us For Availability
A22
GEAR ASSEMBLY LGE 4471R-0016A Contact Us For Availability
A23
ARM ASSEMBLY LGE 4261R-0038A Contact Us For Availability
A24
LEVER ASSEMBLY LGE 4511R-0005A Contact Us For Availability
A43
LGE 3721R-F456H LGE 3721R-F456H Contact Us For Availability
A44
LGE 3141R-V030S LGE 3141R-V030S Contact Us For Availability
A46
LGE 3501R-3827C LGE 3501R-3827C Contact Us For Availability
A47
LGE 3501R-7721A LGE 3501R-7721A Contact Us For Availability
A50
PCB Assembly LGE 6871R-8572A Contact Us For Availability
A52
LGE 6885R-3827Y LGE 6885R-3827Y Contact Us For Availability
A54
LGE 6871R-2826A LGE 6871R-2826A Contact Us For Availability
A55
PWB(PCB) ASSEMBLY,TO LGE 6871R-8888D Contact Us For Availability
A60
DECK ASSEMBLY,DVD LGE 6721RFN021A Contact Us For Availability
A60
Deck Assembly,DVD LGE 6721RFN021B Contact Us For Availability
A60
Board Assembly LGE AAX36470824 Contact Us For Availability
AR1103
Resistor,Array LGE 0RRZVTA001J Contact Us For Availability
AR1227
Resistor,Array LGE 0RR0222Q62A Contact Us For Availability
AR1501
Resistor,Array LGE 0RRZVTA001F Contact Us For Availability
AR1602
Resistor,Array LGE 0RR1002Q62C Contact Us For Availability
BD101
DIODE,RECTIFIERS LGE 0DRVH00060A Contact Us For Availability
BD101
DIODE,RECTIFIERS LGE 0DRDI00211A Contact Us For Availability
C8C8
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C15A2
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8226F611 Contact Us For Availability
C15A3
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
C15A4
Capacitor,TA,Niobium LGE 0CH7226F621 Contact Us For Availability
C102
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
C103
Capacitor,AL,Radial LGE 0CE127JV640 Contact Us For Availability
C104
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C105
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C106
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C107
Capacitor,Film,DIP LGE 0CQ1521N409 Contact Us For Availability
C109
Capacitor,AL,Radial LGE 0CE3366J618 Contact Us For Availability
C111
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C115
Capacitor,Film,DIP LGE 0CQ2222K409 Contact Us For Availability
C123
CAPACITOR,FIXED ELEC LGE 0CE2282F611 Contact Us For Availability
C124
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C126
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C128
Capacitor,AL,Radial LGE 0CE228BF630 Contact Us For Availability
C132
Capacitor,AL,Radial LGE 624-082G Contact Us For Availability
C133
Capacitor,AL,Radial LGE 624-082H Contact Us For Availability
C143
Capacitor,Film,DIP LGE 0CQ1042K409 Contact Us For Availability
C153
Capacitor,AL,Radial LGE 0CE1064K638 Contact Us For Availability
C154
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C301
Capacitor,AL,Radial LGE 0CE4764C638 Contact Us For Availability
C304
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C305
C.ELECTROLYTIC 4.7M SRA 50VGVP LGE 0CE4754K638 Contact Us For Availability
C307
Capacitor,Ceramic,Chip LGE 0CH1152K512 Contact Us For Availability
C310
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE 0CH4471K412 Contact Us For Availability
C313
Capacitor,Film,DIP LGE 0CQ2231N409 Contact Us For Availability
C316
Capacitor,Ceramic,Chip LGE 0CH1332K512 Contact Us For Availability
C327
Capacitor,AL,Radial LGE 0CE2254K638 Contact Us For Availability
C337
Capacitor,AL,Radial LGE 0CE1043K638 Contact Us For Availability
C349
Capacitor,Ceramic,Radial LGE 0CC0500K015 Contact Us For Availability
C353
Capacitor,AL,Radial LGE 0CE3354K638 Contact Us For Availability
C354
Capacitor,Ceramic,Chip LGE 0CH1473H942 Contact Us For Availability
C357
Capacitor,Ceramic,Chip LGE 0CH1223K942 Contact Us For Availability
C358
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C364
Capacitor,AL,Radial LGE 0CE3344K638 Contact Us For Availability
C404
LGE 0CN1030F678 LGE 0CN1030F678 Contact Us For Availability
C407
Capacitor,AL,Radial LGE 0CE1074C638 Contact Us For Availability
C408
Capacitor,AL,Radial LGE 0CE1063F638 Contact Us For Availability
C413
LGE 0CN5610K518 LGE 0CN5610K518 Contact Us For Availability
C502
Capacitor,AL,Radial LGE 0CE4765K618 Contact Us For Availability
C507
CAPACITOR,ELECTROLYTIC LGE 0CE4764H638 Contact Us For Availability
C509
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C516
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C519
Capacitor,Ceramic,Chip LGE 0CH4240K412 Contact Us For Availability
C533
Capacitor,AL,Radial LGE 0CE1086C638 Contact Us For Availability
C544
Capacitor,AL,Radial LGE 0CE1053K638 Contact Us For Availability
C545
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C546
Capacitor,AL,Radial LGE 0CE3364F638 Contact Us For Availability
C553
Capacitor,Ceramic,Chip LGE 0CH1102K512 Contact Us For Availability
C703
CAPACITOR,AL.ELECTROLYTIC LGE 0CE477CD638 Contact Us For Availability
C807
Capacitor,AL,Radial LGE 0CE4744K638 Contact Us For Availability
C813
Capacitor,Ceramic,Chip LGE 0CH1682K512 Contact Us For Availability
C822
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C850
Capacitor,AL,Radial LGE 0CE2263F638 Contact Us For Availability
C854
Capacitor,Ceramic,Chip LGE 0CH4681K412 Contact Us For Availability
C870
Capacitor,Ceramic,Chip LGE 0CH1222K512 Contact Us For Availability
C874
Capacitor,Ceramic,Chip LGE 0CH1105F942 Contact Us For Availability
C912
Capacitor,Ceramic,Chip LGE 0CH1101K965 Contact Us For Availability
C915
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C928
Capacitor,AL,Chip LGE 0CE4775C638 Contact Us For Availability
C968
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C983
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C1116
Capacitor,TA,Niobium LGE 0CH7106F611 Contact Us For Availability
C1126
CAPACITOR,FIXED TANT LGE 0CS226ED6DC Contact Us For Availability
C1157
Capacitor,TA,Niobium LGE 0CH7476C621 Contact Us For Availability
C1210
Capacitor,Ceramic,Chip LGE 0CH1103K512 Contact Us For Availability
C1215
Capacitor,Ceramic,Chip LGE 0CH1103K516 Contact Us For Availability
C1272
Capacitor,TA,Niobium LGE 0CH7106D611 Contact Us For Availability
C1318
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
C1410
Capacitor,Ceramic,Chip LGE 0CH1105D942 Contact Us For Availability
C1521
Capacitor,Ceramic,Chip LGE 0CH4560K412 Contact Us For Availability
C1556
Capacitor,TA,Niobium LGE 0CS106HF6DC Contact Us For Availability
C1570
Capacitor,Ceramic,Chip LGE 0CH1225F946 Contact Us For Availability
C1571
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C1610
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C1619
Capacitor,Ceramic,Chip LGE 0CH4360K412 Contact Us For Availability
CABLE1
LGE 6850R-GU08Z LGE 6850R-GU08Z Contact Us For Availability
CABLE2
CABLE,FLAT LGE 6850R-EA12Y Contact Us For Availability
CABLE4
LGE 6850R-GF05C LGE 6850R-GF05C Contact Us For Availability
CABLE5
CABLE,FLAT LGE 6850R-EA21Z Contact Us For Availability
CABLE7
CONNECTOR ASSEMBLY LGE 6631R-E116J Contact Us For Availability
CABLE8
CONNECTOR ASSEMBLY LGE 6631R-E116K Contact Us For Availability
CABLE9
CONNECTOR ASSEMBLY LGE 6631R-H006A Contact Us For Availability
CF401
FILTER(CIRC),EMI LGE 6200HJC901A Contact Us For Availability
CN620
CONNECTOR (CIRC),FFC LGE 6630HXE440D Contact Us For Availability
CN621
CONNECTOR (CIRC),WAF LGE 6630VL1004Z Contact Us For Availability
CS501
SWITCH,PUSH LGE 6600M000026 Contact Us For Availability
D8C2
DIODE,RECTIFIER LGE 0DR104009AB Contact Us For Availability
D101
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D122
DIODE,RECTIFIERS LGE 0DRVH00020A Contact Us For Availability
D124
DIODE,SWITCHING LGE 0DSDI00110A Contact Us For Availability
D124
DIODE,SWITCHING LGE 0DSGF00040A Contact Us For Availability
D126
DIODE EU01W(R-FORM) T R-B413M LGE 0DD010009AC Contact Us For Availability
D127
DIODE,SWITCHING LGE 0DSKE00141A Contact Us For Availability
D128
DIODE,SWITCHING LGE 0DSKE00141B Contact Us For Availability
D128
DIODE,SWITCHING LGE 0DSNH00020B Contact Us For Availability
D152
DIODE 1SS133 DETECT, SW TP LGE 0DD133009AA Contact Us For Availability
D156
DIODE,RECTIFIERS LGE 0DRSD00210A Contact Us For Availability
D156
DIODE,SWITCHING LGE 0DSDI00090A Contact Us For Availability
D903
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D1102
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
DIS501
LED ASSEMBLY LGE 6301R2U017D Contact Us For Availability
ES501
HOLDER ASSEMBLY LGE 4931R-0085C Contact Us For Availability
F101
FUSE,SLOW BLOW LGE 0FS1601B51D Contact Us For Availability
FH01
HOLDER FUSE LGE 586-008B Contact Us For Availability
IC15A1
IC,PERIPHERALS LGE 0IPRP00015A Contact Us For Availability
IC101
IC,POWER MANAGEMENT LGE 0IPMG78398A Contact Us For Availability
IC102
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC103
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC103
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC103
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC153
IC,POWER MANAGEMENT LGE 0IPMGGM003A Contact Us For Availability
IC153
IC,POWER MANAGEMENT LGE 0IPMGKE022B Contact Us For Availability
IC154
IC,POWER MANAGEMENT LGE 0IPMGKE045A Contact Us For Availability
IC155
IC,LDO Voltage Regulator LGE 0IPMGFA017A Contact Us For Availability
IC155
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC156
IC,POWER MANAGEMENT LGE 0IPMGFA050A Contact Us For Availability
IC156
IC,POWER MANAGEMENT LGE 0IPMGKE047A Contact Us For Availability
IC301
LGE 0ILNRHI011B LGE 0ILNRHI011B Contact Us For Availability
IC401
LGE 0IRH330800A LGE 0IRH330800A Contact Us For Availability
IC402
IC,PERIPHERALS LGE 0IPRPJR001A Contact Us For Availability
IC501
LGE 0IMCR02253A LGE 0IMCR02253A Contact Us For Availability
IC503
IC,CATALYST LGE 0ICS241600B Contact Us For Availability
IC504
IC KEC KIA7031P 3P 3.1V RES LGE 0IKE703100A Contact Us For Availability
IC505
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IC506
IC,LINEAR LGE 0ILNRPY001B Contact Us For Availability
IC801
IC LGE 0IPH960500A Contact Us For Availability
IC802
LGE 0IPRPMT009A LGE 0IPRPMT009A Contact Us For Availability
IC804
IC,LINEAR LGE 0ILNRON005A Contact Us For Availability
IC901
IC,PERIPHERALS LGE 0IPRPRH017A Contact Us For Availability
IC1101
IC,LINEAR LGE 0ILNR00159A Contact Us For Availability
IC1201
IC,POWER MANAGEMENT LGE 0IPMG00017A Contact Us For Availability
IC1203
IC,DDR SDRAM LGE 0IMMRHY057B Contact Us For Availability
IC1203
IC,MEMORIES LGE 0IMMRIH038A Contact Us For Availability
IC1300A
LGE 6957R-875AA LGE 6957R-875AA Contact Us For Availability
IC1301
IC,CMOS LGE 0ISTLPH055A Contact Us For Availability
IC1302
IC,SAMSUNG ELECTRONICS LGE 0ISS241610B Contact Us For Availability
IC1303
IC,POWER MANAGEMENT LGE 0IPMG78350A Contact Us For Availability
IC1400
IC,STANDARD LOGIC LGE 0ISTLPH040A Contact Us For Availability
IC1402
IC,STANDARD LOGIC LGE 0ISTLPH043A Contact Us For Availability
IC1403
IC,Inverter LGE 0ISTLPH039A Contact Us For Availability
IC1501
LGE 0ILNR00162A LGE 0ILNR00162A Contact Us For Availability
IC1601
IC,PERIPHERALS LGE 0IPRPTI044A Contact Us For Availability
JK401
LGE 6612F00022B LGE 6612F00022B Contact Us For Availability
JK801
Jack,RCA LGE 6612J00053A Contact Us For Availability
JK804
JACK,DIN LGE 6612B00028A Contact Us For Availability
JK805
CONNECTOR (CIRC),USB LGE 6630S70046A Contact Us For Availability
JK901
JACK,RCA LGE 6612J00026F Contact Us For Availability
JK902
JACK,FIBER OPTIC LGE 6612K00003B Contact Us For Availability
JK902
JACK,FIBER OPTIC LGE 6612K00003D Contact Us For Availability
JK903
JACK,DIN LGE 6612BBBHN5A Contact Us For Availability
JK905
LGE 6612M00006A LGE 6612M00006A Contact Us For Availability
L15A1
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L102
FILTER(CIRC),EMC LGE 6200JB8013R Contact Us For Availability
L124
COIL,RF LGE 6140RCC003H Contact Us For Availability
L127
COIL,RF LGE 6140RCC009A Contact Us For Availability
L300
INDUCTOR,RADIAL LEAD LGE 0LR0392J025 Contact Us For Availability
L303
INDUCTOR,RADIAL LEAD LGE 0LR1500J025 Contact Us For Availability
L307
INDUCTOR,RADIAL LEAD LGE 0LR0122K4N5 Contact Us For Availability
L311
Inductor,Wire Wound,Radial LGE 0LR1000J025 Contact Us For Availability
L504
INDUCTOR RADIAL LEAD 470M K 6X LGE 0LR4700K035 Contact Us For Availability
L506
INDUCTOR,CHIP LGE 0LCCE00004L Contact Us For Availability
L701
INDUCTOR RADIAL LEAD R-E41M 1U LGE 0LR0102K035 Contact Us For Availability
L805
Filter,Bead LGE 636-004C Contact Us For Availability
L808
Inductor,Wire Wound,Radial LGE 0LR1000K035 Contact Us For Availability
L907
INDUCTOR,CHIP LGE 0LCCE00004E Contact Us For Availability
L1303
COIL LGE 6140H-A001A Contact Us For Availability
L1606
FILTER(CIRC),EMC LGE 6200RJC003A Contact Us For Availability
LAR107
RESISTOR,DRAWING LGE 0RRZVTA0018 Contact Us For Availability
LAR261
RESISTOR,DRAWING LGE 0RRZVTA0014 Contact Us For Availability
LAR275
Resistor,Array LGE 0RRZVTA001V Contact Us For Availability
LC105
Capacitor,Ceramic,Chip LGE 0CK106FF94A Contact Us For Availability
LC120
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
LC122
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
LC123
Capacitor,Ceramic,Chip LGE 0CH4331K412 Contact Us For Availability
LC132
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
LC136
Capacitor,Ceramic,Chip LGE 0CH1153K562 Contact Us For Availability
LC143
Capacitor,Ceramic,Chip LGE 0CH1182K512 Contact Us For Availability
LC145
Capacitor,Ceramic,Chip LGE 0CH1223K562 Contact Us For Availability
LC149
Capacitor,Ceramic,Chip LGE 0CH4271K412 Contact Us For Availability
LC151
Capacitor,Ceramic,Chip LGE 0CH4392K412 Contact Us For Availability
LC164
Capacitor,Ceramic,Chip LGE 0CH1332K562 Contact Us For Availability
LC201
Capacitor,Ceramic,Chip LGE 0CK106EDD7A Contact Us For Availability
LC221
Capacitor,Ceramic,Chip LGE 0CK124DH56A Contact Us For Availability
LC222
Capacitor,Ceramic,Chip LGE 0CK475DC6CA Contact Us For Availability
LC224
Capacitor,Ceramic,Chip LGE 0CH1563K516 Contact Us For Availability
LC225
Capacitor,Ceramic,Chip LGE 0CH1562K562 Contact Us For Availability
LC226
Capacitor,Ceramic,Chip LGE 0CH1823F562 Contact Us For Availability
LC228
Capacitor,Ceramic,Chip LGE 0CH1822K562 Contact Us For Availability
LC240
Capacitor,Ceramic,Chip LGE 0CH1333K512 Contact Us For Availability
LC255
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
LC271
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
LC310
Capacitor,Ceramic,Chip LGE 0CH4820K412 Contact Us For Availability
LC326
Capacitor,Ceramic,Chip LGE 0CH4151K412 Contact Us For Availability
LC402
Capacitor,TA,Niobium LGE 0CS476HD6DC Contact Us For Availability
LC414
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
LD501
HOLDER ASSEMBLY LGE 4931R-0089C Contact Us For Availability
LD602
LED LGE 0DLLT0359AA Contact Us For Availability
LED1300
LED LGE 0DLRH0128AA Contact Us For Availability
LIC101
IC,LINEAR LGE 0ILNR00023A Contact Us For Availability
LIC121
IC,LINEAR LGE 0ILNR00022A Contact Us For Availability
LIC201
IC,MICRO CONTROLLER LGE 0IMCR02031A Contact Us For Availability
LIC261
IC,MEMORIES LGE 0IMMREO002A Contact Us For Availability
LIC261
IC,MEMORIES LGE 0IMMRHY001G Contact Us For Availability
LIC261
IC,MEMORIES LGE 0IMMREB006C Contact Us For Availability
LIC262
IC,MEMORIES LGE 0IMMRMR019F Contact Us For Availability
LIC271
IC,Voltage Detector LGE 0IPMGRH014A Contact Us For Availability
LIC301
IC,LINEAR LGE 0ILNR00045A Contact Us For Availability
LIC401
IC,POWER MANAGEMENT LGE 0IPMGRH015B Contact Us For Availability
LL101
COIL,TRAP FM LGE 6140R-G006A Contact Us For Availability
LL402
FILTER(CIRC),EMI LGE 6200HJC106A Contact Us For Availability
LPB271
CONNECTOR (CIRC),BOA LGE 6630B00077F Contact Us For Availability
LPF303
CONNECTOR (CIRC),FFC LGE 6630X60074D Contact Us For Availability
LPM101
CONNECTOR (CIRC),FFC LGE 6630HXE440E Contact Us For Availability
LPM301
CONNECTOR (CIRC),FFC LGE 6630X60108A Contact Us For Availability
LPM302
CONNECTOR (CIRC),FFC LGE 6630XE00204 Contact Us For Availability
LR102
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
LR122
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
LR155
Resistor,Chip LGE 0RH1202C422 Contact Us For Availability
LR213
Resistor,Chip LGE 0RJ3601C477 Contact Us For Availability
LR218
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
LR221
LGE 0RJ1004C677 LGE 0RJ1004C677 Contact Us For Availability
LR224
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
LR227
RESISTOR,METAL GLAZE LGE 0RJ1501C477 Contact Us For Availability
LR233
Resistor,Chip LGE 0RJ5601C477 Contact Us For Availability
LR262
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
LR286
Resistor,Chip LGE 0RH0822C622 Contact Us For Availability
LR298
Resistor,Chip LGE 0RJ0332C477 Contact Us For Availability
LR310
Resistor,Chip LGE 0RH1803C622 Contact Us For Availability
LR313
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
LR323
Resistor,Chip LGE 0RH0181D622 Contact Us For Availability
LR511
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
LX201
RESONATOR,CERAMIC LGE 6212BB3241A Contact Us For Availability
MS501
SWITCH,MODE LGE 6600JR3002D Contact Us For Availability
MS501
SWITCH,MODE LGE 6600JR3002E Contact Us For Availability
P3D01
CONNECTOR(CIRC),DRAWING LGE 561-234S Contact Us For Availability
P3D02
CONNECTOR(CIRC),DRAW LGE 6630R5S008J Contact Us For Availability
P3D03
Connector,BtoB LGE 561-251B Contact Us For Availability
P6V01
CONNECTOR (CIRC),WAF LGE 561-712E Contact Us For Availability
PKM01
LGE 6630R-FB05F LGE 6630R-FB05F Contact Us For Availability
PMC01
CONNECTOR (CIRC),BOA LGE 6630BK01612 Contact Us For Availability
PMK01
Connector,FFC/FPC/PIC LGE 6630XE00106 Contact Us For Availability
PMS01
LGE 6630R3S006C LGE 6630R3S006C Contact Us For Availability
PMV01
LGE 6630XE00121 LGE 6630XE00121 Contact Us For Availability
PMV02
CONNECTOR (CIRC),FFC LGE 6630X60142A Contact Us For Availability
PSF01
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
PSL01
Connector,Wafer LGE 6630VK20604 Contact Us For Availability
PSM01
Connector,Wafer LGE 561-711J Contact Us For Availability
PSV01
CONNECTOR (CIRC),BOA LGE 6630R-BF03K Contact Us For Availability
PV601
CONNECTOR LGE 561-711E Contact Us For Availability
PVM01
LGE 6630R-FB10U LGE 6630R-FB10U Contact Us For Availability
PVS01
CONNECTOR (CIRC),BOA LGE 6630B00141A Contact Us For Availability
PW101
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q15C1
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q161
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q162
TRANSISTOR,BIPOLARS LGE 0TR186209AB Contact Us For Availability
Q162
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q163
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
Q163
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q301
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q301
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q302
TRANSISTOR,BIPOLARS LGE 0TR127709AB Contact Us For Availability
Q302
TR,Bipolar LGE 0TR928009AD Contact Us For Availability
Q303
TRANSISTOR,BIPOLARS LGE 0TRAU80002A Contact Us For Availability
Q303
TR,Bipolar LGE 0TR124009AP Contact Us For Availability
Q403
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q404
TR,Bipolar LGE 0TR120309AE Contact Us For Availability
Q503
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q504
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q601
TRANSISTOR KTC-3199-BL MINI T LGE 0TR319909AF Contact Us For Availability
Q904
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q908
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q1301
TRANSISTOR,BIPOLARS LGE 0TRAU80039A Contact Us For Availability
Q1303
TRANSISTOR,BIPOLARS LGE 0TRAU80040A Contact Us For Availability
R5K2
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R5K4
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R15A0
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R100
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R101
RESISTOR 2.7/2W CEMENT SMPS V LGE 614-007A Contact Us For Availability
R104
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R105
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R109
RESISTOR,FIX METAL FILM OXIDE LGE 0RS0350K619 Contact Us For Availability
R142
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R144
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R145
Resistor,Metal Film LGE 0RN2701F408 Contact Us For Availability
R146
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R147
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R160
RESISTOR FIX METAL FILM 120 1W LGE 0RS1200J619 Contact Us For Availability
R162
Resistor,Metal Oxide Film LGE 0RS3301J619 Contact Us For Availability
R173
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R302
Resistor,Chip LGE 0RH3303C622 Contact Us For Availability
R303
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R316
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R317
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R325
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R337
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R339
Resistor,Chip LGE 0RH1005C622 Contact Us For Availability
R359
Resistor,Chip LGE 0RH8202C622 Contact Us For Availability
R361
Resistor,Chip LGE 0RH1203C622 Contact Us For Availability
R401
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R406
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R407
Resistor,Carbon Film LGE 0RD1802F608 Contact Us For Availability
R408
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R415
Resistor,Carbon Film LGE 0RD2002F608 Contact Us For Availability
R417
Resistor,Carbon Film LGE 0RD1502F608 Contact Us For Availability
R421
Resistor,Carbon Film LGE 0RD3300F608 Contact Us For Availability
R422
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R501
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R528
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R535
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R560
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R590
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R591
Resistor,Chip LGE 0RH2701C622 Contact Us For Availability
R601
Resistor,Carbon Film LGE 0RD6800F608 Contact Us For Availability
R602
Resistor,Carbon Film LGE 0RD8200F608 Contact Us For Availability
R603
Resistor,Carbon Film LGE 0RD1201F608 Contact Us For Availability
R604
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R606
Resistor,Carbon Film LGE 0RD3301F608 Contact Us For Availability
R706
Resistor,Chip LGE 0RH5600C622 Contact Us For Availability
R801
Resistor,Chip LGE 0RH3304C622 Contact Us For Availability
R806
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R809
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R854
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R863
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R864
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R865
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R875
Resistor,Chip LGE 0RH5100C622 Contact Us For Availability
R877
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R888
Resistor,Chip LGE 0RH7501C622 Contact Us For Availability
R915
Resistor,Chip LGE 0RH3902C622 Contact Us For Availability
R916
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R919
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
R921
Resistor,Chip LGE 0RH1100C622 Contact Us For Availability
R935
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R944
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R1109
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R1114
RESISTOR,METAL GLAZE LGE 0RH1101C422 Contact Us For Availability
R1217
Resistor,Chip LGE 0RH0512C622 Contact Us For Availability
R1224
Resistor,Chip LGE 0RH2002C622 Contact Us For Availability
R1245
RESISTOR,METAL GLAZE LGE 0RJ0000H680 Contact Us For Availability
R1312
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R1319
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R1333
Resistor,Chip LGE 0RH1500C422 Contact Us For Availability
R1335
RESISTOR,CHIP LGE 0RH3301C422 Contact Us For Availability
R1336
Resistor,Chip LGE 0RH0562C422 Contact Us For Availability
R1340
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R1341
RESISTOR,METAL GLAZE LGE 0RJ3601E472 Contact Us For Availability
R1400
RESISTOR,CHIP LGE 0RH0682C622 Contact Us For Availability
R1403
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R1459
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R1501
Resistor,Chip LGE 0RH3001C622 Contact Us For Availability
R1502
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R1505
Resistor,Chip LGE 0RH0272C622 Contact Us For Availability
R1510
Resistor,Chip LGE 0RH2401C622 Contact Us For Availability
R1513
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R1536
Resistor,Chip LGE 0RH2700C622 Contact Us For Availability
R1550
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R1614
Resistor,Chip LGE 0RH3903C622 Contact Us For Availability
R1620
Resistor,Chip LGE 0RH5101C622 Contact Us For Availability
R1624
Resistor,Chip LGE 0RJ1004C477 Contact Us For Availability
RM501
REMOTE CONTROLLER RE LGE 6712R1938HA Contact Us For Availability
RM501
REMOTE CONTROLLER RE LGE 6712R1938EA Contact Us For Availability
RS502
SENSOR LGE 6500RAB008A Contact Us For Availability
SW502
SWITCH,DETECTOR LGE 556-213C Contact Us For Availability
SW503
SWITCH,TACT LGE 6600R000122 Contact Us For Availability
SW606
SWITCH,TACT LGE 556-219B Contact Us For Availability
SW901
LGE 6600Q000048 LGE 6600Q000048 Contact Us For Availability
T101
TRANSFORMER,SMPS[COI LGE 6170RNGW23N Contact Us For Availability
TU701
LGE 6700PFPG08F LGE 6700PFPG08F Contact Us For Availability
TU701
LGE 6700PFPL08F LGE 6700PFPL08F Contact Us For Availability
V101
VARISTOR LGE 656-004C Contact Us For Availability
VR401
Variable Resistor,Rotary LGE 6110RZRQ23C Contact Us For Availability
X302
LGE 6212AB2443C LGE 6212AB2443C Contact Us For Availability
X302
LGE 6212AB2443E LGE 6212AB2443E Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2148F Contact Us For Availability
X502
RESONATOR,CRYSTAL LGE 6202R-DA01B Contact Us For Availability
X1101
RESONATOR,CRYSTAL LGE 6212AB2135C Contact Us For Availability
X1601
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
ZD101
Diode,Zener LGE 0DZ330009CA Contact Us For Availability
ZD103
Diode,Zener LGE 0DZ100009AA Contact Us For Availability
ZD152
Diode,Zener LGE 0DZ130009AA Contact Us For Availability
ZD161
Diode,Zener LGE 0DZ627729AA Contact Us For Availability
ZD809
DIODE,ZENERS LGE 0DZKE00018A Contact Us For Availability
× ![]()
Login and Registration Form
