Model LG DVB612 – Common Parts & Diagrams

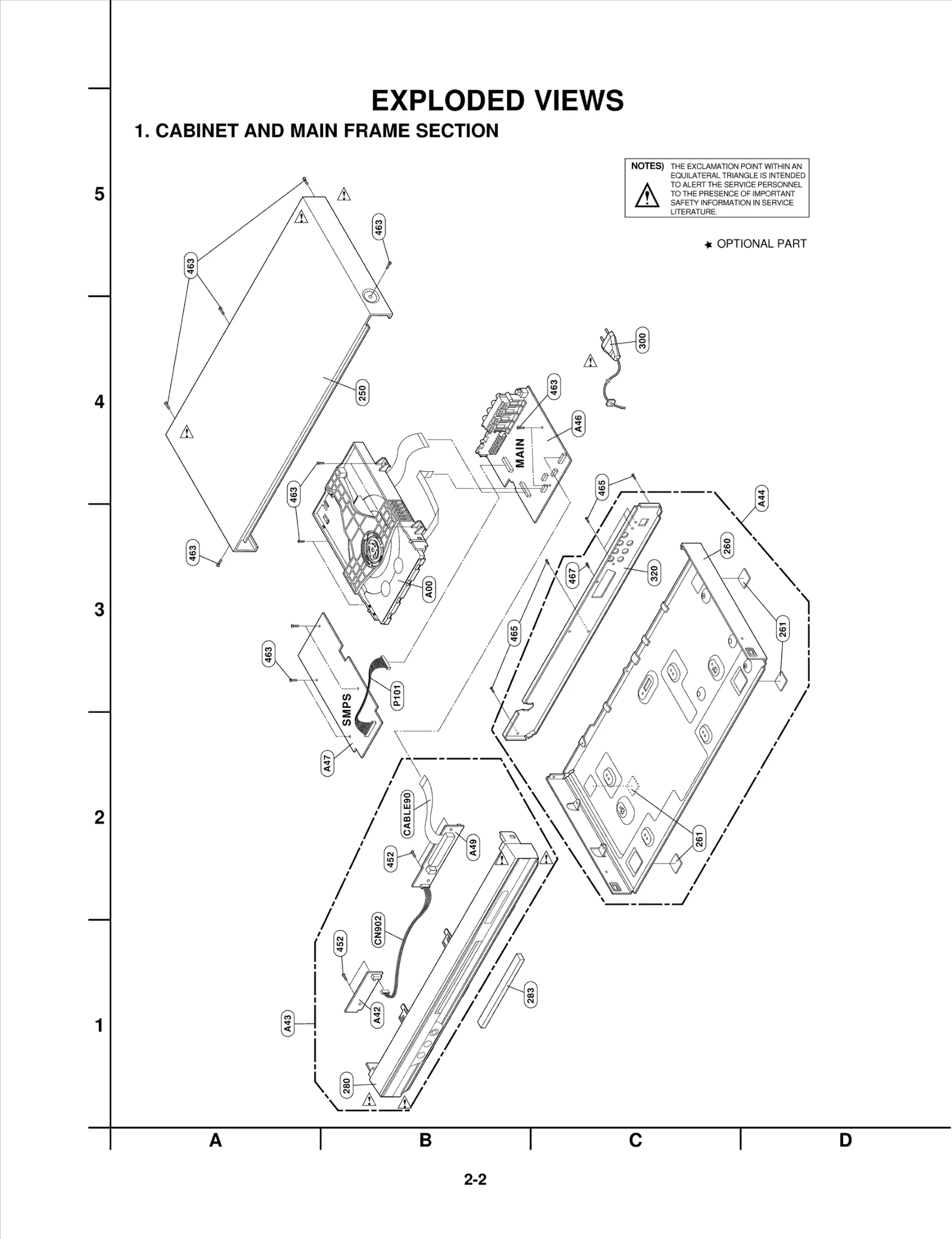

Diagram 0

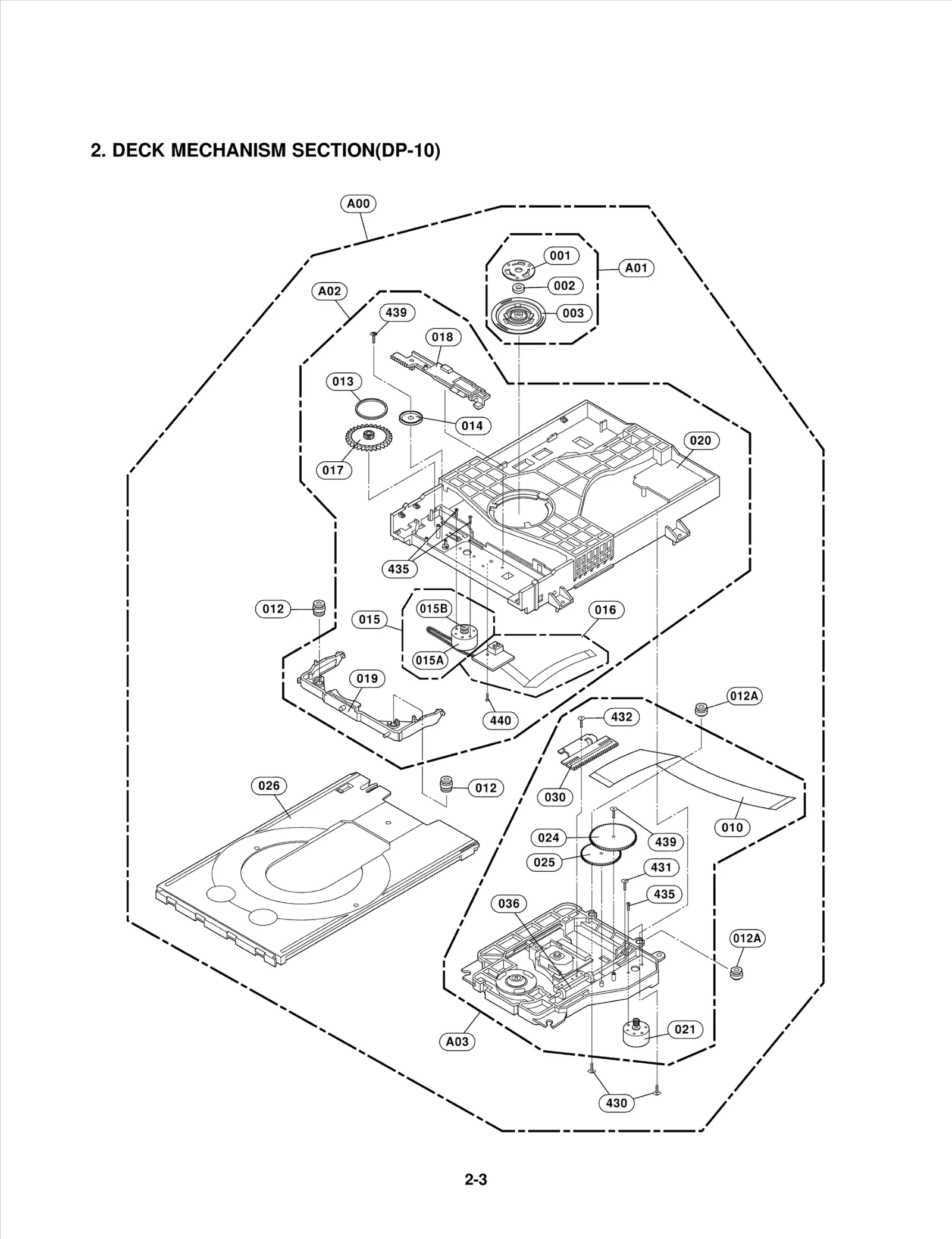

Diagram 1
Diagram 2
Diagram 3
Common parts from model LG DVB612
001
PLATE LGE 3300R-0547A Contact Us For Availability
002
MAGNET LGE 5016H-1016B Contact Us For Availability
003
CLAMP LGE 4860R-0021A Contact Us For Availability
010
CABLE,FLAT LGE 6850R-JW24Y Contact Us For Availability
012
RUBBER LGE 5040R-0083A Contact Us For Availability
012A
RUBBER LGE 5040R-0110A Contact Us For Availability
013
BELT LGE 4400R-0010A Contact Us For Availability
014
GEAR LGE 4470R-0154A Contact Us For Availability
015
MOTOR ASSEMBLY LGE 4681R-A015A Contact Us For Availability
015A
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
015B
Pulley LGE 4560R-0008A Contact Us For Availability
016
PWB(PCB) ASSEMBLY,TO LGE 6871R-4067A Contact Us For Availability
017
GEAR LGE 4470R-0176A Contact Us For Availability
018
GUIDE LGE 4974R-0066A Contact Us For Availability
019
FRAME LGE 3210R-M007A Contact Us For Availability
020
BASE LGE 3040R-M062A Contact Us For Availability
021
MOTOR ASSEMBLY LGE 4681R-B009C Contact Us For Availability
024
GEAR LGE 4470R-0179A Contact Us For Availability
025
GEAR LGE 4470R-0178A Contact Us For Availability
026
TRAY LGE 3390R-0029A Contact Us For Availability
030
GEAR LGE 4470R-0180A Contact Us For Availability
036
SHAFT LGE 4370R-0136A Contact Us For Availability
250
CASE LGE 3110R-D023A Contact Us For Availability
250
Case LGE 3110R-D023F Contact Us For Availability
260
Chassis LGE 3140R-D020B Contact Us For Availability
261
RUBBER LGE 5040R-0069Q Contact Us For Availability
280
Panel Assembly,Front LGE 3721R-F935U Contact Us For Availability
283
Door LGE 3580R-T182Y Contact Us For Availability
300
POWER CORD LGE 6410RAHX03A Contact Us For Availability
320
Panel,Rear LGE 3720R-D145A Contact Us For Availability
430
SCREW,DRAWING LGE 1SZZR-0064B Contact Us For Availability
431
SCREW,DRAWING LGE 1SZZR-0062A Contact Us For Availability
432
SCREW,DRAWING LGE 1SZZR-0072A Contact Us For Availability
435
SCREW, LGE 1SZZR-0011A Contact Us For Availability
439
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
440
SCREW, LGE 1SZZH-1007B Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
467
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
801
Manual Assembly LGE 3835RD0092J Contact Us For Availability
802
Box,Master LGE 3890RCG024X Contact Us For Availability
803
PACKING LGE 3920R-E196A Contact Us For Availability
808
BATTERY,MN LGE 841-0021 Contact Us For Availability
808
BATTERY,ALKALINE LGE 6910A90004A Contact Us For Availability
810
CABLE ASSEMBLY LGE 6851R-0081D Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA8F Contact Us For Availability
812
CABLE,COAXIAL LGE 6850R-PBA8H Contact Us For Availability
900
Remote Controller As LGE 6711R1N210A Contact Us For Availability
A00
Deck Assembly,DVD LGE 6721RHD080D Contact Us For Availability
A01
CLAMP ASSEMBLY LGE 4861R-0016B Contact Us For Availability
A02
BASE ASSEMBLY LGE 3041R-D041A Contact Us For Availability
A03
BASE ASSEMBLY LGE 3041R-M076A Contact Us For Availability
A42
PCB Assembly LGE 6871R-9861A Contact Us For Availability
A43
Board Assembly LGE 3501RF0949A Contact Us For Availability
A44
Frame Assembly LGE 3141R-D083A Contact Us For Availability
A46
Option Code Assembly LGE 6885R-9313U Contact Us For Availability
A47
PCB Assembly LGE 6871R-2398B Contact Us For Availability
A49
PCB Assembly LGE 6871R-9862A Contact Us For Availability
C6E4
Capacitor,AL,Radial LGE 0CE4764C638 Contact Us For Availability
C6E7
CAPACITOR,FIXED ELEC LGE 0CE3363F638 Contact Us For Availability
C7E4
CAPACITOR,FIXED ELEC LGE 0CE4773F638 Contact Us For Availability
C7E6
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C101
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
C101
Capacitor,Film,Box LGE 624-088J Contact Us For Availability
C101
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
C101
Capacitor,Film,Box LGE 624-088S Contact Us For Availability
C104
CAPACITOR,DRAWING LGE 0CZZR00011D Contact Us For Availability
C105
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C107
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C108
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C110
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C113
Capacitor,Ceramic,Axial LGE 0CN2220K518 Contact Us For Availability
C122
Capacitor,AL,Radial LGE 0CE3376D638 Contact Us For Availability
C123
CAPACITOR,AL.ELECTROLYTIC LGE 0CE108EF630 Contact Us For Availability
C123
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C126
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C128
Capacitor,Film,DIP LGE 0CQ1042K409 Contact Us For Availability
C153
C.ELECTROLYTIC 4.7M SRA 50VGVP LGE 0CE4754K638 Contact Us For Availability
C155
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C156
Capacitor,Ceramic,Axial LGE 0CN223AK948 Contact Us For Availability
C216
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C220
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C602
CAPACITOR,FIXED CERA LGE 0CH1273F562 Contact Us For Availability
C610
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C619
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C631
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C675
Capacitor,Ceramic,Chip LGE 0CH1223F512 Contact Us For Availability
C689
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C694
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C704
Capacitor,Ceramic,Chip LGE 0CH1105F942 Contact Us For Availability
C706
Capacitor,Ceramic,Chip LGE 0CH4392K412 Contact Us For Availability
C713
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C715
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C722
Capacitor,Ceramic,Chip LGE 0CH4181K412 Contact Us For Availability
C728
Capacitor,Ceramic,Chip LGE 0CH4271K412 Contact Us For Availability
C785
Capacitor,AL,Chip LGE 0CE4775C638 Contact Us For Availability
C901
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C904
Capacitor,Ceramic,Chip LGE 0CH4151K412 Contact Us For Availability
C907
Capacitor,Ceramic,Chip LGE 0CH1102K512 Contact Us For Availability
CABLE90
Cable,FFC LGE 6850R-GL14Z Contact Us For Availability
CN201
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
CN202
CONNECTOR (CIRC),FFC LGE 6630XE00109 Contact Us For Availability
CN603
LGE 6630R3S006C LGE 6630R3S006C Contact Us For Availability
CN604
CONNECTOR (CIRC),FFC LGE 6630XE00112 Contact Us For Availability
CN901
CONNECTOR (CIRC),FFC LGE 6630R-FB05L Contact Us For Availability
CN902
Harness,Single LGE 6631R-E075E Contact Us For Availability
CN903
CONNECTOR (CIRC),WAF LGE 561-711B Contact Us For Availability
D101
DIODE LGE 0DD221009AA Contact Us For Availability
D101
Diode,Rectifier LGE 0DR400709AA Contact Us For Availability
D101
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D104
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D104
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D105
DIODE,RECTIFIERS LGE 0DRRE00203A Contact Us For Availability
D105
DIODE,RECTIFIERS LGE 0DRGF00309A Contact Us For Availability
D121
Diode,Schottky LGE 0DR158220AA Contact Us For Availability
D121
Diode,Rectifier LGE 0DRGF00210A Contact Us For Availability
D121
DIODE,RECTIFIER LGE 0DR810040BA Contact Us For Availability
D151
DIODE,SWITCHING LGE 0DS141489BB Contact Us For Availability
D201
DIODE,RECTIFIER LGE 0DR104009AB Contact Us For Availability
D700
Diode,Switching LGE 0DD181009AA Contact Us For Availability
D700
DIODE,SWITCHING LGE 0DSRM00118A Contact Us For Availability
DIG901
LED ASSEMBLY LGE 6301R2U014A Contact Us For Availability
FR101
RESISTOR,FIXED CEMEN LGE 0RM0221K634 Contact Us For Availability
IC101
IC,POWER MANAGEMENT LGE 0IPMGIH005A Contact Us For Availability
IC102
SENSOR LGE 6500RDB011B Contact Us For Availability
IC102
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC103
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC103
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC103
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC103
IC,POWER MANAGEMENT LGE 0IPMGA0012A Contact Us For Availability
IC201
IC,LINEAR LGE 0ILNR00091A Contact Us For Availability
IC601
IC,Video Processors LGE 0ILNR00177A Contact Us For Availability
IC603
IC,MEMORIES LGE 0IMMREB004E Contact Us For Availability
IC604A
S/W,Firmware LGE 6957R-918AQ Contact Us For Availability
IC606
IC,POWER MANAGEMENT LGE 0IKE702700B Contact Us For Availability
IC702
IC,PERIPHERALS LGE 0IPRPCI002B Contact Us For Availability
IC703
IC,LINEAR LGE 0ILNRUC001A Contact Us For Availability
IC703
IC,LINEAR LGE 0ILNRAU017A Contact Us For Availability
IC901
IC,PERIPHERALS LGE 0IPRPPY005A Contact Us For Availability
JK701
Jack,Complex LGE 6612J10029A Contact Us For Availability
JK702
Jack,RCA LGE 6612J10030A Contact Us For Availability
JK703
JACK,FIBER OPTIC LGE 6612K00003D Contact Us For Availability
JK705
CONNECTOR(CIRC),DRAW LGE 6630R-SY08W Contact Us For Availability
L6B6
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L102
COIL,RF LGE 6140RCC003J Contact Us For Availability
L122
COIL,RF LGE 6140R-C011A Contact Us For Availability
L122
COIL,CHOKE LGE 633-088G Contact Us For Availability
L612
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
L705
INDUCTOR,CHIP LGE 0LCCE00004L Contact Us For Availability
L716
INDUCTOR,CHIP LGE 0LCCE00004E Contact Us For Availability
P101
CONNECTOR ASSEMBLY LGE 6631R-E078H Contact Us For Availability
PW101
CONNECTOR (CIRC),WAF LGE 6630V90108A Contact Us For Availability
Q121
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q122
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
Q122
TRANSISTOR KTC-3199-BL MINI T LGE 0TR319909AF Contact Us For Availability
Q122
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q123
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q123
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q124
TR,Bipolar LGE 0TR103009AF Contact Us For Availability
Q124
TRANSISTOR LGE 0TR220309AF Contact Us For Availability
Q126
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q126
TRANSISTOR LGE 0TR232809AB Contact Us For Availability
Q202
TR,Bipolar LGE 0TRAU80008A Contact Us For Availability
Q202
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q202
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q203
TRANSISTOR,BIPOLARS LGE 0TRKE80068A Contact Us For Availability
Q602
TR,Bipolar LGE 0TR390409DA Contact Us For Availability
Q704
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q704
LGE 0TRON80007A LGE 0TRON80007A Contact Us For Availability
Q704
TR,Bipolar LGE 0TRAU80012A Contact Us For Availability
Q706
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q706
TR,Bipolar LGE 0TRAU80017A Contact Us For Availability
Q706
TR,Bipolar LGE 0TRON80009A Contact Us For Availability
R102
Resistor,Metal Oxide Film LGE 0RS0750K619 Contact Us For Availability
R103
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R105
Resistor,Carbon Film LGE 0RD0392F608 Contact Us For Availability
R123
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R124
Resistor,Carbon Film LGE 0RD1800F608 Contact Us For Availability
R125
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R127
Resistor,Metal Film LGE 0RN1001F408 Contact Us For Availability
R128
Resistor,Metal Film LGE 0RN3001F408 Contact Us For Availability
R130
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R140
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R152
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R202
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R208
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R209
Resistor,Chip LGE 0RH2701C622 Contact Us For Availability
R211
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R213
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R218
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R602
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R604
RESISTOR,METAL GLAZE LGE 0RH4302C622 Contact Us For Availability
R605
Resistor,Chip LGE 0RH2002C422 Contact Us For Availability
R613
RESISTOR,METAL GLAZE LGE 0RJ3920C477 Contact Us For Availability
R615
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R624
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R631
RESISTOR,METAL GLAZE LGE 0RJ4300C477 Contact Us For Availability
R641
Filter,Bead LGE 0LC11608D01 Contact Us For Availability
R650
INDUCTOR,CHIP LGE 0LCCE00041A Contact Us For Availability
R651
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R683
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R685
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R690
Resistor,Chip LGE 0RH0752C422 Contact Us For Availability
R692
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R714
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R718
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R727
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R738
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R741
Resistor,Chip LGE 0RH0682C422 Contact Us For Availability
R745
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R746
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R748
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R753
RESISTOR,CHIP LGE 0RH0682C622 Contact Us For Availability
R781
Resistor,Chip LGE 0RH0562C622 Contact Us For Availability
R784
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R787
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R901
Resistor,Chip LGE 0RH5102C622 Contact Us For Availability
R906
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R907
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R908
Resistor,Chip LGE 0RH3300D422 Contact Us For Availability
RA702
RESISTOR,DRAWING LGE 0RRZVTA0011 Contact Us For Availability
SW901
SWITCH,TACT LGE 6600R000028 Contact Us For Availability
SW901
SWITCH,TACT LGE 6600R000039 Contact Us For Availability
SW904
SWITCH,TACT LGE 6600R000036 Contact Us For Availability
SW904
Switch,Tact LGE 556-219D Contact Us For Availability
T101
TRANSFORMER,SMPS[COI LGE 6170RNGW05P Contact Us For Availability
V101
VARISTOR LGE 656-004C Contact Us For Availability
X601
RESONATOR,CRYSTAL LGE 6212AA2270W Contact Us For Availability
X601
RESONATOR,CRYSTAL LGE 6212AA2271F Contact Us For Availability
ZD101
DIODE,ZENERS LGE 0DZ200009BB Contact Us For Availability
ZD101
DIODE,ZENER LGE 0DZ202609AA Contact Us For Availability
ZD102
DIODE,ZENER LGE 0DZ622609BB Contact Us For Availability
ZD102
Diode,Zener LGE 0DZ622609AA Contact Us For Availability
ZD151
Diode,Zener LGE 0DZ132609AB Contact Us For Availability
ZD152
DIODE,ZENER LGE 0DZ562609AA Contact Us For Availability
ZD152
LGE 0DZ562609BB LGE 0DZ562609BB Contact Us For Availability
× ![]()
Login and Registration Form
