Model Whirlpool DUS600B,WW DISHWASHER – Common Parts & Diagrams
01 - Page 1
04 - Page 4
03 - Page 3
05 - Page 5
02 - Page 2
Common parts from model Whirlpool DUS600B,WW DISHWASHER
1
KNOB TIMER ASSY WPL R0903541 Contact Us For Availability
1
KNOB-TIMER ASSY WPL R0903544 Contact Us For Availability
1
SOLENOID ASSEMBLY, WATER VALVE WPL R0909002 Contact Us For Availability
1
ROLLER STUD ASSY. (1= 4 PACK) WPL R0910005 Contact Us For Availability
1
CENTER SPRAY ASSY WPL R0910017 Contact Us For Availability

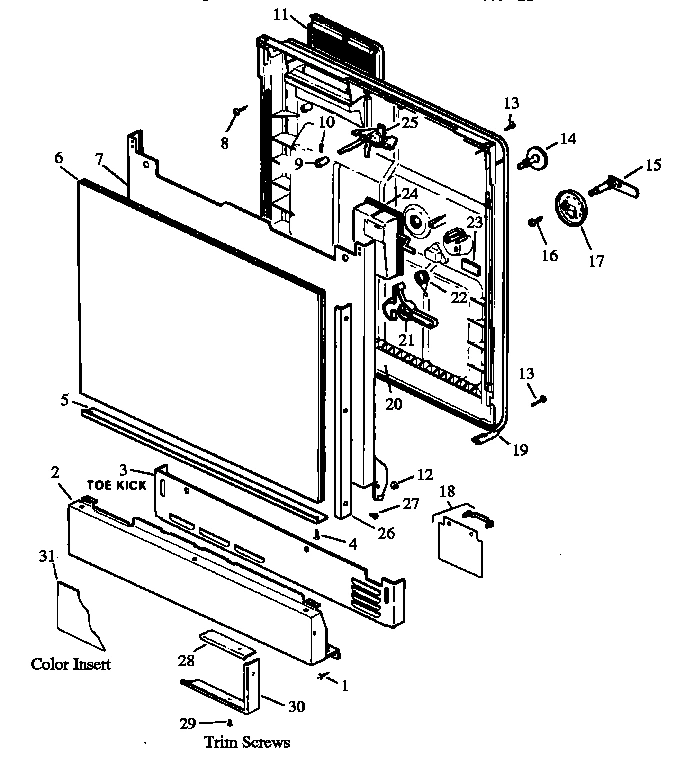

2
INSERT-ESCUTCHEON WPL R0905654 Contact Us For Availability
2
INSERT-ESCUTCHEON WPL R0905655 Contact Us For Availability
2
SCR 10-24X3/8 TT HEX WPL R0900012 Contact Us For Availability
2
RACK-UPPER (COMPLETE) WPL R0910062 Contact Us For Availability
2
PANEL ACCESS WPL R0905714 Contact Us For Availability

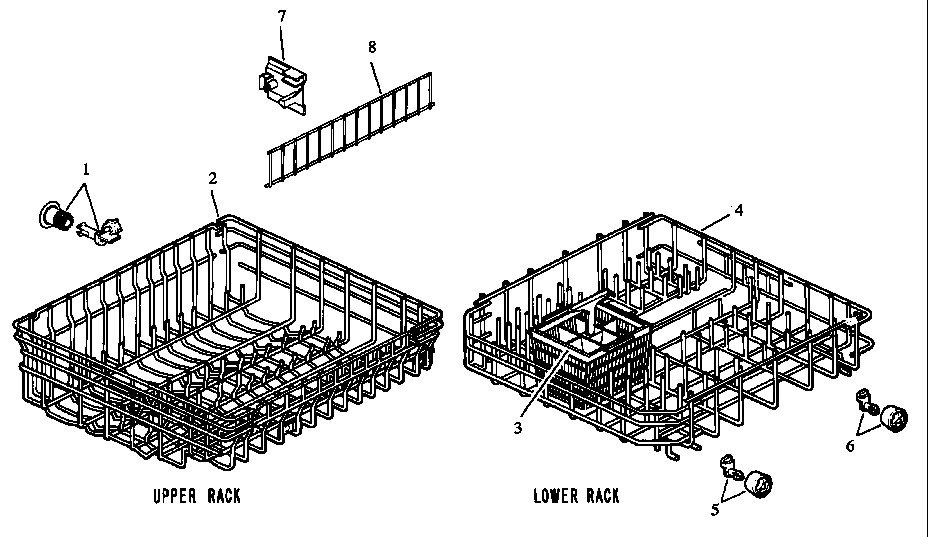

3
ESCUTCHEON WPL R0903025 Contact Us For Availability
3
ESCUTCHEON WPL R0903026 Contact Us For Availability
3
BASKET, SILVERWARE WPL R0910060 Contact Us For Availability
3
ADAPTER PWR TWR WPL R0905558 Contact Us For Availability
3
TOE KICK ASSY WPL R0903022 Contact Us For Availability

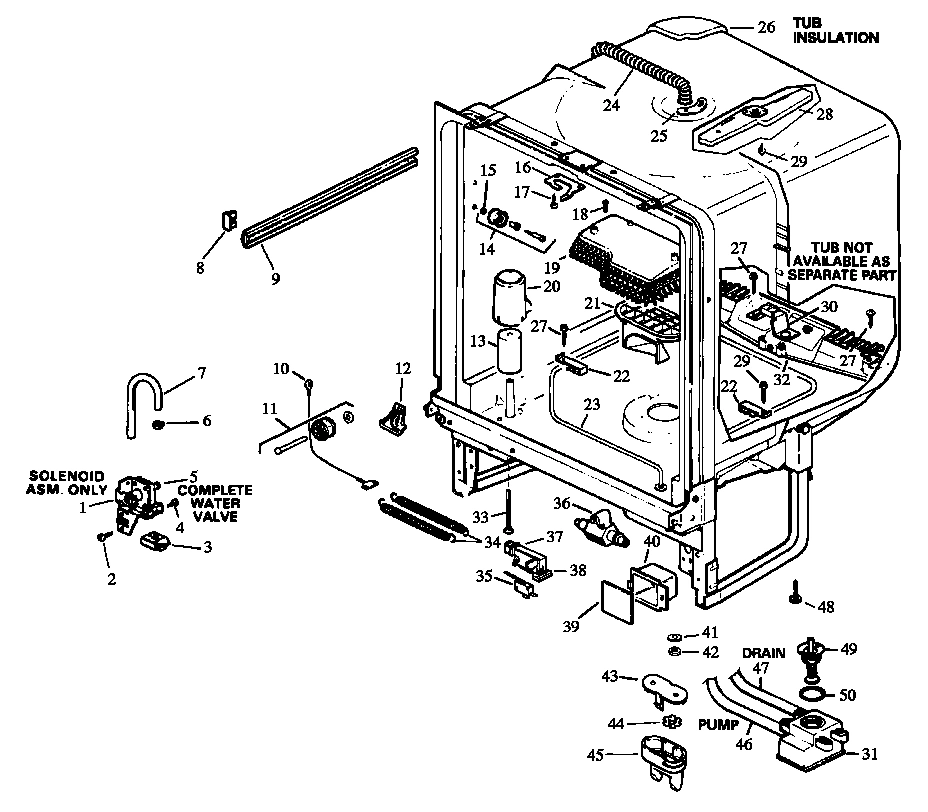

4
SWITCH, INTERLOCK WPL R0902506 Contact Us For Availability
4
SCREW WPL R0900011 Contact Us For Availability
4
ASSEMBLY-LOWER RACK & ROLLER WPL R0910059 Contact Us For Availability
4
SEAL, SPLIT RING WPL R0905557 Contact Us For Availability

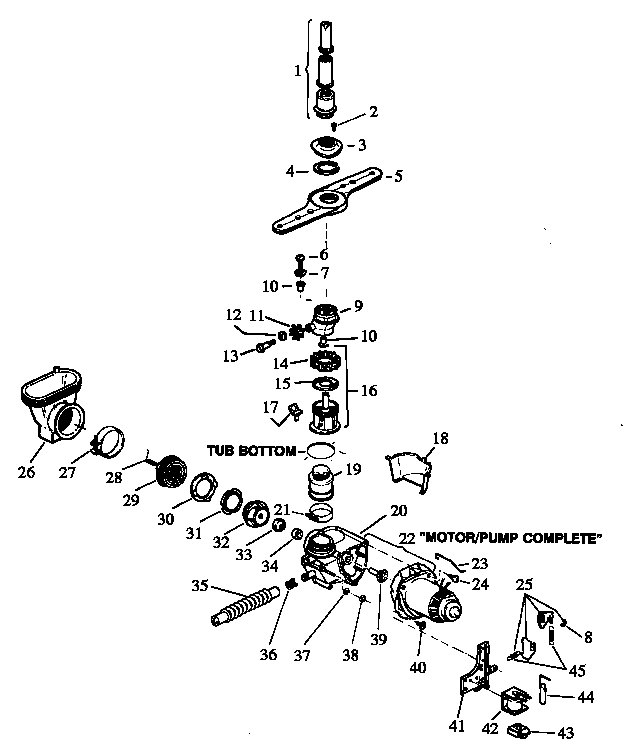

5
SWITCH LEAF WPL R0905533 Contact Us For Availability
5
VALVE, WATER INLET (W/SOLENOID WPL R0910033 Contact Us For Availability
5
LOWER ROLLER ASSY WPL R0910007 Contact Us For Availability
5
SPRAY ARM WPL R0910051 Contact Us For Availability
5
TRIM-DOOR BOTTOM WPL R0905645 Contact Us For Availability
6
SHIELD, SWITCH WPL R0905534 Contact Us For Availability
6
ROLLER ASSY WPL R0910008 Contact Us For Availability
6
SCREW, HUB WPL R0900045 Contact Us For Availability
6
DOOR PANEL INSERT WPL R0905559 Contact Us For Availability
6
INSERT, DOOR PANEL WPL R0905620 Contact Us For Availability
7
SWITCH, CYCLE WPL R0902507 Contact Us For Availability
7
HOSE, WATER INLET WPL R0903514 Contact Us For Availability
7
SUPPORT-SHELF WPL R0910063 Contact Us For Availability
7
WASHER WPL R0900502 Contact Us For Availability
7
DOOR & HINGE ASSY, OUTER WPL R0905637 Contact Us For Availability
8
SPRING, TIMER LEVER WPL R0905541 Contact Us For Availability
8
SCREW WPL R0900009 Contact Us For Availability
8
END CAP WPL R0903517 Contact Us For Availability
8
RACK-SHELF WPL R0910064 Contact Us For Availability
8
RETAINER WPL R0901503 Contact Us For Availability
9
RACK SLIDE WPL R0905567 Contact Us For Availability
9
HUB/PINION ASSY WPL R0905555 Contact Us For Availability
9
KNOB, LATCH WPL R0903532 Contact Us For Availability
9
KNOB, LATCH WPL R0903534 Contact Us For Availability
10
COVER ELECTRIC WPL R0905641 Contact Us For Availability
10
CABLE AND EYELET WPL R0905640 Contact Us For Availability
10
BEARING WPL R0905556 Contact Us For Availability
11
TERM SPEC.(1=12) WPL R0910050 Contact Us For Availability
11
ROLLER & STUD KIT WPL R0910013 Contact Us For Availability
11
PINION GEAR WPL R0910016 Contact Us For Availability
11
DOOR VENT WPL R0905536 Contact Us For Availability
12
HOUSING TERMINAL WPL R0910049 Contact Us For Availability
12
BAFFLE, TUBE CORNER RH WPL R0905596 Contact Us For Availability
12
BAFFLE TUB CORNER LH WPL R0905597 Contact Us For Availability
12
WASHER WPL R0900504 Contact Us For Availability
12
HINGE ARM BEARING WPL R0905537 Contact Us For Availability
13
TIMER WPL R0904012 Contact Us For Availability
13
FLOOD FLOAT WPL R0903501 Contact Us For Availability
13
SCREW WPL R0900015 Contact Us For Availability
13
SCREW WPL R0900006 Contact Us For Availability
14
CAM-TIMER WPL R0904009 Contact Us For Availability
14
TUB ROLLER & STUD KIT WPL R0910004 Contact Us For Availability
14
NUT WPL R0901004 Contact Us For Availability
14
CAP FILL WPL R0905646 Contact Us For Availability
15
LEVER, TIMER WPL R0905545 Contact Us For Availability
15
No.8 TYPE A SET SST WASHER WPL R0900503 Contact Us For Availability
15
SEAL LOWER WPL R0910029 Contact Us For Availability
15
SHAFT HAND D CUP WPL R0905538 Contact Us For Availability
16
PUSH BUTTON WPL R0903542 Contact Us For Availability
16
PUSH BUTTON WPL R0903545 Contact Us For Availability
16
LATCH KEEPER WPL R0905505 Contact Us For Availability
16
SUPT & NUT ARM WPL R0901009 Contact Us For Availability
16
SCREW WPL R0900007 Contact Us For Availability
17
RETAINER WPL R0905592 Contact Us For Availability
17
SCREW WPL R0900025 Contact Us For Availability
17
CHECK VALVE WPL R0910037 Contact Us For Availability
17
DETERGENT CUP COVER WPL R0910010 Contact Us For Availability
18
SWITCH-PUSH BUTTON WPL R0902521 Contact Us For Availability
18
SCREW WPL R0900008 Contact Us For Availability
18
GUARD WPL R0905522 Contact Us For Availability
18
DRIP SHIELD WPL R0910011 Contact Us For Availability
19
COVER, SWITCH WPL R0905547 Contact Us For Availability
19
COVER WPL R0905593 Contact Us For Availability
19
FLOAT WPL R0905511 Contact Us For Availability
19
COVER INLET WPL R0905717 Contact Us For Availability
19
CONNECTOR, PUMP WPL R0903520 Contact Us For Availability
19
DOOR GASKET WPL R0904501 Contact Us For Availability
20
ASSY PILOT LIGHT WPL R0912003 Contact Us For Availability
20
MOTOR/PUMP ASSY DISHWA WPL R0910001 Contact Us For Availability
20
DOOR, INNER WPL R0903021 Contact Us For Availability
21
LENS WPL R0910061 Contact Us For Availability
21
CAP, SUMP WPL R0905718 Contact Us For Availability
21
LATCH DETERGENT CUP WPL R0905539 Contact Us For Availability
22
SPRING WPL R0901501 Contact Us For Availability
22
SUPPORT HEATER REAR WPL R0905633 Contact Us For Availability
22
MOTOR/PUMP ASSY DISHWA WPL R0907005 Contact Us For Availability
22
TRIP SPRING WPL R0905542 Contact Us For Availability
23
RETAINER WPL R0901502 Contact Us For Availability
23
ASSY, HEATING ELEMENT WPL R0910124 Contact Us For Availability
23
HANGER MECHANISM WPL R0905712 Contact Us For Availability
23
DEFLECTER WPL R0905523 Contact Us For Availability
24
THERMOSTAT, WATER WPL R0911001 Contact Us For Availability
24
HOSE, SHOWER ASSY WPL R0903527 Contact Us For Availability
24
RINSE AID INJECTOR ASSY WPL R0905618 Contact Us For Availability
25
PUSHBUTTON WPL R0903540 Contact Us For Availability
25
PUSH BUTTON WPL R0903543 Contact Us For Availability
25
NUT WPL R0901003 Contact Us For Availability
25
GATE VALVE ARM KIT WPL R0905619 Contact Us For Availability
25
LATCH ASM WPL R0910121 Contact Us For Availability
26
INSULATION, TUB WPL R0904525 Contact Us For Availability
26
SUMP, INLET WPL R0905719 Contact Us For Availability
26
TRIM, SIDE DOOR WPL R0905721 Contact Us For Availability
28
ASSY, PWR SHOWER WPL R0905554 Contact Us For Availability
28
SPRING, CUTTER WPL R0905521 Contact Us For Availability
28
TRIM-TOP SERV PANEL WPL R0905648 Contact Us For Availability
29
SCREW WPL R0900013 Contact Us For Availability
29
NUT WPL R0905563 Contact Us For Availability
29
TRIM-SIDE/BOT SERV PANEL WPL R0905653 Contact Us For Availability
30
SUPPORT, CALROD WPL R0905720 Contact Us For Availability
30
WEAR RING BASE WPL R0905518 Contact Us For Availability
30
INSERT, SVC PANEL WPL R0905602 Contact Us For Availability
30
INSERT, SERV. PANEL WPL R0905623 Contact Us For Availability
31
COLL. CHAMBER WPL R0910054 Contact Us For Availability
31
WEAR RING WPL R0905520 Contact Us For Availability
32
ASSY, FILTER FRAME WPL R0910122 Contact Us For Availability
32
PUMP IMPELLER WPL R0905519 Contact Us For Availability
33
FLOAT STEM WPL R0905512 Contact Us For Availability
33
SHAFT SEAL WPL R0903503 Contact Us For Availability
34
DOOR SPRING BLUE WPL R0905503 Contact Us For Availability
34
SEAL WPL R0903502 Contact Us For Availability
35
SWITCH FLOOD WPL R0902501 Contact Us For Availability
35
DRAIN TUBE ASM WPL R0903584 Contact Us For Availability
36
CLAMP WPL R0901510 Contact Us For Availability
36
CHECK VALVE WPL R0910053 Contact Us For Availability
37
BRKT, FLOOD SWITCH WPL R0905513 Contact Us For Availability
37
SEAL, SHAFT WPL R0906504 Contact Us For Availability
38
COVER SWITCH BRKT WPL R0905514 Contact Us For Availability
38
NUT WPL R0906510 Contact Us For Availability
39
COVER, JUNC BOX WPL R0903032 Contact Us For Availability
39
SHAFT GUARD/SLINGER WPL R0905564 Contact Us For Availability
40
BOX, JUNCTION WPL R0903587 Contact Us For Availability
41
WASHER WPL R0900501 Contact Us For Availability
41
BRACKET-SOLENOID WPL R0905639 Contact Us For Availability
42
GROMMET WPL R0906502 Contact Us For Availability
42
SOLENOID KIT WPL R0909003 Contact Us For Availability
43
INSUL, HSG TERMINAL WPL R0903582 Contact Us For Availability
43
BASE BARRIER WPL R0903580 Contact Us For Availability
44
NUT WPL R0901001 Contact Us For Availability
44
ARMATURE & LINK ASSY WPL R0905517 Contact Us For Availability
45
BARRIER, HTG ELEMENT WPL R0903581 Contact Us For Availability
45
SPRING, GATE ARM WPL R0905529 Contact Us For Availability
46
HOSE, CHAMBER WPL R0906506 Contact Us For Availability
47
HOSE, CHAMBER TO CHECK VALVE WPL R0906511 Contact Us For Availability
48
LEG, LEVELING WPL R0905506 Contact Us For Availability
49
PISTON & NUT ASSY WPL R0903586 Contact Us For Availability
50
GASKET WPL R0904503 Contact Us For Availability
× ![]()
