Model Whirlpool DUS-401-1W DISHWASHER – Common Parts & Diagrams

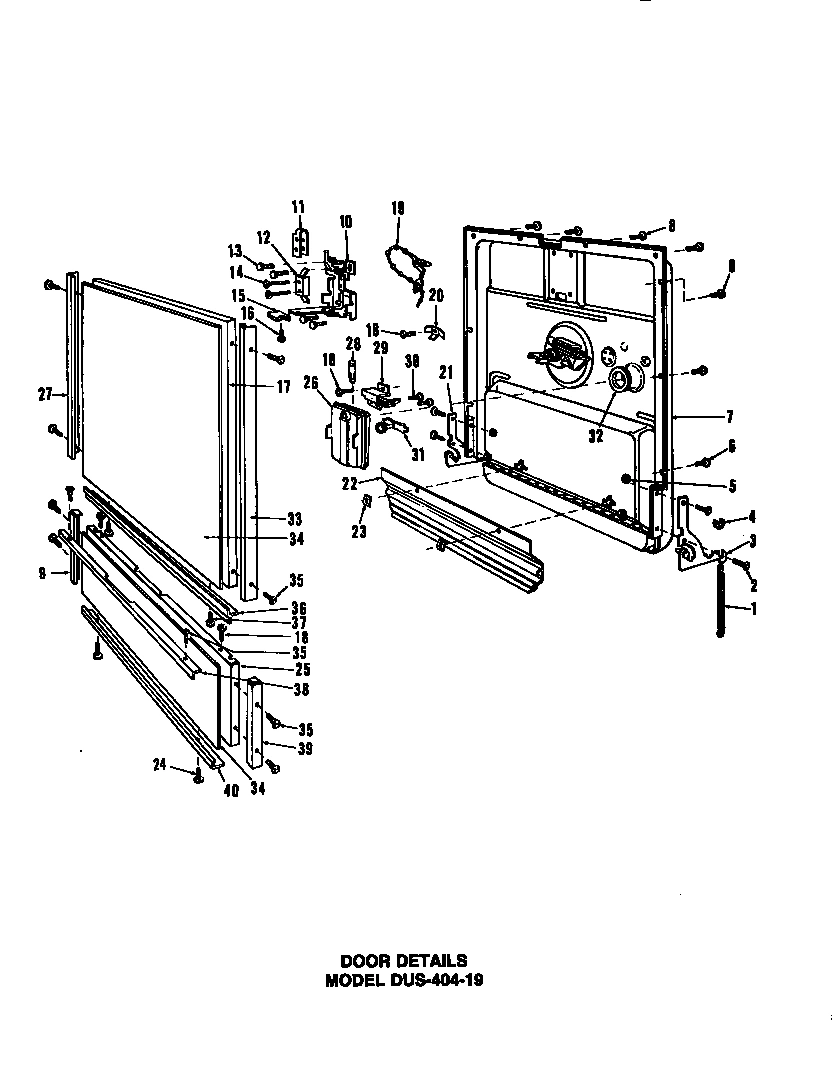

04 - DOOR DETAILS
01 - COUNTER PANEL

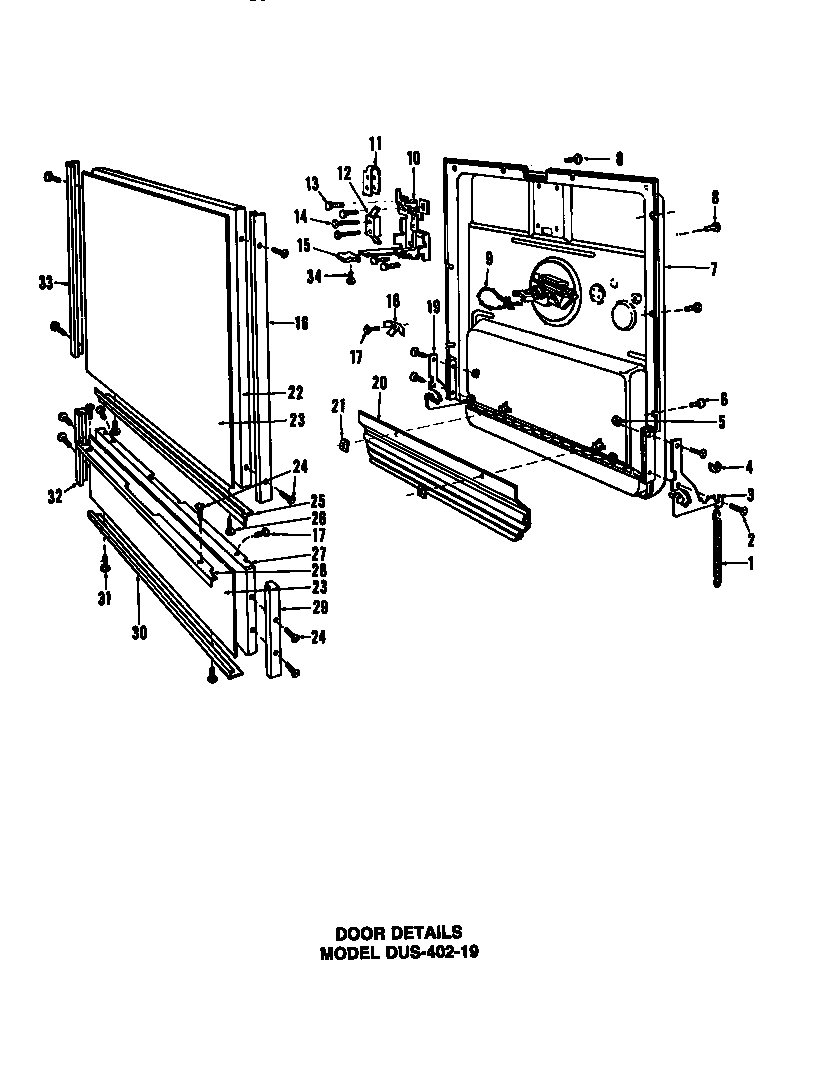

03 - DOOR DETAILS

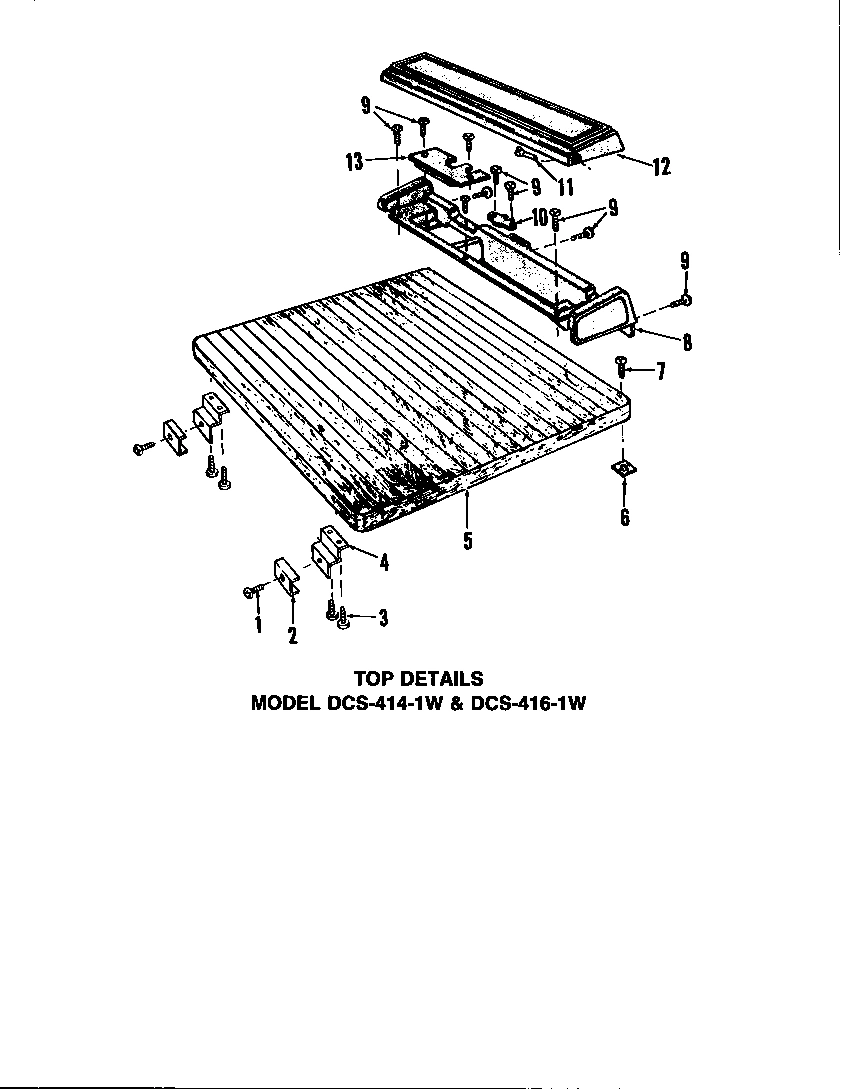

05 - TOP DETAILS

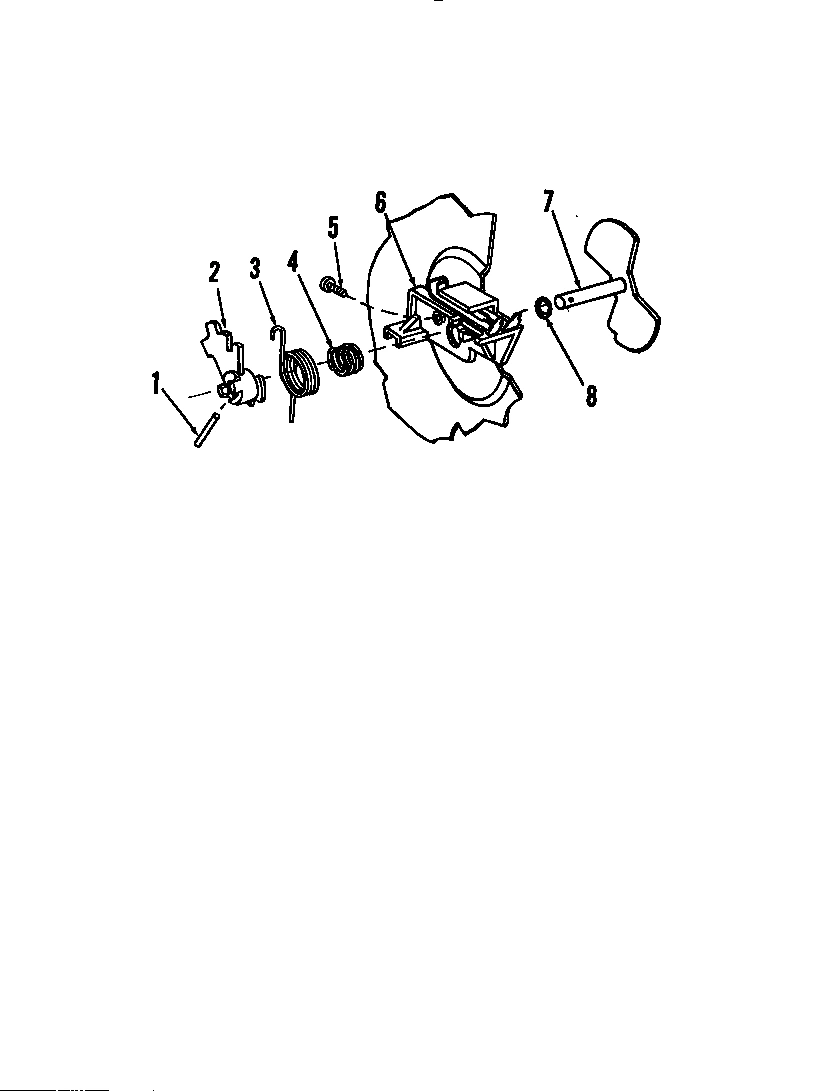

02 - DETERGENT CUP

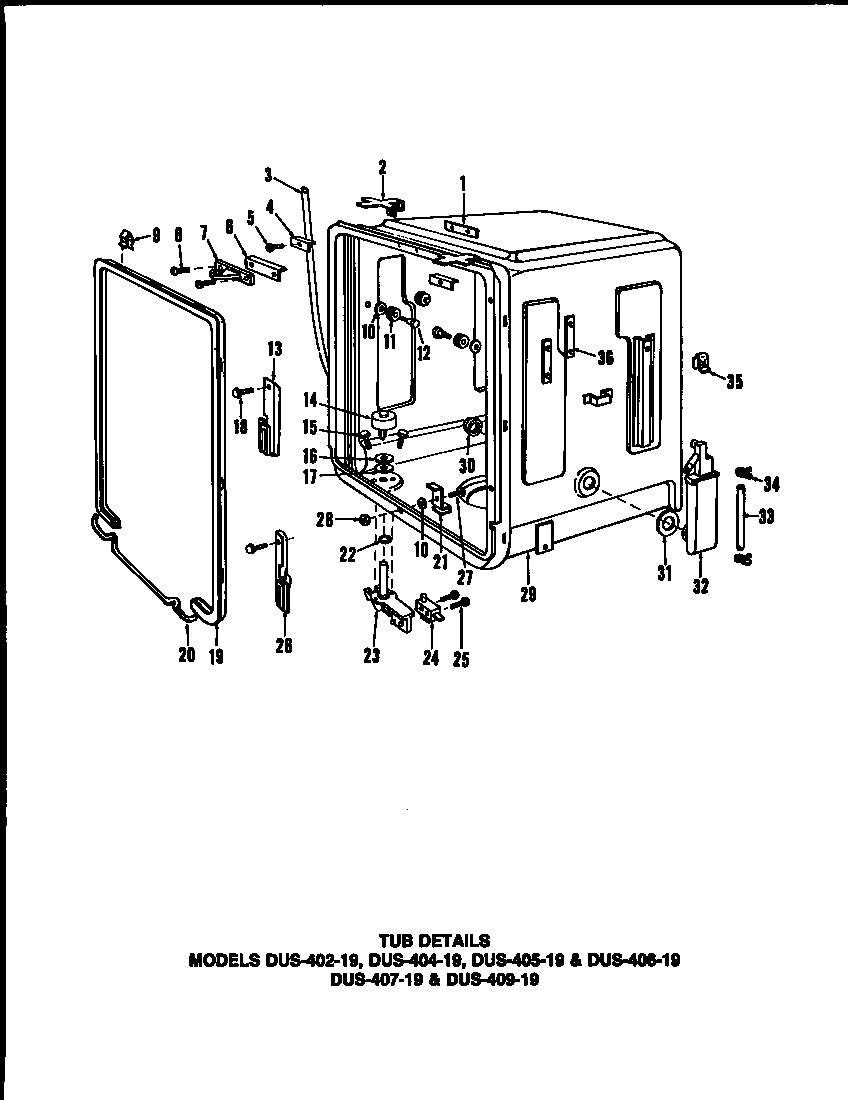

06 - TUB DETAILS
Common parts from model Whirlpool DUS-401-1W DISHWASHER
1
PUSHBUTTON WPL Y0807091 Contact Us For Availability
1
DOOR SPRING WPL Y0809360 Contact Us For Availability
1
SPIROL PIN WPL Y0808827 Contact Us For Availability
1
LATCH TAPPING PLATE WPL 0808868 Contact Us For Availability
2
SCREW WPL 0803311 Contact Us For Availability
2
KNOB WPL 0809356 Contact Us For Availability
2
CAM WPL Y0806566 Contact Us For Availability
2
CLIP WPL 0808289 Contact Us For Availability
3
LENS WPL 0809036 Contact Us For Availability
3
ARM ASSY COUNTERBALANCE R H WPL Y0805681 Contact Us For Availability
3
SPRING WPL Y0805227 Contact Us For Availability
3
DRAIN HOSE WPL Y0809112 Contact Us For Availability
4
SCREW WPL 0805324 Contact Us For Availability
4
SPRING PAD WPL 0805884 Contact Us For Availability
4
CLIP, SHIM WPL 0809199 Contact Us For Availability
4
SPRING, CAM COMPRESSION WPL 0806567 Contact Us For Availability
5
CONTROL PANEL WPL 0809357 Contact Us For Availability
5
SCREW WPL 0806976 Contact Us For Availability
6
CLAMP WPL Y0808442 Contact Us For Availability
6
BI-METAL ASSY. WPL Y0809072 Contact Us For Availability
6
SHIM WPL 0809214 Contact Us For Availability
7
LIGHT, ASSY. WPL 0809317 Contact Us For Availability
7
DOOR ASSY. WPL 0809052 Contact Us For Availability
7
LID, DISPENSER WPL Y0809028 Contact Us For Availability
7
STRIKE WPL Y0807015 Contact Us For Availability
8
TIMER WPL Y0809191 Contact Us For Availability
8
SCREW WPL Y0808749 Contact Us For Availability
8
``O`` RING WPL Y0806647 Contact Us For Availability
9
SCREW WPL 0809175 Contact Us For Availability
9
TIE WIRE WPL Y0809075 Contact Us For Availability
9
FASTENER GASKET WPL Y0805763 Contact Us For Availability
10
TERMINAL BOARD ASSY. WPL Y0808483 Contact Us For Availability
10
LATCH ASSEMBLY WPL Y0807016 Contact Us For Availability
10
WASHER, SEALING WPL 0809044 Contact Us For Availability
11
TIMER, TERMINAL HOUSING WPL 0809296 Contact Us For Availability
11
SWITCH COVER WPL 0807450 Contact Us For Availability
11
ROLLER WPL 0807180 Contact Us For Availability
12
TERMINAL, (PACK OF 25) WPL 0808333 Contact Us For Availability
12
SWITCH, DOOR LATCH WPL Y0807043 Contact Us For Availability
12
KIT, SCREW & WASHER WPL 0808564 Contact Us For Availability
13
GUIDE, COUNTERBALANCE, L.H. WPL Y0807470 Contact Us For Availability
14
SWITCH WPL Y0807281 Contact Us For Availability
14
SCREW WPL 0808618 Contact Us For Availability
14
FLOAT WPL Y0804630 Contact Us For Availability
15
BRACKET, SWITCH WPL 0809314 Contact Us For Availability
15
SUB 806893 LATCH KNOB WPL 0806398 Contact Us For Availability
15
SCREW WPL Y0807268 Contact Us For Availability
16
SCREW WPL 0807141 Contact Us For Availability
16
DOOR PANEL TRIM, RH WPL 0808990 Contact Us For Availability
16
RING WPL Y0808064 Contact Us For Availability
17
GASKET WPL Y0808063 Contact Us For Availability
18
TERMINAL, GROUNDING WPL 0807213 Contact Us For Availability
18
SCREW, No.10-24 X 5/8 WPL 0806539 Contact Us For Availability
19
ARM ASSY LH COUNTERBALANCE WPL 0805682 Contact Us For Availability
19
GASKET & WIRE ASSY WPL Y0809035 Contact Us For Availability
20
BAFFLE SEAL WPL Y0809025 Contact Us For Availability
20
GASKET, WIRE JUNCTION WPL 0809320 Contact Us For Availability
21
SPEEDNUT WPL 0809026 Contact Us For Availability
21
CLIP, GASKET WPL 0808115 Contact Us For Availability
22
DOOR PANEL, WHITE WPL 0807262 Contact Us For Availability
22
``0`` RING WPL Y0807759 Contact Us For Availability
23
DOOR & ACCESS PANEL INSERT,ALM WPL 0808908 Contact Us For Availability
23
DOOR & ACCESS PNL INSERTS HARV WPL 0808912 Contact Us For Availability
23
DOOR AND ACCESS PANEL INSERTS WPL 0808914 Contact Us For Availability
23
SUB 809859,FLOAT ASSY WPL Y0807677 Contact Us For Availability
24
FLOAT SWITCH WPL Y0807680 Contact Us For Availability
25
DOOR TRIM, BOTTOM WPL Y0807347 Contact Us For Availability
25
SCREW 4-40 X 5/8 LG HEX HD CAD WPL 0804594 Contact Us For Availability
26
GUIDE, COUNTERBALANCE, R.H. WPL Y0807471 Contact Us For Availability
27
ACCESS PANEL, WHITE WPL 0809108 Contact Us For Availability
28
TRIM, TOP, ACCESS PANEL WPL 0808346 Contact Us For Availability
28
USE M0281003 WPL 0803346 Contact Us For Availability
29
TRIM, ACC SIDE WPL 0808103 Contact Us For Availability
29
TUB & GASKET ASSY. WPL 0809257 Contact Us For Availability
30
ACCESS PANEL TRIM, BOTTOM WPL Y0808105 Contact Us For Availability
30
NUT PLASTIC WPL 0805669 Contact Us For Availability
31
USE M0217224 WPL Y0803416 Contact Us For Availability
31
WASHER WPL Y0803573 Contact Us For Availability
32
TRIM, ACC SIDE WPL 0808104 Contact Us For Availability
32
WATER INLET ASSY WPL Y0806470 Contact Us For Availability
33
DOOR PANEL TRIM, LH WPL 0808991 Contact Us For Availability
33
TUBE, INLET WPL 0807891 Contact Us For Availability
34
SCREW No.8 WPL 0808715 Contact Us For Availability
34
CLAMP WPL Y0807813 Contact Us For Availability
35
NUT, CAGE WPL 0806291 Contact Us For Availability
36
TWIN NUT ASSEM. WPL 0807038 Contact Us For Availability
× ![]()
