  • Whirlpool DUFM505WDB10 Parts List

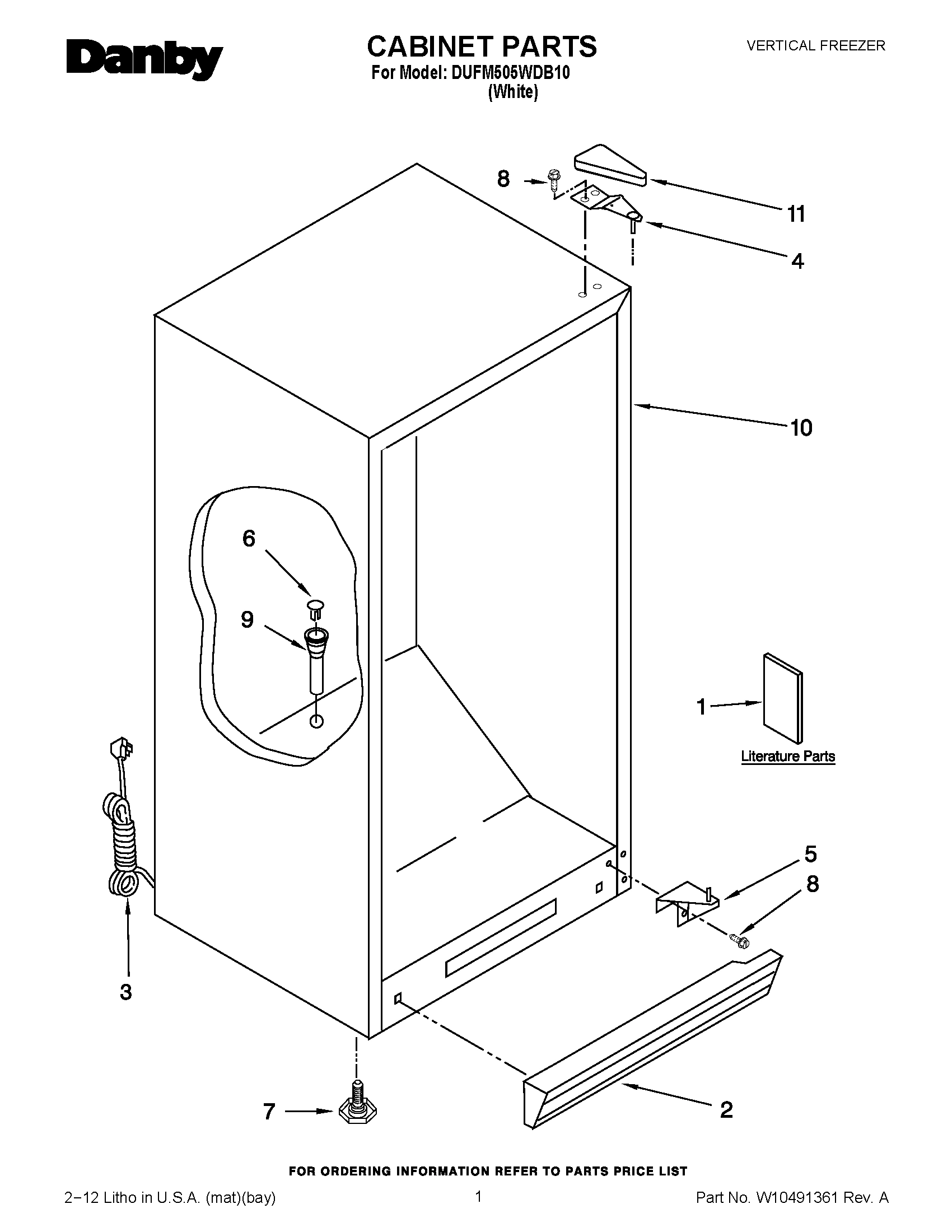

Model Whirlpool DUFM505WDB10 VERTICAL FREEZER – Common Parts & Diagrams

2
SCREW
SCREW WPL 324004091 Contact Us For Availability
View on Model
2
KNOB, CONTROL
KNOB, CONTROL WPL 382390001 Contact Us For Availability
View on Model
3
TEMP CONTROL
TEMP CONTROL WPL 483053001 Contact Us For Availability
View on Model
3
SCREW, COMPRESSOR MOUTING
SCREW, COMPRESSOR MOUTING WPL 380732014 Contact Us For Availability
View on Model
4
RAIL, DOOR (SHELF 5)
RAIL, DOOR (SHELF 5) WPL 465427001 Contact Us For Availability
View on Model
4
GROMMET
GROMMET WPL 132965 Contact Us For Availability
View on Model
5
HINGE, BOTTOM
HINGE, BOTTOM WPL 482693002 Contact Us For Availability
View on Model
5
COMPRESSOR
COMPRESSOR WPL 432812263 Contact Us For Availability
View on Model
6
DRAIN PLUG
DRAIN PLUG WPL 180860 Contact Us For Availability
View on Model
6
VENT
VENT WPL 324898007 Contact Us For Availability
View on Model
6
BASKET
BASKET WPL 460064002 Contact Us For Availability
View on Model
6
RELAY
RELAY WPL 335576002 Contact Us For Availability
View on Model
7
LEG, LEVELER
LEG, LEVELER WPL 382710001 Contact Us For Availability
View on Model
7
STOP, DOOR
STOP, DOOR WPL 281124001 Contact Us For Availability
View on Model
7
SWITCH, LIGHT
SWITCH, LIGHT WPL 232164001 Contact Us For Availability
View on Model
7
OVERLOAD
OVERLOAD WPL 234286019 Contact Us For Availability
View on Model
8
SCREW
SCREW WPL 180271103 Contact Us For Availability
View on Model
8
GASKET, DOOR
GASKET, DOOR WPL 465151002 Contact Us For Availability
View on Model
8
BULB, LIGHT
BULB, LIGHT WPL 134291002 Contact Us For Availability
View on Model
8
EVAPORATOR, TOP
EVAPORATOR, TOP WPL 482413008 Contact Us For Availability
View on Model
9
GROMMET, DRAIN
GROMMET, DRAIN WPL 281437002 Contact Us For Availability
View on Model
9
DOOR ASSEMBLY (INCLUDES INTERIOR DOOR LINER)
DOOR ASSEMBLY (INCLUDES INTERIOR DOOR LINER) WPL 482827036 Contact Us For Availability
View on Model
9
EVAPORATOR SHELF
EVAPORATOR SHELF WPL 482194009 Contact Us For Availability
View on Model
10
NAMEPLATE
NAMEPLATE WPL 335752001 Contact Us For Availability
View on Model
10
EVAPORATOR SHELF
EVAPORATOR SHELF WPL 482195009 Contact Us For Availability
View on Model
11
COVER, HINGE (WHITE)
COVER, HINGE (WHITE) WPL 380838003 Contact Us For Availability
View on Model
11
BUSHING, HANDLE
BUSHING, HANDLE WPL 365447001 Contact Us For Availability
View on Model
11
SHIELD, LIGHT
SHIELD, LIGHT WPL 382392001 Contact Us For Availability
View on Model
11
EVAPORATOR SHELF
EVAPORATOR SHELF WPL 482196004 Contact Us For Availability
View on Model
12
HANDLE ASSEMBLY
HANDLE ASSEMBLY WPL 382597002 Contact Us For Availability
View on Model
12
BOX, CONTROL
BOX, CONTROL WPL 482389002 Contact Us For Availability
View on Model
12
WASHER
WASHER WPL 380681133 Contact Us For Availability
View on Model
13
SCREW, EVAPORATOR MOUTING
SCREW, EVAPORATOR MOUTING WPL 324004109 Contact Us For Availability
View on Model
14
HEAT EXCHANGER
HEAT EXCHANGER WPL 282030005 Contact Us For Availability
View on Model
15
COVER
COVER WPL 434046011 Contact Us For Availability
View on Model
16
CAPACITOR
CAPACITOR WPL 335956013 Contact Us For Availability
View on Model
17
CLAMP
CLAMP WPL 180308101 Contact Us For Availability
View on Model
19
EVAPORATOR SHELF, BOTTOM
EVAPORATOR SHELF, BOTTOM WPL 482197008 Contact Us For Availability
View on Model
20
EVAPORATOR ASSY
EVAPORATOR ASSY WPL 482416003 Contact Us For Availability
View on Model
NI
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN WPL 799344 Contact Us For Availability
View on Model
NI
REFRIGERANT CHARGE (6.9 OZ. R-134A))
REFRIGERANT CHARGE (6.9 OZ. R-134A)) WPL NP Contact Us For Availability
View on Model
