Model Whirlpool DUFM505WDB10 VERTICAL FREEZER – Common Parts & Diagrams

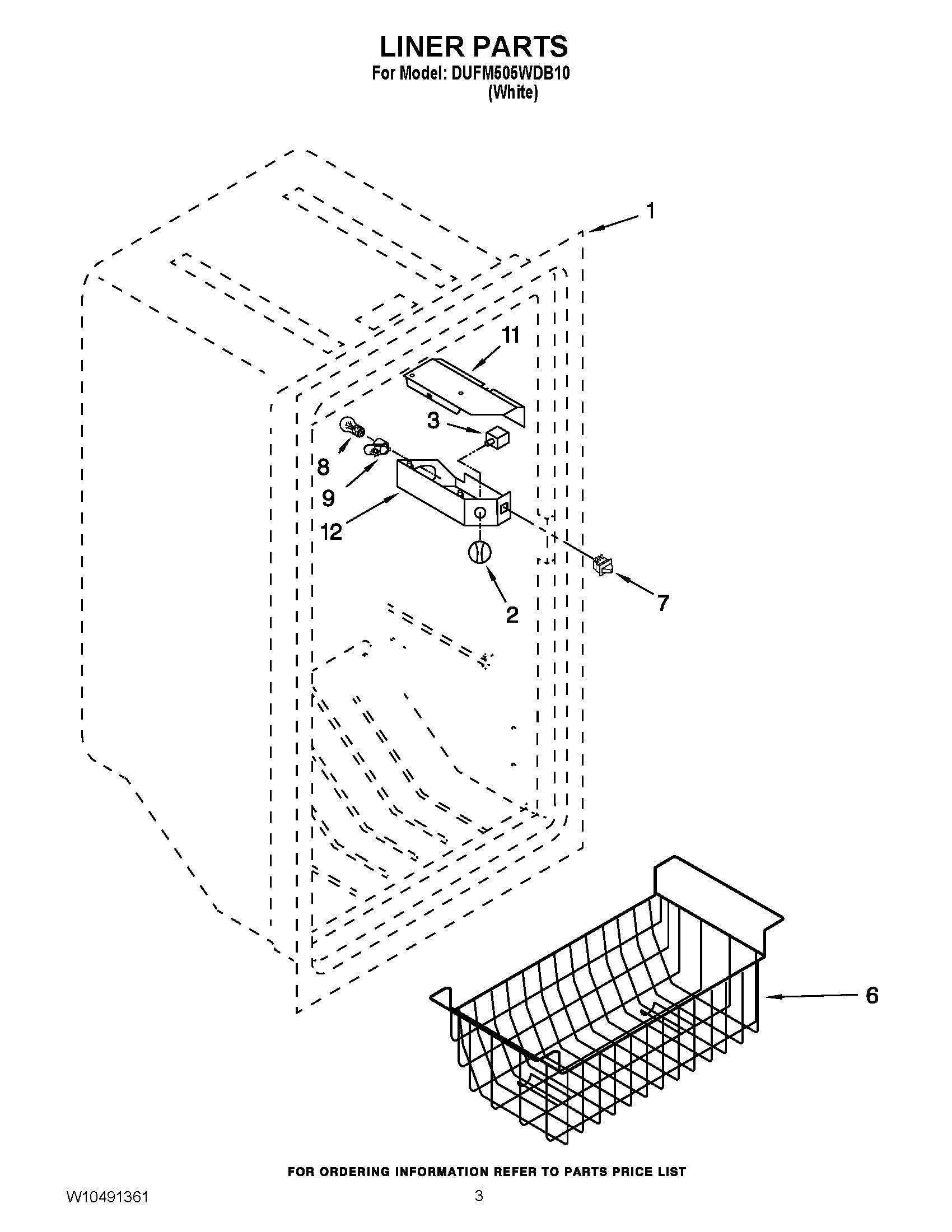

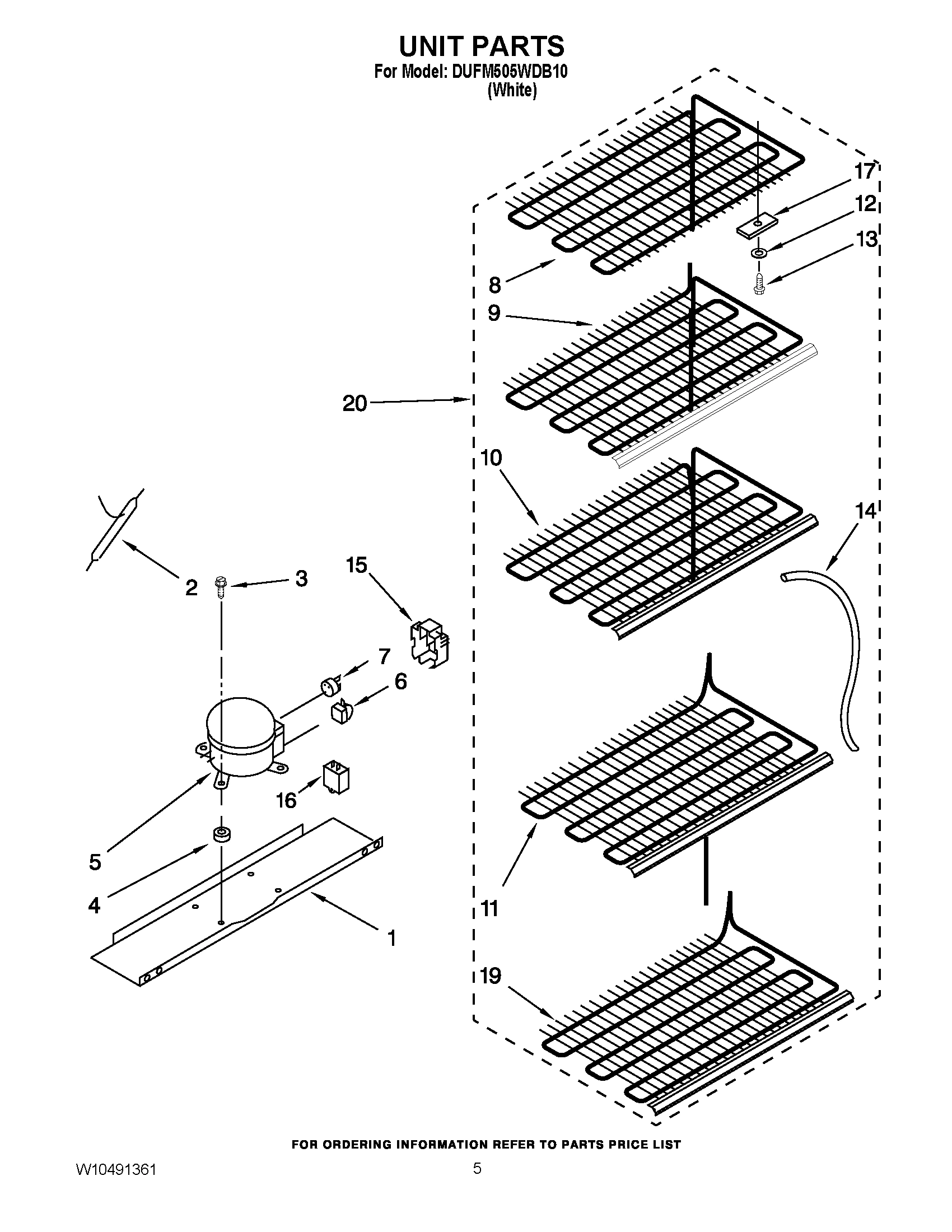

Common parts from model Whirlpool DUFM505WDB10 VERTICAL FREEZER
2
SCREW WPL 324004091 Contact Us For Availability
2
KNOB, CONTROL WPL 382390001 Contact Us For Availability
3
TEMP CONTROL WPL 483053001 Contact Us For Availability
3
SCREW, COMPRESSOR MOUTING WPL 380732014 Contact Us For Availability
4
RAIL, DOOR (SHELF 5) WPL 465427001 Contact Us For Availability
4
GROMMET WPL 132965 Contact Us For Availability
5
HINGE, BOTTOM WPL 482693002 Contact Us For Availability
5
COMPRESSOR WPL 432812263 Contact Us For Availability
6
DRAIN PLUG WPL 180860 Contact Us For Availability
6
VENT WPL 324898007 Contact Us For Availability
6
BASKET WPL 460064002 Contact Us For Availability
6
RELAY WPL 335576002 Contact Us For Availability
7
LEG, LEVELER WPL 382710001 Contact Us For Availability
7
STOP, DOOR WPL 281124001 Contact Us For Availability
7
SWITCH, LIGHT WPL 232164001 Contact Us For Availability
7
OVERLOAD WPL 234286019 Contact Us For Availability
8
SCREW WPL 180271103 Contact Us For Availability
8
GASKET, DOOR WPL 465151002 Contact Us For Availability
8
BULB, LIGHT WPL 134291002 Contact Us For Availability
8
EVAPORATOR, TOP WPL 482413008 Contact Us For Availability
9
GROMMET, DRAIN WPL 281437002 Contact Us For Availability
9
DOOR ASSEMBLY (INCLUDES INTERIOR DOOR LINER) WPL 482827036 Contact Us For Availability
9
EVAPORATOR SHELF WPL 482194009 Contact Us For Availability
10
NAMEPLATE WPL 335752001 Contact Us For Availability
10
EVAPORATOR SHELF WPL 482195009 Contact Us For Availability
11
COVER, HINGE (WHITE) WPL 380838003 Contact Us For Availability
11
BUSHING, HANDLE WPL 365447001 Contact Us For Availability
11
SHIELD, LIGHT WPL 382392001 Contact Us For Availability
11
EVAPORATOR SHELF WPL 482196004 Contact Us For Availability
12
HANDLE ASSEMBLY WPL 382597002 Contact Us For Availability
12
BOX, CONTROL WPL 482389002 Contact Us For Availability
12
WASHER WPL 380681133 Contact Us For Availability
13
SCREW, EVAPORATOR MOUTING WPL 324004109 Contact Us For Availability
14
HEAT EXCHANGER WPL 282030005 Contact Us For Availability
15
COVER WPL 434046011 Contact Us For Availability
16
CAPACITOR WPL 335956013 Contact Us For Availability
17
CLAMP WPL 180308101 Contact Us For Availability
19
EVAPORATOR SHELF, BOTTOM WPL 482197008 Contact Us For Availability
20
EVAPORATOR ASSY WPL 482416003 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
NI
REFRIGERANT CHARGE (6.9 OZ. R-134A)) WPL NP Contact Us For Availability
× ![]()
