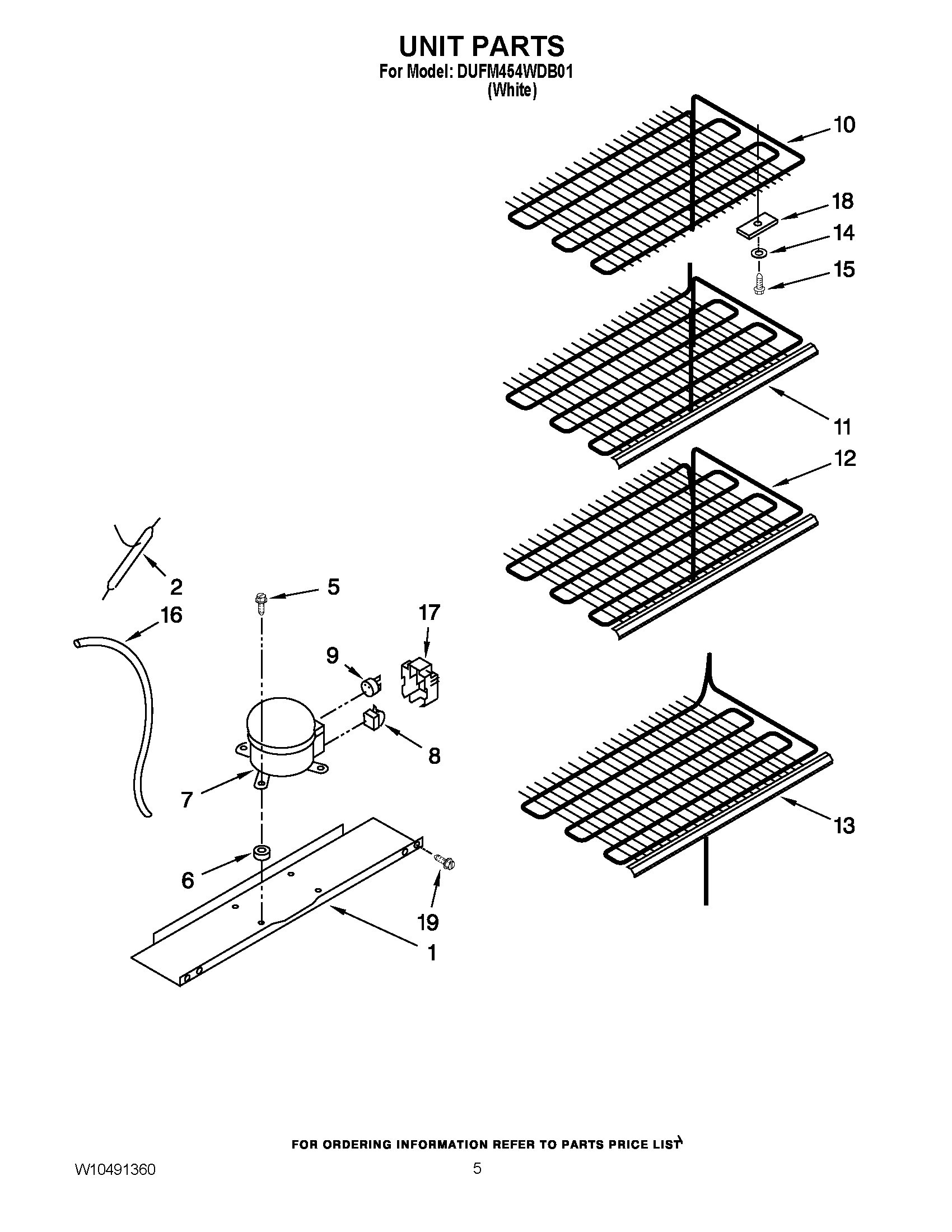

Model Whirlpool DUFM454WDB01 VERTICAL FREEZER – Common Parts & Diagrams

1
LINER (NOT A SERVICEABLE PART)
LINER (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability
View on Model
1
OWNERS MANUAL
OWNERS MANUAL WPL W10326829 Contact Us For Availability
View on Model
1
ENERGY LABEL/TAG
ENERGY LABEL/TAG WPL W10326833 Contact Us For Availability
View on Model
2
GRILLE
GRILLE WPL 460461005 Contact Us For Availability
View on Model
2
PLUG-HANDLE
PLUG-HANDLE WPL 160121001 Contact Us For Availability
View on Model
2
KNOB, CONTROL
KNOB, CONTROL WPL 382390001 Contact Us For Availability
View on Model
3
HINGE, TOP
HINGE, TOP WPL 281016105 Contact Us For Availability
View on Model
3
RAIL, DOOR (5)
RAIL, DOOR (5) WPL 465427001 Contact Us For Availability
View on Model
3
THERMOSTAT
THERMOSTAT WPL 483053001 Contact Us For Availability
View on Model
4
HINGE, BOTTOM
HINGE, BOTTOM WPL 482693002 Contact Us For Availability
View on Model
4
VENT PLUG
VENT PLUG WPL 324898007 Contact Us For Availability
View on Model
5
DRAIN PLUG
DRAIN PLUG WPL 180860 Contact Us For Availability
View on Model
5
GASKET, DOOR
GASKET, DOOR WPL 465151601 Contact Us For Availability
View on Model
6
LEG, LEVELER
LEG, LEVELER WPL 382710001 Contact Us For Availability
View on Model
6
DOOR ASSEMBLY (INCLUDES INTERIOR LINER)
DOOR ASSEMBLY (INCLUDES INTERIOR LINER) WPL W10340674 Contact Us For Availability
View on Model
6
BASKET
BASKET WPL 460064002 Contact Us For Availability
View on Model
7
SCREW
SCREW WPL 180271103 Contact Us For Availability
View on Model
7
NAMEPLATE
NAMEPLATE WPL 335752001 Contact Us For Availability
View on Model
7
SWITCH, LIGHT
SWITCH, LIGHT WPL 232164001 Contact Us For Availability
View on Model
8
GROMMET, DRAIN
GROMMET, DRAIN WPL 281437002 Contact Us For Availability
View on Model
8
STOP, DOOR (BOTTOM ) (NATURAL)
STOP, DOOR (BOTTOM ) (NATURAL) WPL 281124001 Contact Us For Availability
View on Model
8
LIGHT BULB
LIGHT BULB WPL 134291002 Contact Us For Availability
View on Model
9
CORD, POWER
CORD, POWER WPL 482399001 Contact Us For Availability
View on Model
9
BUSHING, HANDLE
BUSHING, HANDLE WPL 365447001 Contact Us For Availability
View on Model
10
EVAPORATOR TOP
EVAPORATOR TOP WPL 482413007 Contact Us For Availability
View on Model
10
SCREW
SCREW WPL 324004091 Contact Us For Availability
View on Model
10
SHIELD
SHIELD WPL 382392001 Contact Us For Availability
View on Model
11
EVAPORATOR SHELF
EVAPORATOR SHELF WPL 482194007 Contact Us For Availability
View on Model
11
COVER, HINGE
COVER, HINGE WPL 380838003 Contact Us For Availability
View on Model
11
HANDLE ASSEMBLY
HANDLE ASSEMBLY WPL 382597002 Contact Us For Availability
View on Model
11
BOX, CONTROL
BOX, CONTROL WPL 482389002 Contact Us For Availability
View on Model
12
EVAPORATOR SHELF
EVAPORATOR SHELF WPL 482195007 Contact Us For Availability
View on Model
13
EVAPORATOR BOTT
EVAPORATOR BOTT WPL 482197006 Contact Us For Availability
View on Model
14
WASHER
WASHER WPL 380681133 Contact Us For Availability
View on Model
15
SCREW, EVAPORATOR MOUNTING
SCREW, EVAPORATOR MOUNTING WPL 324004109 Contact Us For Availability
View on Model
16
HEAT EXCHANGER
HEAT EXCHANGER WPL 282030005 Contact Us For Availability
View on Model
17
COVER
COVER WPL 335171003 Contact Us For Availability
View on Model
18
CLAMP
CLAMP WPL 180308101 Contact Us For Availability
View on Model
19
SCREW
SCREW WPL 324838048 Contact Us For Availability
View on Model
NI
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN WPL 799344 Contact Us For Availability
View on Model
